Repaint: stencils or decals?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Repaint: stencils or decals?

Old 09-23-20, 03:42 PM
  #1
TLaurent
Member
Thread Starter

Join Date: Aug 2020
Location: Saint Paul, MN & Clear Lake, IA
Posts: 43

Bikes: CBT Italia, 73 Peugeot, Gary Fisher Joshua, John Deere custom hybrid, K2 EasyRider, Yakota tandem, Pinarello Montello, Colnago Mexico, Gitane Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 36 Times in 14 Posts
Repaint: stencils or decals?

Hi Friends!

I am building a mostly period correct Italian road bike: a late 80s or early 90s Pinarello Montello. The frame color from the factory was originally chromovelato Blue Record with decals but the previous owner repainted with a basic blue in all areas except the section between the seat stays where the rear brake is attached, so I have a reference for true color. I bought it unfinished and without any hardware, so it’s a ground up restoration. I have learned that Pinarello decals are known to break down easily so am thinking that some of the larger letters could be painted on the frame instead with the idea that it would be an improvement even though it was not done this way originally. What are your thoughts on painted letters instead of decals?

Thanks!

Last edited by TLaurent; 09-23-20 at 06:31 PM.
TLaurent is offline
Old 09-23-20, 03:51 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,384
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2384 Post(s)
Liked 1,303 Times in 984 Posts
reference
Velocals
Cyclomondo

They are vinyl - there are options- possibly even they could cut a paint mask.
Keith Anderson used to get vinyl paint masks cut, the results were terrific.
He is out of the business.
A quality vector art file to cut the masks is the basis of success.
repechage is offline
Likes For repechage:
Old 09-23-20, 06:08 PM
  #3
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,242

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1231 Post(s)
Likes: 0
Liked 1,279 Times in 735 Posts
Check out Cyclomondo, on Ebay, for decals. The product offered is great, very thin vinyl stickers that are reasonably easy to apply. Once applied, just shoot a few coats of clear top coat over them and, presto, Bob's your uncle. The decals on this frame set are true, water slide decals and fragile, to say the least. Just yesterday, I shot four coats of clear over the decals. Tomorrow, I will rub the paint out, hoping for a nice glossy finish...

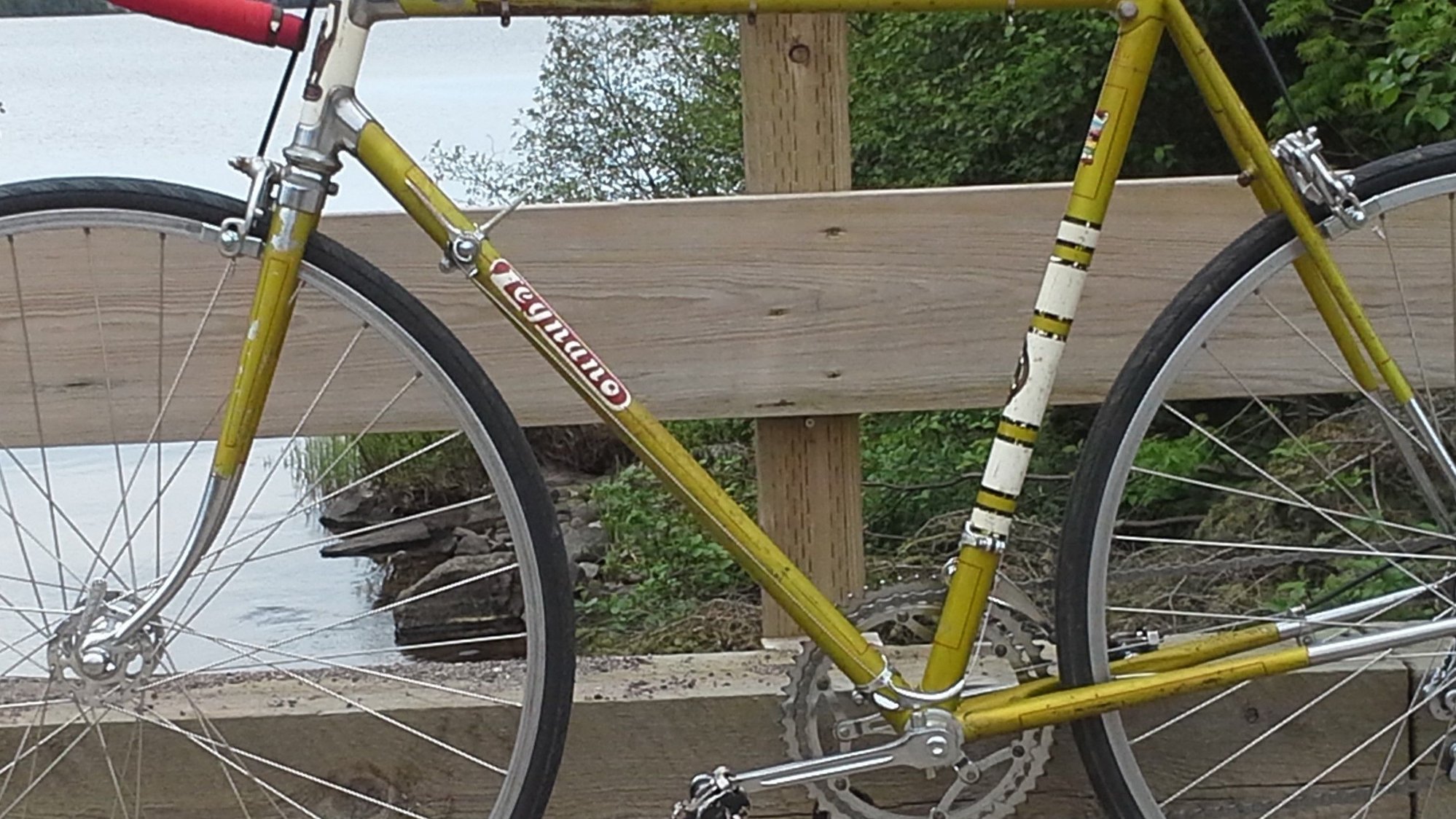

Stencils were used on some bikes, such as my Legnano. Making a proper stencil, for the down tube art, is one of the things holding me back from painting my Legnano...
__________________
"98% of the bikes I buy are projects".

Last edited by randyjawa; 09-23-20 at 06:13 PM.
randyjawa is offline
Likes For randyjawa:
Old 09-23-20, 06:29 PM
  #4
TLaurent
Member
Thread Starter

Join Date: Aug 2020
Location: Saint Paul, MN & Clear Lake, IA
Posts: 43

Bikes: CBT Italia, 73 Peugeot, Gary Fisher Joshua, John Deere custom hybrid, K2 EasyRider, Yakota tandem, Pinarello Montello, Colnago Mexico, Gitane Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 36 Times in 14 Posts
Thx repechage ! randyjawa , I understand about holding back on repainting the Legnano. I like the look of your bike and if my Pinarello was decently original, I would leave it as-is. I will check out Cyclomondo. I ordered a decal set that I can either apply before the top coat or use some for the stencils.

Last edited by TLaurent; 09-23-20 at 06:41 PM.
TLaurent is offline
Old 09-23-20, 07:43 PM
  #5
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,815
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 801 Post(s)
Liked 1,103 Times in 573 Posts
Originally Posted by TLaurent View Post
What are your thoughts on painted letters instead of decals?
Has to be decals. Here's my '85 Montello with Cyclomondo decals:



Interested in your Montello. When you get to ten posts don't forget to Show us your Pinarello
P!N20 is offline
Likes For P!N20:
Old 09-23-20, 08:08 PM
  #6
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,886

Bikes: Schwinn Paramounts, Patelli Professional, Othon Ochsner, Masi, Faggin

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 795 Post(s)
Liked 788 Times in 556 Posts
Originally Posted by randyjawa View Post
Check out Cyclomondo, on Ebay, for decals. The product offered is great, very thin vinyl stickers that are reasonably easy to apply. Once applied, just shoot a few coats of clear top coat over them and, presto, Bob's your uncle. The decals on this frame set are true, water slide decals and fragile, to say the least. Just yesterday, I shot four coats of clear over the decals. Tomorrow, I will rub the paint out, hoping for a nice glossy finish...




Stencils were used on some bikes, such as my Legnano. Making a proper stencil, for the down tube art, is one of the things holding me back from painting my Legnano...
Randy and all,
I use Greg's decals for most of my restorations. But please be careful about the type of clear coat used. A lacquer coat applied heavy for the first coat can cut into the vinyl and cause something that looks like a bleed of the underlying coat of paint into the decal set. I have found that for clear coat it takes about three very light passes of the clear coat so it can set before it does cause the bleed.
I got a set of SLX decals from overseas that washed off with a light coat of clear forcing me to look very carefully at the person selling the decals. Greg's work is pretty darned good and are exact replicas of the originals. Smiles, MH
Mad Honk is offline
Likes For Mad Honk:
Old 09-23-20, 08:31 PM
  #7
obuckler
Senior Member

Join Date: Oct 2013
Location: Dallas
Posts: 326

Bikes: 71 Lygie—72 Raleigh Grand Prix—76 Raleigh Super Course—76 Bruce Gordon—74 Raleigh International(2)—2005 Specialized Roubaix Pro

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 109 Times in 53 Posts
I would only recommend stenciling if that is a skill set you already have. I have an art background in all forms of traditional media so it worked out fine and a lot of fun also. You actually use a “frisket” material. It did take me two attempts to cut a good mask. The last photo is before a final gloss clear.



obuckler is offline
Likes For obuckler:
Old 09-24-20, 12:43 AM
  #8
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,242

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1231 Post(s)
Likes: 0
Liked 1,279 Times in 735 Posts
I would only recommend stenciling if that is a skill set you already have. I have an art background in all forms of traditional media so it worked out fine and a lot of fun also. You actually use a “frisket” material. It did take me two attempts to cut a good mask. The last photo is before a final gloss clear.
I have given thought to using "fiisket" material also but don't know how to cut out a stencil and get the two colors (white and red) applied.

Would it be too much to ask for your help in showing me (us) how to make a stencil for my Legnano? I will do the work, once I figure out how to cut the stencil...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 09-24-20, 03:57 AM
  #9
old_dreams
Senior Member

old_dreams's Avatar

Join Date: Nov 2009
Location: Ireland
Posts: 319
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 11 Times in 7 Posts
This guy used a signwriter with pretty terrific results on his Montello. May not be an option for you if you are going for a full respray.

Pinarello Montello : Aqua Blue Cromovelato - final on page 4 | Retrobike

old_dreams is offline
Likes For old_dreams:
Old 09-24-20, 07:00 AM
  #10
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,772

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 549 Post(s)
Tagged: 0 Thread(s)
Quoted: 1863 Post(s)
Liked 390 Times in 257 Posts
If you're just doing plain white letters (which is probably what your Pinarello had, like the photo above) then I'd think a stencil is the way to go. Decals would probably be easier.
__________________
www.rhmsaddles.com.
rhm is offline
Likes For rhm:
Old 09-24-20, 10:46 AM
  #11
TLaurent
Member
Thread Starter

Join Date: Aug 2020
Location: Saint Paul, MN & Clear Lake, IA
Posts: 43

Bikes: CBT Italia, 73 Peugeot, Gary Fisher Joshua, John Deere custom hybrid, K2 EasyRider, Yakota tandem, Pinarello Montello, Colnago Mexico, Gitane Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 36 Times in 14 Posts
P!N20 , thanks for the honest opinion. Yours is a great example. I am getting close to eligibility for posting pics.
TLaurent is offline
Old 09-24-20, 10:47 AM
  #12
obuckler
Senior Member

Join Date: Oct 2013
Location: Dallas
Posts: 326

Bikes: 71 Lygie—72 Raleigh Grand Prix—76 Raleigh Super Course—76 Bruce Gordon—74 Raleigh International(2)—2005 Specialized Roubaix Pro

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 109 Times in 53 Posts
Originally Posted by randyjawa View Post
I have given thought to using "fiisket" material also but don't know how to cut out a stencil and get the two colors (white and red) applied.

Would it be too much to ask for your help in showing me (us) how to make a stencil for my Legnano? I will do the work, once I figure out how to cut the stencil...

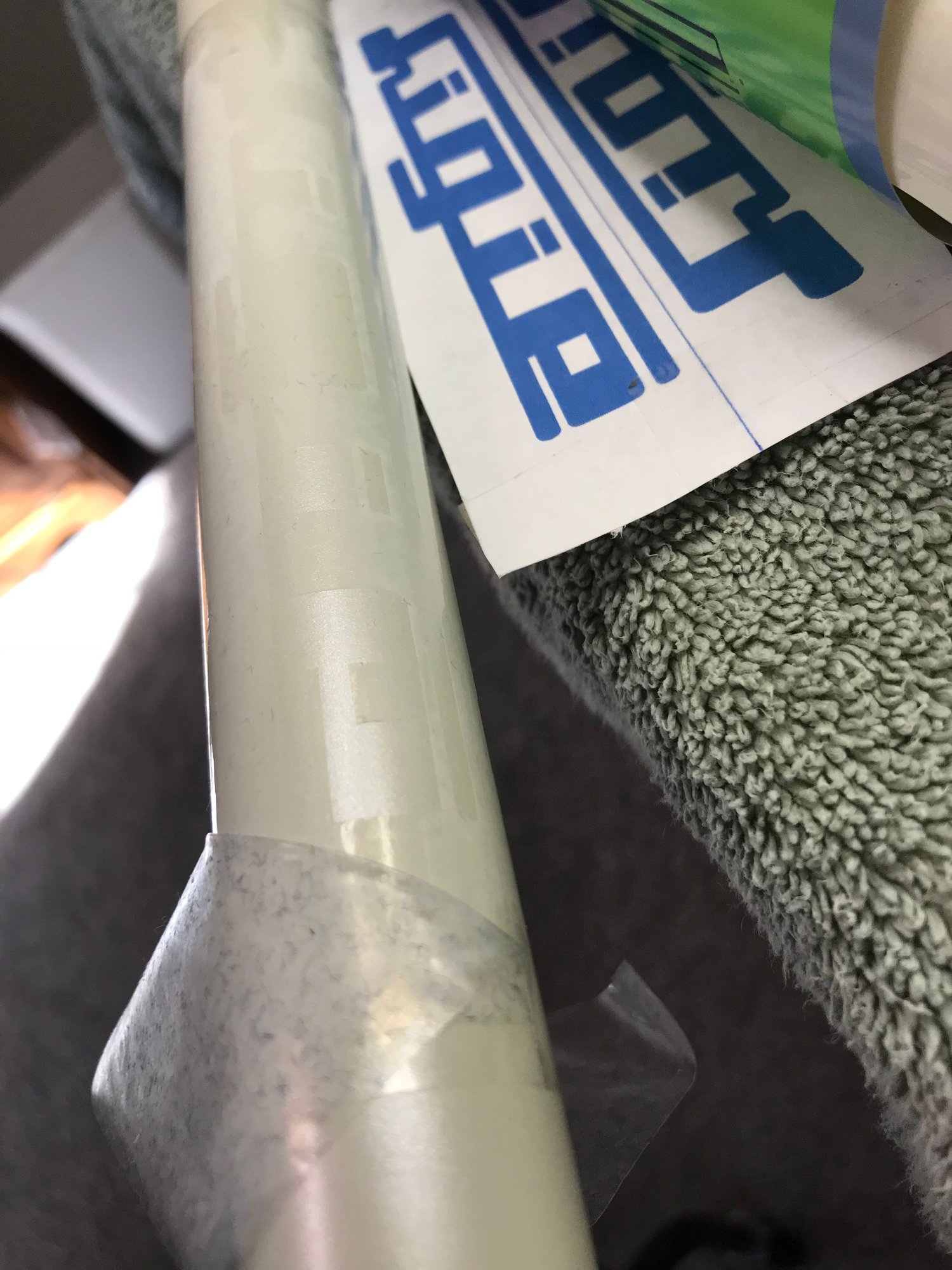

for two color you need two stencils and shoot one color at a time. Layer them (last top color over the first color). The problem is hand cutting the stencil. The letterforms need to be reasonably simple to cut it by hand. A sign maker could cut you a mask IF you can provide them a vector graphics file but my thoughts on that are if you go that far just do decals. Plus I no longer have access to computer drawing software.

I did create a bitmap image (in Powepoint) for the Lygie dwntube logo to lay under my frisket to hand cut over (with a sharp exacto knife both freehand on curves and with straight edge guides on the horizontals and verticals.

and a note on using the frisket: once you cut the negative image out of your mask, you need to put a whole new piece of frisket over the top—so that when you want to apply the mask to the frame and you peel off the bottom carrier material (usually a translucent waxy paper) to expose the adhesive under mask the whole thing will hold together. This new top piece is essentially a new carrier. And that new carrier may need to have its adhesive defeated just a bit so that when you pull it up it doesn’t also pull up your mask.

hope that made sense. If you look at my first photo it will show this. And if you look closely you will see small threads in my top carrier which is from me patting that adhesive against my clothes to reduce

or defeat its stickiness.
obuckler is offline
Likes For obuckler:
Old 09-24-20, 11:13 AM
  #13
fliplap
Senior Member

Join Date: Nov 2013
Posts: 166
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 199 Times in 69 Posts
Originally Posted by old_dreams View Post
This guy used a signwriter with pretty terrific results on his Montello. May not be an option for you if you are going for a full respray.

Pinarello Montello : Aqua Blue Cromovelato - final on page 4 | Retrobike

I bet the way the decals and clear coat failed made that look so good. The lifted clear created a crisp line for the paint to flow against. Even and accurate slab serif lettering on a small, round surface is challenging.
fliplap is offline
Likes For fliplap:
Old 09-24-20, 09:52 PM
  #14
TLaurent
Member
Thread Starter

Join Date: Aug 2020
Location: Saint Paul, MN & Clear Lake, IA
Posts: 43

Bikes: CBT Italia, 73 Peugeot, Gary Fisher Joshua, John Deere custom hybrid, K2 EasyRider, Yakota tandem, Pinarello Montello, Colnago Mexico, Gitane Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 36 Times in 14 Posts
Can I just say WOW at the amazing responses and examples of dealing with the question of restoring a vintage bike frame to professional quality? Bike Forum is the internet at its finest. Grateful thanks to fliplap obuckler rhm old_dreams randyjawa Mad Honk old_dreams repechage , and of course P!N20 who never fails to offer sage advice. This is post #9 , so pics coming soon!
TLaurent is offline
Likes For TLaurent:
