3mm gap between the crank arm and chain stay: too little?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

3mm gap between the crank arm and chain stay: too little?

Old 09-24-20, 09:40 PM
  #1
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 51 Times in 32 Posts
3mm gap between the crank arm and chain stay: too little?

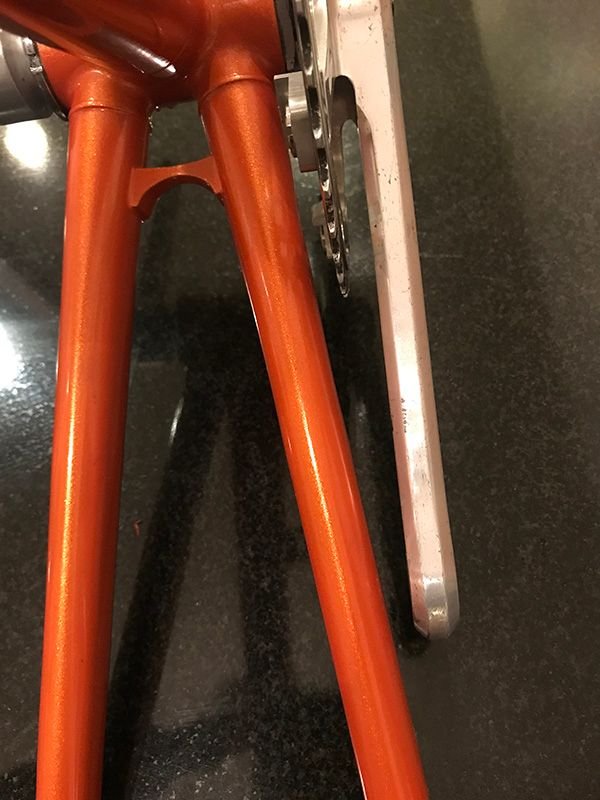

just dry-assembled a single speed setup. chainline seems fine, straight. but the distance between the chain stay & crank arm seems too tight.
drive side is fine, well with about 5.5mm—where they encounter closest—but the non-drive side is like about 3Īmm. it seems rolling fine, just wondering if 3mm is 'too close' ish too tight, when some kind of distortion happens when ride. before trying a bit longer spindle, would like to collect your insights, what's the limit here.

fyi, the spindle is DA 109mm pista, symmetrical. what i suspect is that the non drive side arm has slightly more stretched taper as i see less room between the BB cup & the arm joint. if 3mm becomes a prob, i can simply source 112 - 113mm spindle, opening up a couple more mm on both sides.


orangeology is offline
Old 09-24-20, 09:43 PM
  #2
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,890
Mentioned: 366 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,526 Times in 1,228 Posts
If that’s the clearance on a dry fit, i.e., without tightening the crank bolt, you’re too tight. If the bolt is already cranked down, I could live with that just fine.
nlerner is offline
Old 09-24-20, 10:27 PM
  #3
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 51 Times in 32 Posts
Originally Posted by nlerner View Post
If thatís the clearance on a dry fit, i.e., without tightening the crank bolt, youíre too tight. If the bolt is already cranked down, I could live with that just fine.
both bolts are totally cranked down.
orangeology is offline
Old 09-24-20, 10:39 PM
  #4
WolfgangVerne
Senior Member

Join Date: Jun 2015
Location: San Diego, CA
Posts: 289
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 40 Times in 19 Posts
Agreed, I wouldn't have an issue with that clearance either.
WolfgangVerne is online now
Likes For WolfgangVerne:
Old 09-25-20, 01:48 AM
  #5
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 4,000

Bikes: 1985 Trek 620 - 1982 Trek 728 - 1989 Trek 420 - 2008 Trek 1.5 - 1985 Fuji del Rey

Mentioned: 204 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 1,104 Times in 608 Posts
You're good to go. Ride and enjoy!
RiddleOfSteel is offline
Likes For RiddleOfSteel:
Old 09-25-20, 02:03 AM
  #6
cjenrick
Senior Member

Join Date: May 2020
Posts: 335
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 91 Times in 68 Posts
just in case you might want to put down a couple of turns of black tape or cloth tape, take it up a steep hill, get on the gas and see if you scrape the tape,
cjenrick is offline
Old 09-25-20, 03:51 AM
  #7
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,715

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1392 Post(s)
Liked 303 Times in 244 Posts
Originally Posted by cjenrick View Post
just in case you might want to put down a couple of turns of black tape or cloth tape, take it up a steep hill, get on the gas and see if you scrape the tape,
Yes, I agree! It would be ok if there's no lateral flex in the chainstays, but, do you really know?

Does the chainset need a DA spindle? If you could find something not just with more spindle length but a little longer on the non-drive side it would be better insurance. Bring both sides up to maybe 6 mm (ľ inch) if you can. Spindle 6 mm longer but on the drive side only 2 mm longer. I don't know what kind of spindle will get you these dimensions. This is where consulting a Sutherland's handbook would be useful.

If you're using a Campy Record Pista chainset and have the Campy Record Pista BB, you get even L/R spacing and very low Q.
Road Fan is offline
Old 09-25-20, 04:27 PM
  #8
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 51 Times in 32 Posts
Originally Posted by Road Fan View Post
Yes, I agree! It would be ok if there's no lateral flex in the chainstays, but, do you really know?

Does the chainset need a DA spindle? If you could find something not just with more spindle length but a little longer on the non-drive side it would be better insurance. Bring both sides up to maybe 6 mm (ľ inch) if you can. Spindle 6 mm longer but on the drive side only 2 mm longer. I don't know what kind of spindle will get you these dimensions. This is where consulting a Sutherland's handbook would be useful.

If you're using a Campy Record Pista chainset and have the Campy Record Pista BB, you get even L/R spacing and very low Q.
it's a DA7400 NJS Pista BB + Campy Strada (road) cranks combo, and yes. it has to be a DA spindle. the bearing interface for early DAs are kinda proprietary, not interchangeable*. ITA pista spindle is 109mm, but the road spindle in 113mm is readily available if needed. Campy pista is not a bad idea, but there possibly can be some complications. early DA spindles have JIS-ish square tapers, thicker/shorter than Campies. while even spacing can be achieved, good possibility of the arms' too close to the BB due to thinner, longer sq tapers.

*early DA stuffs are, understandably, stupid. it's like they tried too hard not to copy/resemble the dominating marque, Campy. unique and thoughtful same time almost obsoletely strange... IMO.
orangeology is offline
Old 09-25-20, 05:48 PM
  #9
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 731
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 301 Post(s)
Liked 393 Times in 195 Posts
I would put your intended pedals and shoes on it and check for heel strike
__________________
droppedandlost is offline
Likes For droppedandlost:
Old 09-25-20, 06:05 PM
  #10
ofajen
Cheerfully low end

ofajen's Avatar

Join Date: Jun 2020
Posts: 1,142
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked 511 Times in 345 Posts
Iíd say no worries. I put road cranks on my RockHopper to go 1x and reduce Q-factor and I have maybe 1mm clearance on the non-drive side and have ridden many thousands of miles without a problem.

I should perhaps add... when I undo the U-brake straddle to pull the wheel, the brake arms block the crank arms, but it would take a fair amount of chain stay clearance to prevent that, and itís pretty much inconsequential.

Otto

Last edited by ofajen; 09-25-20 at 07:37 PM.
ofajen is offline
Likes For ofajen:
Old 09-25-20, 09:11 PM
  #11
orangeology
category ii hoarder
Thread Starter

orangeology's Avatar

Join Date: Aug 2011
Location: NYC+NNJ
Posts: 1,316

Bikes: i don't have a bike. a few frames, forks and some parts. that's all

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 51 Times in 32 Posts
thanks for all the inputs, folks. at this moment, i've decided not to worry about it. a few bits still incoming, almost there. can't wait to ride the heck of it...
orangeology is offline
Old 09-26-20, 08:30 AM
  #12
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,454

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Liked 444 Times in 219 Posts
With those cranks, I doubt you'd cause them to flex into the frame. Now if you're running some NR-knockoff Saavadera cranks, then yeah, it would probably be kissing the chainstays.
Dylansbob is offline
Old 09-26-20, 11:23 AM
  #13
cjenrick
Senior Member

Join Date: May 2020
Posts: 335
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 130 Post(s)
Liked 91 Times in 68 Posts
when you climb a steep hill out of the saddle, the rear stays will flex.

this is what shifts your real derailleur on thin frame or Vitus type bikes.

in this case, you would be pulling the stays to the right, (chain on the right) which means nothing to worry about on that left hand crank.
cjenrick is offline
Old 09-28-20, 10:31 AM
  #14
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,471
Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Liked 581 Times in 268 Posts
I thought I posted this last night, but I'm not seeing it now, so here goes again. Apologies if this is somehow a dupe.

If I'm seeing your photos correctly, I'd be more concerned about the drive-side clearance between the chainstay/bb shell and the inner chainring ledges and the back of the outer chainring bolt. From the photo it looks like you've maybe only got 1-2mm clearance there. Is it really that close?

Might be I'm just seeing it wrong, might be shadows, camera angle weirdness, "fork is bent" lens distortion/weirdness, or whatevs, but it looks very, very tight to me.

All's you'd need would be a bit of flex, a little bb slop, maybe that Ital fixed cup loosening just a hair, and you're maybe shaving paint, or worse...
__________________
Fuggedaboutit!
pcb is offline
Old 10-01-20, 11:24 AM
  #15
RobbieTunes
Senior Member

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,376 Times in 889 Posts
Originally Posted by droppedandlost View Post
I would put your intended pedals and shoes on it and check for heel strike
+1, and the clearance between your foot (or the pedal) and the chain.
I have this problem once in a while, on a specific frame with that type of clearance.
The R inner heel of the shoe doesn't noticeably strike the chain, but ends up greasy after a ride.
I don't remember to check while riding, and maybe I don't really want to know.
I do have extenders for the pedal spindle if it worries me.
RobbieTunes is offline
