Browning find - Is this frame any Good?

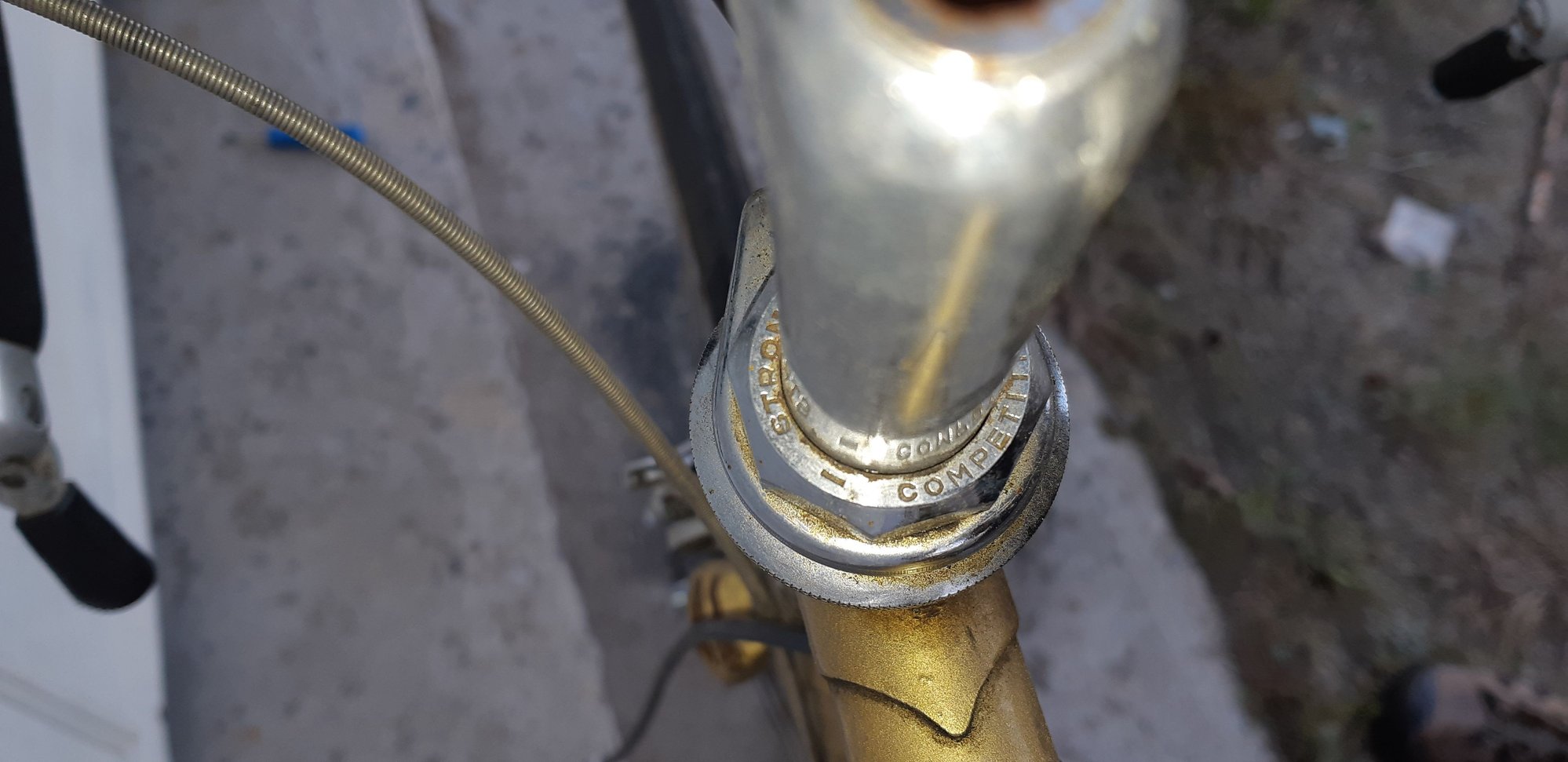

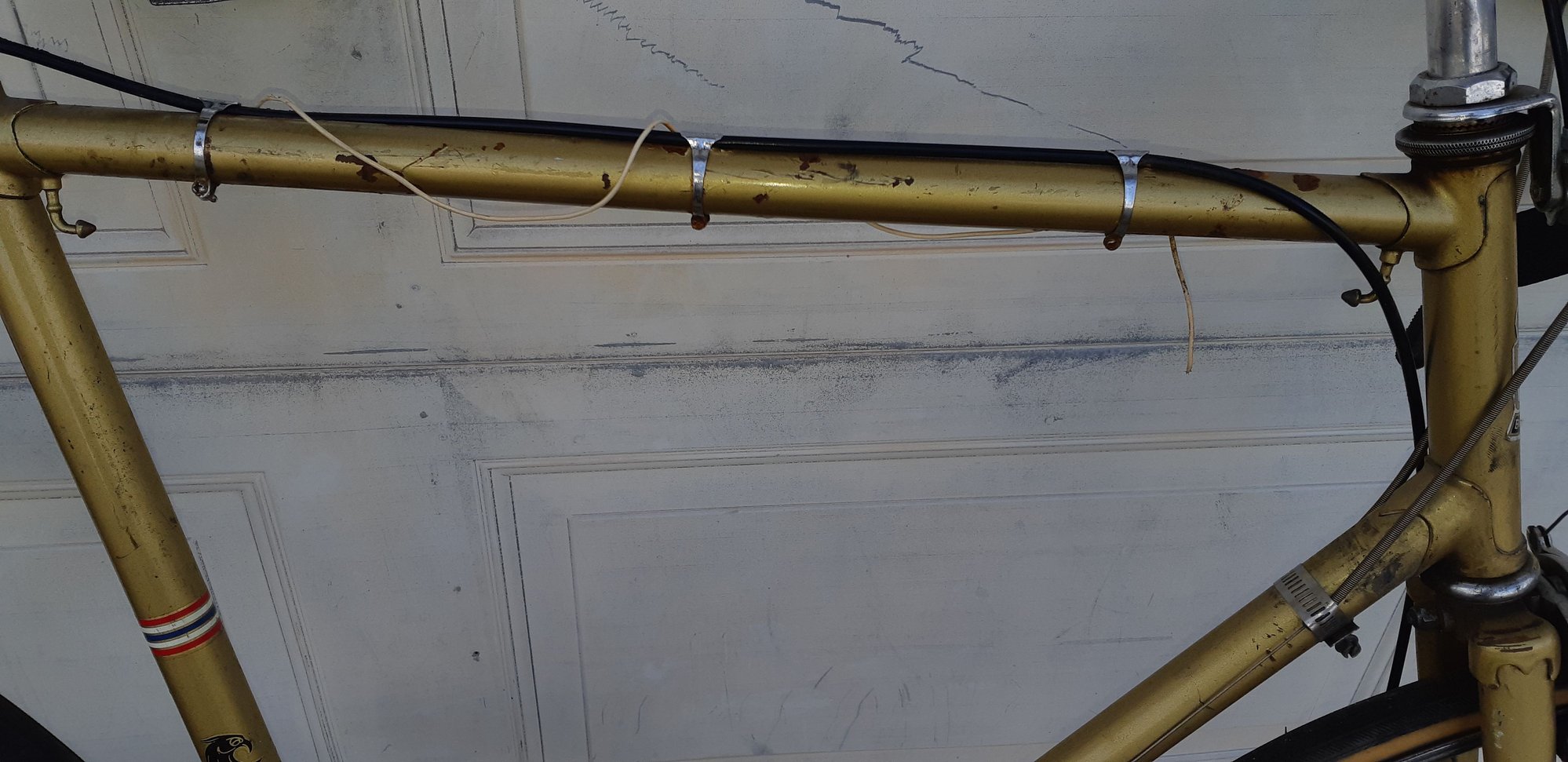

I picked up what I thought was a junker today. I gave the guy what he was asking because it had Suntour ratcheting barcons and quick release skewers - I figure wheels must be aluminum if it has skewers. When I got home and started to look more closely at parts to scavenge I realized that the shifting was pretty respectable - Suntour V luxe rear. Comp V Suntour front derailleur and the barcons. Then I noticed forged dropouts, a bunch of French parts and Weinmann/Normandy wheels, Not a bad score.

My question is then, is this frameset better than a high tensile steel? I thought it might end up in recycling but it looks not too shabby. Let me know your thoughts.










Last edited by Dannyboy21; 10-07-20 at 08:30 PM.
Dannyboy21 is offline
Likes For Dannyboy21:
Old 10-06-20, 04:27 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

the forum has had several discussion threads on these

you can use the search function to pull them up if wished

certainly looks to be "one of the good ones"

date appears 1974-75

pedals slightly later than cycle; all else contemporaneous

the threads discuss who were the actual manufacturers

-----

Last edited by juvela; 10-06-20 at 04:45 PM. Reason: addition
juvela is offline
Old 10-06-20, 04:38 PM
  #3
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,122

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 365 Post(s)
Liked 272 Times in 209 Posts
Thanks for the pictures. Good, yes. This one has conventional derailleurs. Nothing wrong with that, however, Browning has an interesting history of having invented a clever front gear change system. As a result they built bicycles. Now we need someone more expert than me to assess how good it is. But there is nothing inherently bad about it and it should be a good serviceable and enjoyable bike with some interesting history. An American bike company before Trek, Specialized, Cannondale, Gary Fisher, Kline and all.

This is the same Browning family that makes guns. It is notable that there are a number of gun makers that made bicycles. BSA and Miyata come to mind right away. There are probably more.

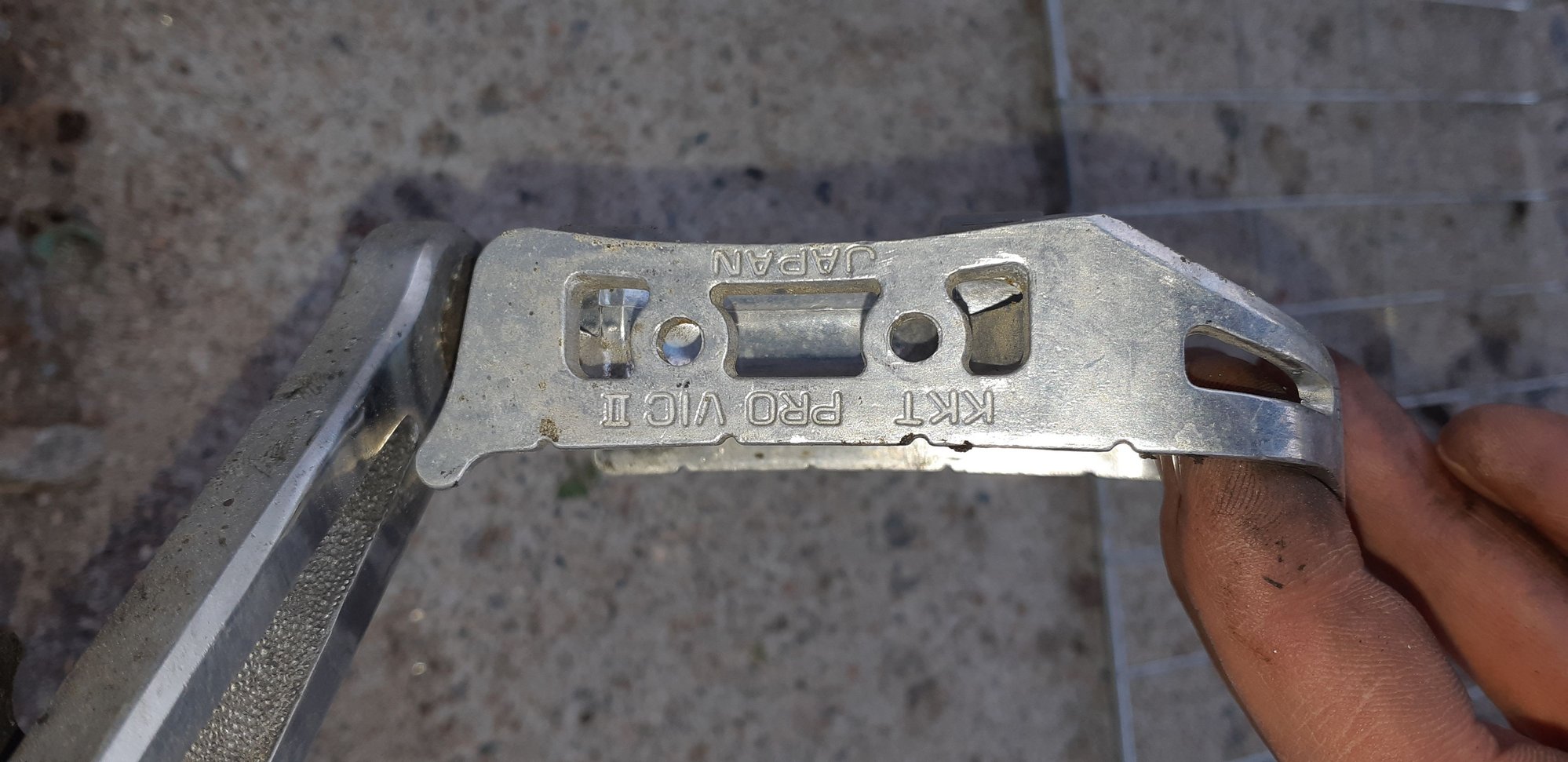

You have an mix of French and Japanese components. All good stuff for the time though.
Velo Mule is offline
Old 10-06-20, 04:53 PM
  #4
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,323

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .....Raleigh "Super GP"...... ........................................

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Liked 418 Times in 268 Posts
Originally Posted by Velo Mule View Post
Thanks for the pictures. Good, yes. This one has conventional derailleurs. Nothing wrong with that, however, Browning has an interesting history of having invented a clever front gear change system. As a result they built bicycles. Now we need someone more expert than me to assess how good it is. But there is nothing inherently bad about it and it should be a good serviceable and enjoyable bike with some interesting history. An American bike company before Trek, Specialized, Cannondale, Gary Fisher, Kline and all.

This is the same Browning family that makes guns. It is notable that there are a number of gun makers that made bicycles. BSA and Miyata come to mind right away. There are probably more.

You have an mix of French and Japanese components. All good stuff for the time though.
If anyone knows how to manufacture quality steel, it would be a company like Browning
branko_76 is offline
Old 10-06-20, 05:01 PM
  #5
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 251

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 48 Times in 31 Posts
Originally Posted by Velo Mule View Post

This is the same Browning family that makes guns. It is notable that there are a number of gun makers that made bicycles. BSA and Miyata come to mind right away. There are probably more.

You have an mix of French and Japanese components. All good stuff for the time though.
Yes. There may be a Browning BAR 7mm hunting rifle in the family. I was mostly wondering what the frame composition may be. Is it chromoly? Butted etc? It seems like it looks much like the Browning Grade V that I have seen photos of online. Can't find too much info about them though.

Last edited by Dannyboy21; 10-06-20 at 05:04 PM. Reason: correction
Dannyboy21 is offline
Old 10-06-20, 05:02 PM
  #6
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,817

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 112 Times in 66 Posts
Our google overlord tells me that the model is Grade V, that was the top of the line for Browning. I couldn't find any info on the frame tubing.
brian3069 is offline
Likes For brian3069:
Old 10-06-20, 05:03 PM
  #7
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 251

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 48 Times in 31 Posts
Originally Posted by juvela View Post
-----

the forum has had several discussion threads on these

you can use the search function to pull them up if wished

certainly looks to be "one of the good ones"

date appears 1974-75

pedals slightly later than cycle; all else contemporaneous

the threads discuss who were the actual manufacturers

-----
Thank you Juvela - I did try to read through two threads before posting. I didn't find the info I was looking for so I took the initiative to try on my own thread.
Dannyboy21 is offline
Old 10-06-20, 05:06 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

frame certainly appears to have been fabricated in France or Belgium

the low countries began using Shimano bits for quality frames in 1973

would expect it to have been constructed with one of the tubesets from Ateliers de La Rive, as a "first guess"


-----

Last edited by juvela; 10-06-20 at 05:08 PM. Reason: addition
juvela is offline
Likes For juvela:
Old 10-06-20, 05:28 PM
  #9
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,308

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Liked 329 Times in 246 Posts
Originally Posted by Velo Mule View Post
... It is notable that there are a number of gun makers that made bicycles. BSA and Miyata come to mind right away. There are probably more. ...
Steyr-Daimler-Puch of Graz, Austria
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 10-06-20, 07:02 PM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

regarding gun manufacturers and cycle & cycle fittings manufacturers -

there is/was a small cluster of firms based in and around the city of Liege in Belgium who did both. do not know to what extent they may have done both simultaneously or moved back and forth between the two industries.

should not write more on this as we have so many low countries members with first hand knowledge of the industries in this area of Belgium.

-----
juvela is offline
Old 10-07-20, 06:53 AM
  #11
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 251

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 48 Times in 31 Posts
Originally Posted by brian3069 View Post
Our google overlord tells me that the model is Grade V, that was the top of the line for Browning. I couldn't find any info on the frame tubing.
There seems to be a little anecdotal evidence (BF thread 2011 and one internet source) that at least the main triangle might be Reynolds 531, but nothing conclusive. Wouldnt want to throw that out.
Dannyboy21 is offline
Old 10-07-20, 07:52 AM
  #12
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,715

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 974 Post(s)
Liked 610 Times in 387 Posts
If the price was low enough, I would clean it up and ride it. The Browning mark would be why I would keep it.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 10-07-20, 08:33 AM
  #13
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 1,829

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 974 Post(s)
Liked 271 Times in 202 Posts
Take measurements! What's the seatpost diameter and tubing OD? Weight of framset? If it has forged drops very likely it's some kind of CrMo main triangle.
GrainBrain is offline
Old 10-07-20, 08:37 AM
  #14
Tomm Willians
Senior Member

Tomm Willians's Avatar

Join Date: Mar 2020
Location: Nevada County, California
Posts: 423

Bikes: Subject to change at any given moment but currently is...... Colnago Mapei, Colnago C40, Wilier Triestina Carbon, Wilier Triestina Ramato, Follis 472, Peugeot PX60, Razesa, Orbea Terra, Soma Pescadero and 1/2 owner of a Santana tandem.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 367 Times in 119 Posts
It may also be a point to consider that earlier Browning rifles were made in Belgium (FN I believe?) and tend to be highly coveted. I owned one for a bit that had a mere 3 digit serial number. Whether this relationship extended to bicycles I have no idea but I suppose itís not out of the question ?
Tomm Willians is offline
Old 10-07-20, 11:08 AM
  #15
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,715

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 974 Post(s)
Liked 610 Times in 387 Posts
Originally Posted by Tomm Willians View Post
It may also be a point to consider that earlier Browning rifles were made in Belgium (FN I believe?) and tend to be highly coveted. I owned one for a bit that had a mere 3 digit serial number. Whether this relationship extended to bicycles I have no idea but I suppose itís not out of the question ?
Most notably the Mauser 98 action variants. They supplied to other names as well. I have a Browning Mauser 98 with SN 0003 L71 in white that I have not been able to find any info about.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 10-07-20, 11:32 AM
  #16
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,395

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Liked 440 Times in 251 Posts
The Browning bicycle line was purely a 1970s phenomenon, and was part of the company's desire to branch out in the sporting goods world. These were built in the same time frame that manufacturing firearms in Europe was getting pricey enough that some Browning sporting arms were built in Japan, notably some .22 rifles. The bike line as I remember it off the top of my head was a basic entry level 10-speed, a nicer 10-speed and this one, which was probably 3 tubes something. The workmanship never blew up my kilt, but it's still a better than average 70s 10-speed, and it does at least have forged dropouts. After the bike boom they kinda went away. They were at least better built than John Deere's entries to the field!

Jonathan Moses Browning's firearms designs were farmed out to various American manufacturers - Winchester, Remington, and most especially Colt. In Europe, Fabrique National (FN) was their prime outlet, and FN ALWAYS took Mr. Browning seriously.
rustystrings61 is offline
Old 10-07-20, 05:34 PM
  #17
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

two details which place the frame in the mid-range by eye are the use of a welded crown and a square cut seat lug

there were millions of hi-tensile frames manufactureed which received forged crowns such as the Raleigh Gran Prix

it is a cost cutting corner to see a welded crown on a cycle presumably constructed of quality tubing

square cut seat lugs are very production and associated with lower end models; usually even on mid-level bikes they are scalloped

contour of blades makes me think they are not quality; frame likely a "three-tuber" whatever the tubing

-----
juvela is offline
Old 10-07-20, 06:50 PM
  #18
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 251

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 48 Times in 31 Posts
Originally Posted by juvela View Post
-----

two details which place the frame in the mid-range by eye are the use of a welded crown and a square cut seat lug

there were millions of hi-tensile frames manufactureed which received forged crowns such as the Raleigh Gran Prix

it is a cost cutting corner to see a welded crown on a cycle presumably constructed of quality tubing

square cut seat lugs are very production and associated with lower end models; usually even on mid-level bikes they are scalloped

contour of blades makes me think they are not quality; frame likely a "three-tuber" whatever the tubing

-----

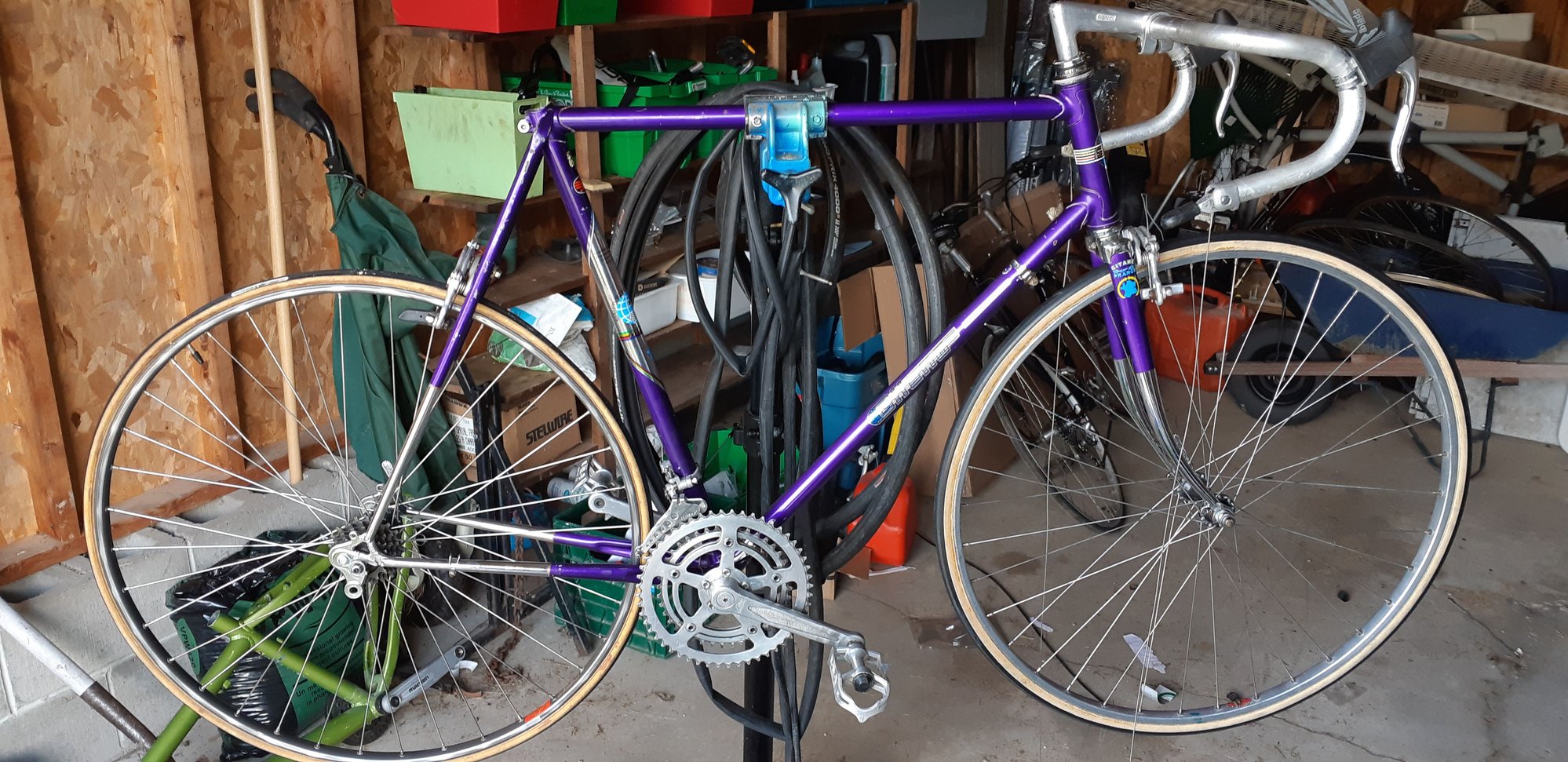

I have decided to take some of the better parts to build up a Gitane Professional TdF frameset I have. While removing the rear brake caliper, I noticed the seat stay bridge was a square plate found on a lot of department store bikes. I likely will keep the frame and rebuild it with lesser parts I have around and donate it to a local group who provide bikes to the needy.
Dannyboy21 is offline
Likes For Dannyboy21:
Old 10-07-20, 11:02 PM
  #19
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

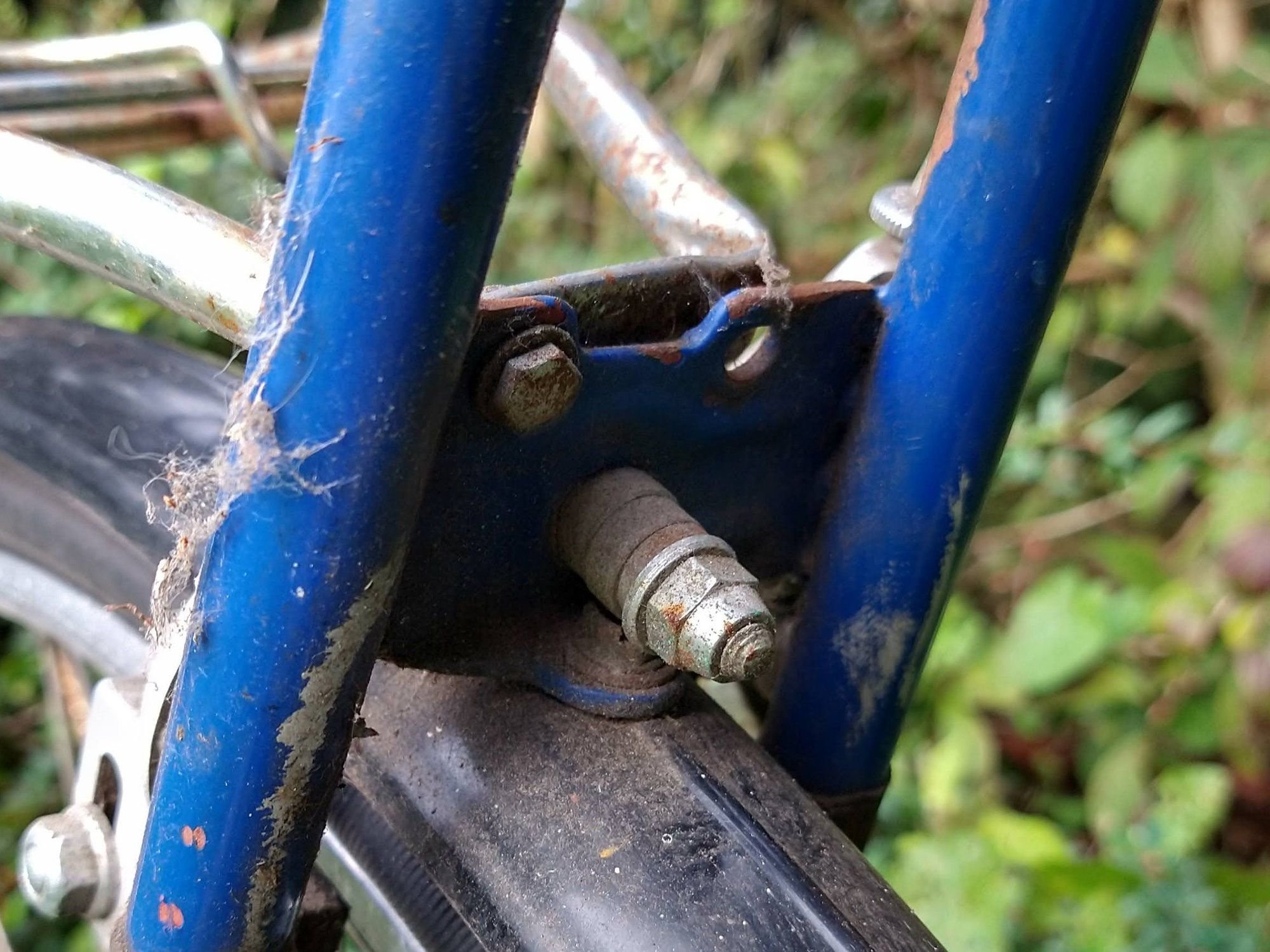

an ESGE plate style bridge fits in with the idea of a low countries origin

some builders there mount them on frames higher up the range than those of other lands

forum member non-fixie posted last week a newly taken in Dutch house branded cycle which he determined to be eleven tube Reynolds yet wears an ESGE -



Olympia Sport

-----

Last edited by juvela; 10-08-20 at 07:28 AM. Reason: addition
juvela is offline
Likes For juvela:
Old 10-07-20, 11:41 PM
  #20
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,927

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 481 Times in 341 Posts
All these frame detail notes had me inspecting a 1977 Austro-Daimler AD SLE that is sitting here.

Shimano dropouts w/threaded adjusters, welded fork crown, 531 butted main tubes. No chrome.
Lugs are slightly nicer, but the modest Stronglight TS cranks not so much.
Huret Challenger derailers and GB stem. Rigida 1319's on Normandy HF hubs.
Plain aluminum seat pin, Weinmann sidepulls.

The subject OP's bicycle begs for geometry (angles) measurement and a test-ride to judge it's character. Some of these odd-ball finds turn out to be fabulous riders, you never know!
dddd is offline
Old 10-07-20, 11:44 PM
  #21
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,897

Bikes: A green one, "Ragleigh," or something.

Mentioned: 181 Post(s)
Tagged: 0 Thread(s)
Quoted: 1577 Post(s)
Liked 465 Times in 273 Posts
Originally Posted by Dannyboy21 View Post
...
My question is then, is this frameset better than a high tensile steel?
Only honest answer is "You ride it and tell us." One of my best riding bikes is an old, cheap Apollo that is made of God Knows What. Nothing super special about the vintage parts I put on it, but it just goes.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Likes For Lascauxcaveman:
Old 10-08-20, 04:44 AM
  #22
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 1,829

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 974 Post(s)
Liked 271 Times in 202 Posts
Does it have 27" wheels now? Would make a nice commuter with 700c wheelset and anti-theft patina but then you'd want to keep the brakes on it. Will make someone happy at the co-op, no matter the tubing forged drops make for a reliable build.
GrainBrain is offline
Old 10-08-20, 06:50 AM
  #23
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 251

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 48 Times in 31 Posts
Originally Posted by GrainBrain View Post
Does it have 27" wheels now? Would make a nice commuter with 700c wheelset and anti-theft patina but then you'd want to keep the brakes on it. Will make someone happy at the co-op, no matter the tubing forged drops make for a reliable build.
It does have 27 inch wheels. Seat post is 27.0mm. Clips on top tube are standard diameter as is the front derailleur..
Dannyboy21 is offline
Old 10-08-20, 02:53 PM
  #24
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 251

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 48 Times in 31 Posts

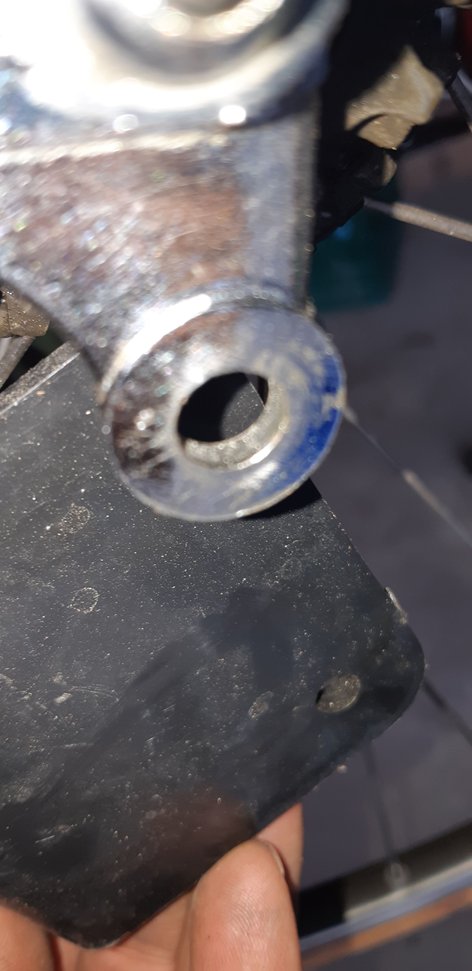

Hijacking my own thread! I am moving the good and French parts over to my Gitane TdF frameset as was the original plan. Starting to look great. Big question ... what is up with the rear mech hanger being smooth bored with no stop? The derailleur bolt is too wide anyway. Do I have to make the threads myself or is this as it is supposed to be? My first decent French bike so, I don't know much about them at all.


Dannyboy21 is offline
Old 10-08-20, 03:00 PM
  #25
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

you can run a metric 10.0mm X 1.0 tap through there

you still to cut or grind a stop at the four o'clock position to convert the Juy hanger to be compatible with non-Juy mechs


-----
juvela is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
