Broken spindle

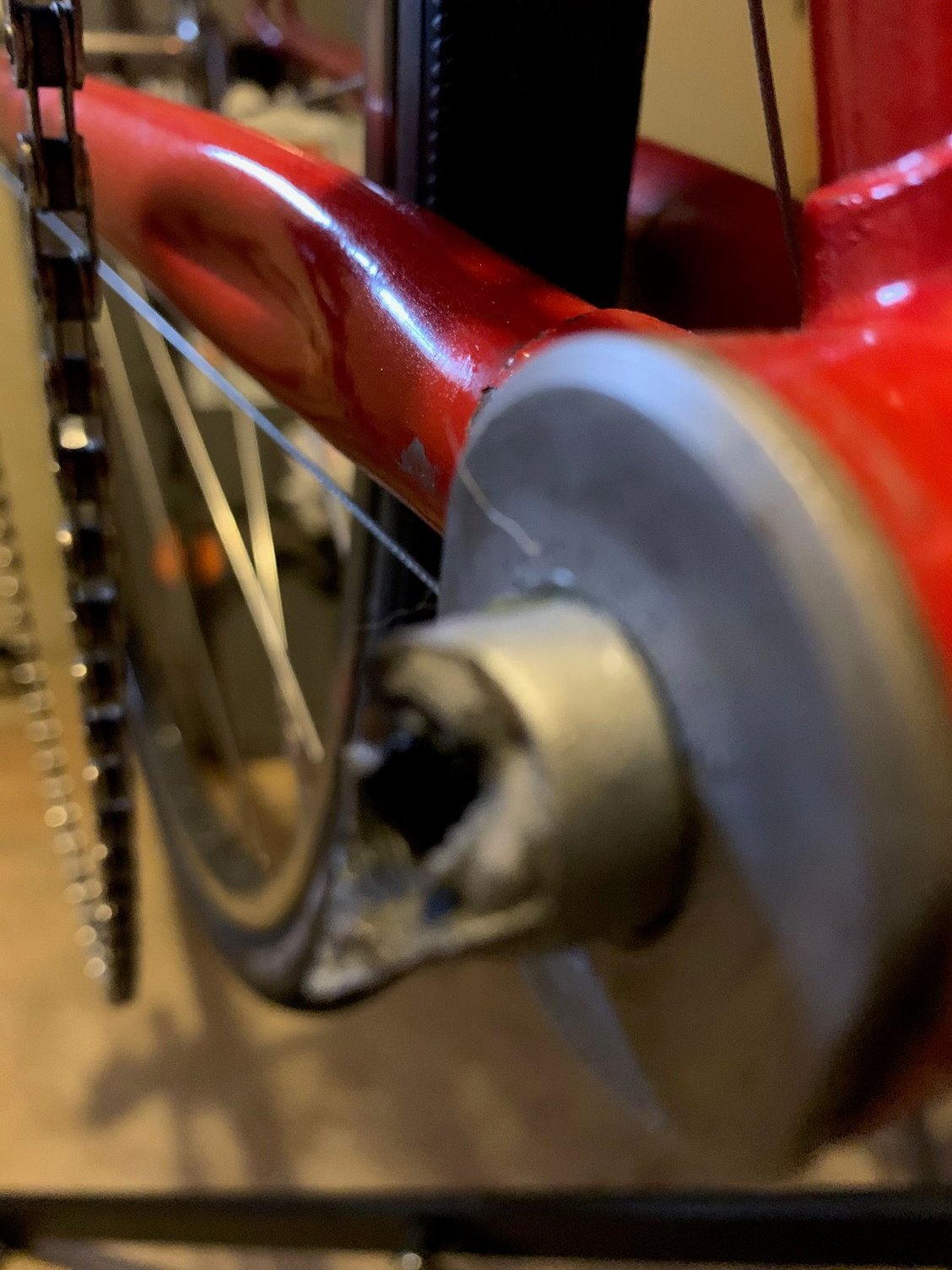

My son was riding his Gitane TDF last night, and had the BB spindle snap on him. Fortunately, he was just starting out from a stop sign, so didn't crash and wasn't hurt at all. The crankset/BB is an Ofmega Mistral. The spindle is marked Ofmega 68C, and total length is 115mm. I'm not sure why this happened. Perhaps we had tightened the crank bolts too much? At any rate, I'll be looking for a BB or spindle for this. I think the crank arm is fine, but I posted some pics. More available here: https://flic.kr/s/aHsmRjeYdy

If I can't find an Ofmega spindle or BB, any thoughts on replacements that might work? It is an assymetric spindle, much like Campy. I'll have to measure between the lands and the end lengths, but possible a thin-cup Campy Record spindle might work? At one time I had one, I'll have to look. I presume something like a Shimano UN55 would not work.

Thanks for any thoughts/advice on this.




Pars is offline
Old 10-10-20, 12:43 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,698
Mentioned: 302 Post(s)
Tagged: 1 Thread(s)
Quoted: 2498 Post(s)
Liked 792 Times in 624 Posts
-----

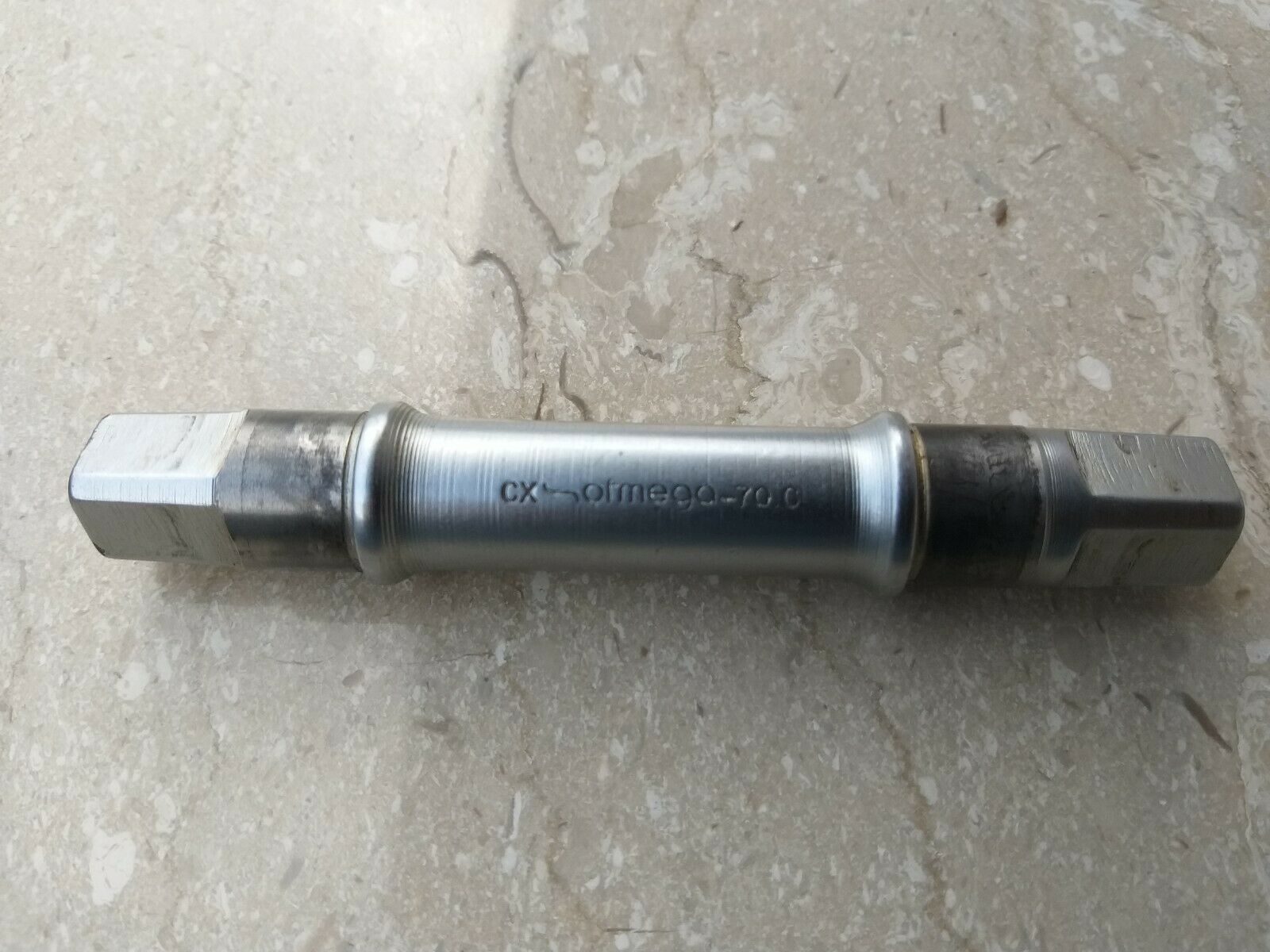

here is a pre-owned example listed as 116mm in TL -

https://www.ebay.it/itm/Vintage-Ofme...0AAOSwoGdemy~L

also you can post in the ISO thread (stickies) and in the C&V for sale forum

tip - some taper experts have written that OFMEGA is unique and does not interchange well with others.

-----

Last edited by juvela; 10-10-20 at 12:45 PM. Reason: addition
juvela is online now
Old 10-10-20, 02:37 PM
  #3
Pars
Senior Member
Thread Starter

Pars's Avatar

Join Date: Jan 2008
Location: Aurora, IL
Posts: 2,461

Bikes: '73 Raleigh RRA, 1986 Trek 500 commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 12 Times in 8 Posts
Thanks, but that one is marked 70P, so is Italian, as are those on US Ebay (including the one that says it is English).
Pars is offline
Old 10-10-20, 02:53 PM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,698
Mentioned: 302 Post(s)
Tagged: 1 Thread(s)
Quoted: 2498 Post(s)
Liked 792 Times in 624 Posts
Originally Posted by Pars View Post
Thanks, but that one is marked 70P, so is Italian, as are those on US Ebay (including the one that says it is English).
-----

my apologies

after posting enlarged image and was able to read the 70C marking

letter is C for "corsa" indicating a two plateau intended usage





checked ebay.it, ebay.com and subito.it without finding any good candidates

btw -

you might wish to check with Palo Alto Bicycles ("PAB") regarding spares availability. they are the creators of the Avocet badge. owner of shop was a part owner of OFMEGA.

https://www.paloaltobicycles.com

-----

Last edited by juvela; 10-10-20 at 03:16 PM. Reason: addition
juvela is online now
Old 10-10-20, 03:57 PM
  #5
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,885

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 2372 Post(s)
Liked 1,573 Times in 1,067 Posts
Originally Posted by Pars View Post
Thanks, but that one is marked 70P, so is Italian, as are those on US Ebay (including the one that says it is English).

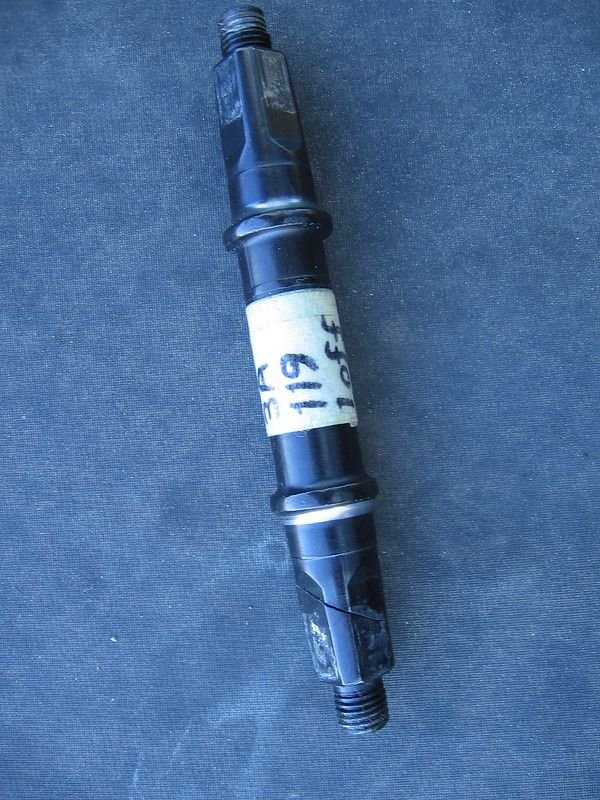

That has been ready to go for a long time, those dark spots have been that way for a while.

Glad the kid is ok.

Guess we should check spindles closely more often.
merziac is offline
Old 10-10-20, 06:53 PM
  #6
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 469

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 161 Times in 101 Posts
Somewhere I have an English spec Ofmega BB which I prob won't ever need to use, and I'm guessing might have a suitable spindle for you. will check for length and revert...

Update: Asymmetric spindle is marked 68c and measures 118mm in overall length. markings on cup seem identical to yours: 34.8 x 24 f.s.

Also, in case it's helpful, the Ofmega cranks that matched this BB have been mounted on a regular cartridge BB (prob Shimano) for quite some time: although they have never been really stressed they've done a few thousand miles now without any signs of rejecting the spindle.

Last edited by niliraga; 10-10-20 at 07:41 PM.
niliraga is offline
Old 10-10-20, 09:32 PM
  #7
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,484

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 263 Times in 209 Posts
That is absolutely gnarly dude! I wonder if it made any creaking noises before it just snapped off? To me it looks like the failure was due to some impurities in the steel alloy or in other words a "bad part". I snapped a pedal off a bike once. But, it had already bent a little first. So, I should have known it was about to go.
ramzilla is offline
Old 10-10-20, 10:58 PM
  #8
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,978

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1066 Post(s)
Liked 495 Times in 352 Posts
I had this one partially fail while riding, had to soft-pedal back to the ride start after the crankarm started hitting the chainstay.

It's just a cheap JIS spindle.

dddd is offline
Old 10-13-20, 06:56 PM
  #9
Pars
Senior Member
Thread Starter

Pars's Avatar

Join Date: Jan 2008
Location: Aurora, IL
Posts: 2,461

Bikes: '73 Raleigh RRA, 1986 Trek 500 commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 12 Times in 8 Posts
Just an update: I found the thin-cup Campy Record spindle, and it matches up pretty nicely. It measures 114.7mm vs. the 115.5mm of the Ofmega, the tapers seem very similar. I'll have to remeasure them, but both the end and the thickest parts seemed almost the same. The taper on the Ofmega is just slightly longer. The crank seems to sit on the Campy spindle just slightly less deep, but I'll measure that as well. The spindle fits fine in the BB cups; adj. cup is out just slightly from with the Ofmega spindle.

If this doesn't work, I have a Campy Racing T crank with correct BB I can toss on here for a bit.
Pars is offline
Old 10-13-20, 07:11 PM
  #10
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,588

Bikes: old ones

Mentioned: 279 Post(s)
Tagged: 0 Thread(s)
Quoted: 21047 Post(s)
Liked 3,974 Times in 2,911 Posts
.
...the Ofmega spindles where the taper is problematic are the earliest ones. The socket and spindle end on those are very obviously much smaller than standard tapers of all other makers. It's impossible to mount one of those cranks on a standard spindle, if that helps any.
3alarmer is offline
Old 10-13-20, 08:53 PM
  #11
Pars
Senior Member
Thread Starter

Pars's Avatar

Join Date: Jan 2008
Location: Aurora, IL
Posts: 2,461

Bikes: '73 Raleigh RRA, 1986 Trek 500 commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 12 Times in 8 Posts
Originally Posted by niliraga View Post
Somewhere I have an English spec Ofmega BB which I prob won't ever need to use, and I'm guessing might have a suitable spindle for you. will check for length and revert...

Update: Asymmetric spindle is marked 68c and measures 118mm in overall length. markings on cup seem identical to yours: 34.8 x 24 f.s.

Also, in case it's helpful, the Ofmega cranks that matched this BB have been mounted on a regular cartridge BB (prob Shimano) for quite some time: although they have never been really stressed they've done a few thousand miles now without any signs of rejecting the spindle.
Even though that is ~2mm longer, that might be of interest. Let me know what you would want for that, shipped to 60504.

Originally Posted by 3alarmer View Post
.
...the Ofmega spindles where the taper is problematic are the earliest ones. The socket and spindle end on those are very obviously much smaller than standard tapers of all other makers. It's impossible to mount one of those cranks on a standard spindle, if that helps any.
Yes, that is helpful.. thanks! The crank arms do not seat as far on the Campy spindle as they do on the Ofmega. I was measuring about 0.7mm less (distance from spindle end to flat where the crank bolt washer seats.) I think they are on far enough, but it makes me slightly nervous. Chain line seems fine. Might go ahead and try it... I can always switch cranksets.
Pars is offline
Old 10-14-20, 10:15 AM
  #12
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 527
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 104 Times in 63 Posts
Originally Posted by merziac View Post
That has been ready to go for a long time, those dark spots have been that way for a while.

Glad the kid is ok.

Guess we should check spindles closely more often.
can you clarify which dark spots are the issue? There are two photos and both have dark areas. Do you mean the first photo?
Mr. Spadoni is offline
Old 10-14-20, 04:34 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,885

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 2372 Post(s)
Liked 1,573 Times in 1,067 Posts
Originally Posted by Mr. Spadoni View Post
can you clarify which dark spots are the issue? There are two photos and both have dark areas. Do you mean the first photo?
The darker side actually looks to have a bit of rust tinge to it and would have shown up with Magnaflux or maybe prussian blue, the lighter side is the side that was still hanging on, till it didn't.
merziac is offline
Old 10-14-20, 07:43 PM
  #14
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,885

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 2372 Post(s)
Liked 1,573 Times in 1,067 Posts
Originally Posted by Mr. Spadoni View Post
can you clarify which dark spots are the issue? There are two photos and both have dark areas. Do you mean the first photo?
Both pics show dark where it was cracking, the the grey/silver with clean dark accents is what was hanging on I believe.
merziac is offline
Old 10-14-20, 10:53 PM
  #15
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 527
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 104 Times in 63 Posts
Thanks.
​​​​
Mr. Spadoni is offline
Likes For Mr. Spadoni:
Old 10-14-20, 10:57 PM
  #16
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 527
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 104 Times in 63 Posts
Originally Posted by merziac View Post
The darker side actually looks to have a bit of rust tinge to it and would have shown up with Magnaflux or maybe prussian blue, the lighter side is the side that was still hanging on, till it didn't.
so where do you get magnaflux testing done? I have a frame that some suggested I get fluxed, due to possible cracking.
Mr. Spadoni is offline
Old 10-15-20, 12:17 AM
  #17
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,885

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 2372 Post(s)
Liked 1,573 Times in 1,067 Posts
Originally Posted by Mr. Spadoni View Post
so where do you get magnaflux testing done? I have a frame that some suggested I get fluxed, due to possible cracking.
Most any possible cracking on a frame can be sussed out by close inspection from an astute eyeball.

Its kind of an old school thing, you can call around to automotive machine and cylinder head shops but they will probably not want to do something out of their wheelhouse.

I think you can buy kits but its a skill that can be tricky.

A framebuilder is who you should try to consult.

Do you have pics of the area in question, is the paint stripped, can you see any wrinkles, distortion, cracking paint, etc. ?
merziac is offline
Old 10-15-20, 09:00 AM
  #18
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 527
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 104 Times in 63 Posts
I will send pics at a later date. Frame is stashed away at this point. It’s a 72 Colgano. On its last ride, the steerer tube broke. When I pulled what remained of the fork, I saw some damage to the paint on the down tube. As the bike in question had been ridden hard and often stored outside, albeit in a dry climate, I chalked up the paint issue to cracks. A car guy I know suggested Magnafluxing. Having only a passing idea of the process, I never followed up on his suggestion. I figured I would look at the frame again if a replacement fork of the right type ever materialized. Still waiting for the fork, but curious about the viability of the frame.
Mr. Spadoni is offline
Old 10-15-20, 11:25 PM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,885

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 2372 Post(s)
Liked 1,573 Times in 1,067 Posts
Originally Posted by Mr. Spadoni View Post
I will send pics at a later date. Frame is stashed away at this point. Itís a 72 Colgano. On its last ride, the steerer tube broke. When I pulled what remained of the fork, I saw some damage to the paint on the down tube. As the bike in question had been ridden hard and often stored outside, albeit in a dry climate, I chalked up the paint issue to cracks. A car guy I know suggested Magnafluxing. Having only a passing idea of the process, I never followed up on his suggestion. I figured I would look at the frame again if a replacement fork of the right type ever materialized. Still waiting for the fork, but curious about the viability of the frame.
IME a placeholder fork would be the first thing to do, almost every cool bike, part frame, etc I have has come after I got something for the meantime.

Could be nice, fancy or just ok but I find that once you take some of the pressure off, the right thing often comes along sooner rather than later.

I know it sounds like a load of crap but has worked for me more than a few times and several times in fine fashion.
merziac is offline
Old 10-16-20, 09:30 AM
  #20
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 527
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 104 Times in 63 Posts
Ok. You convinced me, guess it’s time to pull that frame out of the rafters.
Mr. Spadoni is offline
