My Oxalic Acid OA Bathtub

I've been meaning to try this OA bath and recently acquired a perfect candidate. With a rescued sheet of plywood, some scraps from a cabinet project, 1/2 a box of left over screws, and a couple evenings...





I think it will get wheels one day.

Measure cut cut cut whatever.

Fits normal frames.

On a dolly to roll wherever.

Two layers of some poly????
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 10-10-20, 03:51 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,095

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 162 Post(s)
Tagged: 0 Thread(s)
Quoted: 2439 Post(s)
Liked 1,680 Times in 1,128 Posts
Classtime

Nice work, great job!

I would be inclined to paint it flat black inside and out to use with paint stripper and black poly.

I stripped a frame this summer and when I set it on black garbage bags after 100 grit and a good slathering, the stripper would almost melt the paint off when it was hot from sitting in the sun.

Once it started doing that, you could add stripper to keep it going, still pretty labor intensive but a fraction of what it would be otherwise.
merziac is offline
Old 10-10-20, 03:57 PM
  #3
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
Whoa whoa whoa, I intend to save the paint on this one. Good idea though. Dual purpose tub.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 10-10-20, 04:04 PM
  #4
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,095

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 162 Post(s)
Tagged: 0 Thread(s)
Quoted: 2439 Post(s)
Liked 1,680 Times in 1,128 Posts
Originally Posted by Classtime View Post
Whoa whoa whoa, I intend to save the paint on this one. Good idea though. Dual purpose tub.
Yeah, wasn't suggesting a strip for this one, like you said , dual purpose maybe three?

Bath, strip, bake, cook, fold, spindle and mutilate.

The roll around is genius.
merziac is offline
Likes For merziac:
Old 10-10-20, 06:09 PM
  #5
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
Using 1T OA per Gallon of warm Water, the frame was noticeably brighter by the time I prepared the last of 20 gallons.


Easier on the decals than wet sanding.

1 hour 30 minutes later, I check on it.

Maybe this is normal after 90 min.

I put the gloves on and with an old green pad lightly scrubbed off some cloudy stuff. Looking good. But standing the frame on end and such within the bath tub while I scrubbed off the cloudy stuff, I must have punctured the doubled liner and a few minutes later the floor was wet. So I bailed the OA solution into whatever I could find and made a new liner out of some poly tarp from my sailmaking project.



Yikes. Somebody needs to put all the crap back in these storage bins. Later.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Likes For Classtime:
Old 10-10-20, 06:46 PM
  #6
sykerocker
Senior Member

sykerocker's Avatar

Join Date: Dec 2005
Location: Ashland, VA
Posts: 4,349

Bikes: The keepers: 1958 Raleigh Lenton Grand Prix, 1968 Ranger, 1969 Magneet Sprint, 1971 Gitane Tour de France, 1973 Raleigh Tourist, 3 - 1986 Rossins, and a '77 PX-10 frame in process.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked 149 Times in 90 Posts
Like the design. Going to make note of this for future reference. Currently I'm working on a long, thin trough for rims, made up a rectangular form out of cardboard and am currently laying in sheets of fiberglass over it. Will knock out a picture or two tomorrow.
__________________
Syke

“No one in this world, so far as I know — and I have searched the records for years, and employed agents to help me — has ever lost money by underestimating the intelligence of the great masses of the plain people. Nor has anyone ever lost public office thereby.”

H.L. Mencken, (1926)

sykerocker is offline
Old 10-10-20, 06:55 PM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,906
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1908 Post(s)
Liked 738 Times in 575 Posts
Volume certainly multiplies the gallons.

Not having done this, how are the voids of the seat stays and fork blades flushed out after? They all have A vent hole each.
Chrome platers often really dislike things that are hard to flush.
repechage is offline
Old 10-10-20, 07:04 PM
  #8
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
Good point. With an itty bitty hose? I don't know how important it is. I intend to spray some boe-shield (on hand) in the tubes after rinsing.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 10-10-20, 08:27 PM
  #9
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,069

Bikes: A few too many

Mentioned: 38 Post(s)
Tagged: 1 Thread(s)
Quoted: 954 Post(s)
Liked 999 Times in 594 Posts
Originally Posted by repechage View Post
Volume certainly multiplies the gallons.

Not having done this, how are the voids of the seat stays and fork blades flushed out after? They all have A vent hole each.
Chrome platers often really dislike things that are hard to flush.
repechage,
Good point...maybe next time fill the voids with blocks of wood..better yet since you are great at woodworking, why not build the pieces to fill the voids instead.
Really want to see how it turns out.
Best, Ben
xiaoman1 is offline
Old 10-10-20, 08:53 PM
  #10
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 620
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 354 Post(s)
Liked 479 Times in 256 Posts
Originally Posted by Classtime View Post
Good point. With an itty bitty hose? I don't know how important it is. I intend to spray some boe-shield (on hand) in the tubes after rinsing.
I like the idea of getting the OA inside the seatstays -- you want to remove that rust too, right? Although it is less important than the exterior rust, which is visible, since aesthetics is a big part of the reason for doing this. Perhaps follow the acid bath with a neutralizing bath -- baking soda? I ain't no chemist. Someone here will know for sure I bet.

More wooden walls, inside the front and rear triangles, could very much reduce the volume of solution needed. I can't say whether that would be enough of an advantage to make the extra wood and wood-working labor worthwhile. You can also just pile in bricks, or glass jars or jerry cans full of water, anything to take up space within the triangles. That would be more likely to be worthwhile if you were using EvapoRust, since it's so much more expensive than OA. But even with OA, seems like having less of it to get rid of when done would be a plus.

Have you thought of a way to decant the solution when done? I assume OA can just go down the drain (correct me if that's wrong) but with EvapoRust it would be essential to capture every drop of it for re-use.

Mark B in Seattle
bulgie is offline
Old 10-10-20, 09:29 PM
  #11
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
I've seen post/pictures where the space within the trangles are filled with volume-taker-uppers but I needed someplace to put the fork and 20 gallons didn't seem excessive compared to kiddie pools and such. 8 hours later, the frame looks good. I will leave it till the morning. I purchased a box of baking soda when I picked up the wood bleach to neutralize before dumping on the grass. But I may grab a few 5 gallon buckets at the home store and reuse the solution.

I wonder if the black tar stuff that is used in shower stalls would react with OA. If I could spread that stuff inside my tub and put a drain in the bottom...how sweet.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 10-11-20, 05:12 AM
  #12
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,914

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1035 Post(s)
Liked 697 Times in 435 Posts
I did a similair thing only used the walls made of 2x8's. No floor. The joints were attached with hinges so frames of different shapes could be included. The diamond shapes were filled with what ever was around that would fit. Liner was used, but like Classtime, a leak showed up.

When done, one side of the hinges were removed and the 2x8's were stacked in a corner. Space is a premium no matter how much room you have!
The fork is placed in a large wall paper trough. @wrk101 showed me this when I visited several years ago.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 10-11-20, 08:25 AM
  #13
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 226
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 84 Times in 49 Posts

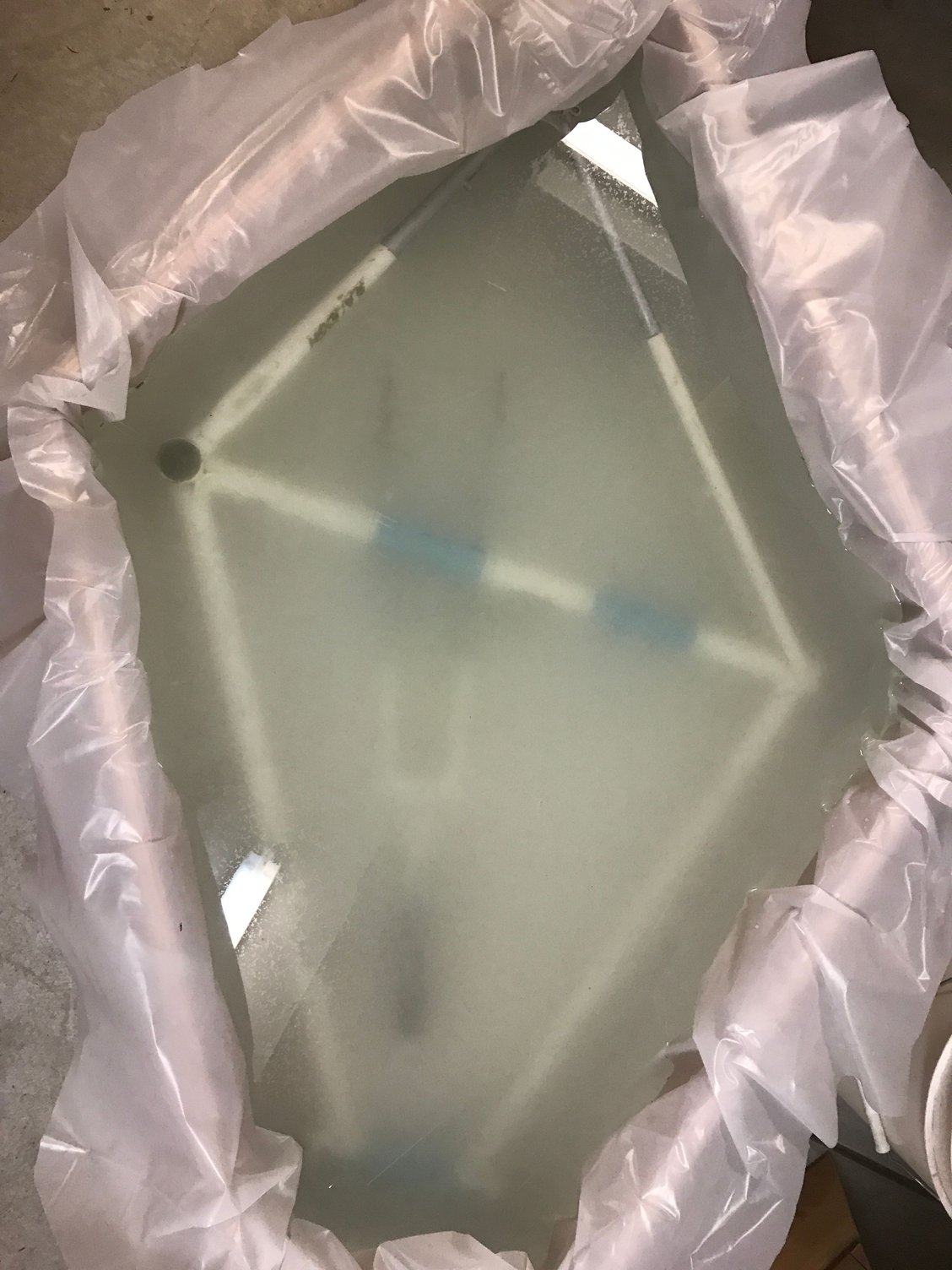

I used a "found" container for an OA bath this summer. It probably took 35-40 gallons, though. The OA eventually leaked out into the grass with no ill effects to the lawn grass and weeds.

__________________
72 Super Course,73 Gitane TDF, 73 Sports Tourer, 74 Paramount, 80 Univega Gran Premio, 82 Dawes Atlantis, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte,

Schreck83 is offline
Old 10-11-20, 10:07 AM
  #14
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,313

Bikes: It's complicated.

Mentioned: 1018 Post(s)
Tagged: 0 Thread(s)
Quoted: 3327 Post(s)
Liked 1,657 Times in 847 Posts
Originally Posted by Schreck83 View Post
I used a "found" container for an OA bath this summer. It probably took 35-40 gallons, though. The OA eventually leaked out into the grass with no ill effects to the lawn grass and weeds.

Fruit bin? Looks about the right size.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 10-11-20, 10:13 AM
  #15
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,313

Bikes: It's complicated.

Mentioned: 1018 Post(s)
Tagged: 0 Thread(s)
Quoted: 3327 Post(s)
Liked 1,657 Times in 847 Posts
Originally Posted by bulgie View Post
I like the idea of getting the OA inside the seatstays -- you want to remove that rust too, right? Although it is less important than the exterior rust, which is visible, since aesthetics is a big part of the reason for doing this. Perhaps follow the acid bath with a neutralizing bath -- baking soda? I ain't no chemist. Someone here will know for sure I bet.

Mark B in Seattle
Not sure what removing internal rust does for the frame. Paint protects the exterior, Boeshield or Framesaver on top of rust acts as an oxygen barrier, so rusting will stop.

You can neutralize an OA bath with a baking soda solution (baking soda + water) , keep mixing it in until it stops bubbling and you've neutralized the acid.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 10-11-20, 10:31 AM
  #16
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,755

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 428 Times in 302 Posts
I put a box of baking soda in the 20 T of OA and called it good. I'm looking into painting the interior of my bathtub with one of the rubberizing products and installing a drain but that stuff is pricey.

I think it it worked well. I left it in for 20 hours. Next time, I'll use a weaker solution: 2t per gallon.

If anbody in the Los Angeles area wants to borrow this thing, let me know. This GS only needs some polishing and a little Gold One-Shot.



Solution is clear after 20 hours.

Ready for polishing.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 10-11-20, 10:41 AM
  #17
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,069

Bikes: A few too many

Mentioned: 38 Post(s)
Tagged: 1 Thread(s)
Quoted: 954 Post(s)
Liked 999 Times in 594 Posts
Oh, That turned out very nice!!!
Best, Ben
xiaoman1 is offline
Likes For xiaoman1:
Old 10-11-20, 11:34 AM
  #18
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 226
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 84 Times in 49 Posts
That turned out great! Need sunglasses...

Originally Posted by gugie View Post
Fruit bin? Looks about the right size.
John Deere 10P cart.
__________________
72 Super Course,73 Gitane TDF, 73 Sports Tourer, 74 Paramount, 80 Univega Gran Premio, 82 Dawes Atlantis, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte,

Schreck83 is offline
Likes For Schreck83:
Old 10-11-20, 11:59 AM
  #19
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,906
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1908 Post(s)
Liked 738 Times in 575 Posts
Very clean.
as you know the paint is slightly porous,
worth the effort to clear coat it?
repechage is offline
Old 10-11-20, 12:17 PM
  #20
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 2,088

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 632 Post(s)
Liked 510 Times in 339 Posts
Why do I feel like one of my projects would be buried in that wooden box...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is online now
Old 10-11-20, 12:49 PM
  #21
leftthread
Senior Member

leftthread's Avatar

Join Date: Aug 2006
Location: Land of Cheese
Posts: 1,005
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 56 Times in 32 Posts
Cool box. Harbor Freight has a large dolly for like, $15.
When I overhauled the garage for a "new" bike workshop this past summer, I used a jack to lift a heavy workbench and dropped it onto two dollys. That made it much easier to reposition.
leftthread is offline
Old 10-11-20, 12:56 PM
  #22
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,590
Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 898 Post(s)
Liked 407 Times in 247 Posts
This is so very satisfying. Polish and wax. Show us!!!
Narhay is offline
Old 10-15-20, 01:36 PM
  #23
tpadul
Senior Member

tpadul's Avatar

Join Date: Aug 2016
Location: Chesterton, Indiana
Posts: 295

Bikes: 1984 Sekai 5000 Superbe, 1987 Raleigh Seneca Mountain Tour, 1984 Schwinn World Sport, 1978 Raleigh Grand Prix, 2021 Handsome She Devil, Mystery Vintage purple road bike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 110 Times in 57 Posts
Wow!! This is really cool!!!!!! I suppose a kiddie splash pool would work too.
tpadul is offline
Old 10-15-20, 05:03 PM
  #24
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,476

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 38 Times in 29 Posts
I've often thought about taking my bikes with me when I finally go, but you took it one step further by building one of them a coffin!
DiegoFrogs is offline
Old 10-16-20, 07:18 AM
  #25
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,325

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 240 Times in 132 Posts
Originally Posted by bulgie View Post
Have you thought of a way to decant the solution when done? I assume OA can just go down the drain (correct me if that's wrong) but with EvapoRust it would be essential to capture every drop of it for re-use.

Mark B in Seattle
This method of using Evaporust instead of OA lets you easily reclaim every drop for re-use:

Immersing a 63 cm frame in 1 1/2 gallons of Evaporust

If you can afford a gallon and a half of Evaporust, give it a try. It's completely replaced OA for me.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash

Last edited by jonwvara; 10-16-20 at 03:37 PM.
jonwvara is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
