Italian fixed cup install: grease, thread lock, or ..?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Italian fixed cup install: grease, thread lock, or ..?

Old 10-20-20, 08:17 PM
  #26
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 970
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 431 Times in 258 Posts
Originally Posted by merziac View Post
You can also use Super glue for Loctite, just don't get carried away.
For years I've referred to that as "clear loctite"!
jackbombay is offline
Likes For jackbombay:
Old 10-20-20, 08:27 PM
  #27
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 4,379

Bikes: Indeed!

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1347 Post(s)
Liked 2,763 Times in 924 Posts
Originally Posted by daka View Post
I thought teflon tape was to create a seal, not as a threadlock. The stuff is slippery, after all...
That's the beauty of teflon tape in plumbing: It not only seals the threads, it also lubricates them so you can screw the tapered fittings together a bit tighter. I would imagine it would do the same for a BB cup though I've never tried it. (But now that jiangshi has mentioned it I'm going to give it a try.)
Brent
obrentharris is offline
Old 10-20-20, 10:47 PM
  #28
Steel Charlie
Senior Member

Steel Charlie's Avatar

Join Date: Apr 2009
Posts: 514
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 223 Times in 128 Posts
Originally Posted by jiangshi View Post
Grease and Teflon tape.

Crank it on as tight as you can (within reason).
Teflon tape is the hot setup. Been using it for over a couple decades and never had a cup come loose. Works just like a nylok nut - fills the threads.
Steel Charlie is offline
Likes For Steel Charlie:
Old 04-17-23, 09:03 PM
  #29
SurferRosa
se˝or miembro
Thread Starter

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 7,358

Bikes: Old school lightweights

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 3163 Post(s)
Liked 4,734 Times in 2,465 Posts
<bumpage>

For the new bike, a '91 Bottecchia Pro, it's gonna be grease and teflon tape.

​​​​​​
SurferRosa is offline
Likes For SurferRosa:
Old 04-17-23, 10:57 PM
  #30
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,992

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 1,310 Times in 621 Posts
Whatever you put on the threads (I'm a blue Loctite guy myself), tighten the cup until it screams for mercy, then tighten it a little more, all while cursing whoever in Italia BITD thought a right-handed thread on a fixed cup was a good idea. In my experience, it should have taken about 10 miles, 12 tops, to know that was not the way to go.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 04-17-23, 11:00 PM
  #31
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,825

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 686 Post(s)
Liked 1,141 Times in 736 Posts
Originally Posted by SurferRosa View Post
...cup, from a '72 Torpado, came loose fairly easily...
Sounds like another Urban Myth... Ha
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 04-17-23, 11:11 PM
  #32
SurferRosa
se˝or miembro
Thread Starter

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 7,358

Bikes: Old school lightweights

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 3163 Post(s)
Liked 4,734 Times in 2,465 Posts
Originally Posted by zandoval View Post
Sounds like another Urban Myth.
Why, because they're usually torqued so tight it's like they're welded to the frame?

If I'm not changing the crankset, I'm leaving the fixed cup in place. But I always check to see if it's tight. That particular one wasn't. It's not the first time, but, yeah, it's rare.
SurferRosa is offline
Likes For SurferRosa:
Old 04-18-23, 06:06 AM
  #33
El Chaba
Senior Member

Join Date: Dec 2016
Posts: 505
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 163 Post(s)
Liked 376 Times in 140 Posts
Grease, a wrap of Teflon plumbing tape, and tight. A proper fixed cup tool takes the worry away of never being able to loosen a tight cup. In any event, any cup that loosens was not sufficiently tight.
El Chaba is offline
Old 04-18-23, 07:51 AM
  #34
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,353

Bikes: Several, mostly not name brands.

Mentioned: 149 Post(s)
Tagged: 0 Thread(s)
Quoted: 3307 Post(s)
Liked 2,786 Times in 1,608 Posts
Originally Posted by bikingshearer View Post
Whatever you put on the threads (I'm a blue Loctite guy myself), tighten the cup until it screams for mercy, then tighten it a little more, all while cursing whoever in Italia BITD thought a right-handed thread on a fixed cup was a good idea. In my experience, it should have taken about 10 miles, 12 tops, to know that was not the way to go.
It was a cost-saving decision to use right-hand thread on both sides of the bottom bracket (French thread does this as well). You only need one type of tap, run it in one side and all the way through to the other, and you can be certain that both sides of the shell are tapped concentrically. Use of thread adhesive and/or a tool that supplies suitable torque ensures that the cup will not come loose in use.


JohnDThompson is online now
Likes For JohnDThompson:
Old 04-18-23, 12:20 PM
  #35
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,992

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 1,310 Times in 621 Posts
Originally Posted by JohnDThompson View Post
It was a cost-saving decision to use right-hand thread on both sides of the bottom bracket (French thread does this as well). You only need one type of tap, run it in one side and all the way through to the other, and you can be certain that both sides of the shell are tapped concentrically. Use of thread adhesive and/or a tool that supplies suitable torque ensures that the cup will not come loose in use.
That, unfortunately, makes sense. At least the Brits, Swiss, Japanese and Americans did not follow suit.

I don't know about the Belgians, Dutch, Germans or Taiwanese, but since I have never heard anyone complain about a Merckx or a Gazelle or a Giant fixed cup coming loose in the middle of a ride, I'm guessing they went the left-hand threaded fixed cup route as well. And if I'm wrong about, someone will set me straight. (It would not be the first time, it would not be the last.)
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 04-18-23, 12:29 PM
  #36
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,475

Bikes: A few

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 170 Times in 90 Posts
When we were setting up spacecraft for vibe testing , we used to use this stuff called Vibra-tite. Never hardened, like loctite does, so you can still remove the fasteners. Cleans up with MEK. Not cheap, but good for what you're looking to do.

https://www.amazon.com/Vibra-TITE-Th...770605137&th=1
satbuilder is offline
Likes For satbuilder:
Old 04-18-23, 12:38 PM
  #37
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,492
Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 2807 Post(s)
Liked 1,893 Times in 1,378 Posts
Originally Posted by SurferRosa View Post
I don't usually remove the fixed cup during an overhaul, but I do always check if it's secure. This Sugino cup, from a '72 Torpado, came loose fairly easily with an adjustable wrench. So I removed it for cleaning. Now, how to secure it? What's your method? Just a little bit of grease? An ample supply of blue Loctite? Some combo? (Does that even make sense?) I can't remember the last time I did this for an Italian...



And, yeah, it has Sugino cups and crankset and a Campy spindle.
test assemble in your hands. An early Record spindle will work, one designed for the thicker Nuovo record cups will not, the reverse spiraling moves the bearing tracks inboard.

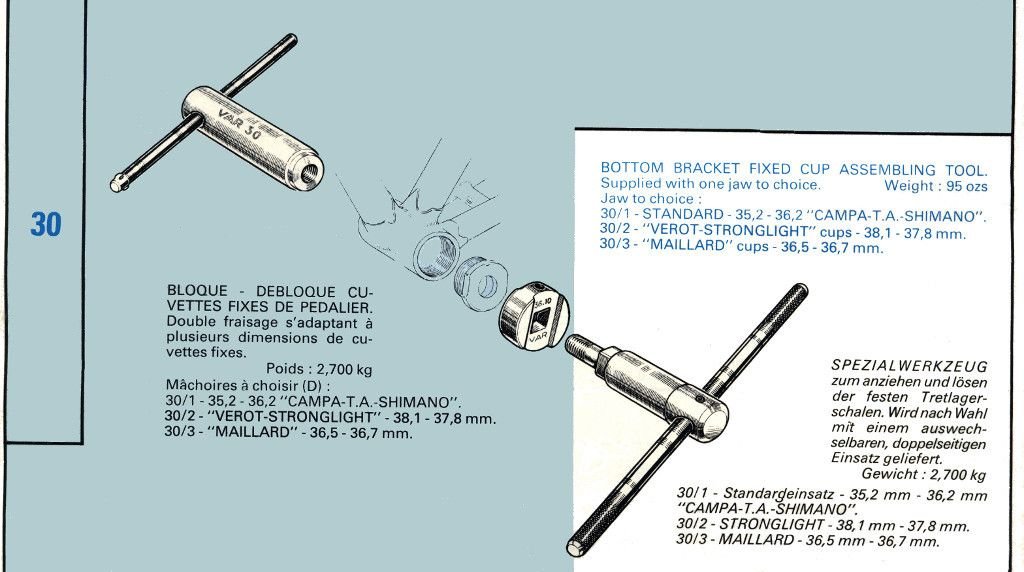

I use a small amount of grease, a Campagnolo professional bottom bracket fixed cup tool, a bench vise and Torque.
repechage is offline
Old 04-18-23, 12:43 PM
  #38
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,492
Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 2807 Post(s)
Liked 1,893 Times in 1,378 Posts
Originally Posted by satbuilder View Post
When we were setting up spacecraft for vibe testing , we used to use this stuff called Vibra-tite. Never hardened, like loctite does, so you can still remove the fasteners. Cleans up with MEK. Not cheap, but good for what you're looking to do.

https://www.amazon.com/Vibra-TITE-Th...770605137&th=1
MEK... in California that is off the shelves now.
so is denatured alcohol as a cleaner. Possible to purchase as a camping stove fuel. Pricey though.
repechage is offline
Old 04-18-23, 12:45 PM
  #39
SurferRosa
se˝or miembro
Thread Starter

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 7,358

Bikes: Old school lightweights

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 3163 Post(s)
Liked 4,734 Times in 2,465 Posts
Originally Posted by repechage View Post
An early Record spindle will work, one designed for the thicker Nuovo record cups will not, the reverse spiraling moves the bearing tracks inboard.
It came to me that way with the Sugino cups and Campy spindle. Weird, right? I bought it from the original owner and the only things he changed out were the brakeset (now DA) and crankset (now mostly Sugino). He couldn't tell me why he did it, back in the mid '70s. I don't know if he didn't want to admit this Torpado originally came with Universal brakes and a cottered crank, or he just forgot.
SurferRosa is offline
