Universal Mod 51

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Universal Mod 51

Old 10-28-20, 06:56 AM
  #1
cocoabeachcrab
Myrtle Beach Crab
Thread Starter

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 448

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 157 Times in 74 Posts
Universal Mod 51

anyone have any experience with these?
cocoabeachcrab is offline
Old 10-28-20, 07:34 AM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,136
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1969 Post(s)
Liked 805 Times in 624 Posts
Fine for the era, when rear brakes had significant more rear brake reach.
replacement pads and holders in the imaged pair. Look Doa-Compe to me.
the lever bodies are tender and often crack
near the clamp
Do not attempt to bend them for “toe-in” of the pads. Arms will most likely crack.
repechage is offline
Old 10-28-20, 07:39 AM
  #3
cocoabeachcrab
Myrtle Beach Crab
Thread Starter

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 448

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 157 Times in 74 Posts
Originally Posted by repechage View Post
Fine for the era, when rear brakes had significant more rear brake reach.
replacement pads and holders in the imaged pair. Look Doa-Compe to me.
the lever bodies are tender and often crack
near the clamp
Do not attempt to bend them for “toe-in” of the pads. Arms will most likely crack.
i was only planning to use the rear calipers, and a univeral CX caliper on the front, as that one gets most of the work to do. i noticed another set on ebay that was cracked like you mentioned.
cocoabeachcrab is offline
Old 10-28-20, 09:08 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,117
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2638 Post(s)
Liked 973 Times in 757 Posts
-----

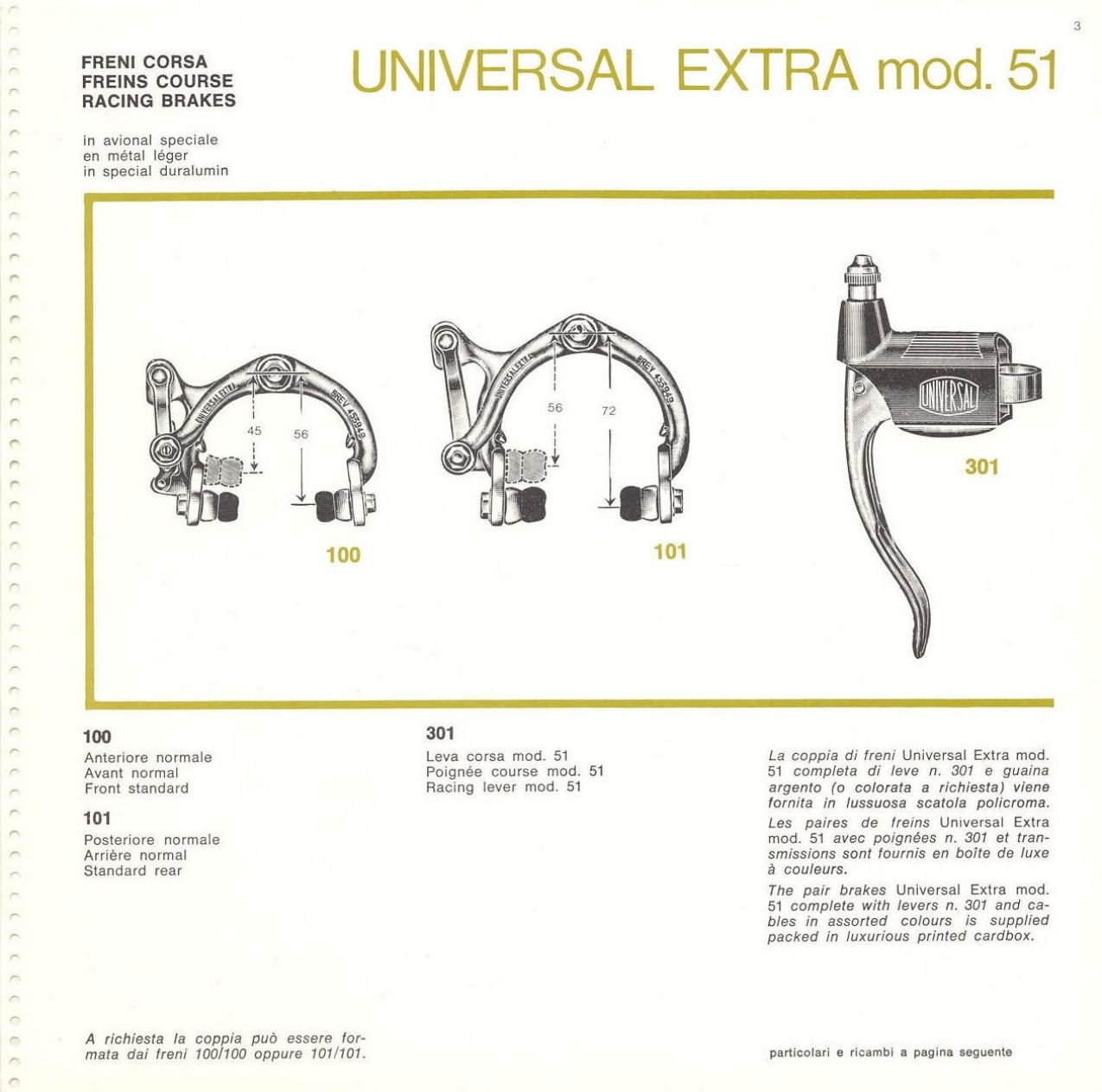

centres are 50.5mm front and 64mm rear

lower limits are 56mm front and 72mm rear

[these values from Sutherland]

---


-----

Last edited by juvela; 10-28-20 at 11:36 AM. Reason: addition
juvela is offline
Old 10-28-20, 09:53 AM
  #5
Andy Antipas
Senior Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 281

Bikes: too many old steel bikes

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 218 Times in 57 Posts

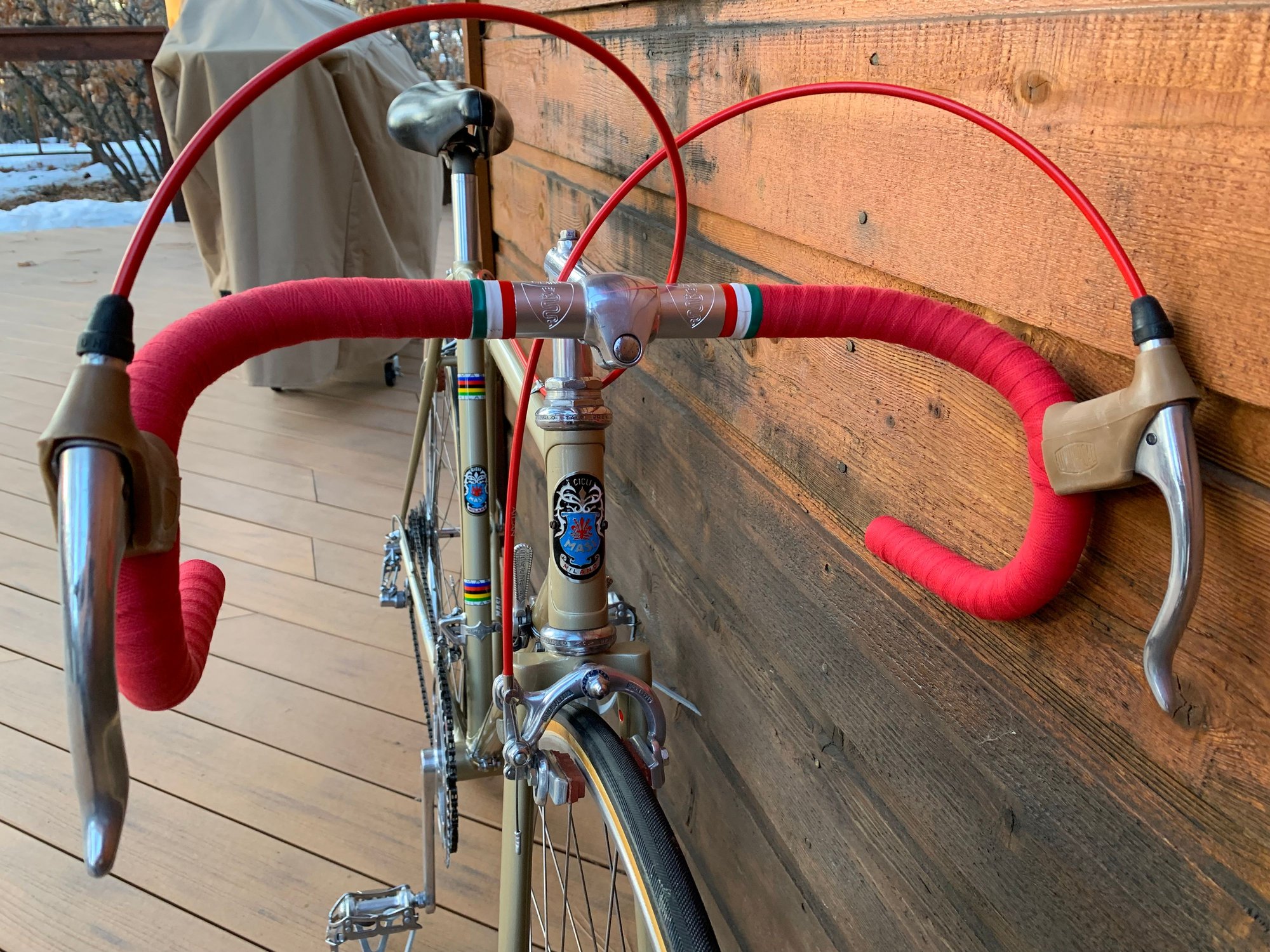

Universal 51s

I have two bikes with these brakes. An early 60's Galmozzi and Masi, which I built as period correct as I could. They work ok for me on old school tubular rims. The original Universal brake pads have some sort of fiber imbedded in them, and they seem to work better than the replacement Weinman pads I have on one of the bikes. I'm using Universal brake levers as well, which don't seem to have the same mechanical leverage as other brands. These are "Sunday ride" bikes and not the ones I would pick for a century ride.


Andy Antipas is offline
Likes For Andy Antipas:
Old 10-28-20, 10:08 AM
  #6
cocoabeachcrab
Myrtle Beach Crab
Thread Starter

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 448

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 157 Times in 74 Posts
Originally Posted by Andy Antipas View Post
I have two bikes with these brakes. An early 60's Galmozzi and Masi, which I built as period correct as I could. They work ok for me on old school tubular rims. The original Universal brake pads have some sort of fiber imbedded in them, and they seem to work better than the replacement Weinman pads I have on one of the bikes. I'm using Universal brake levers as well, which don't seem to have the same mechanical leverage as other brands. These are "Sunday ride" bikes and not the ones I would pick for a century ride.


very nice! mine will be a "sunday rider" as well. my main concern is the caliper wanting to get a crack near the pivot.
cocoabeachcrab is offline
Old 10-28-20, 10:15 AM
  #7
Andy Antipas
Senior Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 281

Bikes: too many old steel bikes

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 218 Times in 57 Posts
I would also agree that you don't want to try and cold set toe in with these brakes. I broke a Super 68 caliper arm before I knew that Universal arms are brittle. Again, I find they work ok and are adequate for nice relaxing rides. If I'm riding with the hammer pilots I will grab a more modern bike in the collection.

Why do you think it will crack near the pivot? Are you seeing a crack starting?
Andy Antipas is offline
Old 10-28-20, 10:29 AM
  #8
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,310

Bikes: 1967 Paramount, 1982-ish Ron Cooper,1978 Eisentraut "A," mid-1960s Cinelli Speciale Corsa, 1961 Bianchi Competizione (an Eroica bike), 1994 Trek 520, 199? Burley Bossa Nova, early-1970s Cinelli Speciale Corsa (also an Eroica bike)

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 409 Post(s)
Liked 479 Times in 243 Posts
Originally Posted by cocoabeachcrab View Post
i was only planning to use the rear calipers, and a univeral CX caliper on the front, as that one gets most of the work to do. i noticed another set on ebay that was cracked like you mentioned.
Smart plan. Universal 51s look good on a period-appropriate bike, but their stopping power leaves much to be desired, even with Kool-Stop pads, modern cables and modern aero levers. (They are a 1951 design, after all.) I just swapped out a a front one for one for a c.1978 Campy front (with Kool-Stop pads) and the stopping power is much improved. The bike now has the Campy front and the long Universal 51 rear, which works fine for now. Your plan makes sense to me.

Full disclosure before someone says I'm nuts and they work fine: I am 6'3" and weigh 250. I live in a hilly area and almost every ride I do involves at least one, and sometimes more, significant twisty descents where brake performance matters. My braking power needs may be more extreme than yours or someone else's.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 10-28-20, 10:40 AM
  #9
cocoabeachcrab
Myrtle Beach Crab
Thread Starter

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 448

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 157 Times in 74 Posts
Originally Posted by Andy Antipas View Post
I would also agree that you don't want to try and cold set toe in with these brakes. I broke a Super 68 caliper arm before I knew that Universal arms are brittle. Again, I find they work ok and are adequate for nice relaxing rides. If I'm riding with the hammer pilots I will grab a more modern bike in the collection.

Why do you think it will crack near the pivot? Are you seeing a crack starting?
i'm looking at a set on ebay that seem ok, but i noticed another listing had a crack on a rear brake caliper. the universal CX seems to be somewhat of a campy clone in many respects (plus i have a nice set in the parts bin!), so that will go on the front with new coolstops for shoes. the rear on my italvega is too long a reach for CX, so pondering a different brake for the rear. i do have a mafac racer available, but the mod 51 looks kinda cool in a wonky vintage mechanical way.
cocoabeachcrab is offline
Old 10-28-20, 12:36 PM
  #10
cocoabeachcrab
Myrtle Beach Crab
Thread Starter

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 448

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 157 Times in 74 Posts
decision made... mod 61 for the rear brake. i hate having the feeling between my shoulder blades that something is prone to cracking.
cocoabeachcrab is offline
Old 10-29-20, 01:57 AM
  #11
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,920

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1131 Post(s)
Likes: 0
Liked 969 Times in 587 Posts

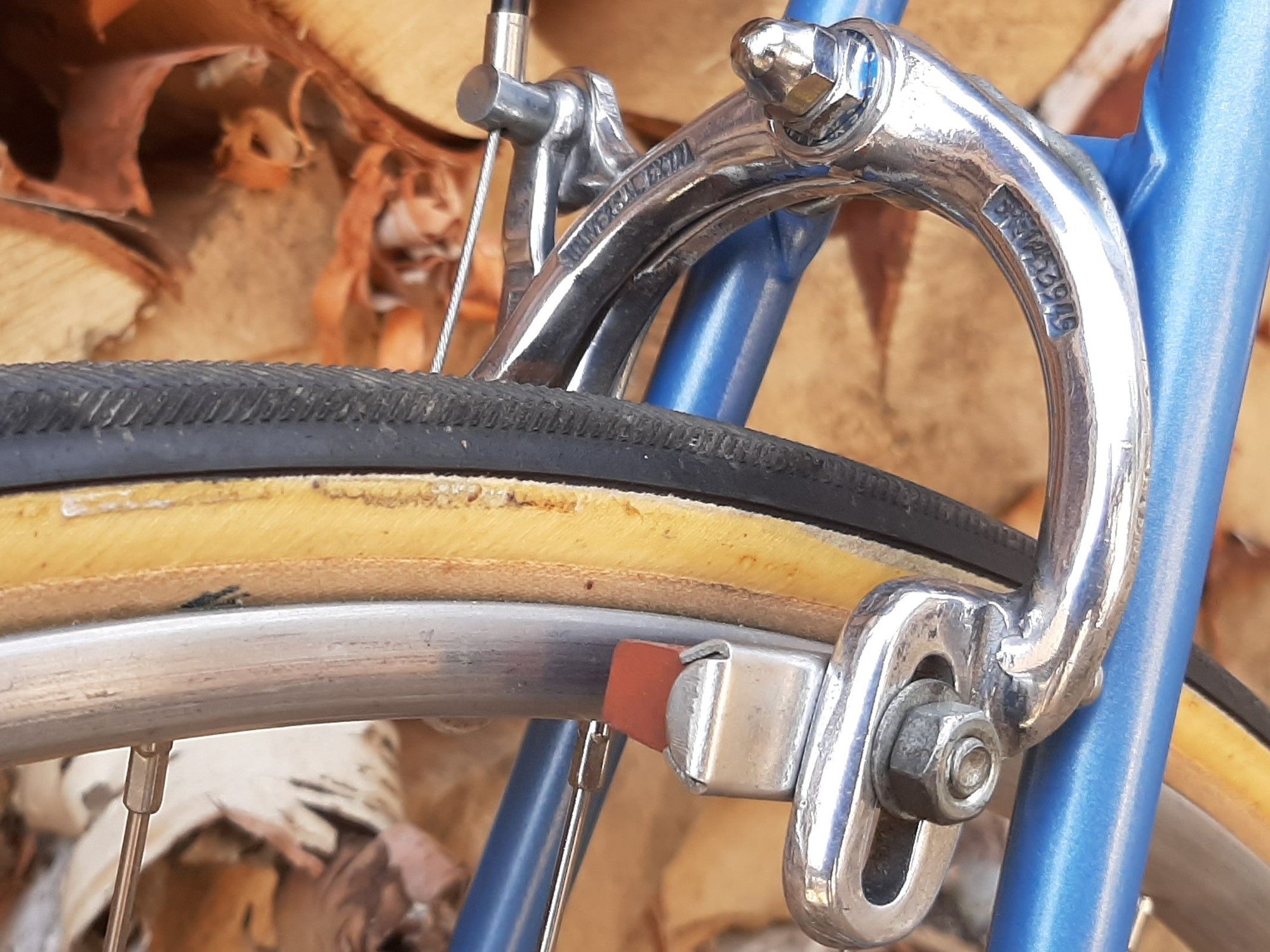

Set-up properly, they work OK but don't expect to compete with 2020 braking standards. I use Universal brakes on two of my bikes and have no serious issues with them...

__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 10-29-20, 05:16 AM
  #12
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,666
Mentioned: 569 Post(s)
Tagged: 1 Thread(s)
Quoted: 4057 Post(s)
Likes: 0
Liked 1,602 Times in 1,149 Posts
I had these on a Legnano Gran Premio. They were good brakes in their day but suffer in comparison to many later, stiffer, side pull brakes. The longer reach rear caliper was common practice into the 1970s. There is some difference in opinion as to the rationale but I've always maintained it was to reduce mechanical advantage and stiffness, to decrease the probability of rear wheel lock-up.
T-Mar is offline
