French Crank - What to Do, what to Do?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

French Crank - What to Do, what to Do?

Old 10-29-20, 02:21 PM
  #1
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 264

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 54 Times in 36 Posts
French Crank - What to Do, what to Do?




I had this French crank on a bike I acquired. It is a 3 bolt number,urrently with a 52/48 ring set-up. The BCD seems quite small. Am I out of my mind to think that somewhere out there I can find a replacement inner ring that is 40 t or even smaller for this?

Anyone know:
1. What make the crank may be?
2. What the BCD is?
3. Thoughts about where I may find that smaller inner ring?

Thanks for your input. - Dan
Dannyboy21 is offline
Old 10-29-20, 02:28 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,150
Mentioned: 310 Post(s)
Tagged: 1 Thread(s)
Quoted: 2647 Post(s)
Liked 993 Times in 769 Posts
-----

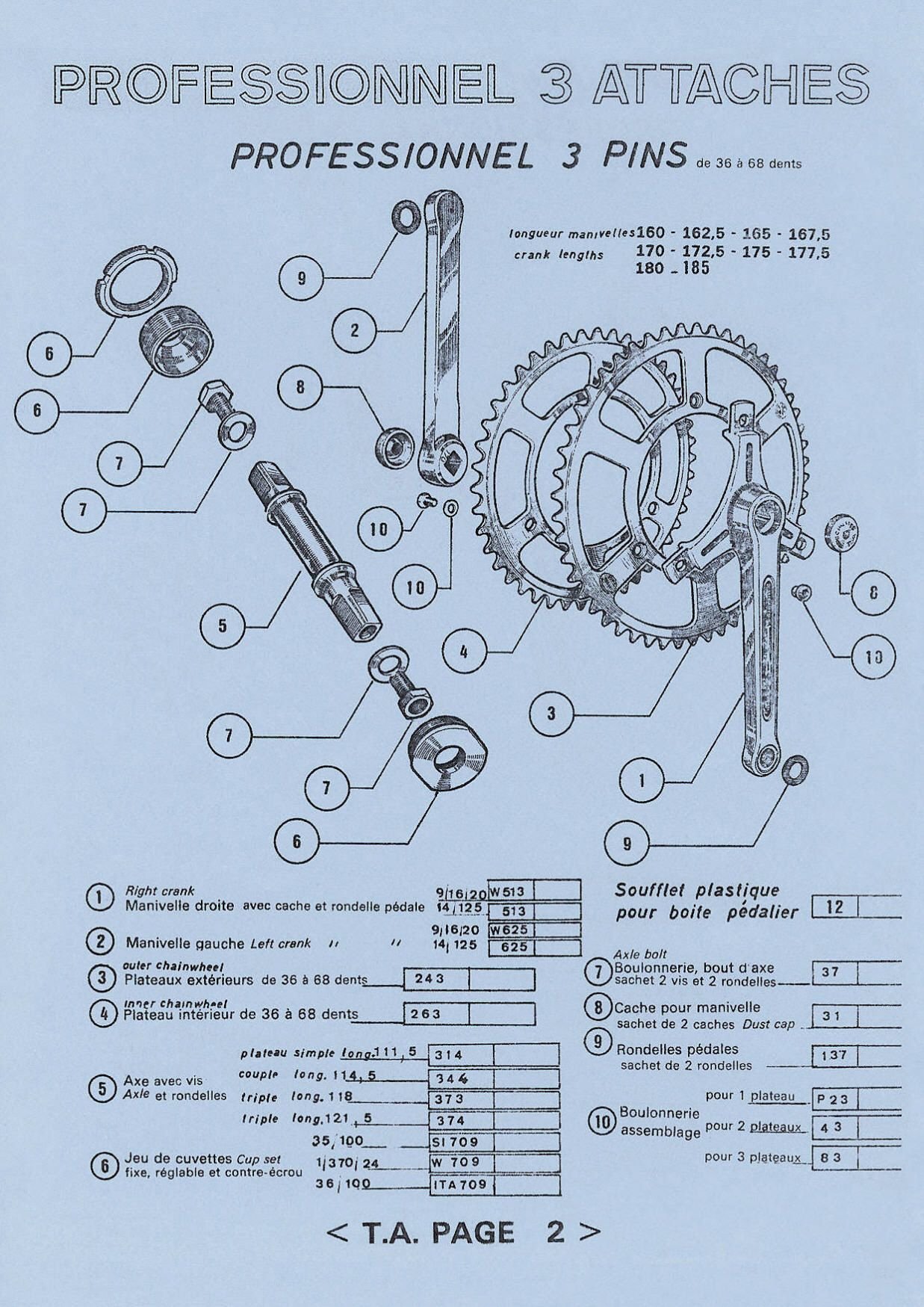

make: Specialites T.A.

model: Trois Attachees

smallest inner offered: 36T

BCD: 116mm

tip: puller thread is unique size which does not interchange with others

---



-----

Last edited by juvela; 10-29-20 at 02:34 PM. Reason: add image
juvela is offline
Likes For juvela:
Old 10-29-20, 02:29 PM
  #3
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,315

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 290 Post(s)
Liked 116 Times in 86 Posts
Dannyboy21-

That is a TA Professionel crankset. It has a unique 23 mm crank extractor and a 116 mm BCD. Excellent cranksets and rings are still available on EBay. More info here: VeloBase.com - Component: Specialités TA Professional 3-arm and here: https://www.ebay.com/itm/1975-Specia...cAAOSwTxJcP4EC
bertinjim is offline
Likes For bertinjim:
Old 10-29-20, 02:42 PM
  #4
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,758

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 601 Post(s)
Liked 729 Times in 398 Posts
This model crank, with 42/52T rings, was the stock crankset on the Raleigh Competition Mk. II c.1973-76. Certain older Park Tools crank pullers came with a double-sided head, one side the now-standard 22.0 mm, the other a 23.0 suitable for T.A. cranks. Do not attempt to use either side on a Stronglight!
rustystrings61 is offline
Likes For rustystrings61:
Old 10-29-20, 03:19 PM
  #5
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 264

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 54 Times in 36 Posts
Is it possible that a TA 6 bolt might have the same 116mm BCD and work with the 3 bolt Crank? This 36T on eBay below for instance?

Look at this on eBay https://www.ebay.com/itm/324181006350
Dannyboy21 is offline
Old 10-29-20, 03:26 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,504

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 2594 Post(s)
Liked 1,870 Times in 1,258 Posts
Originally Posted by Dannyboy21 View Post



I had this French crank on a bike I acquired. It is a 3 bolt number,urrently with a 52/48 ring set-up. The BCD seems quite small. Am I out of my mind to think that somewhere out there I can find a replacement inner ring that is 40 t or even smaller for this?

Anyone know:
1. What make the crank may be?
2. What the BCD is?
3. Thoughts about where I may find that smaller inner ring?

Thanks for your input. - Dan
So you say it came on a bike, if so then you took it off, what tool did you use?

If you did not use a TA thread tool, then this has already had the wrong tool forced into it and the threads may be compromised and may not come off again if it is reinstalled, you may have gotten very lucky getting it off.

This can be a PITA as the threads are very close to others so the wrong tool often gets used until the threads strip out and then you have to resort to brute force to get them off.

I would not go any further until you can determine this and sort it out completely, you don't want to source a spendy, hard to find part before you can be sure the crank will live on.
merziac is offline
Likes For merziac:
Old 10-29-20, 04:30 PM
  #7
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,634

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1849 Post(s)
Liked 1,007 Times in 678 Posts
Originally Posted by Dannyboy21 View Post
Is it possible that a TA 6 bolt might have the same 116mm BCD and work with the 3 bolt Crank? This 36T on eBay below for instance?

Look at this on eBay https://www.ebay.com/itm/324181006350
Nope. You'd need to use this 'adapteur' and still source out a smaller chainring.
I'm a little confused what crank your ring fits. You can see the 44 tooth ring on the adapteur is already close to the minimum size. It looks quite used as well.

Last edited by clubman; 10-29-20 at 04:35 PM.
clubman is offline
Old 10-29-20, 05:17 PM
  #8
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,511

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 616 Times in 365 Posts
I have the same crank on my 1974 Raleigh Competition. I believe it has a 42t inner so you may be able to tease one out of the ebay market. Personally, I'd recommend using that 52/48 to set up your bike with half-step gearing. Assuming it's going on a 5-6 speed vintage bike, half-step will be perfect to reduce the number of duplicate gears.
Moe Zhoost is offline
Old 10-29-20, 05:55 PM
  #9
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,478
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 801 Post(s)
Liked 382 Times in 309 Posts
FWIW the 3-pin was also OEM on Motobecane Grand Record, from '74 to '76...(I checked the catalogs on VeloBase and the teeth specs are 42/52)

Last edited by unworthy1; 10-30-20 at 01:11 PM.
unworthy1 is offline
Old 10-29-20, 06:03 PM
  #10
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,702

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 537 Post(s)
Tagged: 0 Thread(s)
Quoted: 1829 Post(s)
Liked 334 Times in 221 Posts
116 mm BCD was the Continental standard for many years, starting by the 1930’s. Italian, French, and even English makers used it. But that was in the chromed steel age. In the alloy age, Campagnolo, TA, Stronglight and Nervar all made cranks with this BCD.

Seems to me you can get a 36t ring. If it were mine, i would not balk at a steel ring, if that were my only choice.

Another chain ring option is to take a dremel to an 86mm bcd chainring from FSA.

Last edited by rhm; 10-29-20 at 06:11 PM.
rhm is offline
Likes For rhm:
Old 10-29-20, 06:09 PM
  #11
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2312 Post(s)
Liked 566 Times in 406 Posts
Originally Posted by rhm View Post
Seems to me you can get a 36t ring. If it were mine, i would not balk at a steel ring, if that were my only choice.
Yep. Steel is real.
Salamandrine is offline
Old 10-29-20, 07:22 PM
  #12
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 264

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 54 Times in 36 Posts
Originally Posted by merziac View Post

I would not go any further until you can determine this and sort it out completely, you don't want to source a spendy, hard to find part before you can be sure the crank will live on.
Thanks for this advice. I did get help removing this crank from a seasoned mechanic who worked on bikes for over 30 years from the 70s into the 90s. Thankfully the threads are good. French bikes are the latest steepening gradient to my learning curve it seems. I tried to replace a nice Stronglight Competition headset on an old Browning V last night with something less sparkly and quickly learned that not all 1 inch headsets are the same diameter. Lots of fun. Thanks again.
Dannyboy21 is offline
Likes For Dannyboy21:
Old 10-29-20, 08:23 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,504

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 2594 Post(s)
Liked 1,870 Times in 1,258 Posts
Originally Posted by Dannyboy21 View Post
Thanks for this advice. I did get help removing this crank from a seasoned mechanic who worked on bikes for over 30 years from the 70s into the 90s. Thankfully the threads are good. French bikes are the latest steepening gradient to my learning curve it seems. I tried to replace a nice Stronglight Competition headset on an old Browning V last night with something less sparkly and quickly learned that not all 1 inch headsets are the same diameter. Lots of fun. Thanks again.
The seasoned guru must have had the correct tool and I would imagine eluded to such.

The key step in much of this is to realize when your out of your depth and make sure you get the correct help.

That being said, since you already realize that, you are well on your way to sorting these type of things on your own.
merziac is offline
Old 10-29-20, 08:44 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,268
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 2008 Post(s)
Liked 831 Times in 648 Posts
Good cranks - I have them on two bikes.
i found a 40t on eBay a year + ago
not cheap
38’s show up And I will outbid you.
even when I worked for a shop that stocked TA rings- never saw smaller than a 38t

the 6 pin ring cited earlier won’t do it
there was for a time an intermediate “ring” that bridged the 3 to 6.

the problem with these aside from the lack of spares is that the teeth are oriented to the back side... easy to down shift- not a happy on the shift in the big ring.
No land, ramps or pins...
the chain has to fully clear over the top of the teeth.
light, low “Q” factor.
many came in French threading
can be tapped to 9/16” x 20
but you will lose the backside filler.

both of my crank sets on bikes have French threads with thread matching pedals
have a 5 pin with English threading... looking for that #374 spindle... they turn up- not cheap!
repechage is offline
Old 10-30-20, 04:38 AM
  #15
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,525
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 574 Post(s)
Likes: 0
Liked 525 Times in 331 Posts
Originally Posted by repechage View Post
many came in French threading
can be tapped to 9/16” x 20
but you will lose the backside filler.
His are english - "W" stamp.
oneclick is offline
Old 10-30-20, 10:56 AM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,268
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 2008 Post(s)
Liked 831 Times in 648 Posts
Originally Posted by oneclick View Post
His are english - "W" stamp.
Yes, was just at the eye doctor... phone screen without more magnification...
Thanks.

the missing arm labels are around online.
repechage is offline
Likes For repechage:
Old 10-30-20, 11:16 AM
  #17
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,500
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 290 Post(s)
Liked 242 Times in 161 Posts
...and J.A. Stein (eBay) sells crank extractors in the 23 mm thread to fit these old TA cranks.
conspiratemus1 is offline
Likes For conspiratemus1:
Old 10-30-20, 11:23 AM
  #18
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,932

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2722 Post(s)
Liked 1,462 Times in 904 Posts
Originally Posted by Dannyboy21 View Post
Is it possible that a TA 6 bolt might have the same 116mm BCD and work with the 3 bolt Crank? This 36T on eBay below for instance?

Look at this on eBay https://www.ebay.com/itm/324181006350
No, but the 116mm 3-arm bolt circle was used by many crank manufacturers:
Attached Images
File Type: jpg
JohnDThompson is offline
Likes For JohnDThompson:
Old 10-30-20, 04:43 PM
  #19
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 264

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 54 Times in 36 Posts
Originally Posted by clubman View Post
Nope. You'd need to use this 'adapteur' and still source out a smaller chainring.
I'm a little confused what crank your ring fits. You can see the 44 tooth ring on the adapteur is already close to the minimum size. It looks quite used as well.
Haha. I wish it was 44; it is 48t, really don't feel like pushing 48t uphill at 51 years old.
Dannyboy21 is offline
Old 10-30-20, 04:46 PM
  #20
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 264

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 54 Times in 36 Posts
Originally Posted by repechage View Post
38’s show up And I will outbid you.
Nice. We shall see! In all seriousness, I am not looking at spending a fortune to put a climbing ring on this. Maybe find a project to put it on long term, as is.
Dannyboy21 is offline
Old 10-30-20, 06:08 PM
  #21
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,758

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 601 Post(s)
Liked 729 Times in 398 Posts
DO let me know if you see a deal on a 44T ring for these - I would use that with my existing 42 and mount my set of T.A. Professionals back on my Raleigh Competition with the Dingle Drive!
rustystrings61 is offline
Old 10-30-20, 06:14 PM
  #22
Dannyboy21
Senior Member
Thread Starter

Dannyboy21's Avatar

Join Date: Aug 2019
Location: Corbeil, Ontario, Canada
Posts: 264

Bikes: Marinoni Special, Cambio RINO, Raleigh Competition GS, Colnago Super, Gitane Pro TdF, Cervelo R5, Salsa Warbird, Giant Trance X1

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 54 Times in 36 Posts
Originally Posted by rustystrings61 View Post
DO let me know if you see a deal on a 44T ring for these - I would use that with my existing 42 and mount my set of T.A. Professionals back on my Raleigh Competition with the Dingle Drive!
I will
Dannyboy21 is offline
Old 10-30-20, 06:22 PM
  #23
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,835
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 1096 Post(s)
Liked 489 Times in 377 Posts
Are my ears ringing? T.A. Pro 3-arm chainrings and bolts 42/52
__________________
███████████████


Last edited by francophile; 10-30-20 at 06:25 PM.
francophile is offline
Old 10-30-20, 09:52 PM
  #24
kroozer
vintage motor

kroozer's Avatar

Join Date: Sep 2008
Location: Tepic, Nayarit, Mexico
Posts: 1,426

Bikes: Automoto, Stallard, Rotrax, Jack Taylor, Atala, Lejeune, Motobecane, RIH, Zieleman, Raleigh, Messina, Brazzo, Davidson, Fisher, Kestrel

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Likes: 0
Liked 36 Times in 30 Posts
Originally Posted by Dannyboy21 View Post
Is it possible that a TA 6 bolt might have the same 116mm BCD and work with the 3 bolt Crank? This 36T on eBay below for instance?

Look at this on eBay https://www.ebay.com/itm/324181006350
I would say yes, it should fit with no problem. TA made 6-bolt chainrings with 3 different bcd's:
Criterium: 152 mm bcd, smallest ring 44 teeth.
Randonneur: 116 mm bcd, smallest ring 36 teeth.
Cyclotouriste: 80 mm bcd, smallest ring 26 teeth.
The Ebay ring is a Randonneur and will fit your crank perfectly. You should buy it right now, because these don't show up all that often. You'll have 3 extra holes but so what. 3-hole 116mm rings smaller than 42t are almost impossible to find unless you get steel rings (this used to be one of the standard chainring bcd's in Europe).
kroozer is offline
Old 10-31-20, 03:02 AM
  #25
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,525
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 574 Post(s)
Likes: 0
Liked 525 Times in 331 Posts
Originally Posted by kroozer View Post
3-hole 116mm rings smaller than 42t are almost impossible to find unless you get steel rings (this used to be one of the standard chainring bcd's in Europe).
The Raleigh catalogs from the early 1970s spec lower-end (Super Course down) with steel three-pin 40-52, variously "Raleigh", "Nervar", or an unbranded 40-48 on the 24" GP.

HOWEVER, count the teeth. I just picked up a 1973 SC and it has a "made by Stronglight" steel crankset with a 42 (!) - 52. The 72 SC spec says "Stronglight 40-52".

Steel ring teeth make sense; the smaller the ring the more sense they make. I suppose the best arrangement would be a U-channel ring of steel teeth with an inner aluminium ring and arms centrifugally cast into the ring and then machined and peened.
oneclick is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
