Help me restore this bike correctly - Advice needed

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help me restore this bike correctly - Advice needed

Old 11-02-20, 02:42 PM
  #1
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Help me restore this bike correctly - Advice needed

After a lot of research to determine the make of an unidentified frame I had recently purchased, I finally reached out to this forum to see with other users might suggest. With a bit of luck, I was advised that I had unknowingly purchased (for $75 off of craigslist) a rare Roberts Cycles track frame. I reached out to what is left of the now-folded Roberts Cycles Company and they too agree I was in possession of a Roberts Cycle Track Frame. The frameset I purchased is serial number #414 dating from the mid to late 1960s. Unfortunately, because the data was lost in a robbery at the Roberts premises, determining the exact year of the frame is lost to history. Regardless, I am taking on the project of restoring the frameset to its original condition to the best of my ability.

Are any of you familiar with early model versions of the Roberts Cycles Track bikes/frames? I am trying to pinpoint the exact color the frame should be for this period as well as the correct components. The manufacture shared with me photos of an earlier model frame (serial number 66) that showed a red and silver (possibly chrome) paint scheme with gold pinstriping. I have also located a late 1970s catalog from a USA based importer stating that the majority of the Roberts Track Frames from the 70s were all white.

I have searched tirelessly online to get photos of these frames, but the majority of the photos available are of frames from the 1980 and on.

If any of you have any knowledge of mid to late 1960s to early 1970s Roberts Track Frames, could you please provide some advice?

Thank you so much for your help!
berkleydriskill is offline
Likes For berkleydriskill:
Old 11-02-20, 03:41 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,385

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 163 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Liked 1,824 Times in 1,228 Posts
@berkleydriskill

H**Y CRAP MAN!

Very cool, no real advice but to stay the course your on and that it was likely all Campy of the day which would be the go to if not.

Wheels and hubs for this may be the biggest challenge as time is not kind to them and track hubs come at a premium.

Road hubs are acceptable and can be converted to solid axle for place holders if need be but the rear is a kludge with freewheel threads.

The color you have looks to be original but who knows. The few Roberts I have seen included 2 that were white with red panels.

You should be able to find at least 1 here on BF if you search and are prepared to sift a lot.

Last edited by merziac; 11-02-20 at 03:46 PM.
merziac is offline
Likes For merziac:
Old 11-02-20, 04:30 PM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,385

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 163 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Liked 1,824 Times in 1,228 Posts
@berkleydriskill

Ed Litton painted one of the ones that is here somewhere, you may be able to get info from him.
merziac is offline
Old 11-02-20, 07:18 PM
  #4
uncleivan
Senior Member

Join Date: Aug 2008
Posts: 196

Bikes: '92 MX Leader, 84 Colnago Mexico, 85 Recherche, 92 Klein, 86 Panasonic ATB Pro, 88 Roberts, 80 moser, 90 Wojcik, 92 Spectrum... ect

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 61 Times in 37 Posts
Ive found a lot more information on Roberts on the retro bike uk forum.
uncleivan is offline
Old 11-03-20, 02:40 PM
  #5
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Originally Posted by merziac View Post
@berkleydriskill

H**Y CRAP MAN!

Very cool, no real advice but to stay the course your on and that it was likely all Campy of the day which would be the go to if not.

Wheels and hubs for this may be the biggest challenge as time is not kind to them and track hubs come at a premium.

Road hubs are acceptable and can be converted to solid axle for place holders if need be but the rear is a kludge with freewheel threads.

The color you have looks to be original but who knows. The few Roberts I have seen included 2 that were white with red panels.

You should be able to find at least 1 here on BF if you search and are prepared to sift a lot.

Thanks so much! The plan as of now, and as long as I can afford it is to do a Campy groupset. Considering the price, I might have to piece it out bit by bit making the restoration process take a lot longer than I would like. Being as impatient as I am, this is going to be tough, but I don't see any other way around it. As far as the wheels/hubs go, I too feel this will probably have to be a deviation from a complete period piece restoration. Not sure yet what would look best or be within budget, but always open to suggestions. Also, thanks for the advice on Ed Litton. I am still a newbie to the forum, but I am sure I will eventually be able to find him and the photos you mentioned. Thanks again!
berkleydriskill is offline
Old 11-03-20, 02:41 PM
  #6
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Originally Posted by uncleivan View Post
Ive found a lot more information on Roberts on the retro bike uk forum.
That is a great suggestion. I will see what I can find there as well.
berkleydriskill is offline
Old 04-12-21, 10:20 AM
  #7
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts

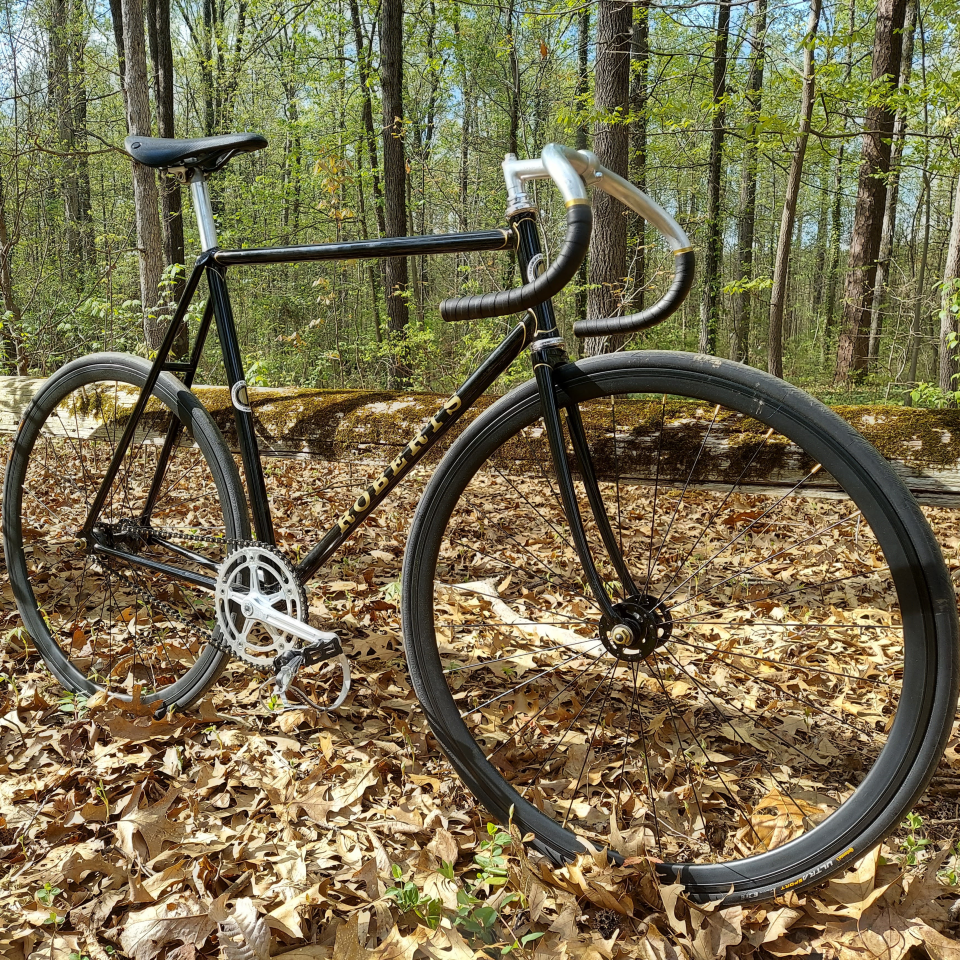

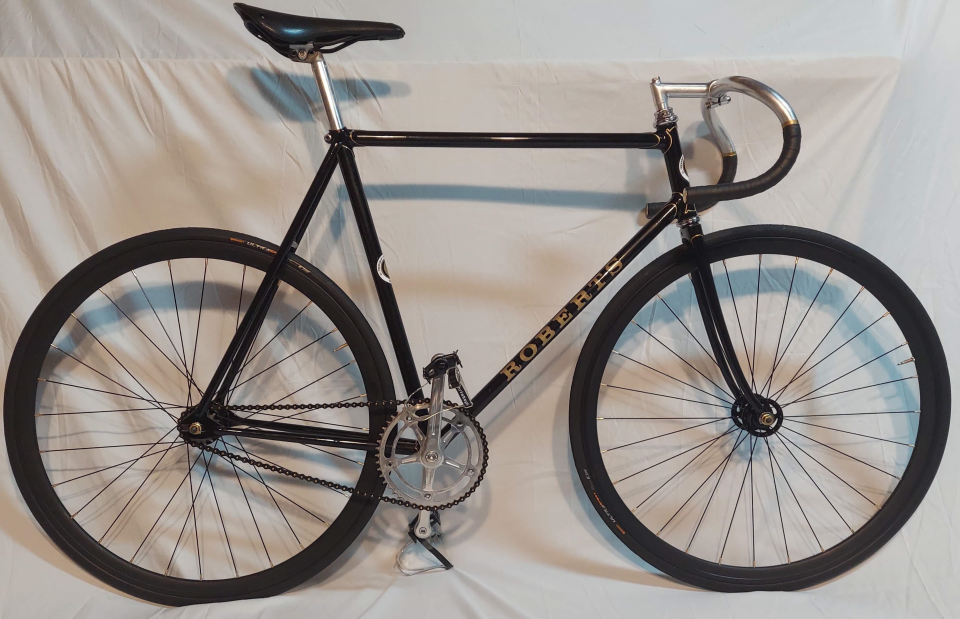

After 6+ months of work, she's finally done.
A full list of photos can be found here Roberts Bike | Flickr









Period Correct Components dating 1950’s-1960’s:

Ambrosio Champion “Dural Forge ET Estampe” Stem 95mm x 26mm

Ambrosio Champion Pista Drop-bar Handlebars

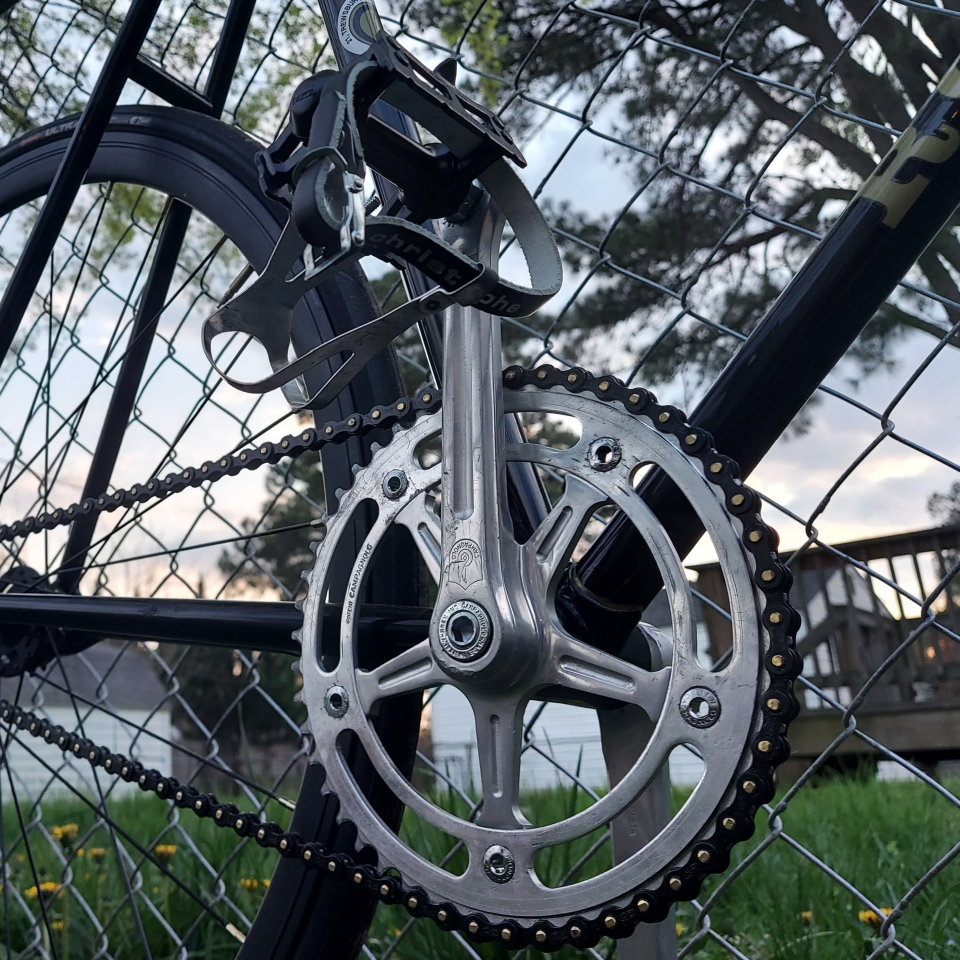

Campagnolo #1051, Record Pista (144bcd) 165 mm Crank Set with matching Campy Crank Bolts and Campagnolo Pista Chainring Bolts

Campagnolo seat post 27.2 diameter, 180 mm length #1044

Campagnolo Super Record Road-Track Alloy Toe Clips (Most likely from the 1980’s)

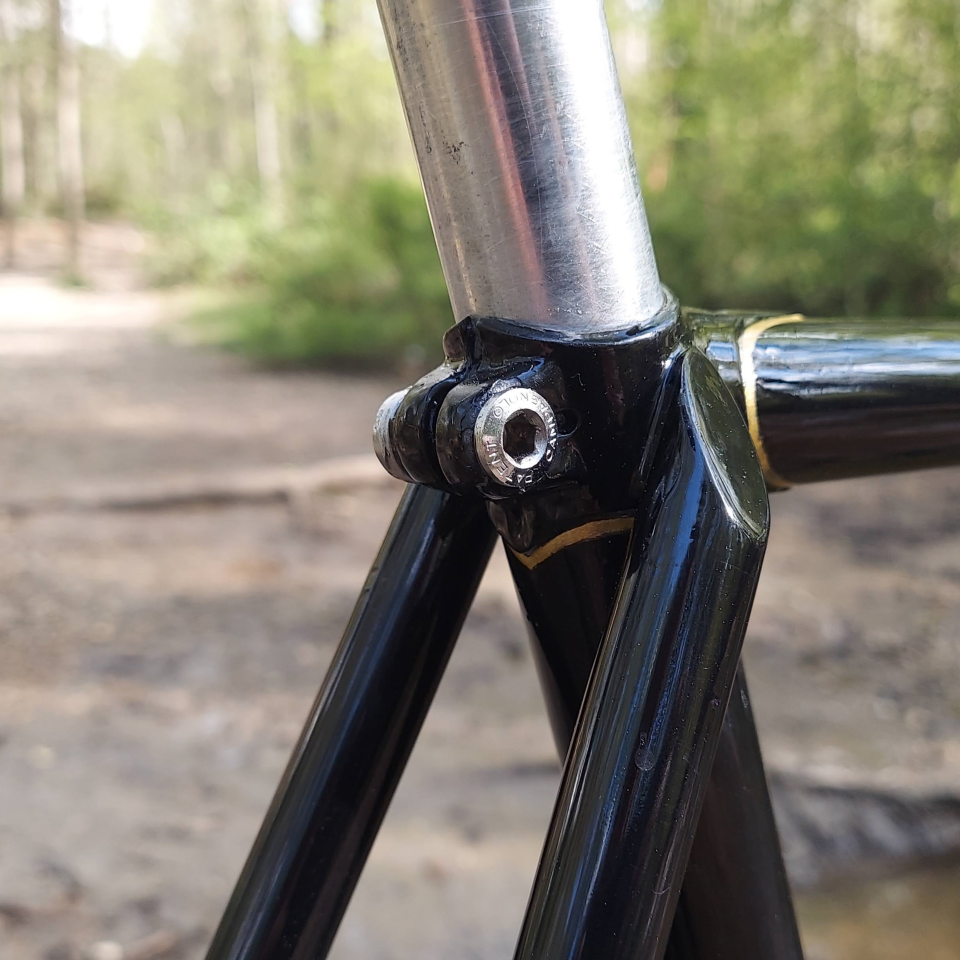

Campagnolo Nuovo Super Record #1072 Seat Post Binder Fixing Bolt 8 x 19 mm

Campagnolo Headset – Exact model unknown

Modern Components:

Campagnolo Record Pista Bottom Bracket

Charles Roberts, Chrome Racing Bar Plugs

Brooks Cambium Saddle C15

Izumi Jet Black with Gold Pins 1/2 x 1/8 Track Bike Chain

MKS Sylvan all black Track pedals

6KU 30mm Deep V Double-Walled Alloy Wheels

Novatec Flip-Flop Hubs

Christophe Vintage Leather Toe Straps

Custom printed Decals provided by hlloydcycles.com

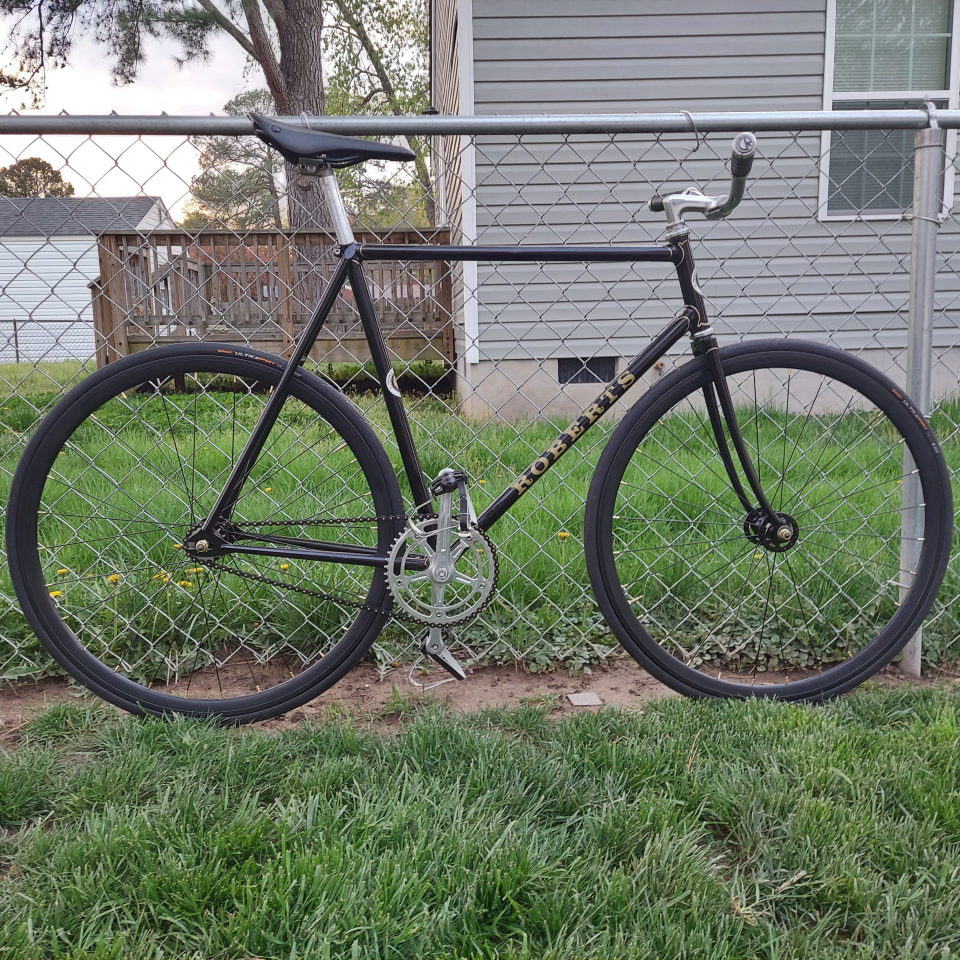

Alternate Setup - Nitto B259 Urban Riser Handlebar + NITTO Y-3 Bicycle Stem 6-9 Young 22.2, 90mm
berkleydriskill is offline
Likes For berkleydriskill:
Old 04-12-21, 11:19 AM
  #8
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,566

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1831 Post(s)
Liked 975 Times in 657 Posts
Heck of a bike.
clubman is offline
Likes For clubman:
Old 04-12-21, 11:29 AM
  #9
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,824
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1088 Post(s)
Liked 484 Times in 373 Posts
Looks beutiful! Who ended up doing the frame refinishing work, I didn't see that listed? (sorry if I missed it)
And how'd you settle on black for the color? 9surely there must be a story)
__________________
███████████████

francophile is offline
Likes For francophile:
Old 04-12-21, 11:50 AM
  #10
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Originally Posted by francophile View Post
Looks beutiful! Who ended up doing the frame refinishing work, I didn't see that listed? (sorry if I missed it)
And how'd you settle on black for the color? 9surely there must be a story)
You're right, I totally forgot to mention and give credit to Robert Gassie, owner of https://www.bingbicycle.com/aboutus.html for his excellent frame painting skills.
Black and Gold is just my favorite color combination. Using a photo of a similar-aged Roberts frame with original paint intact, I designed the paint scheme and Rob did a great job bringing it to life.
berkleydriskill is offline
Likes For berkleydriskill:
Old 04-12-21, 12:07 PM
  #11
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
Wow! Really nice.
John Nolan is offline
Likes For John Nolan:
Old 04-12-21, 12:14 PM
  #12
bOsscO
bOsscO

bOsscO's Avatar

Join Date: May 2006
Location: Vancouver
Posts: 638

Bikes: 2015 Norco Search S1, 2012 Cervelo R5, 93 Mongoose IBOC COMP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 291 Times in 172 Posts
Fantastic work on this build.
bOsscO is offline
Likes For bOsscO:
Old 04-12-21, 12:46 PM
  #13
Senrab62
It's the little things

Join Date: Jan 2016
Location: Chicagoland
Posts: 566

Bikes: Too many, yet not enough

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 182 Times in 80 Posts
Beautiful build

Perfect blend of period correct and modern. Classy af!
Senrab62 is offline
Likes For Senrab62:
Old 04-12-21, 12:58 PM
  #14
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Originally Posted by Senrab62 View Post
Perfect blend of period correct and modern. Classy af!
Thank you so much! I was a bit worried there would be negative feedback for the lack of a complete restoration using all period components, but I do plan to use this as my daily commuter, so certain items needed to be adjusted. Thanks again for the compliment.
berkleydriskill is offline
Likes For berkleydriskill:
Old 04-12-21, 01:43 PM
  #15
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,824
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1088 Post(s)
Liked 484 Times in 373 Posts
Originally Posted by berkleydriskill View Post
Thank you so much! I was a bit worried there would be negative feedback for the lack of a complete restoration using all period components, but I do plan to use this as my daily commuter, so certain items needed to be adjusted. Thanks again for the compliment.
The only thing I think anyone could give you beef about is the riser/tracker bar with BMX style grips, but seeing the bike with a proper old school drop-wrapped track bar BEFORE the other pics, I'd be shocked if anyone will give you hell

I'm sure you already had to spend enough on the repaint/re-decal alone. I can't imagine what the crankset and other parts cost. SS campy hubs will set you back a mint, I see single hubs go for $50-125 all day long in piss-poor to good shape, respectively. I can't knock your choices in this case. You brought a classic back to life.
__________________
███████████████

francophile is offline
Likes For francophile:
Old 04-12-21, 01:46 PM
  #16
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,796

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5234 Post(s)
Liked 1,862 Times in 1,217 Posts
This bike is beautiful. No one will give you grief over the mix of parts. A lot of posters here do that from time to time especially when the bike is a rider and not a museum piece.
bikemig is offline
Likes For bikemig:
Old 04-12-21, 01:49 PM
  #17
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,989

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 6909 Post(s)
Liked 1,566 Times in 991 Posts
What kind of riding are you doing on this beauty? And I'm not clear on whether you're using the riser or the drop bars.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Likes For noglider:
Old 04-12-21, 02:31 PM
  #18
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Originally Posted by noglider View Post
What kind of riding are you doing on this beauty? And I'm not clear on whether you're using the riser or the drop bars.
Admittedly, I will be using the risers more often than not and this is only due to comfort and practicality. While the risers are more suited for my daily ride, I agree and concur that the Ambrosio Drop-bars give the bike its proper look, but are simply not my preference for daily riding. Richmond has quite a lot of hills and I have little experience on a velodrome, so the drop bars will come out on special occasions. Thank you all so much for the feedback. Hearing others talk about this project has really made the last 6 months worth the effort and breaking the bank.
berkleydriskill is offline
Old 04-12-21, 02:37 PM
  #19
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,566

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1831 Post(s)
Liked 975 Times in 657 Posts

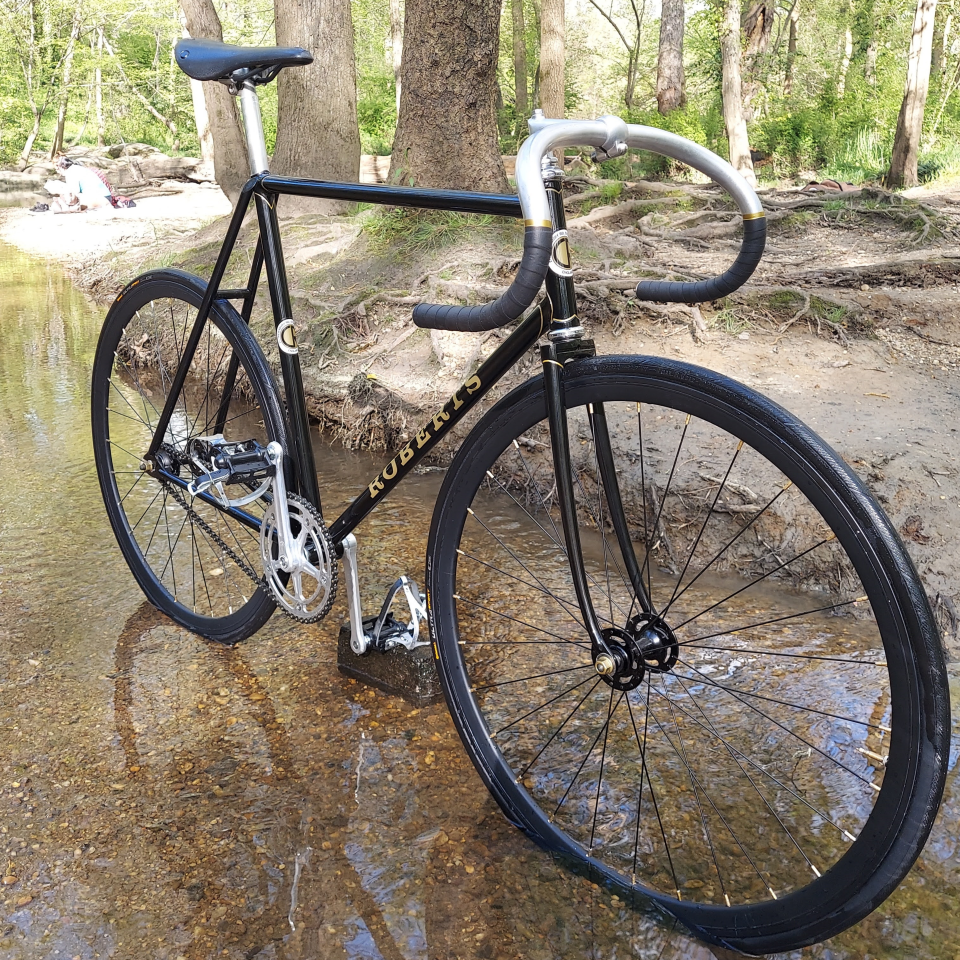

The shot in the creek is cool. Not afraid to get a little wet?
clubman is offline
Likes For clubman:
Old 04-12-21, 02:44 PM
  #20
berkleydriskill
Member
Thread Starter

berkleydriskill's Avatar

Join Date: Oct 2020
Location: Richmond VA
Posts: 39

Bikes: 1960s Roberts Cycles Track Bike, 2006 EAI bareknuckle, 2020 6ku urban track, random others built and sold between

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 38 Times in 12 Posts
Originally Posted by clubman View Post
The shot in the creek is cool. Not afraid to get a little wet?
Honestly, it was the quickest and easiest way to rid the tires of all the pollen that had covered the tires. After giving the wheels a few spins in the creek I noticed the sunlight through the trees and figured it was as good a shot as any to take of the new bike. I like the way it came out. Thanks for the feedback.
berkleydriskill is offline
Old 04-12-21, 03:11 PM
  #21
polymorphself
Senior Member

Join Date: Oct 2017
Posts: 1,430
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 571 Post(s)
Liked 568 Times in 290 Posts
Originally Posted by berkleydriskill View Post
Thank you so much! I was a bit worried there would be negative feedback for the lack of a complete restoration using all period components, but I do plan to use this as my daily commuter, so certain items needed to be adjusted. Thanks again for the compliment.
We're actually pretty far from that kind of bunch, still around longer and see! Awesome bike.
polymorphself is offline
Likes For polymorphself:
Old 04-12-21, 03:52 PM
  #22
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,385

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 163 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Liked 1,824 Times in 1,228 Posts
Originally Posted by berkleydriskill View Post
Thank you so much! I was a bit worried there would be negative feedback for the lack of a complete restoration using all period components, but I do plan to use this as my daily commuter, so certain items needed to be adjusted. Thanks again for the compliment.
Again, H**Y CRAP!

No worries, great job.

All good, period.
merziac is offline
Likes For merziac:
Old 04-12-21, 03:55 PM
  #23
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,605

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 819 Post(s)
Liked 624 Times in 411 Posts
Wow, what a beautiful bike... Yeah, most folks here believe bikes are meant to be ridden, and comfort and fit are foremost. Great job!
noobinsf is offline
Likes For noobinsf:
Old 04-12-21, 04:26 PM
  #24
Senrab62
It's the little things

Join Date: Jan 2016
Location: Chicagoland
Posts: 566

Bikes: Too many, yet not enough

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 182 Times in 80 Posts
Originally Posted by berkleydriskill View Post
Thank you so much! I was a bit worried there would be negative feedback for the lack of a complete restoration using all period components, but I do plan to use this as my daily commuter, so certain items needed to be adjusted. Thanks again for the compliment.
From the feedback you can see the love and passion. It's what's awesome about the forum and bicycles in general. Do what you will as long as you ride it. Thanks for sharing!
Senrab62 is offline
Likes For Senrab62:
Old 04-12-21, 04:44 PM
  #25
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,385

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 163 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Liked 1,824 Times in 1,228 Posts
@berkleydriskill

Poetic license can serve us well as it has you here.

The ability to tastefully "reroute" the vibe, aesthetic, etc. can be very good in many cases like this.

If it had come with all the original or like components in usable condition, it might have been a different story.
merziac is offline
Likes For merziac:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
