The 5 Vis appreciation thread

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The 5 Vis appreciation thread

Old 05-18-21, 06:30 AM
  #151
Uff Da!

Join Date: Sep 2003
Posts: 1,192
Liked 184 Times in 91 Posts
Originally Posted by bulgie
This one uses a Huret parallelogram front derailleur. Whether the mech needed to be modified to cover the spread, I don't know.
Here's a Rebour drawing of a Singer single bike with a quad. Bespoke Singer derailleur:
Mark B
I'm curious about what front derailleur could handle these.
Aside from the lateral movement required, mine has a 30 tooth difference(26/56) between the smallest and largest chainring.
I don't know of any front derailleur that could handle that.
Sierra is offline
Old 07-06-21, 08:47 PM
  #152
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 4,584

Bikes: Indeed!

Liked 3,631 Times in 1,170 Posts
I recently came across this 50.4 BCD cottered steel crankset. Drive side has the Williams logo. Non-drive side has no logo. Chamfer on back side is just a little larger on drive side crank.
Both are marked "Made in England" on the front and "1/2" on the back.

Any suggestions for date of manufacture? What is the significance of the letter "Z" below the Williams logo?






Brent
obrentharris is offline
Likes For obrentharris:
Old 09-12-21, 05:42 PM
  #153
Full Member

Join Date: Apr 2018
Location: NYC
Posts: 393

Bikes: '72 Raleigh Super Course; '90 Cannondale ST1000; '98/99 Cannondale T700; 2002 Cannondale CAAD5 R700; 2022 Cannondale Topstone 2L

Liked 365 Times in 162 Posts
I recently pulled a Sugino Super Maxy 5 vis crank from an 84 Univega Alpina Uno and wanted to use the crank on a 91 Trek 950 (68mm bb shell). The original axle measured around 127.75mm (asymmetric) and resulted in the non-drive side grazing the chainstay. I'm not sure how to go about figuring out the correct axle length. It's also currently set up as a triple, and I plan to convert it to a double (2x9 ultimately), which I believe means getting different bolts/spacers, correct?

Any help would be appreciated!
Rooney is offline
Old 09-13-21, 05:48 AM
  #154
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,441

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Liked 1,314 Times in 709 Posts
Originally Posted by Rooney
I recently pulled a Sugino Super Maxy 5 vis crank from an 84 Univega Alpina Uno and wanted to use the crank on a 91 Trek 950 (68mm bb shell). The original axle measured around 127.75mm (asymmetric) and resulted in the non-drive side grazing the chainstay. I'm not sure how to go about figuring out the correct axle length. It's also currently set up as a triple, and I plan to convert it to a double (2x9 ultimately), which I believe means getting different bolts/spacers, correct?

Any help would be appreciated!
Yup, you'll need the bolts for a double setup. They are being sold by both Specialites TA or Velo Orange.
JaccoW is offline
Old 09-13-21, 03:51 PM
  #155
Full Member

Join Date: Apr 2018
Location: NYC
Posts: 393

Bikes: '72 Raleigh Super Course; '90 Cannondale ST1000; '98/99 Cannondale T700; 2002 Cannondale CAAD5 R700; 2022 Cannondale Topstone 2L

Liked 365 Times in 162 Posts
Ordered bolts from VO, thanks!

Still looking for assistance on spindle length, if anyone has recommendations.
Rooney is offline
Old 09-29-21, 09:45 AM
  #156
Junior Member

Join Date: Sep 2021
Posts: 5
Likes: 0
Liked 0 Times in 0 Posts
I’ve been having a sort out recently and discovered I’ve still got a pair of TA “Cyclotouriste” cranks in 185mm length.
in my youth I used to compete in hill climbs, and used this with a single 39t chairing and fixed wheel. I’m 6’3” and the length was fine. Interestingly overlap was never a problem.
I’ve not seen these cranks in that length elsewhere though
Jim Cardiff is offline
Old 04-10-22, 10:58 AM
  #157
Polymultiplié
Thread Starter

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 11,149

Bikes: Yes, please.

Liked 5,044 Times in 1,874 Posts
Picked up another example of my favorite chainset style today at a jumble sale. An early Stronglight 49D. I don't recall having seen this version before.

__________________
Are we having fun, or what ...



non-fixie is offline
Likes For non-fixie:
Old 05-24-22, 12:31 PM
  #158
Senior Member

Join Date: Aug 2013
Posts: 2,321
Liked 1,899 Times in 889 Posts

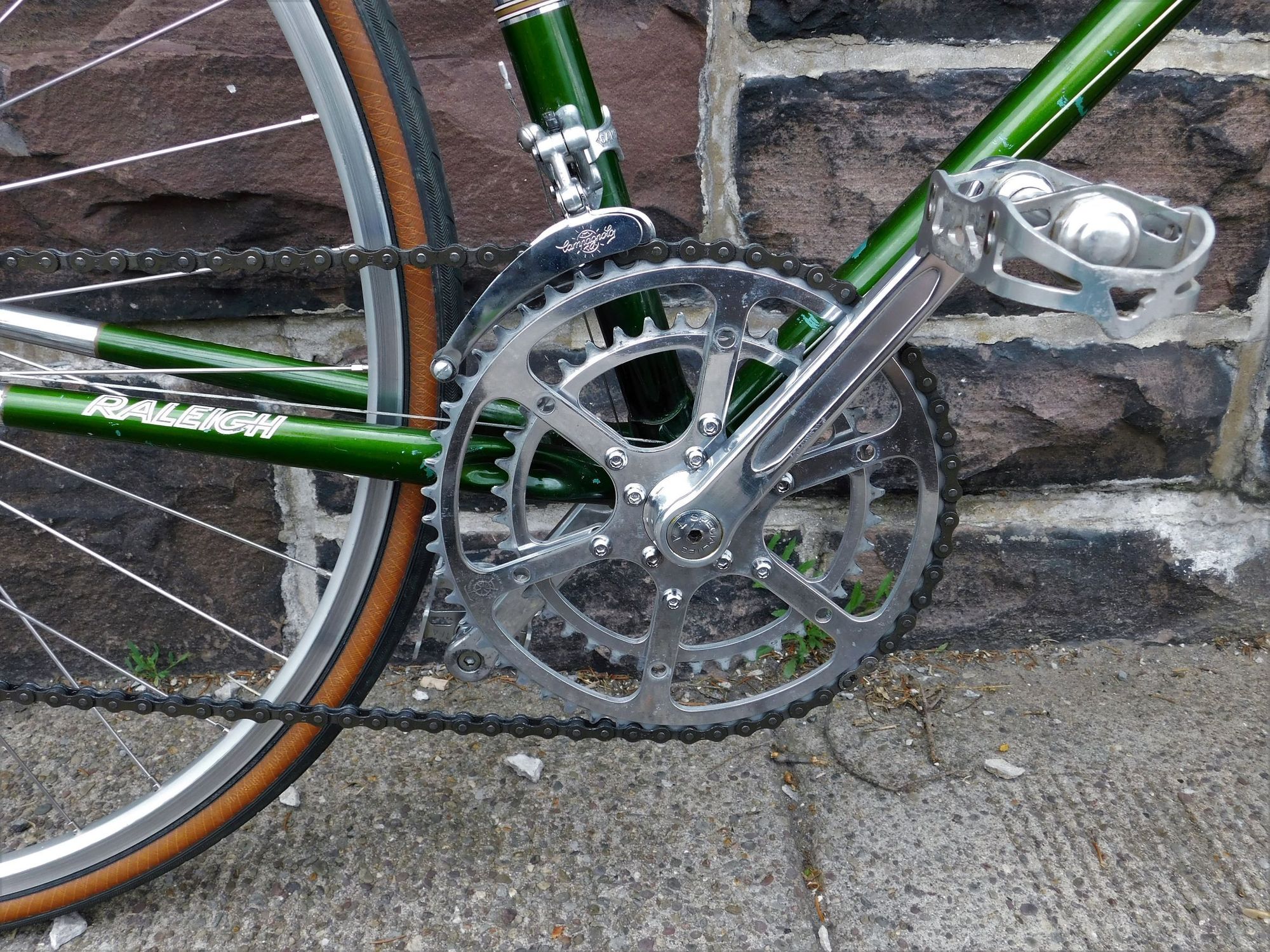

The TA I installed on my Raleigh Super Course, freshened up with new stainless hardware from V/O and a little bit of polish. Currently 54/40, but I plan to go lower gearing.

BFisher is offline
Likes For BFisher:
Old 05-24-22, 01:57 PM
  #159
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 2,204
Liked 2,905 Times in 1,210 Posts
Originally Posted by BFisher
Currently 54/40, but I plan to go lower gearing.
No! 50-40 or fight!

Nice lookin 5-vis there. I bet the 54 came off an early-'70s Schwinn Sports Touring, do we know? It has the extra set of bolt holes where Schwinn had TA add a shifting ramp that prevented the chain from ever skating on the tops of the teeth ("neutral") rather than engaging down on the ring in the correct way. A problem which I have never seen happen without the ramp, but Schwinn knows best...

Mark B
bulgie is offline
Likes For bulgie:
Old 05-24-22, 02:52 PM
  #160
Senior Member

Join Date: Aug 2013
Posts: 2,321
Liked 1,899 Times in 889 Posts
Originally Posted by bulgie
No! 50-40 or fight!

Nice lookin 5-vis there. I bet the 54 came off an early-'70s Schwinn Sports Touring, do we know? It has the extra set of bolt holes where Schwinn had TA add a shifting ramp that prevented the chain from ever skating on the tops of the teeth ("neutral") rather than engaging down on the ring in the correct way. A problem which I have never seen happen without the ramp, but Schwinn knows best...

Mark B
Thanks, Mark. You're exactly right; the crank came from that very bicycle. Had the Schwinn repaired by a local welder (hole worn into the chainstay) and built that 3x7 upright.

What I found with the Schwinn spec. on that TA unit was that they used 5mm spacers between the rings, which is bigger than the spacing on all of the cranks I have. With the shifting ramp all worked well, but I did have some engagement issues when I ran it without the ramp, intermittent, but I could never get it to completely go away. I kind of wanted to remove the ramp and outer guard for aesthetic reasons. The Velo Orange hardware utilizes 3.6mm spacers, closer to all of my other vintage setups. Plus, the old nuts and bolts were looking a little tired.
BFisher is offline
Likes For BFisher:
Old 05-24-22, 04:57 PM
  #161
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 2,204
Liked 2,905 Times in 1,210 Posts
Originally Posted by BFisher
What I found with the Schwinn spec. on that TA unit was that they used 5mm spacers between the rings, which is bigger than the spacing on all of the cranks I have.
Ah right, wider spacing, that makes sense. "It's a Schwinn thing, you wouldn't understand"
I used to have real TA spacers in thicknesses from 2.5 to 4.5 mm, every half mm. Now I have used up one or two of the sizes so I can't say I have them all anymore but I know they existed. I guess I must have had 5 mm too, since I had one of those Sports Touring cranksets... just never measured them. Wacky.

BTW, not that you need them, but did you know there are very good repro TA crank stickers available? Of course the cranks look fine without them, but if you want them, I got mine from Grey Softley in Australia.

Mark B
bulgie is offline
Old 05-24-22, 05:40 PM
  #162
Senior Member

Join Date: Aug 2013
Posts: 2,321
Liked 1,899 Times in 889 Posts
Originally Posted by bulgie
Ah right, wider spacing, that makes sense. "It's a Schwinn thing, you wouldn't understand"
I used to have real TA spacers in thicknesses from 2.5 to 4.5 mm, every half mm. Now I have used up one or two of the sizes so I can't say I have them all anymore but I know they existed. I guess I must have had 5 mm too, since I had one of those Sports Touring cranksets... just never measured them. Wacky.

BTW, not that you need them, but did you know there are very good repro TA crank stickers available? Of course the cranks look fine without them, but if you want them, I got mine from Grey Softley in Australia.

Mark B
I have seen those stickers. I got some Weinmann rim decals from him in the past. Nice looking stuff. Still debating on leaving them bare, putting in for the stickers, or maybe a paint infill. Leaning towards leaving them alone, but we'll see.
BFisher is offline
Old 05-24-22, 05:44 PM
  #163
Full Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 493

Bikes: too many old steel bikes

Liked 941 Times in 178 Posts
1957 Peugeot PL-50

Restored this bike about a year ago. I replaced the cotter crank with the 49D. Timeless design.




Andy Antipas is offline
Old 05-24-22, 06:00 PM
  #164
Full Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 493

Bikes: too many old steel bikes

Liked 941 Times in 178 Posts
Stronglight and TA


1951 Helyett Randonneur

1973 Moto-Gugie 650b conversion
Andy Antipas is offline
Old 05-24-22, 07:34 PM
  #165
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 2,204
Liked 2,905 Times in 1,210 Posts
Originally Posted by obrentharris
I recently came across this 50.4 BCD cottered steel crankset. Drive side has the Williams logo. Non-drive side has no logo. Chamfer on back side is just a little larger on drive side crank.
Both are marked "Made in England" on the front and "1/2" on the back.

Any suggestions for date of manufacture? What is the significance of the letter "Z" below the Williams logo?

Brent
Oops just saw this post from a year ago, but I'll relay what I know (I think!): according to this date chart, a single letter Zed means 1937.

Mark B
bulgie is offline
Likes For bulgie:
Old 06-22-22, 02:33 PM
  #166
Senior Member

Join Date: Dec 2016
Posts: 600
Liked 597 Times in 205 Posts
I have another TA crankset ( more modern to match the updated drivetrain) on my camper, but this is the crankset that came with the bike. The bike was nicely cared for by the previous owner, and the crankset was in very nice, very unmarked shape. I can switch back very easily with just a spindle swap and front derailleur adjustment. The PRO 5 has to be the most versatile and enduring crankset ever produced. It seems that TA has tried to discontinue it 4-5 times and then a few years later it is back again.

El Chaba is offline
Likes For El Chaba:
Old 06-22-22, 04:59 PM
  #167
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,603

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Greg Lemond, Andre Bertin, Schwinn Paramount

Likes: 0
Liked 685 Times in 317 Posts
Las Vegas area a few years ago.

Lejeune Pro by L Travers, on Flickr
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 06-22-22, 05:38 PM
  #168
Banned.

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,866
Liked 2,445 Times in 646 Posts
Originally Posted by CV-6
Las Vegas area a few years ago.

Lejeune Pro by L Travers, on Flickr
Impressive that the SLJ derailleur can handle the triple.

Also, nice bike.
Roger M is offline
Old 06-22-22, 06:05 PM
  #169
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,603

Bikes: Lejeune(14), Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré(4), Springfield, Greg Lemond, Andre Bertin, Schwinn Paramount

Likes: 0
Liked 685 Times in 317 Posts
Originally Posted by Roger M
Impressive that the SLJ derailleur can handle the triple.

Also, nice bike.

Although not a long cage, it is the model where the pivot is near the upper jockey wheel rather than centered on the cage. I believe it is designated as a "T" model.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Likes For CV-6:
Old 06-22-22, 10:29 PM
  #170
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 13,345

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Liked 6,643 Times in 3,809 Posts

merziac is offline
Likes For merziac:
Old 06-23-22, 06:40 PM
  #171
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,935

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Liked 678 Times in 517 Posts
Originally Posted by juvela


was wondering why maker placed canti bosses on seat stays rather than laterals...

reckon they did not wish to end up with straddle cable above lateral tube

seems like it would have been a simple matter to have then facing downward from the laterals

build planning for a doublet frame somewhat mo' complex than for a singlet...

-----
Easier access to brake cable adjusters?
Road Fan is offline
Old 04-04-23, 06:37 PM
  #172
Full Member

Join Date: Apr 2018
Location: NYC
Posts: 393

Bikes: '72 Raleigh Super Course; '90 Cannondale ST1000; '98/99 Cannondale T700; 2002 Cannondale CAAD5 R700; 2022 Cannondale Topstone 2L

Liked 365 Times in 162 Posts
Does anyone know the bb axle length for Electra Ticino 50.4 crank arms (seen here)? I feel like I'd found it somewhere before, but can't turn it up now. I just got 46/30t TA chainrings and the VO double chainring bolts. I'll be able to try a few options at work tomorrow, but if anyone could save me some time trying different length bottom brackets, it would be greatly appreciated!

EDIT: My findings are thus; 113 is too short (chain rubbing big ring when cross-chained small/small), 116 seems more appropriate. 115 would maybe be ideal?

Last edited by Rooney; 04-05-23 at 06:09 PM.
Rooney is offline
Old 06-14-23, 01:10 PM
  #173
Full Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 375
Liked 129 Times in 68 Posts
I've made a few CNC chainrings for 50.4bcd cranks lately. Mainly replicas of old French chainrings which are impossible to find these days. I am planning to make a few more designs. All the hardware is CNC made from stainless steel btw.

Cyclo Rosa and Simplex Touriste replicas

Stronglight Diamond Touriste/Super Touriste. One of the most beautiful chainrings ever made imho

My own take on Herse Clover style inspired by early Verot chainrings
__________________
Rovar Cycles on Instagram

alexnagui is offline
Old 06-14-23, 01:32 PM
  #174
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 14,637
Liked 3,639 Times in 2,354 Posts
Originally Posted by alexnagui
I've made a few CNC chainrings for 50.4bcd cranks lately. Mainly replicas of old French chainrings which are impossible to find these days. I am planning to make a few more designs. All the hardware is CNC made from stainless steel btw.

Cyclo Rosa and Simplex Touriste replicas

Stronglight Diamond Touriste/Super Touriste. One of the most beautiful chainrings ever made imho

My own take on Herse Clover style inspired by early Verot chainrings
-----

thanks so much for sharing these beauties!

have long been a fan of the Simplex Touriste...but alas, as you write they are rare on the ground and the examples one is able to locate be typically in a poor state o' preservation...

-----
juvela is offline
Likes For juvela:
Old 06-14-23, 01:36 PM
  #175
Full Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 375
Liked 129 Times in 68 Posts
Originally Posted by juvela
-----

thanks so much for sharing these beauties!

have long been a fan of the Simplex Touriste...but alas, as you write they are rare on the ground and the examples one is able to locate be typically in a poor state o' preservation...

-----
I was able to find a set of Simplex Touriste riveted chainrings made from steel on eBay last year. And some NOS Simplex chainring bolts. That's how I was able to replicate the original design as close as possible.
The Cyclo Rosa and the Stronglight are "copied" from the originals as well.
__________________
Rovar Cycles on Instagram

alexnagui is offline
Likes For alexnagui:
