Metric tent pole for cargo bike canopy?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Metric tent pole for cargo bike canopy?

Old 11-11-20, 08:53 PM
  #1
brianinc-ville
Senior Member
Thread Starter

brianinc-ville's Avatar

Join Date: Nov 2006
Location: Greenville, NC
Posts: 1,313
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 22 Times in 17 Posts
Metric tent pole for cargo bike canopy?

This query isn't, strictly speaking, C&V, but I trust you folks more than anyone else to find obscure bits and pieces. So:

I recently broke one of the aluminum pole ends on my Douze cargo bike's rain canopy.

Here's the bike, with the canopy:

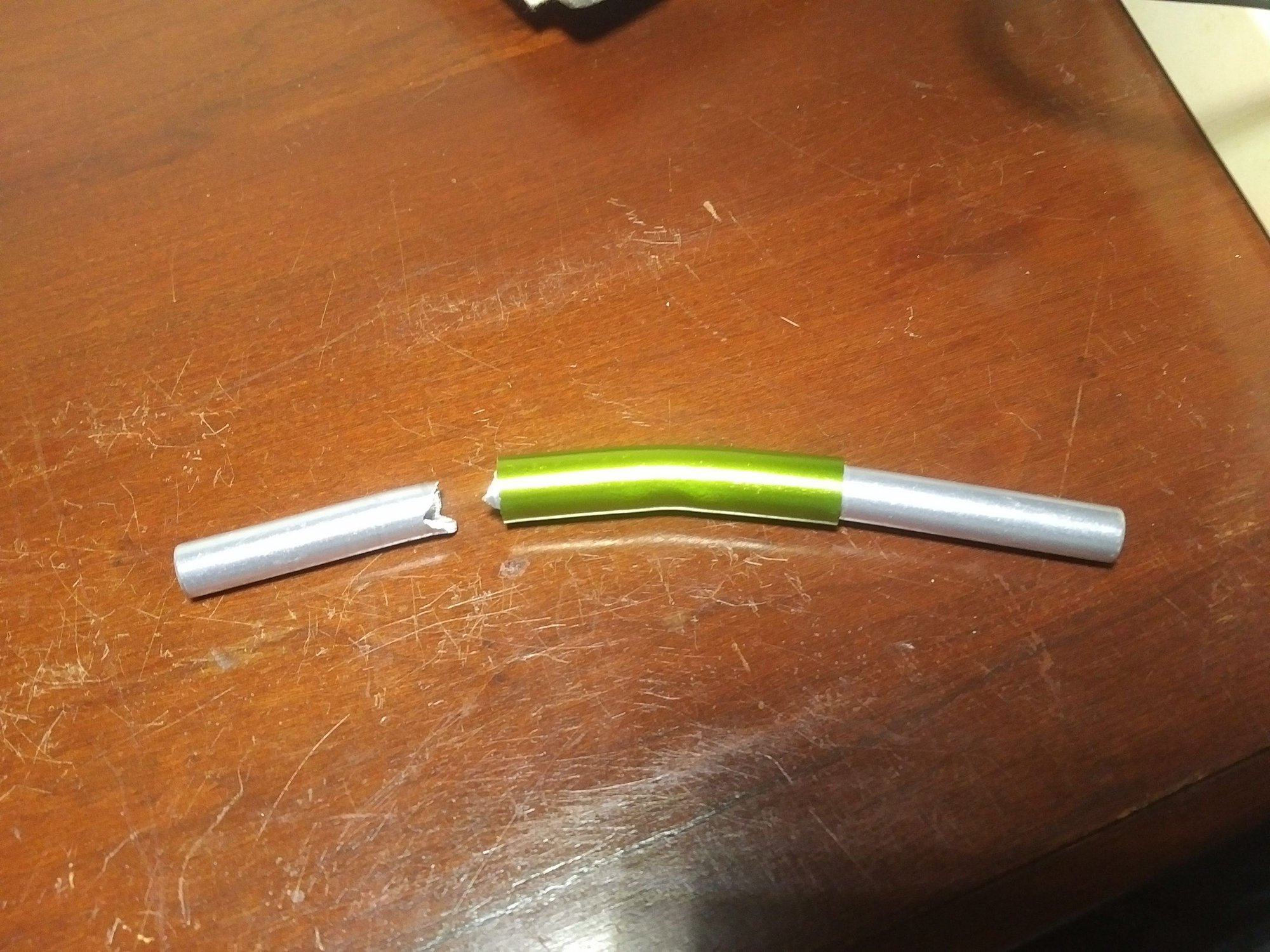

And here's the broken piece:




On the broken piece, the outer diameter of the silver insert tube (the crucial measurement) is 8mm (.314 inch) and the outer diameter of the gold outer tube is 10mm (.393 inch). The gold outer tube is approximately 4.5cm long and the angle looks like at least 145 degrees.

I've talked to a tent-pole specialist in the US, Quest Outfitters, who sell pre-bent arches like that, but only in SAE (inch) sizes. They don't have one to fit my pole. I've been trying to find a metric replacement online, but my meager French and German Googling skills only take me so far. Can anybody here, perhaps somebody in Europe or Asia, help me find the part? I'd be really grateful.

-Brian
brianinc-ville is offline
Old 11-11-20, 11:03 PM
  #2
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,999

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 356 Times in 270 Posts
are the smaller diameter tubes two separate pieces affixed in the bent sleeve? or is the smaller tube solid and then run through the sleeve and then bent?
thook is offline
Old 11-11-20, 11:21 PM
  #3
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,312

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 559 Post(s)
Liked 681 Times in 395 Posts
Seems like you should be able to find 8mm alu or stainless tubing with no problem! Slip a sleeve over it with 8mm ID, give it a little bend, and you'd be all set.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is online now
Old 11-12-20, 06:20 AM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,667

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 1,203 Times in 793 Posts
3/8" and sand the ends down
dedhed is offline
Old 11-12-20, 07:53 AM
  #5
brianinc-ville
Senior Member
Thread Starter

brianinc-ville's Avatar

Join Date: Nov 2006
Location: Greenville, NC
Posts: 1,313
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 22 Times in 17 Posts
Originally Posted by thook View Post
are the smaller diameter tubes two separate pieces affixed in the bent sleeve? or is the smaller tube solid and then run through the sleeve and then bent?
They're two separate pieces.


Originally Posted by scarlson View Post
Seems like you should be able to find 8mm alu or stainless tubing with no problem! Slip a sleeve over it with 8mm ID, give it a little bend, and you'd be all set.
Originally Posted by dedhed View Post
3/8" and sand the ends down
I'm a little leery of using non-specific aluminum tubing, or sanding down, because this part takes a lot of strain (it's the end of the pole that sticks into the frame of the bike's basket, at the front of the bike; the pole is then bent backwards toward the rider and secured down with a quick-release strap). As you can see, I pushed the OEM part too far and it broke. But if I can't find the right one, those are possibilities.
brianinc-ville is offline
Old 11-12-20, 08:10 AM
  #6
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 656

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘77/‘78 Trek 304, ‘74 Raleigh International

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Liked 182 Times in 120 Posts
Sorry if I missed this, but have you contacted Douze or one of these dealers?

https://www.douze-cycles.com/contact/

https://www.douze-cycles.com/en/dealers/
natterberry is offline
Old 11-12-20, 09:45 AM
  #7
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,667

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1606 Post(s)
Liked 1,203 Times in 793 Posts
8mm is .315" 5/16" is .313. I don't know that .002" is going to make any difference in this "precision" application.

I'd be going to the hardware/hobby store and buying a foot of 5/16 mild steel rod, cutting to length needed, and putting the little bend in at as needed.

https://www.metalsdepot.com/steel-pr...CABEgJzZ_D_BwE
dedhed is offline
Likes For dedhed:
Old 11-12-20, 11:33 AM
  #8
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,449

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp, '76 Eisentraut Limited

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Liked 567 Times in 368 Posts
Originally Posted by natterberry View Post
Sorry if I missed this, but have you contacted Douze or one of these dealers?

https://www.douze-cycles.com/contact/

https://www.douze-cycles.com/en/dealers/
Agreed -- with something so specific, if you're concerned about having an original fit, I would likely start with the manufacturer directly. If language is an issue, there is a London shop, and I'm sure most if not all of the German and Dutch shops would be able to help you in English via email. You can't be the first user who has snapped a piece of their tubing; surely they've helped someone deal with this before.
noobinsf is online now
Old 11-12-20, 12:03 PM
  #9
brianinc-ville
Senior Member
Thread Starter

brianinc-ville's Avatar

Join Date: Nov 2006
Location: Greenville, NC
Posts: 1,313
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 22 Times in 17 Posts
Yes. Clever Cycles in Portland does their best, but Douze is notoriously difficult to deal with. They make an incredible bicycle, but they're not great at selling or servicing it, at least not outside of Europe.
brianinc-ville is offline
Old 11-12-20, 12:36 PM
  #10
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,381

Bikes: Too many to list here check my signature.

Mentioned: 145 Post(s)
Tagged: 2 Thread(s)
Quoted: 1957 Post(s)
Liked 748 Times in 472 Posts
Cool bike!
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Likes For Bianchigirll:
Old 11-12-20, 04:14 PM
  #11
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,742

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Liked 311 Times in 167 Posts
I checked through my pile of "things too small to throw away" and found several tubes a bit larger and a bit smaller but nothing 8mm. Yes the couplers on all my tent poles are 8mm but I have no broken or spare tent poles. So

a) fashion one from a hardwood. Make a dowel from white ash, maple or cherry. That short should be strong enough.

b) check with local outfitter stores (ex: REI). They sometimes have broken or spare tent poles in the back that were returned by customers. Cannot hurt to ask.

c) check or even call Quest Outfitters who have all sorts of things including tent poles, parts, fabrics, etc. I think they are in Florida. Been in business for "donkey's years".
Prowler is offline
Old 11-26-20, 08:53 AM
  #12
brianinc-ville
Senior Member
Thread Starter

brianinc-ville's Avatar

Join Date: Nov 2006
Location: Greenville, NC
Posts: 1,313
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 22 Times in 17 Posts
For posterity: I was able to get exactly the piece I needed from TentPole Technologies in Vancouver, Washington. Awesome!
