Mystery Crankset

Hi folks,

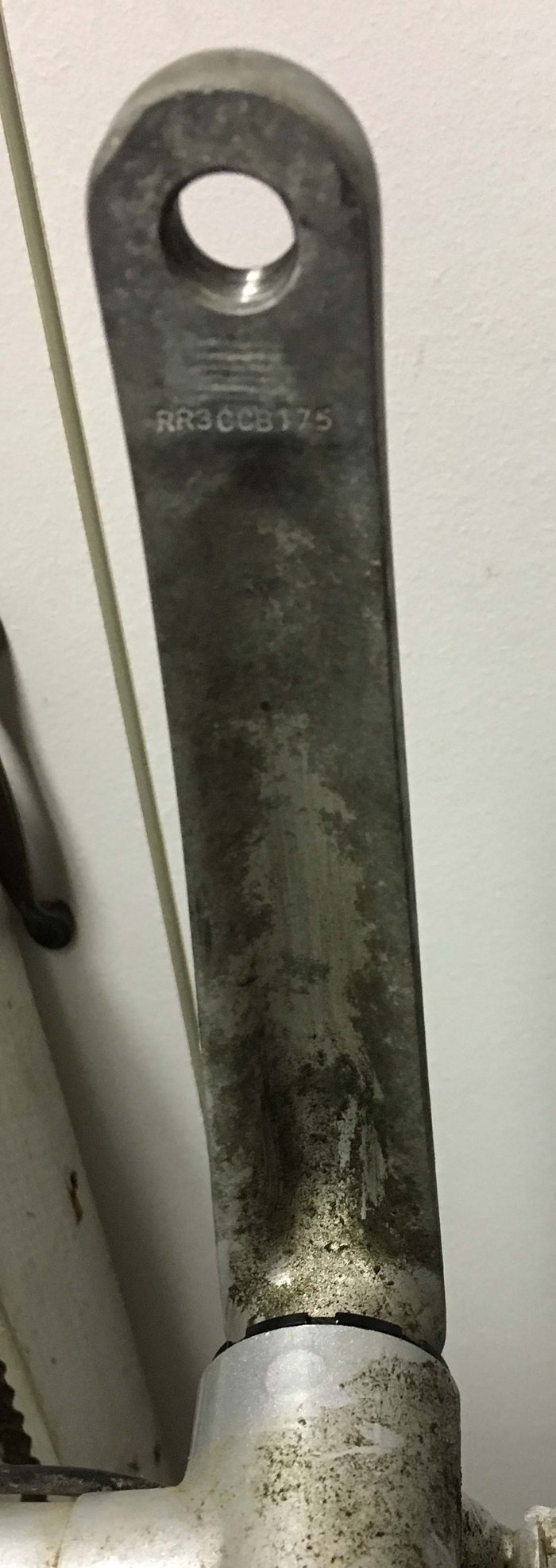

Does anyone recognize this crankset? It's on a Schwinn Le Tour, number on head badge is 60639. Small label on inside of pedal end of arm, RR3CCB175.

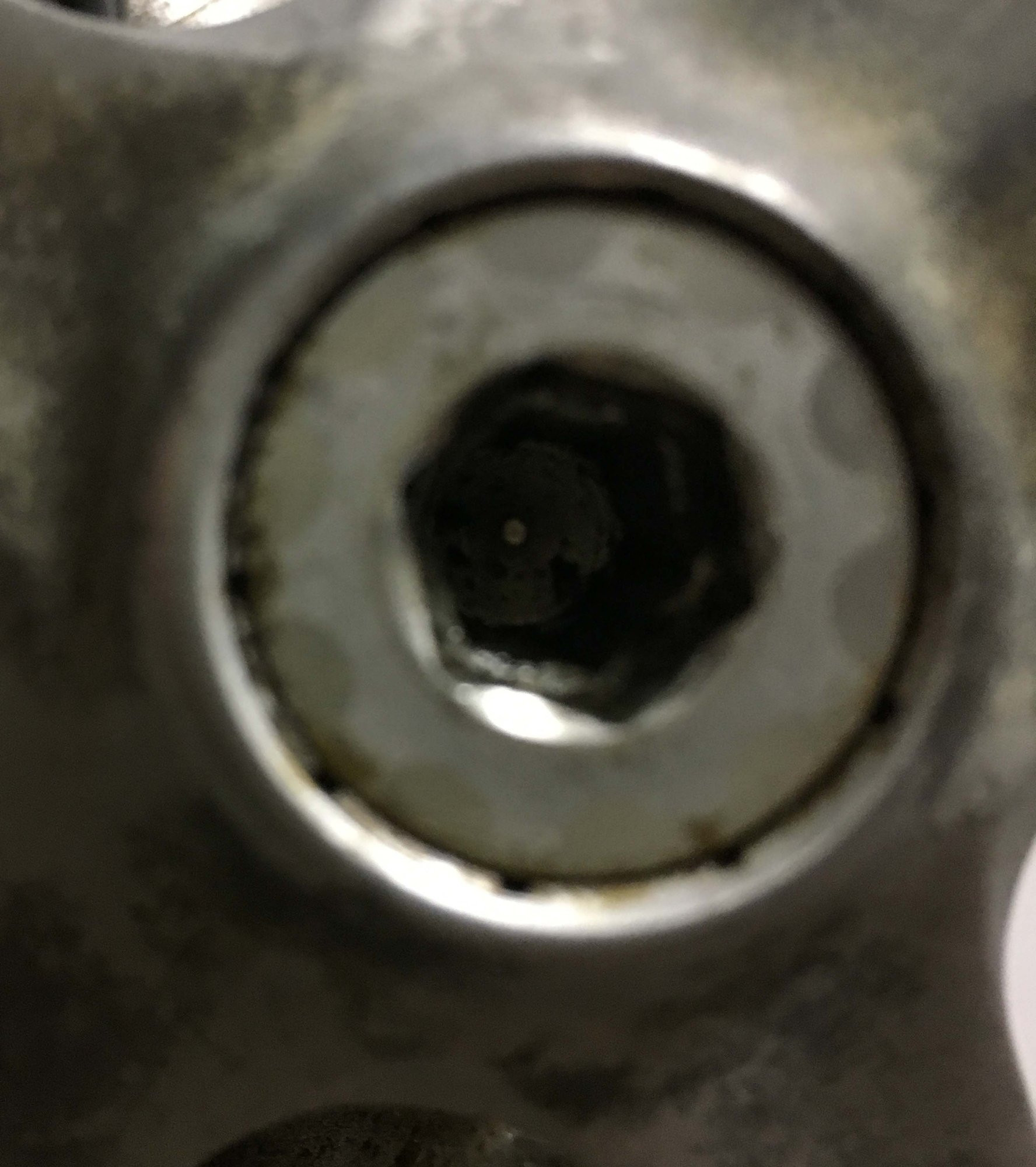

The crank arm bolts are strange. The inner is a 8mm Allen socket & the outer is a 10mm Allen socket with a "gear" like image on it.

Thanks and regards,
Van


__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Old 11-14-20, 08:59 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,704

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 2660 Post(s)
Liked 1,970 Times in 1,322 Posts
Looks FSA/Sugino to me.
merziac is online now
Old 11-14-20, 09:01 PM
  #3
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,061

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 216 Times in 144 Posts
That is a strange one, that I've never seen on a Letour.
Not that it will help your ID, but I believe the head badge number you've provided has one too many digits.
__________________
"My only true wisdom is in knowing I have none" -Socrates
Hudson308 is online now
Old 11-14-20, 09:16 PM
  #4
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,490
Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 2080 Post(s)
Liked 914 Times in 711 Posts
Originally Posted by merziac View Post
Looks FSA/Sugino to me.
if the chainring is original- has pins so 8 speed or later. Campagnolo clone styling on the drive side arm. I like the chainring appearance
repechage is offline
Likes For repechage:
Old 11-14-20, 11:03 PM
  #5
Senior Ryder 00
Old bikes, Older guy
Thread Starter

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 596

Bikes: A few modern, Several vintage, All ridden when weather allows.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 51 Times in 39 Posts
Hello again,

A bit more info. Yep, the HB number is correct. This is a real Franken bike. It has an Altus front derailleur, DeerHead RD & Suntour Accushift bar ends. The crankset has a 130 BCD. Possibly only the FD is original.

Now, how do I get the damn thing off?

Cheers,
Van
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Old 11-15-20, 03:52 AM
  #6
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,577
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 548 Times in 345 Posts
I don't know but I bet the cap comes off with the big hex and the bolt comes off with the small one.

Easy enough to find out; however if the cap is really an outer bearing for a flanged bolt so it self-extracts, it (should be) left-hand thread; so do the same as you would do for an unknown fixed cup - go each way, trying a little harder each time. If it's left, snug it back down and use the inner one.
oneclick is offline
Old 11-15-20, 08:18 AM
  #7
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 269
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 103 Times in 60 Posts
60639 is the zip code in Chicago where Schwinn was located. Is the crank length 175 mm? Looks newish...
__________________
72+76 Super Course, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue


Schreck83 is online now
Old 11-15-20, 11:10 AM
  #8
Henry III
is just a real cool dude

Henry III's Avatar

Join Date: Aug 2010
Location: The Thumb, MI
Posts: 3,167
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 22 Times in 9 Posts
Pretty sure that's a Truvativ/Sram crankest of some sort. I had a polished triple on an old Cannondale and I thought was a purdy looking crank for a mid level crankset. They came in both cartridge style bb and external bearing bb.

Last edited by Henry III; 11-15-20 at 11:18 AM.
Henry III is offline
Likes For Henry III:
Old 11-15-20, 11:22 PM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,212

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 1144 Post(s)
Liked 607 Times in 429 Posts
Self-extracting bolts, so leave the larger 10mm alone(!) and just unscrew the inner 8mm bolt to pull the arms off.
These usually come off without much effort since the taper fit bottoms on a ledge instead of wedging ever tighter.
dddd is offline
Old 11-17-20, 12:47 AM
  #10
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,900

Bikes: A green one, "Ragleigh," or something.

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 1580 Post(s)
Liked 479 Times in 283 Posts
Originally Posted by Senior Ryder 00 View Post
...
Now, how do I get the damn thing off?

...
Nuke it from orbit, it's the only way to be sure.

__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Likes For Lascauxcaveman:
Old 11-17-20, 09:03 PM
  #11
Senior Ryder 00
Old bikes, Older guy
Thread Starter

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 596

Bikes: A few modern, Several vintage, All ridden when weather allows.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 51 Times in 39 Posts
Hi folks,
Mystery solved! The crankset is a Truvative or at least the BB is. Once I figured out how the self extracting bolts, the arms came off easily, but had to take it to the co-op to get the BB out. Thanks again for your feedback.
Cheers,
Van
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Likes For Senior Ryder 00:
Old 11-18-20, 08:48 PM
  #12
RobbieTunes
Senior Member

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,376 Times in 889 Posts
Came to this late. Truvative like that was OEM on some Fuji’s.
