MAFAC Racer drop bolt?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

MAFAC Racer drop bolt?

Old 11-23-20, 05:01 PM
  #1
smontanaro
Senior Member
Thread Starter

Join Date: Aug 2007
Location: Evanston, IL
Posts: 5,223

Bikes: many

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked 914 Times in 507 Posts
MAFAC Racer drop bolt?

MAFAC Raids are expensive, Racers are not. Is there such a thing as a drop bolt for Racers?
__________________
Contact me about helping Doug Fattic's Ukraine Bicycle Project


smontanaro is offline
Old 11-23-20, 05:41 PM
  #2
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,162

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Liked 1,064 Times in 635 Posts
I haven't seen a drop bolt, but I have a single drop plate for Racers. It looks just like the standard mounting plate, but with an oblong bolt hole rather than a circular one. I have only ever found the one, a couple of years back on ebay. I'm holding out in case I ever find another. As far as I can tell, it looks to have been produced this way (vs. a home modification, which I suppose is also possible, though I would imagine that's risky). I'll post a pic later.
noobinsf is offline
Old 11-23-20, 06:15 PM
  #3
smontanaro
Senior Member
Thread Starter

Join Date: Aug 2007
Location: Evanston, IL
Posts: 5,223

Bikes: many

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked 914 Times in 507 Posts
Originally Posted by noobinsf View Post
I haven't seen a drop bolt, but I have a single drop plate for Racers. It looks just like the standard mounting plate, but with an oblong bolt hole rather than a circular one.
Sounds interesting. It also sounds a bit like the Balilla center pull brakes on my Frejus TdF. A few pix:



I'll have to make some measurements to see if that might give me enough downward movement for the 700c conversion on my Dawes. (I'm not married to Racers. It just seemed like the most likely to have a drop bolt.)
__________________
Contact me about helping Doug Fattic's Ukraine Bicycle Project


smontanaro is offline
Old 11-23-20, 06:19 PM
  #4
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,162

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Liked 1,064 Times in 635 Posts
Originally Posted by smontanaro View Post
Sounds interesting. It also sounds a bit like the Balilla center pull brakes on my Frejus TdF. A few pix:



I'll have to make some measurements to see if that might give me enough downward movement for the 700c conversion on my Dawes. (I'm not married to Racers. It just seemed like the most likely to have a drop bolt.)
Yup, exactly the same idea.
noobinsf is offline
Old 11-23-20, 08:19 PM
  #5
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,162

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Liked 1,064 Times in 635 Posts

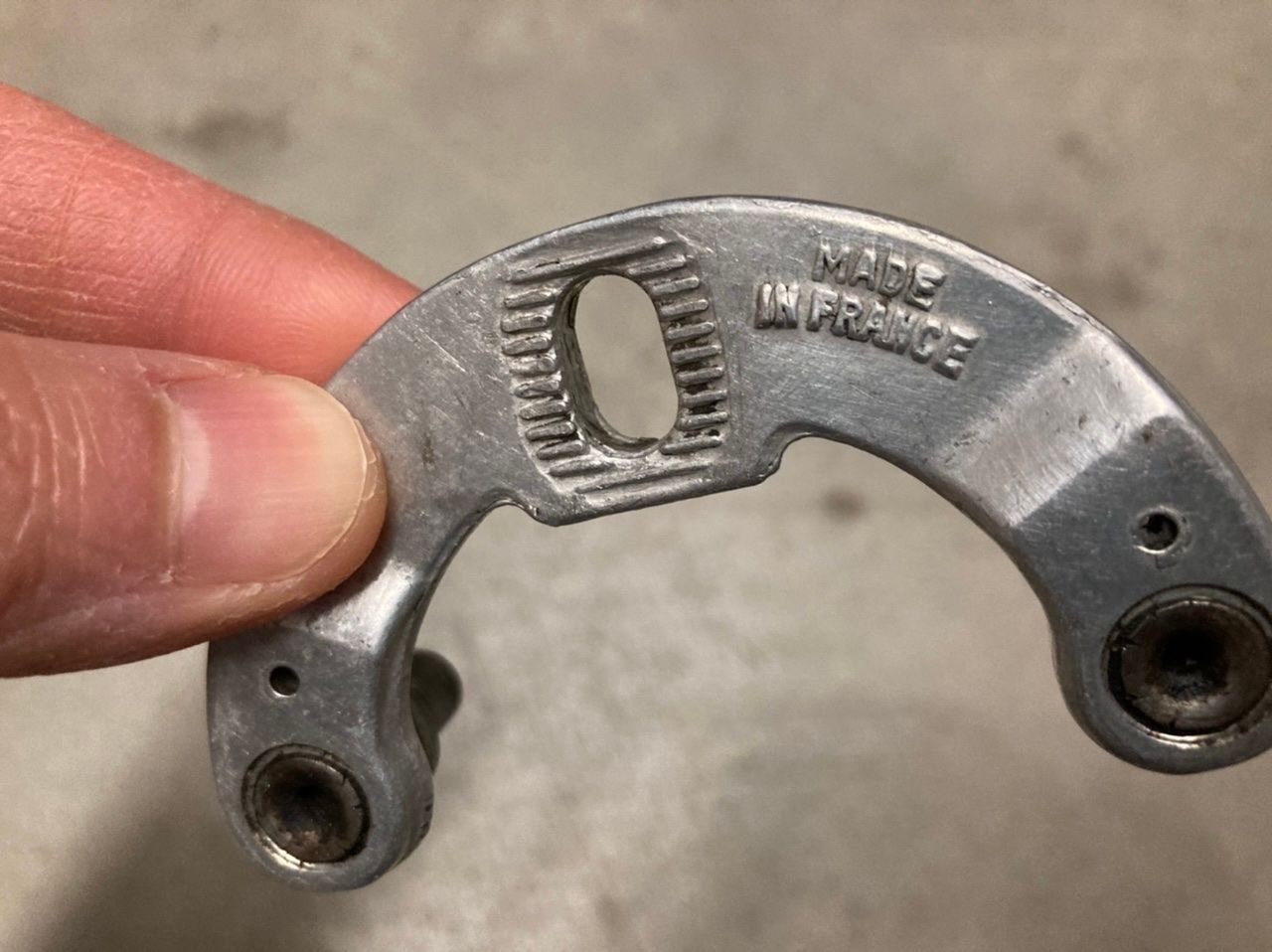

Here is mine:




noobinsf is offline
Old 11-24-20, 06:49 AM
  #6
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,128
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Likes: 0
Liked 843 Times in 518 Posts
There are three different bridges for Racers, check first to see if you have the short ones (they can be marked "451").

Short gets you 63, long is 68, adjustable goes to 75.
oneclick is offline
Likes For oneclick:
Old 11-24-20, 12:57 PM
  #7
kroozer
vintage motor

kroozer's Avatar

Join Date: Sep 2008
Location: Tepic, Nayarit, Mexico
Posts: 1,508

Bikes: 48 Automoto, 49 Stallard, 50 Rotrax, 62 Jack Taylor, 67 Atala, 68 Lejeune, 72-74-75 Motobecanes, 73 RIH, 71 Zieleman, 74 Raleigh, 78 Windsor, 83 Messina (Villata), 84 Brazzo (Losa), 85 Davidson, 90 Diamondback, 92 Kestrel

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Likes: 0
Liked 60 Times in 47 Posts
Skip,
I have 2 bikes I'm running 650B wheels on (one with Mafac Racer brakes), and I use home-made "drop plates", as described on Sheldon Brown's website. In my case they are small steel plates that lower the brakes by 15mm. I had them made last week and am just installing and trying them out, so I don't have pix yet. But they work great. The guy charged me 30 pesos (US$1.50) per plate, and you need 2 plates per brake unit/ 4 per bike. I intend to post a thread here with the details, because I think it's a cheap, versatile, and neat solution to a problem.
kroozer is offline
Likes For kroozer:
Old 11-24-20, 01:19 PM
  #8
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,162

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Liked 1,064 Times in 635 Posts
Originally Posted by kroozer View Post
Skip,
I have 2 bikes I'm running 650B wheels on (one with Mafac Racer brakes), and I use home-made "drop plates", as described on Sheldon Brown's website. In my case they are small steel plates that lower the brakes by 15mm. I had them made last week and am just installing and trying them out, so I don't have pix yet. But they work great. The guy charged me 30 pesos (US$1.50) per plate, and you need 2 plates per brake unit/ 4 per bike. I intend to post a thread here with the details, because I think it's a cheap, versatile, and neat solution to a problem.
Very interested! Looking forward to the thread.
noobinsf is offline
Old 11-24-20, 02:41 PM
  #9
smontanaro
Senior Member
Thread Starter

Join Date: Aug 2007
Location: Evanston, IL
Posts: 5,223

Bikes: many

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked 914 Times in 507 Posts
Originally Posted by kroozer View Post
... I use home-made "drop plates", as described on Sheldon Brown's website.
Thanks, George (assuming there are very few BF C&Vers in Tepic). Here's the page:

https://sheldonbrown.com/home-drop.html

and the image:



Looks easy enough, given a bit of raw material.
__________________
Contact me about helping Doug Fattic's Ukraine Bicycle Project


smontanaro is offline
Old 11-24-20, 03:58 PM
  #10
kroozer
vintage motor

kroozer's Avatar

Join Date: Sep 2008
Location: Tepic, Nayarit, Mexico
Posts: 1,508

Bikes: 48 Automoto, 49 Stallard, 50 Rotrax, 62 Jack Taylor, 67 Atala, 68 Lejeune, 72-74-75 Motobecanes, 73 RIH, 71 Zieleman, 74 Raleigh, 78 Windsor, 83 Messina (Villata), 84 Brazzo (Losa), 85 Davidson, 90 Diamondback, 92 Kestrel

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Likes: 0
Liked 60 Times in 47 Posts
The plates on Sheldon's site are ridiculously long and I don't know what kind of bike they're for, but it's a good illustration of how versatile they are. With my drop plates, the lower hole is just low enough to clear the bottom of the fork crown and brake bridge. It's all I need for 700C-to-650B, and it's hardly even noticeable.
kroozer is offline
Old 11-24-20, 05:28 PM
  #11
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,128
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 788 Post(s)
Likes: 0
Liked 843 Times in 518 Posts
Originally Posted by kroozer View Post
The plates on Sheldon's site are ridiculously long and I don't know what kind of bike they're for, but it's a good illustration of how versatile they are. With my drop plates, the lower hole is just low enough to clear the bottom of the fork crown and brake bridge. It's all I need for 700C-to-650B, and it's hardly even noticeable.
The pic above (in this thread) shows a plate bridge. That kind of bridge is much more suited to a drop bolt, especially one with such a big drop. If that were mounted on a normal tube bridge, perhaps one without a reinforced brake hole or stay mounts, made from seamed (which for brake bridges is .sometimes is only bent-and-pushed-together) tubing, I'd be keeping a close eye on it.
oneclick is offline
Old 11-24-20, 05:44 PM
  #12
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,162

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Liked 1,064 Times in 635 Posts
I googled "bicycle brake custom drop bolt," and several interesting images popped up, including this one. It's not my image. Maybe these are being produced or sold somewhere? Or worth reproducing?

noobinsf is offline
Likes For noobinsf:
Old 11-24-20, 06:56 PM
  #13
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,088
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 460 Post(s)
Liked 276 Times in 170 Posts

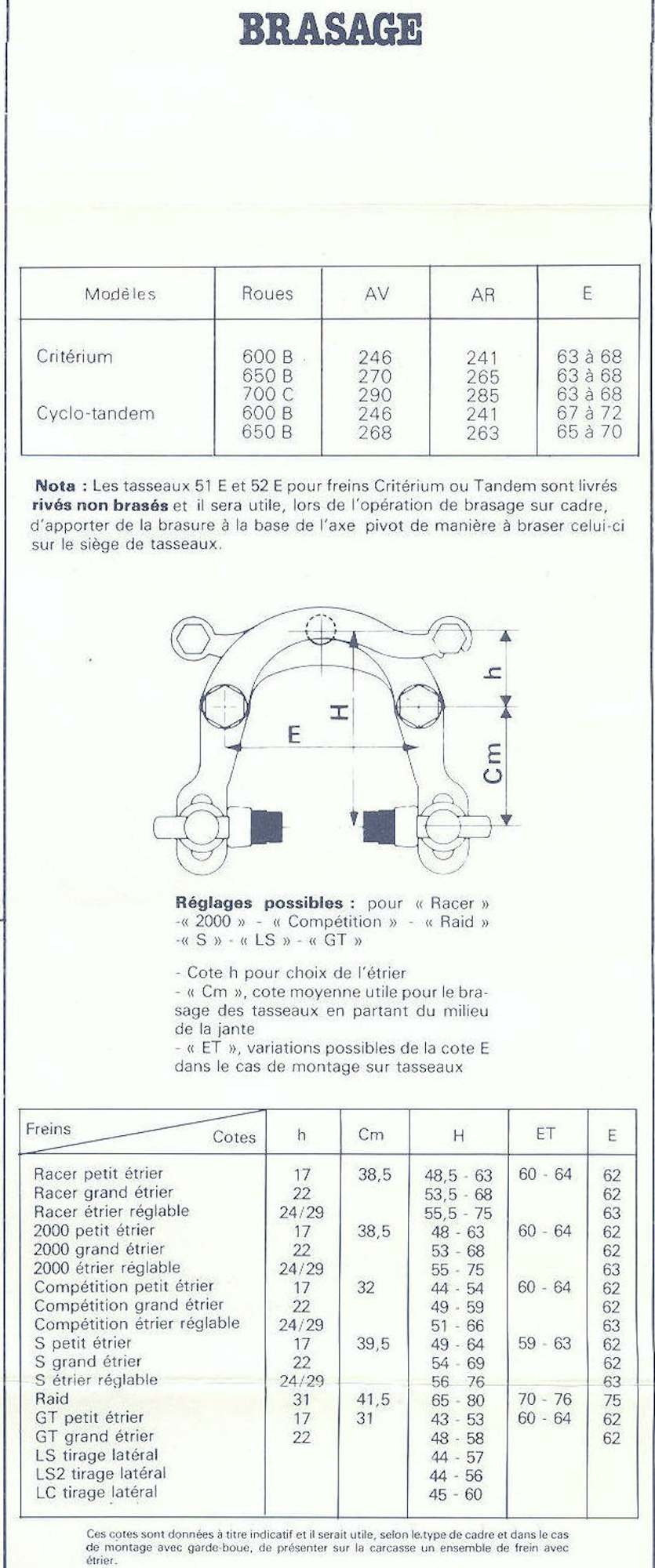

Here's what you want:

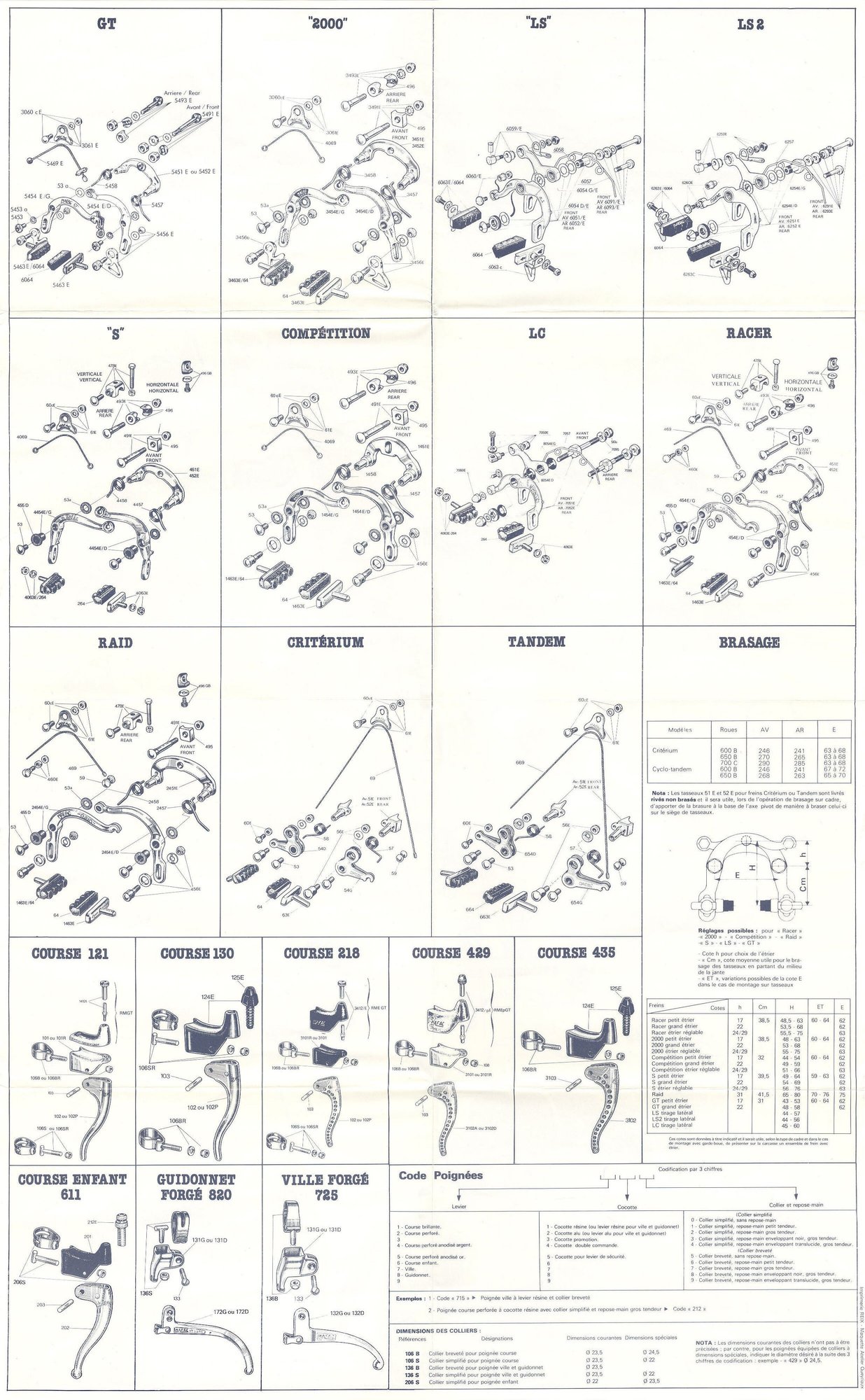

and here's the whole poster:


I can't remember where I found this online; maybe someone else has a pointer to it.
Charles Wahl is offline
