Will Vintage Bolt-on Lever Bosses Work with Modern 10 Speed Levers

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Will Vintage Bolt-on Lever Bosses Work with Modern 10 Speed Levers

Old 12-08-20, 06:47 PM
  #1
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 908

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620 1985 Trek 620, 1979 Trek 710

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Likes: 0
Liked 130 Times in 78 Posts
Will Vintage Bolt-on Lever Bosses Work with Modern 10 Speed Levers

Hello All,

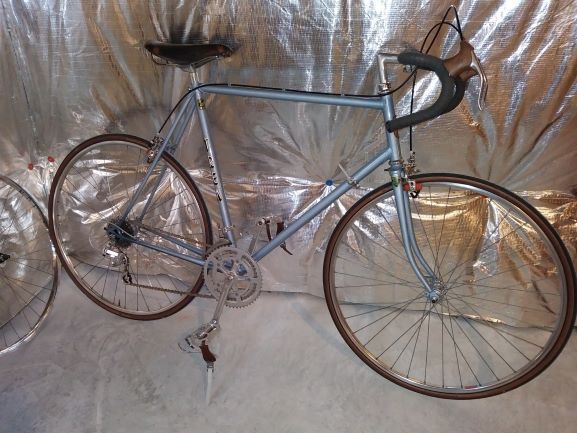

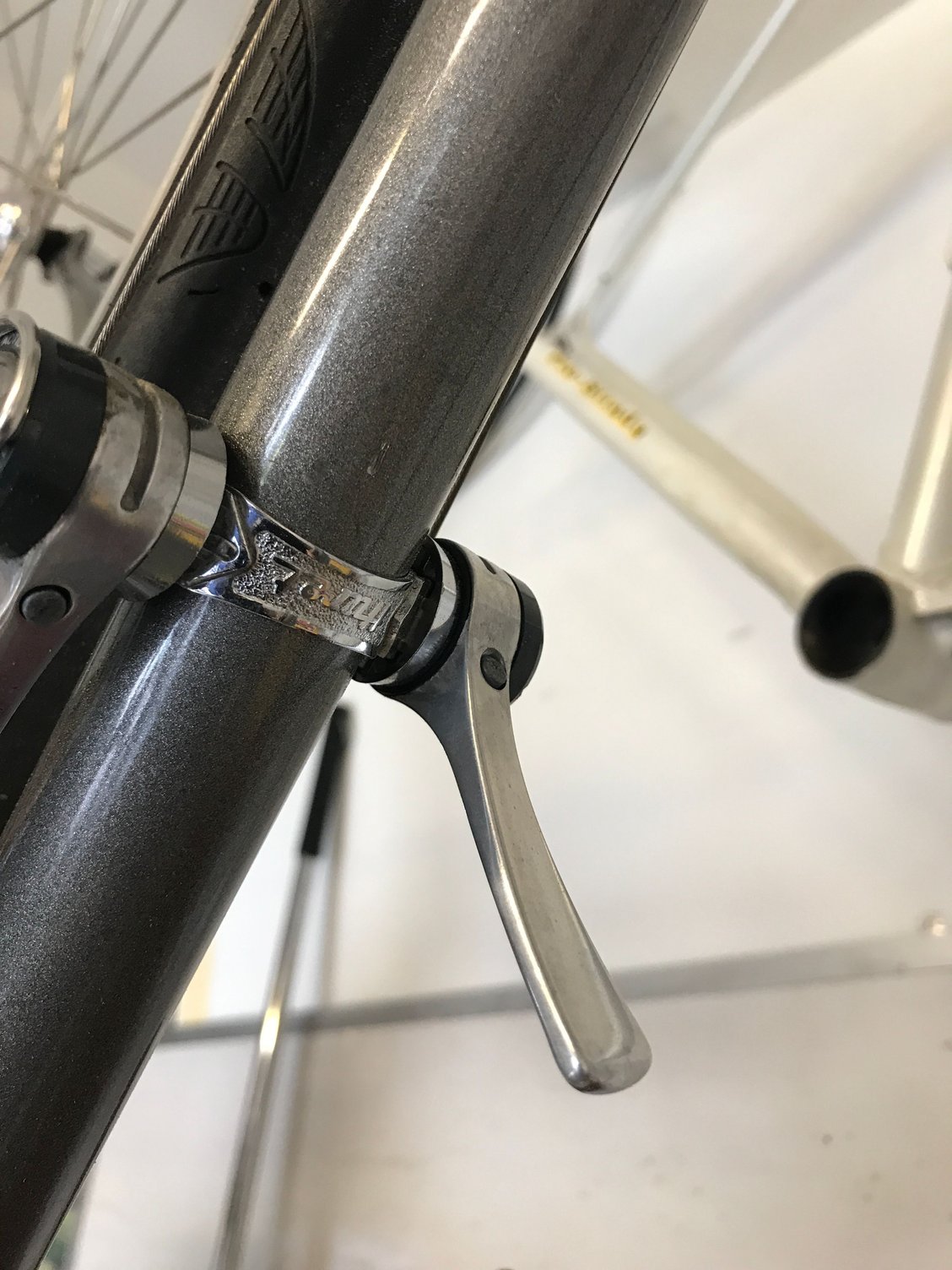

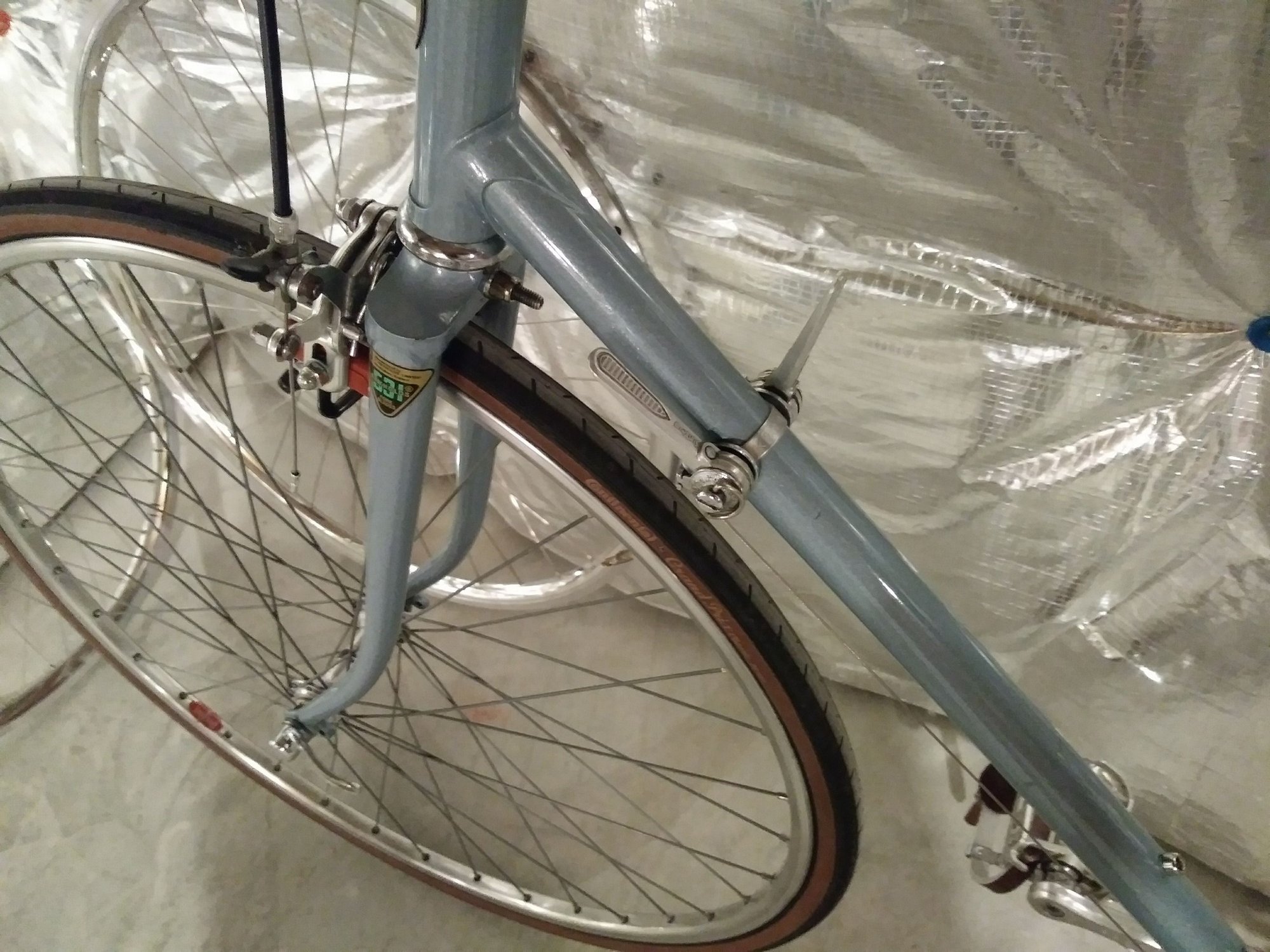

Can I use the Shimano SL-7900 indexed 10 speed levers (photo) with the vintage bolt-on bosses shown in the bottom photo? This is a 1979 Trek 710 with what I believe is the original bolt-on boss hardware.

I have successfully used these same levers on the brazed-on bosses from a 1985 Trek 410.

If the vintage bolt-on hardware won't work, can you recommend a substitute that will?

Thank you!

jlaw

jlaw is offline
Old 12-08-20, 07:46 PM
  #2
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,824

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 318 Post(s)
Liked 189 Times in 141 Posts
I don't think the levers will work with your band clamp, but Shimano did have a clamp that accepted the index levers. It has the same square base like you would see brazed on a frame.
Pompiere is offline
Old 12-08-20, 07:52 PM
  #3
RobbieTunes
Senior Member

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,376 Times in 889 Posts
What he said.

There was a guy on eBay selling just what OP wants.
RobbieTunes is offline
Old 12-09-20, 08:19 AM
  #4
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 908

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620 1985 Trek 620, 1979 Trek 710

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Likes: 0
Liked 130 Times in 78 Posts
I looked on ebay and found some options that look like they will work.

Problem Solvers makes a clamp-on boss. Their promotional photos also show what looks to be the very same levers I want to install.

Thanks!

jlaw is offline
Likes For jlaw:
Old 12-09-20, 08:24 AM
  #5
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,239

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1126 Post(s)
Liked 913 Times in 540 Posts
Heavy duty clamp with top of the line shifters! Check the diameter range of the clamp compared to your down tube.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 12-09-20, 12:21 PM
  #6
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,624

Bikes: Lots. Just...lots.

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1584 Post(s)
Liked 1,053 Times in 499 Posts
Have used similar clamps from them; work well but not the most elegant.
I’d hold out for a Shimano clamp, they are out there. Sold two last year for about $10-15 each, and they were new.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 12-09-20, 03:03 PM
  #7
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 908

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620 1985 Trek 620, 1979 Trek 710

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Likes: 0
Liked 130 Times in 78 Posts
Originally Posted by rccardr View Post
Have used similar clamps from them; work well but not the most elegant.
Id hold out for a Shimano clamp, they are out there. Sold two last year for about $10-15 each, and they were new.

Do you have a part number or photo of the Shimano version that works with these levers?

This is a nice bike and I agree that it deserves silver hardware that's a little more graceful if available.

28.6mm downtube - I've seen the one below on ebay - made by 'PTP' (Paddy the Peddler) - these are a brushed metal with exposed welds, not chromed - will probably oxidize. ?



https://www.ebay.com/itm/PTP-28-6-Do...YAAOSw0S1fijmb

jlaw is offline
Old 12-09-20, 03:12 PM
  #8
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,947

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1111 Post(s)
Liked 523 Times in 354 Posts
There is a Huret clamp that will work. I know because I used it with 7700 levers on my 710. The only little thing was that the band was a tad small and the levers were not at 180 degrees from each other. Maybe 170+/-.
like this
https://www.ebay.com/itm/Vintage-NOS...4AAOSwevJeMbkj
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 12-09-20, 03:40 PM
  #9
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 908

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620 1985 Trek 620, 1979 Trek 710

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Likes: 0
Liked 130 Times in 78 Posts
Originally Posted by Classtime View Post
There is a Huret clamp that will work. I know because I used it with 7700 levers on my 710. The only little thing was that the band was a tad small and the levers were not at 180 degrees from each other. Maybe 170+/-.
like this
https://www.ebay.com/itm/Vintage-NOS...4AAOSwevJeMbkj
Those Huret clamp-ons are certainly shiny! For $20 might be worth a try. The square portion of the Huret boss looks to be a bit shallower than those on the braze-on bosses on my Trek 410 (on which I successfully installed the SL-7900 shift levers) - and shallower than the Problem Solver clamp-ons.

Thanks for the info.



jlaw is offline
Old 12-09-20, 03:56 PM
  #10
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,947

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1111 Post(s)
Liked 523 Times in 354 Posts
The band that was on my 710 with 9 or 10 speed levers is now on my daughters with 6 speed levers.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 12-09-20, 07:34 PM
  #11
jlaw
Senior Member
Thread Starter

Join Date: Mar 2018
Posts: 908

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620 1985 Trek 620, 1979 Trek 710

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Likes: 0
Liked 130 Times in 78 Posts
Originally Posted by Classtime View Post
The band that was on my 710 with 9 or 10 speed levers is now on my daughters with 6 speed levers.
Ok - good to know. I just ordered 2 sets of the SL-7900 shifters. They were much harder to find recently than they were when I first purchased a set in 2018.

I have really grown to like indexed DT shifters.
jlaw is offline
Likes For jlaw:
Old 12-10-20, 03:01 PM
  #12
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 8,359

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 521 Post(s)
Liked 461 Times in 238 Posts
If you go with the huret clamps you can just run a simple brass washer on each side about $2 at you local hardware store.
zukahn1 is offline
Old 12-10-20, 07:51 PM
  #13
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,699

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 762 Post(s)
Liked 1,111 Times in 504 Posts
thinktubes is offline
