What’s a matter with this Shimano m700 deer head rear derailleur?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What’s a matter with this Shimano m700 deer head rear derailleur?

Old 12-22-20, 06:16 PM
  #1
LBCwanabe
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 265
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 138 Times in 63 Posts

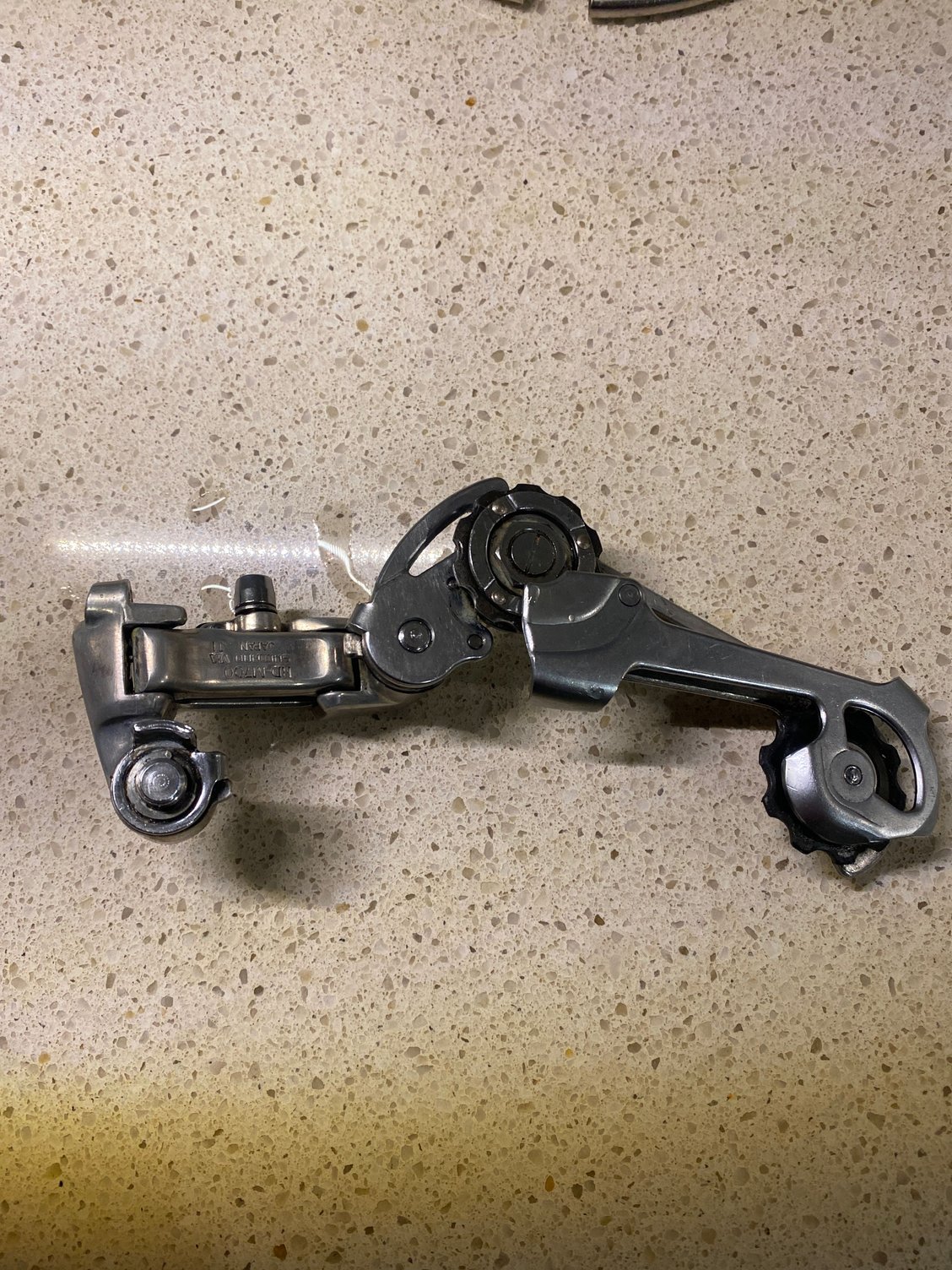

What’s a matter with this Shimano m700 deer head rear derailleur?

It has chicken-winged. And springs open. What do u suppose the problem is?

LBCwanabe is offline
Old 12-22-20, 06:28 PM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,676
Mentioned: 557 Post(s)
Tagged: 1 Thread(s)
Quoted: 3682 Post(s)
Likes: 0
Liked 1,102 Times in 822 Posts
It's missing the stud that prevents the cage from unwinding after the chain is removed.
T-Mar is offline
Old 12-22-20, 06:37 PM
  #3
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,932

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 212 Times in 100 Posts
Originally Posted by T-Mar View Post
It's missing the stud that prevents the cage from unwinding after the chain is removed.
bingo
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 12-22-20, 06:45 PM
  #4
LBCwanabe
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 265
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Liked 138 Times in 63 Posts
Replaceable?
LBCwanabe is offline
Old 12-22-20, 07:51 PM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,957
Mentioned: 323 Post(s)
Tagged: 0 Thread(s)
Quoted: 2053 Post(s)
Liked 1,409 Times in 768 Posts
I had one in use without that stop pin. All worked fine until I had to remove the wheel to fix a flat, which of course happened three times on one ride (rim tape problem). The pin is a threaded stud, and I’d imagine you could sub in a bolt with the correct threading.
nlerner is offline
Old 12-23-20, 04:16 PM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,676
Mentioned: 557 Post(s)
Tagged: 1 Thread(s)
Quoted: 3682 Post(s)
Likes: 0
Liked 1,102 Times in 822 Posts
I'd just visit my LBS or CO-OP and ask if I could rummage through their garbage for broken Shimano derailleurs. Shimano used stamped offsets, press fit pins and threaded studs as cage stops. Based on the handful of Shimano derailleurs that I pulled from my bins, the threaded studs all use the same thread standard and there only appears to be a couple of different heights, so it shouldn't be too hard to find a replacement. I'd send you one but with the COVID-19 induced international shipping problems, who knows when or if it would arrive.
T-Mar is offline
Likes For T-Mar:
Old 12-24-20, 09:44 AM
  #7
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 13,164

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 629 Post(s)
Liked 429 Times in 236 Posts
If you want the easy method and just replace it, how about going to the above group ISO and seeing who may have a few of these you may trade for. The M700 is not rare.
OldsCOOL is offline
Old 12-25-20, 05:25 AM
  #8
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,293

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 3959 Post(s)
Liked 1,722 Times in 1,107 Posts
LBCwanabe , there's a deer head M700 RD for sale here. Might buy one to ride with and keep the other for parts.

I was tempted but already have a couple of Shimano long cage RDs from the early 1990s, an Exage 500CX and Deore LX, which are nearly identical with minor cosmetic differences.
canklecat is offline
Old 12-25-20, 04:20 PM
  #9
4funbikes
Senior Member

4funbikes's Avatar

Join Date: Sep 2010
Location: Southeastern,VA
Posts: 268
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Had one like this recently as well, without the clutch though.
I'd imagine they are the same and the stop is cast in to the body, and broken at this point.
4funbikes is offline
Old 12-27-20, 08:43 PM
  #10
montclairbobbyb
Recovering Bikeaholic

Join Date: Oct 2008
Location: Lambertville
Posts: 66

Bikes: 84 Specialized Expedition, 84/85 StumpJumpers, 86 Sequoia, 84 Nishiki Cresta, 83 Raleigh Touring 18, 80 Competition, 74 Super Course MkII, Fuji Touring Series IVs/V, 85/86 Schwinn Cimarrons, 84 Ross Mt Whitney, 84 Maruishi Mountace, 83 Bianchi Grizzl

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 38 Times in 19 Posts
Ah the infamous "Super Plate" version of the Deore RD... I've had em, and honestly I've never liked them... gave me chronic agita...🤪
