What was actually carried by Jim Blackburn front racks?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What was actually carried by Jim Blackburn front racks?

Old 12-23-20, 12:46 PM
  #1
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,144

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Liked 144 Times in 107 Posts
What was actually carried by Jim Blackburn front racks?

Another nagging question that keeps me up at night... and not to veer to far off course from the 2nd tier touring bike thread...

What are those cool vintage front racks actually used for? They certainly look cool and certainly make a bike look like a serious touring machine.

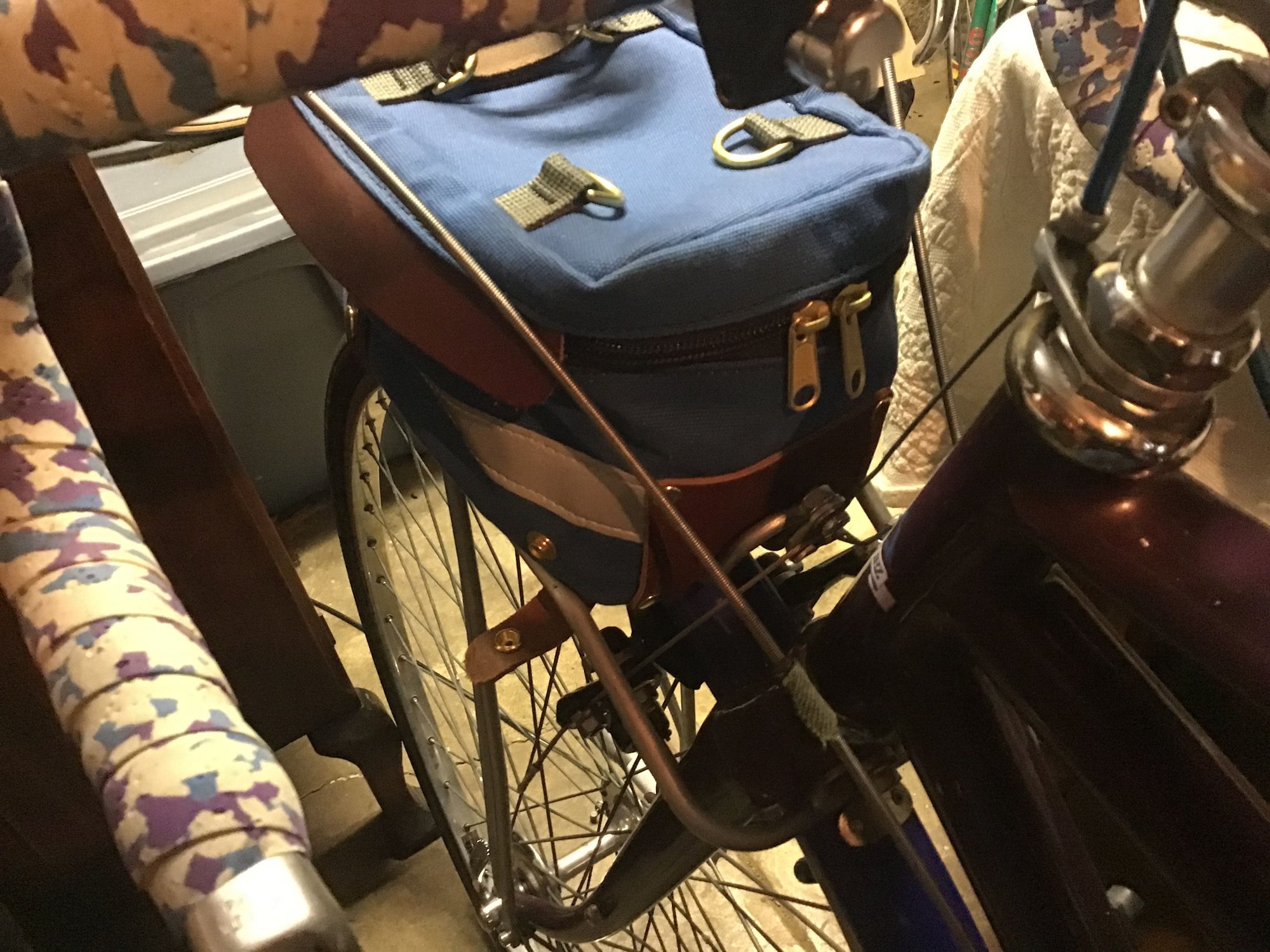

For context, I have a 1982 Miyata 610, the one with caliper brakes and "the good" tubing, so maybe a bit closer to a Sports Tourer. My intention is to out fit it as a "period correct" "playing dress up" light tourer. I have a Jim Blackburn style (CyclePro with diving board) front rack that I was going to put on it, but then got to thinking. What would I actually use it for? I have a Cannondale handlebar bag, the mounts directly to the handlebars, so I don't need the rack top for that, and while the matching Cannondale front panniers look like they'll fit the rack, it seems ride wise, that I would be better off with a set of low riders. I'm also inclined to leave off the rear rack and use a matching Cannondale saddle bag. I guess I'd need the rear rack to carry a sleeping bag, if I was doing an overnighter, but I have other bikes for such ventures. Here's the bike, the last time it came down off the ceiling:



And here's some of the vaguely relevant literature I've found.

"The Project" Looks like they tried the high mounted Pannier position and didn't like it.



Similar racks, with a front rack with low riders mounted. So what go's on top?

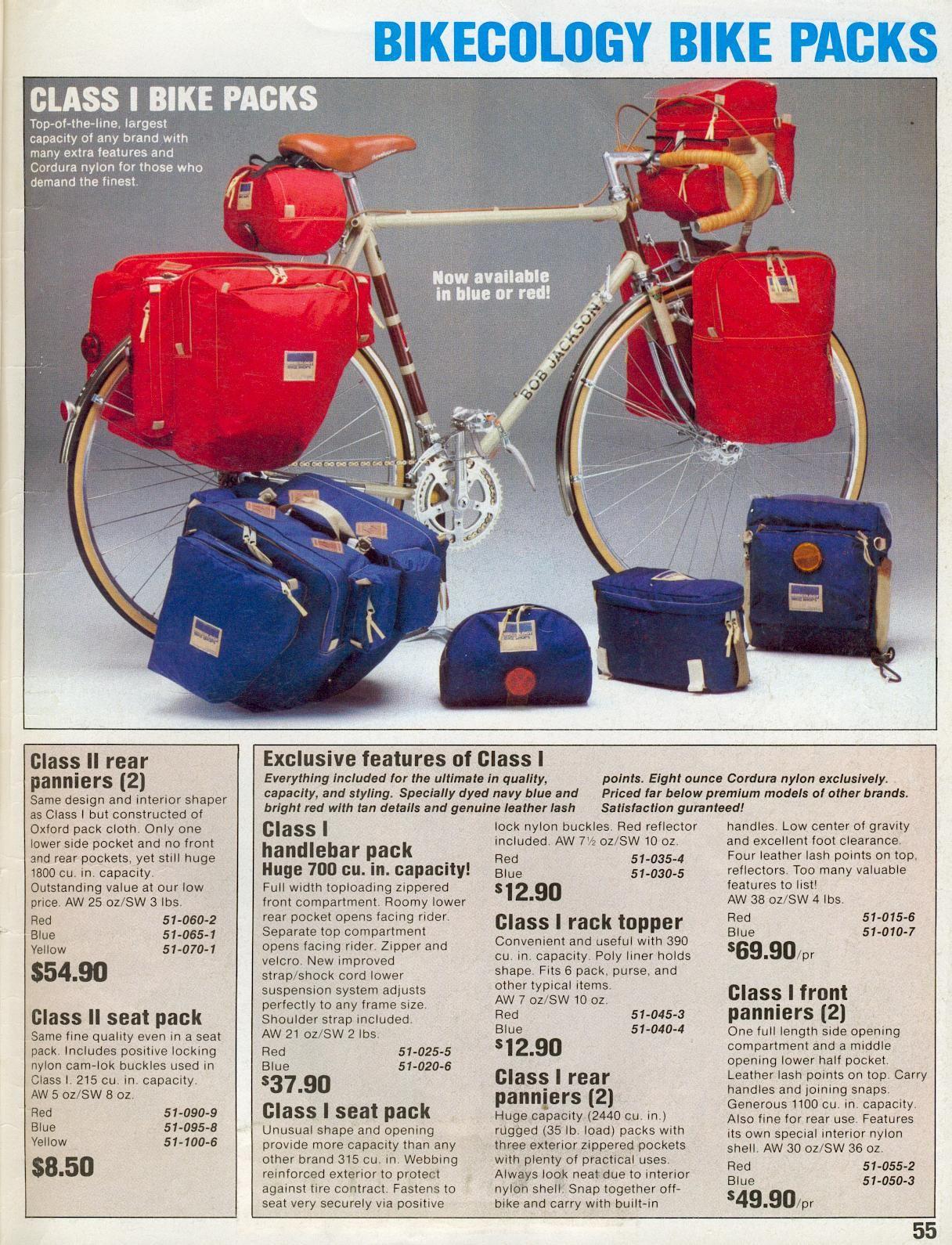

Similar bags, with panniers mounted high. My handlebar bag is a bit smaller. I haven't found any vintage bags made for the top of this style rack, at least for the US market.



Here's the 1982 Miyata catalog

and the 1982 Cannondale catalog for good measure.

So the question remains, Blackburn front racks, Functional or Fashionable.....
bark_eater is offline
Old 12-23-20, 01:01 PM
  #2
hazetguy
I GOT THE MICROWAVE!

hazetguy's Avatar

Join Date: Nov 2004
Location: asheville
Posts: 1,648
Mentioned: 101 Post(s)
Tagged: 0 Thread(s)
Quoted: 1188 Post(s)
Likes: 0
Liked 966 Times in 548 Posts
Originally Posted by bark_eater View Post
What are those cool vintage front racks actually used for?
"What is 'a six pack of beer' "

I'll take 'other random vintage bike trivia' for $600 Alex.
hazetguy is offline
Old 12-23-20, 01:10 PM
  #3
polymorphself
Senior Member

polymorphself's Avatar

Join Date: Oct 2017
Location: Arizona
Posts: 1,173
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 394 Times in 207 Posts
I don't know that they were particularly popular in the United States in the 80's, but randonneur bags have been a thing since at least the 40's in Europe, and the rack has the tombstone for such a style of bag. Is there a chance it was modeled after rando racks?
polymorphself is offline
Old 12-23-20, 01:32 PM
  #4
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,029

Bikes: 1967 Paramount, 1982-ish Ron Cooper,1978 Eisentraut "A," mid-1960s Cinelli Speciale Corsa, 1961 Bianchi Competizione (an Eroica bike), 1994 Trek 520, 199? Burley Bossa Nova, early-1970s Cinelli Speciale Corsa (also an Eroica bike)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 280 Post(s)
Liked 226 Times in 119 Posts
Apropos of nothing, I rode across the USA in 1980 with a pair of those blue Bikecology Class I rear panniers. I used them on a few other tours since and still have them in my basement. The retention system was less than perfect, but I made it work. They probably would work okay even now.

Now back to your regularly scheduled programming . . . .
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Likes For bikingshearer:
Old 12-23-20, 01:33 PM
  #5
Markeologist
Senior Member

Join Date: Jun 2020
Location: Marin County, Alta California
Posts: 193

Bikes: Since new: 85/86 Rodriguez Tandem, wife's 87 Gitane Team Pro, 92 Burley Rock-n-Roll, 85 Fisher Comp, 88 Puch Pro, two 92 Bridgestone X0-1s; later: 66/67 Gitane Champion du Monde, late 60s/early 70s B.Carre, my 87 Gitane Team Pro, 77/78 Ritchey Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 117 Times in 64 Posts
I’ve been using one of those since the 80s...much more stable and solid fitting than the French racks that attach to brakes. Mine is currently fit with one of Rivendell’s small trunks...I could but don’t use the tombstone in this application as the bag cinches down plenty tight and nicely spans the bracing of the Blackburn (so no sway or sliding).
Markeologist is offline
Old 12-23-20, 01:37 PM
  #6
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,414

Bikes: yes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 416 Post(s)
Likes: 0
Liked 122 Times in 64 Posts
I used to strap my tent to one of those.
Vintage_Cyclist is offline
Old 12-23-20, 01:37 PM
  #7
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,144

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Liked 144 Times in 107 Posts
Originally Posted by hazetguy View Post
"What is 'a six pack of beer' "

I'll take 'other random vintage bike trivia' for $600 Alex.
I actually typed " besides a sixpack" edited it out...

Last edited by bark_eater; 12-23-20 at 01:47 PM.
bark_eater is offline
Old 12-23-20, 01:42 PM
  #8
Markeologist
Senior Member

Join Date: Jun 2020
Location: Marin County, Alta California
Posts: 193

Bikes: Since new: 85/86 Rodriguez Tandem, wife's 87 Gitane Team Pro, 92 Burley Rock-n-Roll, 85 Fisher Comp, 88 Puch Pro, two 92 Bridgestone X0-1s; later: 66/67 Gitane Champion du Monde, late 60s/early 70s B.Carre, my 87 Gitane Team Pro, 77/78 Ritchey Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 117 Times in 64 Posts
Originally Posted by bark_eater View Post
Another nagging question that keeps me up at night... and not to veer to far off course from the 2nd tier touring bike thread...

What are those cool vintage front racks actually used for? They certainly look cool and certainly make a bike look like a serious touring machine.



For context, I have a 1982 Miyata 610, the one with caliper brakes and "the good" tubing, so maybe a bit closer to a Sports Tourer. My intention is to out fit it as a "period correct" "playing dress up" light tourer. I have a Jim Blackburn style (CyclePro with diving board) front rack that I was going to put on it, but then got to thinking. What would I actually use it for? I have a Cannondale handlebar bag, the mounts directly to the handlebars, so I don't need the rack top for that, and while the matching Cannondale front panniers look like they'll fit the rack, it seems ride wise, that I would be better off with a set of low riders. I'm also inclined to leave off the rear rack and use a matching Cannondale saddle bag. I guess I'd need the rear rack to carry a sleeping bag, if I was doing an overnighter, but I have other bikes for such ventures. Here's the bike, the last time it came down off the ceiling:



And here's some of the vaguely relevant literature I've found.

"The Project" Looks like they tried the high mounted Pannier position and didn't like it.



Similar racks, with a front rack with low riders mounted. So what go's on top?


Similar bags, with panniers mounted high. My handlebar bag is a bit smaller. I haven't found any vintage bags made for the top of this style rack, at least for the US market.



Here's the 1982 Miyata catalog

and the 1982 Cannondale catalog for good measure.

So the question remains, Blackburn front racks, Functional or Fashionable.....
Don't use this photo as guidance, these chumps put the front rack on wrong.
Markeologist is offline
Old 12-23-20, 01:54 PM
  #9
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,144

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Liked 144 Times in 107 Posts
Originally Posted by Markeologist View Post
Don't use this photo as guidance, these chumps put the front rack on wrong.
You can see where they put the front pannier's hook on the mounting strut to make the bag level. "No one will notice", going on 39 years..

Last edited by bark_eater; 12-23-20 at 02:02 PM.
bark_eater is offline
Old 12-23-20, 05:37 PM
  #10
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,256

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 192 Times in 167 Posts
If I had that rack on my Trek 720, I would use it as a bottom support for an Acorn rando bag, but I do have a long-rake/low-trail fork I can install.

That bag and the Berthoud GB28 are designed to sit flat on such a flat rack. you would need to rig up something on the bottom and at the handlebar to secure the bag. The Acorn has provision for a bottom attachment. For either one you could use the decaleur sold by Somerville (Anton Tutter) and designed by Tom Matchak. The Blackburn rack does not have a tombstone, which would be optimum.

Last edited by Road Fan; 12-23-20 at 05:43 PM.
Road Fan is offline
Old 12-23-20, 05:54 PM
  #11
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,896
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 902 Times in 666 Posts
I think that I mostly saw the front racks as stabilizers for low riders. And probably carry some stuff on top. I think most people that toured in the '70s just used rear racks, which is less than ideal. Certainly most everyone that I saw riding bikecentennial only used a rear rack. Usually an overloaded pletcher rat trap. I don't think I saw lowriders without a front rack until much later. I'm sure some people hung panniers off of the front rack, but it doesn't seem like it would work out too well.

Last year I rode part of the Bikecentennial trail near Waynesboro/Afton. That must have been fun fully loaded. And when I say "fun," I mean not fun.
We skipped the side road to the cookie lady's house though.
unterhausen is offline
Likes For unterhausen:
Old 12-23-20, 07:20 PM
  #12
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,144

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Liked 144 Times in 107 Posts
I saw some larger Carradice handle bars that just strapped to the handle bars on British Ebay this spring. I assume they had some other straps to to keep it from swaying, and might have enough depth to rest on a Blackburn style rack.

I remember seeing a Japanese home market Bridgestone catalog online at some point and I think they had some Randoish bags that strapped to the bars with out a decaleur. I think its a little weird that these racks where built with out a specific piece of luggage in mind. Of course they could have been made "in the style" that people expected to see in high zoot touring bikes.

On my Miyata 610 I can't use a Blackburn wrap around front rack because it will interfere with the caliper brake quick releases. So I would have to use a Cyclepro rack that has no vestigial tombstone. It would stabilize a set of lowriders and maybe provide a good spot to mount a couple of dynamo headlights.

Last edited by bark_eater; 12-23-20 at 07:24 PM.
bark_eater is offline
Old 12-23-20, 09:18 PM
  #13
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,880

Bikes: 1981 Ron Cooper, 1974 Cinelli Speciale Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1982 Raleigh "International"

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 581 Post(s)
Liked 230 Times in 134 Posts
Originally Posted by bark_eater View Post
On my Miyata 610 I can't use a Blackburn wrap around front rack because it will interfere with the caliper brake quick releases. So I would have to use a Cyclepro rack that has no vestigial tombstone. It would stabilize a set of lowriders and maybe provide a good spot to mount a couple of dynamo headlights.
Or get a Nitto or Velo Orange rack.
davester is offline
Old 12-23-20, 09:53 PM
  #14
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,155

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Liked 590 Times in 349 Posts
One of my friends carried around his Dachshund on a little Blackburn rack like that. The dog would ride in a styrofoam cooler he'd bungeed onto the rack, with the lid open of course. Sassy little pup.
Originally Posted by bark_eater View Post
On my Miyata 610 I can't use a Blackburn wrap around front rack because it will interfere with the caliper brake quick releases. So I would have to use a Cyclepro rack that has no vestigial tombstone. It would stabilize a set of lowriders and maybe provide a good spot to mount a couple of dynamo headlights.
If you don't need a handlebar bag support (or to carry a Dachshund), then what's the need for a front platform? I would use the stock low-rider "hoop" for stabilizing the low riders. It'll allow your fork to flex more.
scarlson is offline
Old 12-23-20, 10:37 PM
  #15
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,020

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1602 Post(s)
Liked 680 Times in 456 Posts
I think most, if not all C-Dale front panniers like mid-fork mounts but it's an easy mod.
clubman is offline
Old 12-23-20, 11:06 PM
  #16
AngryFrankie
Senior Member

Join Date: Sep 2006
Posts: 529

Bikes: Trek 400 Elance, Losa Winner, 1994 Schwinn Paramount, Specialized Tarmac Pro, Miele SLX, Ibis Ripley, Colnago Oval CX, 84 Masi GC, 1986 Schwinn Voyageur, 1988 Schwinn Tempo, 1998 Schwinn Peloton, 1991 Paramount Ser3

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 30 Times in 21 Posts
My U-lock with a bunge strap.
AngryFrankie is offline
Likes For AngryFrankie:
Old 12-24-20, 07:26 AM
  #17
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,584

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 516 Post(s)
Tagged: 0 Thread(s)
Quoted: 1767 Post(s)
Liked 266 Times in 179 Posts
Here's a photo from my 1983 cross country tour. This must be from Wyoming or Montana, on a day when we expected to be camping out somewhere where water might not be available.

https://flic.kr/p/51hd9W
__________________
www.rhmsaddles.com.
rhm is offline
Old 12-24-20, 07:32 AM
  #18
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,337

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1842 Post(s)
Likes: 0
Liked 585 Times in 417 Posts
I used my RB-T for touring and used the front Blackburn with and without lowrider rack attached. Here's without. With the Eclipse bag above there was room for the tool roll and spares on top of the front rack.
thumpism is offline
Likes For thumpism:
Old 12-24-20, 07:47 AM
  #19
PugRider
Senior Member

Join Date: Feb 2013
Location: Worcester, Massachusetts
Posts: 222

Bikes: Fuji Sportif 1.7C, Centurion Ironman, Shogun Metro AT, Jamis Durango SX, Miyata Alumicross, Fuji Special Road Racer, Mongoose ATB, Fuji SST 1.0 Team, Gitane (?), Specalized Rockhopper SS

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 54 Times in 32 Posts
I appreciate this thread. I pulled one of these off the pile at the co-op for a sort of gravel-ish/touring-ish project and have been wondering about how I should use it.
PugRider is offline
Old 12-24-20, 08:20 AM
  #20
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,414

Bikes: yes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 416 Post(s)
Likes: 0
Liked 122 Times in 64 Posts
I've still got my old touring racks in use (about 40 years and going strong). They're on my errand schlepping bike. I zip-tied a repurposed office letter tray to the top of the front rack, so I have something that's a little wider than the rack, with a lip on it, to hold a typical grocery bag or two.

Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 12-24-20, 09:33 AM
  #21
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,287
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1657 Post(s)
Liked 569 Times in 447 Posts
Originally Posted by thumpism View Post
I used my RB-T for touring and used the front Blackburn with and without lowrider rack attached. Here's without. With the Eclipse bag above there was room for the tool roll and spares on top of the front rack.
Good i
mage to show the diversity of bike size configuration or opportunities or lack thereof
repechage is offline
Old 12-24-20, 09:56 AM
  #22
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,896
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 902 Times in 666 Posts
I always hate threads that talk about the blackburn front rack because I packed the bike mine was on carelessly on a cross-country move and whatever the rack was touching wore halfway through the upright strut. I still haven't gotten rid of it, probably should give it to the metal recyclers.
unterhausen is offline
Old 12-24-20, 10:29 AM
  #23
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,144

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Liked 144 Times in 107 Posts
I had one of the wrap around Blackburn racks that had grid of saw marks on the top, that I assume came frame a basket attached too loosely and allowed to chafe.

Last edited by bark_eater; 12-24-20 at 10:38 AM.
bark_eater is offline
Old 12-24-20, 11:53 AM
  #24
bOsscO
bOsscO

bOsscO's Avatar

Join Date: May 2006
Location: Vancouver
Posts: 411

Bikes: 2015 Norco Search S1, 2012 Cervelo R5, 93 Mongoose IBOC COMP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 181 Times in 106 Posts
Originally Posted by Vintage_Cyclist View Post
I've still got my old touring racks in use (about 40 years and going strong). They're on my errand schlepping bike. I zip-tied a repurposed office letter tray to the top of the front rack, so I have something that's a little wider than the rack, with a lip on it, to hold a typical grocery bag or two.

This is correct. I've got a front rack on the cruiser MTB I built over the summer and plan to mount a metal basket on top of it. Something bigger than your letter tray but smaller than a full size Wald basket.
bOsscO is offline
Old 12-24-20, 11:56 AM
  #25
bOsscO
bOsscO

bOsscO's Avatar

Join Date: May 2006
Location: Vancouver
Posts: 411

Bikes: 2015 Norco Search S1, 2012 Cervelo R5, 93 Mongoose IBOC COMP

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 181 Times in 106 Posts
Originally Posted by bark_eater View Post
I saw some larger Carradice handle bars that just strapped to the handle bars on British Ebay this spring. I assume they had some other straps to to keep it from swaying, and might have enough depth to rest on a Blackburn style rack.

I remember seeing a Japanese home market Bridgestone catalog online at some point and I think they had some Randoish bags that strapped to the bars with out a decaleur. I think its a little weird that these racks where built with out a specific piece of luggage in mind. Of course they could have been made "in the style" that people expected to see in high zoot touring bikes.

On my Miyata 610 I can't use a Blackburn wrap around front rack because it will interfere with the caliper brake quick releases. So I would have to use a Cyclepro rack that has no vestigial tombstone. It would stabilize a set of lowriders and maybe provide a good spot to mount a couple of dynamo headlights.
This maybe a silly question but arent these front racks purpose built to carry front panniers?
bOsscO is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
