Vintage Touring Bike with Modern Components - Will it Work?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Vintage Touring Bike with Modern Components - Will it Work?

Old 01-06-21, 05:06 PM
  #51
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,972

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1483 Post(s)
Liked 393 Times in 305 Posts
Originally Posted by scarlson View Post
I wouldn't worry. It'd have to be a pretty strange failure to:
a) not be visible after the frame is spread
b) fail catastrophically. At least it should creak first, and steel fails quite gracefully.
c) fail in a way that causes a crash.
I've seen frames crack in the seat stays and chain stays and these cracks cause some odd handling and creaks to say the least, which gives the rider warning long before anything catastrophic might happen. The wheel stays where it should be. I can't really fathom a safety issue, which is why I didn't mention it. I am sure it has happened, once (think the cliché about monkeys on typewriters eventually will write Shakespeare), but who knows the other factors involved (ignoring creaks and changes in handling is not a good idea).


Because you're smart and you trust yourself to notice if something goes wrong, before it hurts you. That's not hypocrisy. It's a basic survival skill.
Well thanks, and I have over the years trained myself to see what's going right and what's not. The work "hypocrisy" was based on the fact that I have often (over 10 years on BF C&V) recommended users of vintage frames to get frames cold-set rather than just muscle the wheel in, and here I'm saying to be careful about cold-setting (I guess the truth is both - cold set your frames so the wheel actually fits, and be careful it's done correctly). I believe in having frames aligned. And I've even had a highy hardened and costly OX-Plat frame cold-set! I do trust the process when done carefully by folks I know. Ann Arbor has some great technicians left.
Road Fan is offline
Old 01-06-21, 05:13 PM
  #52
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,972

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1483 Post(s)
Liked 393 Times in 305 Posts
Originally Posted by The Golden Boy View Post
Yes! It's a Cambium!
Ok, that explains the look! I've never owned one.
Road Fan is offline
Likes For Road Fan:
Old 01-08-21, 04:28 PM
  #53
Schlafen
Senior Member

Schlafen's Avatar

Join Date: Apr 2020
Posts: 205
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 64 Times in 41 Posts
Originally Posted by Sir_Name View Post
One thing I’ll add is that a Jtek shiftmate or Wolftooth tanpan can be used to get modern road shifters and MTB rear derailleurs working well together. That’ll further open up gearing options if needed. Start there - determine desired gear range - and work backwards to your components.

I built this bike with a very low gear for carrying a load up off road climbs. Gearing is 46/30 SunXCD ramped and pinned chainrings on a 49d crankset, 11-42 XT 11sp cassette on a Dura Ace 9000 rear hub. Ultegra 8000 series STI levers and front derailleur, XTR M9000 rear derailleur with the appropriate Jtek shiftmate to make it work. I’m very happy with this setup.



Please keep us updated as you work through the build!
sweet rando rig 👍
Schlafen is offline
Likes For Schlafen:
Old 01-08-21, 07:50 PM
  #54
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,981

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 2343 Post(s)
Liked 962 Times in 569 Posts
Originally Posted by Road Fan View Post
Ok, that explains the look! I've never owned one.
I really love them- I don't like the look of the new ones- but I do like that they wouldn't catch on some of my shorts like the older cloth ones do.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 01-16-21, 04:50 PM
  #55
chancelucky
Member

Join Date: Sep 2020
Posts: 38
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 30 Times in 12 Posts
Unlike many here, my bike mechanic skills are pretty limited. I change flats, clean and lube chains, adjust non-disk brakes, replace jockey wheels, change chains,and beyond that, it gets iffier, especially since I don't have the tools and my local bike coop is basically closed due to COVID. I wound up using my local bike shop, Bullseye Bicycles of Durham, N.C. I also don't have a garage full of old bicycle parts. Anyway, here's my 1986 Univega Gran Turismo before and after. In my case, I'm not planning any loaded tours with it, so went for more of a gravel-lite thing-- I don't really do challenging single track any longer either. I spent most of the money on wheels (H plus Son). I happened to get a pretty good deal on a Sora 3000 groupset. I don't race. In fact, I sometimes get passed by riders older than I on rusty English Racer type bikes or, even worse, on Elliptigos. I do draw the line with adult trikes. Anyway, I just wanted a groupset that shifts when it's supposed to. It did change the look quite a bit. Almost everything that used to be silver is now black. The visual change might horrify the restorationists, but I don't regret "modernizing."

I found that I prefer brifters, especially off road. I did make the questionable decision to go from 3x to 2x, but I honestly hadn't used to granny gear in some time and the hills here aren't that steep or long. Going to 9 speed does give me a couple more ratios that I actually use. Going to the brifters also eliminates the brake cables coming out of the hoods and added the over the hoods hand position which I use a lot, especially uphill. The result is a very comfortable bike that I wind up going 10 miles further than I originally intended that I can take on pretty much any road/path that isn't either mud or boulders. Bullseye did a really good job and they worked with me in letting me hunt for parts on e-bay and bring them in for the rebuild.
chancelucky is offline
Likes For chancelucky:
Old 01-17-21, 12:30 AM
  #56
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 14,271

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 7743 Post(s)
Liked 4,728 Times in 2,729 Posts
Originally Posted by chancelucky View Post

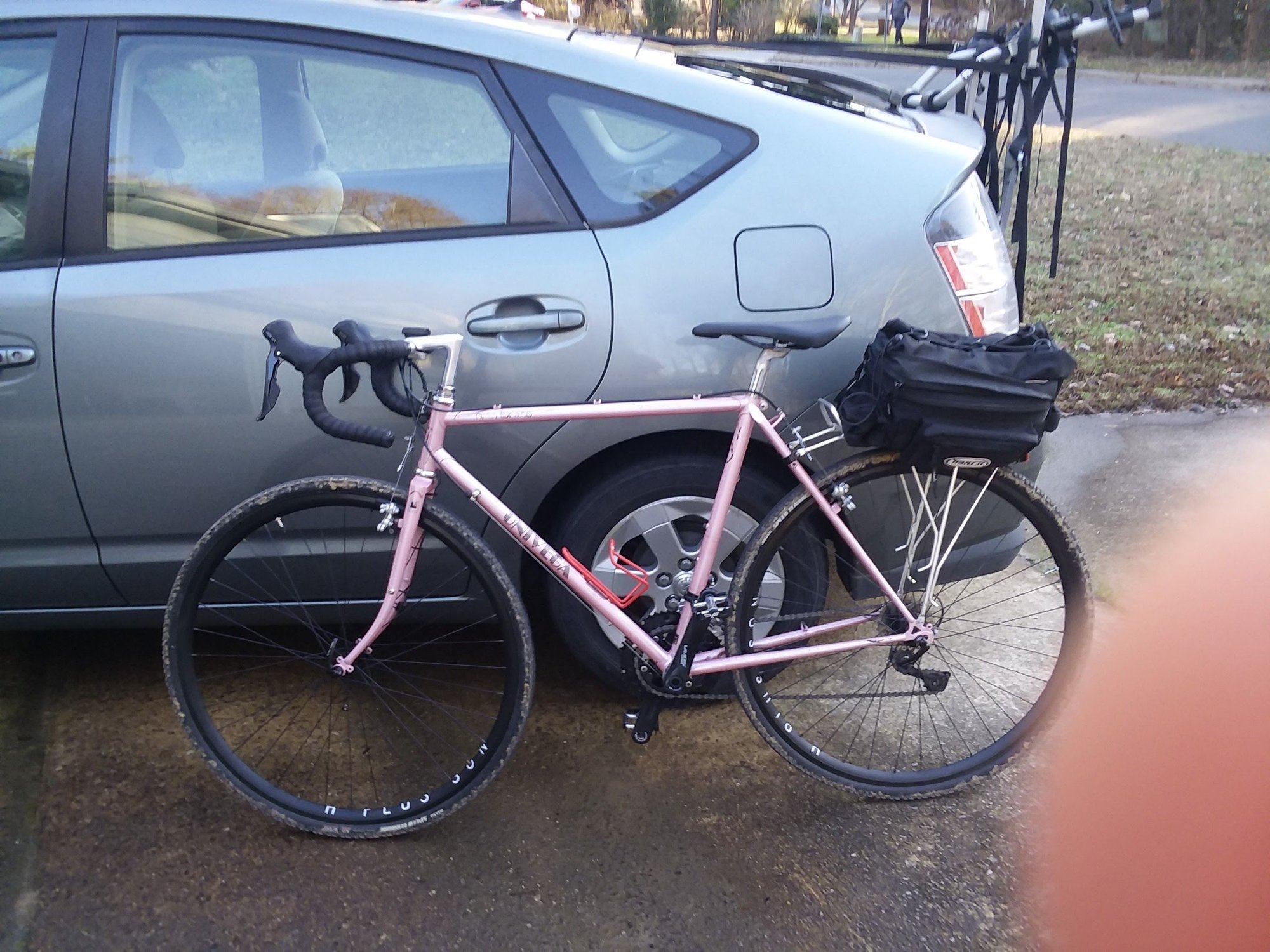

the pink frame looks great with the modern drivetrain and archetype rims!
mstateglfr is offline
Likes For mstateglfr:
Old 01-17-21, 03:09 AM
  #57
ctak
Senior Member

ctak's Avatar

Join Date: Sep 2019
Posts: 345
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 223 Times in 123 Posts
Originally Posted by Guyatwork37 View Post
My buddy and I are planning on doing a tour of Colorado this coming summer (starting and ending in the mountains, lots of climbs, camping at night, etc.). We love the look and feel of vintage steel bikes, but don't relish the thought of trying to do a mountain tour on a 10 or 12 speed with vintage components. We are toying with the idea of putting modern components (think something like Shimano 105 with a triple crank) on a vintage frame, but are unsure if it will work. I understand the rear fork spacing will need to be cold-set from 1XXmm to 130mm to accommodate a 10 - 12 speed cassette, the bottom bracket will need to be sorted out in order to accommodate a modern crankset, potentially replacing brakes for long reach if we go from a 27" to 700c tire, and possibly getting a stem adapter if we don't want to go with a quill stem, but what else am I missing? Is it even feasible? I understand the changes will cost money and time, and that's fine just trying to see if it can even be done and if worthwhile. I have a thing for Specialized bikes so I was thinking an early to mid 80s Specialized Expedition and he's British so he was looking at a Raleigh Portage. Any thoughts or insight would be great. Thank you!
It'll work great with just a little planning to sync everything up.

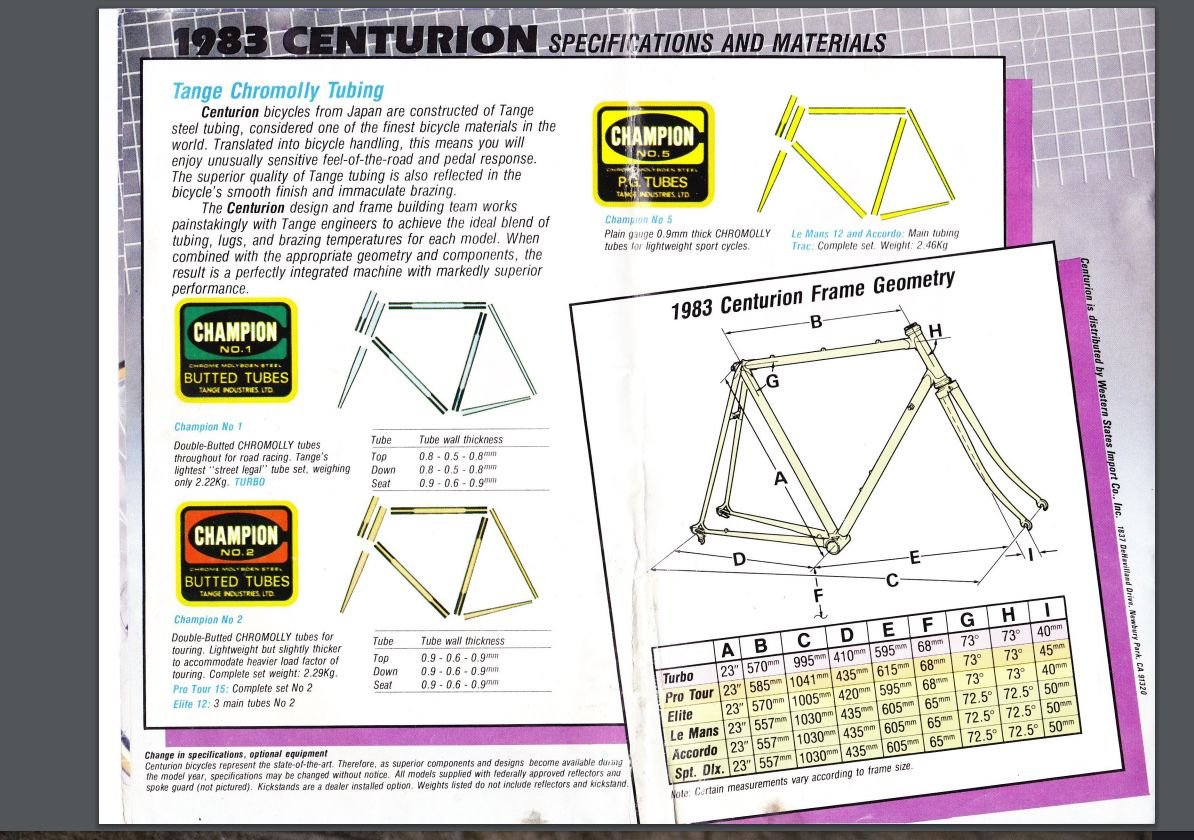

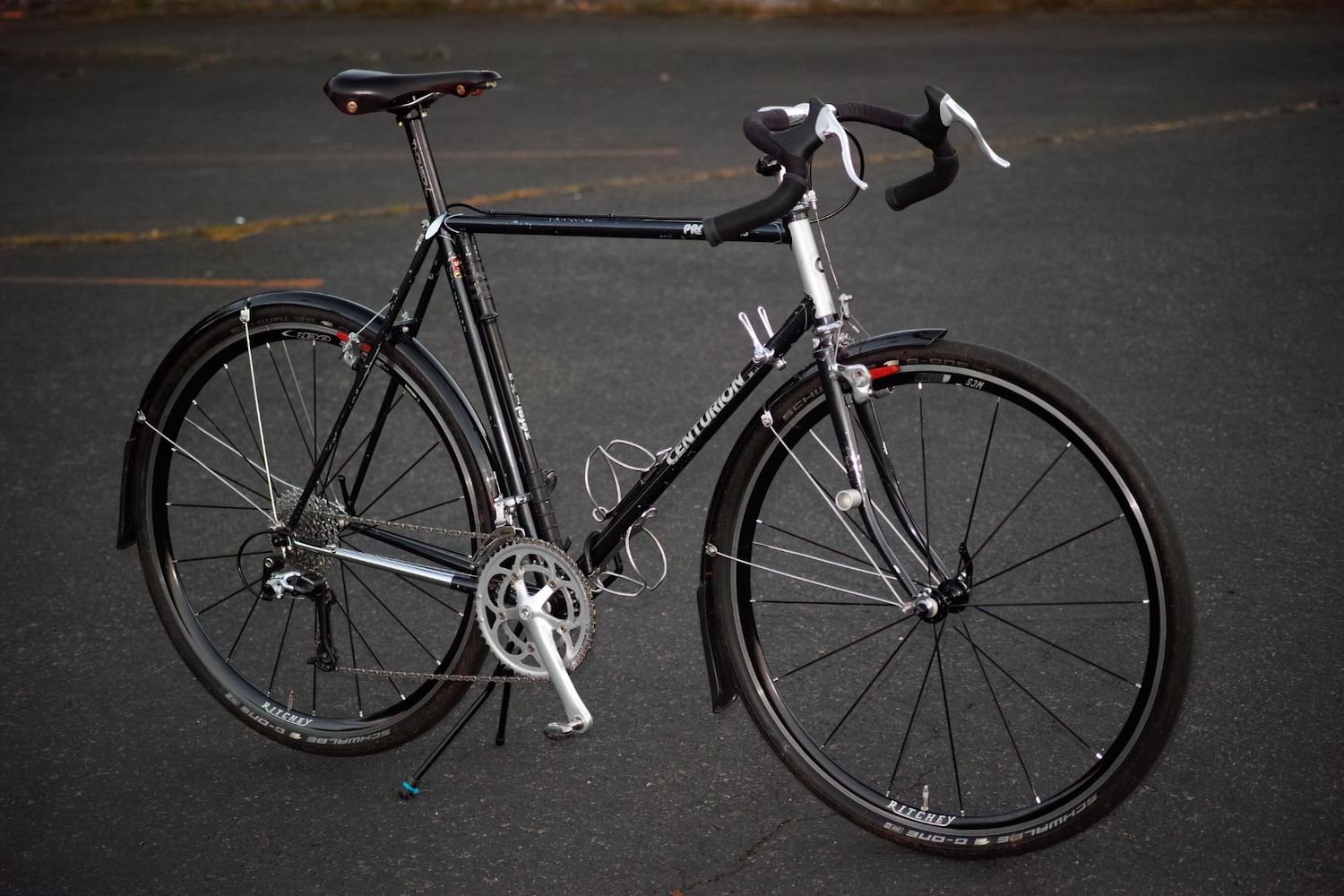

Here's my 2x9/10 speed 83 Pro Tour 15
- Rear triangle spread to 128mm, works well with many modern wheelsets
- 700c conversion (swapped to cantis with more room for adjustment)
- fits 38mm gravel tires or 35 and fenders (as pictured)
- Compact 50/34 chainset and 11/32t cassette, which is all the range I need for light touring in the PNW
- Long cage Deore xt rear derailleur, dirt drop bars with extra grips




ctak is offline
Likes For ctak:
Old 01-17-21, 07:44 AM
  #58
PugRider
Senior Member

Join Date: Feb 2013
Location: Worcester, Massachusetts
Posts: 275

Bikes: Fuji Sportif 1.7C, Shogun Metro AT, Jamis Durango SX, Miyata Alumicross, Fuji Special Road Racer, Mongoose ATB, Fuji SST 1.0 Team, Gitane (?), Specialized Rockhopper SS, Univega Gran Turismo, Univega Supra Sport Mixte, Nishiki Tri-A, Diamondback Coil

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 104 Times in 56 Posts
Originally Posted by chancelucky View Post
Unlike many here, my bike mechanic skills are pretty limited. I change flats, clean and lube chains, adjust non-disk brakes, replace jockey wheels, change chains,and beyond that, it gets iffier, especially since I don't have the tools and my local bike coop is basically closed due to COVID. I wound up using my local bike shop, Bullseye Bicycles of Durham, N.C. I also don't have a garage full of old bicycle parts. Anyway, here's my 1986 Univega Gran Turismo before and after. In my case, I'm not planning any loaded tours with it, so went for more of a gravel-lite thing-- I don't really do challenging single track any longer either. I spent most of the money on wheels (H plus Son). I happened to get a pretty good deal on a Sora 3000 groupset. I don't race. In fact, I sometimes get passed by riders older than I on rusty English Racer type bikes or, even worse, on Elliptigos. I do draw the line with adult trikes. Anyway, I just wanted a groupset that shifts when it's supposed to. It did change the look quite a bit. Almost everything that used to be silver is now black. The visual change might horrify the restorationists, but I don't regret "modernizing."

I found that I prefer brifters, especially off road. I did make the questionable decision to go from 3x to 2x, but I honestly hadn't used to granny gear in some time and the hills here aren't that steep or long. Going to 9 speed does give me a couple more ratios that I actually use. Going to the brifters also eliminates the brake cables coming out of the hoods and added the over the hoods hand position which I use a lot, especially uphill. The result is a very comfortable bike that I wind up going 10 miles further than I originally intended that I can take on pretty much any road/path that isn't either mud or boulders. Bullseye did a really good job and they worked with me in letting me hunt for parts on e-bay and bring them in for the rebuild.
Awesome, I’m near the end of a very similar Gran Turismo build myself, love how yours turned out. Maybe I’m just noticing it, but I seem to be seeing an uptick in touring interest going on here lately, myself included. Perhaps a little wanderlust building up due to the pandemic. Anyway, nice bike, enjoy!
PugRider is offline
Likes For PugRider:
Old 01-18-21, 04:40 PM
  #59
Campytourer
Newbie

Join Date: Jan 2021
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
new parts on old frames

Originally Posted by Guyatwork37 View Post
My buddy and I are planning on doing a tour of Colorado this coming summer (starting and ending in the mountains, lots of climbs, camping at night, etc.). We love the look and feel of vintage steel bikes, but don't relish the thought of trying to do a mountain tour on a 10 or 12 speed with vintage components. We are toying with the idea of putting modern components (think something like Shimano 105 with a triple crank) on a vintage frame, but are unsure if it will work. I understand the rear fork spacing will need to be cold-set from 1XXmm to 130mm to accommodate a 10 - 12 speed cassette, the bottom bracket will need to be sorted out in order to accommodate a modern crankset, potentially replacing brakes for long reach if we go from a 27" to 700c tire, and possibly getting a stem adapter if we don't want to go with a quill stem, but what else am I missing? Is it even feasible? I understand the changes will cost money and time, and that's fine just trying to see if it can even be done and if worthwhile. I have a thing for Specialized bikes so I was thinking an early to mid 80s Specialized Expedition and he's British so he was looking at a Raleigh Portage. Any thoughts or insight would be great. Thank you!
l

Yes, it´s very possible. I rebuilt an `86 Eddy Merckx Corsa Extra with modern Campagnolo Record group, with the exception of the chainset, which is a lower group model (Centaur) due to the BB being square tapered. I did this purely because a friend built gave me a pair of wheels with Campag 10spd Record hubs. Cold setting the rear triangle is pretty easy. It´s handy if the frame you´re planning to use has braze-ons for the front shifter due to changes in tube diameters meaning modern clamps wont always fit older frames. Dual pivot brakes are excellent and infinitely better than the old rim brakes, I didnt need to use long reach ones to accommodate a 700c rim. Some fiddly adaptations of mounting bolts (sourcing shorter recessed bolts etc) were needed, so a little time and patience required. But she looks great and rides like a dream. Took her up Alp D`huez in France a couple of years ago on her inaugural tour, handled like a dream doing 93kmh (58mph) on the descent, and drew a lot of attention at the cafe at the top.
Good luck with the build, it will be worth it!
Campytourer is offline
Old 01-19-21, 11:43 PM
  #60
brixxton
resykler

Join Date: Oct 2020
Location: S.F.
Posts: 97

Bikes: Garlatti 1969 Ca Import Bianchi Slgre, Motobecane Super Mirage SS Convert, Bianchi mongrel 70's Racer, Lotus JPS Special, Univega Super Legere, Mongoose iboc,

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 15 Times in 12 Posts

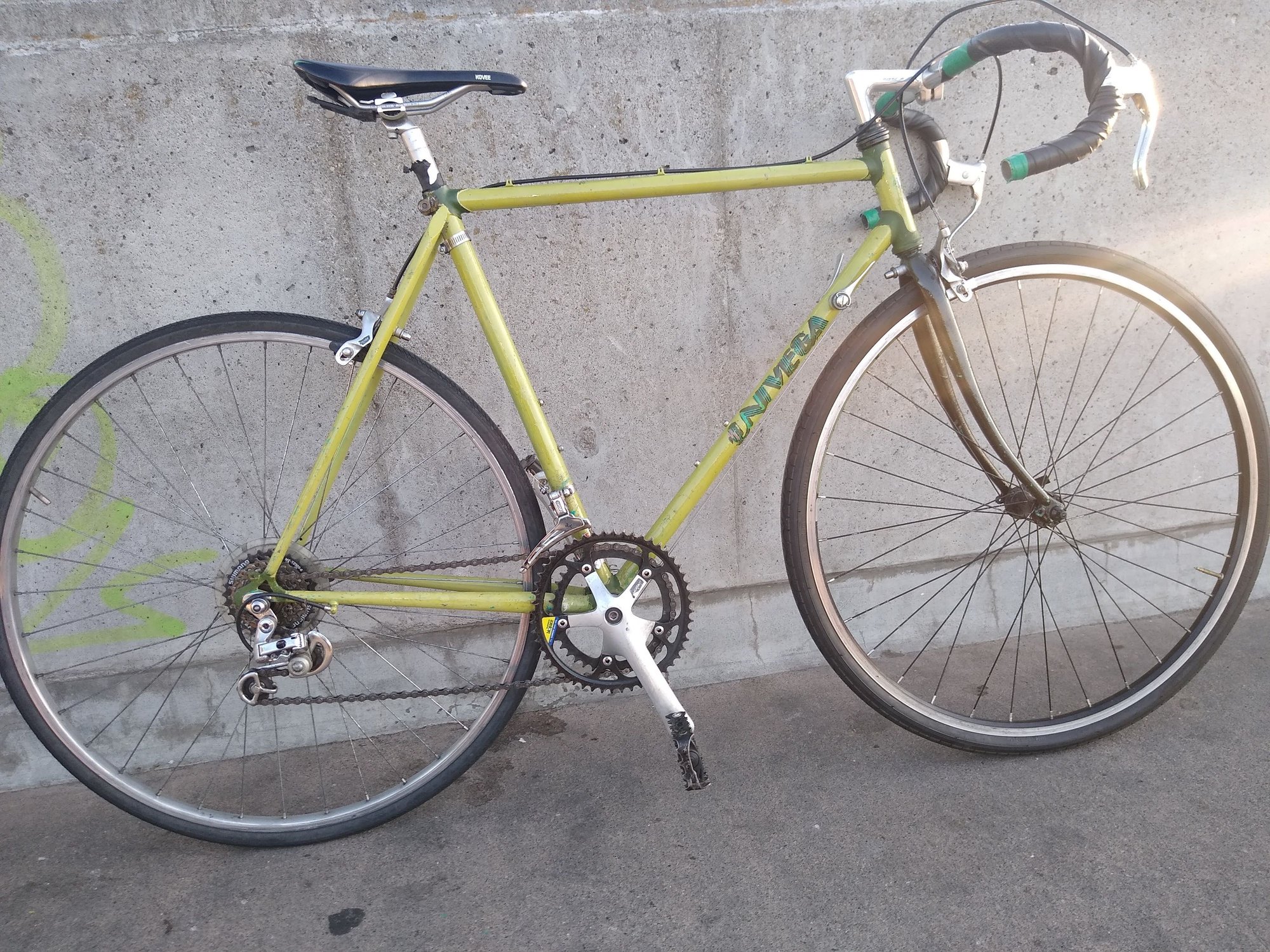

Univega Upgrade


Swapped everything I could, shifters

Bars, brakes

Wheels, gearset. Ignore the chain I hadn't finished but you get the idea. If I had something nice I wasn't using it got a home on the Univega. Sorry about the crappy paint job
brixxton is offline
Likes For brixxton:
Old 01-20-21, 08:12 AM
  #61
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 14,271

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 7743 Post(s)
Liked 4,728 Times in 2,729 Posts

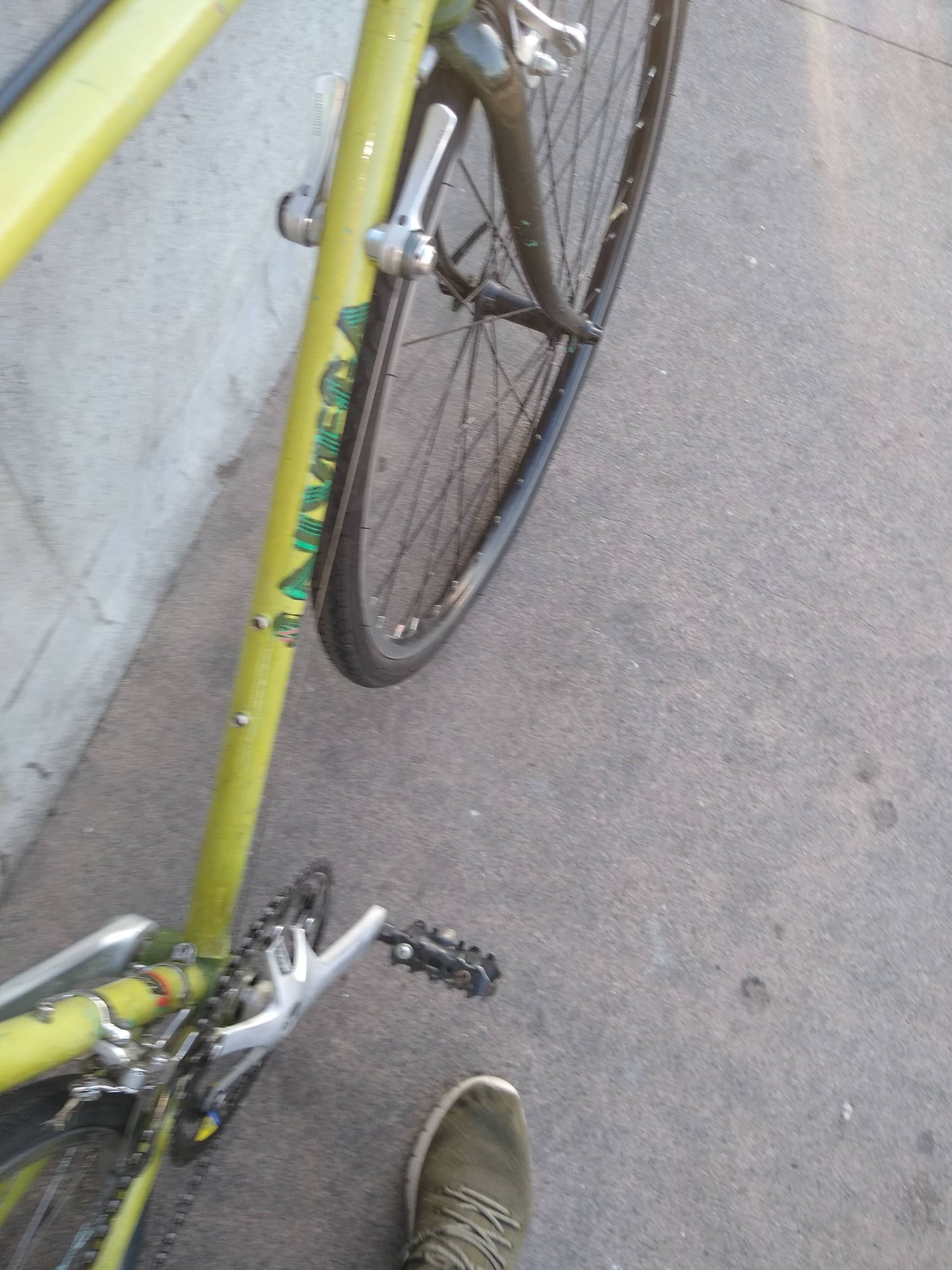

^ You definitely made it your own. A Pearl stem with the bar that is quite a juxtaposition.
Just watch the front brake setup since the plastic part of the housing is now missing- dont want it to continue to deteriorate.
mstateglfr is offline
Old 01-20-21, 09:01 AM
  #62
brixxton
resykler

Join Date: Oct 2020
Location: S.F.
Posts: 97

Bikes: Garlatti 1969 Ca Import Bianchi Slgre, Motobecane Super Mirage SS Convert, Bianchi mongrel 70's Racer, Lotus JPS Special, Univega Super Legere, Mongoose iboc,

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 15 Times in 12 Posts
Test Bed

I had no idea what a following these Univega had. When I first got it the paint scheme was to much to handle, but we've been on a steep learning curve together and I can't see me letting it go.
brixxton is offline
Old 01-26-21, 11:10 AM
  #63
GregU
Senior Member

Join Date: Dec 2010
Location: Maryland
Posts: 139

Bikes: 2008 Specialized Roubaix Elite, 2002 Specialized Sirius Pro, 1985 Vitus 979 (DuraAce 7400), 1985 Bianchi Trofeo

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Likes: 0
Liked 22 Times in 12 Posts
Originally Posted by Guyatwork37 View Post
We just like the idea of different / more gears, brifters instead of downtube shifting, etc. We both have vintage road bike and enjoy them, but want something slightly different for touring purposes. As for a LBS, I restore and sell vintage bikes, so no need to get a LBS involved for any of this.
Or just buy a Surly. Steel frame, modern components, reasonably priced. https://surlybikes.com/

There are other similar volume production manufacturers of steel framed bikes.
GregU is offline
Old 01-26-21, 11:49 AM
  #64
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 14 Times in 7 Posts
That was originally the plan, but we like the idea of touring on vintage steel bikes. Just our preference this time around. It's not simply about the bikes being steel, but 80s steel.
Guyatwork37 is offline
Old 01-26-21, 03:45 PM
  #65
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,786
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Liked 488 Times in 338 Posts
Originally Posted by ctak View Post

Looks like those front brake pads are backwards, did you do that to gain clearance on the fork when they're released?
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 01-26-21, 05:10 PM
  #66
ctak
Senior Member

ctak's Avatar

Join Date: Sep 2019
Posts: 345
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 223 Times in 123 Posts
Originally Posted by shoota View Post
Looks like those front brake pads are backwards, did you do that to gain clearance on the fork when they're released?
Exactly, and ime these particular pads work great in either orientation
ctak is offline
Old 01-26-21, 05:44 PM
  #67
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,786
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1701 Post(s)
Liked 488 Times in 338 Posts
Originally Posted by ctak View Post
Exactly, and ime these particular pads work great in either orientation
Great to know. Are those Kool Stop? If so, which model?
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 01-26-21, 08:51 PM
  #68
Cycle Tourist
Senior Member

Join Date: Jan 2017
Posts: 634
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked 180 Times in 109 Posts
Originally Posted by Guyatwork37 View Post
My buddy and I are planning on doing a tour of Colorado this coming summer (starting and ending in the mountains, lots of climbs, camping at night, etc.). We love the look and feel of vintage steel bikes, but don't relish the thought of trying to do a mountain tour on a 10 or 12 speed with vintage components. We are toying with the idea of putting modern components (think something like Shimano 105 with a triple crank) on a vintage frame, but are unsure if it will work. I understand the rear fork spacing will need to be cold-set from 1XXmm to 130mm to accommodate a 10 - 12 speed cassette, the bottom bracket will need to be sorted out in order to accommodate a modern crankset, potentially replacing brakes for long reach if we go from a 27" to 700c tire, and possibly getting a stem adapter if we don't want to go with a quill stem, but what else am I missing? Is it even feasible? I understand the changes will cost money and time, and that's fine just trying to see if it can even be done and if worthwhile. I have a thing for Specialized bikes so I was thinking an early to mid 80s Specialized Expedition and he's British so he was looking at a Raleigh Portage. Any thoughts or insight would be great. Thank you!



The upgrades you plan are definitely doable. Here's a nice uo-10 converted to a dandy touring bike. I'd say a triple is a must in Colorado but 7 is plenty for the gearset. There are also plenty of 7 speed shifters to be had. I never found a six or even a 5 speed freewheel to offer any real obstacle to touring. It's the wide range that's needed. A 5 speed freewheel with half step gearing gives you plenty of choices. I've gotten lazy over the years and settled on a seven speed gearset as just easier to use and skipped the half step preferring the range approach for the triple. Also it's easier to adopt an older bike to expand to a seven speed freewheel or cassette.
Cycle Tourist is offline
Old 01-26-21, 09:07 PM
  #69
Cycle Tourist
Senior Member

Join Date: Jan 2017
Posts: 634
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked 180 Times in 109 Posts
Several have mentioned adding drop bars to a mtn bike but consider a vintage hybrid. It's easy to find tires. They usually have bosses for racks even low rider bosses and they already have cantilever brakes. What's not to like?😁
Cycle Tourist is offline
Old 01-26-21, 09:14 PM
  #70
brixxton
resykler

Join Date: Oct 2020
Location: S.F.
Posts: 97

Bikes: Garlatti 1969 Ca Import Bianchi Slgre, Motobecane Super Mirage SS Convert, Bianchi mongrel 70's Racer, Lotus JPS Special, Univega Super Legere, Mongoose iboc,

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 15 Times in 12 Posts
Feasible

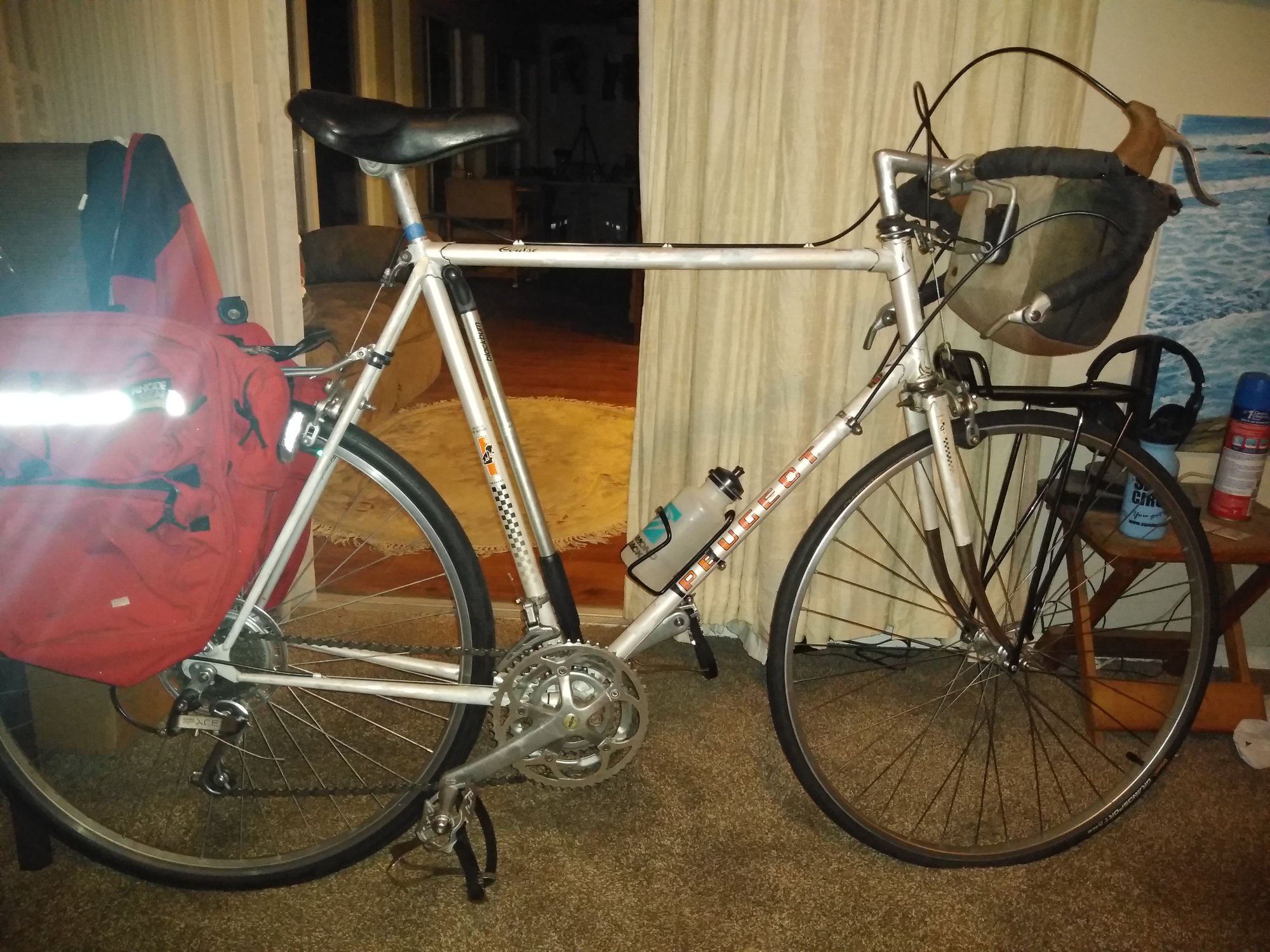

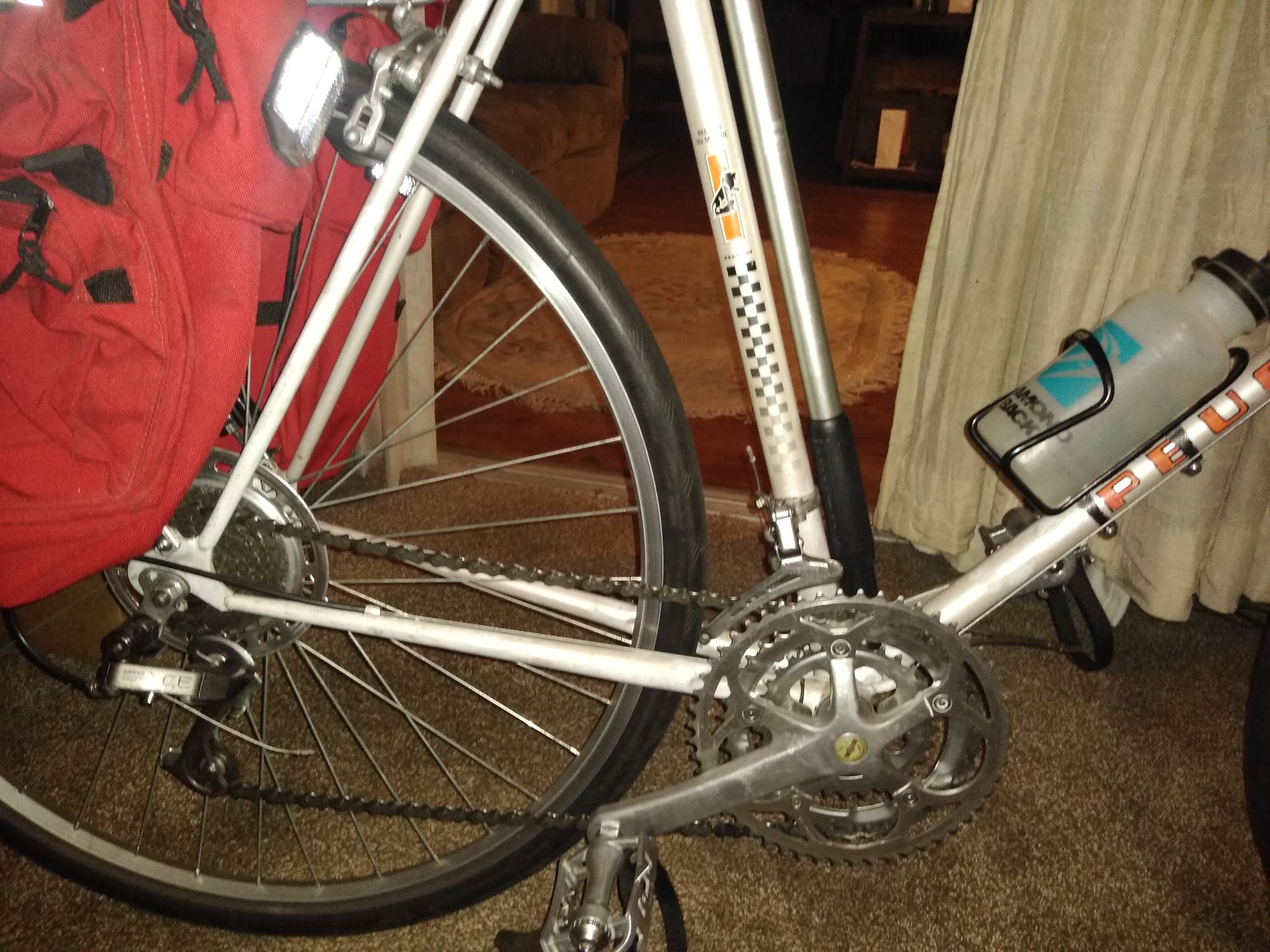

Absolutely and I applaud your choice to go true vintage steel. If you have the skill set and a quality frame you end up with something that's yours, unique and has soul!

Last edited by brixxton; 01-26-21 at 09:44 PM. Reason: Pix
brixxton is offline
Likes For brixxton:
Old 01-27-21, 12:51 AM
  #71
ctak
Senior Member

ctak's Avatar

Join Date: Sep 2019
Posts: 345
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 223 Times in 123 Posts
Originally Posted by shoota View Post
Great to know. Are those Kool Stop? If so, which model?
KoolStop Thinlines https://www.jensonusa.com/Kool-Stop-...ed-Post-Salmon
ctak is offline
Likes For ctak:
Old 01-27-21, 08:25 PM
  #72
GregU
Senior Member

Join Date: Dec 2010
Location: Maryland
Posts: 139

Bikes: 2008 Specialized Roubaix Elite, 2002 Specialized Sirius Pro, 1985 Vitus 979 (DuraAce 7400), 1985 Bianchi Trofeo

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Likes: 0
Liked 22 Times in 12 Posts
Originally Posted by Guyatwork37 View Post
That was originally the plan, but we like the idea of touring on vintage steel bikes. Just our preference this time around. It's not simply about the bikes being steel, but 80s steel.
I'm with you. I have a 1991 Witcomb made from Reynolds 531ST tubing. 3x7 gearing with Microshift brifters, 44x34x24 chainrings.


There are plenty of 80s touring bikes you can customize to your liking with modern parts. You can go 7 speed w/o adjusting the frame, or even 8/9 speed if you do the Sheldon Brown 8 of 9 on 7 method. The Microshift 7 speed brifters are excellent.

8 Of 9 On 7 -- or 9 of 10 on 7

If your 126 mm frame is aluminum, carbon fiber or held together by glue, you shouldn't try to spread it. That still doesn't mean that you're stuck with 7 speeds!

Any 7-speed Shimano Hyperglide Freehub will actually work with 8 or 9 sprockets, without any modification! What you need to do is to use 8 of the sprockets from a 9-speed cassette, with the 9-speed spacers -- or 9 of the sprockets from a 10-speed cassette. This trick also is useful when cassette body transplantation isn't possible -- on an off-brand hub or a Sachs 3 x 7 hybrid-gearing hub.

To make this work, you'll also need to use a 9- or 10-speed chain and shifters. Your old 7-speed derailer (except 1996 or earlier Dura-Ace) should work OK if it isn't too badly worn. Most, but not all, 9- and 10-speed shifters will work.

The limit stops on the derailer will cause the useless position on the shifter to be locked out, so this will work as a perfectly normal 8- or 9-speed rig.

https://www.sheldonbrown.com/k7.html
GregU is offline
Likes For GregU:
Old 01-29-21, 12:42 AM
  #73
homelessjoe
Senior Member

Join Date: Nov 2014
Location: Ann Arbor Michigan
Posts: 152

Bikes: miyata 83 1000,84 1000,83 610,88 ridge runner ,Schwinn 84 high sierra,88 Cimmeron,86 Passage,84 Stumplumper ,83 Mt Whitney,83 Trek 850,Merckx Century,PX10, RB1,XO 1 XO 4,bunch of stuff like that

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 48 Times in 40 Posts
you asked

Since you asked here is what Homelessjoe has to say.......If you find an old Specialized Expedition or a Portage.....those bikes are beautiful and bombproof as it is......they were designed to do exactly what you want to do and go where you want to go......you cant improve perfect........you could drive them across Siberia and depend on then to bringing you home.........as is.........with a quill stem you can adjust your bar hight when ever you want........its amazing what a relief it is on your back and butt to change your riding position just an inch higher or lower after a long day.......I think quill stems are a must for long distance touring.........dont cold set that frame.....when those bikes left the factory they were perfectly precision laser beam straight........going down the road in a straight line is a must on a long ride......if your are snaking down the road and snaking up hills it will wear you out to fast because you will keep using you upper body trying to balance.....both the Specialized and the Portage are 21 speeds....and the components are better than 105.....they are stronger....you dont need to change anything.......if in good condition the are ready to go.....you may want to change a chainring or a gear or two depending how strong you are.....but adding more gears wont help nothing.......fresh double butted spokes is a good place to spend your money...you will be amazed what a broken spoke will do to your disposition when you are 35 miles from nothing......new tires ...grease........get the best seat there is.......and dont get a new untried seat and head off for the great divide......try it out for a week or two.... break it in......I wish I was going with you.....I was there two years ago

Last edited by homelessjoe; 01-29-21 at 12:49 AM. Reason: misspelled
homelessjoe is offline
Old 12-09-21, 03:04 PM
  #74
Jor54
Junior Member

Join Date: Oct 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I'm in the same position as the OP. I have a 1990 Trek 750 that I would like to use to do some long distance touring. This bike has 32 spoke wheels and I'm definitely going to upgrade the real wheel to a strong 36 spoke wheel. Do you think it would be ok to leave the original 32 spoke wheel in the front? I weight about 240 lb and I am planing to use 2 panniers in the front and 2 in the back, although I don't know how much gear I will be carrying yet, since this is the first time I will be doing this.
Your answers are greatly appreciated.
Jor54 is offline
Old 12-09-21, 03:24 PM
  #75
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,137

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 1250 Post(s)
Liked 982 Times in 537 Posts
Originally Posted by Jor54 View Post
I'm in the same position as the OP. I have a 1990 Trek 750 that I would like to use to do some long distance touring. This bike has 32 spoke wheels and I'm definitely going to upgrade the real wheel to a strong 36 spoke wheel. Do you think it would be ok to leave the original 32 spoke wheel in the front? I weight about 240 lb and I am planing to use 2 panniers in the front and 2 in the back, although I don't know how much gear I will be carrying yet, since this is the first time I will be doing this.
Your answers are greatly appreciated.
Personally I'd go 36 front and back with panniers front and back. The bike is an excellent choice if it fits. I typically carry most of my weight up front since my butt is hard enough on the back wheel.
52telecaster is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
