Raphael Geminiani 1958 Replica Build

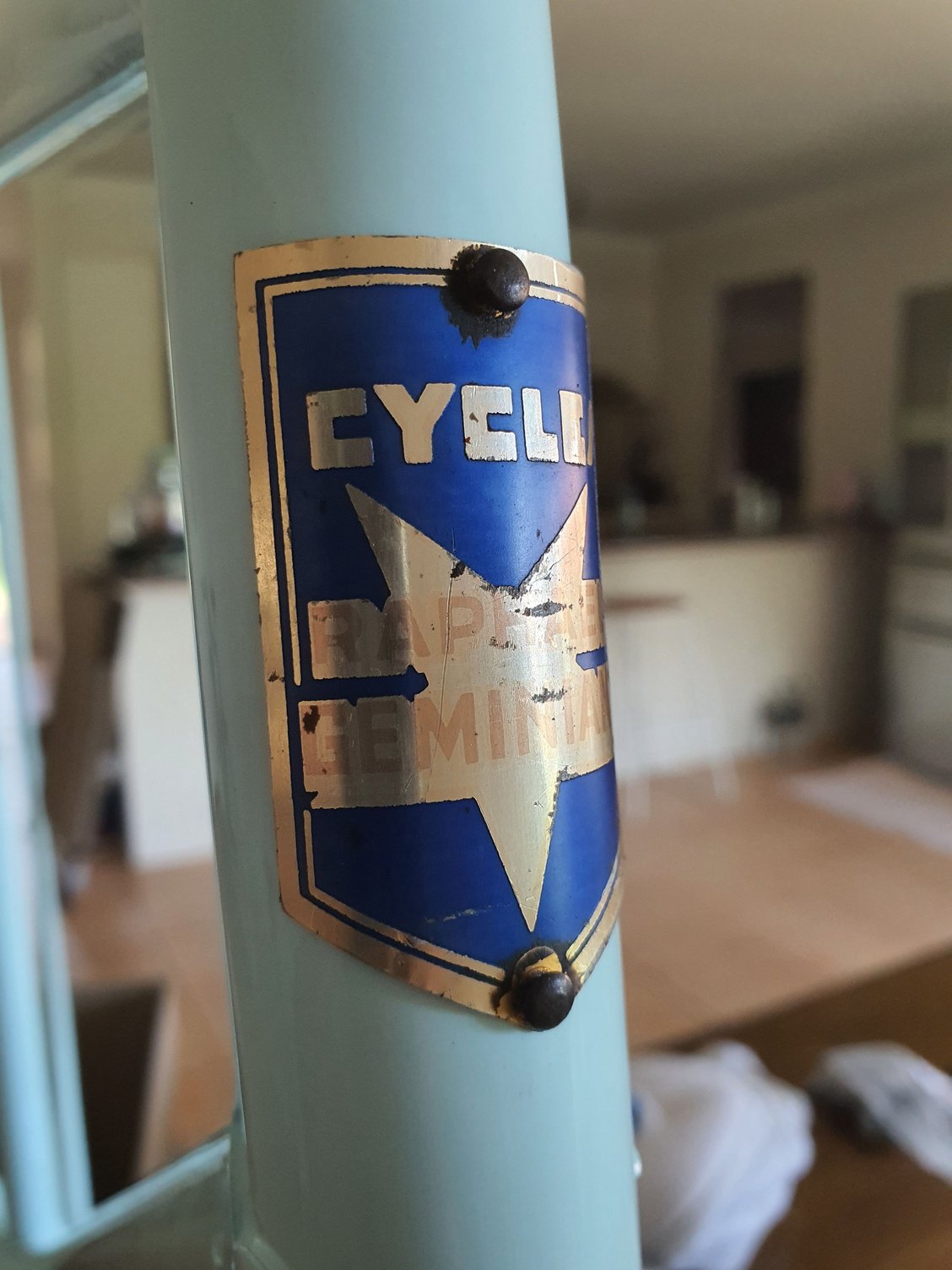

My Raphael Geminiani 1958 Replic Build has Began.
i have a 1958 Olympic that is in great shape but way to big so its going into my man cavmans a display.
i got the colour spot on after 4 attempts and very happy.
Trying to use all the same components that Raphael Geminiani used on his 58 bike.
I will be posting as I go so it will take a few weeks as i have most of the parts.

Addamsmith is offline
Likes For Addamsmith:
Old 01-02-21, 08:41 PM
  #2
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,359

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1306 Post(s)
Liked 780 Times in 493 Posts
What are you starting with? Your creation?
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 01-03-21, 02:57 AM
  #3
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
Originally Posted by Classtime View Post
What are you starting with? Your creation?
headset Stronglight V4 with Pivo Stem and Phillippe Professional bars.
Addamsmith is offline
Old 01-03-21, 07:24 AM
  #4
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,351

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5436 Post(s)
Liked 2,269 Times in 1,472 Posts
I've thought for a while that it would be cool to replicate a 50s era TdF bike. Is that what you are doing?
bikemig is offline
Likes For bikemig:
Old 01-03-21, 10:07 AM
  #5
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,187

Bikes: Yes, please.

Mentioned: 260 Post(s)
Tagged: 0 Thread(s)
Quoted: 1877 Post(s)
Liked 2,576 Times in 1,138 Posts
Looking forward to this project! If "Gem" had gotten along better with the French national team he'd probably have won the Tour de France that year.
__________________
Woo hoo!









non-fixie is offline
Likes For non-fixie:
Old 01-03-21, 01:31 PM
  #6
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
Originally Posted by bikemig View Post
I've thought for a while that it would be cool to replicate a 50s era TdF bike. Is that what you are doing?
yes mate
Addamsmith is offline
Old 01-03-21, 02:52 PM
  #7
Feldman
Senior Member

Join Date: Feb 2002
Posts: 1,140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 58 Times in 42 Posts
Who painted it and what is that color called?
Feldman is offline
Likes For Feldman:
Old 01-03-21, 05:12 PM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,351

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5436 Post(s)
Liked 2,269 Times in 1,472 Posts
I'm curious, where did you find the specs for the build? Is there a web resource where you can find how this bike (or others) were kitted out for the TdF in '58, '59, etc.?
bikemig is offline
Likes For bikemig:
Old 01-03-21, 07:46 PM
  #9
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
Originally Posted by Feldman View Post
Who painted it and what is that color called?
i have a Car Race and Restoration Business did it theriti just colour matched it from a guy on the gold coast who has a original Geminiani I colour matched off it.
I can try to get a colour mix code for you.
Addamsmith is offline
Old 01-03-21, 07:47 PM
  #10
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
Originally Posted by bikemig View Post
I'm curious, where did you find the specs for the build? Is there a web resource where you can find how this bike (or others) were kitted out for the TdF in '58, '59, etc.?
i googles 1958 Raphael Geminiani and found one on a web sit that was built and replicated from the original bike.
I will find the post and add it to here.
Addamsmith is offline
Old 01-03-21, 07:49 PM
  #11
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
Vélo Raphaël GEMINIANI 1958. - Le blog de velosvintage.over-blog.com
Addamsmith is offline
Likes For Addamsmith:
Old 01-03-21, 08:05 PM
  #12
Maru
Junior Member

Maru's Avatar

Join Date: Dec 2020
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 6 Times in 2 Posts
For those that have not taken the time to open the link...I highly recommend you take a look. Lots a photos from many angles. Gorgeous bike.

what a cool project.
Maru is offline
Likes For Maru:
Old 01-03-21, 08:38 PM
  #13
Markeologist
Senior Member

Join Date: Jun 2020
Location: Marin County, Alta California
Posts: 256

Bikes: Since new: 85/86 Rodriguez Tandem, wife's 87 Gitane Team Pro, 92 Burley Rock-n-Roll, 85 Fisher Comp, 88 Puch Pro, two 92 Bridgestone X0-1s; later: 66/67 Gitane Champion du Monde, late 60s/early 70s B.Carre, my 87 Gitane Team Pro, 77/78 Ritchey Tandem

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 183 Times in 92 Posts
Stronglight 57s and Mafac Tigers....great stuff, enjoy the hunt if you don’t have already. I have a Stronglight 63 for my CdM build and have been hunting for Mafac Top63s.
Markeologist is offline
Old 01-03-21, 10:19 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,399
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2390 Post(s)
Liked 1,306 Times in 986 Posts

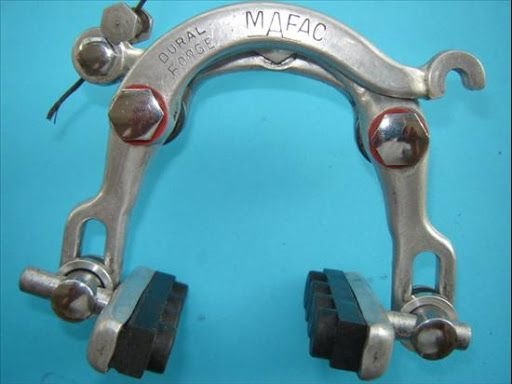

Those brakes at first glance look like Top 63’s but are marked Dural Forgé.
note the pivot frame is solid and fixed, so one better measure well when building the frame and fork!
I have never seen these before.
the Dural Forgé brakes I am familiar with are the same basic design as the later Racer.
interesting
worthwhile project.
repechage is offline
Likes For repechage:
Old 01-03-21, 10:39 PM
  #15
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,012

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1165 Post(s)
Liked 705 Times in 496 Posts
Wow! That is a fabulous idea, and I really like the machine you are copying.

I guess I could use one of my Capo Sieger frames as the basis for a replica of the bike Adolf Christian rode to 3rd place in the 1958 TdF. I think his had Capo brand derailleurs, for which the old 1950s Simplex bandspring rear and rod-shift front would be reasonable stand-ins, and I would need low flange hubs with wingnuts, as well as sidepull brakes. I did find this picture of a 1952 Sieger, and his does not look a lot different, based on the two photos I have found. The components are embarrassingly primitive compared to the Campagnolo / Mafac mix on your project. I also would not want to modify my frame for internal derailleur and brake cable routing, something Otto Cap evidently abandoned sometime during the 1950s.


__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069

Last edited by John E; 01-03-21 at 10:46 PM.
John E is offline
Likes For John E:
Old 01-04-21, 04:51 AM
  #16
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
That is such a beautiful machine
do you have a link to the bike you could share with us please
Addamsmith is offline
Old 01-04-21, 08:41 AM
  #17
Markeologist
Senior Member

Join Date: Jun 2020
Location: Marin County, Alta California
Posts: 256

Bikes: Since new: 85/86 Rodriguez Tandem, wife's 87 Gitane Team Pro, 92 Burley Rock-n-Roll, 85 Fisher Comp, 88 Puch Pro, two 92 Bridgestone X0-1s; later: 66/67 Gitane Champion du Monde, late 60s/early 70s B.Carre, my 87 Gitane Team Pro, 77/78 Ritchey Tandem

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 183 Times in 92 Posts
The model of Mafacs on the Geminiani in link are Mafac Tigers which predate Top 63s by three years if I recall. The Tigers have a much flatter face on arm and a much broader and flatter arc to the arms than Top 63s. The flatter, broader arc to arms wasn't seen on subsequent Mafac models (perhaps a poor design and why they were replaced by Top 63s so quickly). The Top 63s were replaced pretty quickly too (from what I understand they are pretty complicated to set up) by the original Racers which were not embossed with "Racer" just "Mafac" and "Dural Forge" (the aluminum alloy they were made of). Racers seem to my eye to be a bland of Tigers and Top 63s and were the choice of many professional riders in the latter half of the 60s. The later Racers actually embossed with name "Racer" are 70s versions and used plastic bushings instead of the bronze bushings found earlier.




Markeologist is offline
Old 01-04-21, 07:49 PM
  #18
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
Originally Posted by Markeologist View Post
The model of Mafacs on the Geminiani in link are Mafac Tigers which predate Top 63s by three years if I recall. The Tigers have a much flatter face on arm and a much broader and flatter arc to the arms than Top 63s. The flatter, broader arc to arms wasn't seen on subsequent Mafac models (perhaps a poor design and why they were replaced by Top 63s so quickly). The Top 63s were replaced pretty quickly too (from what I understand they are pretty complicated to set up) by the original Racers which were not embossed with "Racer" just "Mafac" and "Dural Forge" (the aluminum alloy they were made of). Racers seem to my eye to be a bland of Tigers and Top 63s and were the choice of many professional riders in the latter half of the 60s. The later Racers actually embossed with name "Racer" are 70s versions and used plastic bushings instead of the bronze bushings found earlier.




I was sure the top63 did not come out till late 62
I have a set on my gitane 63 model.
Did they come out earlier
Addamsmith is offline
Old 01-04-21, 08:14 PM
  #19
Markeologist
Senior Member

Join Date: Jun 2020
Location: Marin County, Alta California
Posts: 256

Bikes: Since new: 85/86 Rodriguez Tandem, wife's 87 Gitane Team Pro, 92 Burley Rock-n-Roll, 85 Fisher Comp, 88 Puch Pro, two 92 Bridgestone X0-1s; later: 66/67 Gitane Champion du Monde, late 60s/early 70s B.Carre, my 87 Gitane Team Pro, 77/78 Ritchey Tandem

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 183 Times in 92 Posts
Originally Posted by Addamsmith View Post
I was sure the top63 did not come out till late 62
I have a set on my gitane 63 model.
Did they come out earlier
From what I understand, Top 63s were introduced by Mafac in late 1962 as a 1963 model (thus the "63" in the name). The Top 63s replaced the Tigers which became generally available in 1960 (+/-). Stronglight coincidently had a new design for 1963 as well, thus their Model 63 which replaced their previous Model 57.
Markeologist is offline
Likes For Markeologist:
Old 01-08-21, 08:53 PM
  #20
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts

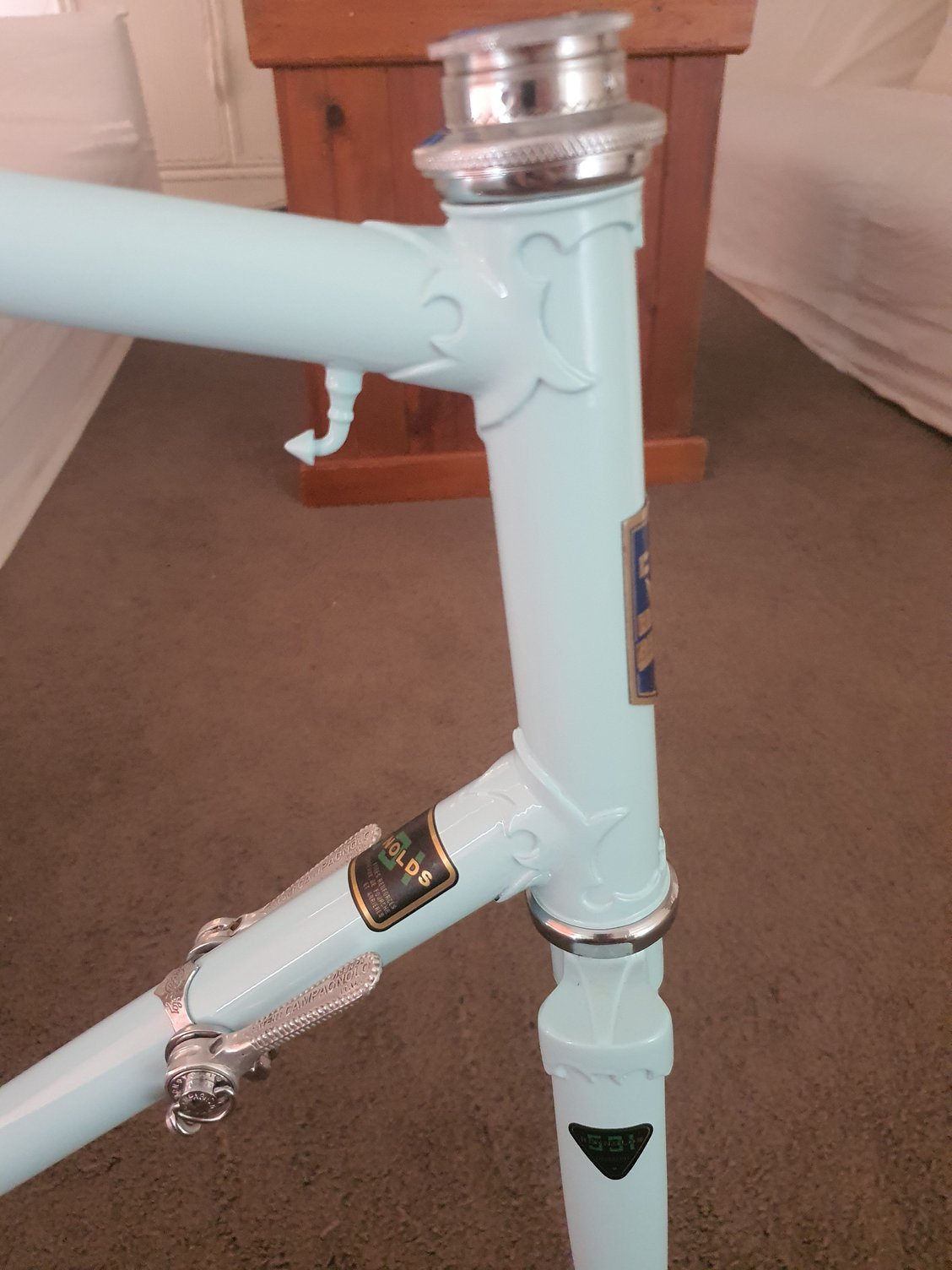

So started to put frame together Used P3 Stronglight Headset from 50s.
Stronglight Period correct bottom bracket with Stronglight 57 competition model cranks .

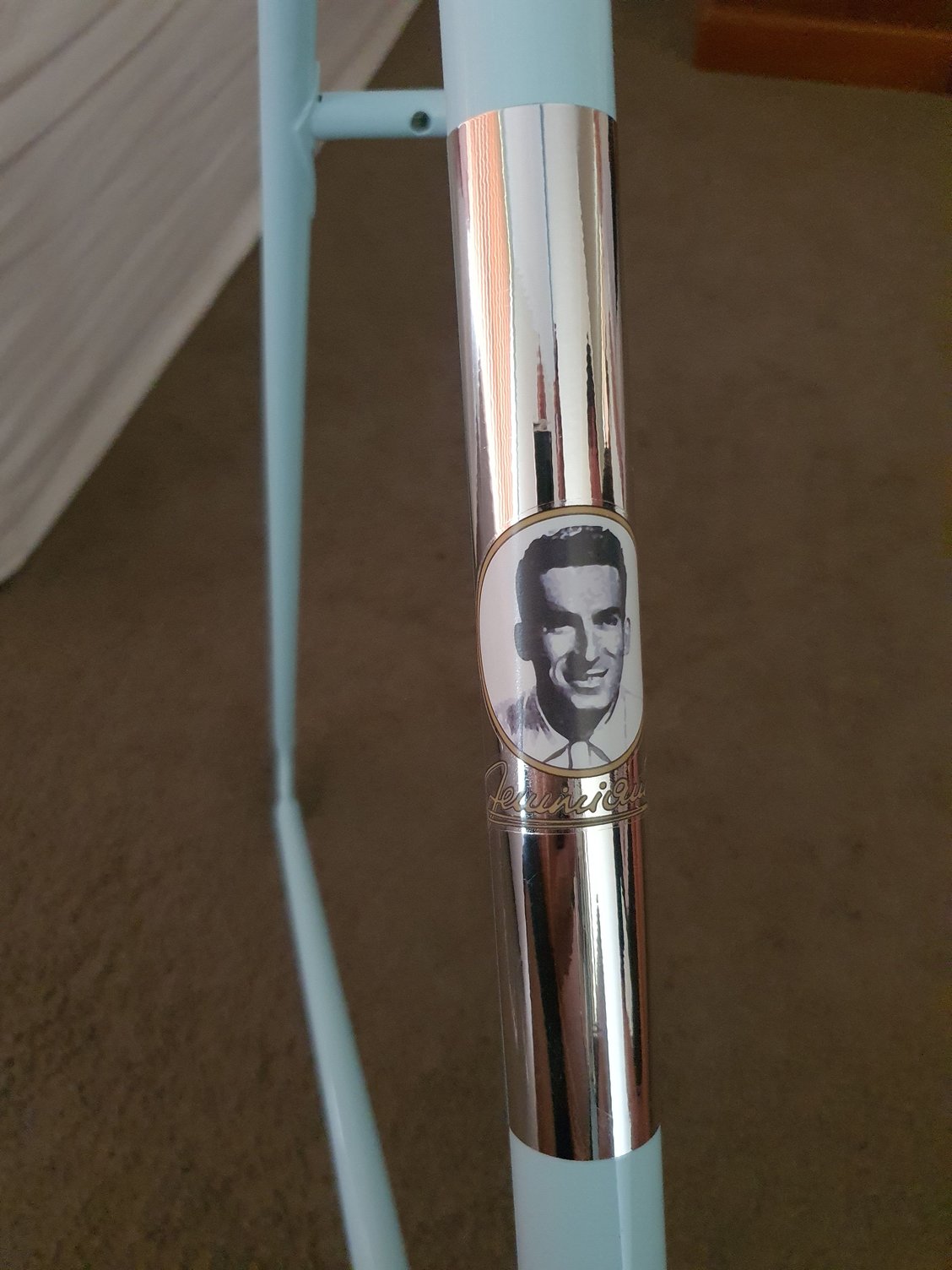

Now i bOught some chrome wrap to do seat down tube decal and cut same as my other Géminiani bike.
Added chrome and Géminiani face decal.
Campagnolo clamp on shifters and clamp on bottle cage.


Addamsmith is offline
Likes For Addamsmith:
Old 01-25-21, 10:11 PM
  #21
Addamsmith
Senior Member
Thread Starter

Join Date: Dec 2020
Posts: 54
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 56 Times in 18 Posts
More work done


Addamsmith is offline
Likes For Addamsmith:
Old 04-13-22, 12:31 PM
  #22
KansasJack
Junior Member

Join Date: Jun 2007
Posts: 19
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 26 Times in 8 Posts
Sorry to bump an old thread but I was happy to see this project. I have an old Raphael Geminiani that I plan to paint in the same scheme. I found it in rough shape but it’s complete. It has an Ideale saddle and Mafac Tiger brakes.

Last edited by KansasJack; 06-16-22 at 06:50 PM.
KansasJack is offline
Likes For KansasJack:
Old 04-13-22, 01:16 PM
  #23
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,102

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 3129 Post(s)
Liked 2,878 Times in 1,827 Posts
Originally Posted by KansasJack View Post
Sorry to bump an old thread but I was happy to see this project. I have an old Raphael Geminiani that I plan to paint in the same scheme. I garbage-picked my bike and it’s in rough shape but it’s complete. It has an Ideale saddle and Mafac Tiger brakes.
Umm, pics or it didn't happen.

You can add them to the gallery on your homepage and they may get moved here, then maybe only 4 more posts for you to post here.

Respond to any and all posts here to get there.

Welcome aboard, belatedly, glad you found us, you're in the right place.
merziac is offline
Old 04-13-22, 01:29 PM
  #24
KansasJack
Junior Member

Join Date: Jun 2007
Posts: 19
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 26 Times in 8 Posts
Originally Posted by merziac View Post
Umm, pics or it didn't happen.

You can add them to the gallery on your homepage and they may get moved here, then maybe only 4 more posts for you to post here.

Respond to any and all posts here to get there.

Welcome aboard, belatedly, glad you found us, you're in the right place.
Thanks very much. I haven’t been here since 2015. I’ve been spending most of my time on the vintage MGB forums lately. This old bike is bringing me back though. I’ll post pictures as soon as I’m able. Just a few more posts to go.
KansasJack is offline
Likes For KansasJack:
Old 04-14-22, 11:07 AM
  #25
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 7,145
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 497 Times in 257 Posts

Raphael Team Car. Love it!
big chainring is offline
Likes For big chainring:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
