TS Isaac Frame - Rebuild

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

TS Isaac Frame - Rebuild

Old 01-05-21, 09:37 AM
  #1
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
TS Isaac Frame - Rebuild

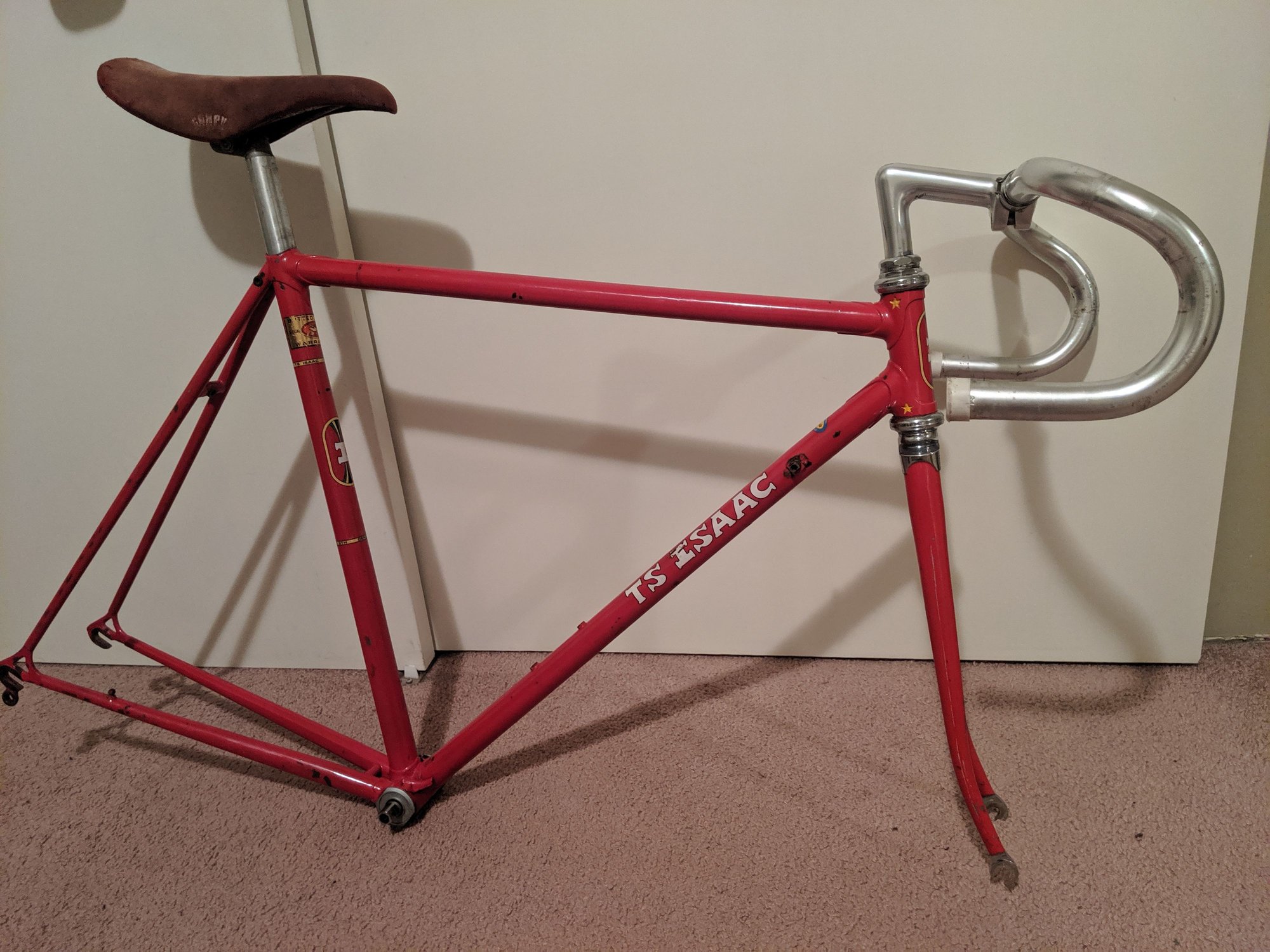

I found this bike in the basement of a shop in Portland. It was poorly setup as a single speed and as soon as I saw it, I knew I needed to have it. Over the course of a year I slowly rebuilt it with roughly era appropriate parts. I haven't seen a ton of examples of these bikes, so I figured I would add this one to the internet archive.






TeakAsh is offline
Old 01-05-21, 09:46 AM
  #2
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 834

Bikes: Peugeot teamline

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Liked 55 Times in 47 Posts
Nice bike. Looks good.
blamester is offline
Old 01-05-21, 10:01 AM
  #3
romperrr
Pedal to the medal

Join Date: Sep 2012
Location: The Arsenal of Democracy
Posts: 947

Bikes: 1991 Team Miyata Track, 1992 Lemond Alpe d'Huez, 19?? Schwinn High Serra, 1982 Trek 614, 198X Raleigh Alyeska

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 16 Times in 12 Posts
beautiful build, nice job saving this bike! I love TSI's bikes, one doesn't see too many of them.
romperrr is offline
Old 01-05-21, 10:29 AM
  #4
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,577

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 529 Times in 341 Posts
@TeakAsh - Like the bike! Is the rear brake bridge crushed? Could you provide a picture of it?
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 01-05-21, 10:55 AM
  #5
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,170
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 691 Post(s)
Liked 270 Times in 222 Posts
I'm also in for some additional close-ups: would love to see the seat cluster from the rear and some other angles, also any cut-out in the BB shell? If so would like a pic of that, too. THANKS for adding some rare and important visuals to the database!
unworthy1 is offline
Old 01-05-21, 11:01 AM
  #6
canyoneagle
Senior Member

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,601

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 88 Times in 40 Posts
Nice work!!!
that is a beautiful bike. Well done rescuing it from hipsterdom.
__________________
Bikes are fun
canyoneagle is offline
Old 01-05-21, 01:04 PM
  #7
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
Thanks for the interest, below are the requested pictures, I'm happy to provide any additional pictures or information.

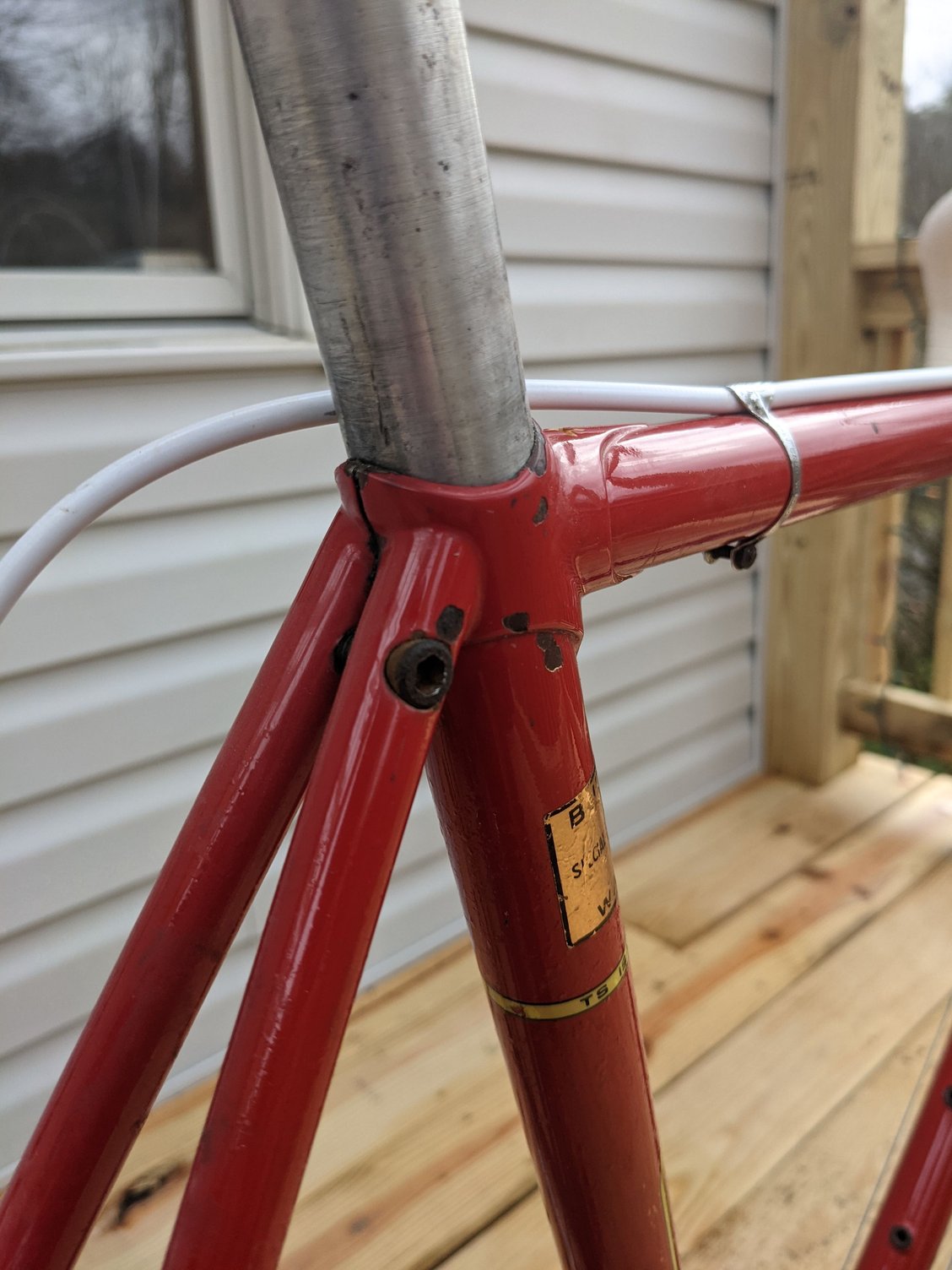

The brake bridge is not crushed, at least it does not appear to be to me.



There is a cut-out!

There is also this interesting design inside the front fork blades.
TeakAsh is offline
Likes For TeakAsh:
Old 01-05-21, 02:55 PM
  #8
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,104

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 2122 Post(s)
Liked 1,183 Times in 822 Posts
@TeakAsh

Very cool, great score.

Oregon or Maine?

Hate to be the one to point this out but the rust under the paint is getting the better of this frame, long term is bad.

I realize you are probably already well aware.
merziac is offline
Old 01-05-21, 02:59 PM
  #9
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,695

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Liked 148 Times in 105 Posts
I’m curious as to the actual age of this frame.

I (slightly) new Tim Isaac back when Nuovo Record was actually nuovo (early 70’s) as a fellow racer, albeit several classifications above me. Wouldn’t have thought he was building frames yet. I encountered him again, along with Curt Goodrich, decades later, probably 2004-ish, on a Rivendell-sponsored group visit to his frame building shop in Woodinville, WA. They were certainly building nice ones then!
Dfrost is offline
Old 01-05-21, 03:01 PM
  #10
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
Originally Posted by merziac View Post
@TeakAsh

Very cool, great score.

Oregon or Maine?

Hate to be the one to point this out but the rust under the paint is getting the better of this frame, long term is bad.

I realize you are probably already well aware.
Oregon! Yeah, the rust isn't great for sure, still determining what I want to do, likely I'll strip it and try to restore the paint and decals as best as I can to preserve it's originality, but I wanted a record of it before I go down that path.
TeakAsh is offline
Likes For TeakAsh:
Old 01-05-21, 03:04 PM
  #11
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,577

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 529 Times in 341 Posts
I agree with @merziac - Bought a Tandem that was stored at the beach and not used hardly at all, based on the greased parts. Lots of rust runs.
Not in focus but you get the idea:
P1010140 on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 01-05-21, 03:12 PM
  #12
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,170
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 691 Post(s)
Liked 270 Times in 222 Posts
Those "spiderwebs" are annoying for what they do to paint but generally still superficial, I'd get something like FrameSaver or Boeshield into the INTERIOR of all tubing, STAT!
And thanks for these additional detail pix, very nice!!
Also re the brake bridge: my assumption is the tube the caliper mount bolt passes thru is one unit so there really is no "crush space" of the bridge itself. In which case it's not crushed, it's maybe intentionally shaped...I could be wrong of course.

Last edited by unworthy1; 01-05-21 at 03:16 PM.
unworthy1 is offline
Likes For unworthy1:
Old 01-05-21, 03:25 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,104

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 2122 Post(s)
Liked 1,183 Times in 822 Posts
Originally Posted by TeakAsh View Post
Oregon! Yeah, the rust isn't great for sure, still determining what I want to do, likely I'll strip it and try to restore the paint and decals as best as I can to preserve it's originality, but I wanted a record of it before I go down that path.
Yeah, makes sense, as @Dfrost points out he was here in the PNW.

Take good pics of all artwork and measure/document placement.

And reach out to Tim for help, he may have a line on decals.

Timisaac@matchtechnical.com
merziac is offline
Likes For merziac:
Old 01-05-21, 03:38 PM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,223
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 597 Times in 488 Posts
------

Handsome!

Five Stars for a most tasteful build.

---

passed through Woodinville in ~2000

did not know there was a framebuilder in town...


-----
juvela is offline
Old 01-05-21, 03:59 PM
  #15
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
Originally Posted by Dfrost View Post
I’m curious as to the actual age of this frame.

I (slightly) new Tim Isaac back when Nuovo Record was actually nuovo (early 70’s) as a fellow racer, albeit several classifications above me. Wouldn’t have thought he was building frames yet. I encountered him again, along with Curt Goodrich, decades later, probably 2004-ish, on a Rivendell-sponsored group visit to his frame building shop in Woodinville, WA. They were certainly building nice ones then!
The frame itself says Denver on one of the decals, so my assumption is that it was made there. From the, albeit very limited, information I could find I assumed it was early to mid 70's, but I could be wrong.
TeakAsh is offline
Old 01-05-21, 03:59 PM
  #16
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
Originally Posted by unworthy1 View Post
Those "spiderwebs" are annoying for what they do to paint but generally still superficial, I'd get something like FrameSaver or Boeshield into the INTERIOR of all tubing, STAT!
And thanks for these additional detail pix, very nice!!
Also re the brake bridge: my assumption is the tube the caliper mount bolt passes thru is one unit so there really is no "crush space" of the bridge itself. In which case it's not crushed, it's maybe intentionally shaped...I could be wrong of course.
Hit it with frame saver as soon as I got it into the shop 👍
TeakAsh is offline
Likes For TeakAsh:
Old 01-05-21, 04:26 PM
  #17
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,192

Bikes: Several, mostly not name brands.

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 2429 Post(s)
Liked 938 Times in 602 Posts
Nice bike. Decal style suggests an early build, before 1980 certainly.

We have two TS Isaac bikes here. I converted my wife's into a 650B, upright bar bike. Mine is still drop bar, but I have lowered the gearing, retiring the 53/42 Super Record crank and installing a 48/36 Zeus crank instead.
Attached Images
File Type: jpg
File Type: jpg
JohnDThompson is offline
Likes For JohnDThompson:
Old 01-05-21, 04:27 PM
  #18
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,315

Bikes: Trek 770, Trek 760, Schwinn Paramount, Patelli Professional, Othon Ochsner

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 433 Times in 332 Posts
TeakAsh,
I would look for a step down ferrule for the stainless cable when you do the re-build after a repaint. Great job of restoring it! Smiles, MH
Mad Honk is offline
Old 01-05-21, 04:32 PM
  #19
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
Originally Posted by Mad Honk View Post
TeakAsh,
I would look for a step down ferrule for the stainless cable when you do the re-build after a repaint. Great job of restoring it! Smiles, MH

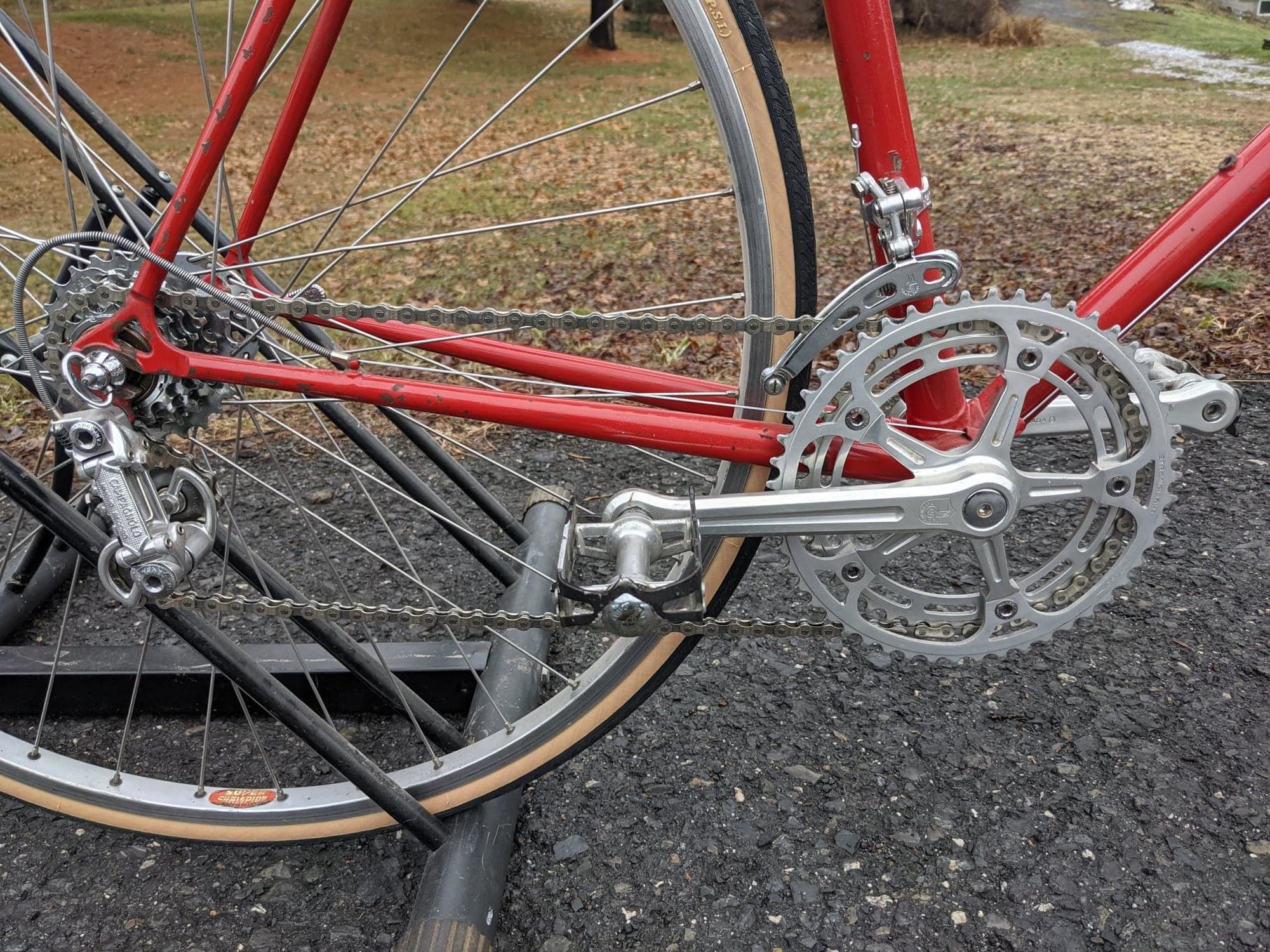

At the rear derailleur? It may not look like it in the picture, but it is a step-down. Thanks for the positive encouragement!
TeakAsh is offline
Old 01-05-21, 04:34 PM
  #20
TeakAsh
Junior Member
Thread Starter

Join Date: Jan 2016
Location: Pottsville PA
Posts: 18

Bikes: 1996 Co-Motion Co-Pilot Tandem, 2005 Look 585

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 5 Posts
Originally Posted by JohnDThompson View Post
Nice bike. Decal style suggests an early build, before 1980 certainly.

We have two TS Isaac bikes here. I converted my wife's into a 650B, upright bar bike. Mine is still drop bar, but I have lowered the gearing, retiring the 53/42 Super Record crank and installing a 48/36 Zeus crank instead.
These are great! I'm glad to see other examples, its pretty barren out there.
TeakAsh is offline
Old 01-05-21, 06:04 PM
  #21
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,695

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 139 Post(s)
Tagged: 0 Thread(s)
Quoted: 388 Post(s)
Liked 148 Times in 105 Posts
Originally Posted by TeakAsh View Post
The frame itself says Denver on one of the decals, so my assumption is that it was made there. From the, albeit very limited, information I could find I assumed it was early to mid 70's, but I could be wrong.
I should have mentioned in my previous post that my initial minor connection was racing in the Denver area, long before we both moved to the PNW. Small world of cycling, more so back then.
Dfrost is offline
Old 01-05-21, 10:07 PM
  #22
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 522
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked 385 Times in 207 Posts
Cool bike! Mad respect for Tim as a builder, also a super nice guy. He made frames for the US National team at one point, don't remember what year. Then he was responsible for running the Trek frame operation during a period of explosive growth — he took them from a handful of builders to dozens, designed their lugs and dropouts and such. Also worked for China Bike I think, one of the majors in China anyway. Then Match, where I worked briefly, good times.

I agree the bridge shape looks odd but intentional, not crushed.

The pics don't show the seat cluster from the left, but I expect the hole for the pinchbolts doesn't go all the way through, am I right? On his later frames at least, the hole was bottoming, "blind" on the other side. Pretty trick.

I like your setup but I have a couple notes, if that isn't too tacky of me:

The second toothy "star" washer on the front brake goes in front of the crown, not in back. Two star washers were meant to be stacked up, to give enough thickness to get a cone wrench onto the centering flats from above, clearing the headset cup. If the crown has a curved front face and you use the matching aluminum radius washer, then use only one star washer and put the second one in your parts drawer. Two star washers stacked is only for crowns that are flat in front.

The rear brake has an extra washer behind the bridge, would look better with that removed, and then the centerbolt might reach through and engage the nylock portion of the nut. Keep the thinner washer and ditch the thicker one.

The fashion for cable housings on racing bikes back then was shorter, less arch over the bars, and also shorter at the rear derailer. Not much functional difference (or none), so probably not worth re-doing the, unless you have it apart for somethings else already. Look at pictures of Eddy Merckx for example.

Speaking of Eddy, back then most all racers removed the crank dustcaps and left them off. You certainly don't lose points from me for leaving them on; I like installing them myself, but I have gotten some grief for it over the years, not what the cool kids did. Be sure to grease (or anti-seize) the dustcap threads if you install them, because having the caps seize and strip the allen-socket on removal is super annoying. If you leave the caps off, then bolts should be Campy brand and black, not the newer-vintage silver colored ones or <shudder> Japanese 14 mm bolts <gag!>. A smear of grease or spritz of Boeshield on them slows the inevitable rusting of the bolt heads.

Thanks for sharing, I sure like looking at it.

Mark B in Seattle
bulgie is offline
Likes For bulgie:
Old 01-06-21, 07:26 PM
  #23
Duke7777
Senior Member

Join Date: Aug 2014
Posts: 195

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 79 Gemini, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 78 Carre, 78 SMG, 62 Holdsworth Cyclone,74 Holdsworth Pro,49 Carpenter,55 Condor, 78 TSIsaac, 74 Crescent, 74 Strawberry, 49 Gillott

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 65 Times in 26 Posts
I also have a 70's Isaac and it's one of my favorite bikes.



Does your frame have a serial number? I've gathered a few together - here's what I have so far:

06 77 12 -owned by BK
12 77 77 TS -"Camchain" green road bike
01 78 79 TS -Mine
01 78 82 JF
02 79 157 -"Camchain" purple track bike
04 79 133 -owned by JT

From what I can figure, the first two digits are the month, the second two are the year, the last group are the build sequence, and the initials indicate whether Tim or Jock built it. If you look at the three frames built close together in Dec 77 - Jan 78, it appears as though they used one numbering sequence regardless of who built it. One thing that seems odd is that the first frame in the list has such a low sequence number. Tim started building in 74 and Jock joined him in 76, so I'm sure they had built a lot more than 12 frames by June 77. Maybe that's just when they started using the numbering system.

I would encourage you to try contacting Tim at Match Technical. He was very friendly when I emailed him several years ago when I got my frame. I don't recall seeing those star cutouts before - I'm guessing this is an earlier frame.

The Classic Rendezvous page has links to a TS Isaac brochure and an interesting 1999 interview of Tim for the Rivendell Reader. https://www.classicrendezvous.com/USA/Isaac-Tim.htm

Last edited by Duke7777; 01-07-21 at 12:32 AM.
Duke7777 is offline
Old 01-06-21, 07:59 PM
  #24
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 13,155

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 627 Post(s)
Liked 427 Times in 234 Posts
Nice job! You just don’t see these every day.
OldsCOOL is offline
Old 01-07-21, 08:43 AM
  #25
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,192

Bikes: Several, mostly not name brands.

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 2429 Post(s)
Liked 938 Times in 602 Posts
Originally Posted by bulgie View Post
Cool bike! Mad respect for Tim as a builder, also a super nice guy. He made frames for the US National team at one point, don't remember what year.
1979. His bikes were used by the 1980 US Olympic cycling team, but never made it to Moscow because we boycotted those games. My red white and blue TS Isaac pictured above was one of the spare frames he built for the Olympic team. It sat in a corner of his office at Trek for a long time. I kept bugging him about it, and he eventually sold it to me. Repainted it, too, and put my name on the top tube like the team bikes.

Then he was responsible for running the Trek frame operation during a period of explosive growth — he took them from a handful of builders to dozens, designed their lugs and dropouts and such. Also worked for China Bike I think, one of the majors in China anyway. Then Match, where I worked briefly, good times.
Also designed the frame fittings for the Raleigh USA "Technium" frames, IIRC.

The pics don't show the seat cluster from the left, but I expect the hole for the pinchbolts doesn't go all the way through, am I right? On his later frames at least, the hole was bottoming, "blind" on the other side. Pretty trick.
Yes, that was one of his signature flourishes.
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
JohnDThompson is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
