Routing computer wires down stem?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Routing computer wires down stem?

Old 01-09-21, 12:00 PM
  #1
Steel1
Junior Member
Thread Starter

Join Date: Jan 2018
Posts: 78
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 46 Times in 20 Posts
Routing computer wires down stem?

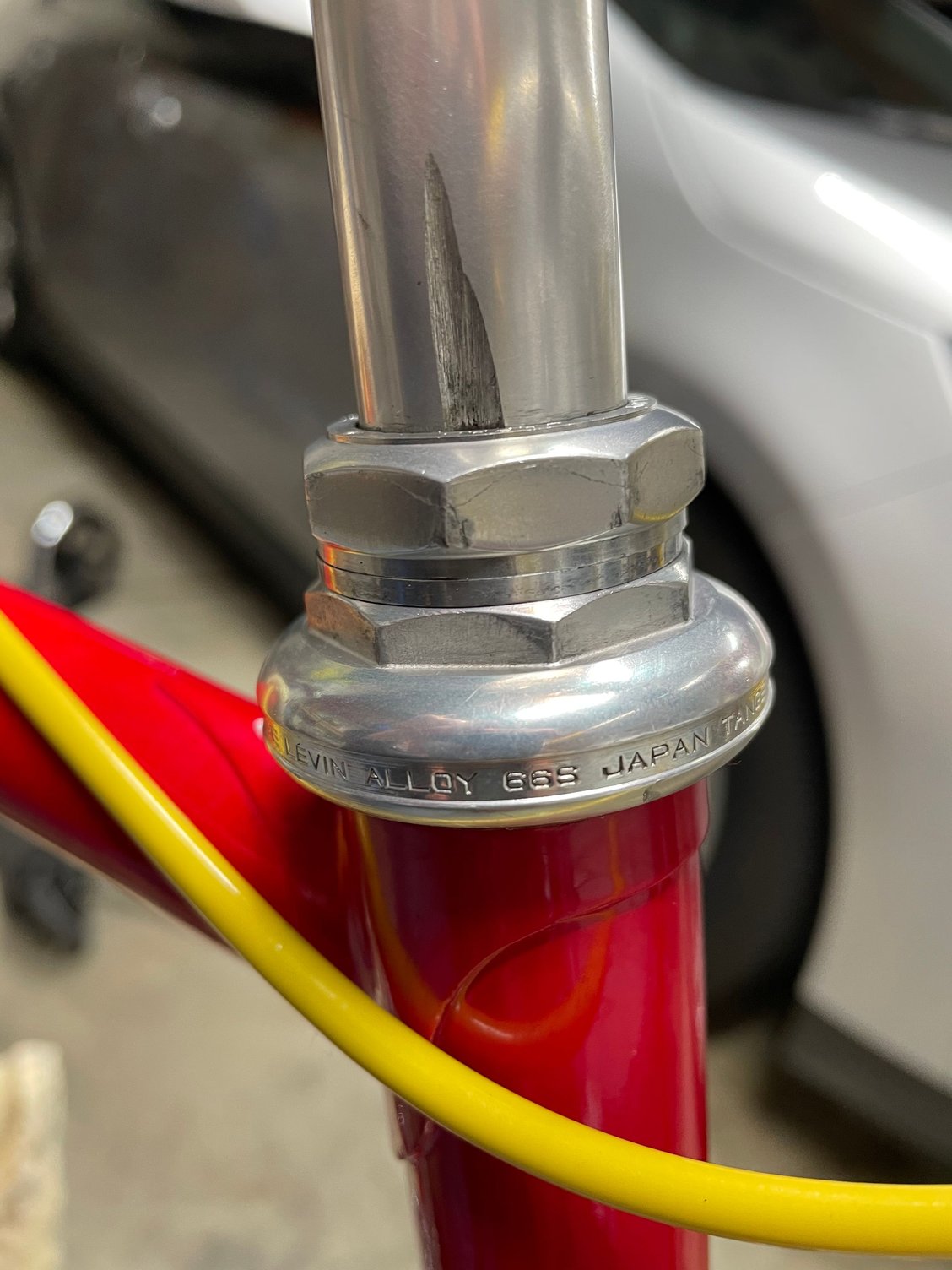

Has anyone seen people route the bike computer wires down thru fork steerer tube? On this bike, the stem has a groove ground along entire length, including the wedge at bottom. The wheel speed sensor wire was routed down along the groove and exited at bottom of fork. There is the obvious question about degrading structural integrity. I judged it OK, as groove is lengthwise, and ride as is. I admit it was a clean looking install, but defaced the stem 😟 I guess this was modified in the mid 80ís.

Unfortunately, some water got in there and made its way down outside of steerer tube to lower bearing and caused some rust on balls. Its hard to see the path water would take to outside of steerer tube past threads. Maybe it can sneak down the vertical slot for washer key. And its not like I sprayed lots of water there... Anyway, I put loose balls in bottom and re-used the caged balls at top. I made mistake when I consulted Park tool website for which way the cage should face. I believe it was wrong for this headset (Tange Levin). Should have balls UP!

I have already posted about rear brake cable on this particular bike routing on drive side. I stubbornly choose to keep it ďstockĒ, as this is the way I got it and also depicted in original catalog. I know many would complain about that, but it works fine for me 😀





Steel1 is offline
Old 01-09-21, 12:21 PM
  #2
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,781

Bikes: It's complicated.

Mentioned: 1196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4174 Post(s)
Liked 3,894 Times in 1,689 Posts
Originally Posted by Steel1 View Post
There is the obvious question about degrading structural integrity...Unfortunately, some water got in there
Not sure if you're asking for an opinion, but I'll give you one anyways.

Hard no, for the two reasons you state.

That slot is a stress riser in a critical structural point on the bike.

You've already stated that it works fine for you, so my post is hopefully a warning so that other's won't do the same.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 01-09-21 at 12:25 PM.
gugie is offline
Likes For gugie:
Old 01-09-21, 12:26 PM
  #3
canyoneagle
Senior Member

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 148 Times in 69 Posts
Looks sketchy to me.

In years past, I always wound the wire around the front brake housing, using tiny zip ties at top and bottom to prevent unwinding. Worked for me, and looked pretty clean, too.

I personally would not trust an old stem with DIY mods.
Pretty creative thinking, though!
canyoneagle is offline
Old 01-09-21, 01:18 PM
  #4
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,636
Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1415 Post(s)
Liked 2,095 Times in 1,026 Posts
personally, I wouldn't use a stem with a slot like that.
Who knows how safe it may or may not be, but if I die doing something stupid, it had better be for a more worthwhile cause.

As far as constructive comments, I would suggest the use of the traditional method where the wires are wrapped around the brake cable. Clean, efficient, and nobody gets hurt.



If that seems too safe, then I would suggest a cast stem that has a hollow quill and extension. I used to have an AVA stem like this.....




I suspect you could drill a hole (for the wires) in the steel expander cone without any structural concerns.
The caveat is that this sort of stem is not very strong or stiff. I got rid of it because I just didn't trust it.
These often fail to use a stress relieving hole at the top of the slots in the bottom of the quill. There are cases where this causes cracks in the quill, causing the stem to no longer be secured in the fork.
Not good.
You could file or drill a rounded end at the top of the slot, though, which should mitigate this failure mode.

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 01-09-21, 02:02 PM
  #5
1 Lugnut
Senior Member

1 Lugnut's Avatar

Join Date: May 2005
Location: S.F. Bay Area
Posts: 575

Bikes: Motobecane Grand Record, Colnago Super, Mondia Super, Mondia Special, Mondia Prestige (for sale 55cm),Titan Star, Titan Exklusiv, Windsor

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 102 Times in 51 Posts
Have a stem the the previous owner drilled & had countersunk a hole through the underside of the stem for a cmptr wire to go through the Steerer Tube. Clean job...!

I did not use it though. Being one that does not like wires running around outside the bike, I've run mine through the fork. PITA, but I like it & have done it to all my bikes. All older Avocet Cyclometers

You need to be able to solder & have some new clips to reattach to the wires. Use a thin/stiff wire to capture the wire, then pull cmptr wire out through the hole.

1 Lugnut is offline
Old 01-09-21, 02:07 PM
  #6
ManekiNico
Newbie

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 56

Bikes: ’85 Pinarello Treviso

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 37 Times in 26 Posts
Bicycling Magazine (I think) ran a tutorial on how to do this in the 80s, which, Iím not proud to say, I followed. You would drill a hole in the side of your stem, file a groove in the expander wedge, then route the wire through the fork (!) via holes drilled under the crown and in the fork leg. Yeah, I didnít know about stress risers then. Anyway, I and the bike survived, but I wouldnít do it again. Still have the bike, and had the holes filled during restoration.


Hole for routing cyclometer wire through fork.
ManekiNico is offline
Old 01-09-21, 02:24 PM
  #7
1 Lugnut
Senior Member

1 Lugnut's Avatar

Join Date: May 2005
Location: S.F. Bay Area
Posts: 575

Bikes: Motobecane Grand Record, Colnago Super, Mondia Super, Mondia Special, Mondia Prestige (for sale 55cm),Titan Star, Titan Exklusiv, Windsor

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 102 Times in 51 Posts
Originally Posted by ManekiNico View Post
Bicycling Magazine (I think) ran a tutorial on how to do this in the 80s, which, Iím not proud to say, I followed. You would drill a hole in the side of your stem, file a groove in the expander wedge, then route the wire through the fork (!) via holes drilled under the crown and in the fork leg. Yeah, I didnít know about stress risers then. Anyway, I and the bike survived, but I wouldnít do it again. Still have the bike, and had the holes filled during restoration.


Hole for routing cyclometer wire through fork.
A concentric hole is relatively strong. I mean, peeps have drilled out crank rings, crank arms & such w/o fail for years (ask drillium dude). The forks where Iíve slightly enlarged the weep holes have shown no signs of wear or fatigue going on 30 yrs...
I could see in a stem done wrong as problematic though...?
1 Lugnut is offline
Old 01-09-21, 02:33 PM
  #8
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,896

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, Renť Herse tandem

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 877 Post(s)
Liked 1,164 Times in 626 Posts

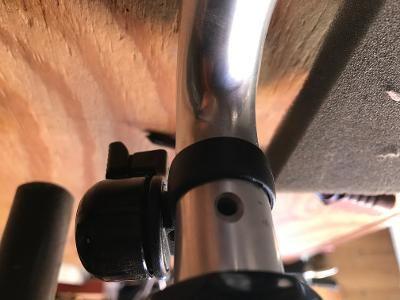

I wouldn't have a problem with drilling a hole. Three of my bikes and several friends' bikes have stems drilled for various reasons (bells, cable stops, etc). I believe Jan got Nitto on the record saying it was ok in some issue of Bicycle Quarterly. The slot? ehhh.

As for the bottom bearings, it is far more likely that they got rusty due to water and dirt kicked up by the front wheel, than from water ingress down the stem.
__________________
Owner & co-founder, Cycles Renť Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 01-09-21, 04:07 PM
  #9
Steel1
Junior Member
Thread Starter

Join Date: Jan 2018
Posts: 78
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 46 Times in 20 Posts
Thanks for all the good replies. Always helpful to get outside opinions.

BTW if I wasnít clear, I got the bike like this and removed the old wires. I didnít do the mod myself. I can look for a replacement stem.

Think I can save the original tape? I don't think it has sticky adhesive, does it?
Steel1 is offline
Old 01-09-21, 05:37 PM
  #10
RobbieTunes
Banned.

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,392 Times in 900 Posts
I do enough to my bikes now, this would cause them to leave.
__________________

BLDMAMTAOLD


RobbieTunes is offline
Old 01-09-21, 06:13 PM
  #11
canyoneagle
Senior Member

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 148 Times in 69 Posts
Originally Posted by Steel1 View Post
Thanks for all the good replies. Always helpful to get outside opinions.

BTW if I wasnít clear, I got the bike like this and removed the old wires. I didnít do the mod myself. I can look for a replacement stem.

Think I can save the original tape? I don't think it has sticky adhesive, does it?
From the picture it looks like Benotto tape, which does not have adhesive, but can be brittle. Worth a try. Benotto tape retains the shape of the original installation, so (in theory) can be re-installed in the same direction of the original orientation.
NOS Benotto tape can still be found if the original tape breaks, or one can use clear tape to splice, in a pinch.
canyoneagle is offline
Likes For canyoneagle:
Old 01-09-21, 07:00 PM
  #12
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI (USA)
Posts: 549

Bikes: TNTL (Too numerous to list)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 144 Times in 114 Posts
First off, I’m glad to learn that I’m not the only one still using “wired” bike computers! Not all of my bikes have computers but those that do ALL have the “wired” type. I imagine that someday I may get one of the wireless types. For the ones without a computer, I use a Garmin eTrex Legend. I came across 4 bike mount kits on clearance at Gander Mountain so I’m set.
Back to the OP’s topic . I guess I never thought of running the wire down thru the steerer tube but it seems like more work than it’s worth (even without the potential structural issues)! I too, generally have used the “traditional” method of wrapping the wire around the front brake housing and then down along the fork. Zip ties make things look tidy .
sovende is offline
Old 01-10-21, 02:17 AM
  #13
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,522
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 883 Post(s)
Liked 777 Times in 468 Posts

This is a hollow quill stem bolt, made for BMX bikes. It's meant to pass through the front brake cable, all the way down through the steerer tube and then routed upside down to the side-pull caliper brake. That way you can spin the handlebar 360 degree around with no hindrance.
icemilkcoffee is offline
Likes For icemilkcoffee:
