9 speeds w/ C&R rear derailleur?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

9 speeds w/ C&R rear derailleur?

Old 01-11-21, 11:48 AM
  #1
rando_couche
Senior Member
Thread Starter

Join Date: Jul 2013
Posts: 1,246
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 68 Times in 55 Posts
9 speeds w/ C&R rear derailleur?

Are there any C&V rear derailleurs out there with enough travel for a 9-speed cassette? Failing that, how about a modern long-cage rear derailleur that won't look shockingly out of place on a '78 Jack Taylor?

TIA
rando_couche is offline
Old 01-11-21, 11:56 AM
  #2
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,246

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Liked 660 Times in 381 Posts
Sure! A lot of old Suntours can do it. Triple pulley LePree for sure. The VGT and some models of XC Sport won't, in my experience. Cyclone M2 needed a little filing on the low gear limit screw stop, but it will do it as well, I have one on my Vitus 979 right now because it's very lightweight. I think I did 9sp with Nuovo Record as well, but I can't quite remember if that was 8 or 9. Those swing a long way if you back out the limit screws.

Usually the problem with the old Suntours is getting the big cog. So it helps if your dropouts are thin, because this positions the derailleur further inboard. Definitely difficult with a claw mount.

Another thing to consider is the range of the cassette. A lot of old rear derailleurs don't clear huge cogs, and the chain gap may be wildly uneven between the bottom and the top, which can lead to poor shifting with modern flexible bushingless chains.
scarlson is offline
Likes For scarlson:
Old 01-11-21, 12:00 PM
  #3
Sluggo
Senior Member

Sluggo's Avatar

Join Date: Oct 2005
Location: Left bank, Knoxville TN
Posts: 569
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 74 Times in 33 Posts
I have used a Duopar on 9 speed. It didn't shift very well, but it had enough travel. I suspect other derailleurs would also work. My friction downtube shifter is maxed out, but it works.

I would suggest a Sun XCD as a modern replacement with a classic look.
Sluggo is offline
Old 01-11-21, 12:16 PM
  #4
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
a 9spd is not much wider than a 7spd, and i've successfully run early/mid 80's derailleurs on a 7spd with no issue. there's still plenty of limit screw left. if i may ask, why a 9spd cluster? if you decide it's important to you to use an early derailleur, perhaps make the 9spd into 8 thereby reducing the travel to that of a 7spd arrangement. i understand, though, you'll lose a gear. so, it's just a thought if you're doing 9spd because it's what you have. i'm in that boat often enough myself

personally, i can't see any modern derailleur looking terribly at home on such an older frame. but, that's my tastes. maybe a cyclone or deerhead or similar vintage? those would look good? and, though i've never actually tried, i'm 99% certain either of the former two can run 8spd....which is just as wide as a 9. i suspect your bigger issue will be the shifter travel itself
thook is offline
Old 01-11-21, 12:22 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,362

Bikes: Lots. Just...lots.

Mentioned: 177 Post(s)
Tagged: 0 Thread(s)
Quoted: 1485 Post(s)
Liked 766 Times in 376 Posts
I’ve used a Campagnolo Super Record RD on a 10 speed cassette with a 28 tooth big cog.
Shifters had to travel a whole bunch, but it worked.
Shimano 6207/6208 and 1050 work well, too.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 01-11-21, 12:35 PM
  #6
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,931

Bikes: Still have a few left!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 80 Times in 51 Posts

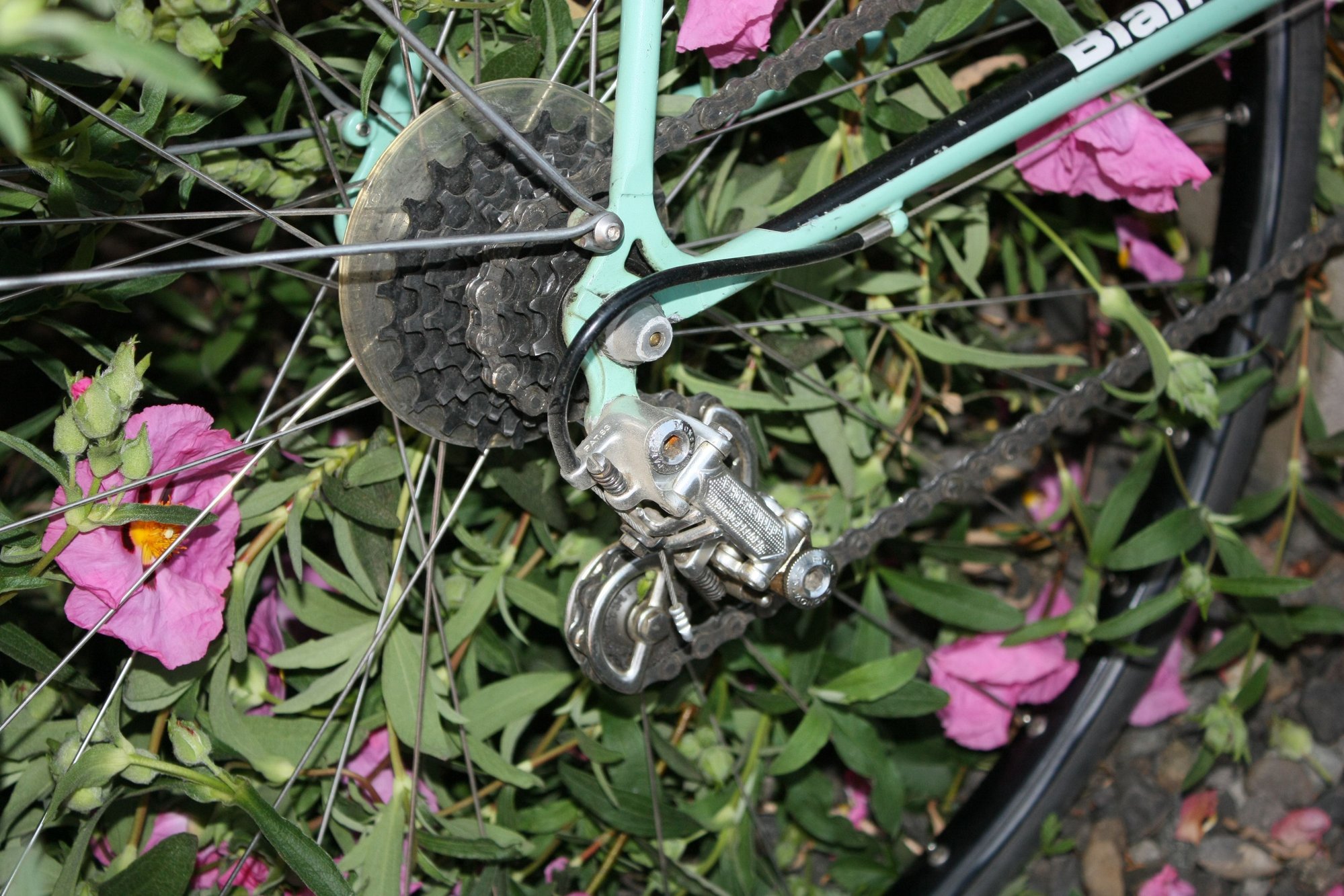

My Bianchi Trofeo is happy with its Campagnolo NR on either an 8 or 9 speed. Can't remember. Need to check and get a clearer picture. Shifters are SunTour barcons. Don

ollo_ollo is offline
Old 01-11-21, 01:29 PM
  #7
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,949

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 487 Times in 346 Posts
A lot of this depends on the installed positioning of the cassette left-to-right, usually as close to the dropout as possible gives the best chances of hitting all gears, but you many then have to bevel the outer edges of the tips of the teeth on the 2nd-smallest cog in order to achieve a crisp shift to your tallest gear.

One fine example of all this is the Allvit, which can be a challenge to make shift over even a standard 6s Uniglide freewheel. But can be done!
dddd is offline
Likes For dddd:
Old 01-11-21, 03:16 PM
  #8
RobbieTunes
Banned

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,370 Times in 884 Posts
A Wolftooth Roadlink may do the trick.
Does not increase horizontal range, but adds about 20 mm to the vertical “drop,” and that’s just a rough description.
RobbieTunes is offline
Old 01-11-21, 04:35 PM
  #9
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,920

Bikes: Seriously downsizing.

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 163 Times in 98 Posts

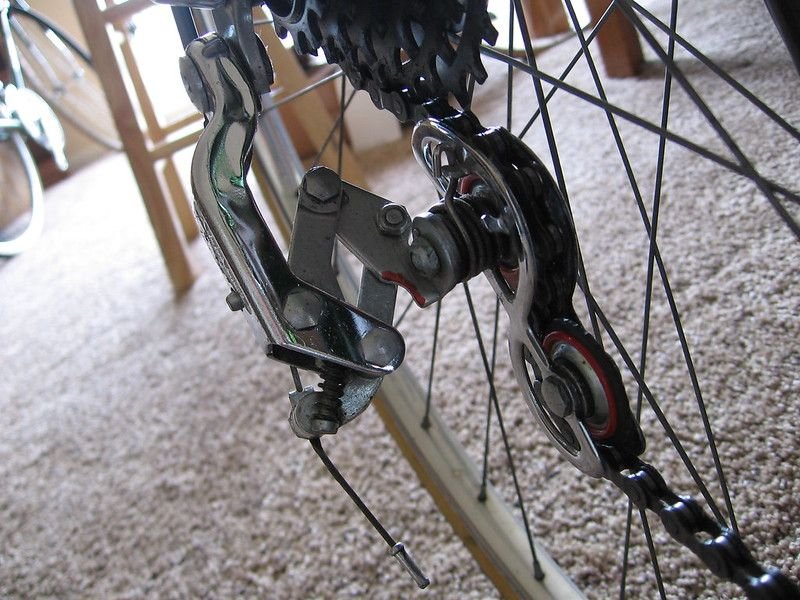

A SunTour VGT will not only shift 7 but index as well. Don't know about 9.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 01-11-21, 09:36 PM
  #10
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 12,401

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 4004 Post(s)
Liked 1,808 Times in 1,156 Posts
With friction shifters I can usually squeeze out one more "speed" than the rear derailleur was designed to cover.

I have a couple of 7-speed long cage RDs that are nearly identical -- Exage 500 CX and Deore LX -- and with friction shifters can cover an 8-speed cassette. But in index mode the RD will kick out of the biggest cog to the next smallest under pressure. There's a little nubbin inside the RD that limits the swing. It's possible a moto tool could be used to carefully grind down those nubbins to clear room for the RD swing with indexed shifting but I haven't tried that yet.

I have a couple of Shimano 600 Tricolor/Ultegra RDs that are nominally 8-speed. I plan to try one with a 10 speed cassette just to see how much it will cover in both friction and index modes. No particular reason, just curious. I already have 8 and 10 speed Dura Ace RDs, but I'm curious to see how far the Tricolor/Ultegra RDs will swing.
canklecat is offline
Old 01-11-21, 11:18 PM
  #11
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,511
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 665 Post(s)
Liked 296 Times in 194 Posts
I think the crucial question is: do you intend to use it with index shifters? If so, I would find an early '90's Shimano, either Deore or Deore XT. Conservative appearance, durable as cockroaches.

__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 01-12-21, 01:19 AM
  #12
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,949

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 487 Times in 346 Posts

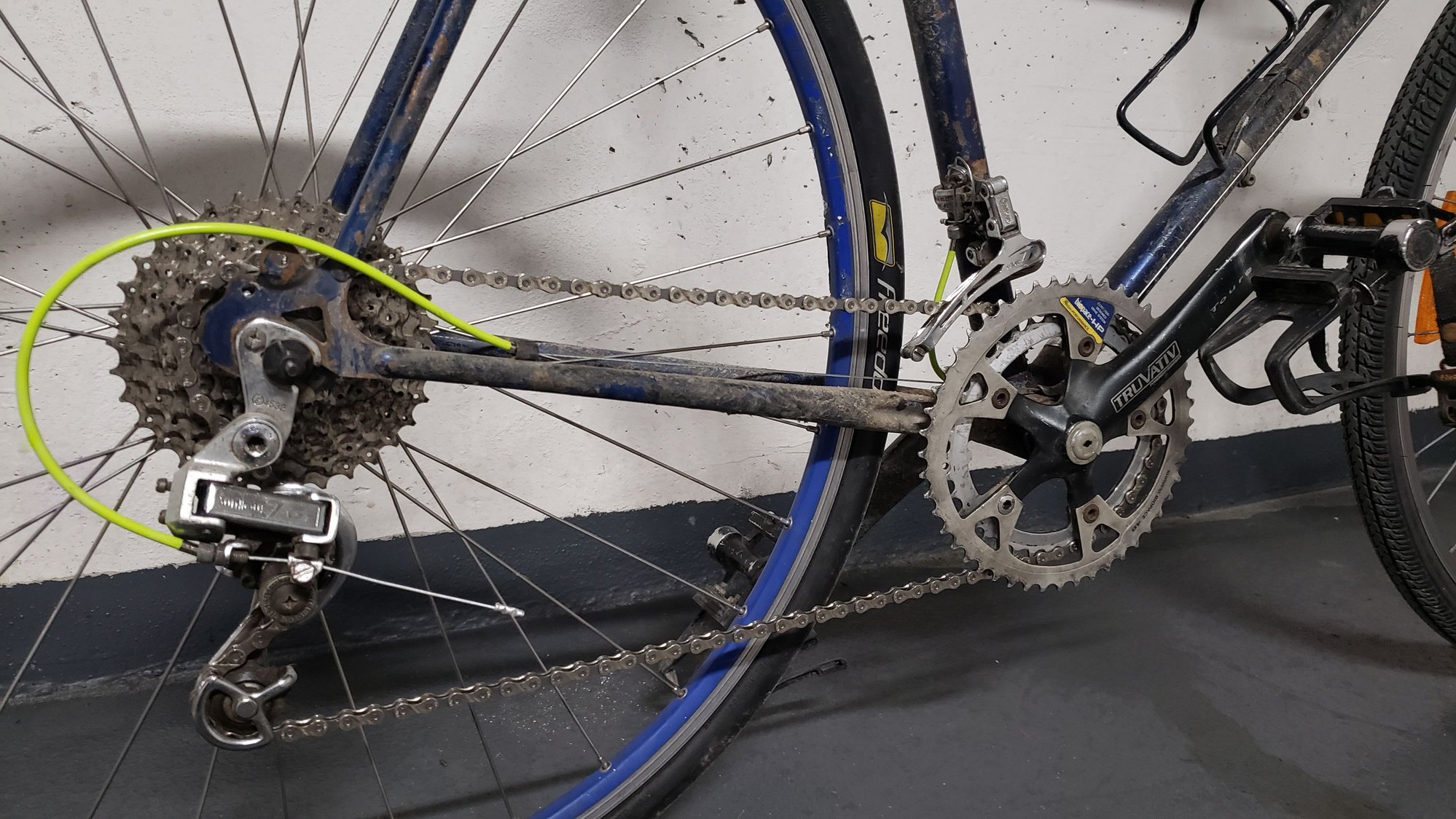

So true, the DX and it's predecessor (the Deore MT60 or whatever) can even be re-badged to fit a vintage theme from a different country.

On this bike, I'd squeezed in a 6-speed freewheel that nearly reached to the dropout, and was able to just get the original Simplex Prestige to reach that smallest cog reliably. But as soon as I'd got it dialed in, it seemed to go downhill from there as the plastic derailer's pivots wore and the cage just wouldn't pull outward as far anymore. So rather than chasing my tail with successive additions to the driveside axle stack, I decided to find a nice "modern" derailer to put one of my Simplex decals on.

The old Deore MT60 requires more cable pull than the older derailers, so I simply wired the cable to the other side of the pinch bolt, shortening the lever for more travel actuation to the cage.
Nobody bats an eyelash and it better matches my previous all-metal front derailer replacement!
dddd is offline
Old 01-12-21, 03:28 AM
  #13
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,000
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 665 Post(s)
Liked 106 Times in 88 Posts
My suntour derailer shifts a 9 speed cassette quite well. The shifts are remarkably smooth and responsive under power too.

the derailer is maxed out in first gear with the limit screw out all the way. It shifts into 9th, but the chain rubs against the dropout .

Going from 120mm OLD to 130mm can be done, but many don't suggest it. You will destroy your rear hub bearings if you dont cold set your frame within 1 or 2 mm on each side.

Moisture is offline
Old 01-12-21, 05:33 AM
  #14
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,248
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 312 Times in 164 Posts


This is a new 10sp derailleur that would not look out of place on a classic bike and will shift up to a 34t cog
Germany_chris is offline
Old 01-12-21, 07:03 AM
  #15
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,741

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 987 Post(s)
Liked 623 Times in 393 Posts
Originally Posted by Moisture View Post
Going from 120mm OLD to 130mm can be done, but many don't suggest it. You will destroy your rear hub bearings if you dont cold set your frame within 1 or 2 mm on each side.
Forgive my bluntness but one has nothing to do with the other. A properly adjusted axle will prevent any axial forces from impacting the bearings. The threads on the cone coupled with a properly tightened lock nut, prevent axial forces on the bearings unless the threads fail, which is a extremely low likelihood. So low that it would be described as "impossible." Compression of the axle has about the same likelihood.

Now the moment arm between the DO and the bearing location can cause an axle failure, if using a freewheel configured hub, with a bend of the axle at the bearing, causing failure. But we are discussing =>8 speed blocks which implies cassettes.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 01-12-21, 10:22 AM
  #16
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
Originally Posted by Germany_chris View Post


This is a new 10sp derailleur that would not look out of place on a classic bike and will shift up to a 34t cog
campy.....of course
thook is offline
Old 01-12-21, 10:24 AM
  #17
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
Originally Posted by SJX426 View Post
Forgive my bluntness but one has nothing to do with the other. A properly adjusted axle will prevent any axial forces from impacting the bearings. The threads on the cone coupled with a properly tightened lock nut, prevent axial forces on the bearings unless the threads fail, which is a extremely low likelihood. So low that it would be described as "impossible." Compression of the axle has about the same likelihood.

Now the moment arm between the DO and the bearing location can cause an axle failure, if using a freewheel configured hub, with a bend of the axle at the bearing, causing failure. But we are discussing =>8 speed blocks which implies cassettes.
as i understand, if you don't cold set the frame, it can over stress and cause failure of the dropout. no?
thook is offline
Old 01-12-21, 11:00 AM
  #18
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,248
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 312 Times in 164 Posts
Originally Posted by thook View Post
campy.....of course
I prefer the shape of ergos but there’s so few silver components anymore we gotta take what we can get
Germany_chris is offline
Old 01-12-21, 11:53 AM
  #19
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
Originally Posted by Germany_chris View Post
I prefer the shape of ergos but there’s so few silver components anymore we gotta take what we can get
well ....what i meant by my reply was in relation to what i'd posted earlier about a modern derailleur looking out of place. but, even when i made that reply i thought "possibly campy wouldn't" in the back of my mind. then, i saw your post and photo and sure enough... only campy could do it. it's just that campy styling. and, being that lustrous silver, of course!!

as for ergos, i hear you. but, could you not find some silver veloce? i got a set for a shimergo 8spd build. granted, it was several years ago
thook is offline
Old 01-12-21, 12:01 PM
  #20
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,248
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 312 Times in 164 Posts
Originally Posted by thook View Post
well ....what i meant by my reply was in relation to what i'd posted earlier about a modern derailleur looking out of place. but, even when i made that reply i thought "possibly campy wouldn't" in the back of my mind. then, i saw your post and photo and sure enough... only campy could do it. it's just that campy styling. and, being that lustrous silver, of course!!

as for ergos, i hear you. but, could you not find some silver veloce? i got a set for a shimergo 8spd build. granted, it was several years ago

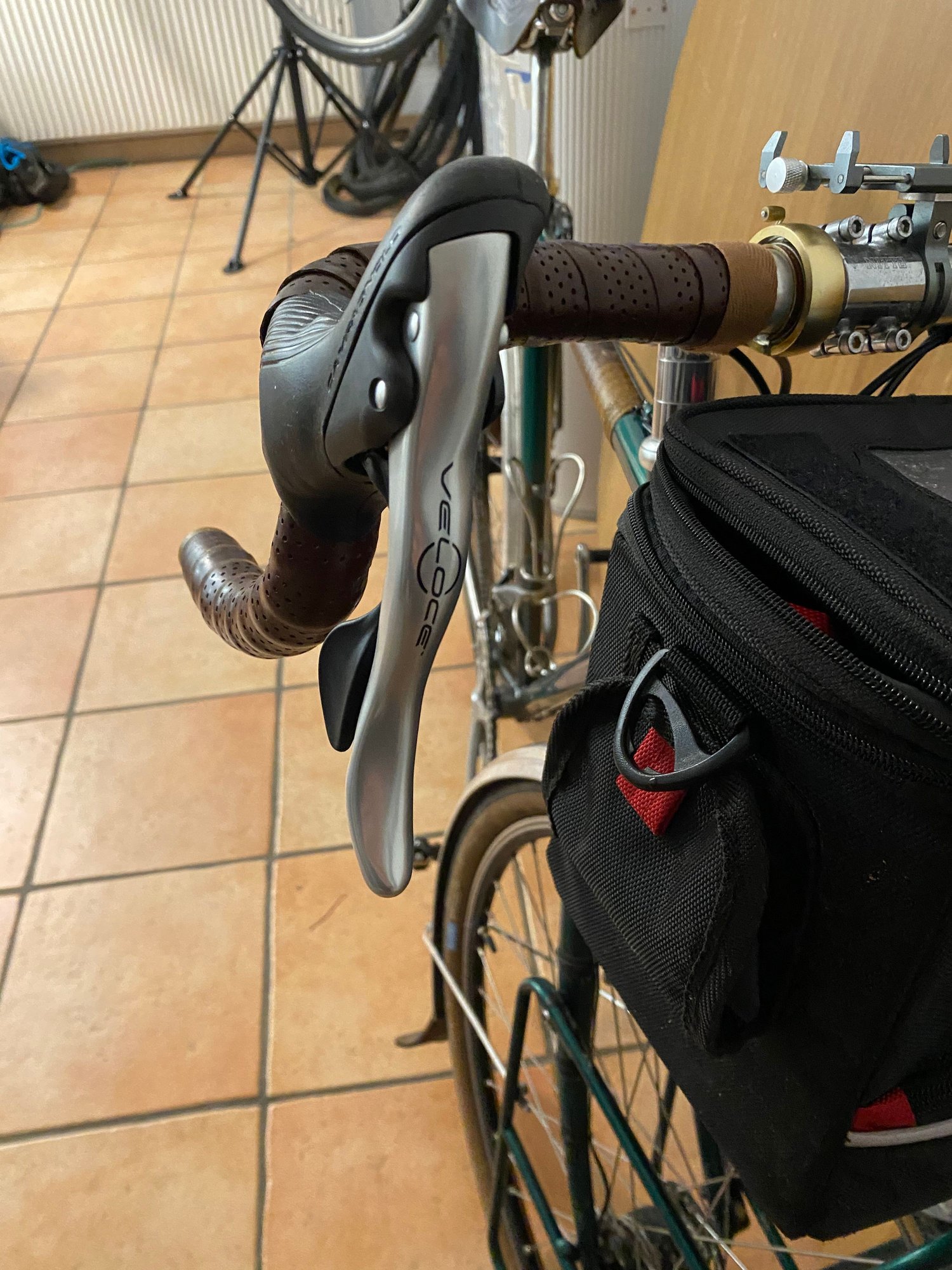

I did silver Veloce but I want to run Shimano cassettes and hubs, Shimano has so many different cassettes and I can overhaul a Shimano hub in my sleep.
Germany_chris is offline
Old 01-12-21, 12:49 PM
  #21
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
Originally Posted by Germany_chris View Post

I did silver Veloce but I want to run Shimano cassettes and hubs, Shimano has so many different cassettes and I can overhaul a Shimano hub in my sleep.
hence the shiftmate....i see

is that the bruce gordon?
thook is offline
Old 01-12-21, 12:52 PM
  #22
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,741

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 987 Post(s)
Liked 623 Times in 393 Posts
Originally Posted by thook View Post
as i understand, if you don't cold set the frame, it can over stress and cause failure of the dropout. no?
Drop outs and hubs are two different components. If you spread the frame only by installing the wheel, "springing" the frame, the only issue left is RD hanger alignment. No impact to hubs and the DO will align with the skewer pressure with only the RD hanger as an issue.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 01-12-21, 12:54 PM
  #23
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,248
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Liked 312 Times in 164 Posts
Originally Posted by thook View Post
hence the shiftmate....i see

is that the bruce gordon?
That's the reason for the shift mate and the Chinese travel agents both work remarkably well..

Yes it's a late 80's Rock 'n Road



Last edited by Germany_chris; 01-12-21 at 01:18 PM.
Germany_chris is offline
Old 01-12-21, 01:17 PM
  #24
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
Originally Posted by SJX426 View Post
Drop outs and hubs are two different components.
they are?

Originally Posted by SJX426 View Post
If you spread the frame only by installing the wheel, "springing" the frame, the only issue left is RD hanger alignment. No impact to hubs and the DO will align with the skewer pressure with only the RD hanger as an issue.
it seems you misunderstand my reply. i'm aware there's no impact to the hubs. not only have i read your reply on that , it doesn't mechanically make sense. my reply/question was simply because i've seen the aftermath (forum photos) of fractured brazing as a result of repeated stress using a wider than original hub/spacing without also spreading the frame. atleast it was postulated that was the reason for failure
thook is offline
Old 01-12-21, 01:18 PM
  #25
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,732

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 417 Post(s)
Liked 275 Times in 206 Posts
Originally Posted by Germany_chris View Post
That's the reason for the shift mate and the Chinese travel agents both work remarkably well..

Yes it's a late 80's Rock 'n Road
envy
thook is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
