85 BCD SR cranks and chainrings?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

85 BCD SR cranks and chainrings?

Old 01-13-21, 03:13 PM
  #1
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,024

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked 119 Times in 83 Posts
85 BCD SR cranks and chainrings?

I came across this ebay listing for an 85 BCD SR chainring. the seller made the following disclaimer:

"SR Sakae 32 Tooth Chainring For Triple Cranks 85 BCD 85 BCD 85 BCD NOT 86BCD NOT 86BCD


THIS IS FOR THE RARE 85BCD NOT 86BCD, THEY ARE NOT INTERCHANGEABLE!

85Bcd WE WILL NOT TAKE THIS BACK IF YOU DO NOT KNOW WHAT YOU NEED"
ebay
So I'm wondering what crankset does this go with? Anyone know?
bark_eater is offline
Old 01-13-21, 03:43 PM
  #2
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,396

Bikes: yes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Likes: 0
Liked 106 Times in 55 Posts
Old Shimano Deore, Takagi triple inner. (Obsolete) https://www.sheldonbrown.com/cribsheet-bcd.html
Vintage_Cyclist is offline
Old 01-13-21, 06:31 PM
  #3
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,373
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 525 Times in 380 Posts
Any 86 BCD crank. Stronglight 99, SR 86, etc.
seypat is online now
Old 01-13-21, 07:15 PM
  #4
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,024

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked 119 Times in 83 Posts
Originally Posted by seypat View Post
Any 86 BCD crank. Stronglight 99, SR 86, etc.
Might I refer to the original quote:

"SR Sakae 32 Tooth Chainring For Triple Cranks 85 BCD 85 BCD 85 BCD NOT 86BCD NOT 86BCD

THIS IS FOR THE RARE 85BCD NOT 86BCD, THEY ARE NOT INTERCHANGEABLE!

85Bcd WE WILL NOT TAKE THIS BACK IF YOU DO NOT KNOW WHAT YOU NEED"

And thus the query.
bark_eater is offline
Old 01-13-21, 07:17 PM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,771
Mentioned: 317 Post(s)
Tagged: 0 Thread(s)
Quoted: 1949 Post(s)
Liked 1,276 Times in 695 Posts
Does it come with a file to make it fit 86 bcd cranks?
nlerner is online now
Likes For nlerner:
Old 01-13-21, 07:24 PM
  #6
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,373
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 525 Times in 380 Posts
Originally Posted by nlerner View Post
Does it come with a file to make it fit 86 bcd cranks?
The measurement's not correct. It's most likely a 86 bcd chainring. No company I know of made 85 bcd stuff. At least not 5 bolt stuff.You can look up SR/Sakae on Velobase to see if it is listed there. Also look up SR/Sakae chainrings on the Bay. There should be plenty of 86 bcd ones there. I could be wrong, though. It could be Suntour Microdrive. Check Velobase. I checked, not Microdrive. The Takagi triple I have takes an 86 bcd granny. I would pass on it since the listing says it won't fit an 86.

Last edited by seypat; 01-13-21 at 07:49 PM.
seypat is online now
Old 01-13-21, 08:05 PM
  #7
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,771
Mentioned: 317 Post(s)
Tagged: 0 Thread(s)
Quoted: 1949 Post(s)
Liked 1,276 Times in 695 Posts
Originally Posted by seypat View Post
The measurement's not correct. It's most likely a 86 bcd chainring. No company I know of made 85 bcd stuff. At least not 5 bolt stuff.You can look up SR/Sakae on Velobase to see if it is listed there. Also look up SR/Sakae chainrings on the Bay. There should be plenty of 86 bcd ones there. I could be wrong, though. It could be Suntour Microdrive. Check Velobase. I checked, not Microdrive. The Takagi triple I have takes an 86 bcd granny. I would pass on it since the listing says it won't fit an 86.

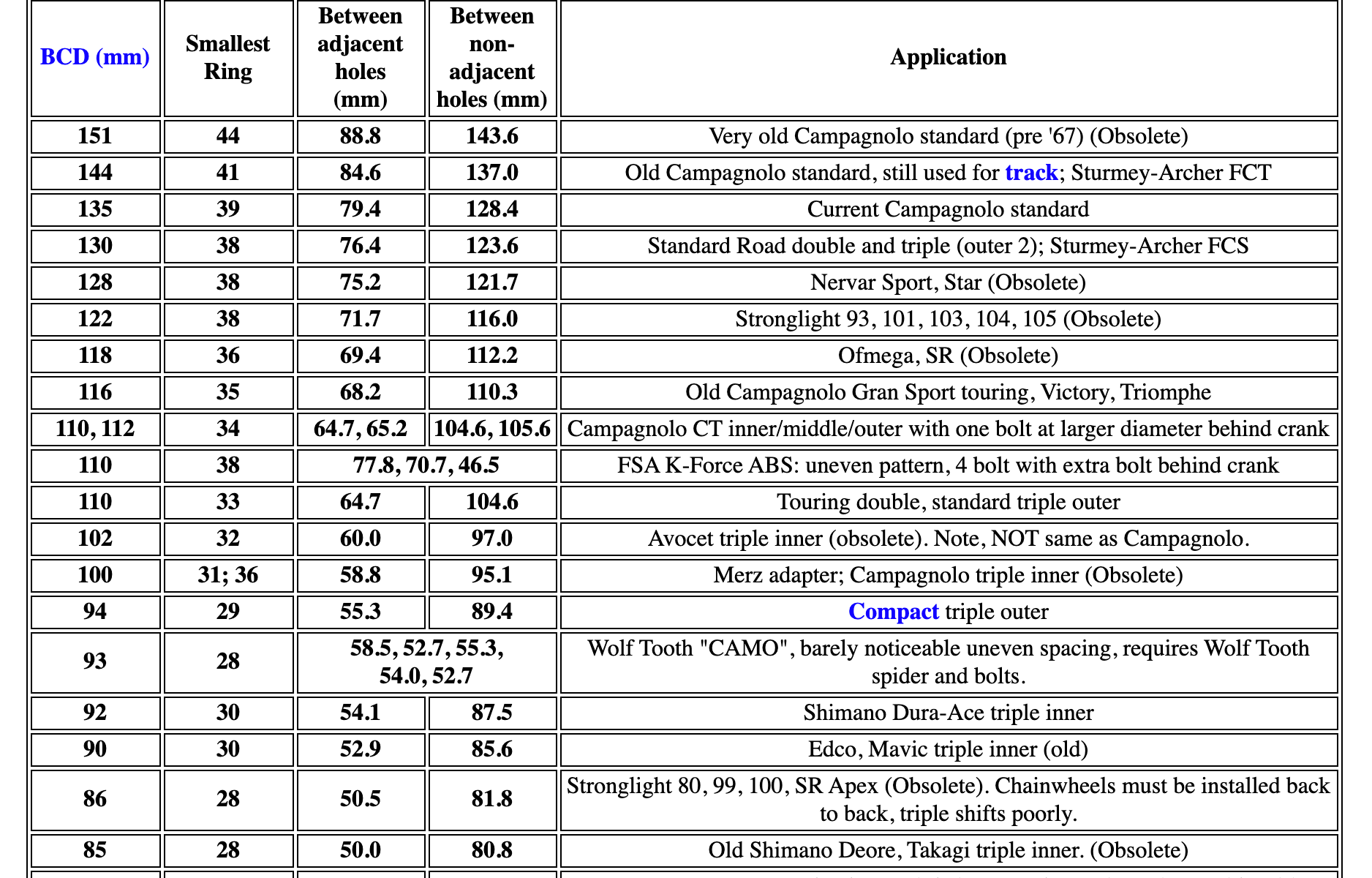

Did you got to that Sheldon Brown link above? He certainly lists an 85bcd ring. I suppose he could be wrong:

nlerner is online now
Old 01-13-21, 08:52 PM
  #8
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,373
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 525 Times in 380 Posts
Originally Posted by nlerner View Post
Did you got to that Sheldon Brown link above? He certainly lists an 85bcd ring. I suppose he could be wrong:

I looked at it. That's why I said I could be wrong. I've never seen one though. The Shimano FC-6206 that was part of the 6200/Deerhead/Deore group is a 110/74. The Takagi triples I have are either 110/74 or 130/86. I will search and try to find an 85.
seypat is online now
Old 01-13-21, 08:58 PM
  #9
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,373
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 525 Times in 380 Posts
Here it is. I stand corrected.

VeloBase.com - Component: Shimano FC-DE30 / FC-DE31, Deore
seypat is online now
Old 01-13-21, 09:06 PM
  #10
hazetguy
I GOT THE MICROWAVE!

hazetguy's Avatar

Join Date: Nov 2004
Location: asheville
Posts: 1,533
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1144 Post(s)
Likes: 0
Liked 844 Times in 498 Posts
velobase link isn't working for me, but that's the crankset that i have.
i just checked my first gen "old Deore" triple crank with a caliper. [edit base on John's post below], the adjacent bolt hole center to center looks like it very well could be 49.7mm.
regardless, it is definitely not 50.5mm, as that is noticeably not centered.
i'll also say that there is no way i would pay that much for a chainring, sheesh.

Last edited by hazetguy; 01-14-21 at 08:08 PM.
hazetguy is online now
Old 01-13-21, 09:45 PM
  #11
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,396

Bikes: yes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Likes: 0
Liked 106 Times in 55 Posts
Originally Posted by seypat View Post
One of those group sets on fleaBay

https://www.ebay.com/itm/Shimano-Deo...YAAOSwOBJfPvt0

For doubting St. Sheldon, do three recitations of The Rules and check the tire pressure on all your bikes.
Vintage_Cyclist is offline
Old 01-13-21, 10:07 PM
  #12
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,373
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 525 Times in 380 Posts
Originally Posted by Vintage_Cyclist View Post
One of those group sets on fleaBay

https://www.ebay.com/itm/Shimano-Deo...YAAOSwOBJfPvt0

For doubting St. Sheldon, do three recitations of The Rules and check the tire pressure on all your bikes.
I'll get started.
seypat is online now
Old 01-14-21, 07:42 PM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,119

Bikes: Several, mostly not name brands.

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 2410 Post(s)
Liked 890 Times in 572 Posts
Sutherland's lists it as an 84.5mm bolt circle:
Attached Images
File Type: jpg
JohnDThompson is offline
Old 01-15-21, 05:18 PM
  #14
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,024

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked 119 Times in 83 Posts
I'm still wondering about why SR would make a rings for such a limited number of cranks made by Shimano and Takagi.
bark_eater is offline
Old 01-16-21, 12:08 AM
  #15
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,573

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 512 Post(s)
Tagged: 0 Thread(s)
Quoted: 1766 Post(s)
Liked 254 Times in 173 Posts
Originally Posted by bark_eater View Post
I'm still wondering about why SR would make a rings for such a limited number of cranks made by Shimano and Takagi.
I'd assume the reasoning is something like "the
customer knows what the customer wants, and the customer pays for it."
__________________
www.rhmsaddles.com.
rhm is offline
