Narrow hub, 15mm gap too much to force?

Old 01-26-21, 01:29 PM
  #1
WillBradley1
Senior Member
Thread Starter

Join Date: Mar 2017
Location: Copenhagen / Nottingham
Posts: 51

Bikes: Sid Standard Superbe (1981) - Benotto Modello 1700 Pista (1976) - DBS damesykkel (1960)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Narrow hub, 15mm gap too much to force?

Hi there,

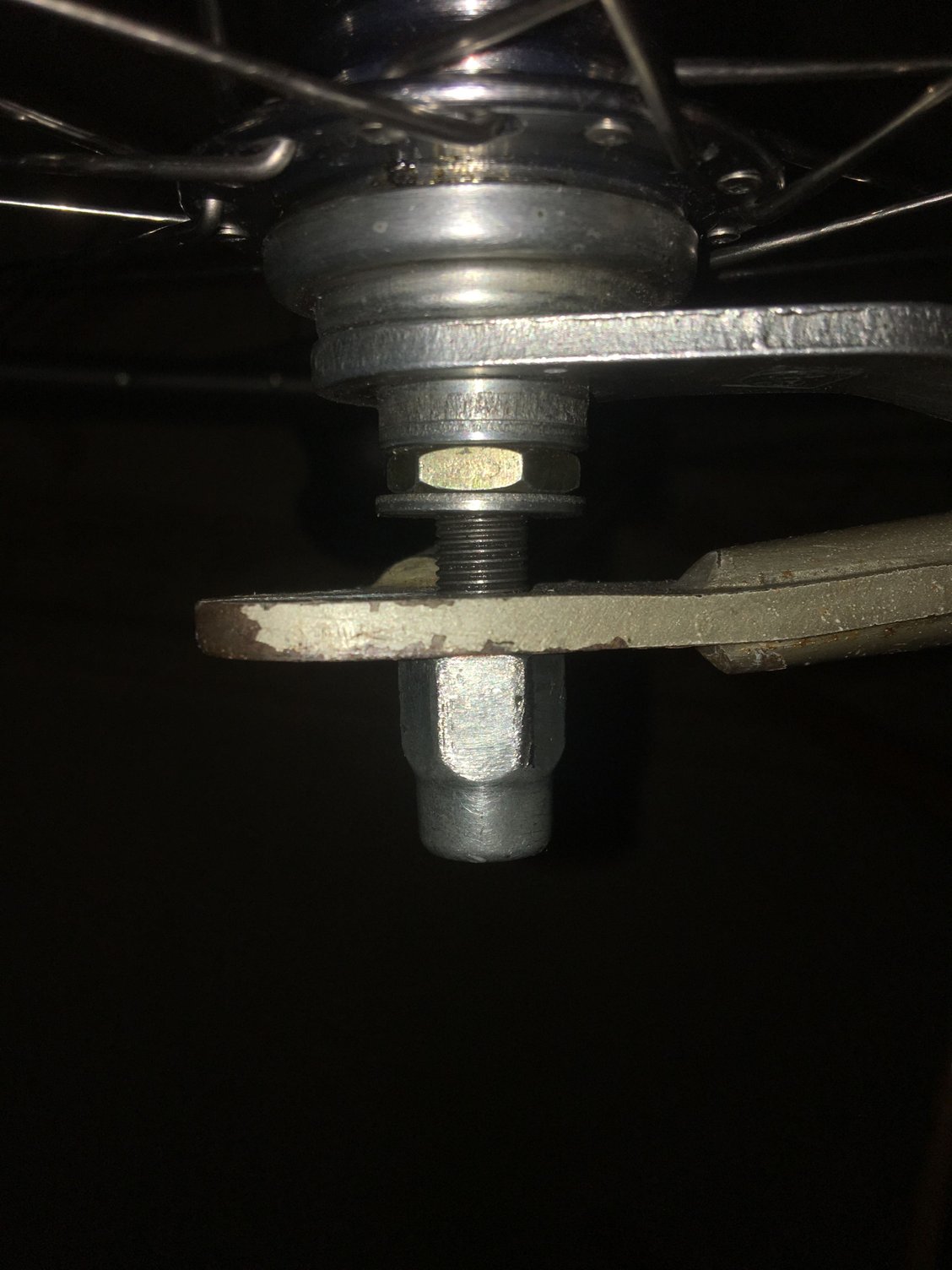

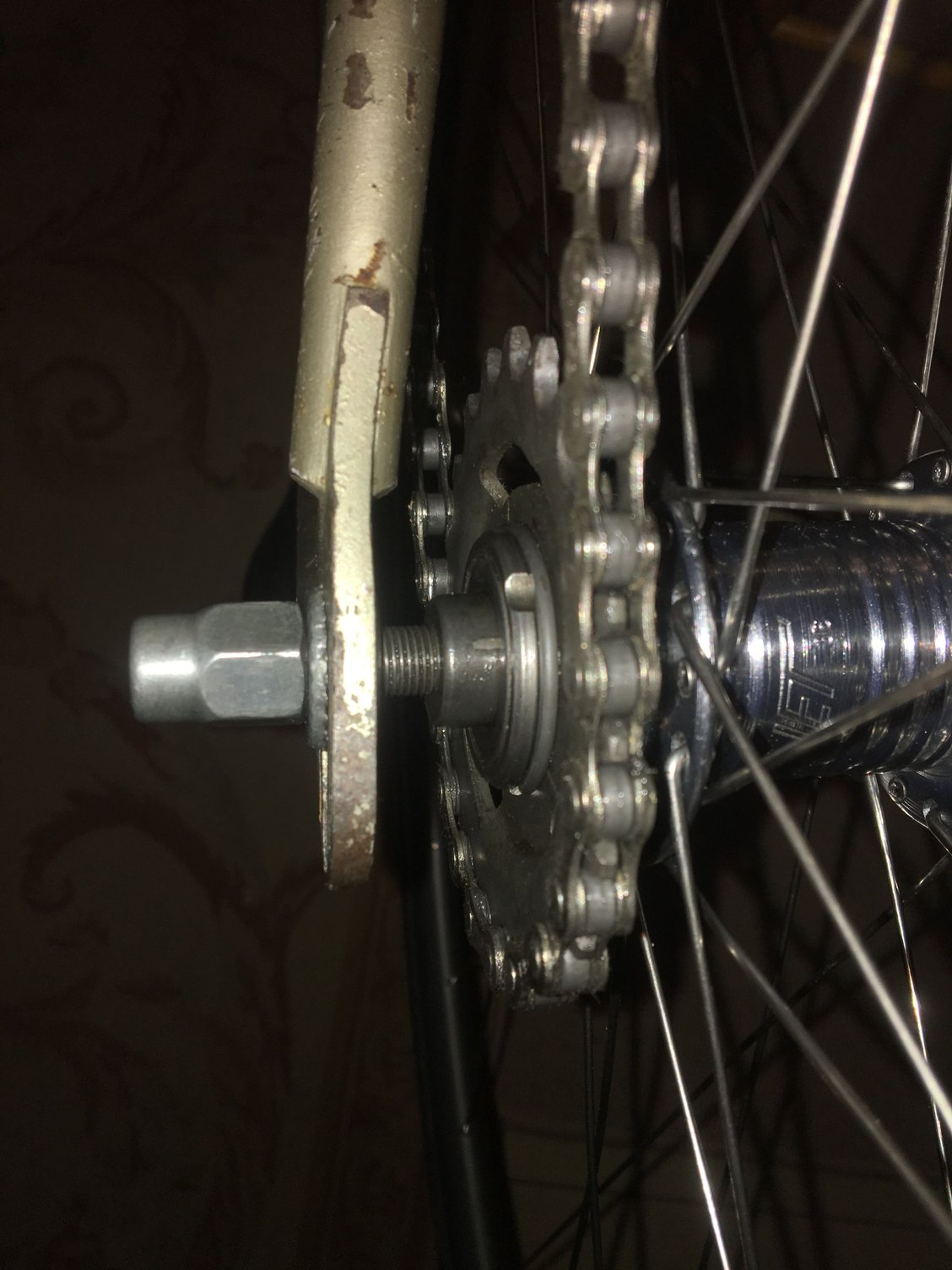

i just laced some wheels up for a treasured (but battered) old Benotto Pista frame, I have used a little ‘torpedo jet rear hub.

I have often not been phased by the stays being wider than the hub, is almost say alittle is preferable somehow. However this hub might be a bmx hub or folding bike hub and is considerably narrower.

There is around 8mm gap on each side so total of 16mm. My instinct is that it would still be okay? Perhaps use spacer of sorts?

but definitely something I’d be keen to hear about others experience, do not want to misalign this frame!

Ta


WillBradley1 is offline
Old 01-26-21, 05:59 PM
  #2
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 880

Bikes: Peugeot teamline

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 64 Times in 53 Posts
Originally Posted by WillBradley1 View Post
Hi there,

i just laced some wheels up for a treasured (but battered) old Benotto Pista frame, I have used a little ‘torpedo jet rear hub.

I have often not been phased by the stays being wider than the hub, is almost say alittle is preferable somehow. However this hub might be a bmx hub or folding bike hub and is considerably narrower.

There is around 8mm gap on each side so total of 16mm. My instinct is that it would still be okay? Perhaps use spacer of sorts?

but definitely something I’d be keen to hear about others experience, do not want to misalign this frame!

Ta


Assuming everything is straight use some washers or spacers.
blamester is offline
Old 01-26-21, 06:04 PM
  #3
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,206

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 361 Times in 211 Posts
I'd say you must use spacers there.
Reynolds is offline
Old 01-26-21, 06:21 PM
  #4
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,241

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1685 Post(s)
Liked 809 Times in 537 Posts
Hubs like that were typically 110. Is the axle long enough for the bolts to bite if you fill the gap with spacers? Can't tell from the pics.
I'd think at least 12 threads would be the minimum but I'd be interested in other opinions.
clubman is offline
Old 01-26-21, 06:48 PM
  #5
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,955

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1062 Post(s)
Liked 487 Times in 346 Posts
It'll be up to the OP to determine how much spacer thickness should be added to each side, respecting the chainline and also the brake arm lining up with the chainstay.

As far as thread engagement, these being fine threads, I would expect that a reliable torque could be arrived at on the nuts with as little as six threads, but more is better and the threads should always be kept well-lubed.

The spacers should be captured by a locknut on each side of the hub, and the drive-side locknut should be serrated or toothed to prevent slippage.

I would definitely never clamp down that much on the original dropout spacing, which would put undue stress on the stays leading to likely misalignment as one side always yields first.
dddd is offline
Likes For dddd:
Old 01-26-21, 06:55 PM
  #6
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,391
Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 335 Post(s)
Liked 507 Times in 236 Posts
I'd say in general, for a steel frame 2-3mm spread/squeeze is considered safe. Getting to 5mm is sub-optimal. More than 5mm get riskier as the distance increases. 15mm is nearing insanity.

It's not only how far you're bending the frame tubes, it's also about how far out of parallel the dropout faces will be if you're squeezing them that far. Lots of uneven clamping force on the rear axle, significantly higher chance of bent/broken axle.

So, yes, use spacers. Best solution to make like easier is to position the spacers under the axle locknuts, so they're not all loosey-goosey every time you take out the rear wheel.
__________________
Fuggedaboutit!
pcb is offline
Old 01-26-21, 08:04 PM
  #7
WillBradley1
Senior Member
Thread Starter

Join Date: Mar 2017
Location: Copenhagen / Nottingham
Posts: 51

Bikes: Sid Standard Superbe (1981) - Benotto Modello 1700 Pista (1976) - DBS damesykkel (1960)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Spacers on the way

Cheers guys, spacers on there way, 2x 6.3mm.

yes the threads can bite already, plus there will still be a few mm of squeeze.

Must say it feels like abit of a bodge though with spacers? I sense these wheels may find a new frame in the not so distant future.
WillBradley1 is offline
Old 01-27-21, 06:08 AM
  #8
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,088
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 364 Times in 233 Posts
Yes, spacers; and best to go this order:
hubrace - balls - cone-race - locknut - spacer, ANOTHER locknut, dropout.

You want as rigid as possible the connection between the dropout facing locknut and the cone-race, get those nuts *tight*.
oneclick is offline
Old 01-27-21, 07:14 AM
  #9
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,734

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1024 Post(s)
Liked 414 Times in 290 Posts
Maybe the Benotto has been cold set to accept 126mm hubs so bend them back? Looks like something is missing on the drive side.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 01-27-21, 07:55 AM
  #10
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,000
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 665 Post(s)
Liked 107 Times in 89 Posts
Don't forget to check and make sure your dropouts are aligned properly before adding equal length spacers on each side:

https://www.sheldonbrown.com/frame-spacing.html#spacing

if you go down towards the bottom, you'll find "the string method"
Moisture is offline
Likes For Moisture:
Old 01-27-21, 08:00 AM
  #11
mack_turtle
n00b

Join Date: Jan 2008
Location: Austin, TX
Posts: 1,397

Bikes: Surly Karate Monkey, Twin Six Standard Rando

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 455 Times in 271 Posts
looks like the drive side of that axle is missing a lock nut. hard to tell.

if the hub OLD and the spacing don't match up, smashing the dropouts together will put some stress on the frame (cold setting can work) and the axle will "want" to move in the frame no matter how hard you tighten those axle nuts. here's what you need to do to make it fit and prevent the axle from slipping in the frame:

1. remove the wheel put a clamp on the dropouts, squeezing them together gently. measure the distance between the dropouts (track ends) when they are parallel. you want the axle OLD to be the same as the space between the dropouts when they are parallel to prevent the hub from twisting in the slots. most likely, the spacing will be 110mm (bmx/ coaster brake), 120mm (track), 126 (old road standard) or 130 (conventional road standard). I'm not familiar with that bike, so you'll have to measure.

2. if the dropout spacing when parallel is not within ~2mm of the hub OLD, you'll want to add some spacers to the axle to make it match. I recommend removing the lock nut from each side, one at a time, and add a spacer inside the lock nut, then reinstall.

my guess is that it's a 120mm frame and a 110mm hub, so a 5mm spacer on each side will make it wide enough.

I'm still stuck on the drive side cone nut that looks like there's no lock nut.
mack_turtle is offline
