Peugeot U08 Help!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Peugeot U08 Help!

Old 01-29-21, 12:15 AM
  #1
Javi_bikes
Junior Member
Thread Starter

Join Date: Aug 2020
Location: California
Posts: 21

Bikes: Fuji Classic (Track), Peugeot U-08, Bianchi Strada turned Fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Peugeot U08 Help!

Hi Everyone,

I've been having an absolute nightmare with the Peugeot u08 frame I've inherited. Despite the struggle, partially due to being a noob (haha!), I'm close to getting it done.
But I need some help, I cant get the rear derailleur to shift into the lowest gear and I cant get the front derailleur to align... they've been doing my head in!! I think the rear gear issue should be an easy fix... but I really need help with the front derailleur.
I'll attach some photos so you guys can see what I'm working with. However I'll list the parts I've put:

-Front derailleur: SunTour Spirt
-Crankset: Campy Veloce 10 speed (53/39)
-Rear derailleur: SunTour GT (Long Cage)

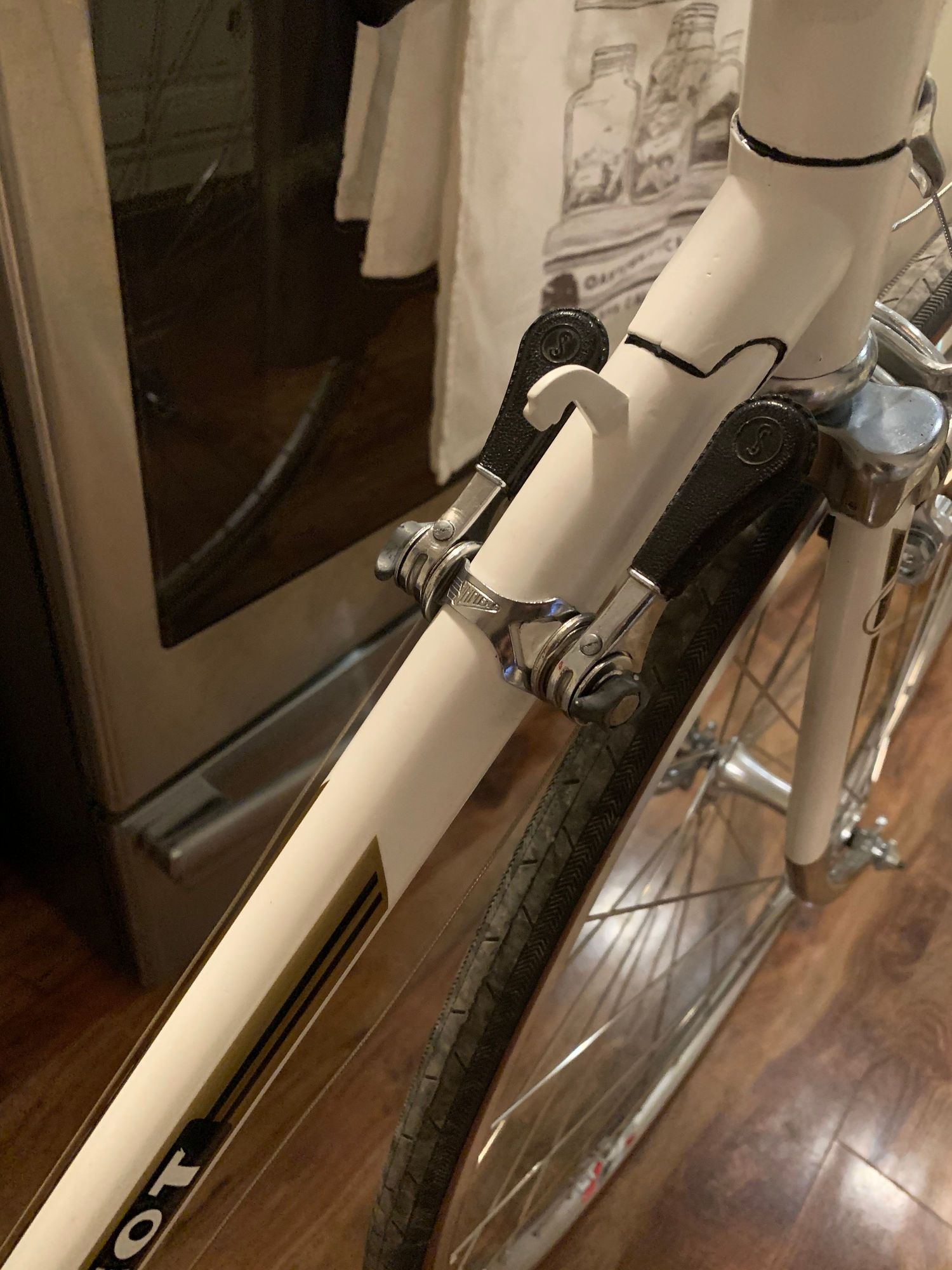

-Shifters: Simplex Criterium DownTube Shifters
-Rear freewheel: Shimano 14/28
-BB: Philwood square taper (Campy) 115mm with French BB cups

Let me know if any more information is needed.
Thanks for the help everyone!!

I can't post images just yet... im a few posts short.. Sorry guys... but can someone let me know if they can help based on what ive stated already?
Javi_bikes is offline
Old 01-29-21, 12:17 AM
  #2
Javi_bikes
Junior Member
Thread Starter

Join Date: Aug 2020
Location: California
Posts: 21

Bikes: Fuji Classic (Track), Peugeot U-08, Bianchi Strada turned Fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
I have the images uploaded to imgBB but cant post a link yet..
Javi_bikes is offline
Old 01-29-21, 12:21 AM
  #3
Javi_bikes
Junior Member
Thread Starter

Join Date: Aug 2020
Location: California
Posts: 21

Bikes: Fuji Classic (Track), Peugeot U-08, Bianchi Strada turned Fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
The images are in my album through here! Sorry about that Everyone.. seems to be the only way youll be able to see them...
Javi_bikes is offline
Old 01-29-21, 12:27 AM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,454
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2418 Post(s)
Liked 686 Times in 553 Posts
-----

Hello Javi_bikes and welcome to the forum!

if you go to your member area there is something there called your member's album

you can upload any images you have to your album and then a moderator or helpful reader and put them into the thread

tip on Suntour Spirt front mech -

its mounting clamp is intended for a 28.6mm seat tube and your seat tube is 28.0mm so it is best to either file the flats on the front of the clamp or else put a bit of shim material in to make up the difference

when used OEM on french cycles they came with a clear soft plastic shim affixed to the clamp assembly with adhesive. afaik this variation was never made available to the public.

-----
juvela is offline
Likes For juvela:
Old 01-29-21, 12:47 AM
  #5
Javi_bikes
Junior Member
Thread Starter

Join Date: Aug 2020
Location: California
Posts: 21

Bikes: Fuji Classic (Track), Peugeot U-08, Bianchi Strada turned Fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Thanks for the tip Juvela! I've made an album with the images!

Ah ok... I'll have to look into that
Javi_bikes is offline
Old 01-29-21, 04:31 AM
  #6
kross57
Senior Member

Join Date: Aug 2018
Location: north NJ
Posts: 691

Bikes: Miyata 710, Univega Viva Sport, Centurion LeMans, Peugeot U09

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Liked 102 Times in 76 Posts
I see you have already changed the rims to alloy. That's the first thing I would do. Biggest change in weight and performance.

Last edited by kross57; 01-29-21 at 05:57 AM.
kross57 is offline
Likes For kross57:
Old 01-29-21, 04:59 AM
  #7
cb400bill
High Derolic Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 19,045

Bikes: Fuji SL 2.1 Carbon, Cannondale Synapse Alloy, Trek 710

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2276 Post(s)
Liked 2,429 Times in 1,505 Posts
Pic Assist







__________________
Bike Don't Lie



cb400bill is offline
Likes For cb400bill:
Old 01-29-21, 07:47 AM
  #8
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,303

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 945 Post(s)
Liked 329 Times in 246 Posts
Tip: you can get a decent cable cutter on eBay for about $20.

Beautiful UO-8, and perfect set of upgrades. Those new shift levers are a big improvement over the basic plastic OEM junk, and they look fabulous on that bike. (My 1970 UO-8, which I built new from a bare frame when I worked at a Peugeot/Nishiki dealership, has SunTour derailleurs, Weinmann brake levers, aluminum rims (braking safety as well as weight/performance issue), and SunTour barcons.

The only other changes I personally would make to yours include the addition of toeclips, perhaps substituting road quill pedals for the OEM units you have.

I would also immediately turn your front brake pad holders around 180 degrees, before the rubber pads work their way out of the now-open fronts of the holders. Better still, replace the pads with salmon-colored KoolStops for improved brake performance, particularly if your pads are getting old.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 01-29-21, 07:53 AM
  #9
gthomson
Senior Member

gthomson's Avatar

Join Date: May 2020
Location: Oakville
Posts: 474

Bikes: 2013 Cannondale Caad 8, 2010 Opus Fidelio, Peugeot UO14, Trek 800 Anetelope, 1999 Peugeot Dune, Sakai Select, L'Avantage, 1971 Gitane Apache Standard

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 102 Times in 86 Posts
wow, probably didn't look so good bran new!
gthomson is offline
Likes For gthomson:
Old 01-29-21, 08:04 AM
  #10
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,725

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 412 Times in 289 Posts
Beautiful UO-8. This guy is a good espainer:
https://www.youtube.com/channel/UCaA...2xiBbAUVZsvDYQ
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Likes For Classtime:
Old 01-29-21, 09:01 AM
  #11
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,136

Bikes: A bunch of old bikes and a few new ones

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 4968 Post(s)
Liked 1,459 Times in 967 Posts
This is a beautiful UO 8 and very nicely upgraded. That crank is a bit overkill on this bike but that's no reason to change it. I'd dump that saddle for something better but other than that this bike looks great. Now you just need to fix it up and ride it.
bikemig is offline
Likes For bikemig:
Old 01-29-21, 09:17 AM
  #12
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,588
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 347 Times in 249 Posts
Is it just me? Or does that fork have massive offset?
Mr. 66 is offline
Old 01-29-21, 10:13 AM
  #13
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,709
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Liked 451 Times in 348 Posts
Well, this specific picture makes me wonder how it'd be possible there's not a chainline issue. My eyes are old, but it looks like there's at least 5-6 threads exposed on the fixed cup side of the bike?

That would account for one gear's worth, eh? Can you take some additional pics of both sides of your bottom bracket so we can see what's up, more clearly? Something seems hinky, like maybe the fixed cup is on the wrong side and there's no lockring installed on the adjustable cup.

__________________
███████████████

francophile is offline
Old 01-29-21, 10:20 AM
  #14
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,709
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Liked 451 Times in 348 Posts
Originally Posted by Mr. 66 View Post
Is it just me? Or does that fork have massive offset?
Here's a UO18 I rebuilt for my wife many years ago for comparison. It does look like a bit odd now you mention it, but it could just be the picture angle.


__________________
███████████████

francophile is offline
Old 01-29-21, 01:08 PM
  #15
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,075
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 137 Times in 77 Posts

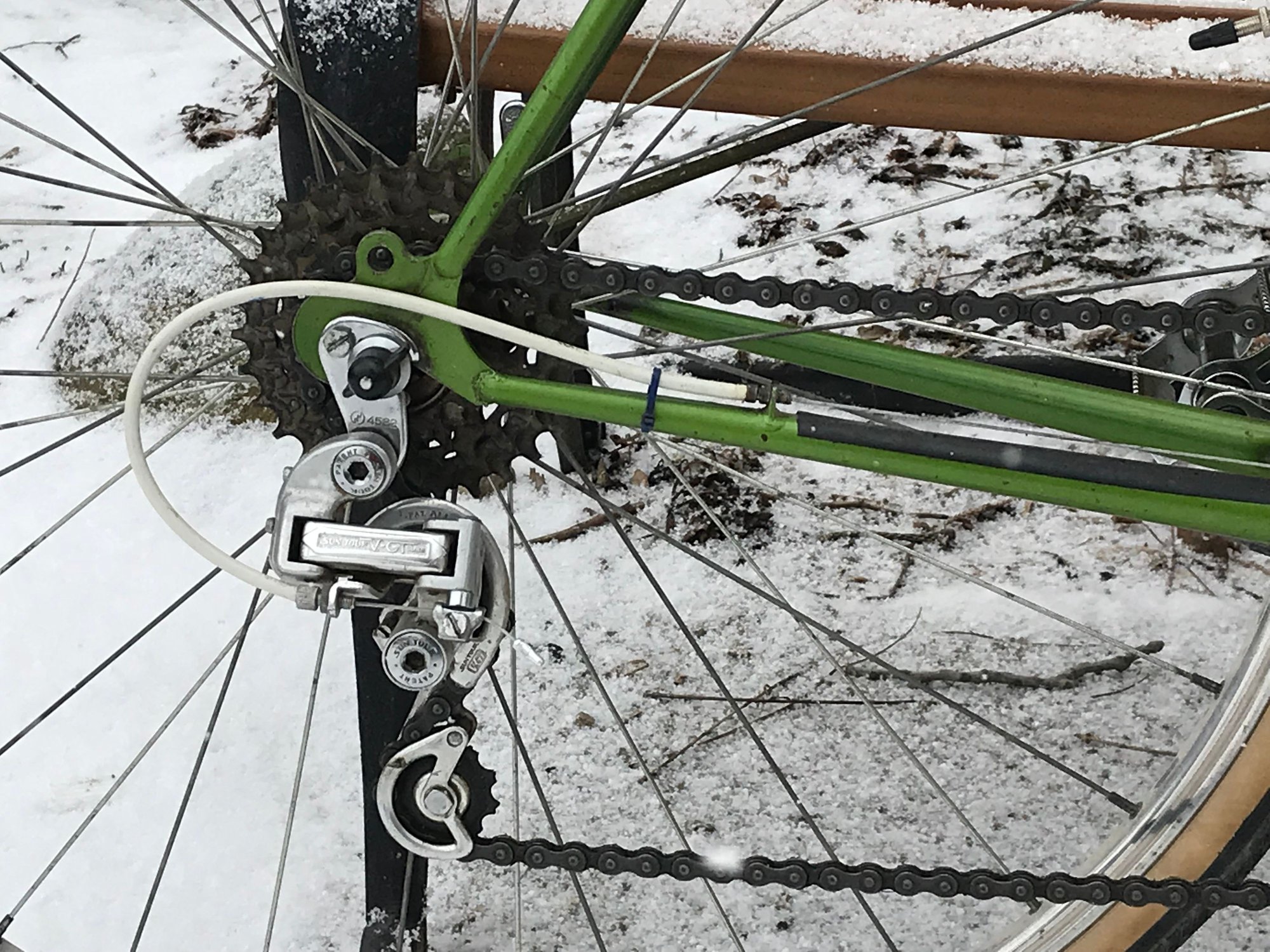

Beautiful bike and I like all the changes you made. On your rear derailleur, I would adjust the B screw (the one at the top nearest the clamp) to make sure the parallelogram arm is more aligned with the chainstay - yours looks like its quite far out.





For the front I would suggest a tasteful beer can shim......

Will be interested in your response on the chainline/BB fixed cup question.

Last edited by markk900; 01-29-21 at 01:12 PM.
markk900 is online now
Old 01-29-21, 01:10 PM
  #16
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,075
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 137 Times in 77 Posts
Originally Posted by Mr. 66 View Post
Is it just me? Or does that fork have massive offset?
Yes, yes it does!
markk900 is online now
Old 01-29-21, 03:26 PM
  #17
polymorphself
Senior Member

Join Date: Oct 2017
Location: Arizona
Posts: 1,260
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 500 Post(s)
Liked 477 Times in 237 Posts
Nice, this is how you do a UO-8!

The fork does look a little wild...
polymorphself is offline
Old 01-30-21, 01:04 AM
  #18
Javi_bikes
Junior Member
Thread Starter

Join Date: Aug 2020
Location: California
Posts: 21

Bikes: Fuji Classic (Track), Peugeot U-08, Bianchi Strada turned Fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Thanks everyone for the compliments! Really appreciate it as its my first build and had to do a lot of research to put it together, now i'm just eager to finish the final tunes and get on it!!

I've toe cage pedals. MKS with Toe cages and leather straps, just havent put them on yet! Yea went with some modern rims, and I've changed the brake pads just went with the black over the salmon colour! Just need a new saddle, if any one has any suggestions I would appreciate them!

Funny you mention that, I was actually doing a bit of research over the phil wood BB and I think you may be onto something there.

The fixed cartridge phil wood bb comes with individual cups and locktite that goes on those cups, no lock ring is used. I guess ill have to fiddle with the adjustment on each side. I know a few threads can be exposed, just not 100% with phil wood BBs, dont want to accidentally damage them! hahaha.

Will get some extra photos and post them! Thank you!

Not too sure about the offset, now that I look at the photo I get what everyone is saying... but thats how I've been given it. Did some research and saw that a few 73'-74' had the offset in them too... is it a thing from those built in that year?
Javi_bikes is offline
Old 01-30-21, 01:06 AM
  #19
Javi_bikes
Junior Member
Thread Starter

Join Date: Aug 2020
Location: California
Posts: 21

Bikes: Fuji Classic (Track), Peugeot U-08, Bianchi Strada turned Fixie

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
francophile That is a very nice blue!
markk900 Doesnt the gap have to be 2/3mm between the highest gear and the top gear on the RD? I was following the parktool video on youtube on adjustment... I could be wrong!
Javi_bikes is offline
Likes For Javi_bikes:
Old 01-30-21, 05:11 AM
  #20
kross57
Senior Member

Join Date: Aug 2018
Location: north NJ
Posts: 691

Bikes: Miyata 710, Univega Viva Sport, Centurion LeMans, Peugeot U09

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Liked 102 Times in 76 Posts
Originally Posted by Javi_bikes View Post

Not too sure about the offset, now that I look at the photo I get what everyone is saying... but thats how I've been given it. Did some research and saw that a few 73'-74' had the offset in them too... is it a thing from those built in that year?
I have several French bikes from the 70s. All seem to have a similar offset - the copper Motobecane maybe more.


kross57 is offline
Likes For kross57:
Old 01-30-21, 08:36 AM
  #21
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,075
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 137 Times in 77 Posts
Originally Posted by kross57 View Post
I have several French bikes from the 70s. All seem to have a similar offset - the copper Motobecane maybe more.

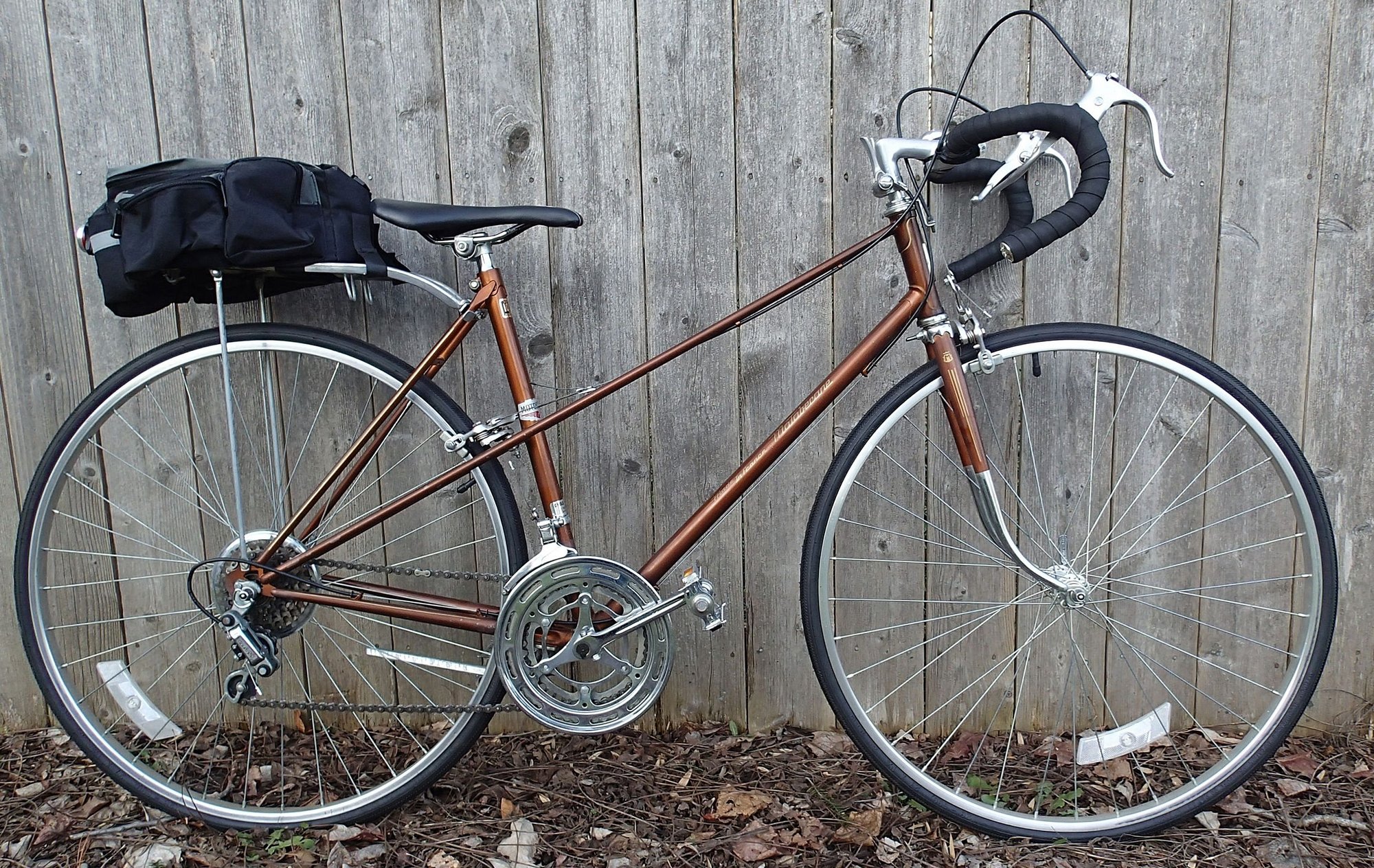

You got me curious so I measured my AO-8 and my Moto Nomade (Supercycle branded) - both had identical offsets (from centreline of fork blade perpendicular to axle centre was 2.75"). Actual rake/trail would depend on steering head angle which I did not measure.
markk900 is online now
Old 01-30-21, 10:37 AM
  #22
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,709
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Liked 451 Times in 348 Posts
Originally Posted by Javi_bikes View Post
Funny you mention that, I was actually doing a bit of research over the phil wood BB and I think you may be onto something there.

The fixed cartridge phil wood bb comes with individual cups and locktite that goes on those cups, no lock ring is used. I guess ill have to fiddle with the adjustment on each side. I know a few threads can be exposed, just not 100% with phil wood BBs, dont want to accidentally damage them! hahaha.
I'll be bluntly honest: I never had the money for Phil equipment and often re-used old stuff growing up. Now that I have enough money for Phil, I don't want it because what I've done my whole life "works great".

However, I admit, when I saw the photo of the crank, this gap jumped out at me, I must've missed where you said it was Phil BB before, and my ignorance with the product is causing me to post ignorant things. It just looks off to me, but maybe this is an adjustable unit which allows you to put the edge of the cup where you need it to achieve proper chainline vs. the fixed cup on a normal BB which would be static on this side of the bike, fully seated. Could be a learning experience for me here

__________________
███████████████

francophile is offline
Likes For francophile:
Old 01-30-21, 10:46 AM
  #23
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,351

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1237 Post(s)
Liked 212 Times in 180 Posts
Originally Posted by cb400bill View Post
Pic Assist


I have one which is as far I can tell, about 1969 or 1970, and it also has a lot of offset.


1969 or 1970 Peug UO8. Shimano 6207 chainset, whatever single-pivot brakes, Ideale 92 saddle, Shimano 6207 f/r derailleurs.

Also a lot of fork offset! On this one I really like the metallic green paint, Peugeot really hit it out of the park on this color. Don't notice the rust! Eventually I'll built some alloy rims onto her and starting riding her again. It was nice, smooth, and stable. The trail is rather low, but I forget the numbers. For my BB/chainset change, I destroyed the spindle and cotters in surgery. It turned out my Shimano 600 spindle matched the bearing spacing well, and the original now-50 years old French cups were not too rough, so I installed the spindle and it's crankset. I think the shift levers are a Huret pair. The brake calipers are no-name but somehow long enough to fit 700c wheels on a very roomy 27 x 1 frame. I think the seatpost is the original French one, and the stem is an SR that was in the bottom of a miscellaneous box. I forget the seat angle but I recall it is very laid back, about 71 degrees. For me that's one of the keys to comfort with a vintage leather saddle like Brooks or Ideale.

As I said a nice ride! Don't look at the rust!

Last edited by Road Fan; 01-30-21 at 10:49 AM.
Road Fan is offline
Old 01-30-21, 12:05 PM
  #24
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,351

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1237 Post(s)
Liked 212 Times in 180 Posts
Originally Posted by Javi_bikes View Post
Hi Everyone,

I've been having an absolute nightmare with the Peugeot u08 frame I've inherited. Despite the struggle, partially due to being a noob (haha!), I'm close to getting it done.
But I need some help, I cant get the rear derailleur to shift into the lowest gear and I cant get the front derailleur to align... they've been doing my head in!! I think the rear gear issue should be an easy fix... but I really need help with the front derailleur.
I'll attach some photos so you guys can see what I'm working with. However I'll list the parts I've put:

-Front derailleur: SunTour Spirt
-Crankset: Campy Veloce 10 speed (53/39)
-Rear derailleur: SunTour GT (Long Cage)
-Shifters: Simplex Criterium DownTube Shifters
-Rear freewheel: Shimano 14/28
-BB: Philwood square taper (Campy) 115mm with French BB cups

Let me know if any more information is needed.
Thanks for the help everyone!!

I can't post images just yet... im a few posts short.. Sorry guys... but can someone let me know if they can help based on what ive stated already?
I do pretty much the same thing across the board to set up derailleurs.

1. Attach the rear derailleur - it just mainly bolts on. Put on the wheel with freewheel, leaving the chain off or unthreaded. Adjust the outer travel screw so the upper guide wheel lines up with the smallest rear sprocket. Similarly adjust the rear using the inner travel screw to limit travel so the upper guide wheel lines up with the largest rear sprocket. Now you can attach the shift cable if you haven't, and set the cable tension so the mech properly moves over to the higher and lower positions. In this step it might be convenient to have a bike-savvy assistant at some points.

2. Attach the front derailleur - the chainset has to be installed first. Position the derailleur vertically on the seat tube with your 2-3 mm gap. Campy says to use this number and I find it works well. I'm pretty sure 1 mm is usually not good and 5 mm might be too high, but ... I'm not too sure about that last one. In this position, the front derailleur needs to be rotated so the outer edge of the cage is parallel to the large chainring. Set the outer limit screw so the cage kind of straddles the big chainring - this is an initial positioning. Install the front cable and use it to pull the cage over to straddle the small chainring or smallest chainring in case of a triple. Set the inner limit screw to set the cage inner limit to straddle the inner chainring. If you have a set of feeler gauges from ancient history tuning up car engines, milimeter is a decent match to a 0.04 " (forty thousandths of an inch) feeler gauge. 0.039 is a bit more precise, but this number is a ballpark, not an absolute spec. like valve lash or ignition point gap on a vintage sports car or VW engine.

3. Finish installing the chain - set the length and check it, and use a chain tool or a chain closing link to lock it in. With the chain on the big ring, adjust the front mech outer limit screw for a gap of about mm between chain and inner side of the cage. Turn the crank and shift the front to put the chain on the smallest chainring. Use the inner limit screw similarly for mm clearance chain to cage. I got this number from Campy literature as well, and so far I think it works to keep the chain from throwing off high and throwing off low. Double check the clearances and lack of rub by checking big-big, big-small, small-small, and small-big. No chain throwing, chain dragging, or chain threading itself off is permitted. If these things happen with those gaps, your front or rear chainline might be off, or at least not match. For a double the front chainline should be about 42 mm and about 45 for a triple. Twirl the pedals and shift all around, enjoying seeing your nice derailleurs work. Sometime soon, clean and oil the chain if you haven't.

At this point it's essentially finished. Tweak the cable looseness to take up the slack in the front mech cable and the rear mech cable, for instant response to motions of the levers. Don't be afraid to adjust (tighten or loosen) the friction screws (a little bit at a time) on the shift levers so they stay where you put them and the levers move as easily as possible, given no slipping. Those screws are there for you to use, and they make a difference. Go out for a ride - things can be different on the road. You might not have tightened somethung and it move, new cables can stretch, and your eyeballing of the various adjustments might not have been perfect.

I get all these quantitative numbers and limits from Campagnolo literature, because I have installed a lot of Campy on my bikes. The only major challenge in recent times has been Mrs. Road Fan's Campy 3 x 11 indexed Athena set-up, but it did eventually get in line using these instructions. In this case the Campy literature about what the Ergo power lever is supposed to do was not real clear to me. On the other side, I've had these limits and instructions work well for a 1980s Trek 610 with a Huret Duopar rear mech and a Huret Challenger front mech with Huret Challenger DT friction levers and a 46-30. I use the same limits and guidelines for most bikes I work on. YMMV, but these usually work for me. I can't say the method is perfect, however.

Can message me here or PM me if something seems wrong or is not clear.
Road Fan is offline
Likes For Road Fan:
Old 01-30-21, 01:16 PM
  #25
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,925

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1048 Post(s)
Liked 475 Times in 339 Posts
Just to clarify, is it the largestor smallest rear sprocket (cog) that the derailer won't shift to?

A photo from above or behind the bike might show the left-right positioning of the freewheel relative to the available space between the dropouts, possibly indicating that axle spacers need to be moved to the other side of the hub(?) and which would necessitate re-dishing (centering) of the rim relative to the outside surfaces of the axle locknuts.

How many speeds is the freewheel? Is this wheelset perhaps spaced for a much wider freewheel?

As mentioned earlier, the top pulley should just clear the tips of the teeth on the largest cog by a few millimeters, not too much more or less than that.

This setup should be shifting well, but firstly can you perhaps check that the cable moves totally freely in both directions?
dddd is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
