Cracked GB stem

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cracked GB stem

Old 02-04-21, 11:41 AM
  #1
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,364
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Likes: 0
Liked 463 Times in 289 Posts
Cracked GB stem

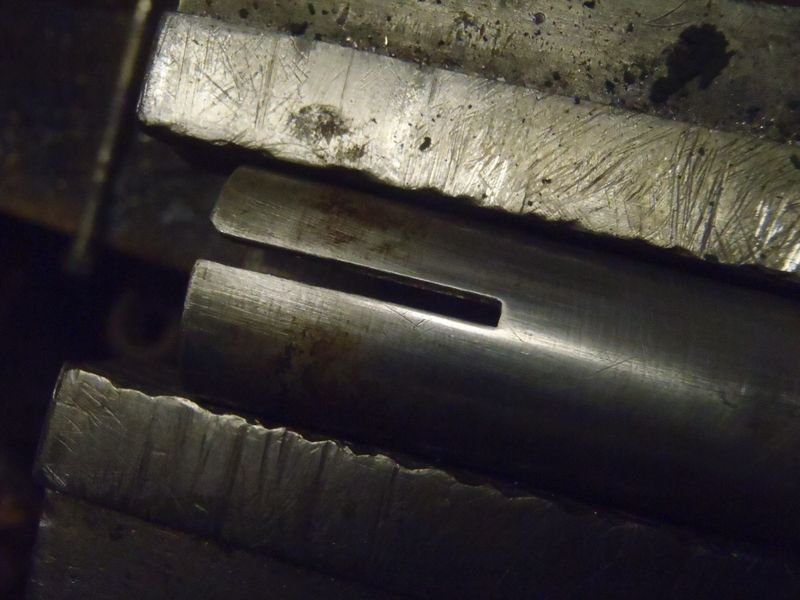

Typical issue:

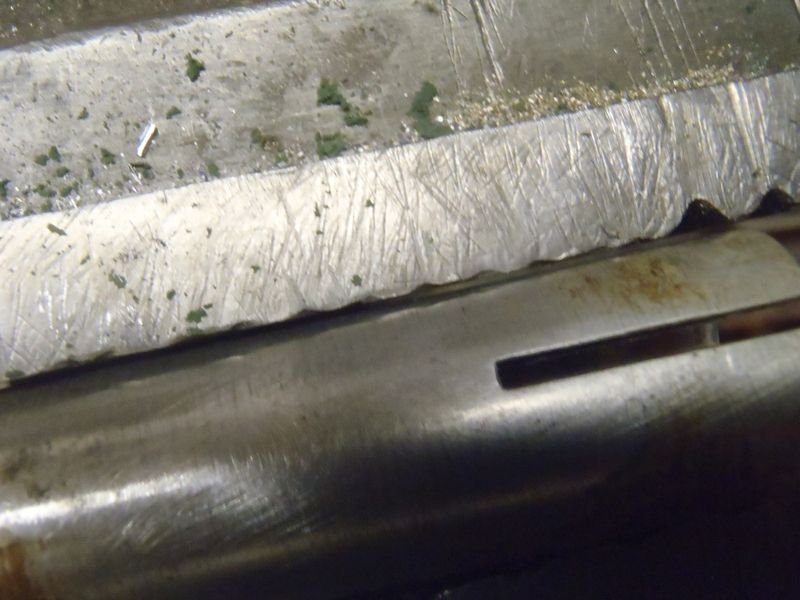

So make a flat spot, centre-punch, drill, chamfer, and polish (bit of compound on a shoelace):



oneclick is offline
Likes For oneclick:
Old 02-04-21, 02:19 PM
  #2
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,208

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 406 Post(s)
Liked 307 Times in 239 Posts
Nice work. Thanks for posting excellent pictures. This could help someone in the future with the same dilemma. I have heard that ttt (3T) stems often do this as well.
Velo Mule is offline
Old 02-04-21, 02:54 PM
  #3
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,364
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Likes: 0
Liked 463 Times in 289 Posts
Originally Posted by Velo Mule View Post
Nice work. Thanks for posting excellent pictures. This could help someone in the future with the same dilemma. I have heard that ttt (3T) stems often do this as well.
It's not the maker, it's the slot. Of course it's going to crack.
oneclick is offline
Old 02-04-21, 03:18 PM
  #4
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,569
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Liked 781 Times in 414 Posts
I don't think I've heard of GB stems using this sort of unrelieved slot... I guess I'd better check my Raleigh.

I have had this on an AVA stem that I owned and sold. Being a hollow cast stem, it was already scary enough. pics below.....





Steve in snowy Peoria
steelbikeguy is offline
Old 02-04-21, 04:16 PM
  #5
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,364
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Likes: 0
Liked 463 Times in 289 Posts
Originally Posted by steelbikeguy View Post
I don't think I've heard of GB stems using this sort of unrelieved slot... I guess I'd better check my Raleigh.
Yes you should - this is from a GB stem out of an '83 International - slots yes; cracks fortunately no (but it still will get holes because otherwise no really means not yet):

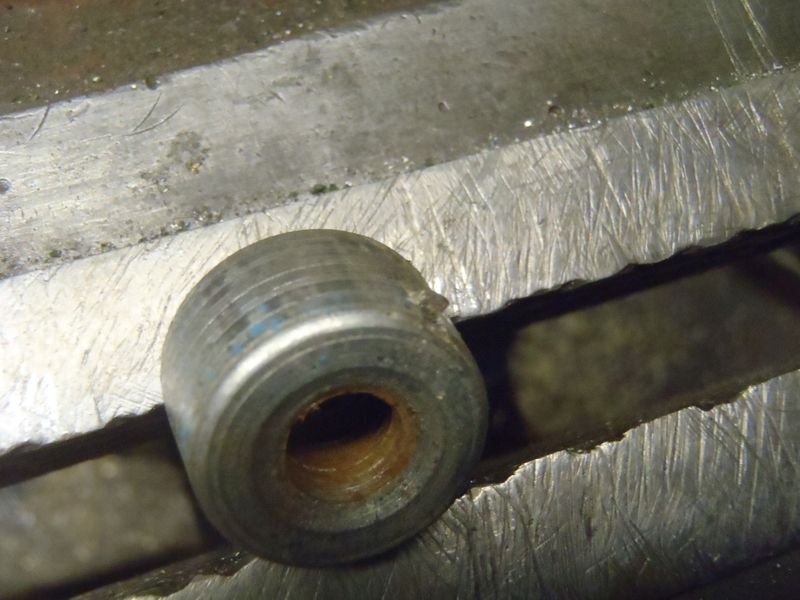

And while you have it apart, consider this - a poor excuse for a key, hardly more than a filing upset from the top of the cone.
On the other stem it had clearly twice not been in a slot when tightened - gouges on the stem inner face and the "key" pushed half-way back to where it had started.
It's getting a quick once-over with a smooth file, so there'll be no more gouges:

oneclick is offline
Old 02-04-21, 05:15 PM
  #6
Markeologist
Senior Member

Join Date: Jun 2020
Location: Marin County, Alta California
Posts: 224

Bikes: Since new: 85/86 Rodriguez Tandem, wife's 87 Gitane Team Pro, 92 Burley Rock-n-Roll, 85 Fisher Comp, 88 Puch Pro, two 92 Bridgestone X0-1s; later: 66/67 Gitane Champion du Monde, late 60s/early 70s B.Carre, my 87 Gitane Team Pro, 77/78 Ritchey Tandem

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 139 Times in 76 Posts
Originally Posted by Velo Mule View Post
Nice work. Thanks for posting excellent pictures. This could help someone in the future with the same dilemma. I have heard that ttt (3T) stems often do this as well.

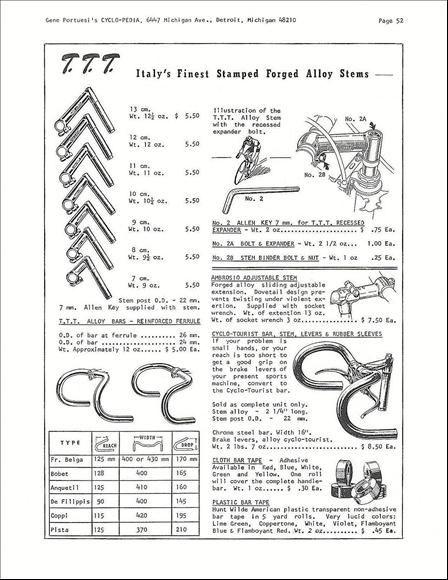

3t stems, even the vintage ones from 60s, are forged and not cast like French stems from bike boom era....and all those I have messed around with had the relief hole drilled from factory. As such, if I plan to ride the vintage bike and want to keep vintage-correct I replace the French stem (bars generally too) and replace with 3t. Its not just the lack of the stress relief hole but French castings of this era are notoriously bad. Here is 3t page from 1966 Cyclo-Pedia:
Markeologist is offline
Old 02-04-21, 05:43 PM
  #7
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,364
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Likes: 0
Liked 463 Times in 289 Posts
Originally Posted by Markeologist View Post
3t stems, even the vintage ones from 60s, are forged and not cast like French stems from bike boom era....and all those I have messed around with had the relief hole drilled from factory. As such, if I plan to ride the vintage bike and want to keep vintage-correct I replace the French stem (bars generally too) and replace with 3t.
Why did they choose a 7mm hex-socket?

Oh, sorry, so they could sell you one because that size never showed up in the metric sets you could (can still?) buy.
oneclick is offline
Old 02-04-21, 09:10 PM
  #8
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,569
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Liked 781 Times in 414 Posts
Originally Posted by oneclick View Post
Why did they choose a 7mm hex-socket?

Oh, sorry, so they could sell you one because that size never showed up in the metric sets you could (can still?) buy.
that sort of question would probably make a great thread all by itself... "why don't manufacturers stick with the standards?".
I know that I've wondered why one of my British bikes uses a 7/32" allen for the seatpost binder bolt. I think it might use Whitworth threads too.

Steve in Peoria
steelbikeguy is offline
Old 02-05-21, 03:24 AM
  #9
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,364
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Likes: 0
Liked 463 Times in 289 Posts
Originally Posted by steelbikeguy View Post
that sort of question would probably make a great thread all by itself... "why don't manufacturers stick with the standards?".
Raleigh did.

Originally Posted by steelbikeguy View Post
I know that I've wondered why one of my British bikes uses a 7/32" allen for the seatpost binder bolt. I think it might use Whitworth threads too.

Steve in Peoria
More than one of the metric sets in the tool bin have a 5.5mm size.
oneclick is offline
Old 02-05-21, 05:43 AM
  #10
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,766

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 337 Times in 177 Posts
Originally Posted by steelbikeguy View Post
that sort of question would probably make a great thread all by itself... "why don't manufacturers stick with the standards?".
I know that I've wondered why one of my British bikes uses a 7/32" allen for the seatpost binder bolt. I think it might use Whitworth threads too.
I learned, thru trial and error in a very mixed bucket of sockets, that many of the vintage nuts on Raleigh seat post bolts fit a 17/32 socket quite nicely. Again not metric and a pretty rare size. We've seen many of those nuts rounded off and damaged and seat stay paint all chipped off from "mechanics" using the wrong socket or a poorly made adjustable wrench. Even using a well made adjustable wrench requires skill and luck. I've assumed the actual size is Whitworth but I don't know.
Prowler is offline
Old 02-05-21, 07:20 AM
  #11
4funbikes
Senior Member

4funbikes's Avatar

Join Date: Sep 2010
Location: Southeastern,VA
Posts: 280
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 14 Times in 10 Posts
Doing a once over last night on my ladies' ava stem equipped Schwinn Super Sport, The stem had twisted a very noticeable amount on our last ride apparently. The right grip was down a good inch or more from the left grip. Yikes.
4funbikes is offline
Old 02-05-21, 04:11 PM
  #12
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,364
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Likes: 0
Liked 463 Times in 289 Posts
So as everything was out and setup to fix slotted stems all of them got at least looked at; then this one appeared and it is sort of a comment on the slot-versus-wedge arrangement.

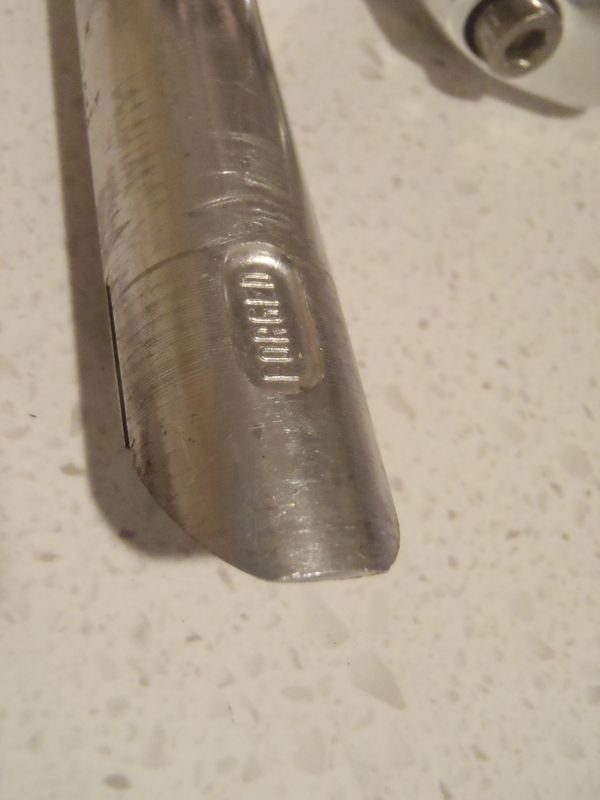

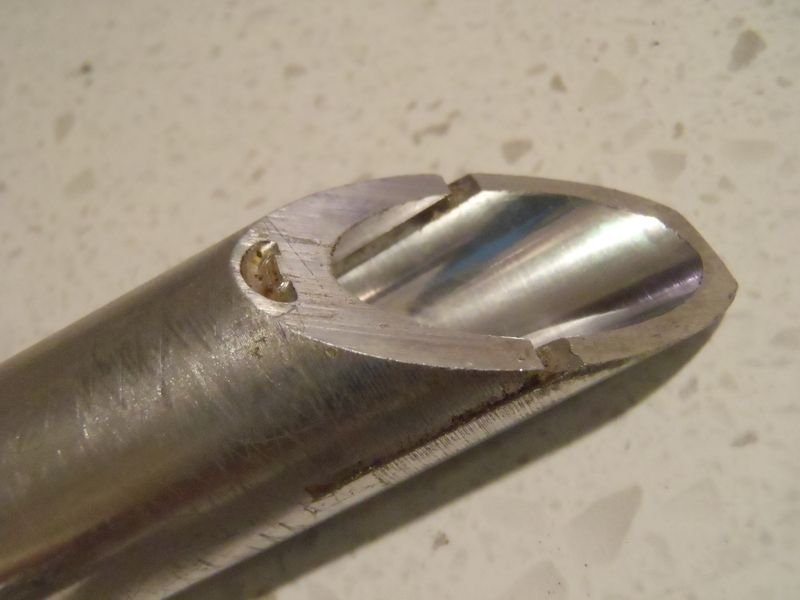

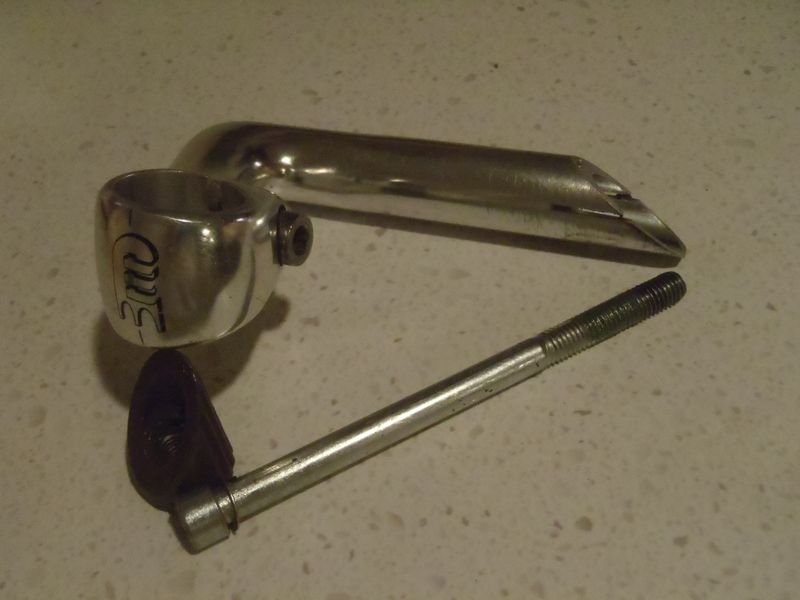

Someone (not the factory,surely) has taken a slotted 3TTT stem and cut it at exactly the correct angle for a wedge, which wedge and screw fit very nicely. It's a good job, the cut is flat and the tip has been tidied up just the right amount:




oneclick is offline
