DIY Tools for your bike work

There are a number of threads that show tools you didn't buy but did make at home. RJ the bike guy has several videos with making your own tools.

A new thread was started asking what unusual items do you have in your tool box that are not typically bike tool related.

This one is what tools do you have that you made. I only have two that I can think of. The first is the RD hanger adjustment tool. The other is a tool for removing the Drum of an Arai drum brake found on tandems.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 02-05-21, 07:31 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,628

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2286 Post(s)
Liked 1,448 Times in 987 Posts
Gonna put these here just because, part home made, part repurpose , AND the fixed cup always come off, everytime, period.




merziac is offline
Old 02-05-21, 08:35 PM
  #3
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,099
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 396 Post(s)
Likes: 0
Liked 367 Times in 235 Posts
French tubing blocks - couldn't get them. If anyone wants to borrow them, pm me.


oneclick is offline
Likes For oneclick:
Old 02-05-21, 08:48 PM
  #4
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,263

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 664 Times in 384 Posts

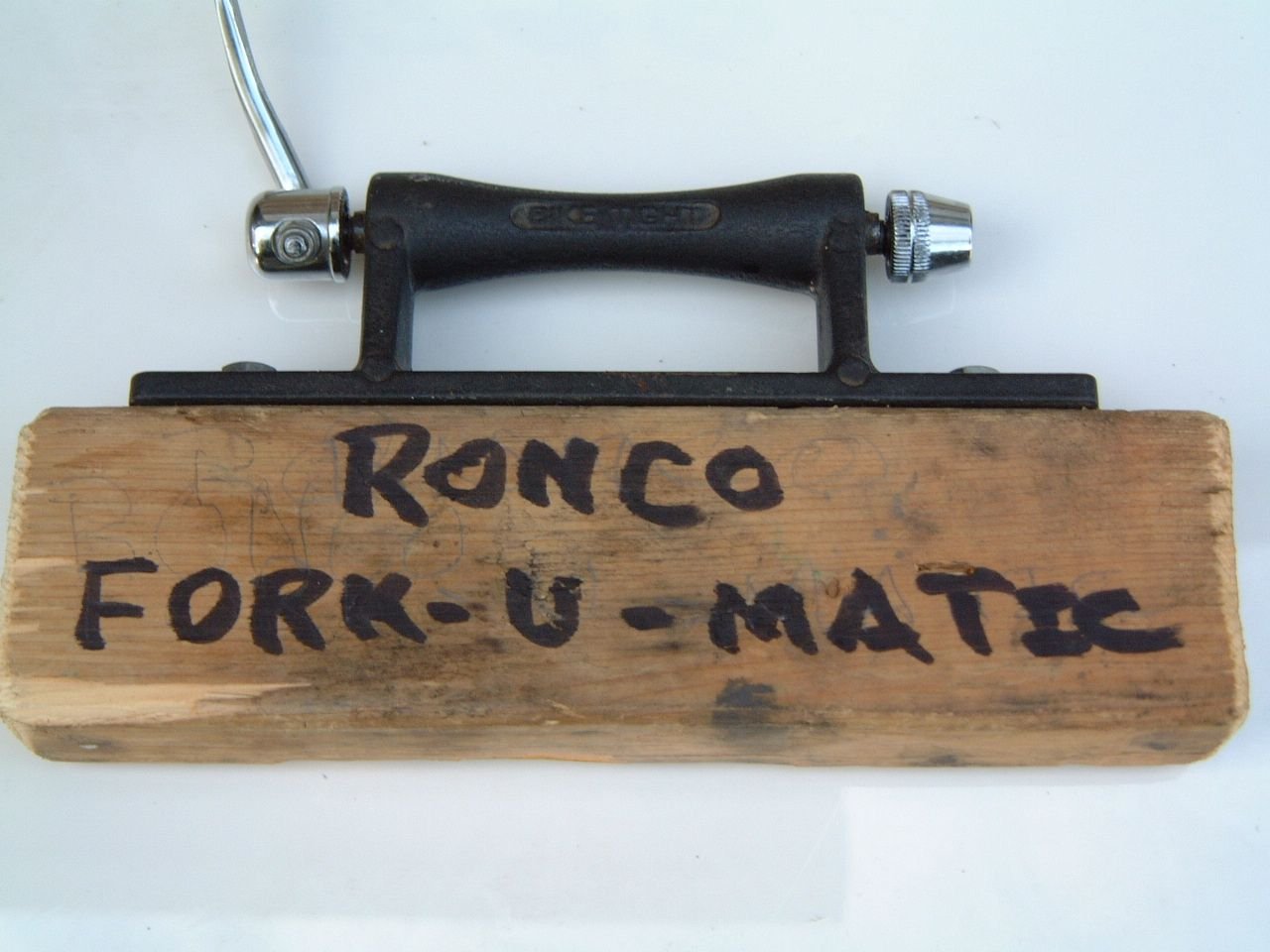

French crank extractor, because I can't afford a JA Stein, but I do have access to a lathe and was doing some Stronglight crank threads for those dustcaps anyway. Since this photo was taken, I made a second fitting, slightly smaller for TA.

I bought a spoke rolling head, but then realized I should have bought the whole threading machine. So I made one instead.


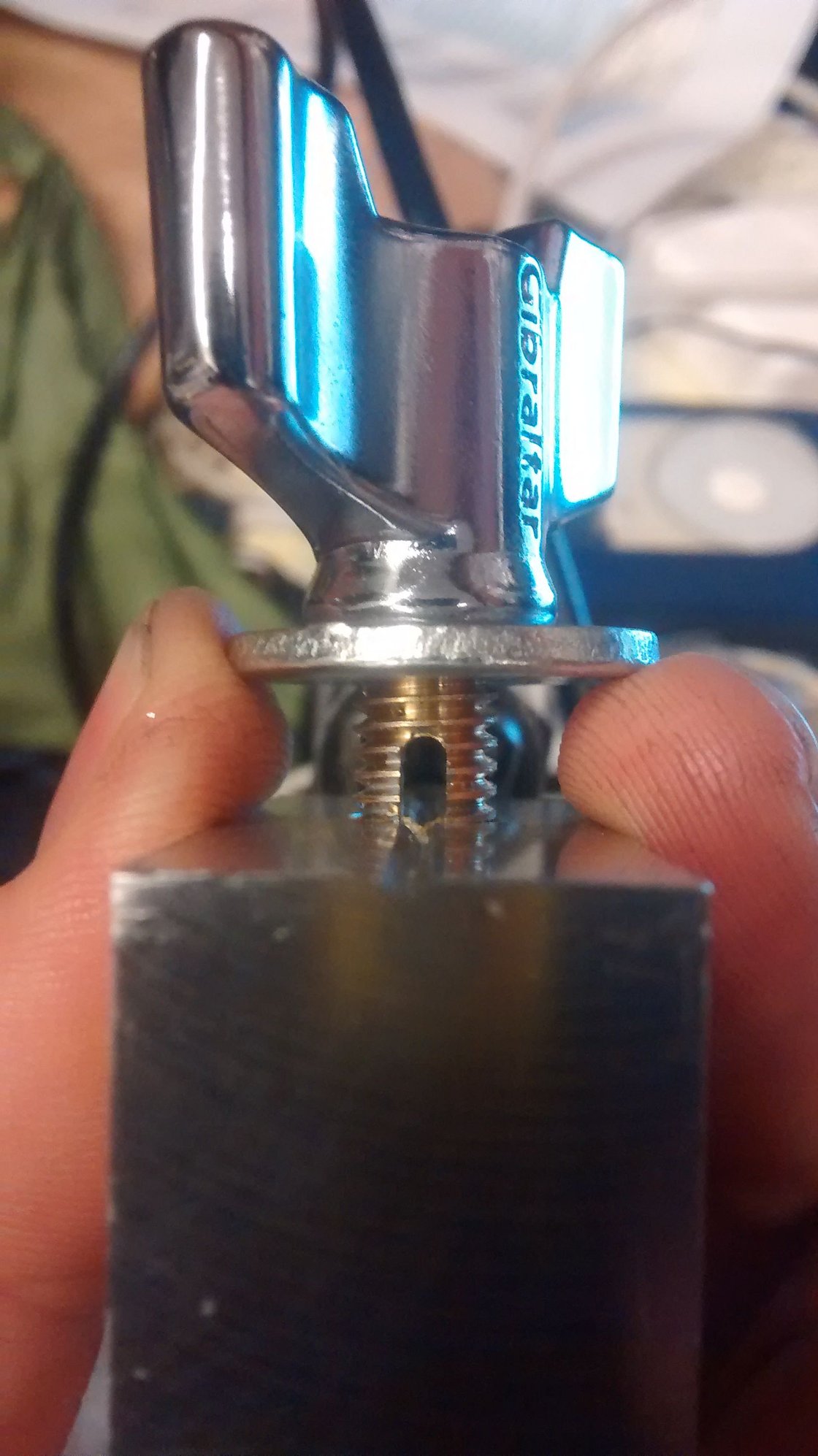

That's how the spoke is held in place: v-groove and a slotted brass bolt. Wing nut from a hi-hat cymbal. Look at that fiiine machining!


Also found this wrench while exploring the abandoned equipment storage yard of a defunct excavation company. It is a very high quality Proto brand forged steel wrench, ground down to work on cones. Strong! The other end is ground into a shape approximating that of a tire lever. I pocketed it in a hurry!
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.

Last edited by scarlson; 02-05-21 at 08:55 PM.
scarlson is offline
Likes For scarlson:
Old 02-06-21, 08:41 AM
  #5
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,138
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 126 Times in 60 Posts
Originally Posted by merziac View Post
Gonna put these here just because, part home made, part repurpose , AND the fixed cup always come off, everytime, period.

I also use filed BB cups as a BB thread chasing tool!

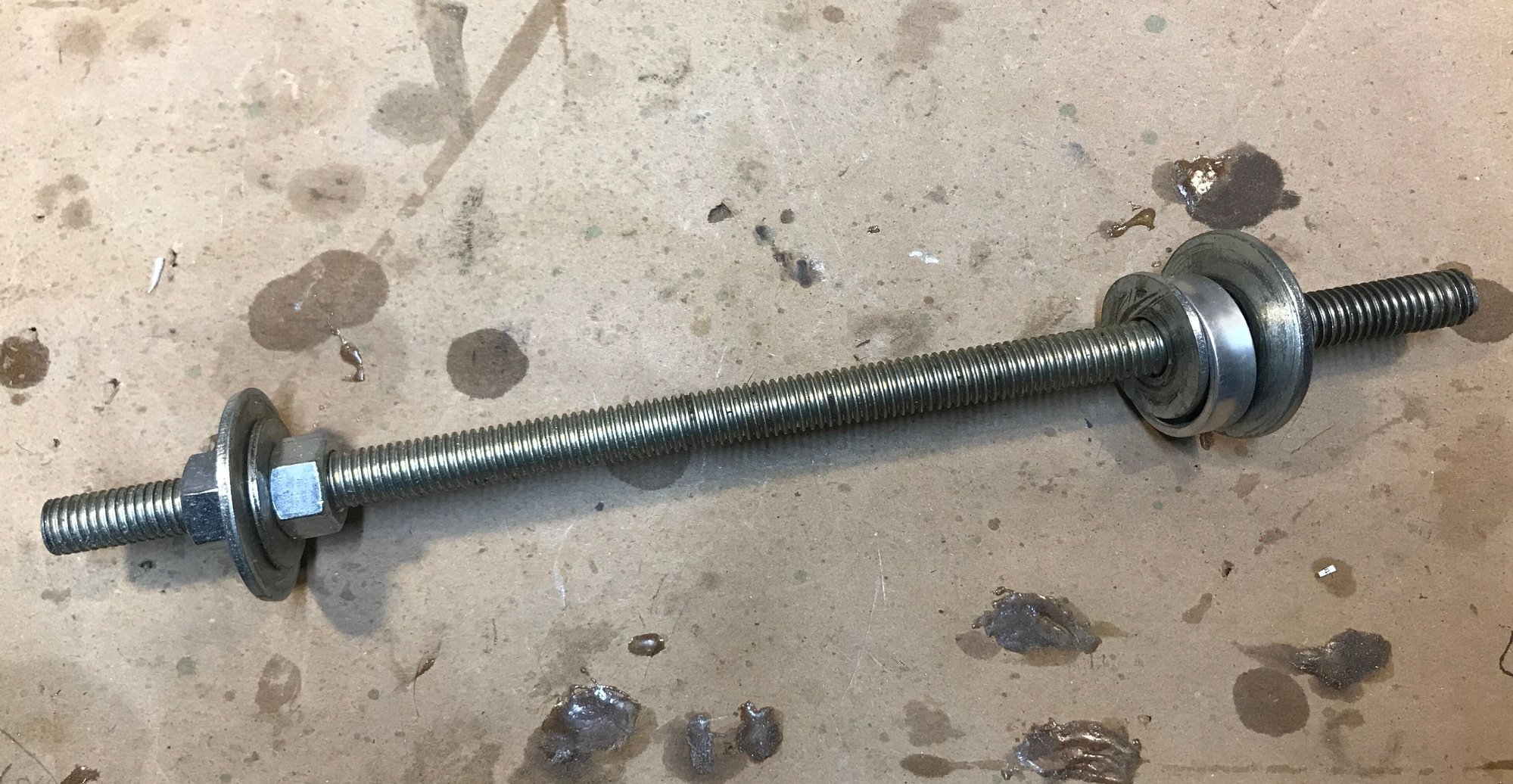

And this used to be my DIY headset press. I never worked well, so I eventually bought a real one.

southpawboston is offline
Likes For southpawboston:
Old 02-06-21, 10:44 AM
  #6
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,207

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 363 Times in 213 Posts

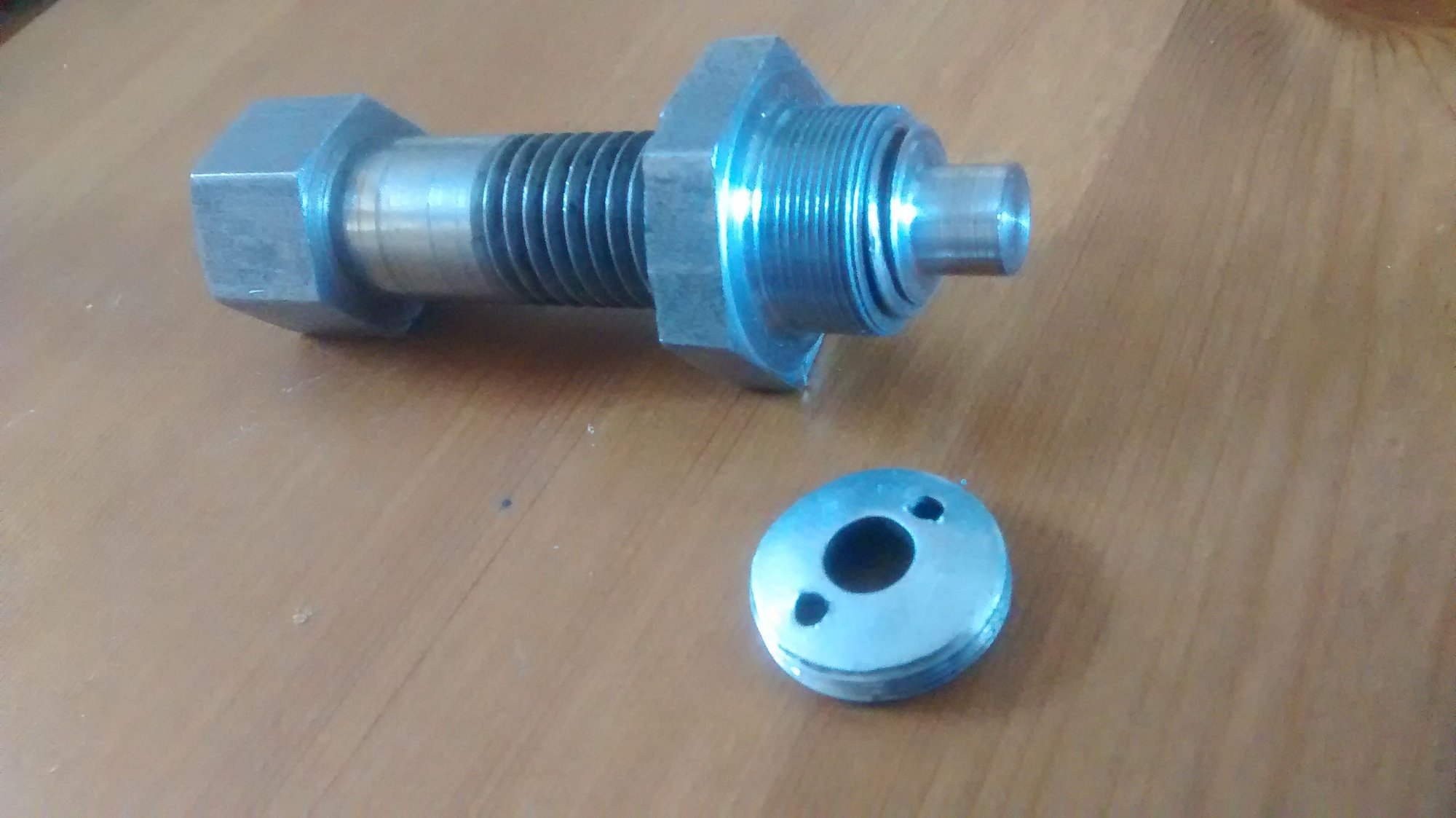

Steerer thread chaser, Sheldon Brown style fixed cup extractor
Reynolds is offline
Likes For Reynolds:
Old 02-06-21, 10:45 AM
  #7
SJX426
Senior Member
Thread Starter

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,762

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 628 Times in 397 Posts
I forgot about he HS tool. Pretty straight forward. I also have crown race PVC installation tool and the typical copper HS removal tool.

Unique assembly of normal tools for accomplishing a task is acceptable! I had a bent crank on a Tern. Used a couple of wood block, Hi Lift jack and a break in the foundation between garages to straighten it out!
__________________
Bikes don't stand alone. They are two tired.

Last edited by SJX426; 02-06-21 at 10:52 AM.
SJX426 is offline
Old 02-06-21, 10:47 AM
  #8
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,207

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 363 Times in 213 Posts



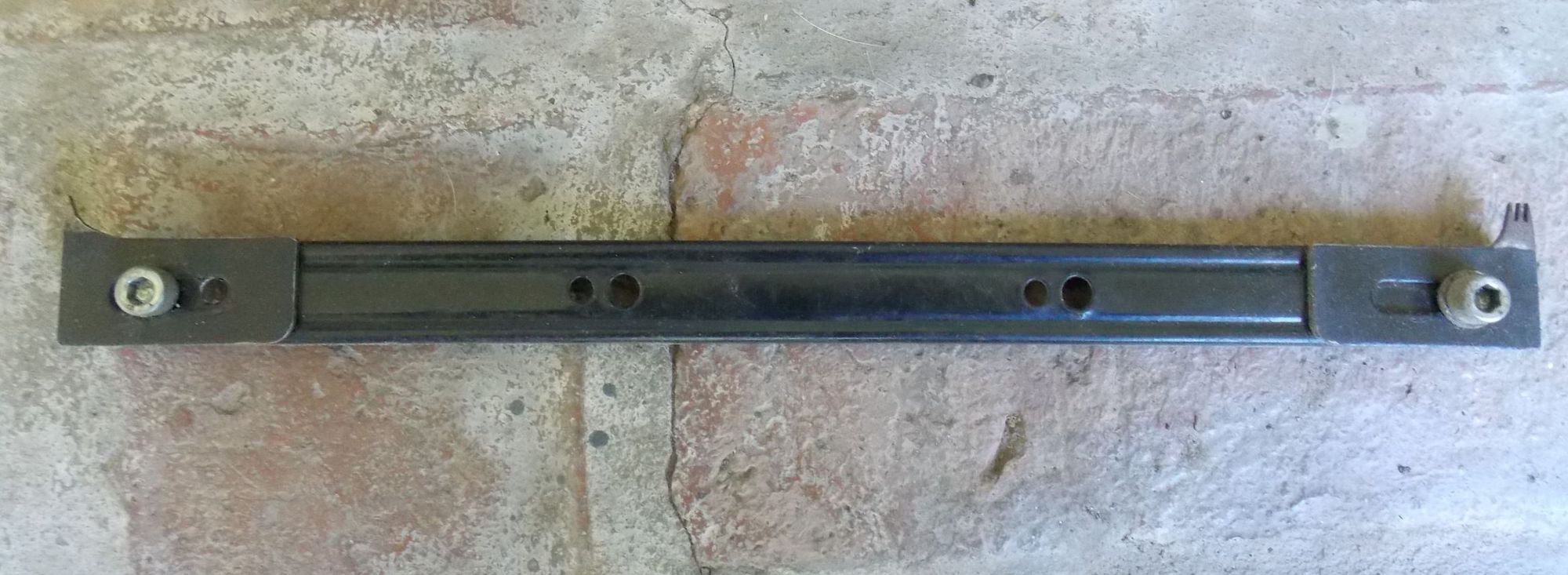

Chain checker, tips are 12" apart

Right tip of chain checker, teeth are at 12" / 12 1/16" / 12 1/8"
Reynolds is offline
Likes For Reynolds:
Old 02-06-21, 11:00 AM
  #9
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,130

Bikes: It's complicated.

Mentioned: 997 Post(s)
Tagged: 0 Thread(s)
Quoted: 3218 Post(s)
Liked 1,494 Times in 763 Posts
Originally Posted by Reynolds View Post



Steerer thread chaser, Sheldon Brown style fixed cup extractor
Those two are practically professional quality! Well done.

I've thought of making a dishing tool myself, I think yours will be my inspiration.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 02-06-21, 11:07 AM
  #10
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,130

Bikes: It's complicated.

Mentioned: 997 Post(s)
Tagged: 0 Thread(s)
Quoted: 3218 Post(s)
Liked 1,494 Times in 763 Posts
This was used once. I highly doubt I'll use it again. For fun, guess what it is.

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 02-06-21, 11:37 AM
  #11
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,263

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 664 Times in 384 Posts
Originally Posted by gugie View Post
This was used once. I highly doubt I'll use it again. For fun, guess what it is.

It's for conjuring the ghost of Alex Singer brazng on a mount for a Suntour S1! Kids these days!
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Likes For scarlson:
Old 02-06-21, 11:51 AM
  #12
guy153
Senior Member

Join Date: Dec 2019
Posts: 559
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 111 Times in 90 Posts
Originally Posted by gugie View Post
This was used once. I highly doubt I'll use it again. For fun, guess what it is.
Bizarre! I'm going to guess some kind of spoke tension measuring device? You put a wheel in and shove some kind of probe through those holes that twangs on the spokes in some way that is meant to be informative of something?
guy153 is offline
Old 02-06-21, 12:18 PM
  #13
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,308

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 505 Post(s)
Liked 229 Times in 126 Posts

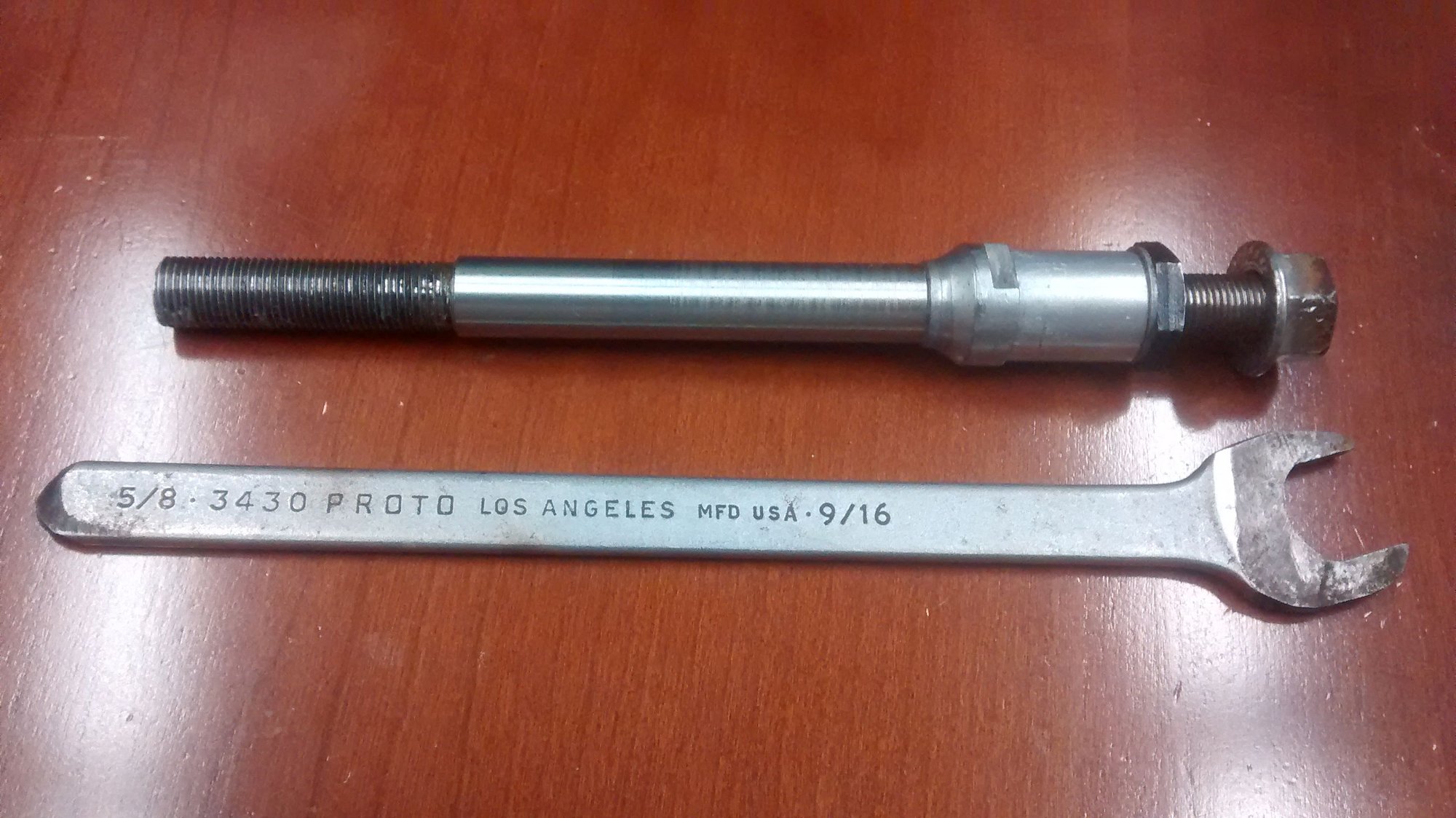

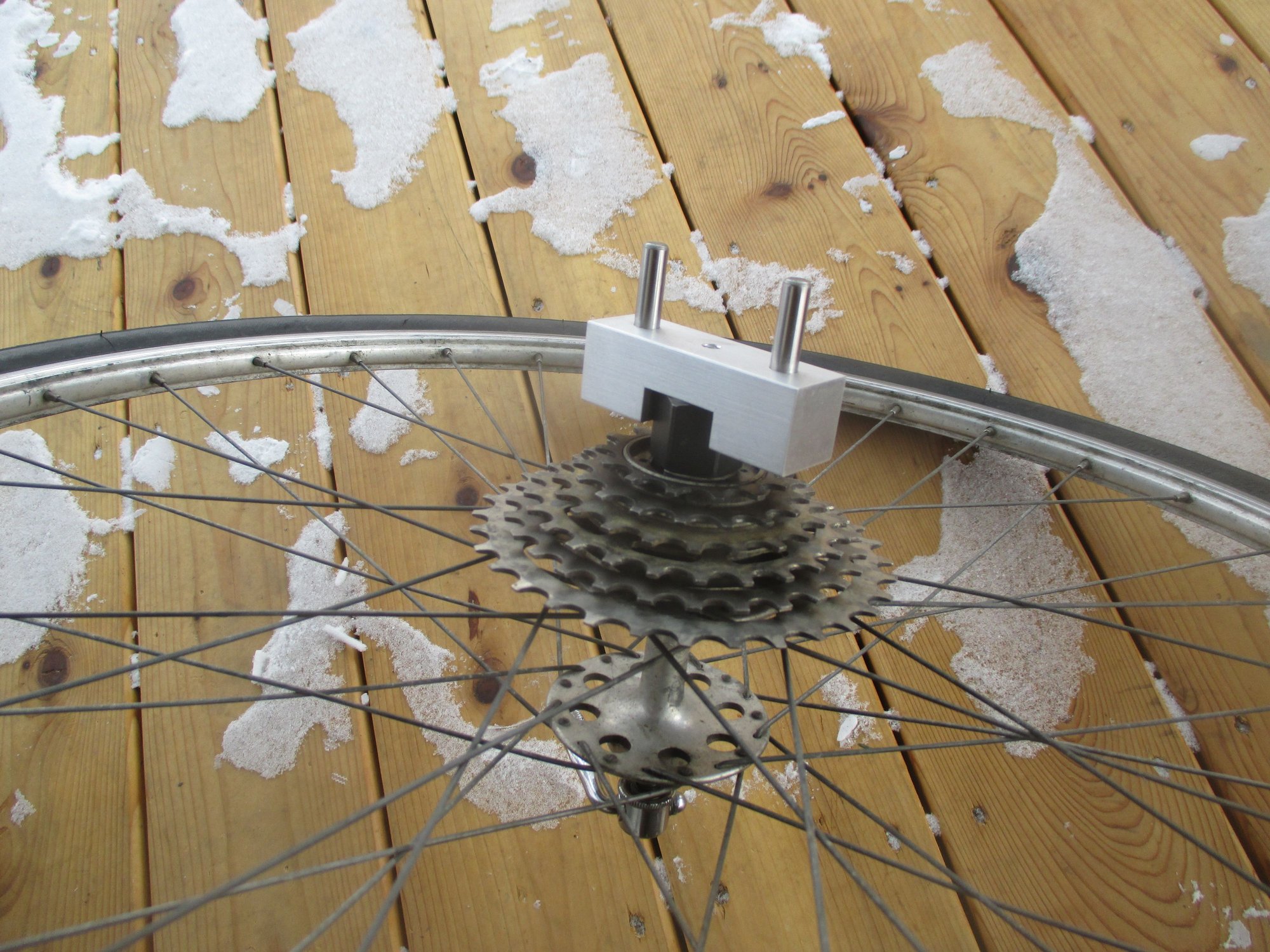

Here's my on-the-road freewheel remover, which is basically a functional and reliable version of the Pocket Pro from the 70's.

I think I have about a dozen of them. It makes me feel a little like Henry Thoreau, who had his first book, A Week on the Concord and Merrimack Rivers, published at his own expense. Most of the copies went unsold and ended up in his attic. He supposedly observed "I have a library of 1,000 volumes, nearly 750 of which I wrote myself."
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 02-06-21, 12:38 PM
  #14
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,138
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 126 Times in 60 Posts
Originally Posted by gugie View Post
This was used once. I highly doubt I'll use it again. For fun, guess what it is.
Part of a garden tractor ladder frame?
southpawboston is offline
Old 02-06-21, 12:39 PM
  #15
Roger M
Senior Member

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,291
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 293 Times in 116 Posts

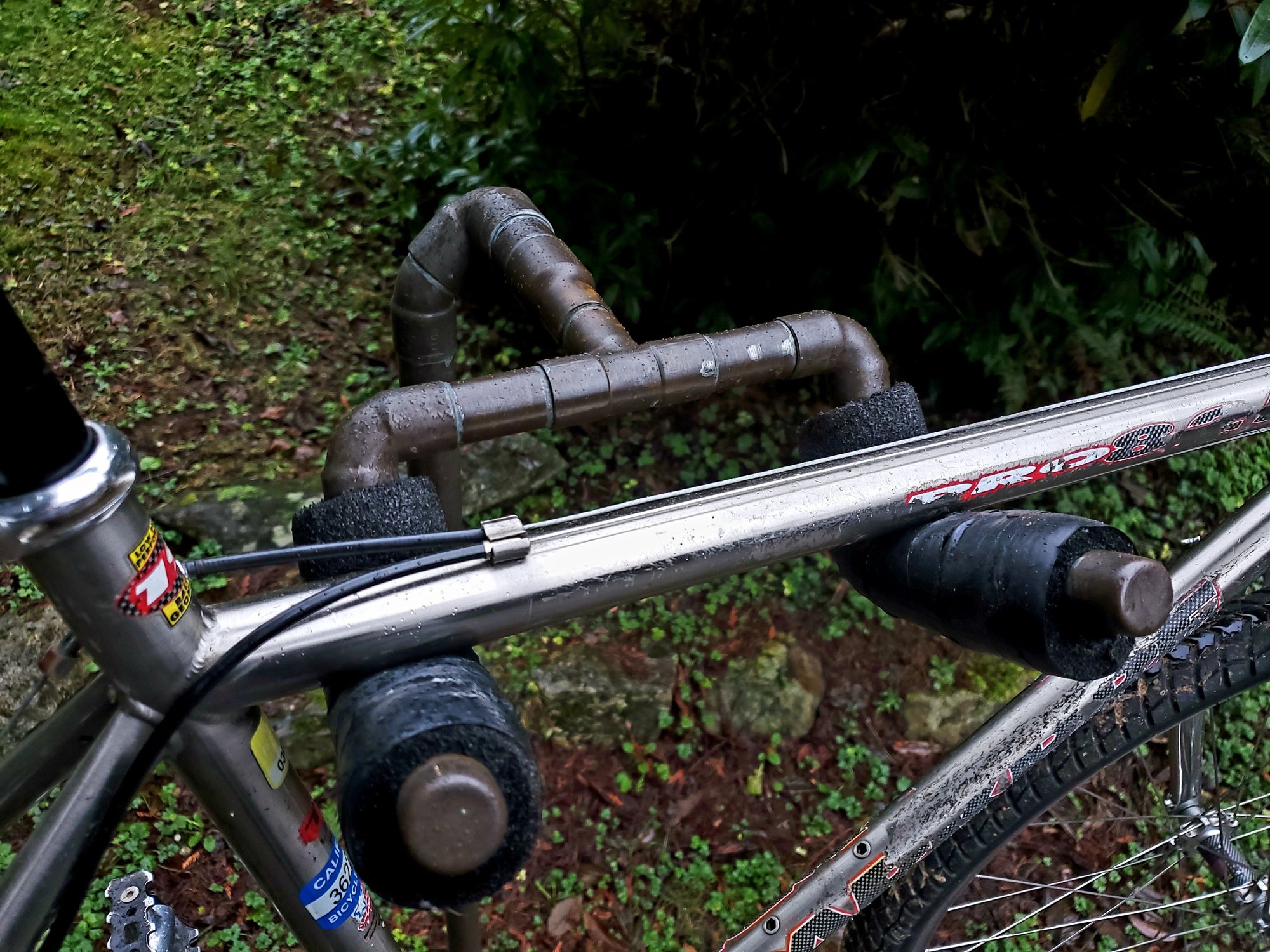

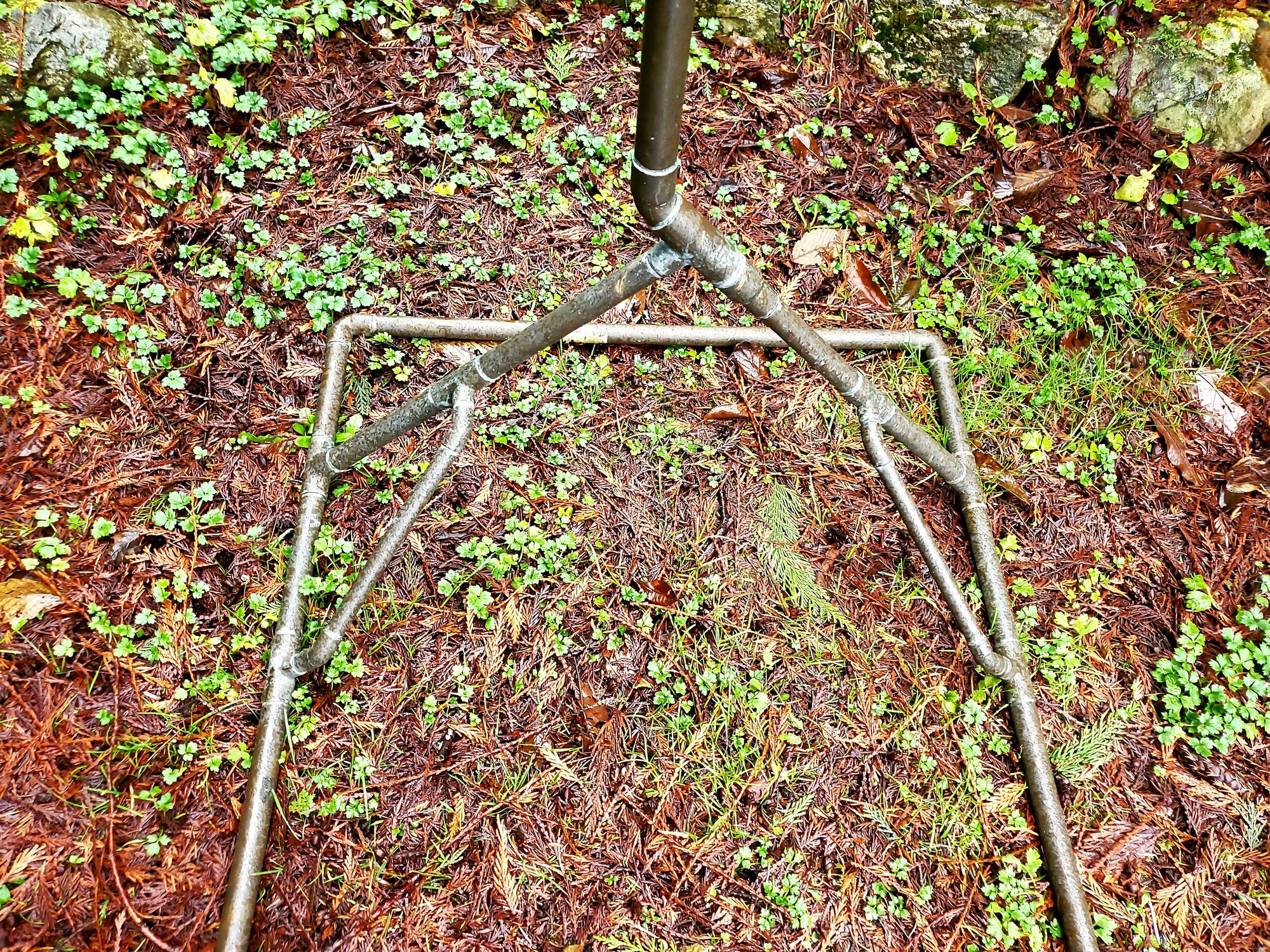

I built this stand 10-12 years ago. I didn't have a workstand, but had a bunch of old copper pipe and fittings from plumbing and heating remodels. I've been meaning to put a coupling in the middle of it(for breaking it down), but laziness has won over.

I have a couple of proper workstands now, but this is what I always use for washing dirty bikes. I find it much easier to throw the bikes on the hooks, than to use clamps on on other stands, for simple tasks.





fwiw, it was a lot shinier ten years ago...
Roger M is offline
Likes For Roger M:
Old 02-06-21, 12:48 PM
  #16
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 5,195

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond, Andre Bertin

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
Likes: 0
Liked 279 Times in 152 Posts
Section of PVC pipe used to install crown races o fork.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 02-06-21, 01:03 PM
  #17
woodcraft
Senior Member

woodcraft's Avatar

Join Date: Apr 2012
Location: Nor Cal
Posts: 5,734
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1686 Post(s)
Likes: 0
Liked 745 Times in 456 Posts
PVC fitting heated & pressed on to cassette tool; master link plier from old wire stripper.



woodcraft is offline
Likes For woodcraft:
Old 02-06-21, 02:18 PM
  #18
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,457

Bikes: old ones

Mentioned: 275 Post(s)
Tagged: 0 Thread(s)
Quoted: 20853 Post(s)
Liked 3,834 Times in 2,818 Posts
3alarmer is offline
Likes For 3alarmer:
Old 02-06-21, 02:55 PM
  #19
ManekiNico
Member

ManekiNico's Avatar

Join Date: May 2020
Location: Ottawa, ON
Posts: 27

Bikes: ’85 Pinarello Treviso

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 11 Times in 9 Posts
I bodged together this frame alignment gauge from aluminum u-channel, 1/4-20 t-bolts and knobs, and a plexiglass pointer.


DIY frame alignment gauge
ManekiNico is offline
Likes For ManekiNico:
Old 02-06-21, 03:22 PM
  #20
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,628

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 2286 Post(s)
Liked 1,448 Times in 987 Posts
@southpawboston

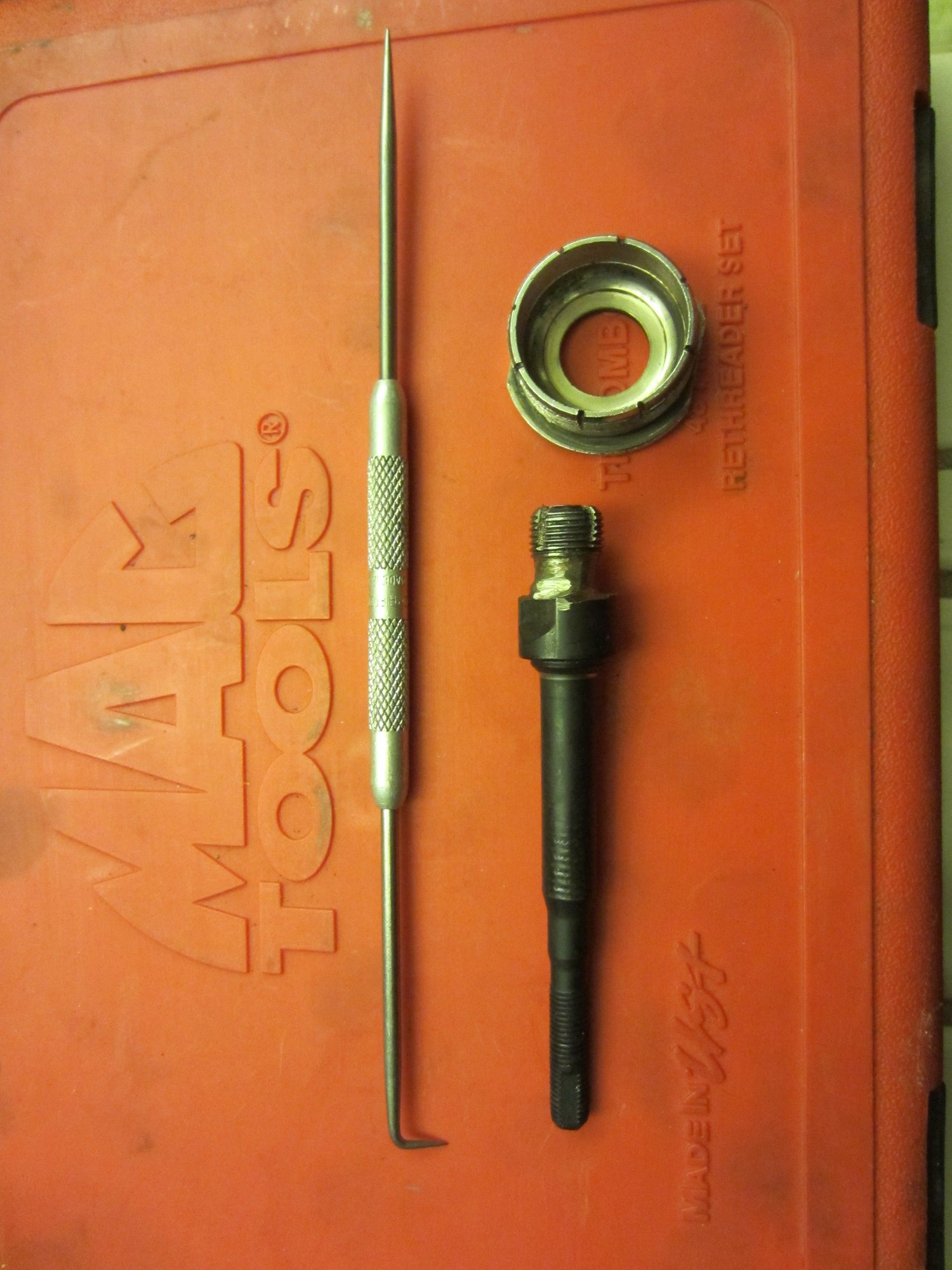

Here's some more including the right angle pick that I scribe the threads clean with before using the chaser and anti-seize.

The pipe brush was a very welcome addition to get the threads clean before scribing.

And one of three actual sets that have saved my azz many times.





merziac is offline
Old 02-06-21, 03:45 PM
  #21
Paramount1973
Senior Member

Paramount1973's Avatar

Join Date: Sep 2011
Location: The First State.
Posts: 1,165

Bikes: Schwinn Continental, Schwinn Paramount, Schwinn High Plains, Schwinn World Sport, Trek 420, Trek 930,Trek 660, Novara X-R, Giant Iguana. Fuji Sagres mixte.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 17 Times in 7 Posts
My first bike repair stand from 2012, made to be installed in the end vise of my woodworking bench. I built up a bunch of bikes on it before getting a Park PCS-10.


Last edited by Paramount1973; 02-06-21 at 04:19 PM.
Paramount1973 is offline
Likes For Paramount1973:
Old 02-06-21, 04:48 PM
  #22
Chuck M
Well Oiled

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 215

Bikes: 1980 Takara 970 Grand Touring, 1981 Takara 950 Deluxe 12, 2018 Trek Domane ALR 5, 2007 Marin Coast Trail, 1983 Bridgestone Carmel mixte

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 119 Times in 67 Posts
I made a locknut removal tool by notching a 3/8 pipe nipple when I took apart an Bendix yellow band recently. I didn't feel good about trying to properly adjust and tighten it when going back together so I had this one made from a 1/2-13 coupling nut that I can hold with a wrench instead of vice grips.


__________________
Chuck M is offline
Likes For Chuck M:
Old 02-06-21, 04:58 PM
  #23
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,130

Bikes: It's complicated.

Mentioned: 997 Post(s)
Tagged: 0 Thread(s)
Quoted: 3218 Post(s)
Liked 1,494 Times in 763 Posts
Originally Posted by guy153 View Post
Bizarre! I'm going to guess some kind of spoke tension measuring device? You put a wheel in and shove some kind of probe through those holes that twangs on the spokes in some way that is meant to be informative of something?
Originally Posted by southpawboston View Post
Part of a garden tractor ladder frame?
see @scarlson, above
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 02-06-21, 06:01 PM
  #24
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,016

Bikes: A few too many

Mentioned: 37 Post(s)
Tagged: 1 Thread(s)
Quoted: 921 Post(s)
Liked 823 Times in 544 Posts
WOW, This is a great thread, I have made a list of tools that I will be making shortly....keep the hits coming!
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"

xiaoman1 is offline
Old 02-06-21, 08:23 PM
  #25
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,430

Bikes: Several, mostly not name brands.

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 2526 Post(s)
Liked 1,093 Times in 706 Posts
Quick 'n' dirty headset cup remover for the charity shop. Plenty of donor 25.4mm steel seat posts to sacrifice.
Attached Images
File Type: jpg
JohnDThompson is online now
Likes For JohnDThompson:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
