27” to 700c clearance

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

27” to 700c clearance

Old 02-16-21, 09:25 PM
  #1
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,292
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1454 Post(s)
Liked 272 Times in 200 Posts
27” to 700c clearance

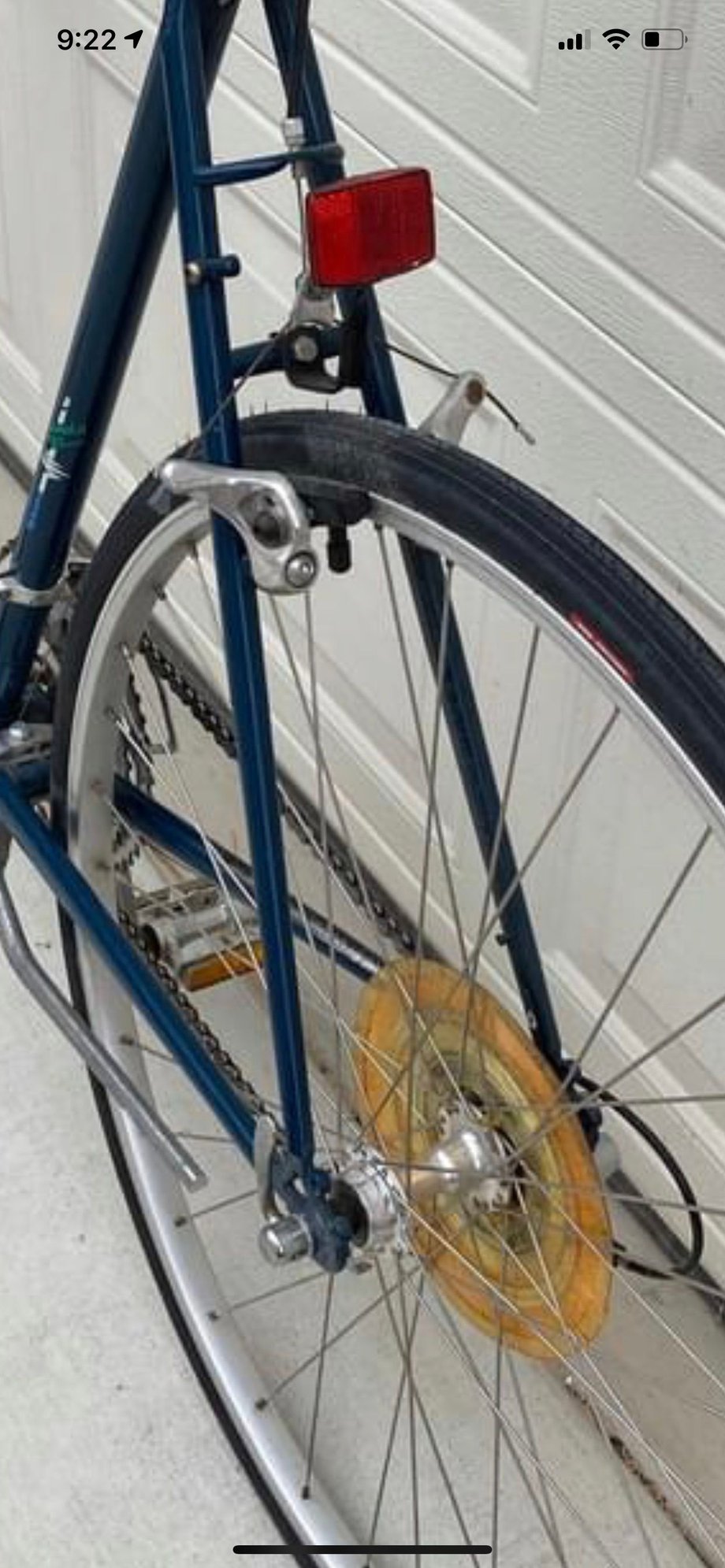

Any chance of getting a 700c wheel on here? Doesn’t look like much downward movement available on the rear brake.

__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 02-17-21, 02:32 AM
  #2
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,610

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 361 Post(s)
Liked 222 Times in 164 Posts
yeah, i see what you mean?
thook is online now
Likes For thook:
Old 02-17-21, 03:33 AM
  #3
mech986
Senior Member

mech986's Avatar

Join Date: Sep 2010
Location: La Habra, California
Posts: 631

Bikes: Italvega Super Speciales and Superlights

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 95 Times in 70 Posts
Is that a 27” rim there now? That would mean the canti’s pivot and design (brake pad contact) is right at the limit (by appearances) for the 27” rim (630mm diameter). The 700C rim is 622mm in diameter or 4mm shorter radius at the brake pads.

If you want to use the 700C rims, this suggests you would need to lower the pivots if possible, get offset brake pad holders if available, or find new canti brake calipers set up for a 700C reach with the current pivots you have.
__________________
Italvega and Torpado Enthusiast
mech986 is offline
Likes For mech986:
Old 02-17-21, 03:52 AM
  #4
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,576

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada,Colnago

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 530 Times in 356 Posts
It looks like your pads are at their limit now. Not much chance of getting 700’s on there if those in the photo are 27”. I have a few bikes with 27” wheels and don’t mind them. Just roll with the wheels you have, with cantilever brakes it is quite a bit more involved to change the reach.
Kabuki12 is offline
Likes For Kabuki12:
Old 02-17-21, 04:25 AM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,006
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Likes: 0
Liked 336 Times in 216 Posts
Originally Posted by Kabuki12 View Post
It looks like your pads are at their limit now. Not much chance of getting 700’s on there if those in the photo are 27”. I have a few bikes with 27” wheels and don’t mind them. Just roll with the wheels you have, with cantilever brakes it is quite a bit more involved to change the reach.
There appears to be a normal bridge with a mounting hole, could just dump the cantis and use a side-pull or centre-pull; if the arms interfere with the posts use a side-pull mounted on the front of the stays.

Mount a rack to the old brake posts.

What's the situation up front?
oneclick is offline
Likes For oneclick:
Old 02-17-21, 06:02 AM
  #6
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 435

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 142 Times in 90 Posts
Also, older cantis that take pads with unthreaded posts will give you more wiggle room for this kind of adjustment. I've found DiaCompe 981 work well since they
(a) take old school unthreaded-post pads,
(b) have an ovalized slot to allow some pad movement up and down, and
(c) have a geometry that accommodates a "wider spread" set-up, which helps get the pads correctly aimed at the lower level.

Last edited by niliraga; 02-17-21 at 07:02 AM.
niliraga is offline
Likes For niliraga:
Old 02-17-21, 08:57 AM
  #7
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,292
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1454 Post(s)
Liked 272 Times in 200 Posts
Originally Posted by niliraga View Post
Also, older cantis that take pads with unthreaded posts will give you more wiggle room for this kind of adjustment. I've found DiaCompe 981 work well since they
(a) take old school unthreaded-post pads,
(b) have an ovalized slot to allow some pad movement up and down, and
(c) have a geometry that accommodates a "wider spread" set-up, which helps get the pads correctly aimed at the lower level.
I have 981s on my Voyageur so I'm well familiar with how awesome they are. But even with those brakes I'm not sure there's enough downward adjustment available.

Originally Posted by oneclick View Post
There appears to be a normal bridge with a mounting hole, could just dump the cantis and use a side-pull or centre-pull; if the arms interfere with the posts use a side-pull mounted on the front of the stays.
Mount a rack to the old brake posts.
What's the situation up front?
Interesting, I hadn't thought of that.
The front is normal, which is why the rear setup baffled me. I mean it sure looks like a 27" wheel to me.

Originally Posted by mech986 View Post
Is that a 27” rim there now? That would mean the canti’s pivot and design (brake pad contact) is right at the limit (by appearances) for the 27” rim (630mm diameter). The 700C rim is 622mm in diameter or 4mm shorter radius at the brake pads.
If you want to use the 700C rims, this suggests you would need to lower the pivots if possible, get offset brake pad holders if available, or find new canti brake calipers set up for a 700C reach with the current pivots you have.
It's for sale locally but I haven't looked at it yet. Pretty sure those are 27" wheels. I've asked the seller for more pictures. But if those rear brake pads can't be adjusted down to fit 700c wheels I'm out, I have zero use for 27" wheels.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Old 02-17-21, 12:28 PM
  #8
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 507
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 204 Times in 133 Posts
Are there any washers behind those brake shoes? If so get rid of the washers, that will allow the cantilevers to come in more. The way canti brakes are - the more they come in the more they angle downwards.
icemilkcoffee is offline
Old 02-17-21, 12:33 PM
  #9
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,470

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 1,048 Times in 719 Posts
Never used them, can't vouch for them but maybe someone has.

https://www.amazon.com/BOX-COMPONENT...66484527&psc=1
dedhed is offline
Old 02-17-21, 01:47 PM
  #10
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,057

Bikes: It's complicated.

Mentioned: 990 Post(s)
Tagged: 0 Thread(s)
Quoted: 3180 Post(s)
Liked 1,418 Times in 723 Posts
You might get a set of vinage MAFAC cantilevers to work. I've found the extra adjustability in them sometimes helps.

The major advantages of going to 700c are the larger selection of quality tires, higher quality (re: more expensive) availability, and wider ones more available than 27". If you want to keep your costs down, stick with 27"
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Likes For gugie:
Old 02-18-21, 10:34 PM
  #11
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,210

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 416 Post(s)
Liked 159 Times in 118 Posts
Are the drop outs vertical or horizontal?

I think those are the same shimano brakes I have on a 93 vintage bike. How many 27" bikes where sold in 93?.

Its hard to tell whats going on with a bike with history till you get a good look. I picked up a mechanic special with all sorts of eclectic parts. What i didnt pick up on was the 700c frame had a 27" fork and the front wheel is 700c and the rear 27". The front caliper is maxed out. Everything else on the bike is intentionaly funky, so I should get it rideable as is and give it a chance, incase the builder was on to something.

Last edited by bark_eater; 02-18-21 at 10:47 PM.
bark_eater is offline
Old 02-19-21, 12:31 AM
  #12
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 479

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Liked 152 Times in 95 Posts
I think the photo is somewhat illusory. When I zoom in it appears that the brake pad is actually rubbing the tire right now and adjusted all the way down in the slot. With 27” wheels this simply could not be the case. I think the brake pad is sitting farther from the rim than it appears. Those Cantis are likely open quite wide and we just don’t have the angle to view it properly. Just gonna have to look at this one in person.
