Old 03-02-21, 02:41 PM
  #51
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,410

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5458 Post(s)
Liked 2,323 Times in 1,500 Posts
Record hi flange hubs that date from the 60s are available on eBay. They're nice hubs and they'd look good on your bike. Personally I wouldn't lose any sleep on using parts from the 60s but the purists here would. I'm going to do a resto mod on a '58 Claud Butler with some newer parts that will look right on an old bike.
bikemig is offline
Old 03-02-21, 03:01 PM
  #52
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by bikemig View Post
Record hi flange hubs that date from the 60s are available on eBay. They're nice hubs and they'd look good on your bike. Personally I wouldn't lose any sleep on using parts from the 60s but the purists here would. I'm going to do a resto mod on a '58 Claud Butler with some newer parts that will look right on an old bike.
Thanks for that input.
As much as I can appreciate the "purist" perspective (which I'd be more ardent about if this were not to be a "rider") I'm all about functionality with perhaps some compromise in purity. I think if the aesthetics suit the build, I'm OK with being off by a half generation - especially on small things like hubs (for example, I will probably get a new Brooks or Berthoud saddle for it - I don't want some worn out, sweat-infused saddle from that era).

Said another way, I'd prefer period correct if I can find it in safe condition, but I'm not averse to getting something slightly out of the date range, as long as it fits aesthetically (is not obviously out of place).

Good stuff, folks! Keep the comments coming.
__________________
Bikes are fun
canyoneagle is offline
Likes For canyoneagle:
Old 03-02-21, 03:01 PM
  #53
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,247

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1891 Post(s)
Liked 2,686 Times in 1,173 Posts
Originally Posted by juvela View Post
-----

in one of member non-fixie 's outstanding trip reports there is an image from a swap meet held in conjunction with a vintage ride event he attended

on one of the tables is a memorable photo of a vendor's display. on the table there are trays of parts for quality three-piece hubs divided up into flanges, barrels and axle sets

suspect that member amirinisrael would be able to share with you some sage counsel on this subject...

-----
canyoneagle that is a really nice frame. I have looked at it a couple of times over the past few days, thinking my usual "Nice bike!" post would do it injustice. But I haven't come up with anything better, and since I am here now anyway:

Nice bike!

juvela you'll have to help me here. I am sure your memory is correct. However, I am also sure those hubs were not the main reason for taking that particular picture, so I haven't a clue where to look. Belgium? Italy? France?
__________________
Woo hoo!









non-fixie is offline
Old 03-02-21, 03:15 PM
  #54
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,247

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1891 Post(s)
Liked 2,686 Times in 1,173 Posts

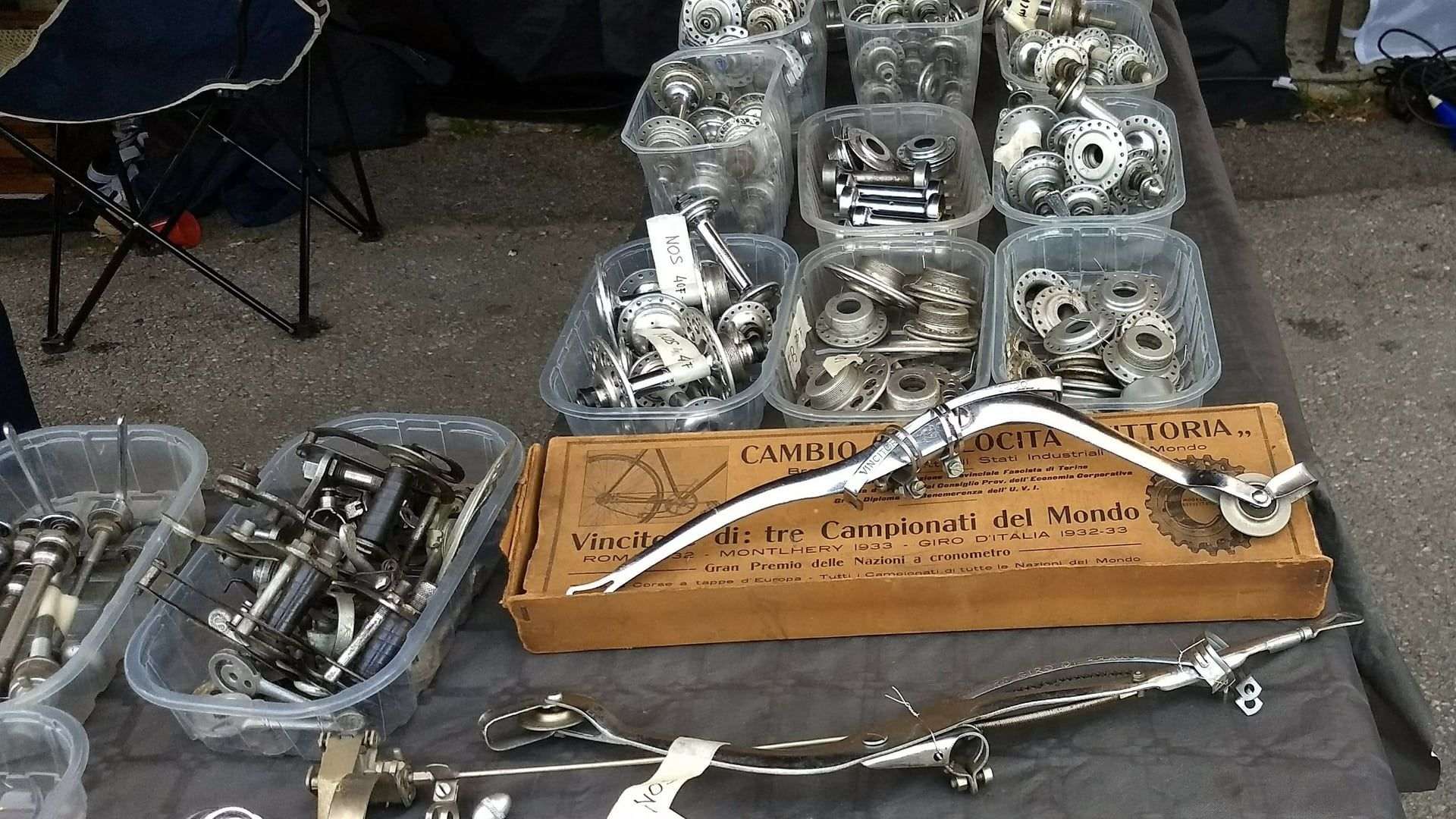

Ah! This one perhaps?

Taken at the swap meet in Gaiole in Chianti, October 2017.



I actually have been able to identify this trader, and they are on Facebook: Vitesse Vintage Lab.
__________________
Woo hoo!









non-fixie is offline
Old 03-02-21, 03:19 PM
  #55
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by non-fixie View Post
Ah! This one perhaps?

Taken at the swap meet in Gaiole in Chianti, October 2017.



I actually have been able to identify this trader, and they are on Facebook: Vitesse Vintage Lab.
WOW! Great resource. Thanks for the link!

I'm excited about this project.
__________________
Bikes are fun
canyoneagle is offline
Old 03-02-21, 03:28 PM
  #56
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by non-fixie View Post
canyoneagle that is a really nice frame. I have looked at it a couple of times over the past few days, thinking my usual "Nice bike!" post would do it injustice. But I haven't come up with anything better, and since I am here now anyway:

Nice bike!

juvela you'll have to help me here. I am sure your memory is correct. However, I am also sure those hubs were not the main reason for taking that particular picture, so I haven't a clue where to look. Belgium? Italy? France?
Haha, thanks!

I am grateful to have found this Super Corsa. I love the patina, and it looks to be in very good overall condition. The frame/drivetrain is still enroute from Torino, and I'll definitely post more pics once it arrives.

The Universal Mod.51 brakeset arrived yesterday, and looks to be in great shape overall, including what appears to be NOS or replacement hoods. The calipers do not appear to have any cracks, etc, but I'll definitely need to replace the pads.

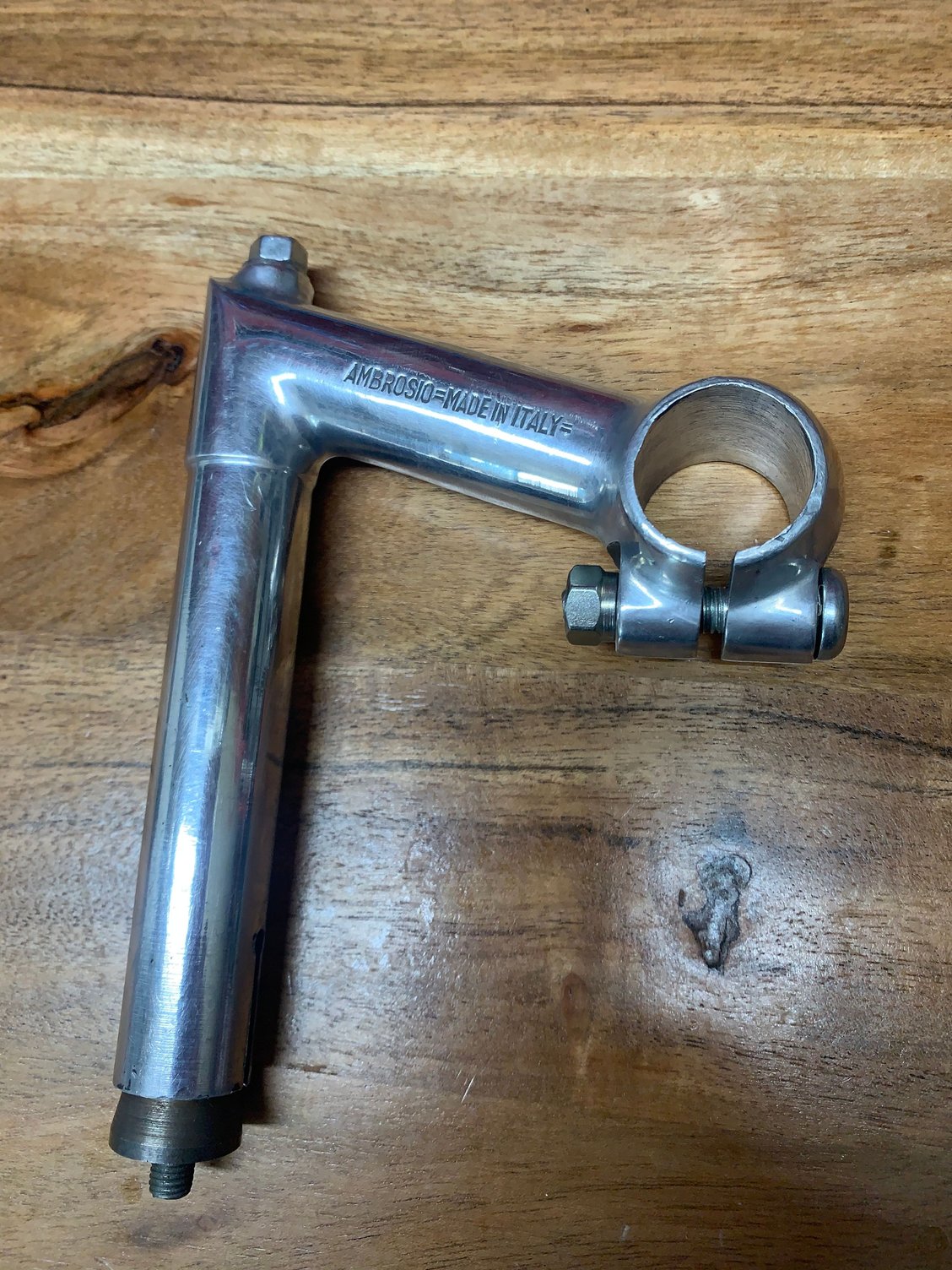

Bars also arrived yesterday (Ambrosio Champion) and the stem is enroute.

Bit by bit it is all coming together.
I'm eager to build up the wheels, but it looks like I need to keep my patience intact to get suitable hubs and rims.

I'm assuming wheels of this era utilized straight gauge spokes, correct?
__________________
Bikes are fun
canyoneagle is offline
Old 03-02-21, 04:16 PM
  #57
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,926
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2892 Post(s)
Liked 1,475 Times in 1,075 Posts
Originally Posted by non-fixie View Post
Ah! This one perhaps?

Taken at the swap meet in Gaiole in Chianti, October 2017.



I actually have been able to identify this trader, and they are on Facebook: Vitesse Vintage Lab.
-----



your photo so impressed me that an enthusiast would be taking apart three-piece hubs in order to offer the pieces separately that i immediately saved it to me HD

alas, most o' me files have become gone/lost/unsearchable in recent weeks. dunno if it are a case of being "eaten" by malware or some simple computer glitch...

so thanks again to taking the time to retrieve it!


-----

Last edited by juvela; 03-02-21 at 04:18 PM. Reason: spellin'
juvela is offline
Old 03-02-21, 08:01 PM
  #58
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,328
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 2,198 Times in 916 Posts
FB 3-piece low-flange hubs branded Frejus would be most appropriate.
iab is offline
Old 03-03-21, 08:02 AM
  #59
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,552
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2449 Post(s)
Liked 1,377 Times in 1,036 Posts
Originally Posted by non-fixie View Post
Ah! This one perhaps?

Taken at the swap meet in Gaiole in Chianti, October 2017.



I actually have been able to identify this trader, and they are on Facebook: Vitesse Vintage Lab.
Looking at those bins of hub parts brings to mind I have a few three piece hubs - one large flange as seen in the left- the lack of non drive side inset has me thinking how to lace it up for decent tension on that side. Long ago wheels built with hubs so configured were so low tension on the side.

with all those loose flanges, maybe I should look for a loose drive side large flange and build up a Hi-lo, those flanges are a handsome design.

finding Frejus stamped hubs is possible, but how long is one willing to take to assemble the parts?
repechage is offline
Old 03-03-21, 09:00 AM
  #60
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,328
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 2,198 Times in 916 Posts
Originally Posted by repechage View Post
how long is one willing to take to assemble the parts?
As long as it takes?
iab is offline
Old 03-03-21, 11:08 AM
  #61
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Iím thinking I may well plan to build a couple of wheelsets. The first being ďclose enoughĒ but not 100% period correct. This would be more of the non-event wheelset for getting the bike out on sunny days. The other would be the period-correct setup for events.
__________________
Bikes are fun
canyoneagle is offline
Likes For canyoneagle:
Old 03-03-21, 12:25 PM
  #62
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,247

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1891 Post(s)
Liked 2,686 Times in 1,173 Posts
I kinda like "non-event wheelsets". But that might be a definition thing.

Never mind.
__________________
Woo hoo!









non-fixie is offline
Old 03-03-21, 12:30 PM
  #63
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by non-fixie View Post
I kinda like "non-event wheelsets". But that might be a definition thing.

Never mind.
LOL! Yes
__________________
Bikes are fun
canyoneagle is offline
Old 03-06-21, 02:23 PM
  #64
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,926
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2892 Post(s)
Liked 1,475 Times in 1,075 Posts
-----

images of a L. Magistroni - Frejus marked chainset courtesy of Mark, creator of the https://www.condorino.com web site:





Mark writes that the L. Magistroni name came into use in 1946 with a reorganisation of the company by the Giostra family

earlier Magistroni products were marked simply Magistroni

the L. stands for Luigi


-----

Last edited by juvela; 03-06-21 at 02:27 PM. Reason: addition
juvela is offline
Old 03-07-21, 10:07 AM
  #65
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by juvela View Post
-----

images of a L. Magistroni - Frejus marked chainset courtesy of Mark, creator of the https://www.condorino.com web site:





Mark writes that the L. Magistroni name came into use in 1946 with a reorganisation of the company by the Giostra family

earlier Magistroni products were marked simply Magistroni

the L. stands for Luigi


-----
The knowledge in these forums is just awesome.
thanks for sharing this info.

The bike is in customs in NY now, so I should receive it this week.
I look forward to breaking it down and assessing condition, etc.

Out of curiosity, are these steel cottered cranks prone to any failures? Iíve read about a few instances where failure occurred where the cotter hole is.
Iím 6í2 and about 200 lbs at present, 185 when ďleanĒ.

Also, any thoughts on brake pads for the Universal 51ís? Can I source blocks for the holders, or just source the complete assembly?
__________________
Bikes are fun
canyoneagle is offline
Old 03-07-21, 10:27 AM
  #66
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,926
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2892 Post(s)
Liked 1,475 Times in 1,075 Posts
-----

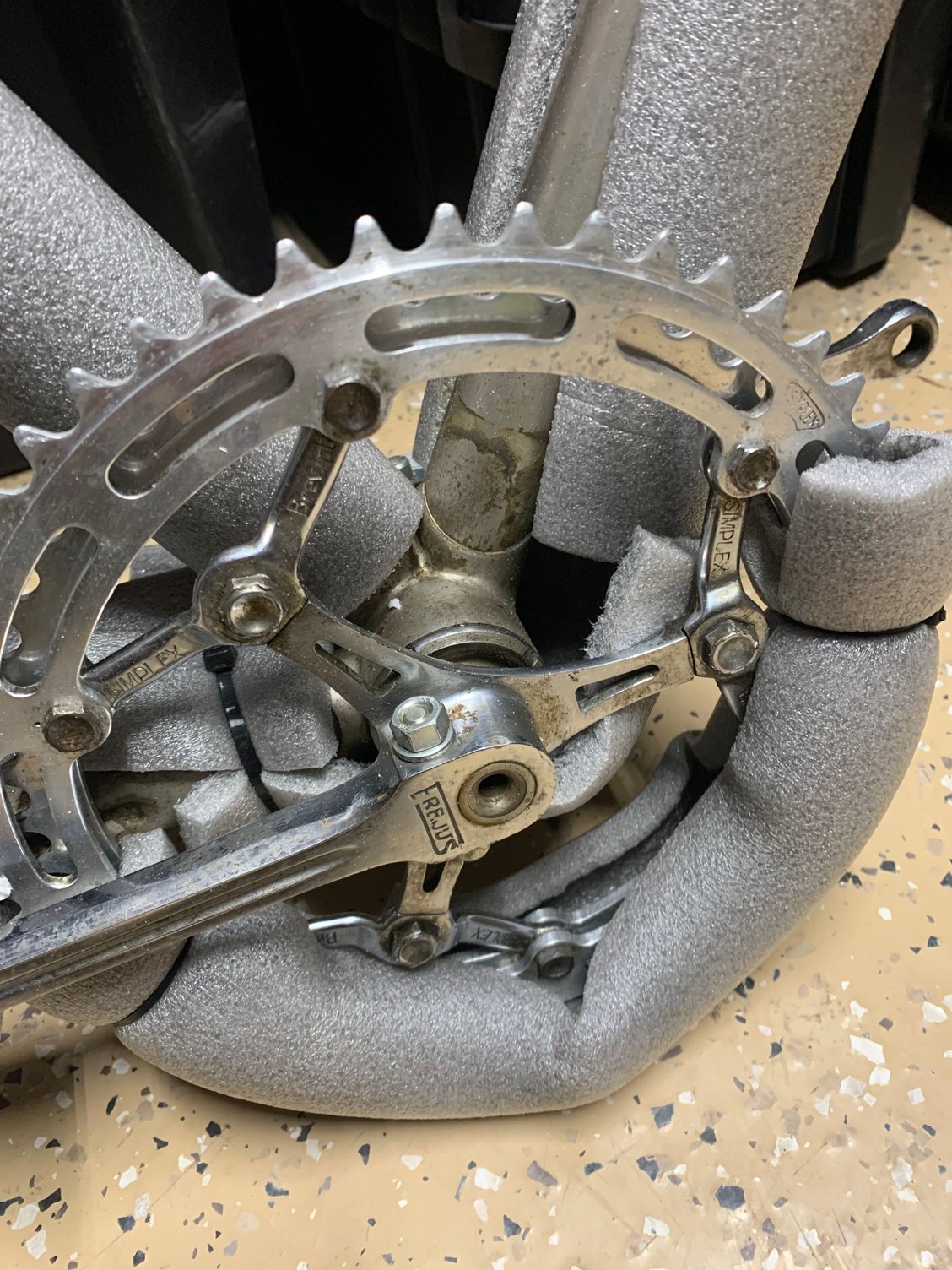

wrt chainset -

have not heard tell of failure you mention

the Y-adaptor pieces seen on the set in the photos were produced both in steel and in alloy

have seen failures in the alloy ones but not with the steel

iirc the Y-adaptors were produced by Simplex of Italy

Simplex had a plant in Italy at one time; do not know its years of operation

-----
juvela is offline
Old 03-07-21, 11:30 AM
  #67
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,328
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 2,198 Times in 916 Posts
Originally Posted by juvela View Post
Mark writes that the L. Magistroni name came into use in 1946 with a reorganisation of the company by the Giostra family

earlier Magistroni products were marked simply Magistroni

the L. stands for Luigi


-----
A small correction, L. Magistroni began in 1934. https://veloaficionado.com/blog/spec...troni-crankset

Also, prior to WW2, most OEMs did not carry their brand on what they produced. If Siamt made a crank for Frejus, it was marked Frejus. If Siamt made a "generic" crank, it carried no mark. I have been told that the Fascists had a law saying as such prior to WW2, but I do not have any definitive proof of this.
iab is offline
Likes For iab:
Old 03-08-21, 08:38 PM
  #68
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts

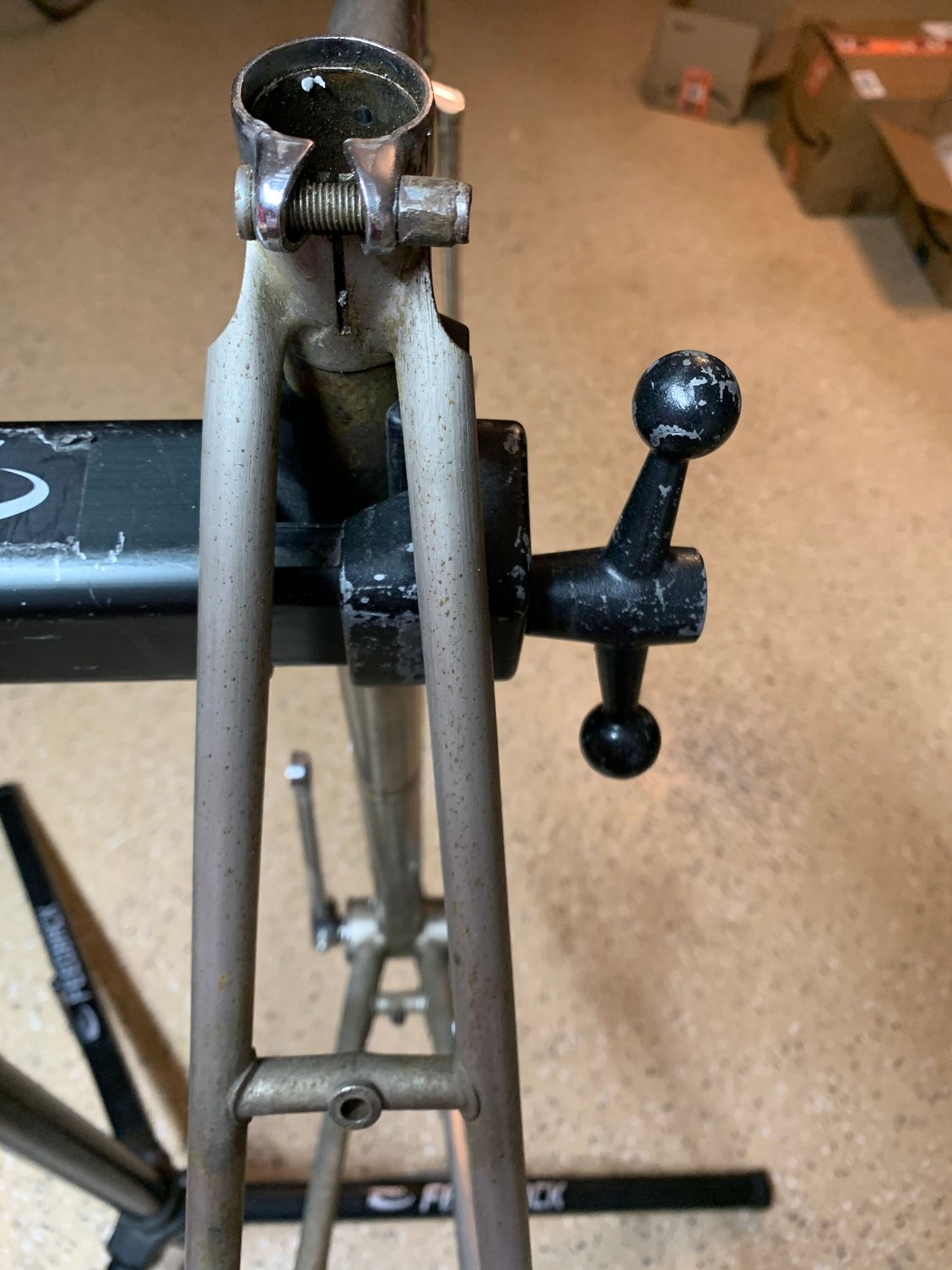

Arrival day

The bike arrived today, safe and in perfect condition.

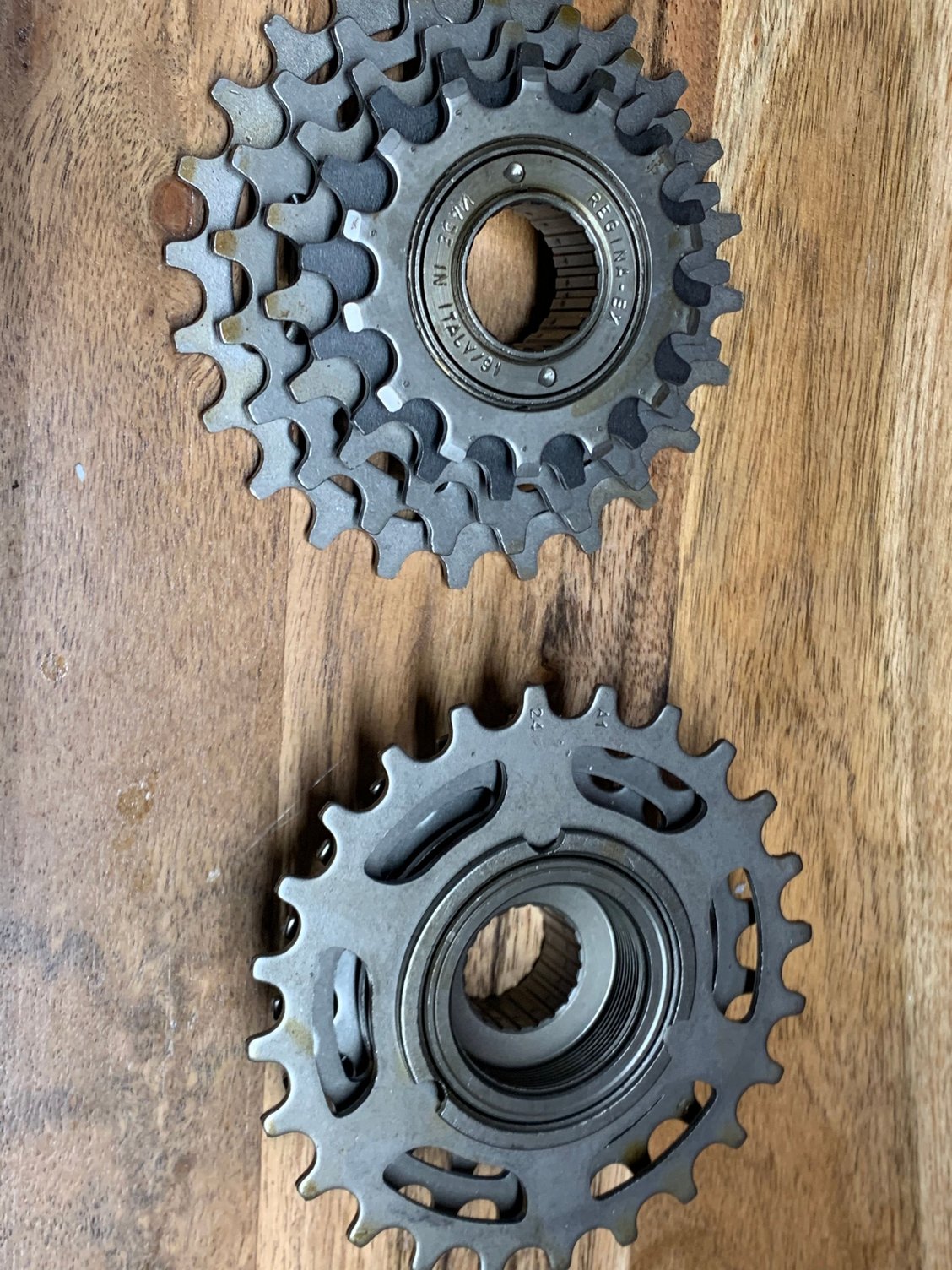

I also got a pair of NOS Regina BX 5 sp 14-24 freewheels with it. Good to have if I have trouble finding something from the 50ís.

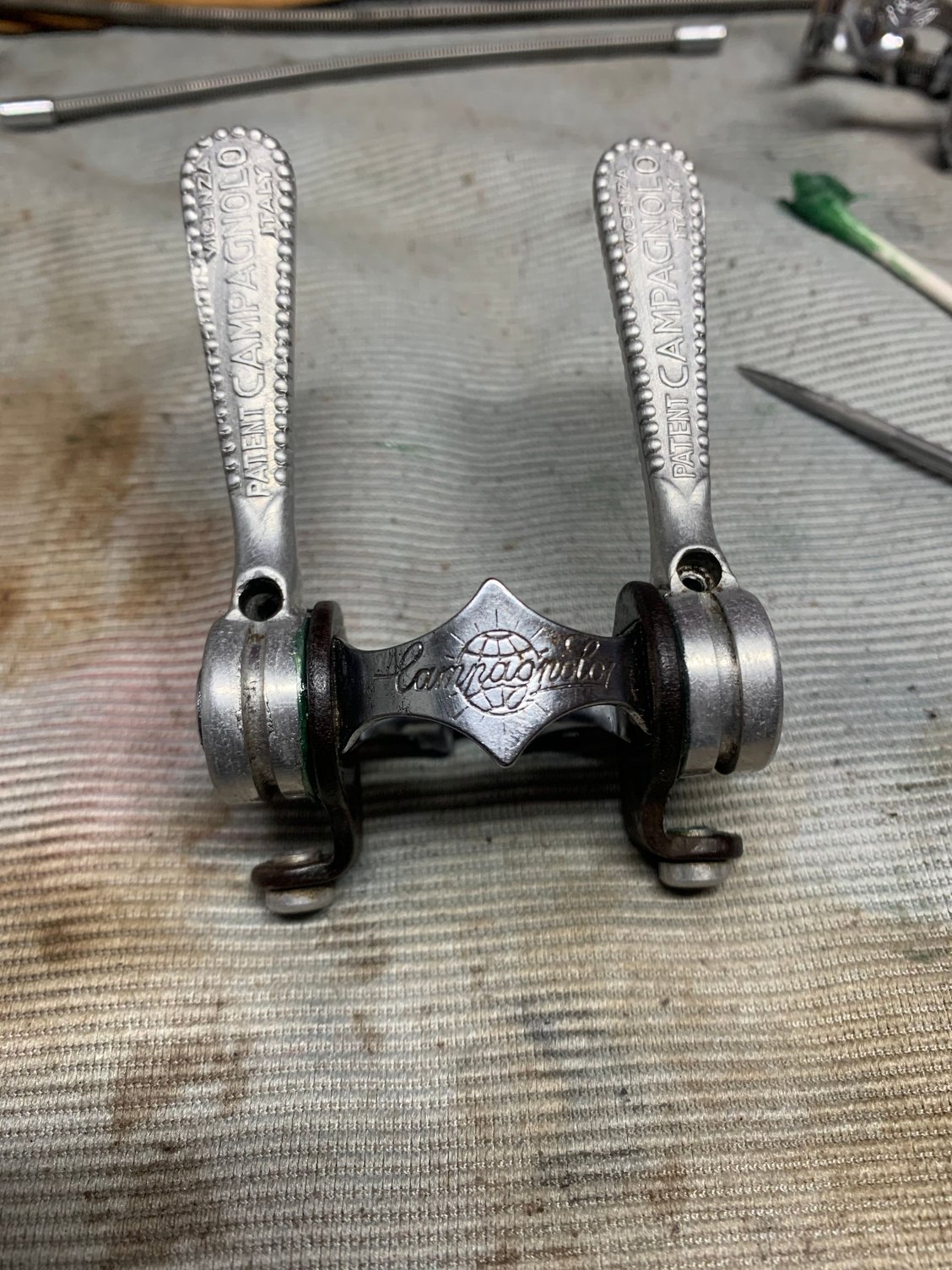

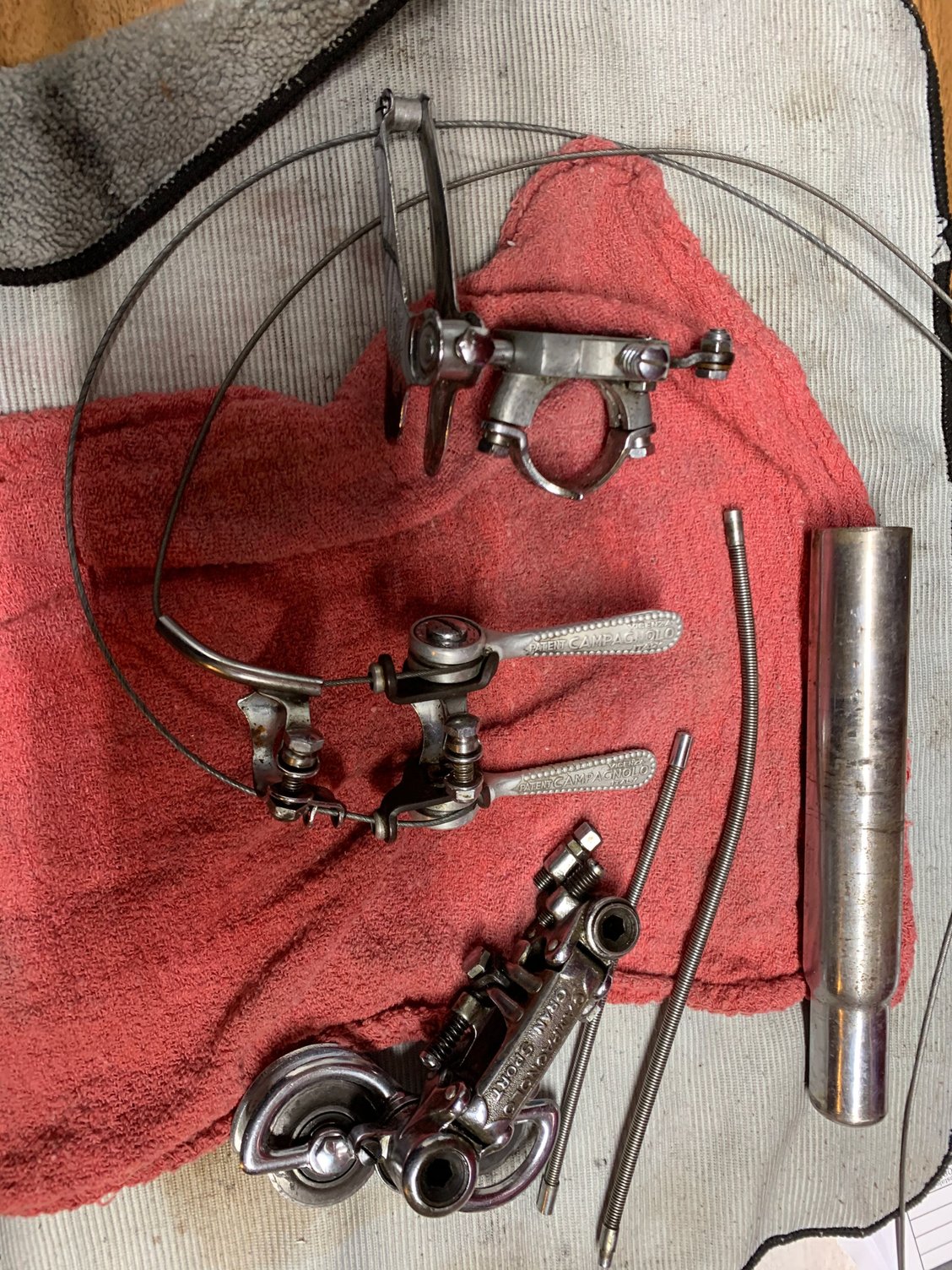

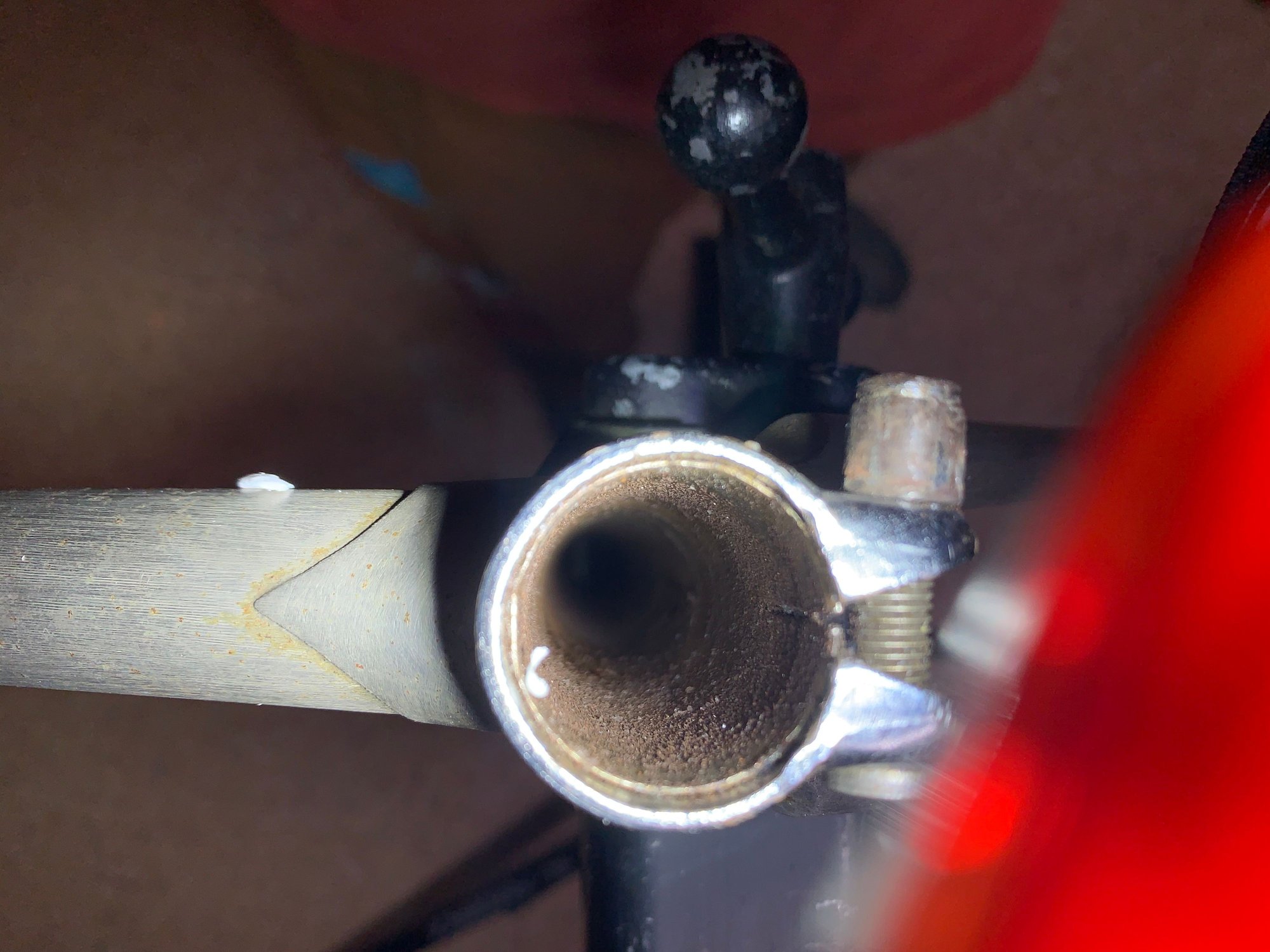

teasers:




__________________
Bikes are fun
canyoneagle is offline
Likes For canyoneagle:
Old 03-08-21, 11:37 PM
  #69
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
__________________
Bikes are fun
canyoneagle is offline
Old 03-09-21, 05:11 AM
  #70
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,926
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2892 Post(s)
Liked 1,475 Times in 1,075 Posts
-----

tip on working with the Campag fittings shown in above image

these band clamps have a narrow area which does all the bending if one pulls apart the "ears" for the bolt

when easing them onto or off of a frame tube try to get the wider part of the band to do some of the bending as well

otherwise they are only good for three or four mountings/removals before the bands fail at the narrow point...

-----
juvela is offline
Likes For juvela:
Old 03-10-21, 03:33 PM
  #71
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by juvela View Post
-----

tip on working with the Campag fittings shown in above image

these band clamps have a narrow area which does all the bending if one pulls apart the "ears" for the bolt

when easing them onto or off of a frame tube try to get the wider part of the band to do some of the bending as well

otherwise they are only good for three or four mountings/removals before the bands fail at the narrow point...

-----
Thanks for the info.
Sounds similar to the 70ís band shifters that I had many years ago, but Iíll be particularly careful with these.

The stem has landed in customs, ETA very soon.

Iím still chasing options for hubs and rims, as well as brake pads.

The frameset is beautiful - enough natural patina to have ďthe lookĒ, but no rust that I can see.

The cranks spin super smooth - good sign that the BB bearings and races are in good shape.
Iím assuming the BB is a standard cup/cone affair, but feel free to chime in with any tips or tricks on the process. Itís been 40 years since Iíve dealt with cottered cranks, and this bike is more than 10 years older than anything Iíve wrenched on.
__________________
Bikes are fun
canyoneagle is offline
Old 03-10-21, 10:59 PM
  #72
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Photos as shipped

Here are some baseline shots of the frameset as received. Overall, it looks like it is in great condition.
the seat tube looks like it has a greasy/dirty coating for most of its length - way better than rust 😜









canyoneagle is offline
Likes For canyoneagle:
Old 03-11-21, 04:03 PM
  #73
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Stem arrived today



__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 05:53 PM
  #74
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Cleaning...


__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 06:08 PM
  #75
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Rebuilt. Fresh grease (Phil Wood, of course). Smooth.


__________________
Bikes are fun
canyoneagle is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
