Go Back  Bike Forums > Bike Forums > Classic & Vintage
Reload this Page >

1950's Frejus project thread - heavy patina content

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1950's Frejus project thread - heavy patina content

Old 03-11-21, 06:15 PM
  #76
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Any tips/tricks/pitfalls to share before I break this matchbox apart?


__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 06:34 PM
  #77
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts

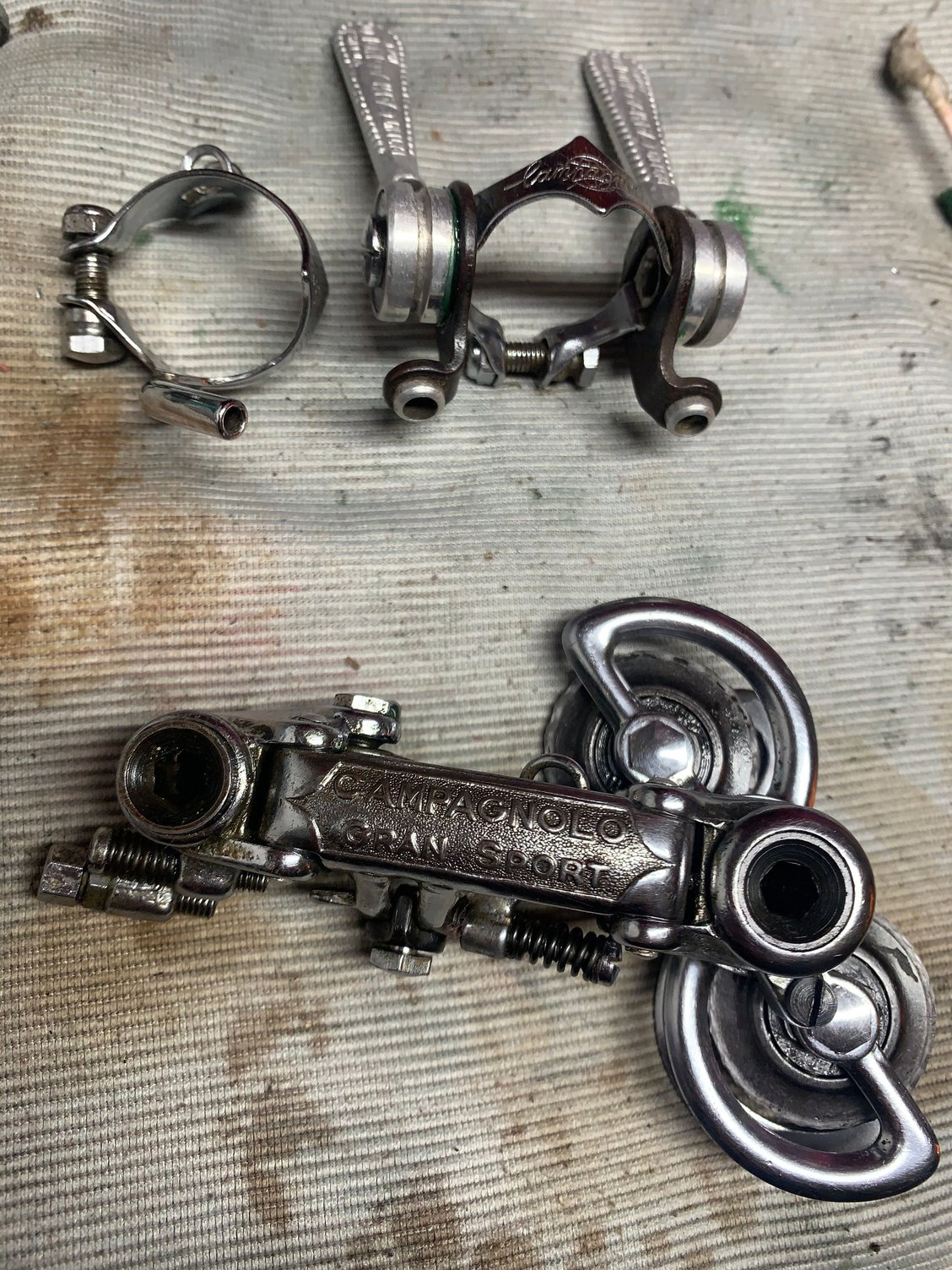

Looks like basic refurbishment is sufficient


__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 06:49 PM
  #78
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts

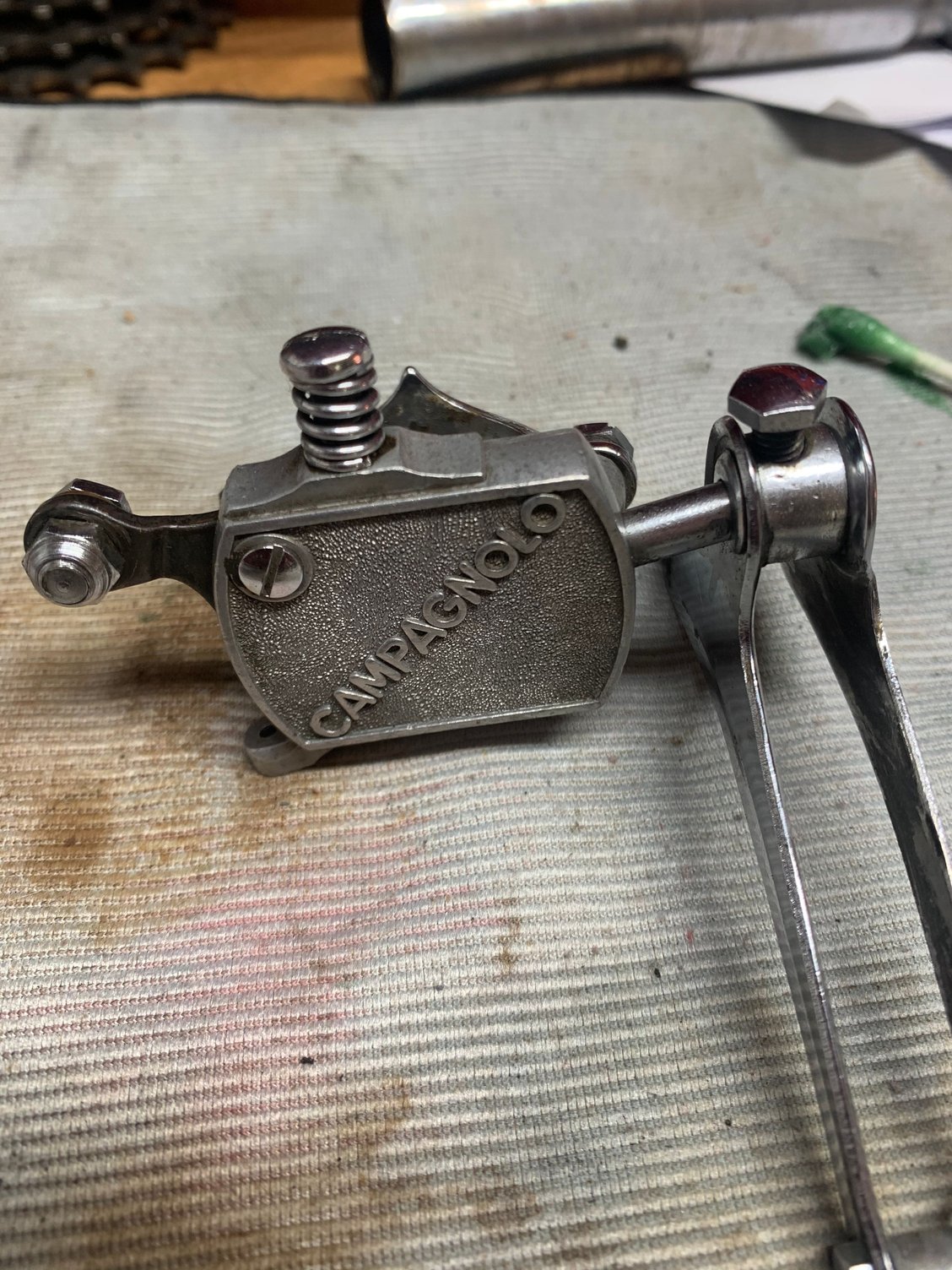

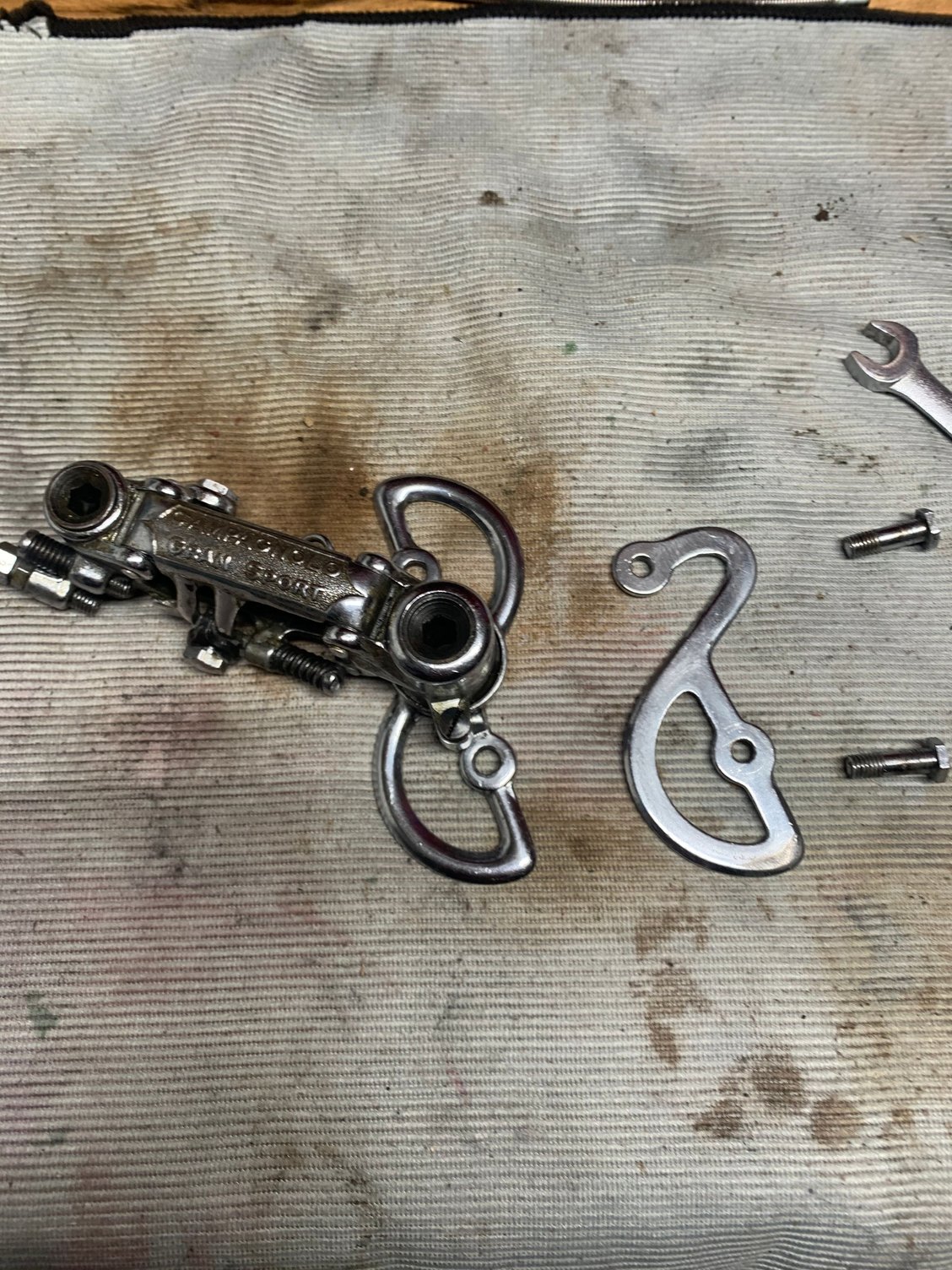

RD time....

soaking pulleys.



__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 07:02 PM
  #79
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Ready for action


__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 07:48 PM
  #80
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,429

Bikes: are fun!

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 456 Post(s)
Liked 775 Times in 252 Posts
Gorgeous, looking forward to more. Enjoy, and don’t skimp on the pics please!
Sir_Name is offline
Old 03-11-21, 07:54 PM
  #81
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by Sir_Name View Post
Gorgeous, looking forward to more. Enjoy, and donít skimp on the pics please!
😎

doing what I can.

currently working on removing the crank to assess the BB.

cotter ready. Just need to set a base to avoid stress on the frame.


__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 08:21 PM
  #82
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts

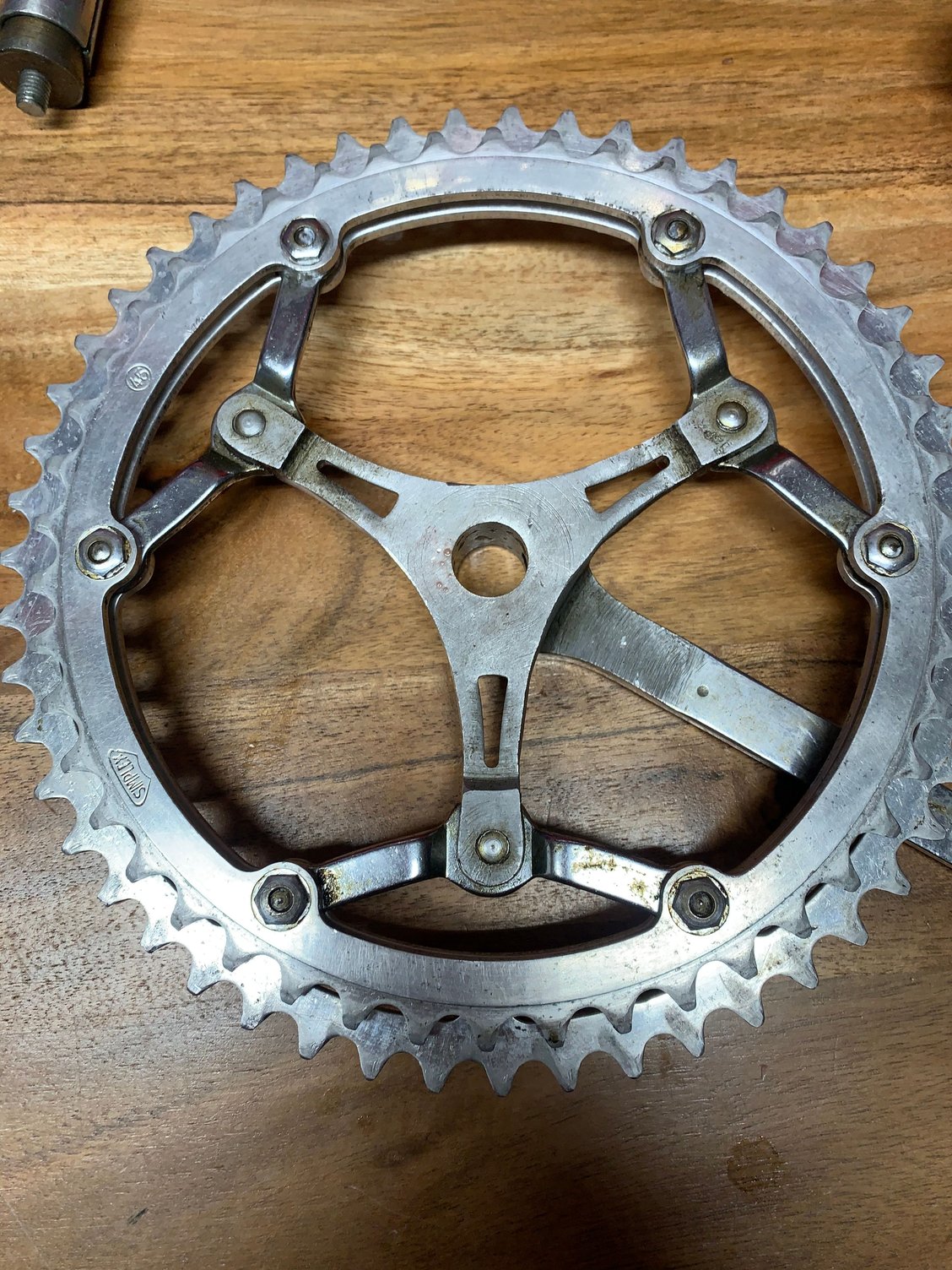

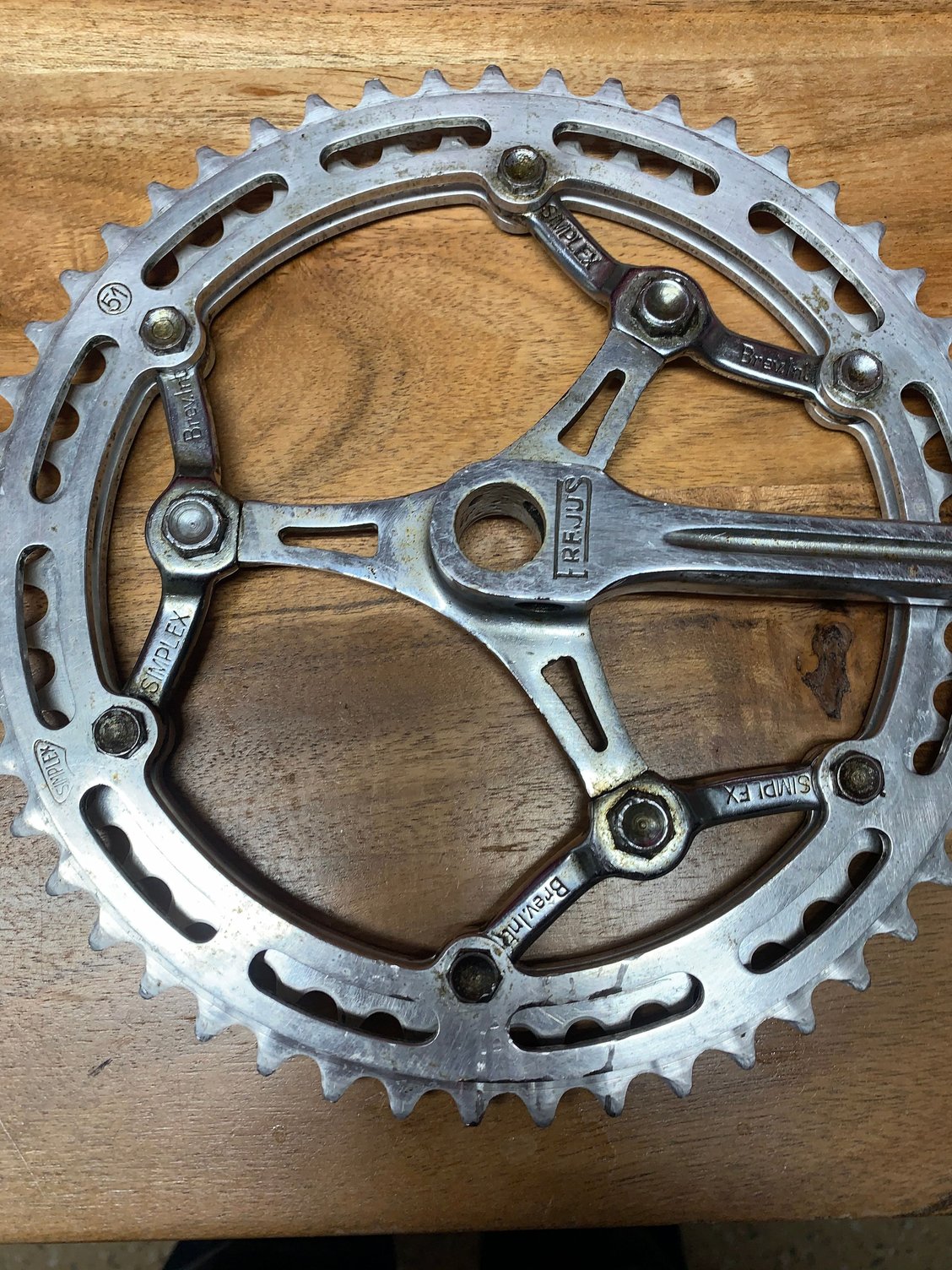

46/51 chainrings



__________________
Bikes are fun
canyoneagle is offline
Old 03-11-21, 09:42 PM
  #83
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Iíd like to replace the cotter pins.
any thoughts on sources?
__________________
Bikes are fun
canyoneagle is offline
Old 03-12-21, 07:39 AM
  #84
beech333
Fuji Fan

beech333's Avatar

Join Date: Mar 2009
Location: Oswego, Il
Posts: 1,777

Bikes: Was Fuji and got my grails (Pro, Pro SR, Design Series, & Ti). Now I hunt 50's and older road bikes.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 48 Times in 41 Posts
I imagine you can find some on Ebay.

Maybe Francophile. I think I saw a post that he had a ton of them, but not sure what sizes.

There is also BikeSmithDesign. I think he was selling them a few years ago.

BTW, I would make sure you have a few spares. The first one I installed broke on the first ride. I'll keep a spare in my bag from now on.
beech333 is offline
Old 03-12-21, 08:27 AM
  #85
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by beech333 View Post
I imagine you can find some on Ebay.

Maybe Francophile. I think I saw a post that he had a ton of them, but not sure what sizes.

There is also BikeSmithDesign. I think he was selling them a few years ago.

BTW, I would make sure you have a few spares. The first one I installed broke on the first ride. I'll keep a spare in my bag from now on.
Great recommendations! Thank you.
__________________
Bikes are fun
canyoneagle is offline
Old 03-13-21, 08:45 PM
  #86
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Rear dropout alignment is good

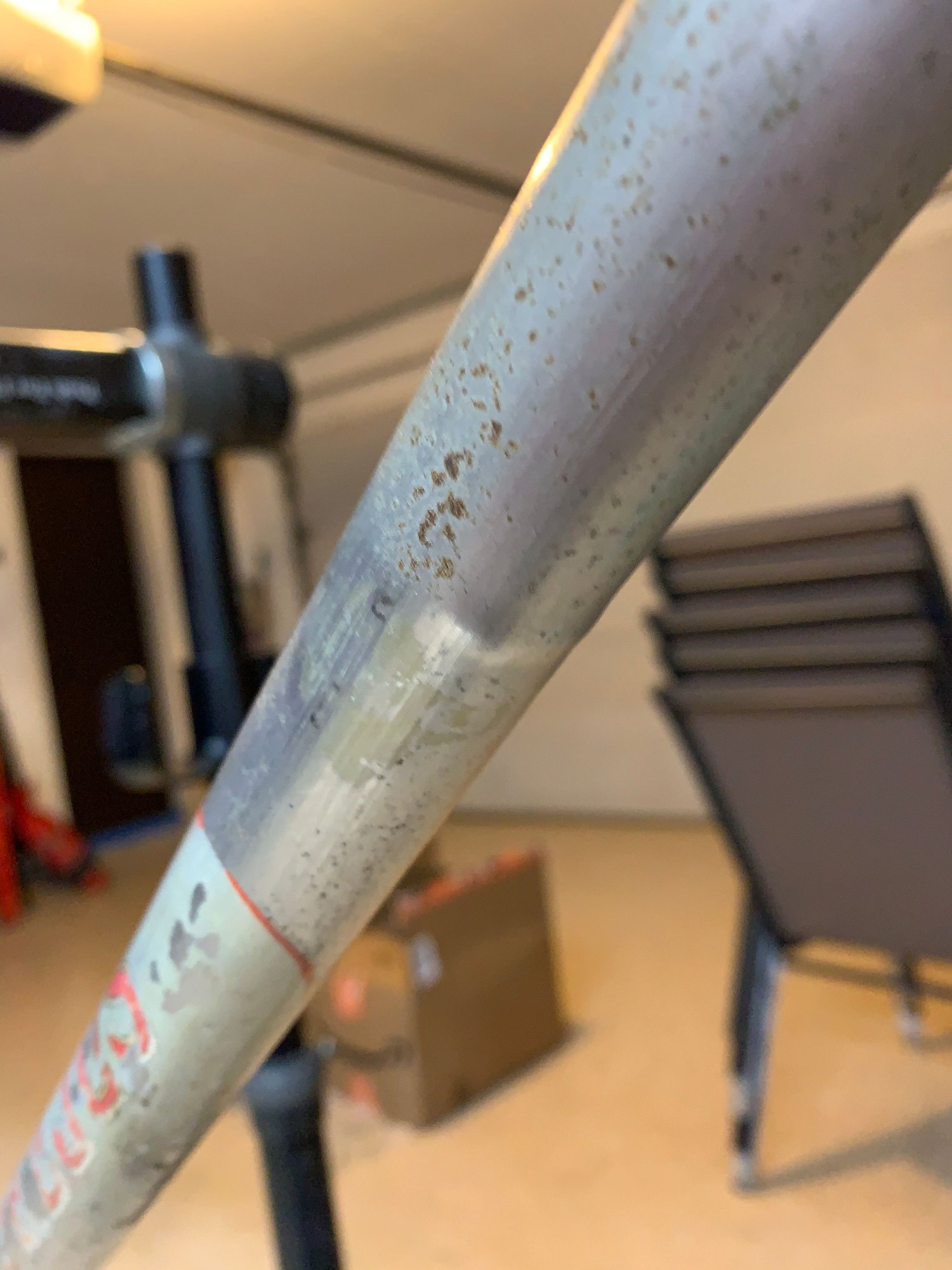

There is a slight crimp in the downtube. Not sure if this will need to be addressed/corrected. Thoughts?



Last edited by canyoneagle; 03-13-21 at 10:10 PM.
canyoneagle is offline
Old 03-13-21, 10:09 PM
  #87
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts

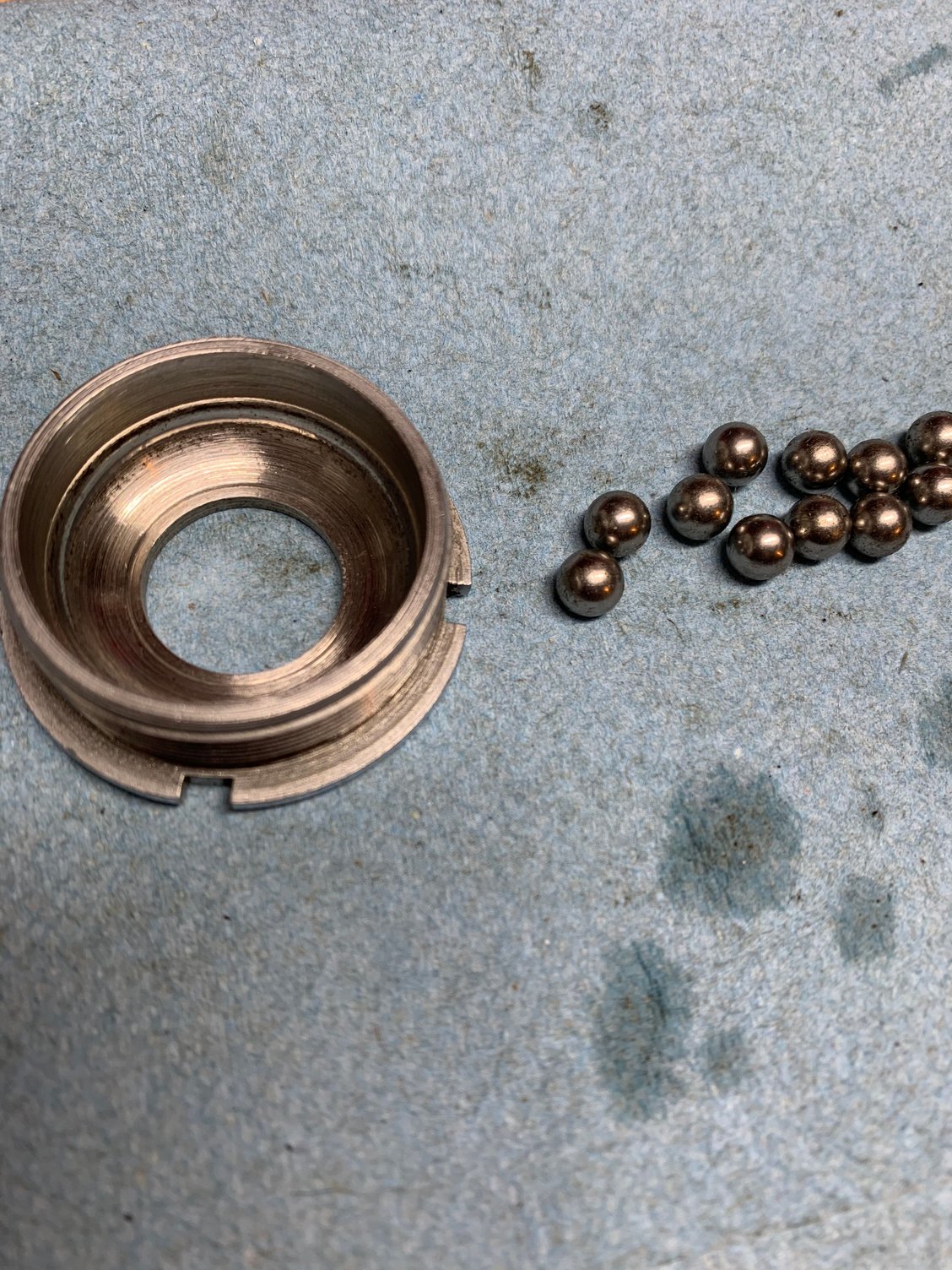

Drive side BB looks good.
still trying to get the NDS cotter out....



__________________
Bikes are fun
canyoneagle is offline
Old 03-13-21, 11:10 PM
  #88
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,469

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3251 Post(s)
Liked 3,136 Times in 1,962 Posts
Originally Posted by canyoneagle View Post
Drive side BB looks good.
still trying to get the NDS cotter out....



I would encourage you to sideline that clamp, it is not stout enough and never was. That being said, I am not sure what to do/use from here. Any body you know have an air hammer? I would make a backstop out of some plate aluminum or steel to go in between the arm and the BB so you can get after it without damaging anything else more. You need a better backstop for the arm and pin, maybe an impact socket and aluminum washer to protect the arm in a vise, then cut off the crooked thread part and use an air hammer or stout punch. Its going to take a serious, straight, short, sharp whack to knock it loose at this point. You could also look up the Pitman arm puller hack or find a Bikesmith cotter tool. At any rate, I would stop where your at, the cotter is being jammed even more with every misguided force.
merziac is offline
Old 03-14-21, 10:17 AM
  #89
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
merziac youíre not joking. That pin ainít moving.

I was able to remove the NDS BB cup, so the spindle/crank are out.

Taking my time on this one....
__________________
Bikes are fun
canyoneagle is offline
Likes For canyoneagle:
Old 03-14-21, 01:45 PM
  #90
1 Lugnut
Senior Member

1 Lugnut's Avatar

Join Date: May 2005
Location: S.F. Bay Area
Posts: 575

Bikes: Motobecane Grand Record, Colnago Super, Mondia Super, Mondia Special, Mondia Prestige (for sale 55cm),Titan Star, Titan Exklusiv, Windsor

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 101 Times in 51 Posts
Could you not:
1 hack saw off the mushroomed tip,
2 soak it for a few days; wd40, liquid wrench, pb blaster...etc
3 clamp tight in vice (I glued leather strips to mine)
4 try pounding it out w/ good drift
1 Lugnut is offline
Old 03-14-21, 04:25 PM
  #91
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,469

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3251 Post(s)
Liked 3,136 Times in 1,962 Posts
Originally Posted by canyoneagle View Post
merziac youíre not joking. That pin ainít moving.

I was able to remove the NDS BB cup, so the spindle/crank are out.

Taking my time on this one....
You're over halfway there then, whatever you do make sure you have a softer backstop for the arm, you should be able to over power it at the vise now.

Patience is key.
merziac is offline
Old 03-16-21, 01:44 PM
  #92
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by merziac View Post
You're over halfway there then, whatever you do make sure you have a softer backstop for the arm, you should be able to over power it at the vise now.

Patience is key.
Yup!
I've drilled the threaded portion to get it out of the way, and am soaking the pin. I've sent an e-mail to Bikesmith Design to get replacement cotters and a press. The vintage Park presses are double what his press sells for.

On another note, I'm concerned about the crimp in the down tube (just above where the shifters will mount). I've felt it, and the deformation is apparent for about 2/3 of the circumference. No cracks are apparent, so (in theory) it may be fine.
Do I need to consider replacing the down tube, or should I build and ride it before deciding?

From what I can tell, this frame is relatively free of rust - only slight oxidation of the surface here and there.

I'd be interested in treating the frame - open to suggestions for solvents to get the insides in good order. Again, mild oxidation seems to be the status - no obvious rust.

__________________
Bikes are fun
canyoneagle is offline
Old 03-16-21, 02:46 PM
  #93
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,713
Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 951 Post(s)
Liked 525 Times in 296 Posts
Originally Posted by canyoneagle View Post
Yup!
I've drilled the threaded portion to get it out of the way, and am soaking the pin. I've sent an e-mail to Bikesmith Design to get replacement cotters and a press. The vintage Park presses are double what his press sells for.

On another note, I'm concerned about the crimp in the down tube (just above where the shifters will mount). I've felt it, and the deformation is apparent for about 2/3 of the circumference. No cracks are apparent, so (in theory) it may be fine.
Do I need to consider replacing the down tube, or should I build and ride it before deciding?

From what I can tell, this frame is relatively free of rust - only slight oxidation of the surface here and there.

I'd be interested in treating the frame - open to suggestions for solvents to get the insides in good order. Again, mild oxidation seems to be the status - no obvious rust.

I would make an oxalic acid bath for it, then polish and wax. I'll find the link for it.

Here it is

My Oxalic Acid OA Bathtub
Narhay is offline
Old 03-16-21, 02:50 PM
  #94
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Originally Posted by Narhay View Post
I would make an oxalic acid bath for it, then polish and wax. I'll find the link for it.

Here it is

My Oxalic Acid OA Bathtub
Thank you!
__________________
Bikes are fun
canyoneagle is offline
Old 03-16-21, 03:37 PM
  #95
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,469

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3251 Post(s)
Liked 3,136 Times in 1,962 Posts
@canyoneagle

There will surely be other opinions, I would find a proper frame builder and see if they think it could be rolled out or filled and smoothed. I don't think there is any danger here, I may be wrong but replacing the tube would be a very last resort for me. I would build it up and see how it rides as is and go from there.
merziac is offline
Old 03-19-21, 09:48 PM
  #96
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Cleaning in progress...

Really beautiful frame.

refurbished rear screws back in place, mild wire brush/000 steel wool plus discretionary focused cleaning...




canyoneagle is offline
Old 03-20-21, 06:53 AM
  #97
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,325
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,198 Times in 916 Posts
First, is that a tubing stamp on the seat tube just above the BB?

Also, fyi, in case you still only have the one bar plug - https://www.ebay.it/itm/Frejus-eroic...sAAOSws5xgVPF1
iab is offline
Likes For iab:
Old 03-20-21, 08:59 AM
  #98
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
Originally Posted by canyoneagle View Post
Iíd like to replace the cotter pins.
any thoughts on sources?
-----

had been meaning to post on this prior to your query...

replacement wedgebolts from a mechanical perspective are easy

chainset takes 9.0mm diameter pins with a "medium" cut

no problem to locate

from a historical/restoration perspective it is another matter

wedgebolts on fine italian machines such at this of the era were very nicely finished
they were highly polished before chrome plating
the very finest ones exhibit counterbored heads
nuts are of a two-piece design
anodised alloy discs are crimped into the top of a false-acorn turning it into an acorn
the most common colour for the anodsing is blue, red can also be encountered
the discs sometimes show a letter corresponding to the marque of the cycle

this image courtesy of the condorino.com site shows a counterbored wedgebolt on a Legnano Gran Premio of 1958, chainset is Way-Assauto -



locating crank cotters of this calibre in good nick may be a bit of a challenge...

---

bottom bracket fittings -

here is a high quality Magistroni set from this era; image courtesy of condorino.com



---

pedals -

evidently not included with your purchase?

since chainset is Magistroni it is likely that pedals would have been from Noli-Cattaneo, Sheffield brand

one plausible model would be Sprint ref. 673:





Bozzi also made extensive use of Way-Assauto pedals, these are most commonly encountered paired with W-A chainsets

---

tubing -

credit the sharp eye of iab

here is a clearer view of the Falck emblem:


-----
juvela is offline
Old 03-20-21, 09:15 AM
  #99
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,325
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,198 Times in 916 Posts
Originally Posted by juvela View Post

here is a high quality Magistroni set from this era; image courtesy of condorino.com
Actually, that high quality Magistroni set, the image is courtesy of me. You're welcome.

https://www.flickr.com/photos/681231...7628395983637/
iab is offline
Likes For iab:
Old 03-20-21, 03:32 PM
  #100
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,325
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,198 Times in 916 Posts
Originally Posted by juvela View Post

pedals -

evidently not included with your purchase?

since chainset is Magistroni it is likely that pedals would have been from Noli-Cattaneo, Sheffield brand

one plausible model would be Sprint ref. 673:
I believe, and certainly not certain about it, that Frejus used a company called Ucco out of Torino as a pedal supplier. Not to say Frejus or any other manufacturer for that matter, relied on any one supplier. And supply chains certainly changed after the war. But while production was in Torino, makes sense to use Torinese suppliers.

Pedal from a 1948 Frejus Sport I once owned. You can see the Frejus stamp.

1948 Frejus 031 by iabisdb, on Flickr


Nearly identical, no ribbing on the dust cap, NIB Ucco Torino pedals I once owned.

Ucco Torino Pedals 1 by iabisdb, on Flickr
iab is offline
Likes For iab:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
