XT rd tension

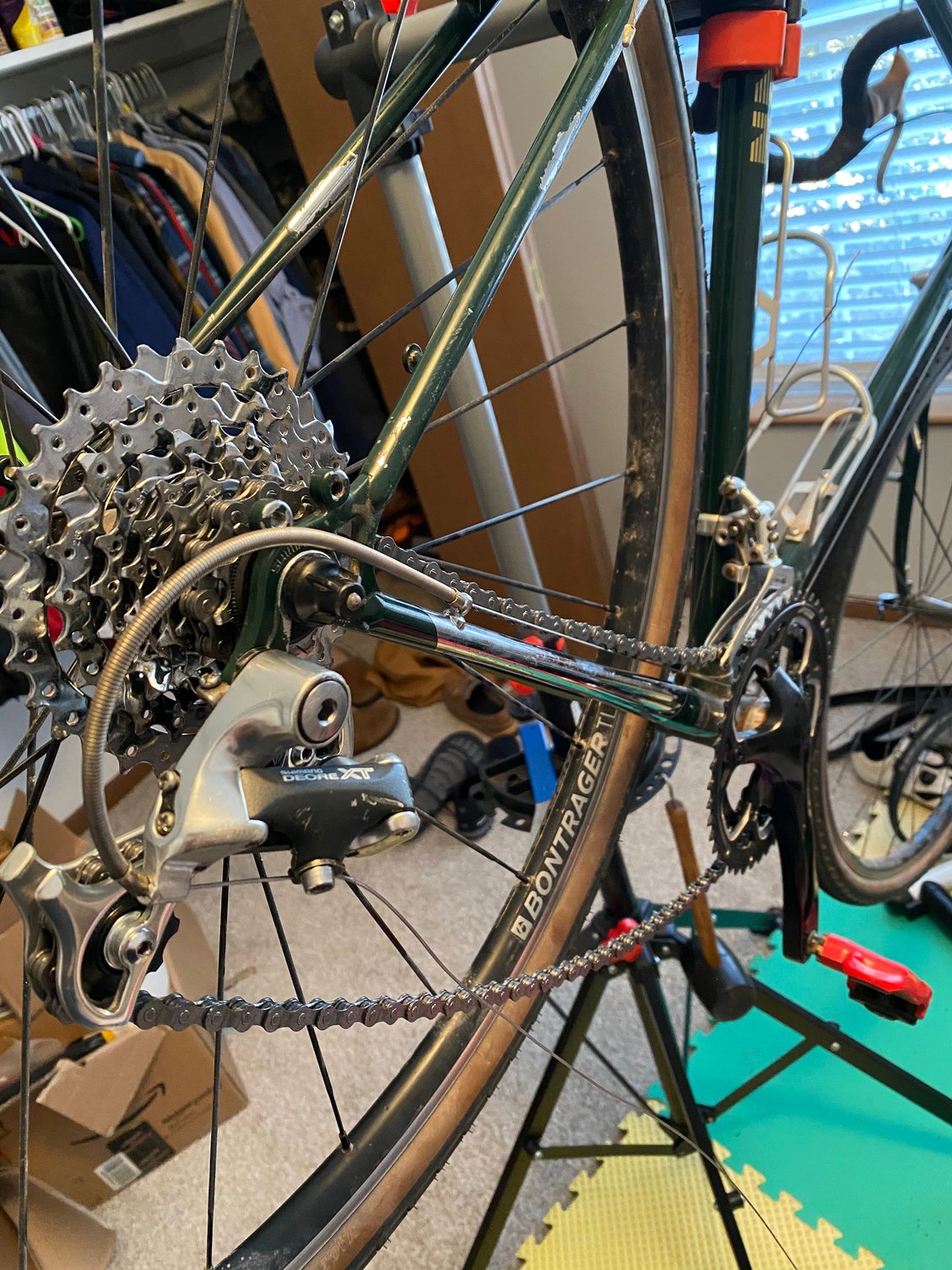

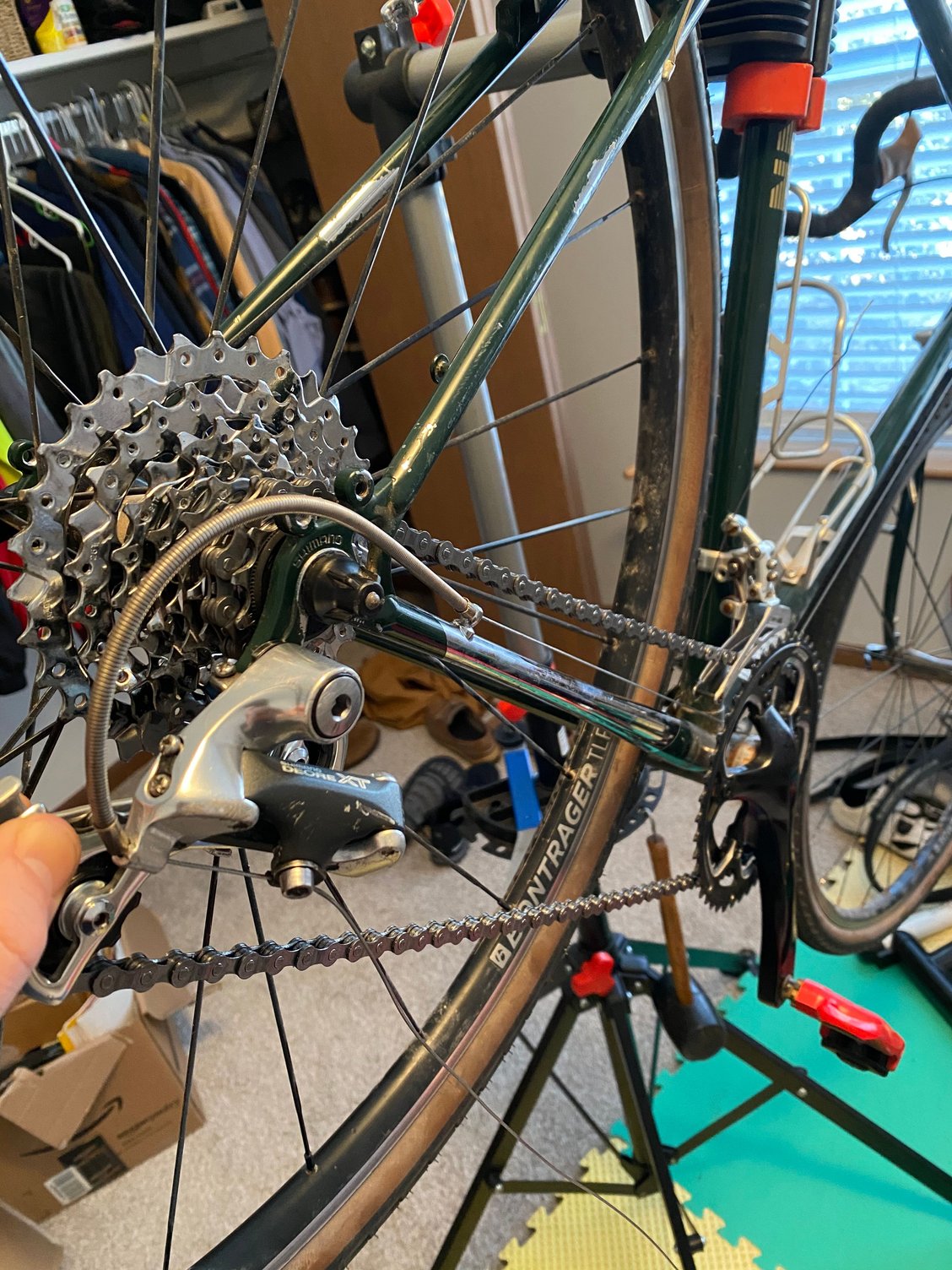

Hey all - is there any way to increase the cage’s spring tension? The chain is sized correctly but it sits on the cable in the lower cogs because the rd can’t keep it taut. I'm pretty sure it's the b-tension spring and not the cage itself.

__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird

Last edited by shoota; 03-01-21 at 10:57 AM.
shoota is online now
Old 03-01-21, 11:18 AM
  #2
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,677

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 937 Post(s)
Liked 476 Times in 337 Posts
I don't have one right here, but this video may help.
curbtender is offline
Old 03-01-21, 11:30 AM
  #3
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,917

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1044 Post(s)
Liked 472 Times in 336 Posts
It is not unheard of for either spring to break, if perhaps you noticed a sudden loss of chain tension(?).
dddd is offline
Old 03-01-21, 11:32 AM
  #4
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,243

Bikes: are fun!

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 299 Times in 128 Posts
I doubt it from the pic, but have you exceeded the RD capacity? Probably fine, especially if thatís a double, but worth confirming as a first step. How did you size the chain?
Sir_Name is online now
Old 03-01-21, 11:43 AM
  #5
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 202

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 78 Times in 36 Posts
And here's the corresponding RJ video for the pivot bolt/spring:
panzerwagon is offline
Old 03-01-21, 12:06 PM
  #6
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,328

Bikes: Lots. Just...lots.

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 1471 Post(s)
Liked 712 Times in 360 Posts
Other question not related to chain length- is the RD cable adjuster missing or broken?
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 03-01-21, 12:41 PM
  #7
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,277
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1445 Post(s)
Liked 268 Times in 198 Posts
Originally Posted by curbtender View Post
I don't have one right here, but this video may help. https://youtu.be/1sZS49JmXK0
I saw that too and don't think that's it.

Originally Posted by dddd View Post
It is not unheard of for either spring to break, if perhaps you noticed a sudden loss of chain tension(?).
Nope. New rd to me anyway so nothing to go off of with this one.

Originally Posted by Sir_Name View Post
I doubt it from the pic, but have you exceeded the RD capacity? Probably fine, especially if thatís a double, but worth confirming as a first step. How did you size the chain?
Nope, all good on capacity. I sized like Shimano suggests: big/big + 2 links. Chain length looks spot on.

Originally Posted by panzerwagon View Post
And here's the corresponding RJ video for the pivot bolt/spring: https://www.youtube.com/watch?v=bgiNuJNynMc
That's awesome for seeing how the parts are put together. I'm not too hopeful that's the fix for this rd though, I think the spring is just worn. I think this might be a good solution though:
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is online now
Old 03-01-21, 12:41 PM
  #8
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,277
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1445 Post(s)
Liked 268 Times in 198 Posts
Originally Posted by rccardr View Post
Other question not related to chain length- is the RD cable adjuster missing or broken?
Missing but en route. Doesn't affecting shifting though
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is online now
Old 03-01-21, 12:59 PM
  #9
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,502
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
Liked 203 Times in 145 Posts
You could try flipping the B screw around so that it screws in from the "inside" and the screw head rests on the B screw stop on the der. hanger. It would give you a little extra kick back on the der. Maybe not enough to make up for all that chain slack though.
tricky is offline
Likes For tricky:
Old 03-01-21, 01:06 PM
  #10
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 1,763

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Hiawatha 3sp | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 494 Times in 268 Posts
That derailleur looks like it has a short cage, which was uncommon for that model. If it were replaced, maybe the spring tension wasn't set properly.

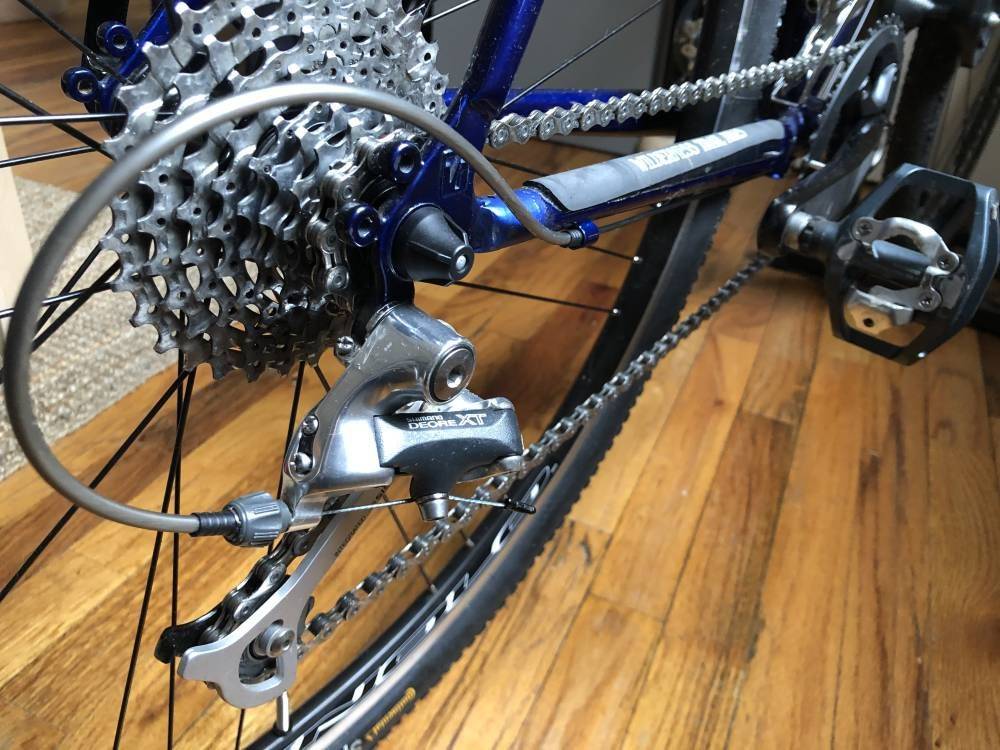

FWIW, here is my M737 in small/small; your chain looks long but its hard to see; a pic of big ring/big cog should be clearer.

DorkDisk is offline
Old 03-01-21, 01:18 PM
  #11
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,277
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1445 Post(s)
Liked 268 Times in 198 Posts
Originally Posted by DorkDisk View Post
That derailleur looks like it has a short cage, which was uncommon for that model. If it were replaced, maybe the spring tension wasn't set properly.

FWIW, here is my M737 in small/small; your chain looks long but its hard to see; a pic of big ring/big cog should be clearer.

Yeah that's definitely what the chain is supposed to look like.

It took me a minute but I figured out why my RD looks different, it's because it has an XTR GS cage installed on it. It's not a short cage though. It has "Max 32T, Total 33T" printed on it.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird

Last edited by shoota; 03-01-21 at 01:25 PM.
shoota is online now
Old 03-01-21, 01:20 PM
  #12
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 202

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 78 Times in 36 Posts
Originally Posted by DorkDisk View Post
That derailleur looks like it has a short cage, which was uncommon for that model. If it were replaced, maybe the spring tension wasn't set properly.
RD-M739 came in both GS (32/33) and SGS (32/38) versions. The RD-M735 even came in a short cage version (28T max cog I think), but not sure if M739 was available in that version.

https://www.disraeligears.co.uk/Site/...96_scan_2.html

I believe this is the "middle cage" version.

(Edit: not sure why the link is not working, but here's the main link: https://www.disraeligears.co.uk/Site/..._M739_SGS.html. Look under 'Documents')

Last edited by panzerwagon; 03-01-21 at 01:29 PM.
panzerwagon is offline
Old 03-01-21, 01:21 PM
  #13
DorkDisk
Senior Member

Join Date: May 2013
Location: Kips Bay, NY
Posts: 1,763

Bikes: Ritchey Swiss Cross | Teesdale Kona Hot | Haro Extreme | Specialized Stumpjumper Comp | Cannondale F1000 | Shogun 1000 | Cannondale M500 | Norco Charger | Marin Muirwoods 29er | Hiawatha 3sp | Shogun Kaze | Breezer Lightning

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Liked 494 Times in 268 Posts
Originally Posted by shoota View Post
Yeah that's definitely what it's supposed to look like.

It took me a minute but I figured out why my RD looks different, it's because it has an XTR GS cage installed on it. It's not a short cage though. It has "Max 32T, Total 33T" printed on it.
That'd be the medium cage
DorkDisk is offline
Old 03-01-21, 01:35 PM
  #14
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 202

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 78 Times in 36 Posts
Originally Posted by shoota View Post
That's awesome for seeing how the parts are put together. I'm not too hopeful that's the fix for this rd though, I think the spring is just worn. I think this might be a good solution though: https://www.youtube.com/watch?v=A7Coy083--0
Before you start drilling, you might consider at least trying disassemble/clean/re-grease/re-assemble, and make sure the spring is in the tighter setting of the two. That might prove sufficient (plus appropriate b-tension adjustment).
panzerwagon is offline
Old 03-01-21, 02:01 PM
  #15
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,277
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1445 Post(s)
Liked 268 Times in 198 Posts
Originally Posted by panzerwagon View Post
Before you start drilling, you might consider at least trying disassemble/clean/re-grease/re-assemble, and make sure the spring is in the tighter setting of the two. That might prove sufficient (plus appropriate b-tension adjustment).
Oh for sure! Now that I have an idea how the parts fit together I'll give that a go first.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is online now
Old 03-02-21, 01:31 AM
  #16
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,917

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1044 Post(s)
Liked 472 Times in 336 Posts
It could be that a previous owner somehow over-tensioned the spring while trying to get it re-installed.

Sometimes people get confused as to how reassembly is done, and the cage gets twisted too far with the stop pin removed.

Perhaps also the spring is from different derailer than this setup, so the spring anchor holes aren't clocked right for this spring(?).
dddd is offline
Old 03-03-21, 04:14 PM
  #17
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,458

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 460 Post(s)
Liked 94 Times in 56 Posts
I have ran into an issue like this, and it was that the screw that is the stop for the Jockey Wheel plates was removed and was replaced but the cage plates had rotated causing very little tension on the cage plates and a drooping chain like that.
__________________
fleslider is offline
Old 03-04-21, 09:40 PM
  #18
shoota
Senior Member
Thread Starter

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,277
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1445 Post(s)
Liked 268 Times in 198 Posts
Originally Posted by dddd View Post
It could be that a previous owner somehow over-tensioned the spring while trying to get it re-installed.

Sometimes people get confused as to how reassembly is done, and the cage gets twisted too far with the stop pin removed.

Perhaps also the spring is from different derailer than this setup, so the spring anchor holes aren't clocked right for this spring(?).

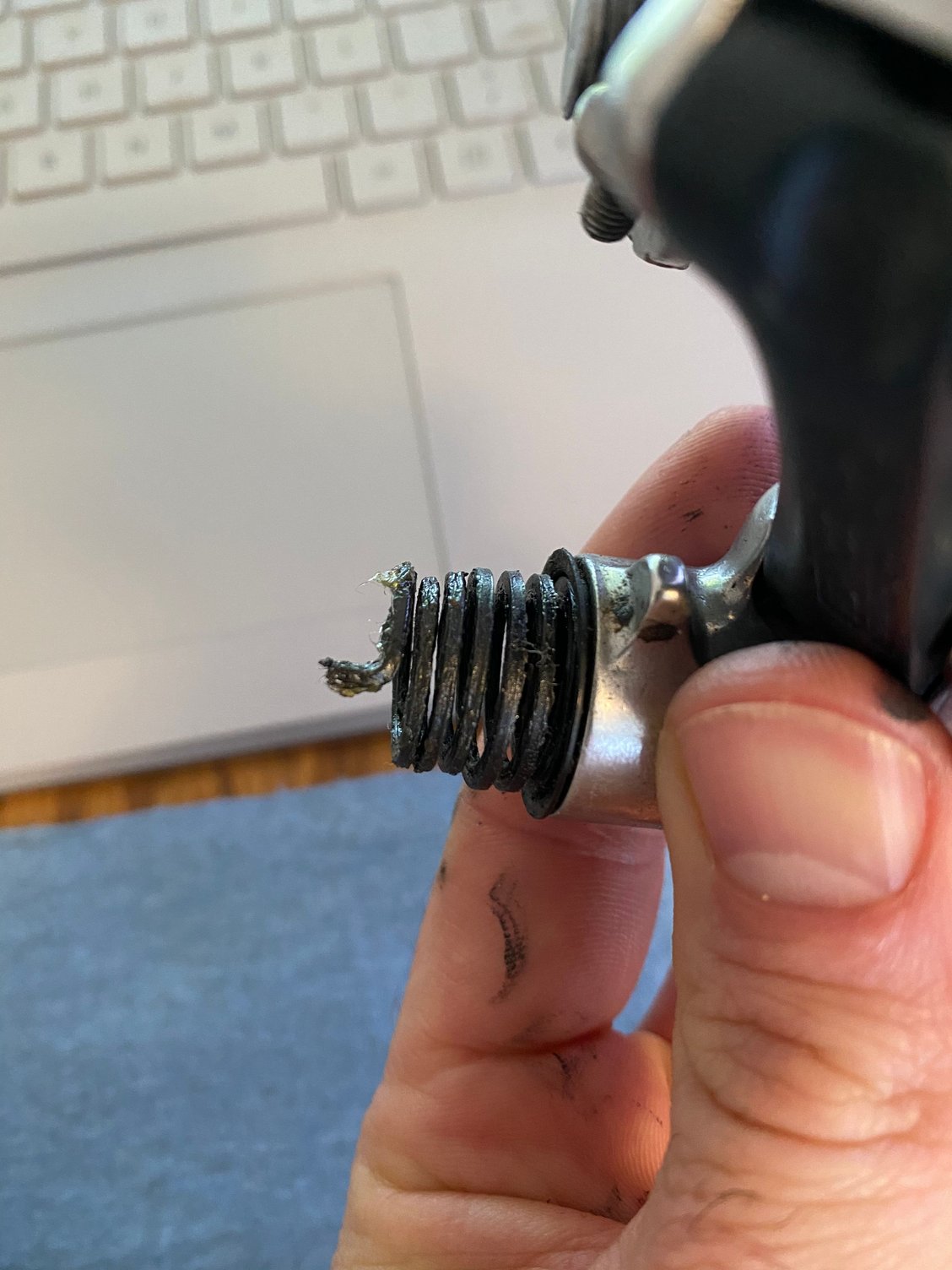

like this?
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is online now
Old 03-05-21, 08:48 PM
  #19
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,917

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1044 Post(s)
Liked 472 Times in 336 Posts
Oh yeah, that spring looks mangle-ated, definitely wound too tight at some point, gad.

Doesn't mean that it can't still be used, just has to be tensioned to suit it's new "configuration".
dddd is offline
