GB Spearpoint Barrel Adjuster 1965 Raleigh Carlton

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

GB Spearpoint Barrel Adjuster 1965 Raleigh Carlton

Old 03-02-21, 12:47 AM
  #1
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
GB Spearpoint Barrel Adjuster 1965 Raleigh Carlton

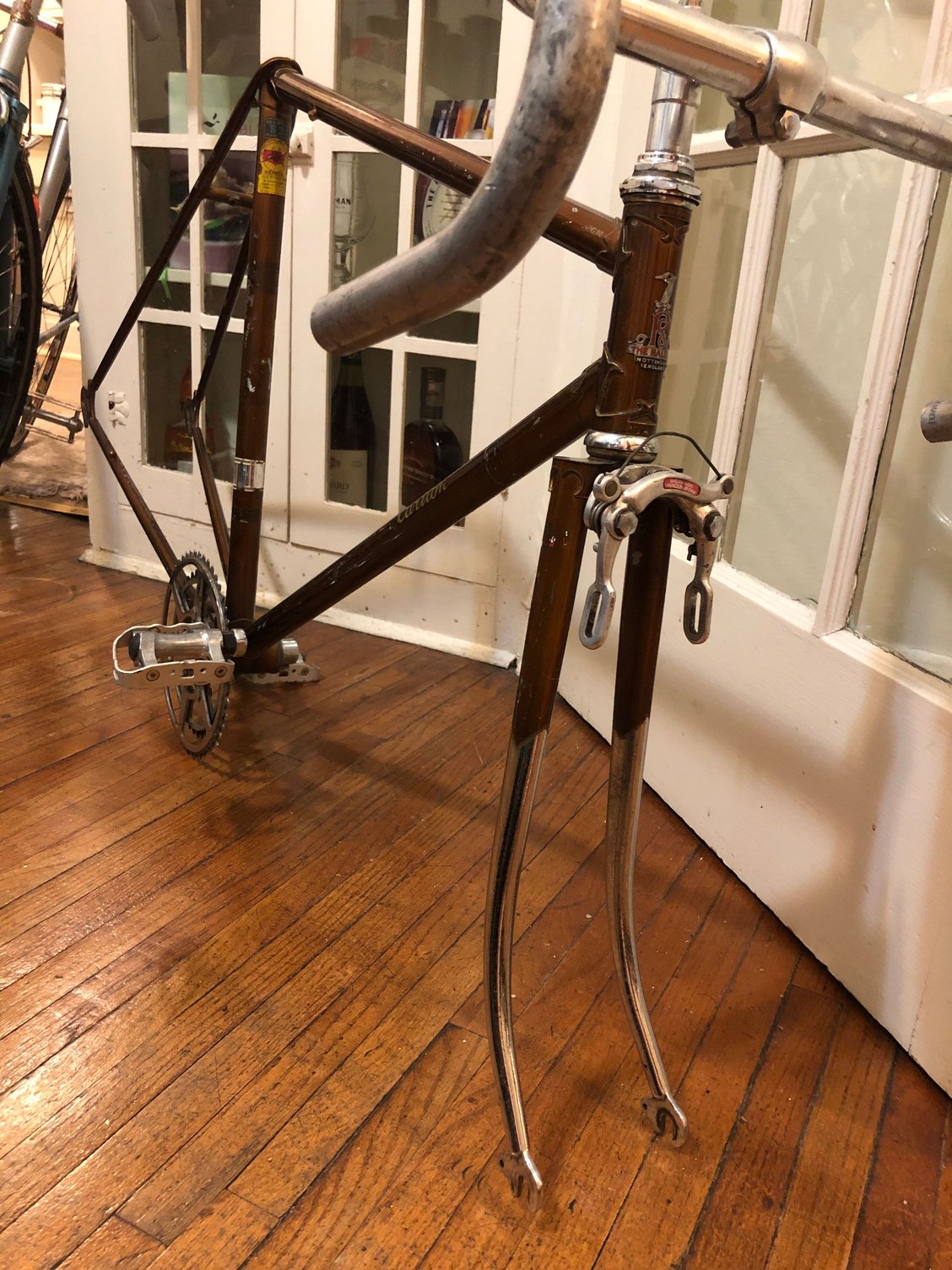

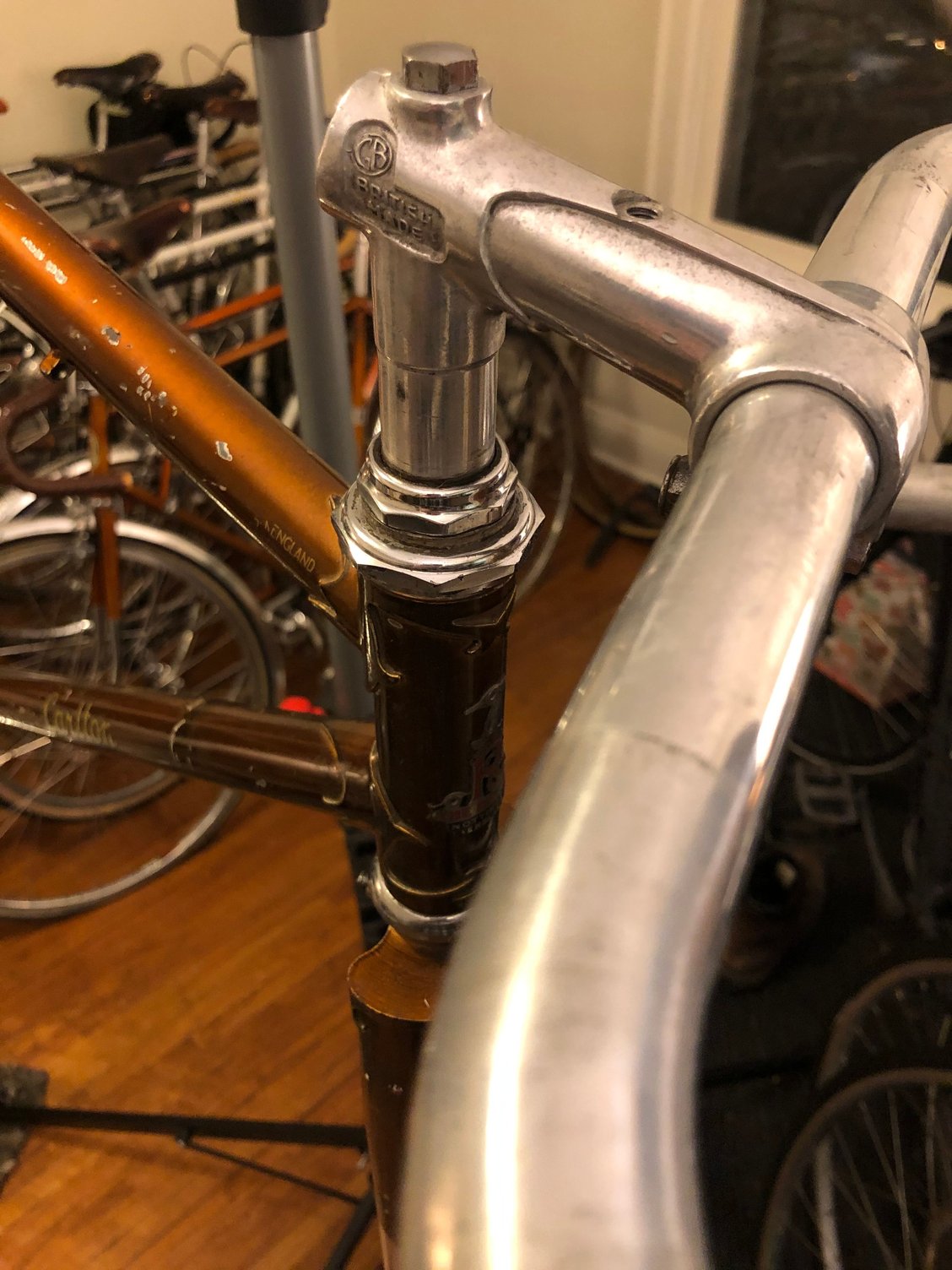

Just picked up a small Raleigh Carlton frame for cheap. It came with the original GB Stem and handlebars but the stem is missing the barrel adjuster. Anyone have a good source for one of these? Iíd like an adjuster for the rear brake bridge as well.

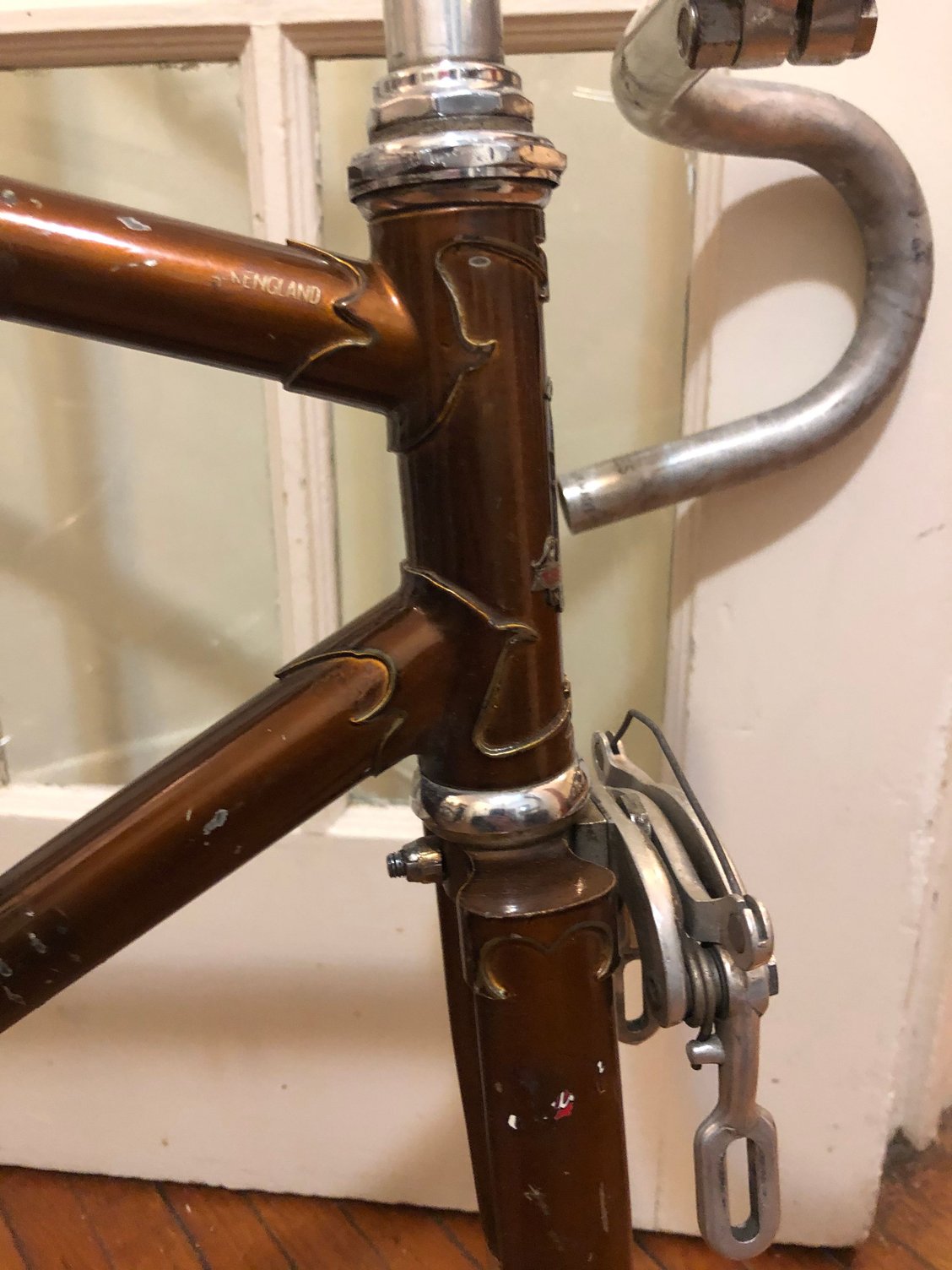

Interesting lugs.

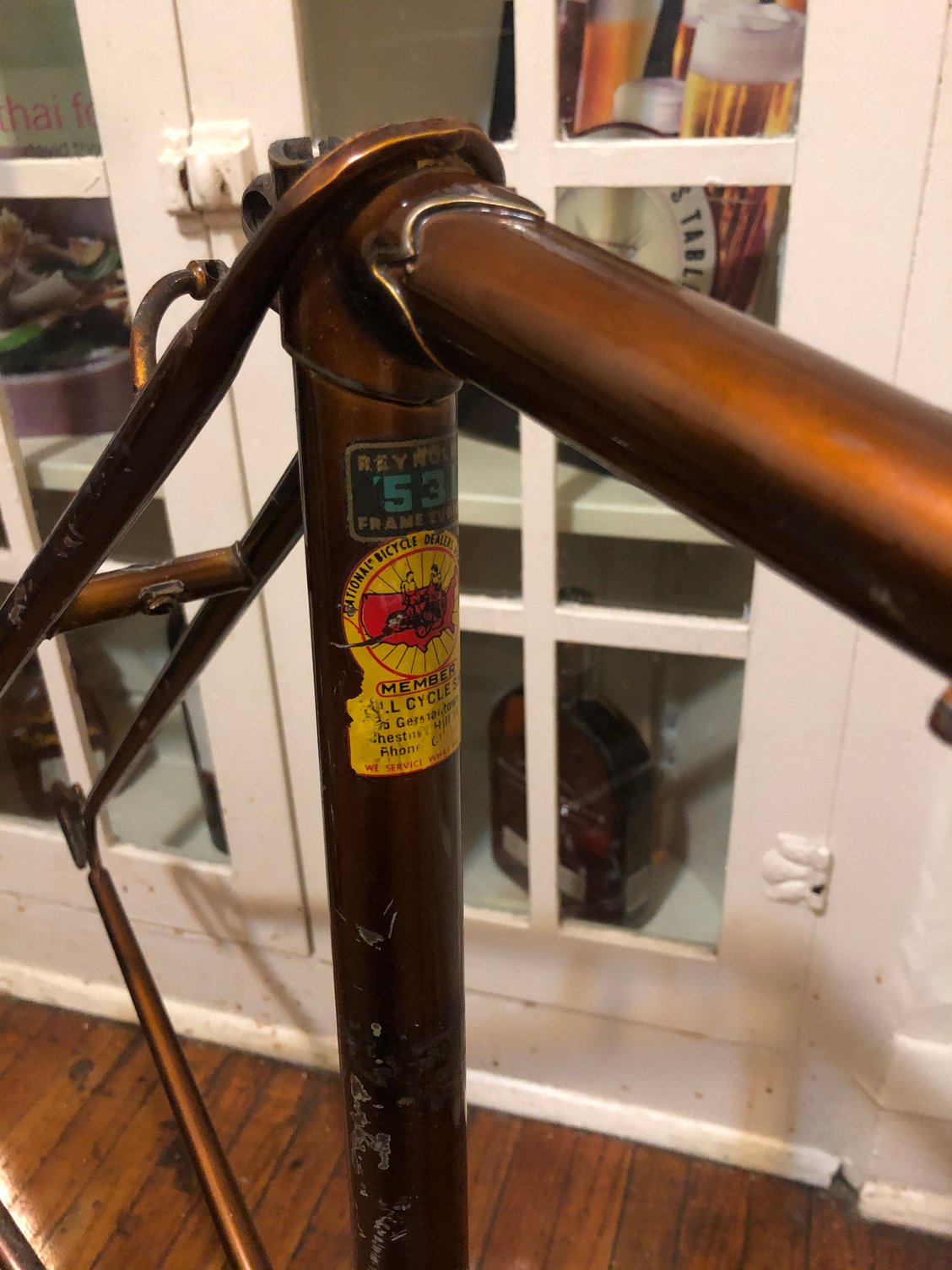

Plenty of patina, faded paint, and paint scrapes; still, no dents and the missing decals are replaceable. With proper care this can still be a nice looking frame.

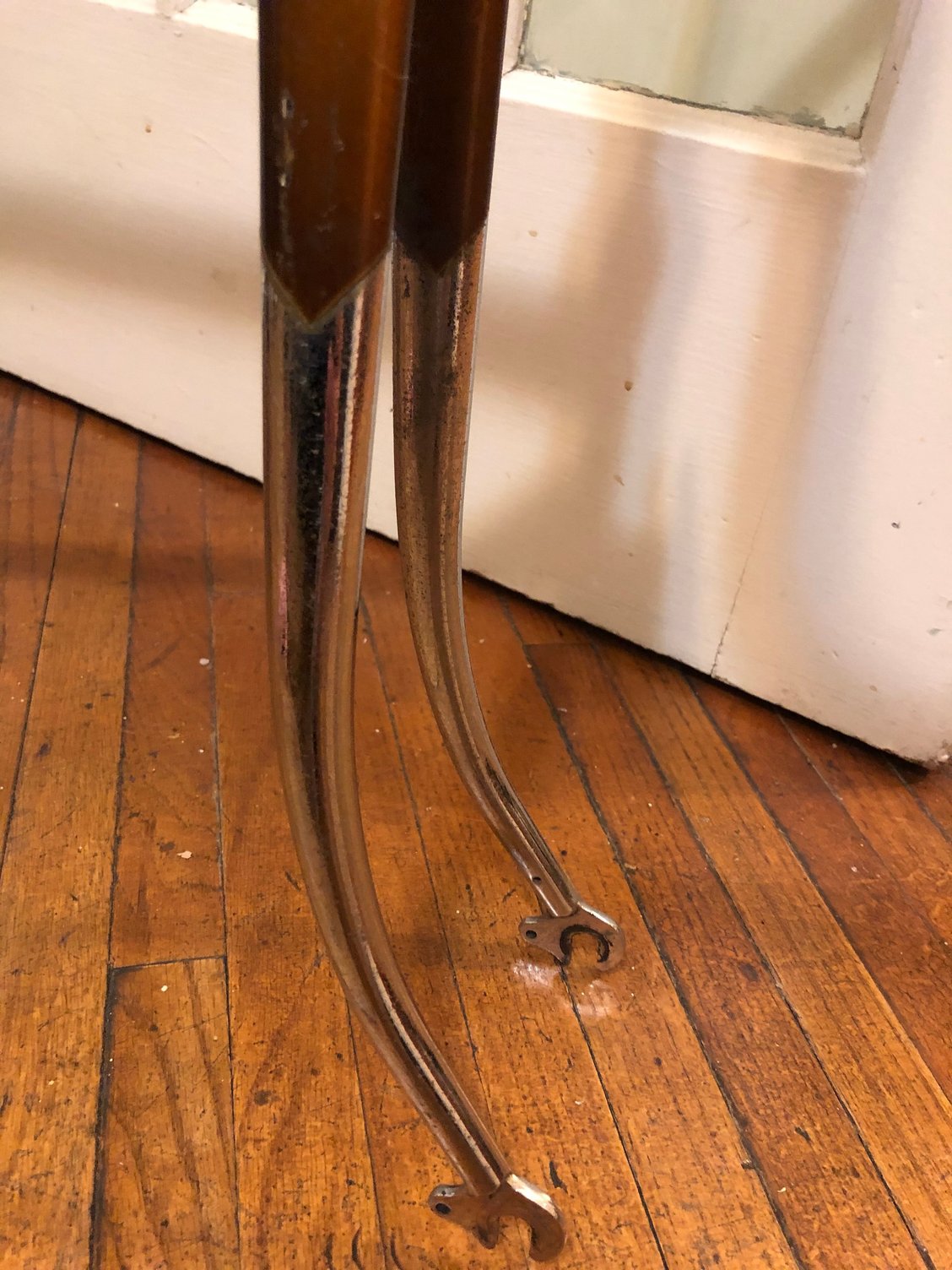

Chrome is not smooth but still looks nice enough if you donít look too hard.

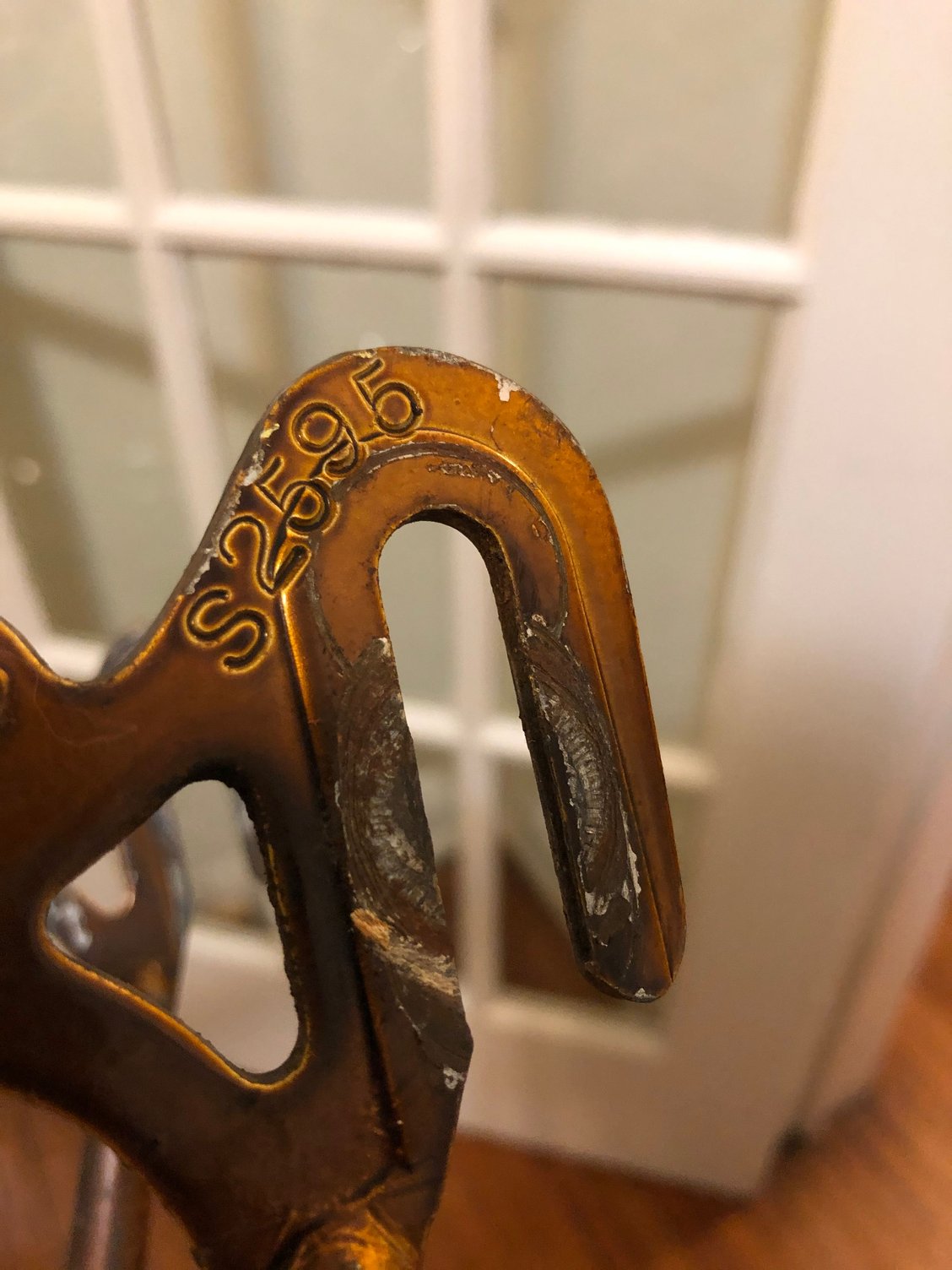

I think S = 1965.
Pcampeau is offline
Old 03-02-21, 04:02 AM
  #2
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,052
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 764 Post(s)
Likes: 0
Liked 810 Times in 497 Posts
I doubt that's as manufactured, in which case there is no "correct", most likely any adjuster you like that fits will do.

Nice score.
oneclick is offline
Old 03-02-21, 04:46 AM
  #3
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 1,008
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 140 Times in 86 Posts
I seem to kind of remember ( I'm old) that the adjusters in the Simplex delrin downtube shifters fit the brake bridge and if it is the same might also fit your GB Spearpoint.
The above statement might be totally incorrect and I have no way of checking (sorry) and I am slightly hesitant to post but hey.......if you have any of delrin shifters hanging around it might be worth a try.
YMMV
Rick
OTS is offline
Likes For OTS:
Old 03-02-21, 08:26 AM
  #4
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
Thanks for the replies. I should be more specific. On 1960s bikes Carlton often employed this stem with the brake cable routing going right through the middle. This is as manufactured. The hole is threaded and the bolt required for the stem is considerably wider than the rear adjuster. I do appreciate the responses though.

Last edited by Pcampeau; 03-02-21 at 10:07 AM.
Pcampeau is offline
Old 03-02-21, 01:51 PM
  #5
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 769
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
Liked 95 Times in 53 Posts
VeloBase.com - Component: GB forged alloy Hiduminium spearpoint

appears to be original equipment on this Carlton_Huffy

and 1964 Carlton Catalina road bike on display at Classic Cycle | Classic Cycle Bainbridge Island Kitsap County

and in a number of the bikes here https://on-the-drops.blogspot.com/20...cycles-us.html

a possible workaround https://www.flickr.com/photos/stronglight/3046303637
Big Block is offline
Likes For Big Block:
Old 03-02-21, 06:42 PM
  #6
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
Thanks Big Block. A workaround is probably what Iím looking at as a placeholder until the real deal shows up.
Pcampeau is offline
Old 03-02-21, 10:01 PM
  #7
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,911
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3070 Post(s)
Liked 4,106 Times in 1,791 Posts
I would think the stem takes a standard barrel adjuster as found on a brake caliper. Have any of those around to try?
nlerner is offline
Old 03-02-21, 10:13 PM
  #8
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
Originally Posted by nlerner View Post
I would think the stem takes a standard barrel adjuster as found on a brake caliper. Have any of those around to try?
Ooooh, thatís a good idea! Iíll try it.
Pcampeau is offline
Old 03-03-21, 12:14 AM
  #9
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts

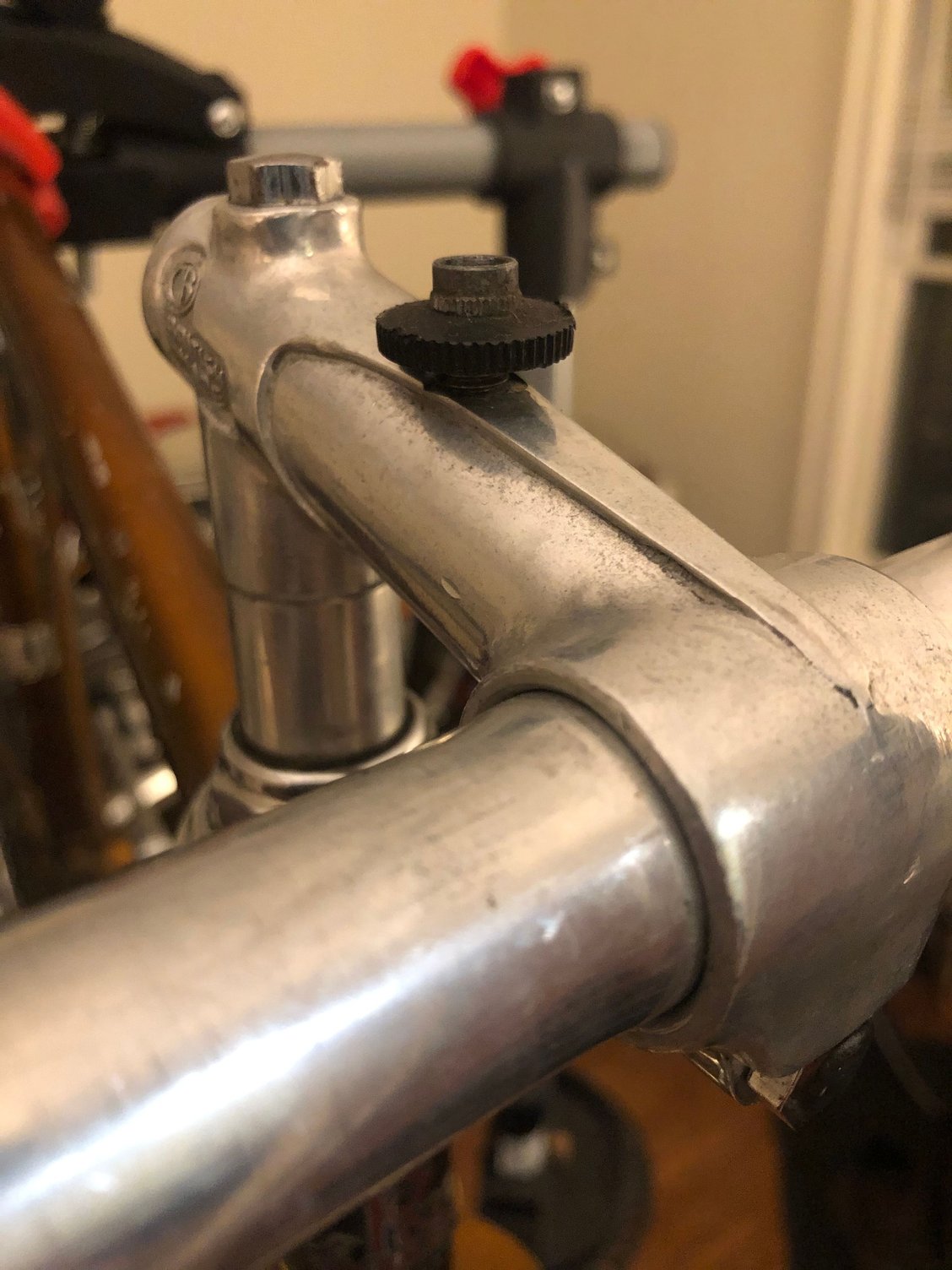

nlerner for the win! This adjuster came straight out of an early 80s Weinmann side pull caliper. It wonít be the one that I use but clearly this was easier than I thought it would be. Thanks nlerner.

A perfect fit.
Pcampeau is offline
Likes For Pcampeau:
Old 11-22-21, 05:21 PM
  #10
67Carlton
Junior Member

Join Date: Nov 2021
Location: Colorado
Posts: 82
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 50 Times in 18 Posts
Reawakening this thread in hopes of some insights from the Carlton crowd. Pcampeau , did you end up sorting an adjuster for the rear brake bridge? The Catalina I recently picked up to bring back to life has the same bridge and I don't have the Simplex delrin downtube shifters mentioned by OTS . No original stem for me, and my replacement Nitto doesn't rout through the stem, but I'd love to know what others have used in the rear. Any leads much appreciated! Thanks!
67Carlton is offline
Old 11-22-21, 07:30 PM
  #11
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,032
Mentioned: 338 Post(s)
Tagged: 1 Thread(s)
Quoted: 2928 Post(s)
Liked 1,555 Times in 1,126 Posts
-----

surprising good fortune that Weinmann thread compatible with Gerry Burgess stem

would expect Burgess products to be all fractional and the Weinmann (or Diacompe) barrel would be metric

another problem solved by the collective forum savvy!


-----
juvela is offline
Old 11-22-21, 08:50 PM
  #12
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,834
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2544 Post(s)
Liked 1,487 Times in 1,117 Posts
Originally Posted by OTS View Post
I seem to kind of remember ( I'm old) that the adjusters in the Simplex delrin downtube shifters fit the brake bridge and if it is the same might also fit your GB Spearpoint.
The above statement might be totally incorrect and I have no way of checking (sorry) and I am slightly hesitant to post but hey.......if you have any of delrin shifters hanging around it might be worth a try.
YMMV
Rick
I can confirm that the Simplex part as seen on some 60's-70's downtube shifters will work for the rear bridge.
I can also state from memory that the stem adjuster is larger, originally of plated steel with a plated steel jam nut with a knurled edge. Never bothered to measure the thread pitch, but as it is British...
My hunch is SAE and or Metric won't work especially well. I would look to UK ebay and or an old UK bike shop.
repechage is offline
Likes For repechage:
Old 11-22-21, 09:59 PM
  #13
67Carlton
Junior Member

Join Date: Nov 2021
Location: Colorado
Posts: 82
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 50 Times in 18 Posts
Further digging in the search function points to this thread: Q: rear brake barrel adjuster (or cable stop) for Raleigh/Carlton frame in which the OP ends up using a step down ferrule, which seems like it might be a decent workaround, though obviously compromising on adjustability.
67Carlton is offline
Old 11-23-21, 12:20 AM
  #14
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
Originally Posted by 67Carlton View Post
Further digging in the search function points to this thread: Q: rear brake barrel adjuster (or cable stop) for Raleigh/Carlton frame in which the OP ends up using a step down ferrule, which seems like it might be a decent workaround, though obviously compromising on adjustability.

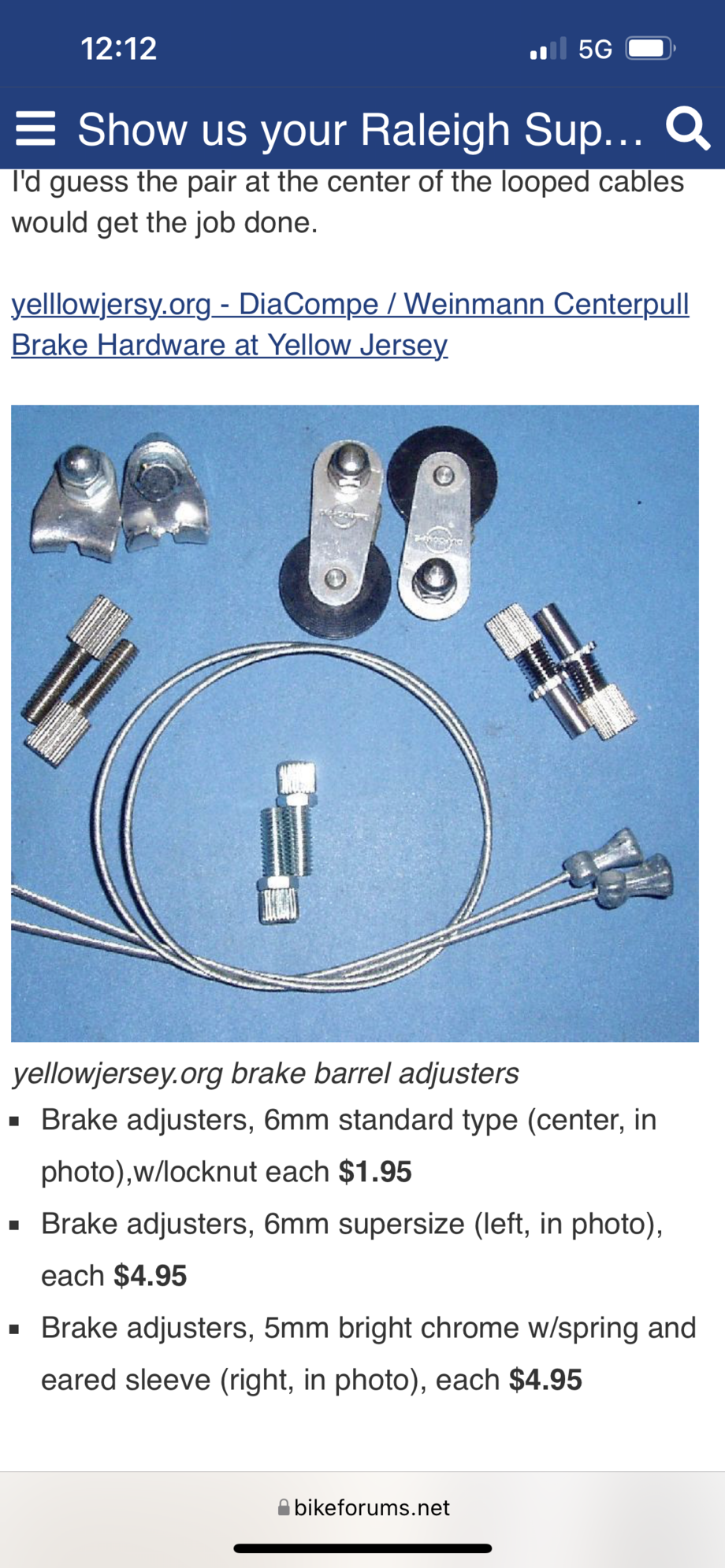

Awhile back someone sent me this link on the Show us your Raleigh Super Course thread when I was wondering about getting a brake bridge adjuster for my 68 Super Course.

Unfortunately mine is a screenshot and not a link. Sorry Iím a technology dinosaur and I just donít know how else to do it.

I have not built the Raleigh Carlton as itís too small for me, instead Iíve gifted it to my brother.

Last edited by Pcampeau; 11-23-21 at 12:32 AM.
Pcampeau is offline
Likes For Pcampeau:
Old 11-23-21, 11:16 AM
  #15
67Carlton
Junior Member

Join Date: Nov 2021
Location: Colorado
Posts: 82
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 50 Times in 18 Posts
Originally Posted by Pcampeau View Post
Awhile back someone sent me this link on the Show us your Raleigh Super Course thread when I was wondering about getting a brake bridge adjuster for my 68 Super Course. Unfortunately mine is a screenshot and not a link. Sorry Iím a technology dinosaur and I just donít know how else to do it.

I have not built the Raleigh Carlton as itís too small for me, instead Iíve gifted it to my brother.
I'm guessing the correct one for the rear brake bridge would be the 5mm, non-threaded "with spring and eared sleeve" (shown on the right-hand side)? I think the active link is: DiaCompe / Weinmann Centerpull Brake Hardware at Yellow Jersey
67Carlton is offline
Old 11-23-21, 12:38 PM
  #16
Pcampeau
Senior Member
Thread Starter

Join Date: Aug 2017
Location: Minneapolis
Posts: 714

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 232 Post(s)
Liked 388 Times in 221 Posts
67Carlton I would guess that to be correct.
