Suntour Superbe long reach brakes?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Suntour Superbe long reach brakes?

Old 03-10-21, 08:24 AM
  #1
Dan Burkhart
Senior member
Thread Starter

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,704
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 284 Times in 175 Posts
Suntour Superbe long reach brakes?

Did they ever make a caliper with longer than 58mm reach? Doing a build for a guy that wants to keep the group all Superbe. He sourced all the parts, but the 48-58mm calipers come up a bit short on 27" wheels.

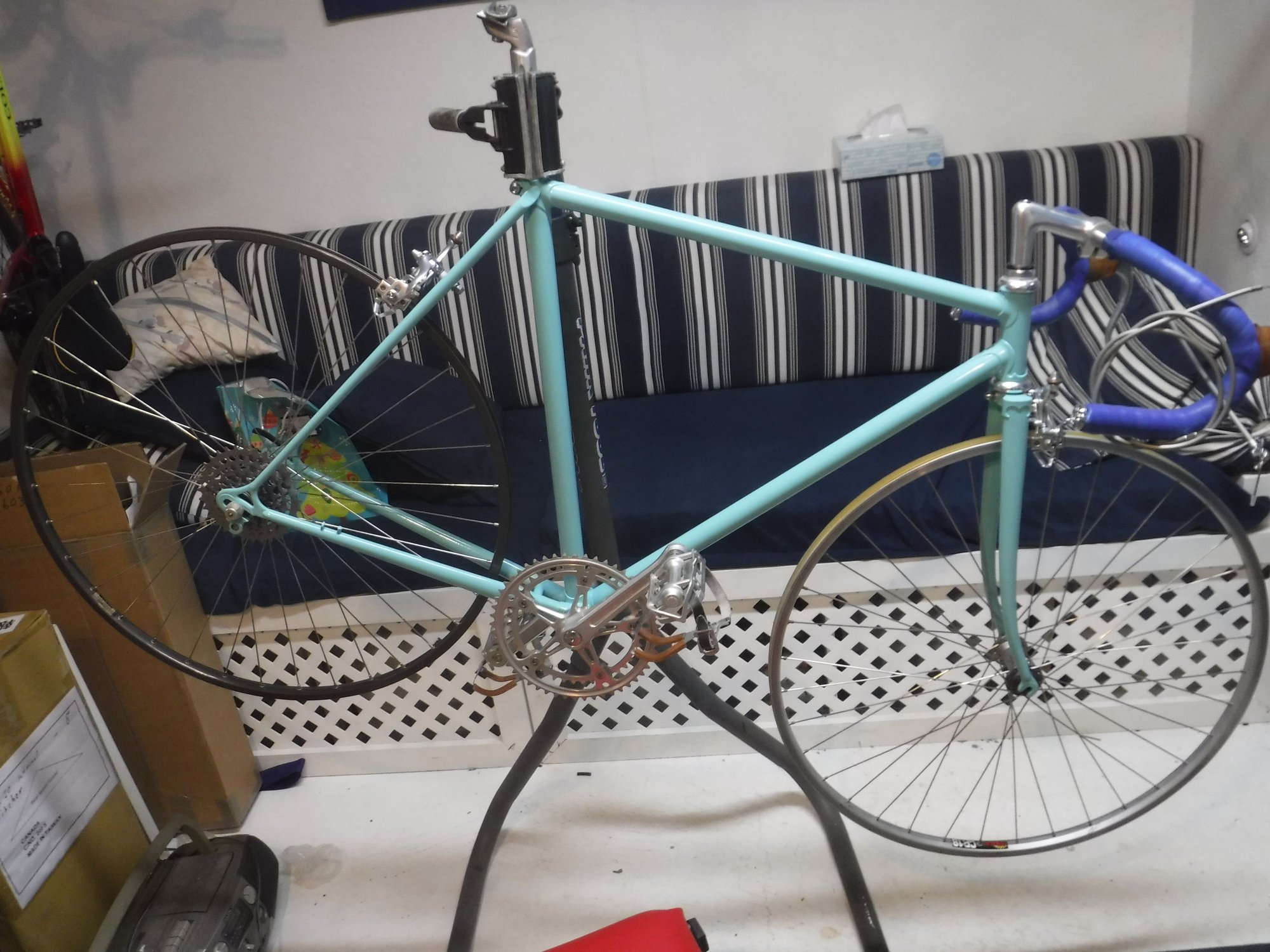

The frame is an early 70s Roberts. Pay no attention to the mismatched wheels.




Dan Burkhart is offline
Likes For Dan Burkhart:
Old 03-10-21, 09:00 AM
  #2
capnjonny
Senior Member

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 735

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Likes: 0
Liked 115 Times in 66 Posts
Saint Sheldon has a post somewhere about an adapter that lowers the brake so that it will work. I actually have it somewhere in my parts bins but haven't been able to find it since I put it in a "safe place" .
capnjonny is offline
Old 03-10-21, 09:03 AM
  #3
gkamieneski
Senior Member

Join Date: Dec 2014
Posts: 231
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 36 Times in 22 Posts
That part was called a "drop bolt" and was used for just this purpose. Used to have them at Third Hands but I think they are long out of business.
gkamieneski is offline
Old 03-10-21, 09:04 AM
  #4
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,296
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked 340 Times in 182 Posts
You might try using a file to make the slots longer
Germany_chris is offline
Old 03-10-21, 09:10 AM
  #5
Dan Burkhart
Senior member
Thread Starter

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,704
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 284 Times in 175 Posts
Originally Posted by Germany_chris View Post
You might try using a file to make the slots longer
Hoping to avoid that if possible. I have done such things in the past but not on parts this nice.
Dan Burkhart is offline
Old 03-10-21, 09:12 AM
  #6
Germany_chris
Senior Member

Germany_chris's Avatar

Join Date: Jan 2010
Location: Southern Germany
Posts: 1,296
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked 340 Times in 182 Posts
Originally Posted by Dan Burkhart View Post
Hoping to avoid that if possible. I have done such things in the past but not on parts this nice.
I think the Sheldon brake drop would be worse

Last edited by Germany_chris; 03-10-21 at 09:32 AM.
Germany_chris is offline
Old 03-10-21, 09:14 AM
  #7
Dan Burkhart
Senior member
Thread Starter

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,704
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 284 Times in 175 Posts
Originally Posted by Germany_chris View Post
The think the Sheldon brake drop would be worse
I'm inclined to agree. If a proper Superbe solution can't be found, it may end up with center pulls.
Dan Burkhart is offline
Old 03-10-21, 09:26 AM
  #8
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,622

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 80' Gios Torino. 83' Basso Gap. 03 Lemond

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1041 Post(s)
Liked 721 Times in 464 Posts
If those wheels are 700c wont 27s give you 8-10mm more in brake surface reach?
__________________
'88 Bianchi Giro. '88 Bianchi Krono. '80 Gios Torino. '83 Basso Gap. '03 Lemond Tete




malcala622 is offline
Likes For malcala622:
Old 03-10-21, 09:34 AM
  #9
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,489

Bikes: A bunch of old bikes and a few new ones

Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 5098 Post(s)
Liked 1,671 Times in 1,099 Posts
These gran compe centerpulls are quality brakes and reach to 61 mm

VeloBase.com - Component: Dia-Compe Gran Compe GC610

These are the 610s. The fanciest vintage centerpulls are likely the NGC 450 but they only reach to 55 and they're a PITA to find brake shoes for or at least they were the last time I checked.

VeloBase.com - Component: Dia-Compe New Gran Compe NGC450
bikemig is online now
Old 03-10-21, 09:39 AM
  #10
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,036

Bikes: A few too many

Mentioned: 38 Post(s)
Tagged: 1 Thread(s)
Quoted: 930 Post(s)
Liked 914 Times in 569 Posts
Originally Posted by malcala622 View Post
If those wheels are 700c wont 27s give you 8-10mm more in brake surface reach?
There looks like quite a bit of clearance there...question, and I am sure you have put 27's on to check but it sure looks like you have a lot of clearance there...if not than putting a 27 on the frame will get the correct reach from the SS's.
If they are 27's I would not want to file and material off of the brakes to gain the reach so centers may be the way to go.
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"


Last edited by xiaoman1; 03-10-21 at 09:49 AM.
xiaoman1 is offline
Old 03-10-21, 09:49 AM
  #11
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,622

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 80' Gios Torino. 83' Basso Gap. 03 Lemond

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1041 Post(s)
Liked 721 Times in 464 Posts
Originally Posted by xiaoman1 View Post
There looks like quite a bit of clearance there...question, and I am sure you have put 27's on to check but it sure looks like you have a lot of clearance there.
If they are 27's I would not want to file and material off of the brakes to gain the reach so centers may be the way to go.
Best, Ben
You might want to quote OP with the question.
__________________
'88 Bianchi Giro. '88 Bianchi Krono. '80 Gios Torino. '83 Basso Gap. '03 Lemond Tete




malcala622 is offline
Old 03-10-21, 10:03 AM
  #12
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 842
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 594 Times in 246 Posts
I'm going to agree with Germany_chris and suggest filing the slot a bit longer. Of course I am a frame builder that knows how to file with the big variety of files on my pegboard. If done right, it won't hurt the brakes and the slot extension will be hidden under the brake blocks. There were very few decent side pull brakes that had a reach longer than 57mm.

Find a 6" American pattern round file that should be about the same diameter as the brake shoe slot. Put the file through both slots so it is always in the right position. You are probably not filing both slots at the same time but rather putting downward force on one slot while the other slot keeps the file in the right position. You might ever so slightly put a little side pressure to make sure the width is enough. If you work carefully it will turn out fine.
Doug Fattic is offline
Likes For Doug Fattic:
Old 03-10-21, 10:18 AM
  #13
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 340

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 75 Times in 63 Posts
Is there such a thing as a brake pad with an offset fastening bolt?
sovende is offline
Old 03-10-21, 10:19 AM
  #14
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,873

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1026 Post(s)
Liked 682 Times in 426 Posts
Originally Posted by sovende View Post
Is there such a thing as a brake pad with an offset fastening bolt?
If there was, I wouldn't trust it not to rotate.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 03-10-21, 10:41 AM
  #15
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,892

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 728 Post(s)
Liked 152 Times in 117 Posts
Originally Posted by sovende View Post
Is there such a thing as a brake pad with an offset fastening bolt?
Here ya go: https://bdopcycling.com/product/bdop...ers-set-black/

I have not tried these but they look like they would give you the precious few extra millimeters you need to center the pads. They appear like they would be sufficiently rigid and keep their adjustment. While not “retro” or period correct for the SunTour Superbe calipers, in a way they could be considered an upgrade part since you now can slide in the Shimano cartridge pads of your choice. I like these pads a lot: https://www.ebay.com/itm/4-Pairs-8-P....m46890.l49292
masi61 is offline
Old 03-10-21, 10:41 AM
  #16
Dan Burkhart
Senior member
Thread Starter

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,704
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 284 Times in 175 Posts
Originally Posted by malcala622 View Post
If those wheels are 700c wont 27s give you 8-10mm more in brake surface reach?
They are 27". Nothing to be gained there.
Dan Burkhart is offline
Old 03-10-21, 11:09 AM
  #17
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,622

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 80' Gios Torino. 83' Basso Gap. 03 Lemond

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1041 Post(s)
Liked 721 Times in 464 Posts
Originally Posted by Dan Burkhart View Post
They are 27". Nothing to be gained there.
Bummer. They do look like 700.
__________________
'88 Bianchi Giro. '88 Bianchi Krono. '80 Gios Torino. '83 Basso Gap. '03 Lemond Tete




malcala622 is offline
Old 03-10-21, 11:11 AM
  #18
cbrstar
BMX Connoisseur

cbrstar's Avatar

Join Date: Jun 2016
Location: Canada
Posts: 765

Bikes: 1988 Kuwahara Newport, 1983 Nishiki, 1984 Diamond Back Viper, 1991 Dyno Compe

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 100 Times in 64 Posts
Might sound like a strange fix but you take the brakes spacer and grind it down to an angle. It will tilt the brake back just enough to get a hold of the rim. I had to do this on one of my vintage BMX's because there was a manufacturing defect and the brake bridge was too high and that's how the factory "fixed it" bitd.
cbrstar is offline
Old 03-10-21, 11:13 AM
  #19
gkamieneski
Senior Member

Join Date: Dec 2014
Posts: 231
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 36 Times in 22 Posts
This is what I used when I too was dealing with your issue with some Gran Compes, https://www.ebay.com/itm/NOS-Dia-Com...4AAOSwclNgGIuz

gkamieneski is offline
Likes For gkamieneski:
Old 03-10-21, 11:26 AM
  #20
rogerm3d
Senior Member

Join Date: Dec 2016
Posts: 54
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 29 Times in 17 Posts
It looks like with the length listed for reach you already have the Superbe long reach brakes. SunTour brakes
Your brake options for the time period the frame is from are going to lean towards center-pulls, but reach will not be a problem. Center-pull brake reach

Last edited by rogerm3d; 03-11-21 at 04:03 PM.
rogerm3d is offline
Old 03-10-21, 01:08 PM
  #21
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 340

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked 75 Times in 63 Posts
Originally Posted by masi61 View Post
Here ya go: https://bdopcycling.com/product/bdop...ers-set-black/

I have not tried these but they look like they would give you the precious few extra millimeters you need to center the pads. They appear like they would be sufficiently rigid and keep their adjustment. While not “retro” or period correct for the SunTour Superbe calipers, in a way they could be considered an upgrade part since you now can slide in the Shimano cartridge pads of your choice. I like these pads a lot: https://www.ebay.com/itm/4-Pairs-8-P....m46890.l49292
Exactly the concept that I was seeing in my mind . They do seem a bit spendy tho !
sovende is offline
Old 03-10-21, 01:52 PM
  #22
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,935
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Liked 188 Times in 122 Posts
English bikes of the "early 70s" vintage tend to be fairly "long-legged". That bike probably originally wore Weinmann (or GB) centerpulls: 610 on the front and maybe a 750 on the rear. Dia-Compe made (possibly still makes) "deluxe" versions of these. The sidepull answer to your predicament is Tektro, if the esthetics are acceptable.

Last edited by Charles Wahl; 03-10-21 at 02:00 PM.
Charles Wahl is offline
Old 03-10-21, 02:03 PM
  #23
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,388
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 352 Times in 285 Posts
I have a genuine DC drop-bolt but it's attached to a genuine Sun Tour Superbe caliper, and I'm rather attached to both! But can confirm that with standard Superbe pads this 4700 (rear) goes to about 70mm reach to the center of the pad (at very bottom of the slot).

Not any help but many years back I thought "why the hell not?" and decided I could machine drop bolts myself with simple hand tools and bar stock. The drop bolt center piece did not seem that complex, I had taps, files, hacksaw and vise (and LocTite Red to fix the threading). Well, they "worked" and were better looking than Sheldon's example but still pretty much a kludge. Nowadays I'd skip the handicrafts and buy the real deals.

Last edited by unworthy1; 03-10-21 at 02:17 PM.
unworthy1 is offline
Old 03-10-21, 02:52 PM
  #24
Dan Burkhart
Senior member
Thread Starter

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,704
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 284 Times in 175 Posts
Originally Posted by Charles Wahl View Post
English bikes of the "early 70s" vintage tend to be fairly "long-legged". That bike probably originally wore Weinmann (or GB) centerpulls: 610 on the front and maybe a 750 on the rear. Dia-Compe made (possibly still makes) "deluxe" versions of these. The sidepull answer to your predicament is Tektro, if the esthetics are acceptable.
Yeah, long reach Tektro dual pivot brakes are terrific and would certainly work, but period correct and matching gruppo is the goal right now.
I'm kinda liking the drop pad holders from Bdop linked above, but I'll have to see what the owner of the bike thinks.
Dan Burkhart is offline
Old 03-10-21, 04:17 PM
  #25
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,892

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 728 Post(s)
Liked 152 Times in 117 Posts
Originally Posted by sovende View Post
Exactly the concept that I was seeing in my mind . They do seem a bit spendy tho !
They look really nice. I wouldn’t worry about the price. I would install them and get on with enjoying whatever that bike is about to be.

$64.99 for a set of 4 with the blue BDop pads is slightly spendy but for great braking and being able to resolve this brake issue by getting an an extra 7mm of drop without resorting to drop bolts or filing the caliper arms...

Last edited by masi61; 03-11-21 at 06:18 AM.
masi61 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
