Advice for adhesive to bond aluminum cable guides to aluminum top tube

A few years ago I picked up a ‘74/‘75ish Klein. When I got the bike two of the three top tube cable guides had been broken free from the top tube and were strung freely along the brake cable housing. I’ve tried a few different adhesives over the years to try to get these bonded back in place with no lasting success (hobby glue and cement, some Gorilla product, silicone caulk/adhesive). Curious what the collective here recommends. Given the quality and relative rarity of the bike I want to get this right. I’m thinking that something with a bit of give when cured could be useful to provide some damping and isolation from road vibration. That there are pockets in the paint to seat the guides is helpful and may provide a bit of additional purchase.







I’ll of course need to clean off the last adhesive before applying the next.

I’ll give a two part epoxy a go depending on feedback here.

Last edited by Sir_Name; 03-10-21 at 10:26 AM.
Sir_Name is offline
Old 03-10-21, 10:40 AM
  #2
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 510

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 212 Times in 129 Posts
an epoxy as long as the surfaces are bondable-clean.also are you applying pressure after the adhesive? if not try a zip tie to keep the guides in place till dry.
'02 nrs is offline
Old 03-10-21, 10:53 AM
  #3
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,432

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 485 Post(s)
Liked 227 Times in 165 Posts
That looks fussy. I would be tempted to try West System G Flex Epoxy here. If you are careful with the prep you could leave the paint ridges in place and get a pretty much invisible repair. I would read the various instructions that covers bonding aluminum with Epoxy. The big thing is to get the surfaces free of oxidation. I've done this with an acid etch, but I think that gluing up immediately after prep work can be effective. I would scrape off the old adhesive down to bare metal, cross hatch both surfaces with an exacto blade, I think an acetone wash would be a good idea, but I'm going on 20 year old recollections, best to read the data sheets. The other way to go would be one of the Loctite products. I recall they had an adhesive designed to replace silver soldering for some gunsmithing operations. I might skip the cross hatching as these are less gap filling than epoxy. I'd start with the Brownells gunsmithing supply website and work back towards the hardware store for availability. If your just going to try and "giterdone" rear view mirror adhesive is impressive stuff and clear.
PS. There it is:

https://www.amazon.com/Loctite-13542.../dp/B000132VEE

https://www.brownells.com/gunsmith-t...-prod6139.aspx

Last edited by bark_eater; 03-10-21 at 11:06 AM.
bark_eater is offline
Old 03-10-21, 05:42 PM
  #4
Sir_Name
Senior Member
Thread Starter

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,359

Bikes: are fun!

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 518 Times in 194 Posts
Originally Posted by '02 nrs View Post
an epoxy as long as the surfaces are bondable-clean.also are you applying pressure after the adhesive? if not try a zip tie to keep the guides in place till dry.
Thanks, Iíve been (carefully) using some quick-grip clamps to apply pressure while curing. I believe one of the best products so far was a two-part crafts-grade epoxy, but itís been a few years since that attempt. Surfaces were cleaned prior to application, prep is key Iím sure. A higher quality epoxy might be the ticket.
Sir_Name is offline
Old 03-10-21, 05:49 PM
  #5
Sir_Name
Senior Member
Thread Starter

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,359

Bikes: are fun!

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 518 Times in 194 Posts
Originally Posted by bark_eater View Post
That looks fussy. I would be tempted to try West System G Flex Epoxy here. If you are careful with the prep you could leave the paint ridges in place and get a pretty much invisible repair. I would read the various instructions that covers bonding aluminum with Epoxy. The big thing is to get the surfaces free of oxidation. I've done this with an acid etch, but I think that gluing up immediately after prep work can be effective. I would scrape off the old adhesive down to bare metal, cross hatch both surfaces with an exacto blade, I think an acetone wash would be a good idea, but I'm going on 20 year old recollections, best to read the data sheets. The other way to go would be one of the Loctite products. I recall they had an adhesive designed to replace silver soldering for some gunsmithing operations. I might skip the cross hatching as these are less gap filling than epoxy. I'd start with the Brownells gunsmithing supply website and work back towards the hardware store for availability. If your just going to try and "giterdone" rear view mirror adhesive is impressive stuff and clear.
PS. There it is:

https://www.amazon.com/Loctite-13542.../dp/B000132VEE

https://www.brownells.com/gunsmith-t...-prod6139.aspx
Thanks, it is fussy... Each of those seem promising and better suited than the cheap hobby epoxy and other products I’ve used so far. I’ve used west system epoxy in the past fabricating a fiberglass body for single-seater race car in college. Great stuff. When I first started the search about five years ago (sheesh...time flys...) I made a basic test setup for the various products I was trying. Probably worth another shot here. And yes, using a product that cures clear is high on the priority list. I figure success here will be 80% prep work, 20% product selection.
Sir_Name is offline
Old 03-10-21, 06:21 PM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,444
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 360 Times in 293 Posts
Yes to using a high grade name-brand epoxy, yes to proper surface prep (clean with denatured alcohol or acetone) and roughen surfaces. Yes to careful measuring and mixing and I always opt for SLOW-cure and give it plenty of time with no movement. That said you do not need to clamp epoxy tightly, just enough pressure to keep the piece(s) in place. You might even get away with taping to hold..
unworthy1 is offline
Old 03-10-21, 06:38 PM
  #7
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 969
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 425 Times in 256 Posts
I would use a dremmel and tiny grinding wheel to make sure I had bare metal on both sides, I would probably go with JB Weld myself to stick them back on there.
jackbombay is offline
Likes For jackbombay:
Old 03-10-21, 06:58 PM
  #8
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,110
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1959 Post(s)
Liked 799 Times in 619 Posts
What is interesting is the failure shown appears a bit different either side.
the stronger bond most likely was to the aluminum.
I wonder what those guides are made of.

He is around, I would ask Gary Klein. Could not hurt.
Or

Check Rockwestcomposites
they have some stout adhesives.
repechage is offline
Old 03-10-21, 07:01 PM
  #9
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,110
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1959 Post(s)
Liked 799 Times in 619 Posts
Originally Posted by unworthy1 View Post
Yes to using a high grade name-brand epoxy, yes to proper surface prep (clean with denatured alcohol or acetone) and roughen surfaces. Yes to careful measuring and mixing and I always opt for SLOW-cure and give it plenty of time with no movement. That said you do not need to clamp epoxy tightly, just enough pressure to keep the piece(s) in place. You might even get away with taping to hold..
epoxy likes "room" temp at a minimum.
there are various types with different flex tolerance.
The G series from West System might work
repechage is offline
Old 03-10-21, 08:36 PM
  #10
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,534

Bikes: Lots. Just...lots.

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 1554 Post(s)
Liked 999 Times in 466 Posts
Good prep, Shoe Goo.
Done.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is online now
Likes For rccardr:
Old 03-10-21, 09:17 PM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,917

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1705 Post(s)
Liked 1,350 Times in 873 Posts
https://www.jensentools.com/permabon...gram/p/121-544
dedhed is online now
Old 03-10-21, 09:55 PM
  #12
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,401

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, Renť Herse tandem

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 636 Post(s)
Liked 770 Times in 435 Posts
Vitus used Redux 203, an epoxy, to bond their 979 frames (patent US4479662A). This cross-references to Araldite 2011, which is readily available today.

J-B Weld is about 1/3 the tensile strength, but may be more flexible. Loctite "Magic Steel" has higher stated tensile than J-B, but I haven't used it.
__________________
Owner & co-founder, Cycles Renť Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is online now
Old 03-10-21, 10:30 PM
  #13
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 969
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 425 Times in 256 Posts
Originally Posted by scarlson View Post
J-B Weld is about 1/3 the tensile strength, but may be more flexible.
JB really has no appreciable flex to it. I know there are much stronger adhesives out there, but they generally have to be special ordered and can be quite expensive. I've used JB enough to know that it would stick those housing guides on without issue, they would never come off unless the bike was dropped against a wall directly on the housing guide.

"Better" is the enemy of production, JB weld is "good enough" which is perfectly acceptable for this, IMO.
jackbombay is offline
Old 03-10-21, 10:40 PM
  #14
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 969
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 425 Times in 256 Posts
Just to throw a bit of math at it, JB has a tensile strength of 6200 PSI, those housing guides have about .5" by .25" of surface for adhesive, or .125 SI, at 6200 PSI you get 775 pounds of tensile strength holding the cable housing guide in place.
jackbombay is offline
Old 03-11-21, 03:33 AM
  #15
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,761

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 623 Times in 417 Posts
I have used JB weld on a few projects and the stuff is amazing . On this application it may not be as clean as you would want . Whatever you use I would try to get to bare surface before bonding.
Kabuki12 is offline
Old 03-11-21, 05:29 AM
  #16
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 2,340

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 565 Times in 383 Posts
Originally Posted by rccardr View Post
Good prep, Shoe Goo.
Done.
Interesting. I have to file that one, since my last shoe-goo repair on a pair of Adidas Sambas was a No-goo...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is offline
Old 03-11-21, 06:31 AM
  #17
acm
Senior Member

acm's Avatar

Join Date: May 2019
Location: Rochester, NY
Posts: 58

Bikes: '84 Centurion Pro Tour 15; Unidentified 80's Motobecane Commuter

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 37 Times in 20 Posts
If you're OK with an uglier but more reliable fix, I would clean up the surfaces with a dremel grinder or some emery cloth and aluminum braze it on. You don't need any expensive equipment since the brazing rod melts at around 700F. You can probably get the mapp torch setup and the rods for less than $35. I don't think that low a temperature should have any effect on the thinner parts of the tubing (Those cable guides were probably brazed on at a much higher temp) but someone more knowledgeable feel free to correct me.
acm is offline
Old 03-11-21, 06:38 AM
  #18
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,652
Mentioned: 361 Post(s)
Tagged: 0 Thread(s)
Quoted: 2383 Post(s)
Liked 2,233 Times in 1,107 Posts
Plastic zip ties are really cheap.
nlerner is offline
Old 03-11-21, 06:57 AM
  #19
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
G-Flex in a syringe is probably your best choice, but it's still pretty pricey. Good prep is key.

I'd look at a clamp if I were you.
John Nolan is offline
Old 03-11-21, 07:13 AM
  #20
sced
South Carolina Ed

Join Date: Mar 2007
Location: Greer, SC
Posts: 3,709

Bikes: Holdsworth Super Mistral Fastback, Macario Pro, Ciocc San Cristobal, Viner Nemo, Cyfac Le Mythique, Giant TCR, Tommasso Mondial, Cyfac Etoile

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 121 Times in 64 Posts
Gel super glue is amazing stuff. You could also just go with stainless clips.
sced is offline
Old 03-11-21, 02:51 PM
  #21
Sir_Name
Senior Member
Thread Starter

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,359

Bikes: are fun!

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 518 Times in 194 Posts
Thanks, folks. I have a West Marine nearby with the G/Flex syringe in stock. I’ll grab that over the weekend. Araldite 2011 also sounds promising, will track that down. Shoe Goo too, at least for a pair of hiking boots but worth a test here.

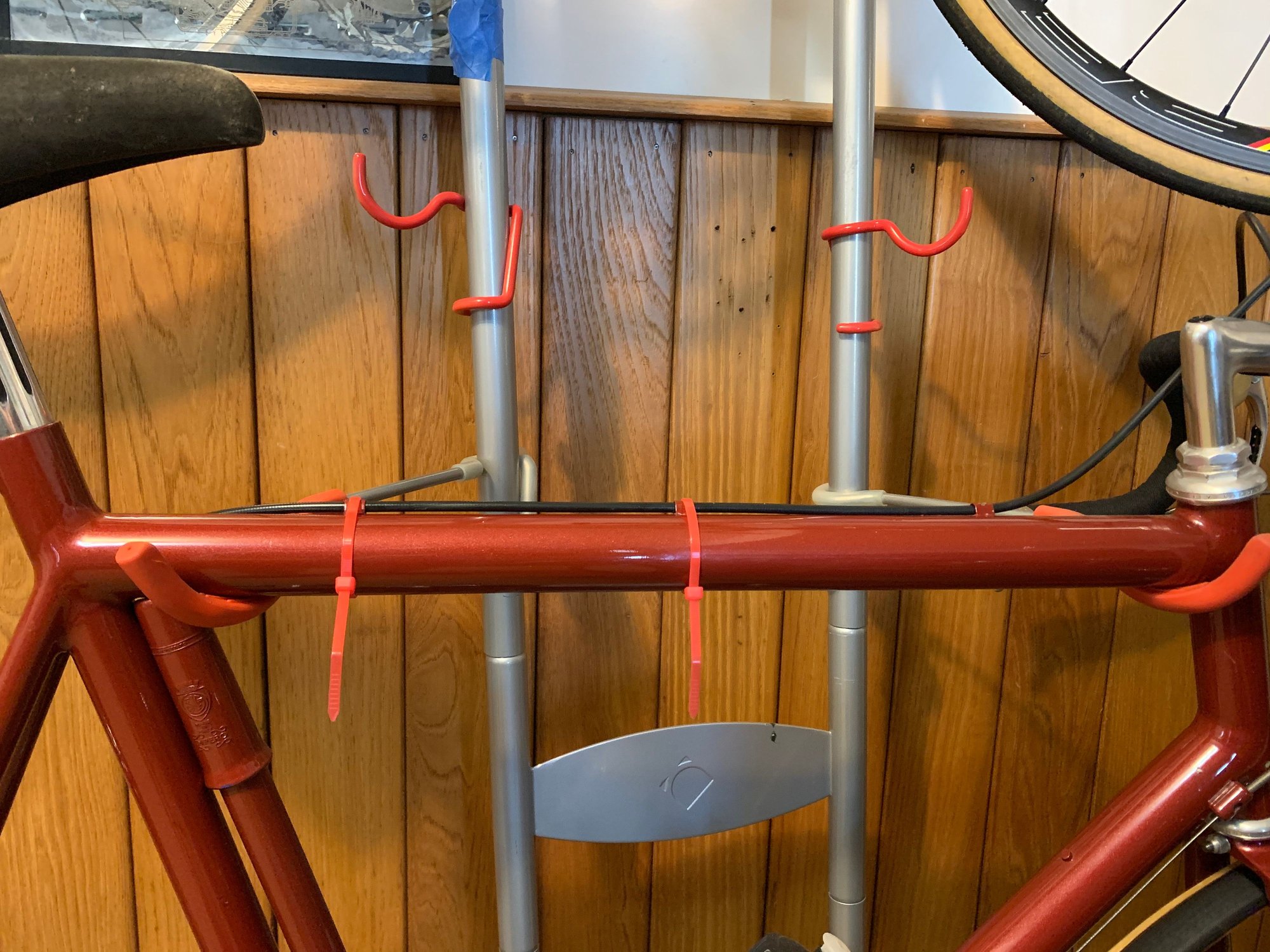

Originally Posted by nlerner View Post
Plastic zip ties are really cheap.
Huh, that actually worked!

Sir_Name is offline
Likes For Sir_Name:
Old 03-12-21, 07:41 AM
  #22
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,797
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1076 Post(s)
Liked 478 Times in 368 Posts
I got a chuckle out of the Shoe Goo. That stuff saved many a pair of Airwalks, Vision Street Wear and Vans in my younger days.

This thread reminds me, I still need to repair this. This thread covers alloy bonding ... is there anything similar to be used for finer/thinner steel bonding repairs like the one I just linked in the previous sentence?
__________________
███████████████

francophile is online now
Old 03-12-21, 11:10 PM
  #23
AeroIronBiker
Junior Member

Join Date: Mar 2021
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
JB weld can work wonders if it is bonded to clean surfaces
AeroIronBiker is offline
Old 03-12-21, 11:34 PM
  #24
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,670

Bikes: 5 good ones, and the occasional project.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 859 Post(s)
Liked 449 Times in 277 Posts
Op: You mention silicone caulk/adhesive.

Nothing sticks to silicone & silicone has a way of working itself into the pores or anything it comes into contact with.

I fear you have impregnated your project with a parting agent that may never be removed. Before doing any bonding, I would use new fresh abrasives, single pass, one direction, all the way down to bare metal. The idea is to remove all potential contamination with out redepositing it so that the new adhesive can bond to a bare, fresh, clean, & uncontaminated surface.
__________________
My lights are obscenly bright because drivers are dim.

I shouldn't have to "make myself more visible;" Drivers should just stop running people over.
base2 is online now
Likes For base2:
Old 03-13-21, 12:52 AM
  #25
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,464

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 155 Times in 98 Posts
Originally Posted by Kabuki12 View Post
I have used JB weld on a few projects and the stuff is amazing . On this application it may not be as clean as you would want . Whatever you use I would try to get to bare surface before bonding.
Precisely!

Remove all visible traces of any/all prior adhesives. This will likely require a file or sand paper and a deft hand.

The problem is, he used silicone caulk. Silicone is notoriously difficult to remove from surfaces to allow subsequent bonding with anything, even epoxies (like JB Weld). Our composites bonding shop will not allow silicone adhesive in the door much less allow you to use it there.

Personally, I would lightly file or sand my way down to bare metal, then clean like crazy (acetone comes to mind but mask off the surrounding paint). Do both sides of the interface to be bonded - tube and guide. Then use a clear epoxy (not JB Weld, which is grey). Whatever you use, clean off the squeeze out to keep the bonds looking nice.

Last edited by Bad Lag; 03-14-21 at 11:04 AM.
Bad Lag is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
