Poor old Stumpy - 1993 StumpJumper

Old 06-26-21, 08:39 AM
  #76
Wilbur76
Full Member

Join Date: Mar 2020
Location: California
Posts: 211

Bikes: 2020 Lynskey GR300, 1987 Diamondback Ascent, 1991 Skykomish Marble Point, 1994 Specialized Stumpjumper FSR, 1996 Specialized Stumpjumper M2 FS, 1992 GT Karakoram

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 219 Times in 84 Posts
Originally Posted by Deepcherry View Post
I ordered them on the website, after consulting with them about colour choices. I didn't see my colour scheme offered in the online shop but they were happy to create this order to my specifications.
Good to know they can customize. Thanks for the info!
Wilbur76 is offline
Old 06-26-21, 09:42 AM
  #77
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts
As soon as you are on their page they give you the 'color reference' and 'material options' menu.
From there on you can get in touch and they should attend to your every fancy.

Good luck.
Deepcherry is offline
Old 06-27-21, 08:22 PM
  #78
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,604
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 874 Post(s)
Liked 458 Times in 278 Posts
Originally Posted by Deepcherry View Post


The stonework is possibly medieval, certainly pre-rococo, in the traditional rural mediterranean style. It was a small stable, then a ruin, and is now our little workshop/playroom.
The main house dates from the Spanish Arabic era, so earlier than 1228 for our area.

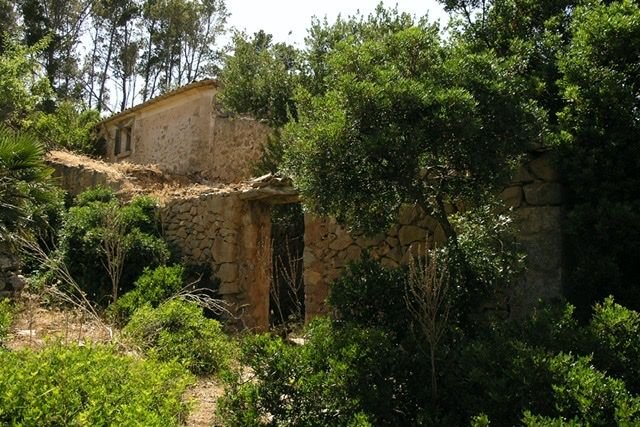

Here it is thirteen years ago, as a ruin. Foreground center-right by the doorway is my frame painting zone:

That is fantastic.
due ruote is offline
Old 06-30-21, 09:34 AM
  #79
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts
Bot:

That was a short two weeks.

Now for the RAL 3004 in spraycan format.

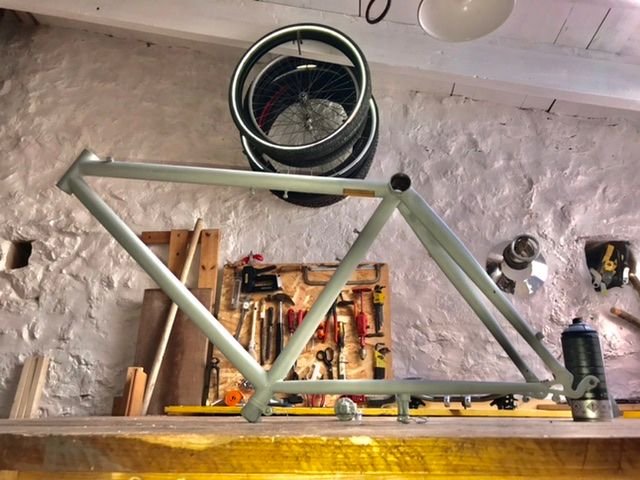

Two coverings with primer and some gentle 800 grit wet sanding to get rid of some surface particles.

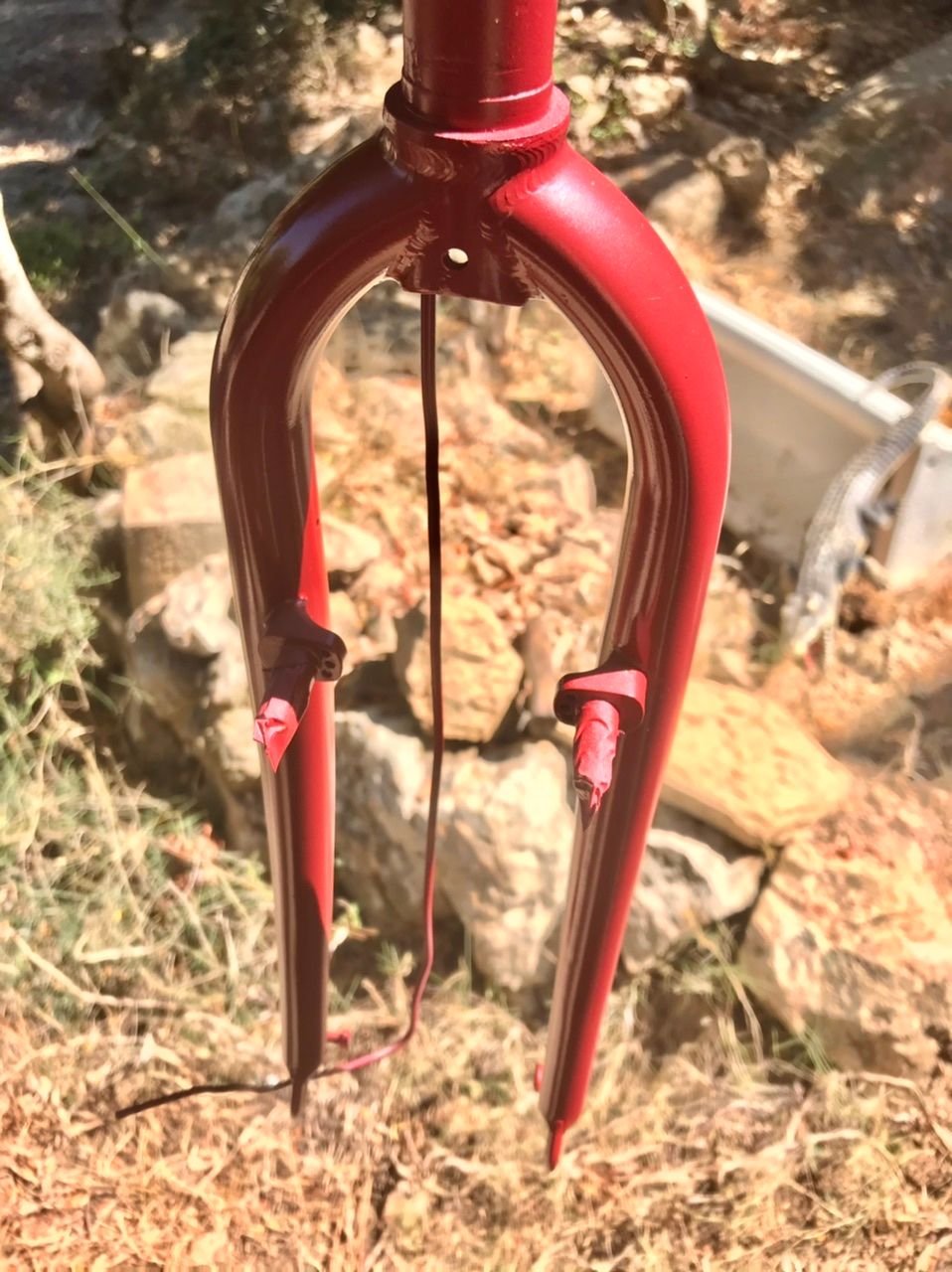

Dust coats and two wet coats later..

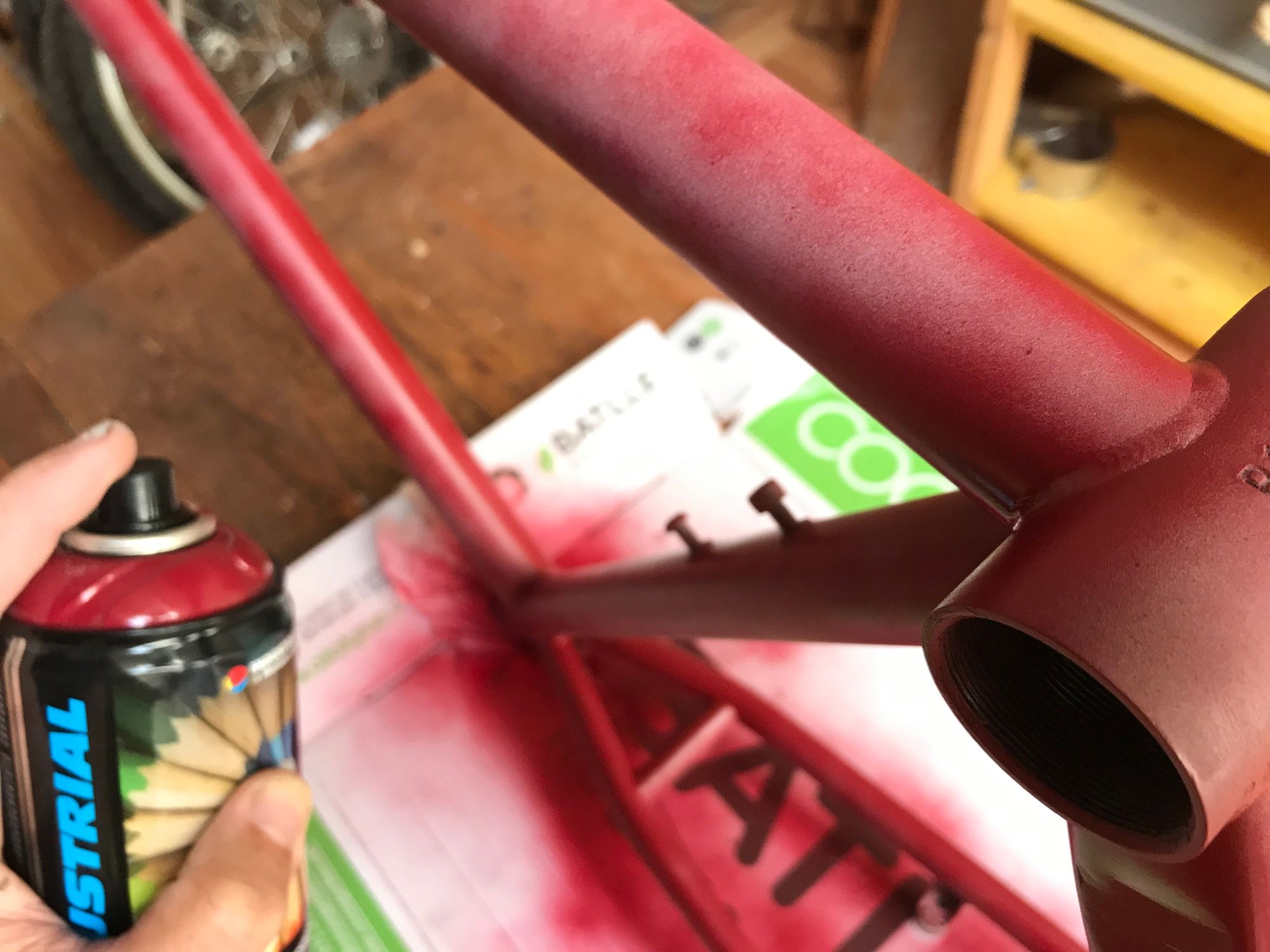

First coats are very light

I like the wet coats; You really have to move with the can and it needs mega control because once that button is pressed the mission is to cover the whole frame in a consistent wet coat. It is a knife's edge between orange peel and drips & sags.

..followed by a light blast with the airbrush for that glitter effect.

Last edited by Deepcherry; 07-02-21 at 09:07 AM.
Deepcherry is offline
Old 07-02-21, 08:30 AM
  #80
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts

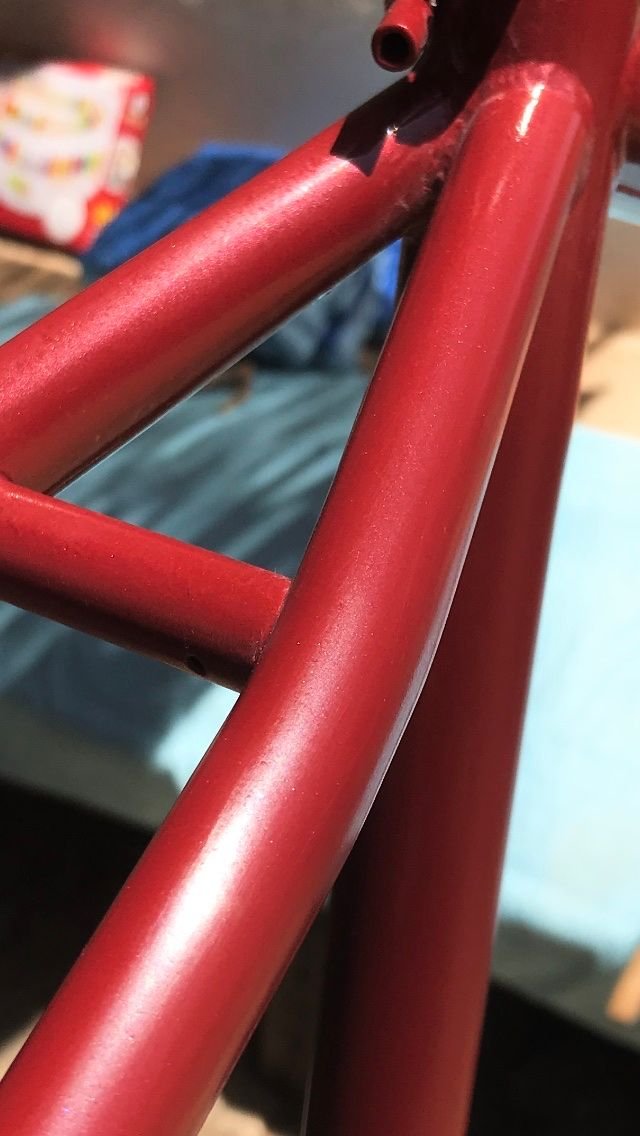

Bling




in these pics the metallic particles look more like orange peel paint texture!

Last edited by Deepcherry; 07-02-21 at 11:54 AM.
Deepcherry is offline
Likes For Deepcherry:
Old 07-02-21, 12:59 PM
  #81
Smokinapankake
Senior Member

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 747
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
Liked 465 Times in 188 Posts
The rear dropouts on these frames are fantastic! Easily in the top ten of my list of early 90’s favorite bike bits!
Smokinapankake is offline
Old 07-02-21, 01:54 PM
  #82
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts
Originally Posted by Smokinapankake View Post
The rear dropouts on these frames are fantastic! Easily in the top ten of my list of early 90s favorite bike bits!

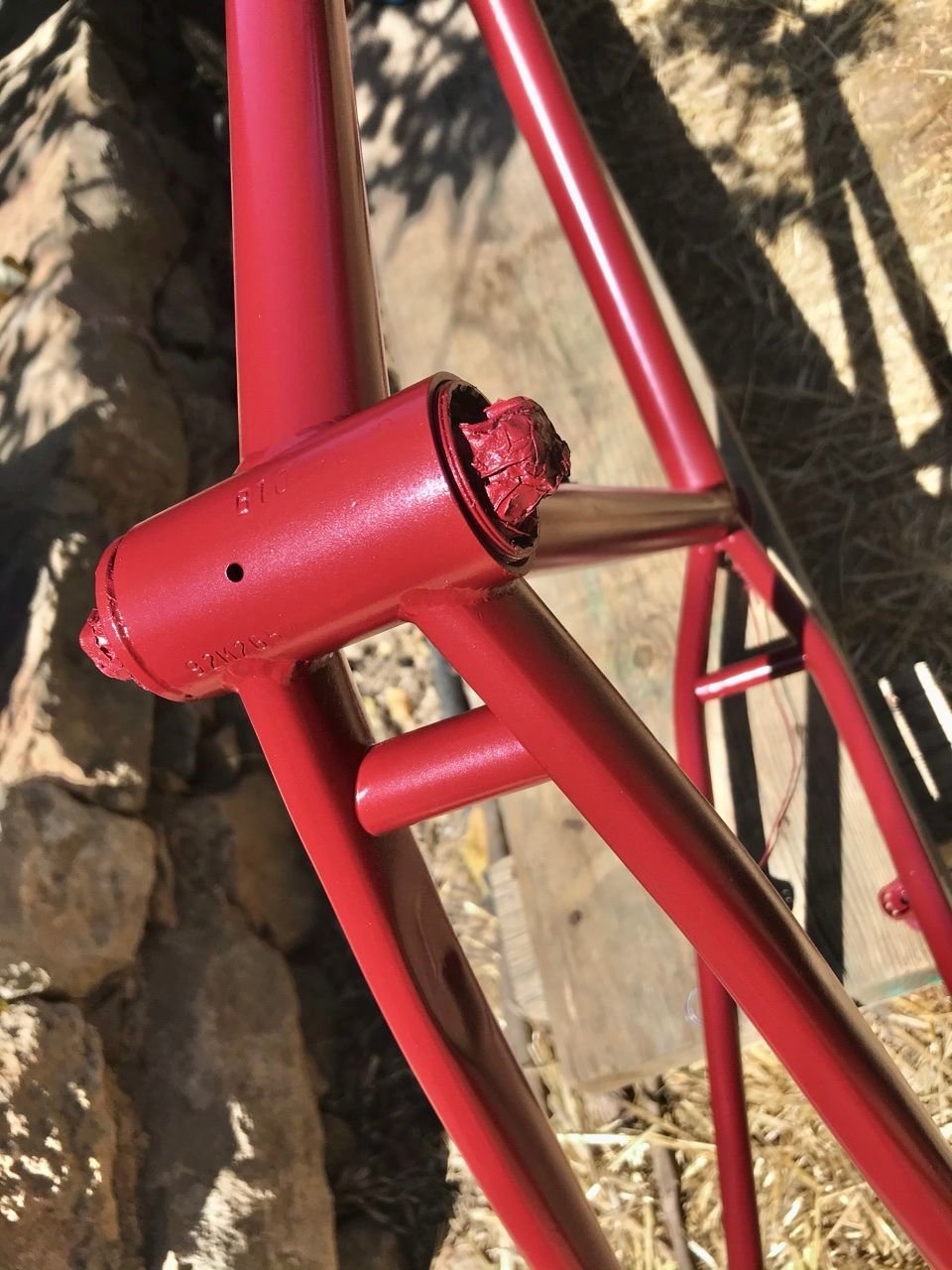

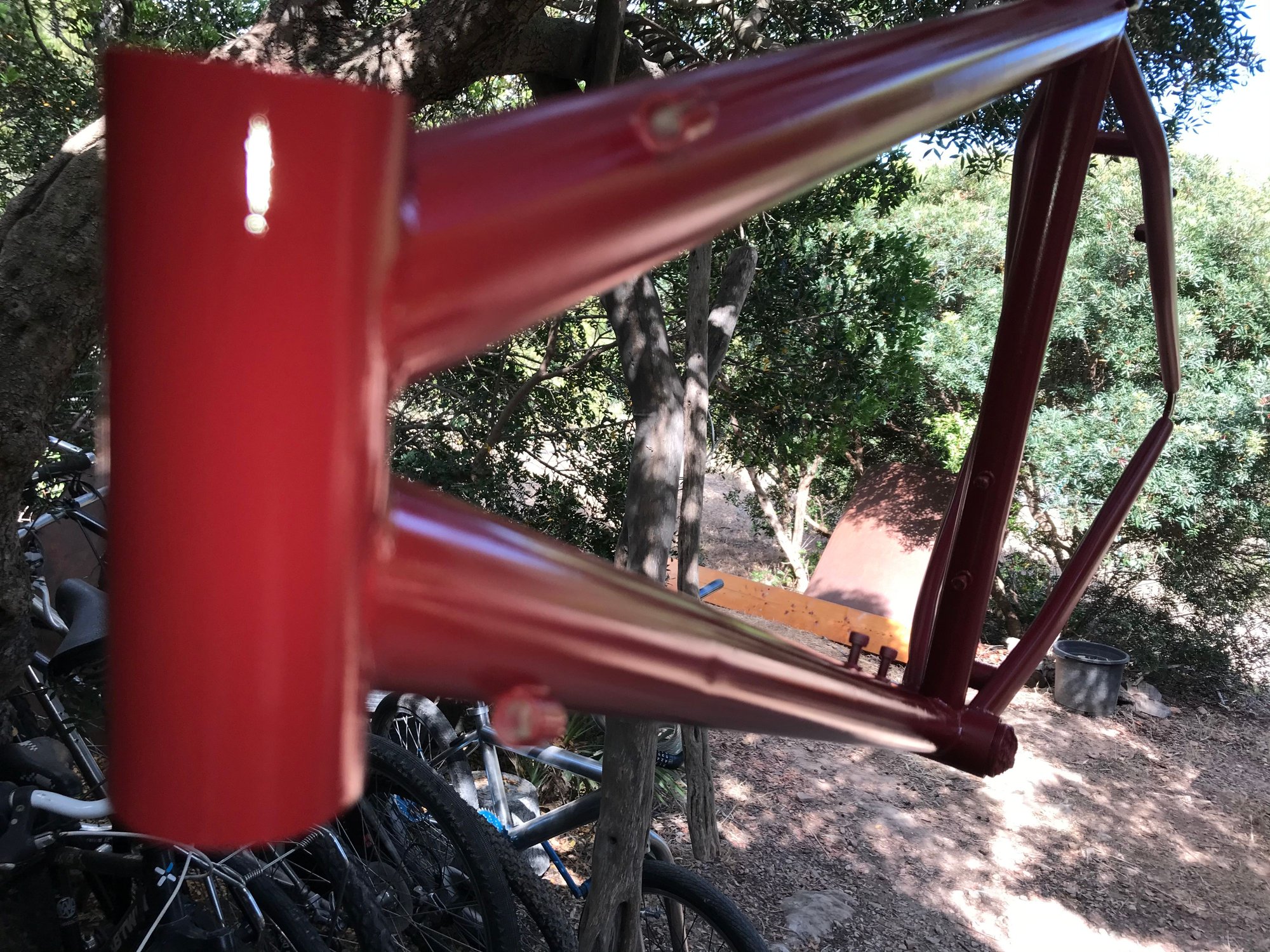

Well this is just for you then; bare nekkid, and with a fresh coat of Stumpjumper red.




Deepcherry is offline
Old 07-02-21, 02:09 PM
  #83
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 3,047

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked 422 Times in 259 Posts
Originally Posted by Deepcherry View Post

in these pics the metallic particles look more like orange peel paint texture!
I got that when I painted my Fuji, but after applying the clear coat, it really popped!


Rustoleum Cobalt Blue Metallic with clear
Pompiere is offline
Likes For Pompiere:
Old 07-03-21, 01:31 AM
  #84
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts
Originally Posted by Pompiere View Post
I got that when I painted my Fuji, but after applying the clear coat, it really popped!


Rustoleum Cobalt Blue Metallic with clear
Lovely paint; Agreed, nothing is what it seems until the clear is down.
Deepcherry is offline
Old 07-04-21, 06:40 AM
  #85
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts
I have wet-sanded the first coat of clear with 1500, 4000 and then 8000 grit to get rid of some texture before the decals and further clear coats go on.

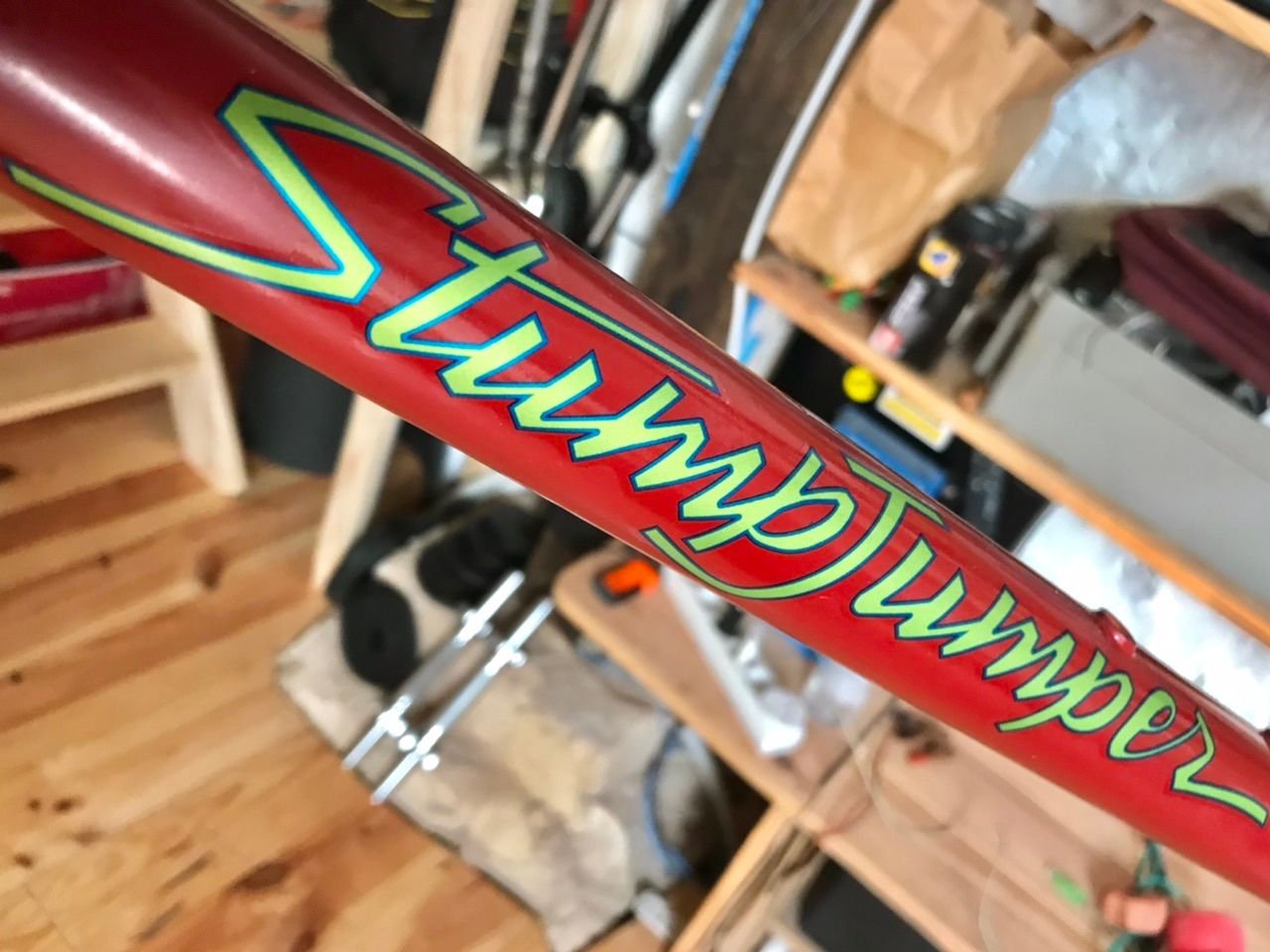

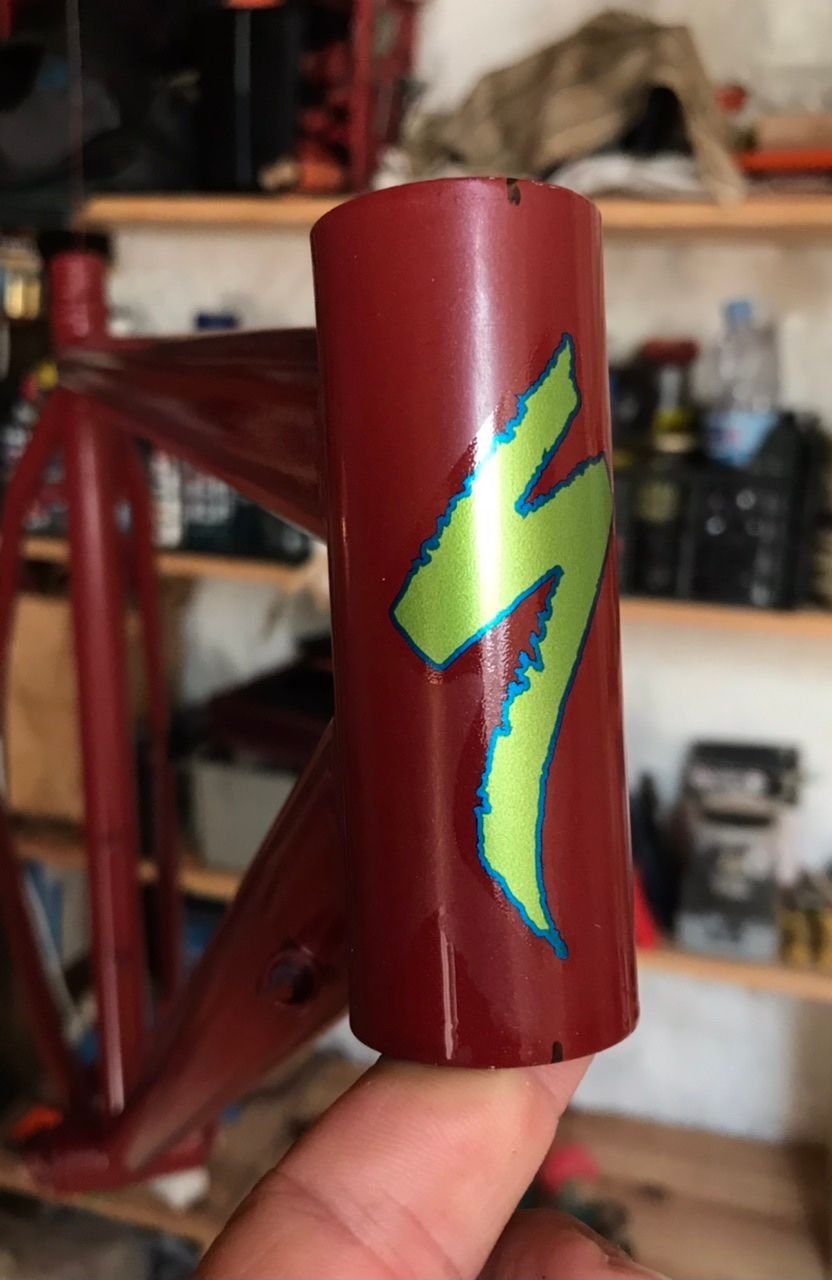

Couldn't resist trying the head tube 'S'.
These Velocals' 2 mil' thick stickers go down really well if the instructions are precisely followed.
The border should almost disappear under further coats of clear.

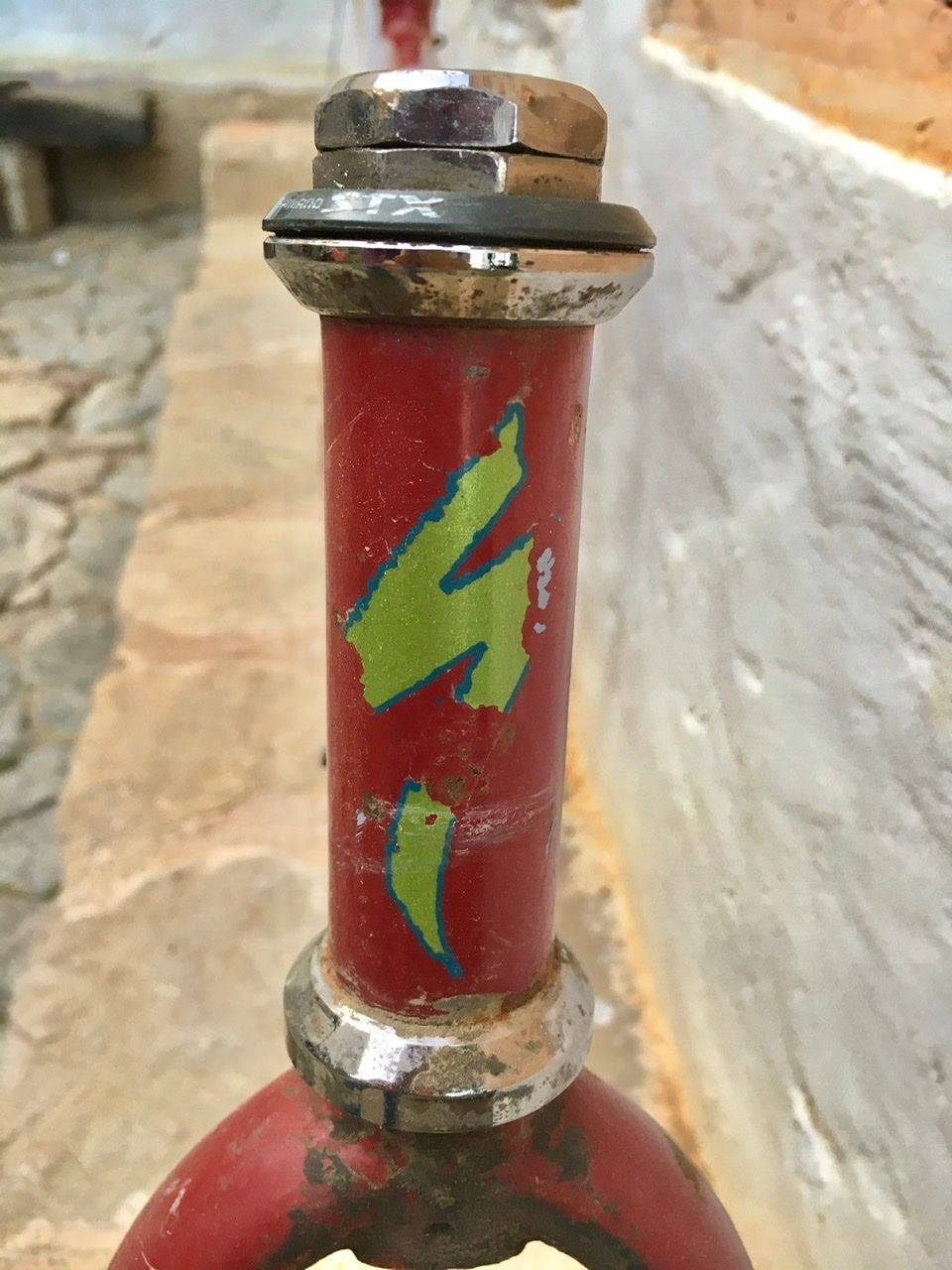

As it was


Last edited by Deepcherry; 07-04-21 at 08:38 AM.
Deepcherry is offline
Old 07-04-21, 08:30 AM
  #86
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts

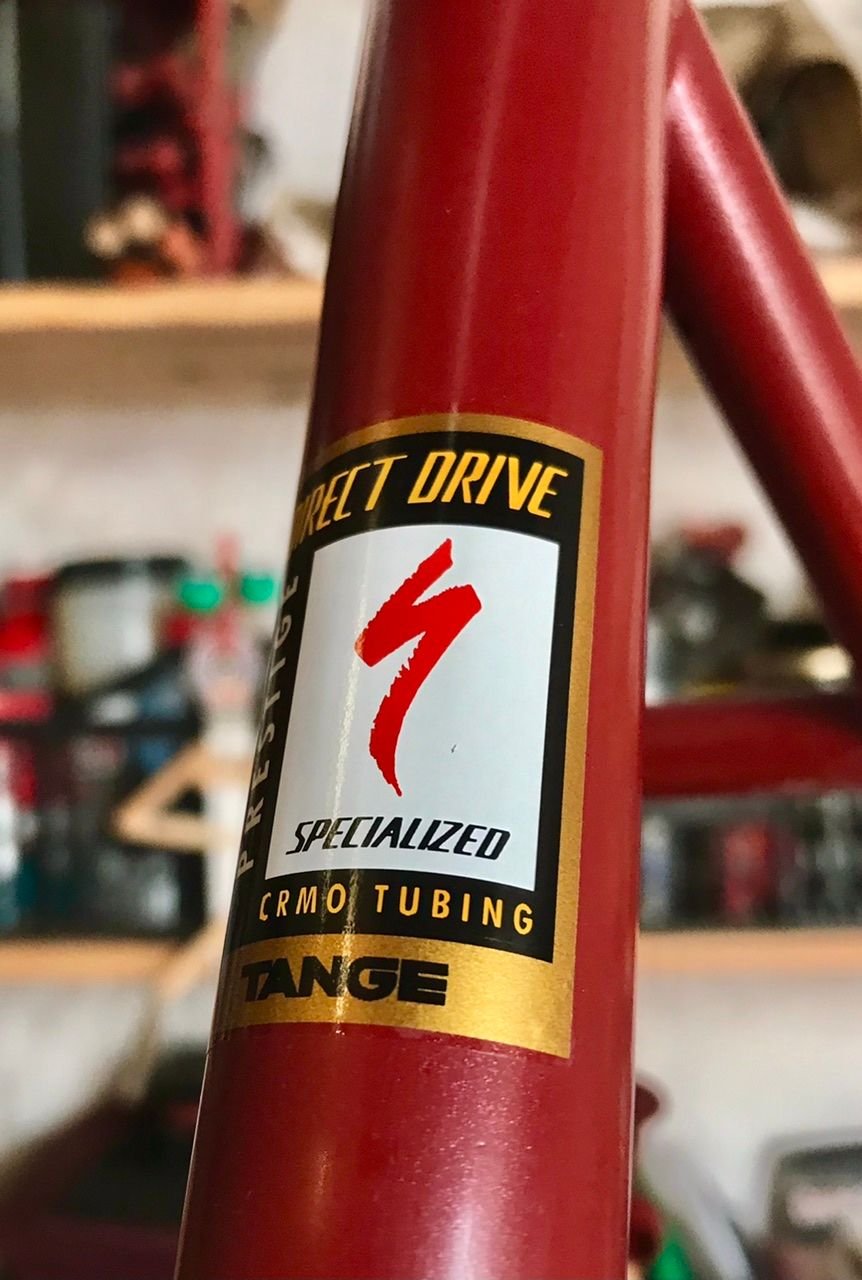

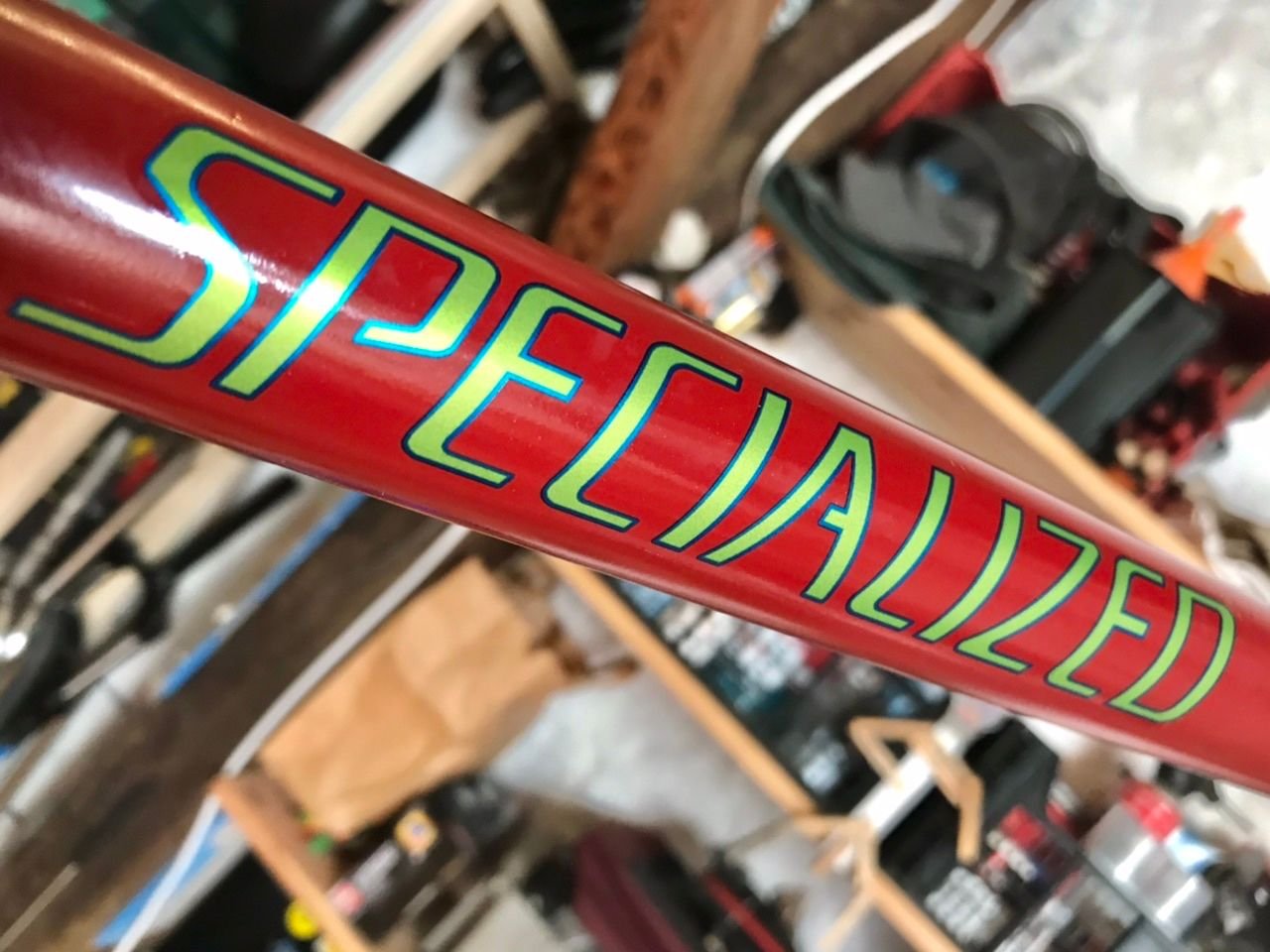

Nerve-wracking but extremely satisfying work:




Authentic repros

Not the correct decal on the FF but it will do.
Deepcherry is offline
Likes For Deepcherry:
Old 07-04-21, 09:48 AM
  #87
Me2gingko
Junior Member

Join Date: Jun 2021
Posts: 20

Bikes: 1971 Schwinn Super Sport / 1954 Schwinn Spitfire / 90's Specialized Hardrock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 20 Times in 7 Posts
As always, this forum provides plenty of inspiration for a beginner.
Me2gingko is offline
Likes For Me2gingko:
Old 11-06-21, 02:25 PM
  #88
Deepcherry
Off grid off road
Thread Starter

Deepcherry's Avatar

Join Date: Aug 2020
Location: Spain
Posts: 198

Bikes: Corratec Xvert, Peugeot Origin 30, GT Outpost, Kona Cinder Cone 93 Specialized StumpJumper, Ritchey mtb

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 119 Times in 71 Posts

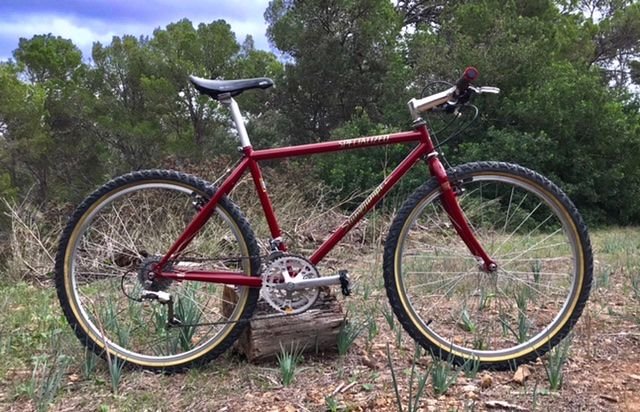

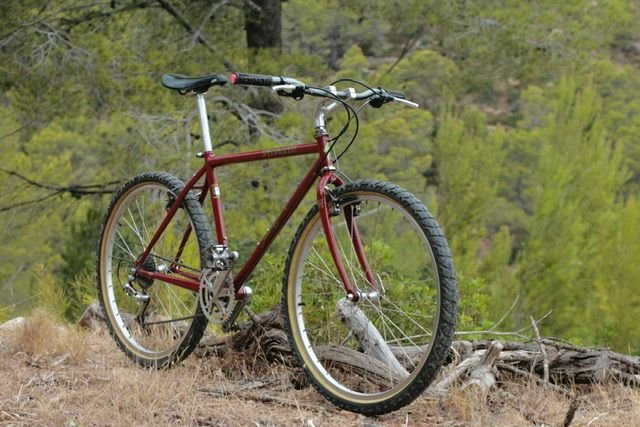

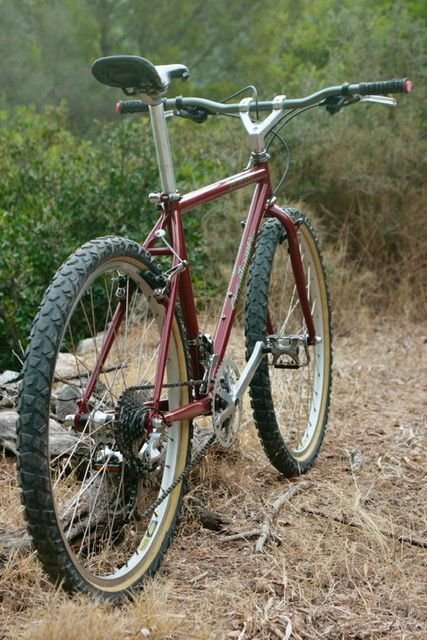

After having finished this little beauty, I have been reticent in taking it out as the paint is too good.
so I put it up for sale instead and turned a wee profit!
On to the next....






Deepcherry is offline
Likes For Deepcherry:
Old 11-06-21, 06:41 PM
  #89
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 3,181

Bikes: 1984 Araya MB 261, 1992 Specialized Rockhopper Sport, 1993 Hard Rock Ultra, 1994 Trek Multitrack 750, 1995 Trek Singletrack 930

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 1,075 Times in 664 Posts
Originally Posted by Deepcherry View Post
After having finished this little beauty, I have been reticent in taking it out as the paint is too good.
so I put it up for sale instead and turned a wee profit!
On to the next....
Wait, are you serious? After all that??
It did turn out gorgeous.
Korina is offline
Old 07-31-22, 03:00 PM
  #90
mrv
BIKE RIDE

mrv's Avatar

Join Date: Jun 2014
Location: Michigan
Posts: 1,491

Bikes: my very own customized GUNNAR CrossHairs

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 210 Times in 140 Posts
How is the paint holding up? (6 months? 7 months? )

also - I re-re-read the thread, but missed what type of paint you use.
I saw you mention you used an etching primer.
I saw the RAL number and the can that says "INDUSTRIAL", but I missed what brand. Acrylic or urethane.
And was the clear a urethane or an epoxy clear?
- again, if I missed those details, we'll blame it on COVID brain or something.
thanks.
mrv is offline
