Is dust sleeve needed?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Is dust sleeve needed?

Old 03-12-21, 08:01 AM
  #1
Spellscape
Full Member
Thread Starter

Spellscape's Avatar

Join Date: Feb 2021
Location: Ukraine
Posts: 217

Bikes: Union Sakai

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 108 Times in 40 Posts
Is dust sleeve needed?

Hi all
Is dust sleeve really needed for older BBs? (BB without holes)
Spellscape is offline
Old 03-12-21, 08:13 AM
  #2
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,429 Times in 801 Posts
I would say yes. The sleeve is there to keep debris, from the road bottom, side or top, from getting in.

In truth, the bottom and top are not significant issues, but so much can get into the bottom bracket from the top (seat post enters seat tube lug). Water, carrying this that or the other thing, seeps down, past the seat post (made worse if the fluted one have the flutes inside the lug) and is prevented from getting into the actual bearing cavity itself. The water, however, can get in there, so the sleeves are not the perfect answer unless there is some place, in the bottom bracket lug, for water to escape easily.

Can you get along without the sleeve. Of course, but why would you want to?
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 03-12-21, 08:13 AM
  #3
SurferRosa
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,408

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 3,792 Times in 2,014 Posts
Maybe not with no BB shell cutouts and you don't ride in the rain. But I definitely use them in all my keepers. If I have a spare, I'll put it in a nice flip. They usually already have them in place.
SurferRosa is offline
Old 03-12-21, 08:53 AM
  #4
Spellscape
Full Member
Thread Starter

Spellscape's Avatar

Join Date: Feb 2021
Location: Ukraine
Posts: 217

Bikes: Union Sakai

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 108 Times in 40 Posts
Ok let's rephrase this - should i buy them?
Can I use modern dust tubes from shimano Holowtech 2 BB as some kind of replacement?
I have old shimano JSA BB on lose bearings and old cloter BB
Spellscape is offline
Old 03-12-21, 09:26 AM
  #5
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,429 Times in 801 Posts
Originally Posted by Spellscape View Post
Ok let's rephrase this - should i buy them?
Can I use modern dust tubes from shimano Holowtech 2 BB as some kind of replacement?
I have old shimano JSA BB on lose bearings and old cloter BB
Allow me to repeat what I suggested in post #2...

"Can you get along without the sleeve. Of course, but why would you want to?"

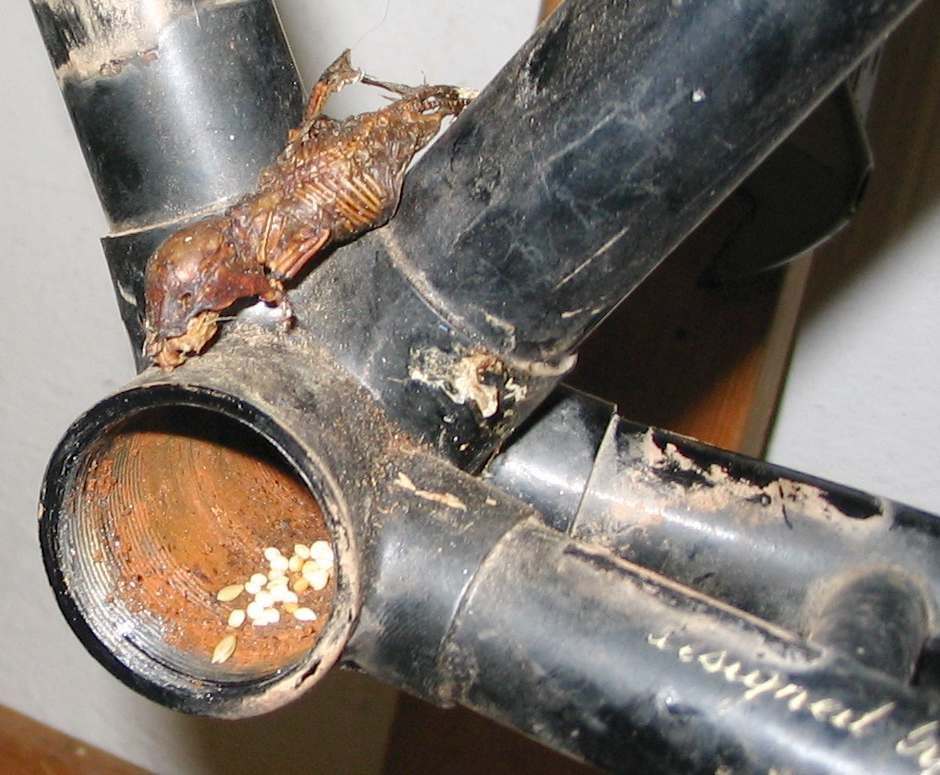

That said, I don't really know what fits what these days. Nor does this little fellow or fellowette, who made a cozy home in the bottom bracket housing of an early eighties Fuji something or other...

__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 03-12-21, 11:19 AM
  #6
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: City of Angels
Posts: 4,867

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1237 Post(s)
Liked 1,759 Times in 986 Posts
Originally Posted by SurferRosa View Post
Maybe not with no BB shell cutouts and you don't ride in the rain. But I definitely use them in all my keepers. If I have a spare, I'll put it in a nice flip. They usually already have them in place.
^^^ if no BB cut out I would agree with SR.... It is hard for debris to get into the BB.
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is online now
Old 03-12-21, 11:29 AM
  #7
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,716
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 535 Times in 300 Posts
Originally Posted by randyjawa View Post
Allow me to repeat what I suggested in post #2...

"Can you get along without the sleeve. Of course, but why would you want to?"

That said, I don't really know what fits what these days. Nor does this little fellow or fellowette, who made a cozy home in the bottom bracket housing of an early eighties Fuji something or other...

That looks like "Designed by Norco" so perhaps it was a Nishiki of some sort.
Narhay is offline
Old 03-13-21, 07:22 AM
  #8
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 7,206
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 716 Post(s)
Liked 561 Times in 287 Posts
A rolled business card works too.
big chainring is offline
Likes For big chainring:
Old 03-13-21, 07:29 AM
  #9
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,429 Times in 801 Posts
Originally Posted by Narhay View Post
That looks like "Designed by Norco" so perhaps it was a Nishiki of some sort.
Yup, you are absolutely correct. A Nishiki Rally, as I recall. That said, I don't really recall well these days. Memory is a thing of the past, for me these days.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 03-13-21, 07:45 AM
  #10
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,999

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 362 Post(s)
Liked 361 Times in 233 Posts
I'd worked on so many low end bikes that didn't have a dust sleeve, that when I finally got a bike that did have one, I forgot to put it back in during re-assembly. I wasn't about to take them back apart, so there are two dust sleeves laying on my work bench now.
Pompiere is offline
Likes For Pompiere:
Old 03-13-21, 11:25 AM
  #11
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 21,312

Bikes: old ones

Mentioned: 296 Post(s)
Tagged: 0 Thread(s)
Quoted: 24248 Post(s)
Liked 7,937 Times in 5,566 Posts
Originally Posted by Spellscape View Post
Ok let's rephrase this - should i buy them?
Can I use modern dust tubes from shimano Holowtech 2 BB as some kind of replacement?
I have old shimano JSA BB on lose bearings and old cloter BB
...in the very ancient times of yore, before there were so many of them lying around at the bike co-op for cheap, I made a couple of them, from an old aluminum soda can.
You just use a shear to cut a slice of aluminum from the soda can that is more or less the shell width between the inside edges of the two BB cups (you need to guesstimate this...it doesn't hurt if you're a little short).

Then you sort of gently bend it around into a cylinder, with overlapping ends, but not so tightly wound that it's smaller than the shell diameter.

Slide it in until it bottoms on the inside edge of the fixed cup. Expand it so the thing stays tight against the interior walls of the shell, covering all the holes from the frame tubes and stays that enter. Works fine.
3alarmer is online now
Old 03-13-21, 12:20 PM
  #12
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,090
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 265 Times in 181 Posts
Originally Posted by 3alarmer View Post
...in the very ancient times of yore, before there were so many of them lying around at the bike co-op for cheap, I made a couple of them, from an old aluminum soda can.
You just use a shear to cut a slice of aluminum from the soda can that is more or less the shell width between the inside edges of the two BB cups (you need to guesstimate this...it doesn't hurt if you're a little short).

Then you sort of gently bend it around into a cylinder, with overlapping ends, but not so tightly wound that it's smaller than the shell diameter.

Slide it in until it bottoms on the inside edge of the fixed cup. Expand it so the thing stays tight against the interior walls of the shell, covering all the holes from the frame tubes and stays that enter. Works fine.
I think you could do this with a piece of mylar. When you roll it up, and let go of it it will try to unroll, holding it in place. Now, if you took two pieces, and cut each narrower then the distance between the cups, then rolled them up together, but staggered widthwise, so it was a little wider than needed, it would self adjust to the exact size needed, as you install the adjustable cup, I think.
Hobbiano is offline
Old 03-13-21, 12:32 PM
  #13
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,648
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2632 Post(s)
Liked 1,769 Times in 1,120 Posts
You can make one out of a plastic water/Coke bottle. They are even close to the correct diameter and roll up on their own.
seypat is offline
Old 03-13-21, 12:44 PM
  #14
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 4,054

Bikes: 1983 Basso Gap...2013 Colnago CX-1...2015 Bianchi Intenso

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1123 Post(s)
Liked 1,016 Times in 599 Posts
The only bike I have with BB shell cutouts is my '80 Gios Torino. I asked my LBS mechanic if the sleeve is necessary. He recommended I install it since there's an opening for water, dirt, debris etc to enter

I haven't worried about it since.
__________________
1983 Basso Gap... 2013 Colnago CX1...2015 Bianchi Intenso




malcala622 is offline
Old 03-13-21, 03:41 PM
  #15
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,716
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 535 Times in 300 Posts
Originally Posted by randyjawa View Post
Yup, you are absolutely correct. A Nishiki Rally, as I recall. That said, I don't really recall well these days. Memory is a thing of the past, for me these days.
Who are you??? Where am I???
Narhay is offline
Old 03-13-21, 04:09 PM
  #16
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,372

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,429 Times in 801 Posts
Originally Posted by Narhay View Post
Who are you??? Where am I???
Actually the question that mostly comes up is "What was I going to do?"
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
