Ex Sanson team Moser bike project - finished at last!

Hi Guys,

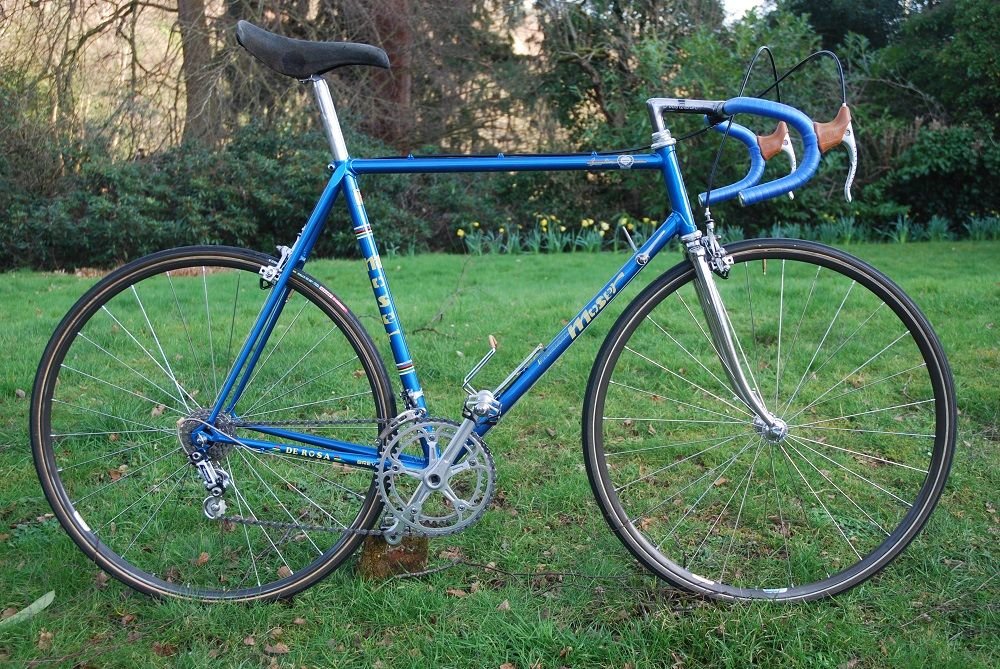

Have been working on this one for some time, finally finished and ready to test...


The frame came to me from Italy and was in poor shape, as per a previous couple of post on here it was a poorly repainted frame masquerading as a Benotto - which it clearly wasn`t. What I did know was that it was an ex team bike made by Ugo De Rosa between `78 and `80, most likely 1980 due to the allen bolt brake bridges. An email from Derosa confirmed it was by him, also the sandcast De Rosa lugs helped place it and the "MAZ" stamped on the bottom bracket along with a bit of the original blue marked it out as being Leonardo Mazzantini`s 1980 Sanson team bike.


Bare metal strip down showed a clumsy braze on front deraileur mount had been added so was carefully removed, then the the whole thing repainted to match the Sanson `79/`80 blue Moser scheme. Frame size is kind of 56 ish medium, but quite streched out with a long reach.

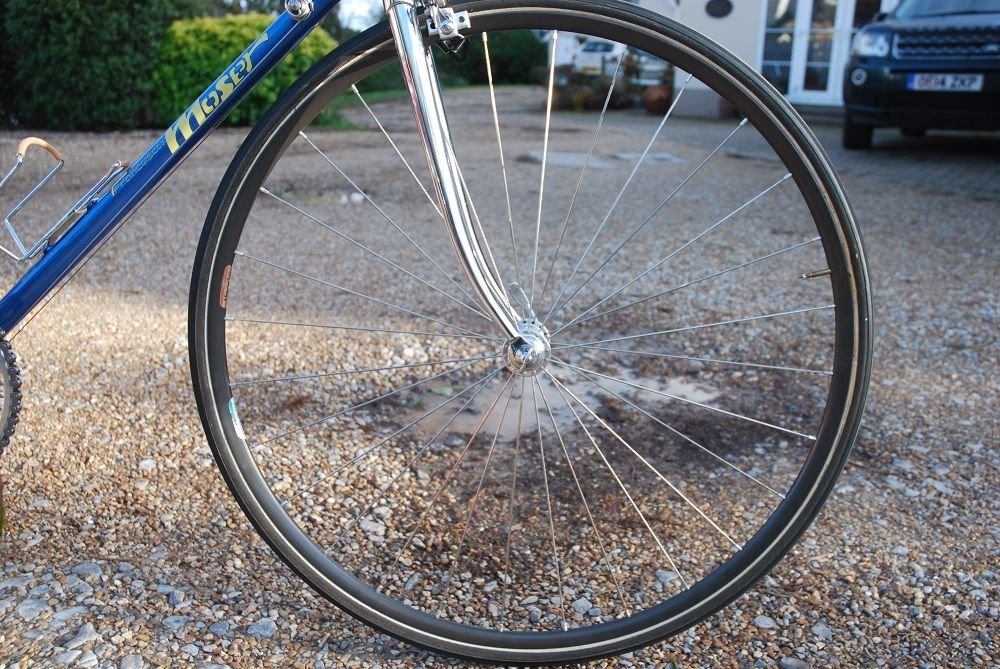

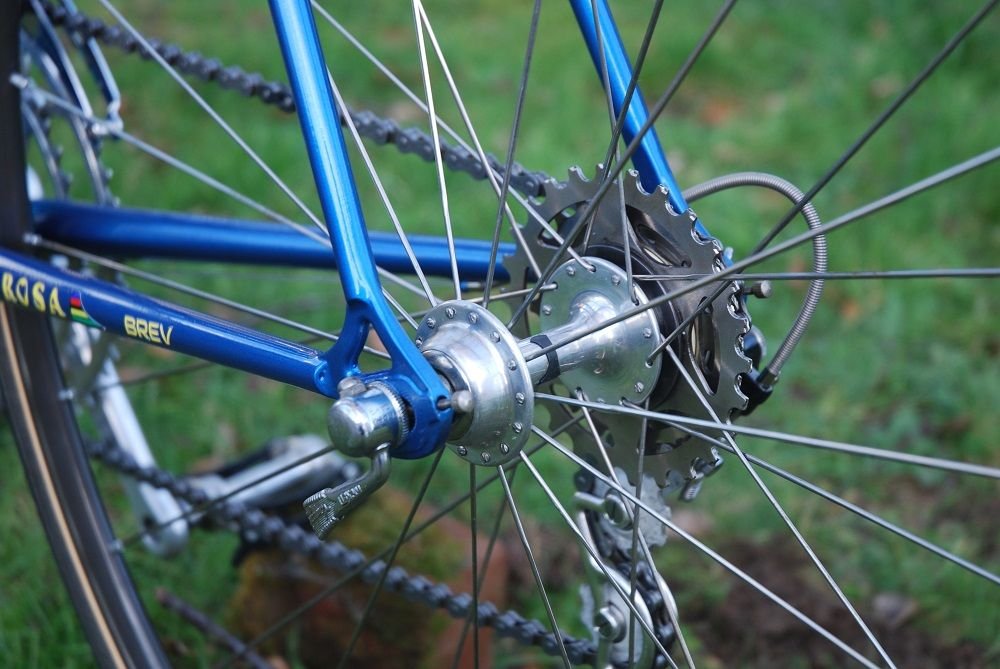

Parts wise, super record throughout coupled with some really neat 126mm Campag Titanium hubs with 26 spoke straight pull flattened spokes with what look like Wolber magnesium rims, can`t be sure but they are really light.


Weight wise, I figured I should take a few details with this being a hand made Ugo frame:


Frame - 1160g

Forks - 710g

Wheels (pair) 1250g

Overall including pedals and bottle cage - 9.03kg, 19.8ibs.


The build was really easy - should point out that rear wheel required no centering at all, just set the adjusters even and spot on first go, everything just went on easy. Too wet and cold here in the UK to ride for a few weeks so it will be a shakedown on the turbo to check the fittings and bed the pads in, only thing I have noted is that the panto 125mm stem is not the stiffest in the world, even when coupled with 38cm bars.





















Will let you know how it rides, Dan.
Dan Chase is offline
Likes For Dan Chase:
Old 03-13-21, 11:46 AM
  #2
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,429

Bikes: are fun!

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 456 Post(s)
Liked 775 Times in 252 Posts
Beautiful, and quite the find. Enjoy!
Sir_Name is offline
Old 03-13-21, 01:06 PM
  #3
canyoneagle
Senior Member

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,692

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 147 Times in 69 Posts
Gorgeous!
Rare find, indeed.

Iíd level the saddle properly if it were mine, but thatís a minor niggle.
__________________
Bikes are fun
canyoneagle is offline
Old 03-13-21, 01:26 PM
  #4
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,902

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 3206 Post(s)
Liked 2,789 Times in 1,413 Posts
+1 the accolades.
Takes a dedicated person to do it justice. Tops off!
Rare indeed, race bikes for a known racer are worthy of full restoration.


I once passed on an early '90s Pinarello Banesto race frameset - mint - with an original name decal. Expensive, but not outrageous. The practical me.
Wildwood is offline
Old 03-13-21, 01:49 PM
  #5
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: City of Angels
Posts: 4,510

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1090 Post(s)
Liked 1,462 Times in 793 Posts
Same here...it turned out super!!!.
Any before pics?
Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is offline
Old 03-14-21, 03:10 AM
  #6
Dan Chase
Junior Member
Thread Starter

Join Date: Jun 2019
Posts: 116
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 92 Times in 30 Posts
Originally Posted by xiaoman1 View Post
Same here...it turned out super!!!.
Any before pics?
Ben
Here`s some before pics:

Badly re-painted frame - not the Benotto 3000 it pretends to be:


Stripped frame:







Moser`s `79 team bike (`80 had the newer allen bolt bridges and cable routes but same paint):

Dan Chase is offline
Old 03-14-21, 05:55 AM
  #7
KenNC
Full Member

KenNC's Avatar

Join Date: Oct 2013
Posts: 413
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 111 Times in 62 Posts
Yes, that came out really nice. Great detective work too!
KenNC is offline
Old 03-14-21, 07:39 AM
  #8
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 7,626

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Prologue TT,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,Klein Quantum II

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 1937 Post(s)
Liked 2,259 Times in 1,004 Posts
I'll join the others, great job!!
__________________
Steel is real...and comfy.
jamesdak is offline
