Chain Not settling on Chainset during Shifting.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Chain Not settling on Chainset during Shifting.

Old 03-16-21, 11:43 AM
  #1
Roger M
Senior Member
Thread Starter

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,331
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 368 Times in 139 Posts
Chain Not settling on Chainset during Shifting.

Before I post over on the Mechanical forum..

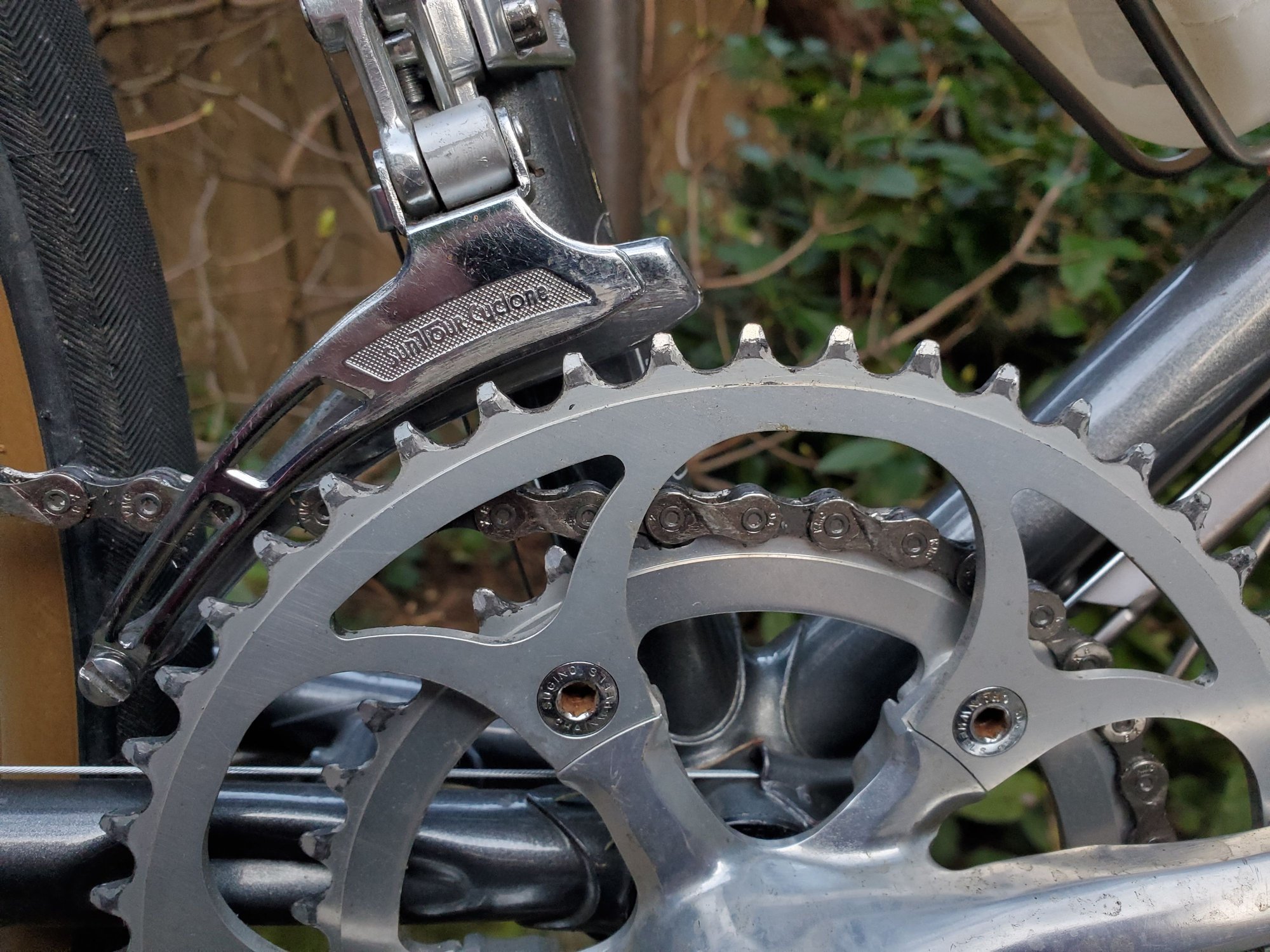

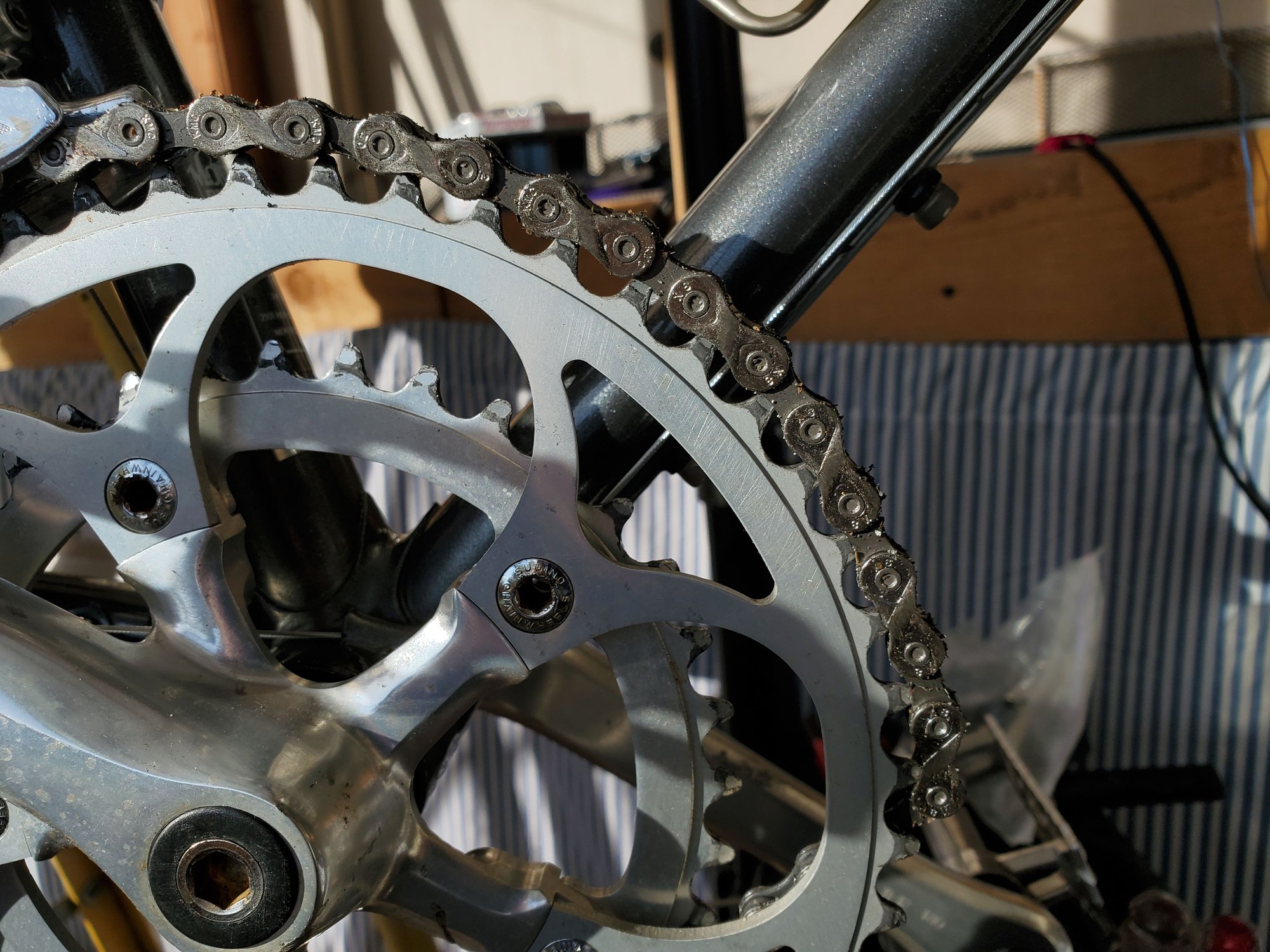

I just finished building up this bike. During the shakedown ride, I noticed the chain not settling in to the teeth during shifting. It only slides in completely when it wraps all the way around to 6 o'clock on the ring.

EDIT: The chain is a new KMC X8 8 speed (less than 30 miles now). The dirt/grease is from the 7 speed cassette that I didn't bother to clean.

It does the same on big and small rings. Are the rings not installed correctly(in sync)? Other suggestions?

Any help is appreciated.

Last edited by Roger M; 03-16-21 at 12:09 PM.
Roger M is offline
Old 03-16-21, 11:51 AM
  #2
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,452

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp, '76 Eisentraut Limited

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 767 Post(s)
Liked 571 Times in 371 Posts
Have you checked the chain for wear?
noobinsf is online now
Likes For noobinsf:
Old 03-16-21, 12:00 PM
  #3
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 469

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 161 Times in 101 Posts
I also get this briefly, with the middle ring of a triple on one bike. using 80s era chainrings (in good shape) with a modern - and new - 7/8 speed chain. once settled in everything is totally fine, just not sure why the surfing happens - keen to learn from your thread here.

Last edited by niliraga; 03-16-21 at 12:09 PM.
niliraga is offline
Old 03-16-21, 12:02 PM
  #4
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,598

Bikes: 5 good ones, and the occasional project.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 811 Post(s)
Liked 391 Times in 242 Posts
I vote for chain wear. In your description the chain is the common denominator. Plus you can see in the photograph that it is old, a bit gritty KMC x8 speed & also the links don't line up on the teeth the same from link 1 to the last.

You are attempting to use/reuse an old chain that is too worn to be servicable.

Are your rings a matched set? The clocking of some sets of some rings is different from other sets of rings. This is done so that as the chain lifts off one ring the teeth in the other ring are in an appropriate place to have the chain settle in nicely. You didn't change rings did you?

Modern rings have ramps/pins/cutouts to allow chains to settle in better. Your rings appear to be flat. Not that it should matter much here.

Last edited by base2; 03-16-21 at 12:38 PM.
base2 is offline
Likes For base2:
Old 03-16-21, 12:03 PM
  #5
Roger M
Senior Member
Thread Starter

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,331
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 368 Times in 139 Posts
Originally Posted by noobinsf View Post
Have you checked the chain for wear?
The chain is new(less than 30 miles).

I will edit the post. Thanks for pointing that out.
Roger M is offline
Likes For Roger M:
Old 03-16-21, 12:40 PM
  #6
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,500

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 2867 Post(s)
Likes: 0
Liked 1,380 Times in 937 Posts
How old are the chainrings? Tooth wear can be very hard to judge but new chains will not run well on worn rings and cogs. Also, are these old 5-6 speed chainrings? They may need to be 7-8 speed rings to be narrow enough for the chain.
79pmooney is online now
Likes For 79pmooney:
Old 03-16-21, 12:40 PM
  #7
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,380

Bikes: Breezer Radar

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1814 Post(s)
Liked 1,156 Times in 549 Posts
Originally Posted by Roger M View Post
The chain is new(less than 30 miles).
...
Then I think it's worn chainrings.
tyrion is offline
Likes For tyrion:
Old 03-16-21, 02:44 PM
  #8
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 1,879

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 444 Times in 295 Posts
Originally Posted by tyrion View Post
Then I think it's worn chainrings.
Wouldn't worn rings make it easier to seat though (sharp teeth)...?
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is offline
Old 03-16-21, 03:08 PM
  #9
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,731

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 186 Post(s)
Tagged: 0 Thread(s)
Quoted: 1082 Post(s)
Likes: 0
Liked 861 Times in 517 Posts
Looks like improper derailleur set-up, to me.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Likes For randyjawa:
Old 03-16-21, 03:13 PM
  #10
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 3,380

Bikes: Breezer Radar

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 1814 Post(s)
Liked 1,156 Times in 549 Posts
Originally Posted by jdawginsc View Post
Wouldn't worn rings make it easier to seat though (sharp teeth)...?
Maybe. Looking at the picture above I thought the chainlinks looked too short for the teeth spacing, but on second thought that's because it's not seated and is bending around a bigger radius than if it was seated.

Maybe the almost new chain doesn't flex enough laterally until it breaks in a bit.
tyrion is offline
Old 03-16-21, 03:30 PM
  #11
Choke
Disciple of St. Tullio

Choke's Avatar

Join Date: Jul 2008
Location: State of Jefferson
Posts: 633

Bikes: Ciöcc, Bianchi, DeRosa, Eddy Merckx, Frejus, Hampsten, Kondor, Losa, Magni, Pegoretti, Pelizzoli, Pogliaghi, Scapin

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 141 Times in 74 Posts
Originally Posted by 79pmooney View Post
Also, are these old 5-6 speed chainrings? They may need to be 7-8 speed rings to be narrow enough for the chain.
All chains from 5 speed to 12 speed (and 13sp I'm sure) are the same width on the inside, i.e. between the sideplates. The width of the outside is what varies and that is done by changing the thickness of the sideplates.

I normally run 9sp chains on my 5-8sp systems because I find that they shift just a bit better and being thinner they seem to be less inclined to rub the big ring when the chain is on the small ring and the smaller end of the freewheel.
Choke is offline
Likes For Choke:
Old 03-16-21, 04:29 PM
  #12
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,333

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 1730 Post(s)
Liked 875 Times in 580 Posts
Chainline?
clubman is offline
Old 03-16-21, 05:29 PM
  #13
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 1,176

Bikes: Bianchi Ti Megatube; Colnago Competition; Planet-X EC-130E; Klein Pulse; Amp Research B4; Litespeed Catalyst; Fondriest Squadra Corse; Trek Y11

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Liked 356 Times in 212 Posts
This thread intriques me, as I just changed the BB on a bike and I suspect the chainline, and wow it shifts a ton better (btwn 1 and 2 on the front) than it ever did before. What changed? I went from a square-taper BB to an external cup and ultra-torque crankset/chainrings. This was on a 1997 Colnago steel frame. However, now the crankset matches the F&R ders (would that make any difference?). It all worked fine before, but even a quarter turn off of my limit screw on the front derailleur might overshift. Not anymore.

As a result, I'm now a fan of everything matching to get the best performance.

If you've got a mismatch of stuff... to me, that's where I'd start. Get the right chain, get the right chainrings... basically, get the right stuff that was designed to work together, and it'll make your life easier (give you more margin for error).
ridelikeaturtle is offline
Old 03-16-21, 05:41 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,723
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1842 Post(s)
Liked 683 Times in 535 Posts
Originally Posted by jdawginsc View Post
Wouldn't worn rings make it easier to seat though (sharp teeth)...?
Not necessarily.
I read it correctly, fresh chain, ok on cassette (or freewheel) but look at those chainring teeth, "catch a wave" profile to me.
if you have a known good chainset, exchange it, I think the rings.

You could alternately, remove the rear wheel to release any tension and with gloved hands as you will get greasy, "walk' the chain onto the big ring starting at 6 o'clock and to the right, counterclockwise.
I bet it will resist meshing uniformly.
repechage is offline
Old 03-16-21, 05:57 PM
  #15
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: Rexburg, ID
Posts: 502

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude, '88 Cannondale SR2000, '74 C. Itoh "Racer"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 139 Times in 90 Posts
chainrings from the vintage era are not matched. this is the reason why you have to buy sets of chainrings these days; the teeth and shift gates have to line up. if you're not dropping chains, don't worry about it. I personally like the sound of the chain shinking into place.
__________________
Somewhere, a village is missing its idiot.
Ferrouscious is offline
Likes For Ferrouscious:
Old 03-16-21, 06:40 PM
  #16
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 1,879

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 444 Times in 295 Posts
Originally Posted by repechage View Post
Not necessarily.
I read it correctly, fresh chain, ok on cassette (or freewheel) but look at those chainring teeth, "catch a wave" profile to me.
if you have a known good chainset, exchange it, I think the rings.

You could alternately, remove the rear wheel to release any tension and with gloved hands as you will get greasy, "walk' the chain onto the big ring starting at 6 o'clock and to the right, counterclockwise.
I bet it will resist meshing uniformly.

Big ring, absolutely now that I am looking at it on the computer rather than the phone. The small ring looks pretty decent and the OP says it happens on that one too...if it was tension it would likely do better on the big ring.

Is the front derailleur up too high and the bottom brace is clipping the chain?
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is offline
Old 03-16-21, 07:54 PM
  #17
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,978

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1066 Post(s)
Liked 495 Times in 352 Posts
It is often the case that on any mixed-component vintage build that the chain will not fall into engagement with sprocket teeth, instead surfing (good word description by niliraga) or "skate" to one side or the other without the teeth engaging the chain.

So this can be a front or rear sprocket, whatever, but is easily tuned away by slightly beveling the tips of the sprocket teeth, thus relocating the sharp tip some fraction of a millimeter in the needed direction.

Holding a file against a rotating chainring or applying a grinding tool to a steel freewheel sprocket is what I often to to solve a number of shifting issues, from indexing incompatibility to having the chain drop inwards of the small chainring (needed correction shown below!) to failure of the chain to move from the second-smallest freewheel cog to the smallest freewheel cog (usually because of vintage derailer limitations WRT rear axle spacing).
And this is just a few of the many sort of instances where I've solved a shifting problem this way.

For the pictured malady, you will have to simply observe which side that the chain needs to move towards in order to engage the teeth on center, and then apply some slight beveling to that side of the sprocket's teeth.

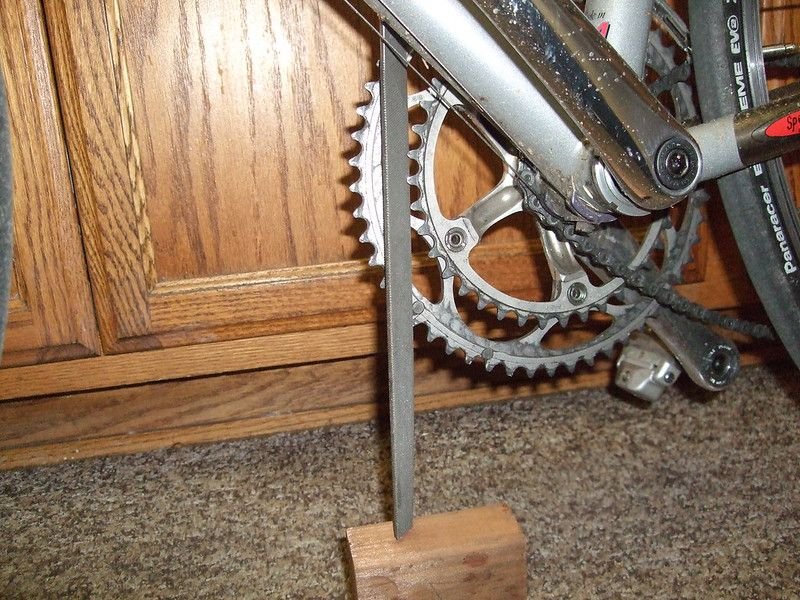

Pictured below is one of my techniques in action, in this case applying a needed bevel to assist engagement onto the small chainring's teeth during downshifts.
The trick here is to position both the file and your hand so that the crankarm's rotation isn't impeded, and not to grind off a lot of metal, which depends on how sharp and aggressive that your file's surface is.

dddd is offline
Likes For dddd:
Old 03-17-21, 05:23 AM
  #18
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 763

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 305 Post(s)
Liked 244 Times in 144 Posts
Is it possible you have a old 1/8" chainring and your new 3/32" chain doesn't engage. I can see neither are badly worn but whilst a 1/8 chain will fit a 3/32 chainring it doesn't work the other way round.

Last edited by Johno59; 03-17-21 at 05:35 AM.
Johno59 is offline
Old 03-17-21, 05:56 AM
  #19
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,844

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 672 Times in 418 Posts
Originally Posted by Roger M View Post
The first pin at the 3:00 position looks off with the third pin right over the center between the teeth. Then the offset gets progressively worse towards the FD. Part of it is the difference between the radius from the crank center to the bottom of the valley between the teeth and the radius of the chain. BUT, it shouldn't result in a misalignment shown.

Have you tried to settle the chain by hand for a full 180* of the ring?

I do agree that the FD is too close to the chain but I don't think this is the root cause.

Worn chain ring is the suspect root cause, IMHO.

Do you still have the old chain and how does it measure and fit on the chain ring?
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 03-17-21, 07:09 AM
  #20
Roger M
Senior Member
Thread Starter

Roger M's Avatar

Join Date: May 2010
Location: Snohomish, WA.
Posts: 2,331
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 368 Times in 139 Posts
Originally Posted by jdawginsc View Post
Big ring, absolutely now that I am looking at it on the computer rather than the phone. The small ring looks pretty decent and the OP says it happens on that one too...if it was tension it would likely do better on the big ring.

Is the front derailleur up too high and the bottom brace is clipping the chain?
The front derailleur is pretty close to the big ring, and aligned(as far as my blind eye can tell).The chainline looks OK to me. If I decide to make it a triple, this bottom bracket won't work.

I found another old 110bcd chainset with good condition 48/38/28 rings. I'll try the 48t today and go from there.

Thanks for all of the input. Much appreciated.


Roger M is offline
Old 03-17-21, 02:15 PM
  #21
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,723
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1842 Post(s)
Liked 683 Times in 535 Posts
Originally Posted by jdawginsc View Post
Big ring, absolutely now that I am looking at it on the computer rather than the phone. The small ring looks pretty decent and the OP says it happens on that one too...if it was tension it would likely do better on the big ring.

Is the front derailleur up too high and the bottom brace is clipping the chain?
possible a chainring width thing too, pictures only go so far. There was a reduction in width between 5-6 speed and 8, most of the time not an issue. Most.
repechage is offline
Old 03-17-21, 02:16 PM
  #22
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,723
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1842 Post(s)
Liked 683 Times in 535 Posts
[QUOTE=Roger M;21971436]The front derailleur is pretty close to the big ring, and aligned(as far as my blind eye can tell).The chainline looks OK to me. If I decide to make it a triple, this bottom bracket won't work.

I found another old 110bcd chainset with good condition 48/38/28 rings. I'll try the 48t today and go from there.

Thanks for all of the input. Much appreciated.


/QUOTE]
When the Shark bites... half past 6 babe...
repechage is offline
Old 03-17-21, 04:54 PM
  #23
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 469

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 161 Times in 101 Posts
suspected this might be the case - am having a similar issue. Short of buying more modern front rings I think I'll just live with the "settling" delay up front, and enjoy the much crisper frequent shifting in the rear (where modern slim chain moves across the modern slim cogs of an HG-type freewheel)


Originally Posted by repechage View Post
possible a chainring width thing too, pictures only go so far. There was a reduction in width between 5-6 speed and 8, most of the time not an issue. Most.
niliraga is offline
Old 03-17-21, 06:37 PM
  #24
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 3,771

Bikes: 1985 Trek 620 - 1979 Trek 510

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 1238 Post(s)
Liked 852 Times in 488 Posts
[QUOTE=repechage;21972227]
Originally Posted by Roger M View Post
The front derailleur is pretty close to the big ring, and aligned(as far as my blind eye can tell).The chainline looks OK to me. If I decide to make it a triple, this bottom bracket won't work.

I found another old 110bcd chainset with good condition 48/38/28 rings. I'll try the 48t today and go from there.

Thanks for all of the input. Much appreciated.


/QUOTE]
When the Shark bites... half past 6 babe...
I believe you are right. Upon another look, the top edges of the big ring's teeth (where the chain rollers would touch/engage) are worn and a little mangled (flaring visible). The tooth profile along that edge also has two different edges/angles. The chain's rollers are now "thinking" that the upper edge/angle is the right one and settling there in that very small "pocket" rather than continuing down to the other edge/angle, into the trough between the teeth. Hope the newer ring solves it.
RiddleOfSteel is offline
Old 03-18-21, 02:16 AM
  #25
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,999

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 357 Times in 271 Posts
are you sure the chainring bolts are nice and tight? seems i had the same surfing problem a long time ago and discovered a few bolts were loose so the ring was flexing under simultaneously shifting and pedaling
thook is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
