Shifters in front of brake lever

Is this hard to shift since you push with fingers from the outside, but your thumb is not long enough to counter this to trim the shift?
A second question is are there only two brands of these? One being Gevenalle, the other IRD. The IRD is visually a better match for my 40 year old bike, but can it looks like you not only have to buy a pair, but its another $40 to fit a Shimano shifter on it (bottom right corner in pic). This extra piece make it $200. seems a bit much. A more reasonable offer would be to have the Shimano type fitting as an option since I would not need the piece that fits IRD Power Ratchet thumb/Rivendell Silver/ENE Ciclo shifters.

Last edited by avhed; 03-16-21 at 06:51 PM.
avhed is offline
Old 03-16-21, 06:39 PM
  #2
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 656

Bikes: Ď83/Ď85 Trek 760, Ď82 Trek 614, Ď77/Ď78 Trek 304, Ď74 Raleigh International

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Liked 182 Times in 120 Posts
I have the Gevenalle ones. I donít have a hard time shifting them. You can also adjust the boss on them.
natterberry is offline
Old 03-16-21, 07:00 PM
  #3
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,582

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 5283 Post(s)
Liked 2,570 Times in 1,502 Posts
For the IRD, it's $140 for the lever, $40 for the conversion, then you still need to buy the shifters.

I used Gevenalle shifters as 2x11 for many years. They are easy to set up, the microshift shifters performed perfectly, and they were comfortable. Shifting was easy with my index finger, I could shift both ways with it, actually. Thumb shifting for trimming the left or changing the right was easy too.
With the monthly discount, they were $160 from universal cycles.

Interesting that a niche product was copied by IRD.

Personally, I would go for the original.
mstateglfr is offline
Old 03-16-21, 07:08 PM
  #4
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,559
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 473 Post(s)
Liked 247 Times in 170 Posts
Iíve briefly rode @ryansu Ďs bike (Spesh Sequoia I think?) with Gevenalle shifters on it while we were waiting for the ferry and I was pleasantly surprised. I thought they were going to be awkward but they arenít. I think I slightly prefer bar ends on my commuters due to the lower cost and my recreational rider drop bar bikes get brifters but I wouldnít mind having a pair of Gevenalles on a bike.
tricky is offline
Old 03-16-21, 07:14 PM
  #5
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,154

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1705 Post(s)
Liked 1,796 Times in 1,015 Posts
Down tube shifters and htfu.

​​​​​​
Spoiler

SurferRosa is online now
Likes For SurferRosa:
Old 03-16-21, 07:17 PM
  #6
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,233

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Liked 318 Times in 160 Posts
I was actually super tempted to get some Kelly Take-offs, but then I bought a bunch of bikes...
Dylansbob is offline
Likes For Dylansbob:
Old 03-16-21, 07:19 PM
  #7
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,185

Bikes: It's complicated.

Mentioned: 1007 Post(s)
Tagged: 0 Thread(s)
Quoted: 3251 Post(s)
Liked 1,538 Times in 790 Posts
Calling Andy_K

Andy's a good friend of Genevalle's owner here in Portlandia.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 03-16-21, 07:42 PM
  #8
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,123

Bikes: Yes

Mentioned: 375 Post(s)
Tagged: 0 Thread(s)
Quoted: 2249 Post(s)
Liked 904 Times in 465 Posts
Yeah, I've got the Gevenalles on a few bikes and really like them. I think it was my Sequoia that @tricky rode.

You can't really shift from the drops. In a few years the right shifter is where you might want your index finger to be, but I don't find it to be a problem. If you have small hands (as I do) you might need to pivot your hand to reach the shifter in some positions. That's a feature! They're the only shifters with reach around technology.
__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 03-16-21, 07:43 PM
  #9
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,185

Bikes: It's complicated.

Mentioned: 1007 Post(s)
Tagged: 0 Thread(s)
Quoted: 3251 Post(s)
Liked 1,538 Times in 790 Posts
Originally Posted by SurferRosa View Post
Down tube shifters and htfu.
​​​​
Some day you will become old and find it difficult to bend over so far. I'm planning on riding well into my 80's even if I have to exchage my dropped bars for ape hangers.

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 03-16-21, 07:43 PM
  #10
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 427
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by mstateglfr View Post
For the IRD, it's $140 for the lever, $40 for the conversion, then you still need to buy the shifters.


Sorry, I got my digits crossed, its $60 for the Shimano fitting.
Thanks for the Universal Cycles tip, but unfortunately I want silver for a vintage bike.

Last edited by avhed; 03-16-21 at 07:51 PM.
avhed is offline
Old 03-16-21, 07:50 PM
  #11
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,582

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 5283 Post(s)
Liked 2,570 Times in 1,502 Posts
Originally Posted by avhed View Post
Sorry, I got my digits crossed its $60 for the Shimano fitting.
Thanks for the Universal Cycles tip, but unfortunately I want silver for a vintage bike.
so $200 plus the actual shifters- oof. Wonder what brake lever IRD uses.
mstateglfr is offline
Old 03-16-21, 07:54 PM
  #12
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 427
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by mstateglfr View Post
so $200 plus the actual shifters- oof. Wonder what brake lever IRD uses.
They look like the same lever.
avhed is offline
Old 03-16-21, 08:07 PM
  #13
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,863

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 498 Times in 357 Posts
Originally Posted by tricky View Post
Iíve briefly rode @ryansu Ďs bike (Spesh Sequoia I think?) with Gevenalle shifters on it while we were waiting for the ferry and I was pleasantly surprised. I thought they were going to be awkward but they arenít. I think I slightly prefer bar ends on my commuters due to the lower cost and my recreational rider drop bar bikes get brifters but I wouldnít mind having a pair of Gevenalles on a bike.

That wasn't me tricky but I have always thought those Gevenalle shifters looked cool and would love to try them but I have never had a pair on a bike of mine
ryansu is offline
Old 03-16-21, 08:18 PM
  #14
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,340
Mentioned: 349 Post(s)
Tagged: 0 Thread(s)
Quoted: 2241 Post(s)
Liked 1,898 Times in 958 Posts

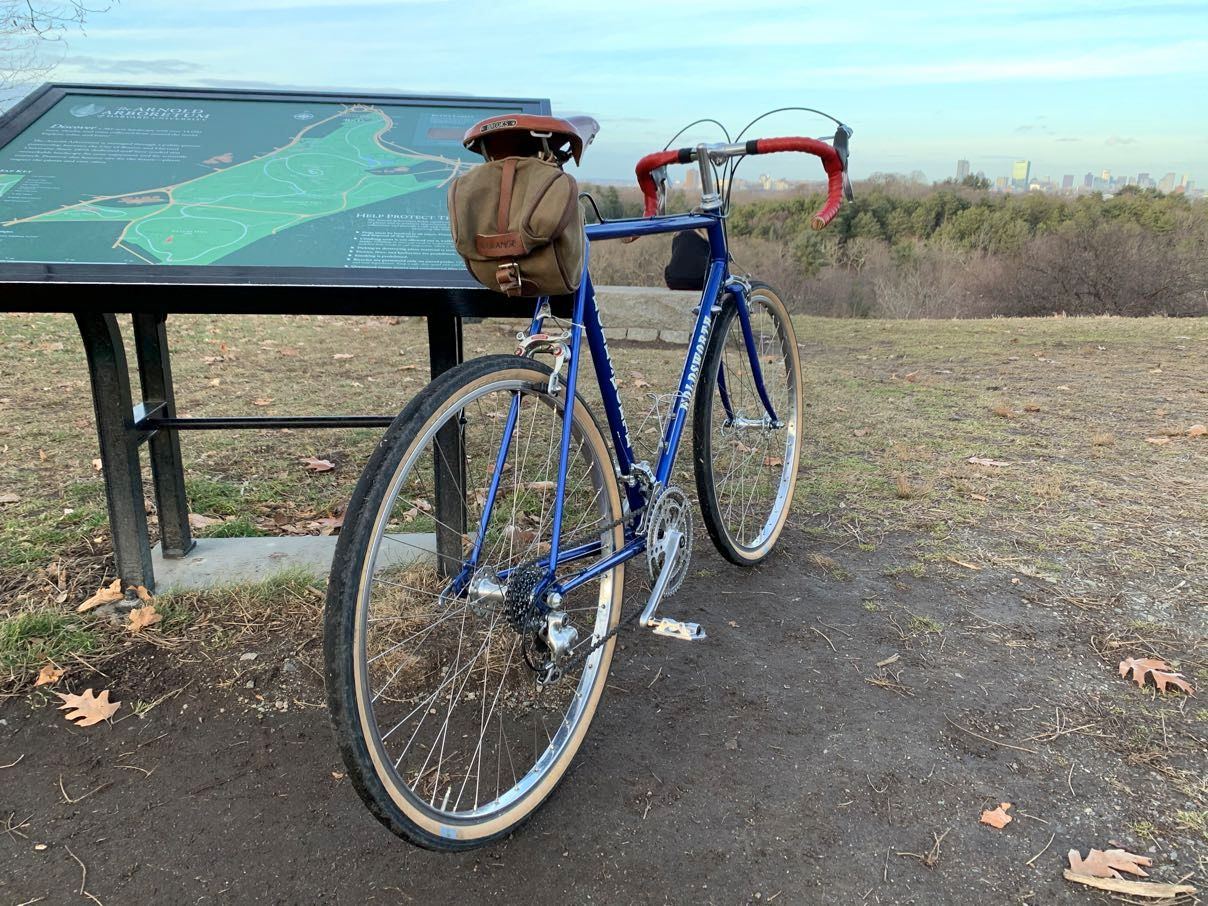

I have a set of the Genevales on my Holdsworth. Actually, I've had them a long time, back when they were called "retroshift." I already ride on the hoods, but it still took a little adjustment to avoid squeezing the brake levers when I was shifting, but not a big transition. I'm using some Shimano 8/9 index levers I had in the bin.
nlerner is offline
Old 03-16-21, 09:06 PM
  #15
fender1
Senior Member

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,120

Bikes: I hate bikes!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 301 Post(s)
Liked 199 Times in 68 Posts
I will be the voice of dissent. Like nlerner I had them back before the rebranding. I found the shifting to be unintuitive and the physical motion to be a bit uncomfortable. I guess if it was my only option I would have adapted but using brifters, bar-ends and downtube shifters just felt better to me. YMMV.
fender1 is offline
Old 03-16-21, 10:43 PM
  #16
73StellaSX76
Senior Member

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 210

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Likes: 0
Liked 39 Times in 27 Posts
I have about 3 years/10k miles on a set of 2x10 Gevenalles and have adapted to shifting them pretty well. Some shifts are awkward depending on where the lever is pointed, but some shifts are the quickest and easiest of any of the half dozen or so different shifting systems which I regularly use. I like the modular nature of them using the Microshift shifters, a swap to a different gearing system can be less involved, and cheaper. I also like how the shift housings and cables are not routed under bar tape, resulting in lighter action shifting than brifters.

In my estimation the winner design would be if a manufacturer could come up with a sequential paddle type shifter unit to mount to the Gevenalle levers. The lever could aim at one constant direction of choice and to shift you’d tip it one direction or the other to upshift or downshift. Some of the mtb trigger shifters had dual action on one of the triggers, might be a good start to mocking up such a sequential shifter on a road lever.
73StellaSX76 is offline
Old 03-16-21, 11:04 PM
  #17
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 427
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by 73StellaSX76 View Post
I have about 3 years/10k miles on a set of 2x10 Gevenalles and have adapted to shifting them pretty well. Some shifts are awkward depending on where the lever is pointed,
Which positions are awkward?
avhed is offline
Old 03-16-21, 11:18 PM
  #18
73StellaSX76
Senior Member

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 210

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Likes: 0
Liked 39 Times in 27 Posts
Right hand side, lever pointing down at 6 o’clock, plus and minus a shift or two. I either need to wrap my index and middle fingers way over to pull an upshift or twist my wrist around to get my thumb to push it rightward.

Not related to an awkward shift position, but I’ve also considered adding a 2-3 mm shim under the shifter mount to give a little more finger clearance to the lever for braking,
73StellaSX76 is offline
Old 03-17-21, 11:05 AM
  #19
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,582

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 5283 Post(s)
Liked 2,570 Times in 1,502 Posts
Originally Posted by 73StellaSX76 View Post
...
I also like how the shift housings and cables are not routed under bar tape, resulting in lighter action shifting than brifters.
In my estimation the winner design would be if a manufacturer could come up with a sequential paddle type shifter unit to mount to the Gevenalle levers. The lever could aim at one constant direction of choice and to shift youíd tip it one direction or the other to upshift or downshift. Some of the mtb trigger shifters had dual action on one of the triggers, might be a good start to mocking up such a sequential shifter on a road lever.

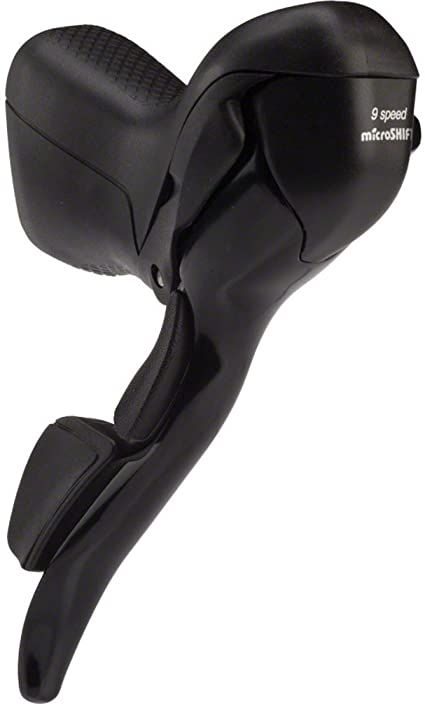

Microshift road shifters arent exactly what you describe, but they certainly have a process that is similar.

- housing routed outside bar tape like you want.
- dedicated upshift paddle.
- dedicated downshift paddle.
- dedicated brake lever.


It isnt the process you suggest, where push the lever left to upshift and push the lever right to downshift. I think pushing each lever outward would be tough for many and I assume thats why both the left and right sifters push inward only on all drop bar integrated shifters.
mstateglfr is offline
Old 03-17-21, 11:37 AM
  #20
73StellaSX76
Senior Member

Join Date: Mar 2015
Location: Redwood City, CA
Posts: 210

Bikes: 2016 SOMA DCD, 2014 Niner RLT9, 2008 Ibis Silk SL, 1998 Ibis Spanky, 1973 Stella SX76

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Likes: 0
Liked 39 Times in 27 Posts
Originally Posted by mstateglfr View Post
Microshift road shifters arent exactly what you describe, but they certainly have a process that is similar.

- housing routed outside bar tape like you want.
- dedicated upshift paddle.
- dedicated downshift paddle.
- dedicated brake lever.


It isnt the process you suggest, where push the lever left to upshift and push the lever right to downshift. I think pushing each lever outward would be tough for many and I assume thats why both the left and right sifters push inward only on all drop bar integrated shifters.
Thatís a good point you make. Coincidentally, I have a set of those in a 3x8 shift for a dirt drop conversion Iím working on. Iíll be interested to see how I do with the different paddle arrangement. Thanks.
73StellaSX76 is offline
Old 03-17-21, 11:57 AM
  #21
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,582

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 5283 Post(s)
Liked 2,570 Times in 1,502 Posts
Originally Posted by 73StellaSX76 View Post
Thatís a good point you make. Coincidentally, I have a set of those in a 3x8 shift for a dirt drop conversion Iím working on. Iíll be interested to see how I do with the different paddle arrangement. Thanks.
Ive used these in 2x7 and 2x9 setups and genuinely like them. The shifting is very intentional, especially when shifting to smaller cogs, but its accurate and is an oddly satisfying sound. The separate paddles are very easy to adapt to and feel good.
If Microshift used this shifting system for their 10 and 11 speed shifters with hidden cables, I would have bought some 11sp for a bike I built up last year. Instead, the higher speed shifters use a thumb tab.
mstateglfr is offline
Old 03-17-21, 02:25 PM
  #22
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,123

Bikes: Yes

Mentioned: 375 Post(s)
Tagged: 0 Thread(s)
Quoted: 2249 Post(s)
Liked 904 Times in 465 Posts
Gevenalle shifters on my Sequoia




Something quite a bit less common, Gevenalle+Campagnolo shifters on my Grand Jubilť (this requires a special widget that isn't generally available)

__________________
My Bikes
Andy_K is offline
Old 03-17-21, 08:58 PM
  #23
1simplexnut
Senior Member

1simplexnut's Avatar

Join Date: Jul 2014
Location: New Zealand
Posts: 620

Bikes: 1963? Anquetil , 1973 PX10,1979 PX10,1984 PX10, VITUS 979 PX10DU,1970S ALAN,1985 PSV10,1980s PY10FC,1978 bERTIN,ALAN carbon

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Likes: 0
Liked 147 Times in 72 Posts
Originally Posted by gugie View Post
Some day you will become old and find it difficult to bend over so far. I'm planning on riding well into my 80's even if I have to exchage my dropped bars for ape hangers.

aint that the truth !
My stem is pretty much level with my saddle these days too !
1simplexnut is offline
Old 03-17-21, 09:45 PM
  #24
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,154

Bikes: Old school lightweights

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1705 Post(s)
Liked 1,796 Times in 1,015 Posts
Originally Posted by gugie View Post
Some day you will become old...

Hey, somebody's gotta be the conscience of this place. I can't have you guys going all recumbent on me.
SurferRosa is online now
Likes For SurferRosa:
Old 03-18-21, 12:34 PM
  #25
Rocket-Sauce
Port

Rocket-Sauce's Avatar

Join Date: Jan 2008
Location: Boston
Posts: 8,284

Bikes: 2021 Calfee Draqonfly 44, 1984 Peter Mooney, 2017 Soma Stanyan, 1990 Fuji Ace, 1990 Bridgestone RB-1, 1995 Independent Fabrications Track, 2003 Calfee Dragonfly Pro

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Liked 525 Times in 347 Posts
Someone has to say it...
I
t don't matter how well they work... these things are U-G-L-Y. They look like someone just slapped a shifter onto the front of a brake lever.

Wait... They ARE just a shifter slapped to the front of a brake lever.

Brifters are a far better solution. And cheaper.

Last edited by Rocket-Sauce; 03-22-21 at 08:19 AM.
Rocket-Sauce is offline
Likes For Rocket-Sauce:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
