Using hubs with larger axle on 10mm dropouts?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Using hubs with larger axle on 10mm dropouts?

Old 03-24-21, 08:24 PM
  #1
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Using hubs with larger axle on 10mm dropouts?

There are conversion kits for example, on a Hope hub from 15 to 12 , but am I out off luck for 10mm Shimano EF (Dura ace) dropout?

Last edited by avhed; 03-27-21 at 11:21 AM.
avhed is offline
Old 03-24-21, 08:27 PM
  #2
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 586

Bikes: Gunnar crosshairs, F Moser Forma, Pete Tansley Sport Tourer, Rocky Mountain Summit, Cinelli mtb, Diamant, Marin Eldridge Grade

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 84 Times in 48 Posts
I've had good success filing an axle open. But would not do it on a nicer frame.
Soody is offline
Likes For Soody:
Old 03-25-21, 12:15 PM
  #3
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,440

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1774 Post(s)
Liked 919 Times in 618 Posts
Hand filing two flats on an axle is easy and has zero impact on a frame.
clubman is offline
Likes For clubman:
Old 03-25-21, 12:31 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,638
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,344 Times in 974 Posts
Are you talking about converting a through axle hub to use in a QR dropout? Many hubs are designed to have switchable end caps, but the caps might not be cheap.

I have seen framebuilders convert 10mm QR dropouts to through axle. I have thought about it, but for a new frame it makes more sense to use the dropout I want.
unterhausen is offline
Old 03-26-21, 07:21 PM
  #5
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by clubman View Post
Hand filing two flats on an axle is easy and has zero impact on a frame.
Filing 2.5mm off of ~1.8 mm. That area will be the very lightest .
avhed is offline
Old 03-26-21, 07:24 PM
  #6
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Soody View Post
I've had good success filing an axle open. But would not do it on a nicer frame.
What is filing an axle open?
avhed is offline
Old 03-26-21, 07:34 PM
  #7
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,440

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1774 Post(s)
Liked 919 Times in 618 Posts
Originally Posted by avhed View Post
Filing 2.5mm off of ~1.8 mm. That area will be the very lightest .
I'm not certain we're on the same page. I support filing ubiquitous threaded, hard steel axles to fit unsullied frame dropouts.
I've taken 10.5 mm F&S axles down to 9.0 mm to fit old English drops.
What are you saying?
clubman is offline
Old 03-26-21, 07:42 PM
  #8
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,440

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1774 Post(s)
Liked 919 Times in 618 Posts
Actually, what is a Hope hub and do you have a pic?edit just looked it up, didn't read details.
Can't help you with that.Sorry.
clubman is offline
Likes For clubman:
Old 03-26-21, 09:06 PM
  #9
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 1,650

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 462 Times in 349 Posts
When you say 10mm are you talking about a 10mm thru axle or a 10mm quick release axle? Both are available, I've picked up most of mine on amazon. I even bought a 142x12mm thru axle to QR adapter to make it easier to build wheels, was cheaper and no less effective then the inserts people sell for the same purpose, think its meant to be for a Trek 147QR or something like that.
Russ Roth is offline
Old 03-27-21, 11:21 AM
  #10
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Russ Roth View Post
When you say 10mm are you talking about a 10mm thru axle or a 10mm quick release axle? Both are available, I've picked up most of mine on amazon. I even bought a 142x12mm thru axle to QR adapter to make it easier to build wheels, was cheaper and no less effective then the inserts people sell for the same purpose, think its meant to be for a Trek 147QR or something like that.

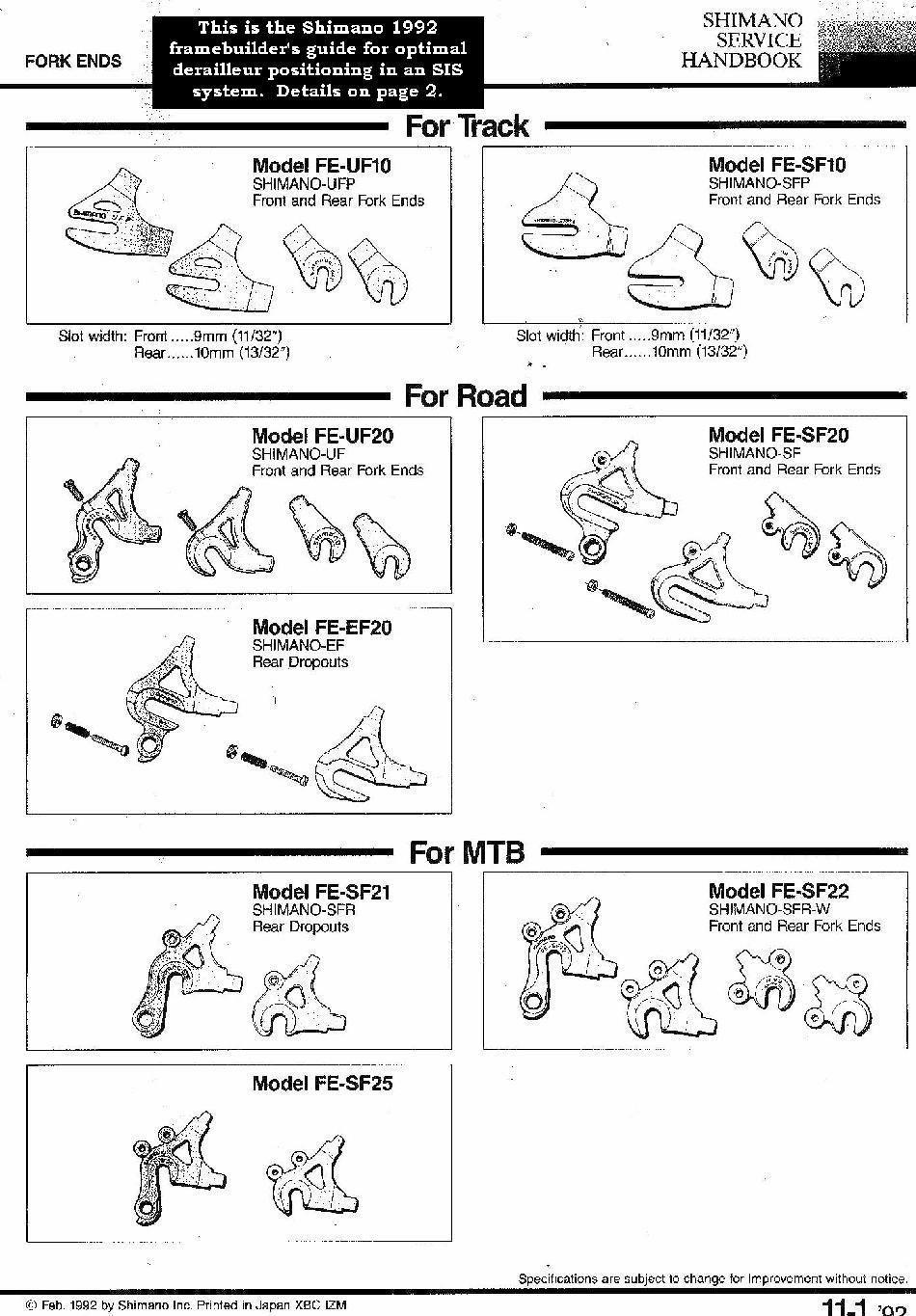

Shimano FE-EF20 (Dura ace) dropout

Last edited by avhed; 03-27-21 at 11:32 AM.
avhed is offline
Old 03-27-21, 11:43 AM
  #11
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by clubman View Post
I'm not certain we're on the same page. I support filing ubiquitous threaded, hard steel axles to fit unsullied frame dropouts.
I've taken 10.5 mm F&S axles down to 9.0 mm to fit old English drops.
What are you saying?

For Dura-ace 7900. Is this a thru axle? I should of posted this earlier. This is new ground for me, so I was lost.
avhed is offline
Old 03-27-21, 12:17 PM
  #12
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,440

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1774 Post(s)
Liked 919 Times in 618 Posts
Yeah, I'm in the same boat. I didn't read your post thoroughly. The only through/thru axles I have are on my motorcycles. I'm aware of them on bicycles and I'm sure they're great but it's not likely I'll either own or wrench one.
Someone will clear it up for you.
clubman is offline
Old 03-27-21, 03:14 PM
  #13
lasauge
Pedalin' Erry Day

lasauge's Avatar

Join Date: Jun 2011
Location: Newbury Park, CA
Posts: 1,019
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Liked 108 Times in 64 Posts
As others have alluded to, there's more difference here than just the diameter. 10mm is the diameter for axles that have a QR skewer going through them - 10mm is how wide the axle is but you still need that skewer for retention as that's what clamps the hub in place from the outer sides of the dropouts. 12mm is the most common size for road bike thru axles, and these are entirely different as the driveside/left end of the TA is threaded to match threading on the inside of what we still call the "drop out" even though there's no slot for the axle to drop out from any more. The two are not compatible as with the QR skewer there's a separate nut but with TA the threading is integral to the frame. That said, you can use many newer wheels meant for TA in frames designed for 10mm axles by installing conversion caps that mimic the outer dimensions of a 10mm axle and have a hole for a QR skewer to pass through.

The specific answer to your question is that it depends what wheels/hubs you have. Some require particular adapters and those aren't always possible to find. If you'll tell us exactly which wheel/hub you want to use in this older frame we can look that up. You're also welcome to email me directly (email in signature line).
__________________
Reach me faster by email.
lasauge is offline
Old 03-27-21, 04:35 PM
  #14
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 1,650

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 462 Times in 349 Posts
https://www.amazon.com/Lixada-Mounta...s%2C166&sr=8-3

This is what you're looking for, there's dozens of them listed along the same line, they just slide through the hub. The main issue you will run into is that thru axles are rare in 135, the closest size to what your frame probably is and are more commonly 142mm and 148mm. Now if your frame is already 130mm as it was built, running out to 135mm is fine and doable. If your frame started as a 127mm or worse 125mm from being 5, 6 or 7 speed you don't really want to spread the stays to 135mm and you are best off finding a new wheel. Most hubs don't have a factory option for switching to a different standard, usually only the fancier ones, so you may be out of luck.
Russ Roth is offline
Old 03-30-21, 04:56 PM
  #15
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Russ Roth View Post
https://www.amazon.com/Lixada-Mounta...s%2C166&sr=8-3

This is what you're looking for, there's dozens of them listed along the same line, they just slide through the hub. The main issue you will run into is that thru axles are rare in 135, the closest size to what your frame probably is and are more commonly 142mm and 148mm. Now if your frame is already 130mm as it was built, running out to 135mm is fine and doable. If your frame started as a 127mm or worse 125mm from being 5, 6 or 7 speed you don't really want to spread the stays to 135mm and you are best off finding a new wheel. Most hubs don't have a factory option for switching to a different standard, usually only the fancier ones, so you may be out of luck.
The link is useless because its for a front wheel.
5 speed is 120.
6 speed is 126
Mine is from 1991 128mm to bridge the 6/narrow 7 speed and 8 speed.
avhed is offline
Old 03-30-21, 08:45 PM
  #16
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by lasauge View Post
A. That said, you can use many newer wheels meant for TA in frames designed for 10mm axles by installing conversion caps that mimic the outer dimensions of a 10mm axle and have a hole for a QR skewer to pass through.
For Dura ace wheels. I cannot find the caps. Can anyone post a link?
avhed is offline
Old 03-31-21, 08:31 PM
  #17
Russ Roth
Senior Member

Join Date: Dec 2019
Location: South Shore of Long Island
Posts: 1,650

Bikes: 2010 Carrera Volans, 2015 C-Dale Trail 2sl, 2017 Raleigh Rush Hour, 2017 Blue Proseccio, 1992 Giant Perigee, 80s Gitane Rallye Tandem

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 462 Times in 349 Posts
Originally Posted by avhed View Post
The link is useless because its for a front wheel.
5 speed is 120.
6 speed is 126
Mine is from 1991 128mm to bridge the 6/narrow 7 speed and 8 speed.
Now you're being confusing. The drop down in link lets you select 100, 135, 142, and 148mm. I've yet to ever see a 130mm thru axle hub, as far as I know such a thing was never made. Thru axles also never existed before the advent of 135mm let alone 130. There isn't an adapter, let alone a hub, that will let you adapt a modern thru-axle wheel to 128mm. You have to actually buy a road wheel and any QR road wheel will allow that. The rest of my previous post alluded to this problem as you hadn't stated all the details.
Russ Roth is offline
Old 04-08-21, 05:20 PM
  #18
avhed
Senior Member
Thread Starter

Join Date: May 2009
Posts: 435
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Russ Roth View Post
Now you're being confusing. The drop down in link lets you select 100, 135, 142, and 148mm. I've yet to ever see a 130mm thru axle hub, as far as I know such a thing was never made. Thru axles also never existed before the advent of 135mm let alone 130. There isn't an adapter, let alone a hub, that will let you adapt a modern thru-axle wheel to 128mm. You have to actually buy a road wheel and any QR road wheel will allow that. The rest of my previous post alluded to this problem as you hadn't stated all the details.
My OP is about 10mm QR axles, not thru axles.

Last edited by avhed; 04-14-21 at 08:15 PM.
