Stuck steel seatpost in Trek Aluminum Frame

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Stuck steel seatpost in Trek Aluminum Frame

Old 03-25-21, 04:29 PM
  #1
oddjob2
Still learning
Thread Starter

oddjob2's Avatar

Join Date: May 2012
Location: North of Canada, Adirondacks
Posts: 11,620

Bikes: Still a garage full

Mentioned: 92 Post(s)
Tagged: 2 Thread(s)
Quoted: 843 Post(s)
Liked 55 Times in 35 Posts
Stuck steel seatpost in Trek Aluminum Frame

New twist to an old problem, but the metals are reversed. Tapping doesnít budge the post and a pipe wrench just crushes the steel post. Canít use caustic soda, would ruin the frame. Sonít want to scorch the paint either.

Such a moron, I forgot to check before buying it.


Trek 7000
oddjob2 is offline
Old 03-25-21, 04:50 PM
  #2
cbrstar
BMX Connoisseur

cbrstar's Avatar

Join Date: Jun 2016
Location: Canada
Posts: 767

Bikes: 1988 Kuwahara Newport, 1983 Nishiki, 1984 Diamond Back Viper, 1991 Dyno Compe

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 100 Times in 64 Posts
What tools are at your disposal? A old Mechanic trick is to mix ATF and Acetone. Shake it up and spray it on then let it sit. Adding a bit of heat can make it penetrate better.

There's a few different methods. My fave is drilling a hole in the top of the seat post and putting a bolt inside. I then put it in a bench vice and try to twist the entire frame. If that is going no where you can use a air hammer to to hammer on the bolt and see if you can get it to budge.

Last ditch is cutting it out with a sawsall.

Good luck OP

Last edited by cbrstar; 03-25-21 at 05:22 PM.
cbrstar is offline
Old 03-25-21, 05:13 PM
  #3
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 354

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 80 Times in 67 Posts
Not so sure about drilling a hole in the top of the seat tube . If the chemical/penetrant methods yield “no joy”, I’d just sacrifice the seat post and get a new one .
sovende is offline
Old 03-25-21, 05:26 PM
  #4
cbrstar
BMX Connoisseur

cbrstar's Avatar

Join Date: Jun 2016
Location: Canada
Posts: 767

Bikes: 1988 Kuwahara Newport, 1983 Nishiki, 1984 Diamond Back Viper, 1991 Dyno Compe

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 100 Times in 64 Posts
Originally Posted by sovende View Post
Not so sure about drilling a hole in the top of the seat tube . If the chemical/penetrant methods yield ďno joyĒ, Iíd just sacrifice the seat post and get a new one .
Thanks for catching that I meant to say seat post. It's just something to help the clamp hold onto and not slip.
cbrstar is offline
Old 03-25-21, 05:43 PM
  #5
sovende
Senior Member

Join Date: Jul 2017
Location: Western WI
Posts: 354

Bikes: TNTL (Too numerous to list)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Liked 80 Times in 67 Posts
Originally Posted by cbrstar View Post
Thanks for catching that I meant to say seat post. It's just something to help the clamp hold onto and not slip.
Was thinking that's what you meant . Even with a solid grip on the stuck seat post, I'd worry a bit about too much leverage perhaps causing some damage to the frame. I'd definitely stop short of "going medieval" and quickly move to sacrificing that seat post!
sovende is offline
Old 03-25-21, 05:45 PM
  #6
Moisture
Drip, Drip.

Moisture's Avatar

Join Date: Oct 2020
Posts: 1,046
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 694 Post(s)
Liked 112 Times in 94 Posts
Your only real choice would be an auto body shop. They would heat up the seat tube with a blow torch and then rip it out. But aluminum and steel expands at different rates so you may be in a bit of a pickle. You might also bend the frame when ripping the seatpost out. If you wanna risk it, go to the body shop. If not, ride the way it is and maybe try a different seat.
Moisture is offline
Old 03-25-21, 05:58 PM
  #7
SurferRosa
SeŮor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,348

Bikes: Old school lightweights

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1788 Post(s)
Liked 1,929 Times in 1,090 Posts
Originally Posted by Moisture View Post
Your only real choice would be an auto body shop.
SurferRosa is offline
Likes For SurferRosa:
Old 03-25-21, 06:46 PM
  #8
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,438
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1222 Post(s)
Likes: 0
Liked 250 Times in 185 Posts
Why the heck did someone use a steel seatpost on this aluminum bike. Was it meant to be a cruel joke for the next owner??
Chombi1 is offline
Old 03-25-21, 09:27 PM
  #9
Steel Charlie
Senior Member

Steel Charlie's Avatar

Join Date: Apr 2009
Posts: 238
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 83 Times in 50 Posts
The steel will expand less and more slowly than the aluminum. I'd go for a hair dryer on the frame and Liquid Wrench - they've worked wonders for me many times.
Steel Charlie is offline
Likes For Steel Charlie:
Old 03-26-21, 12:13 AM
  #10
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,862

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1114 Post(s)
Likes: 0
Liked 928 Times in 562 Posts
Originally Posted by Steel Charlie View Post
The steel will expand less and more slowly than the aluminum. I'd go for a hair dryer on the frame and Liquid Wrench - they've worked wonders for me many times.
That was my first thought, also. Might have to repeat a few times, though. Patience will be rewarded - hopefully.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 03-26-21, 12:52 AM
  #11
coolmind
Junior Member

Join Date: Mar 2021
Posts: 19
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 16 Times in 4 Posts
Try to spray with wd40 and let it there for a couple of days.It is thin and maybe will do the job.
coolmind is offline
Old 03-26-21, 06:10 AM
  #12
Triplecrank92
Senior Member

Join Date: Sep 2016
Location: Gulf Coast
Posts: 134

Bikes: '93 Cannondale R500; '88 Centurion Ironman Expert, '97 Cannondale R900, '95 Serotta CSI, '83 Trek 700, '97 Lemond Zurich, '89 Bianchi Giro, '90 Specialized StumpJumper, '87 Schwinn Prologue + one perturbed wife

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 46 Times in 24 Posts
Originally Posted by coolmind View Post
Try to spray with wd40 and let it there for a couple of days.It is thin and maybe will do the job.
Or PB Blaster and same approach. Turn it upside down, remove BB and fill up the seattube with a lot PB Blaster and.......wait!

Last edited by Triplecrank92; 03-27-21 at 11:42 AM.
Triplecrank92 is offline
Likes For Triplecrank92:
Old 03-26-21, 06:23 AM
  #13
Bald Paul
Senior Member

Bald Paul's Avatar

Join Date: Sep 2017
Location: Boiling Springs, SC, USA
Posts: 321

Bikes: ICAN w/ Di2, Fezzari

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 211 Times in 105 Posts
Originally Posted by Triplecrank92 View Post
Or PB Blaster and same approach. Turn it upside down, remove BB and fill up the downtube with a lot PB Blaster and.......wait!
And the key word there is "wait". It does you no good to spray a penetrant oil on a part and immediately start wrenching on it. It takes time, and often multiple applications of the penetrant, to work. Overnight is good, or, if it's really stuck, a couple of days, adding penetrant each day.
Patience, grasshopper.....
Bald Paul is offline
Old 03-26-21, 06:32 AM
  #14
sloppy12
Senior Member

Join Date: Oct 2020
Posts: 235
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 154 Times in 76 Posts
A little tappy tappy with a hammer can help the PB creep in some... while waiting of course.
sloppy12 is offline
Old 03-26-21, 07:53 AM
  #15
coolmind
Junior Member

Join Date: Mar 2021
Posts: 19
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 16 Times in 4 Posts
Big rubber hammer or a piece of wood on the seat post and then tappy tappy hammer.
coolmind is offline
Old 03-26-21, 08:44 AM
  #16
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,772

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 150 Times in 112 Posts
Aluminum has a higher expansion ratio than steel, so heating from the outside should make the frame expand more than the post. If there is any galvanic corrosion, a penetrant and maybe a slide hammer, will be needed to break the bond. All bets are off if they forced an oversized post into the frame.
Pompiere is offline
Old 03-26-21, 12:38 PM
  #17
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,030

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 510 Times in 364 Posts
Always happy to share a rare "wrenching" victory, as in this case where an over-sized steel seatpost had been pounded in back in the ~1960's.

Failing patience and hot removal, one can resort to what I found to be a last-resort:



dddd is offline
Old 03-26-21, 12:46 PM
  #18
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,341

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked 128 Times in 96 Posts
Originally Posted by dddd View Post
, one can resort to what I found to be a last-resort:
OK, I understand what the whiskey is for -- oh, wait, please tell me you didn't pour it down the seat tube!

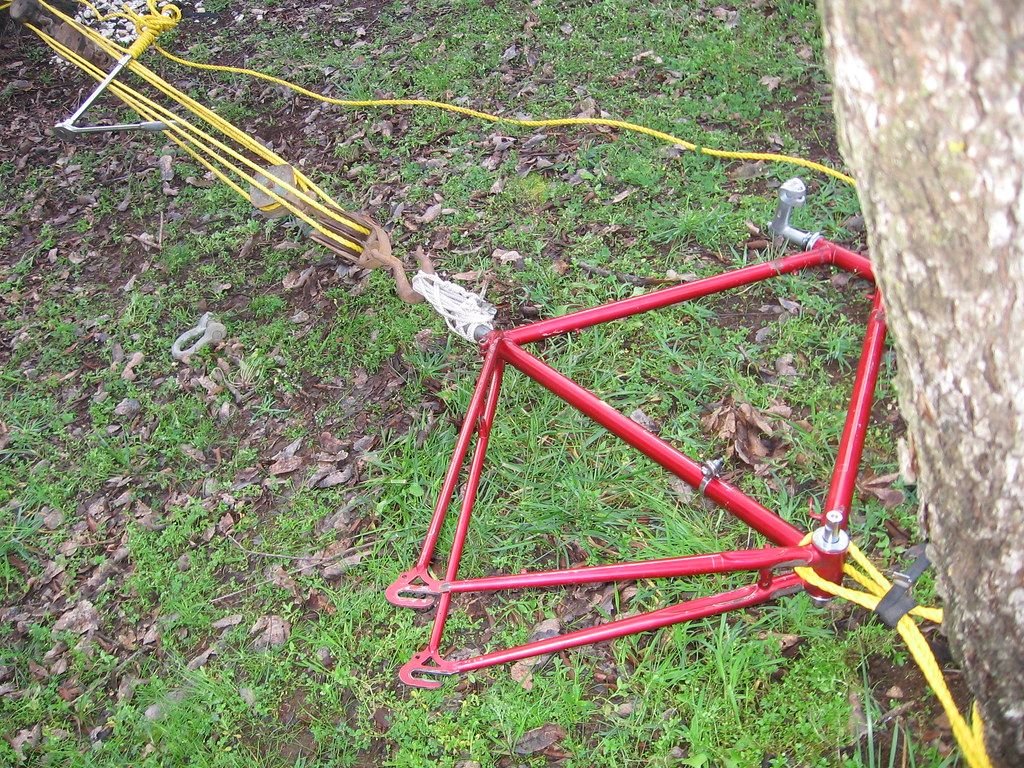

Again, I'll share what worked for me, but in the reverse with steel frame and alloy post (so YMMV): I was able to stick the frame and post in a chest freezer for, I don't know, a couple of days, to contract all the metal. Then, pulled it out, quickly stuck post in a vise and applied heat to down tube, all while pulling on frame for all it's worth, hoping that "differential expansion" would work in my favor. Got out a post that I had hammered in there back in 1974 when I did not know better. OP's frame looks small enough to fit in some chest freezers; mine was 60cm and almost did not fit.
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 03-26-21, 02:34 PM
  #19
Triplecrank92
Senior Member

Join Date: Sep 2016
Location: Gulf Coast
Posts: 134

Bikes: '93 Cannondale R500; '88 Centurion Ironman Expert, '97 Cannondale R900, '95 Serotta CSI, '83 Trek 700, '97 Lemond Zurich, '89 Bianchi Giro, '90 Specialized StumpJumper, '87 Schwinn Prologue + one perturbed wife

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 46 Times in 24 Posts
And......wait some more!

Iíve done the same as the others & occasionally pulled, twisted, and heated the seat tube & post to help the oil seep further into the offending corroded joint while waiting (up to a week one time).

And, just to help you out with this task, Iíll follow ddddís recommendation and pour myself a small one tonight and wait with you!
Triplecrank92 is offline
Likes For Triplecrank92:
Old 03-26-21, 04:22 PM
  #20
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,581
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 254 Times in 175 Posts
Originally Posted by Triplecrank92 View Post
And......wait some more!

Iíve done the same as the others & occasionally pulled, twisted, and heated the seat tube & post to help the oil seep further into the offending corroded joint while waiting (up to a week one time).

And, just to help you out with this task, Iíll follow ddddís recommendation and pour myself a small one tonight and wait with you!
I didn't realize my Friday night drinks would be so much assistance, happy to help!

But, yeah, only thing I can add is that I've seen folks pull the bottom bracket so that they can pour penetrating oil/ATF Acetone mix/whiskey down the seat tube to reach the bottom of the seatpost as well. Pour your poison on the top of the seatpost, let soak, flip around and pour in the seatpost, let soak, repeat. Intermix some brute force on the seatpost and heat gun (careful not to scorch the paint if you can help it) on the frame in between alternating penetrant applications.
tricky is offline
Likes For tricky:
Old 03-26-21, 06:17 PM
  #21
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,590
Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 898 Post(s)
Liked 407 Times in 247 Posts
Your seatpost has the cheap clamp on top but for nicer seatposts with integrated clamps I've had good success taking the clamp hardware off and putting the little head in a sewer grate and twisting.
Narhay is offline
Old 03-27-21, 09:41 AM
  #22
don_87ST
Junior Member

Join Date: Sep 2020
Location: Illinois
Posts: 17

Bikes: 1985 Cannondale ST500 / 1987 Cannondale ST400 / 1990 Zunow Z-1 / 2004 Lemond Zurich Triple / 2008 Dahon Speed P8

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 3 Times in 2 Posts
I had to do this when I also bought a bike and forgot to check the seatpost. I had success using Triplecrank92ís method. PB Blaster through the bottom bracket. I kept spraying for a few days and every night Iíd hammer on the seatpost pretty hard in hopes of getting the lubricant in there. It took a few days, but it worked. Need to be patient.
don_87ST is offline
Old 03-27-21, 11:39 AM
  #23
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,071

Bikes: A few too many

Mentioned: 38 Post(s)
Tagged: 1 Thread(s)
Quoted: 955 Post(s)
Liked 1,001 Times in 594 Posts
If the seat post is not ovalized from the wrenching.....invert the frame as others have suggested, apply a generous amount of PB and wait for it to do its job.
Then instead of trying to "pull/twist" it out using a dead-blow hammer tap it "down" to break the seal...it should move just a little and then more PB...then twist away.
It may seem to be counterintuitive but this has worked for me many times...similar to tightening a stuck bolt a tad to break the corrosion before removal.
GL, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"

xiaoman1 is offline
Likes For xiaoman1:
Old 03-28-21, 08:07 PM
  #24
montclairbobbyb
Recovering Bikeaholic

Join Date: Oct 2008
Location: Lambertville
Posts: 109

Bikes: 84 Specialized Expedtion, 85 StumpJumper, 85 Fuji Touring Series V, 85 Schwinn Cimarron, 2019 VO Polyvalent, 2007 Niner MCR, 2008 Niner SIR

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 88 Times in 25 Posts
Originally Posted by Triplecrank92 View Post
Or PB Blaster and same approach. Turn it upside down, remove BB and fill up the seattube with a lot PB Blaster and.......wait!
Happened to me a few years back.... PB Blaster, patience and a bench vise... Had my bike clamped in upside down, then pulled and pushed the frame (twisted) back and forth with all my might... Thought I was going to break the frame... It finally broke free!!! Whew!!! Lesson learned; grease that post!!!!😆
montclairbobbyb is offline
Old 03-29-21, 01:40 PM
  #25
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,734

Bikes: 1972 Fuji S-10-S,1970 Raleigh Sports, and more

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 797 Post(s)
Liked 191 Times in 138 Posts
Originally Posted by xiaoman1 View Post
If the seat post is not ovalized from the wrenching.....invert the frame as others have suggested, apply a generous amount of PB and wait for it to do its job.
Then instead of trying to "pull/twist" it out using a dead-blow hammer tap it "down" to break the seal...it should move just a little and then more PB...then twist away.
It may seem to be counterintuitive but this has worked for me many times...similar to tightening a stuck bolt a tad to break the corrosion before removal.
GL, Ben
I like Ben's method, but I would drill a hole in the seat post and insert a bolt just in case the thing broke free and dropped too low to retrieve.
__________________
"The man who does not read has no advantage over the man who cannot read." ĖMark Twain
dweenk is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
