Reusing H+Son TB14 rims - how worn is too worn?

Picked up some black TB14 rims today, mainly because they were going cheap enough for me to act impulsively.

They seem ok, from what I can determine - turns out it's trickier to tell when you dont have a hub to spin them around! they seem flat and round and show no real signs of abuse. But the brake surfaces have seen some miles - they look like any other well-worn braking surface, but with a "concaveness" that you can definitely feel with a fingertip even if you can't really see it.

Part of the appeal is that TB14s could be an easy swap for MA40s on a wheelset where the rims are tatty but everything else is good - ideally, this could be as simple as the swap RiddleOfSteel showed us a year ago. I'm not looking for miracles, just a decent (wider) set of rims that could handle at least another 2000-3000 miles of easy touring

So my concern/question is - does a concave brake surface mean these are too far gone to invest that kind of effort? should i save my pennies for a new set, 'cos they're awesome, or are TB14s engineered so beefily that I should just press on regardless with these survivors?
niliraga is offline
Old 03-31-21, 06:40 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,731
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Liked 683 Times in 535 Posts
measure, they way you need to do it is with a micrometer, you have to get around the thicker portion.
I do not know the start dimension of the rims, should be reference-able.
I do not think the rims are especially light or heavy. I want to recall 450grams ? for a box section rim, not bad.
repechage is offline
Old 04-01-21, 11:33 AM
  #3
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,252

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 231 Post(s)
Liked 329 Times in 166 Posts
Theyr'e a new enough of rim there should be a wear indicator on the braking surface. I'd use that as a guidline.
Dylansbob is online now
Likes For Dylansbob:
Old 04-01-21, 02:32 PM
  #4
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,562
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 475 Post(s)
Liked 248 Times in 171 Posts
Hold a flat edge against the braking surface, shine a light behind it and post a pic here.
tricky is offline
Old 04-01-21, 07:55 PM
  #5
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: Rexburg, ID
Posts: 502

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude, '88 Cannondale SR2000, '74 C. Itoh "Racer"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 139 Times in 90 Posts
TB14s are 490g each. pretty meaty
Ferrouscious is offline
Old 04-01-21, 08:54 PM
  #6
niliraga
Senior Member
Thread Starter

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 472

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 162 Times in 102 Posts
Originally Posted by tricky View Post
Hold a flat edge against the braking surface, shine a light behind it and post a pic here.
great idea!


niliraga is offline
Likes For niliraga:
Old 04-01-21, 09:12 PM
  #7
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,252

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 231 Post(s)
Liked 329 Times in 166 Posts
Woof, that's alot of wear.

I've got an old Cane Creek WAM front wheel that looks like that. It lives on a brakeless fixed gear.

I wouldn't put in the effort to build to those.
Dylansbob is online now
Likes For Dylansbob:
Old 04-01-21, 10:18 PM
  #8
Fahrenheit531
Funnier in Person

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,849

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 681 Post(s)
Liked 405 Times in 218 Posts
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Likes For Fahrenheit531:
Old 04-02-21, 12:28 AM
  #9
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,003

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 122 Post(s)
Tagged: 1 Thread(s)
Quoted: 4114 Post(s)
Liked 1,604 Times in 980 Posts
Originally Posted by niliraga View Post
great idea!


You might as well wrap a turkey in that. Itís about the thickness of aluminum foil now.

Non wise ass answer: Time for a new rim. Ya got your moneyís worth.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 04-02-21, 06:01 AM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,731
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Liked 683 Times in 535 Posts
I would not buy another set so worn.
As said earlier, impressive wear.

I would keep them around to stretch Kevlar bead tires with. Actually I am intending to make a rim into just that, cut a section out and add parts to turn a rim into a bead stretcher.
the Kevlar beads always stretch out a bit and later installs are much easier but the first install is always much effort.
repechage is offline
Likes For repechage:
Old 04-02-21, 07:35 AM
  #11
niliraga
Senior Member
Thread Starter

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 472

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 162 Times in 102 Posts
well, that'll learn me!! thank you all for the collective wisdom - sounds like they are good for wheelbuilding practice but should never see another brake pad.

well, seller must have known they were far gone - at least they came at a "fully disposable" price.

more generally for rims, if/when i work out how to get past the hook and measure actual wall thickness, what is the thickness most of you would consider the limit? much as how chain stretch sets yellow flags at 0.5 and red at 0.75%, is there an equivalent here?

Last edited by niliraga; 04-02-21 at 07:40 AM.
niliraga is offline
Old 04-02-21, 07:43 AM
  #12
niliraga
Senior Member
Thread Starter

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 472

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 162 Times in 102 Posts
Originally Posted by repechage View Post
I would not buy another set so worn.
As said earlier, impressive wear.

I would keep them around to stretch Kevlar bead tires with. Actually I am intending to make a rim into just that, cut a section out and add parts to turn a rim into a bead stretcher.
the Kevlar beads always stretch out a bit and later installs are much easier but the first install is always much effort.
so remove a section to allow rim diameter to shrink for installation - then how to stretch back out? some sort of threaded bolt expander across the cut faces?
niliraga is offline
Old 04-02-21, 08:27 AM
  #13
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,003

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 122 Post(s)
Tagged: 1 Thread(s)
Quoted: 4114 Post(s)
Liked 1,604 Times in 980 Posts
Originally Posted by niliraga View Post
well, that'll learn me!! thank you all for the collective wisdom - sounds like they are good for wheelbuilding practice but should never see another brake pad.

well, seller must have known they were far gone - at least they came at a "fully disposable" price.

more generally for rims, if/when i work out how to get past the hook and measure actual wall thickness, what is the thickness most of you would consider the limit? much as how chain stretch sets yellow flags at 0.5 and red at 0.75%, is there an equivalent here?
I suspect there is a value for wall thickness out there but I donít know what it is. I doubt few people actually measure their rimís wall thickness. Most people are going to go by a visual inspection and checking to see if the wall is concave. I would pitch a rim long before your example.

The concavity of the rim may not be just wear related. When you pressurize the tire, the force of the air pushes out on the wall of the rim. As you thin the rim through braking, the pressure can bend the wall outward. Get the wall too thin and it will fracture. I got to witness this is real time at my co-op when an obstinate customer ignored our advice that his rims were very concave...not even as much as yours. We could see the wall flex as he pressurized the tires and told him it was going to fail. We thought that it would fail down the road but about 15 minutes later we had a blowout with a nice ring of aluminum from where the wall had fractured.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 04-02-21, 09:35 AM
  #14
Fahrenheit531
Funnier in Person

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,849

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 681 Post(s)
Liked 405 Times in 218 Posts
For future reference, modern rims will typically have a little "divot" in them. When the wear reaches a point that the divot is no longer visible, they're toast.



Tires will often have them too.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera

Last edited by Fahrenheit531; 04-02-21 at 09:39 AM.
Fahrenheit531 is offline
Old 04-02-21, 11:58 AM
  #15
niliraga
Senior Member
Thread Starter

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 472

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 162 Times in 102 Posts
i have some Mavic Open Sports with a wear indicator "ring" machined into the walls, and have seen plenty of generic rims with similar, but I am curious to know if rims that seem to be aiming for retro looks (TB14s, many from VO etc.) put some other kind of indicator that doesnt detract from the look.


Originally Posted by Fahrenheit531 View Post
For future reference, modern rims will typically have a little "divot" in them. When the wear reaches a point that the divot is no longer visible, they're toast.



Tires will often have them too.
niliraga is offline
Old 04-02-21, 12:35 PM
  #16
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,562
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 475 Post(s)
Liked 248 Times in 171 Posts
Originally Posted by niliraga View Post
well, that'll learn me!! thank you all for the collective wisdom - sounds like they are good for wheelbuilding practice but should never see another brake pad.

well, seller must have known they were far gone - at least they came at a "fully disposable" price.

more generally for rims, if/when i work out how to get past the hook and measure actual wall thickness, what is the thickness most of you would consider the limit? much as how chain stretch sets yellow flags at 0.5 and red at 0.75%, is there an equivalent here?
I would guess that min thickness is going to be different for different rims. They use different alloys, especially if you are talking vintage vs modern rims. Maybe manufacturers publish something like that. If you are looking for a way to measure thickness, you can get caliper attachments that allow you to get around varying thicknesses. https://www.mcmaster.com/caliper-attachments/ Probably not advised for super accurate measurements, but would be fine here.
tricky is offline
Likes For tricky:
Old 04-02-21, 01:27 PM
  #17
Fahrenheit531
Funnier in Person

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,849

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 681 Post(s)
Liked 405 Times in 218 Posts

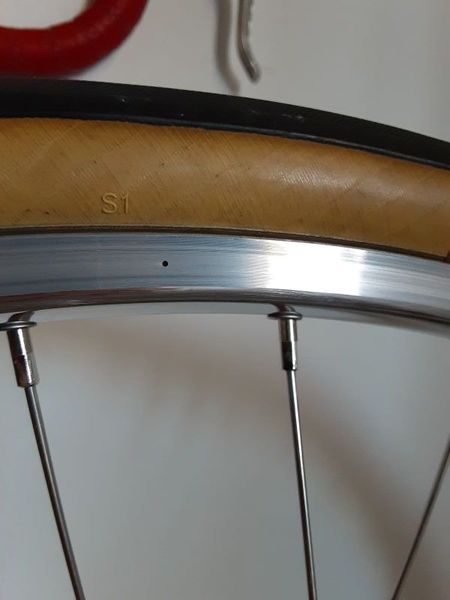

TB-14:



And by no means does it "detract from the look."
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Likes For Fahrenheit531:
Old 04-02-21, 03:19 PM
  #18
niliraga
Senior Member
Thread Starter

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 472

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 162 Times in 102 Posts
nice! i guess no point looking for that on the beaters I have here...

Originally Posted by Fahrenheit531 View Post
TB-14:


And by no means does it "detract from the look."
niliraga is offline
Old 04-02-21, 04:10 PM
  #19
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,562
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 475 Post(s)
Liked 248 Times in 171 Posts
Originally Posted by Fahrenheit531 View Post
TB-14:



And by no means does it "detract from the look."
Thanks for the pic! I couldn't find anything on the H+Son site mentioning wear indicators.
tricky is offline
Old 04-03-21, 09:25 AM
  #20
Fahrenheit531
Funnier in Person

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,849

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 681 Post(s)
Liked 405 Times in 218 Posts
Originally Posted by tricky View Post
Thanks for the pic! I couldn't find anything on the H+Son site mentioning wear indicators.


They're superb rims. If you're on the fence, just go ahead and click 'buy'.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Likes For Fahrenheit531:
Old 04-03-21, 06:23 PM
  #21
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,731
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Liked 683 Times in 535 Posts
Originally Posted by niliraga View Post
so remove a section to allow rim diameter to shrink for installation - then how to stretch back out? some sort of threaded bolt expander across the cut faces?
think turnbuckle in reverse.
Yes, requires some fabrication
repechage is offline
Old 04-03-21, 06:47 PM
  #22
aland2
Member

Join Date: Mar 2019
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 18 Times in 11 Posts
They're worn out but lots of people ride them like that. Be careful. Move your brake blocks for starters so they bear on the unworn surface.
aland2 is offline
Old 04-04-21, 05:10 AM
  #23
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,343

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
Liked 194 Times in 144 Posts
Just to for trivia points, there are 90's era Araya rims that start off concave. Before I got comfortable working on my own wheels, I took a set in to replace a spoke and true the set up. The guy wanted to sell me a new set because these where wore out. I insisted, and the work got done, but I think I had a PIA sur charge added.
bark_eater is offline
Old 04-04-21, 06:02 AM
  #24
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,541

Bikes: Several, mostly not name brands.

Mentioned: 133 Post(s)
Tagged: 0 Thread(s)
Quoted: 2571 Post(s)
Liked 1,199 Times in 759 Posts
Originally Posted by repechage View Post
measure, they way you need to do it is with a micrometer, you have to get around the thicker portion.
A dental caliper is an inexpensive tool to measure rim wear. Usually can be had for about US$5. The problem is, you have to know how much wear is too much wear.
Attached Images
File Type: jpg
JohnDThompson is offline
Old 04-04-21, 01:32 PM
  #25
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,504
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 919 Post(s)
Liked 714 Times in 384 Posts
the issue of rim wear gets discussed every so often.
About a year ago, someone presented a way to make a little tool out of an old spoke to permit measuring the rim thickness with an ordinary caliper. I had a Sun CR18 that was getting pretty worn, so I went through the process....

the tool itself.



the thickness of the tool itself, which is needed for a later step.



The tool placed to permit indirect measurement of rim thickness.


measuring the combined thickness of the rim sidewall and tool



of course, the alternative is to make a direct measurement of the rim wall thickness. Not a great option if you might want to use the rim, though.
I replaced this unmachined CR18 with a new machined CR18. The new CR18 had thinner side walls than this worn out CR18.



Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
