Old Raleigh 3 speed tourist, not what I expected

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Old Raleigh 3 speed tourist, not what I expected

Old 04-04-21, 10:11 PM
  #1
Steve Whitlatch
Senior Member
Thread Starter

Steve Whitlatch's Avatar

Join Date: Sep 2013
Location: Chicago area
Posts: 3,672
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 59 Times in 32 Posts
Old Raleigh 3 speed tourist, not what I expected

My mother in law told m







e she purchased an old Raleigh and wanted me to overhaul it. I did not expect this. Paint is mint. Chrome in the rod brakes is mint. Only blemishes are the blistering chrome on the rims and a bit of rust on the fender arms. Holy crap. 1940's?
__________________
My bikes: 1970`s Roberts - 1981 Miyata 912 - 1980`s Ocshner (Chrome) - 1987 Schwinn Circuit - 1987 Schwinn Prologue - 1992 Schwinn Crosspoint - 1999 Schwinn Circuit - 2014 Cannondale Super Six EVO
Steve Whitlatch is offline
Likes For Steve Whitlatch:
Old 04-04-21, 10:25 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

transfer font on chainguard & downtube says it cannot be earlier than about 1974

there should be a specific date mark on the S-A hub


-----

Last edited by juvela; 04-04-21 at 10:27 PM. Reason: spellin'
juvela is offline
Old 04-04-21, 10:45 PM
  #3
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,901

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1680 Post(s)
Liked 2,150 Times in 1,206 Posts
Decals are 1973+, shifter is 1975+, chaincase is unusual, but the RAMPAR logos indicate a US-market bike.

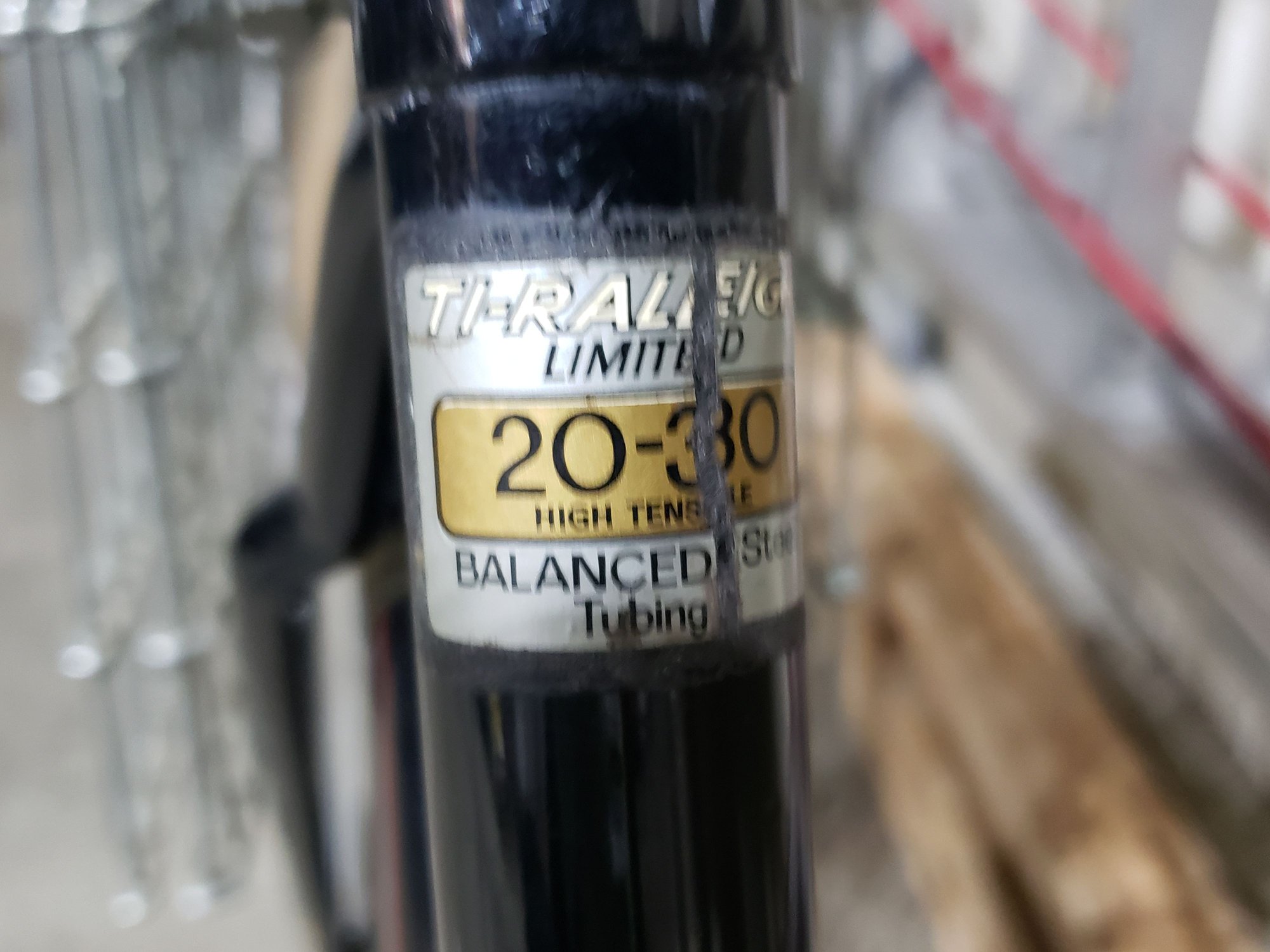

I don't remember when the tubing sticker went from "RALEIGH" to "TI-RALEIGH Limited," but I think that might have been '77/78.

Check the rear hub for a month + last-two-digits-year date code. Can't make out the rear fender, but it looks as if it might not have a white tail. My guess is this example is from 1978 through 1982, not that much significantly changed over those years - or even from the '73s.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 04-05-21, 06:25 AM
  #4
Steve Whitlatch
Senior Member
Thread Starter

Steve Whitlatch's Avatar

Join Date: Sep 2013
Location: Chicago area
Posts: 3,672
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 59 Times in 32 Posts
Thanks for the help. I had no idea they were still putting these crazy brakes on bikes into the 80's? I briefly looked through catalogs and cannot find a match. the frame style with the curved down tube and full chain case resembled the older models more than the late 70 and 80 models? Thought it could have been an older bike repainted and decaled in the 80s because the paint looks so good. I will go through it but this bike is much different than anything I have worked on before.

Do I need special rims for these brakes?
__________________
My bikes: 1970`s Roberts - 1981 Miyata 912 - 1980`s Ocshner (Chrome) - 1987 Schwinn Circuit - 1987 Schwinn Prologue - 1992 Schwinn Crosspoint - 1999 Schwinn Circuit - 2014 Cannondale Super Six EVO
Steve Whitlatch is offline
Old 04-05-21, 06:40 AM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,621

Bikes: Several, mostly not name brands.

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2995 Post(s)
Liked 2,086 Times in 1,241 Posts
Originally Posted by Steve Whitlatch View Post
Do I need special rims for these brakes?
Yes, because the pads bear on the surface of the rim adjacent to the spokes, rather than on the sidewall.
JohnDThompson is offline
Old 04-05-21, 06:46 AM
  #6
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 8,246

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 1,519 Times in 1,059 Posts
Very nice. You might also want to post in the "For the love of English 3-speeds" thread.
For the love of English 3 speeds...

That style step-through frame is called a "loop."
thumpism is offline
Old 04-05-21, 06:51 AM
  #7
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,231
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1184 Post(s)
Liked 1,089 Times in 635 Posts
What is the date stamp on the rear hub? (See posts 2 and 3 above.)
Trakhak is offline
Old 04-05-21, 07:39 AM
  #8
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,901

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1680 Post(s)
Liked 2,150 Times in 1,206 Posts
Originally Posted by Steve Whitlatch View Post
Thanks for the help. I had no idea they were still putting these crazy brakes on bikes into the 80's? I briefly looked through catalogs and cannot find a match. the frame style with the curved down tube and full chain case resembled the older models more than the late 70 and 80 models? Thought it could have been an older bike repainted and decaled in the 80s because the paint looks so good. I will go through it but this bike is much different than anything I have worked on before.
Yep, and Flying Pigeon and a number of other Chinese and Indian firms inherited the old Raleigh tooling and continue to push out copies to this day. Not as frequent as 10 years ago though.

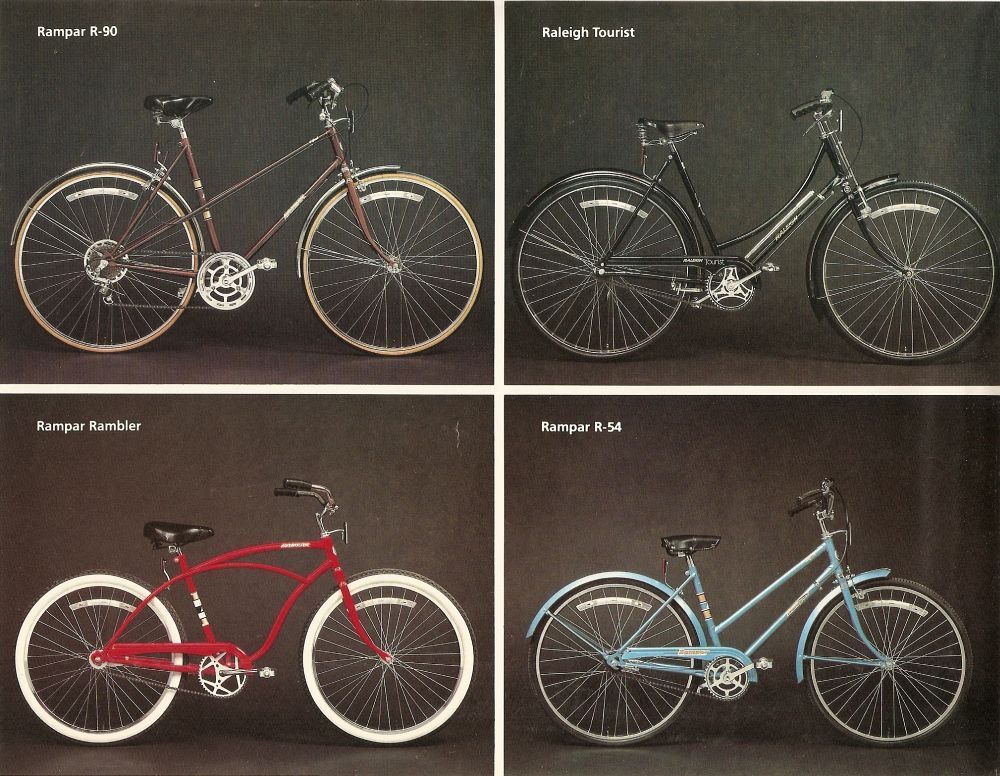

The chaincase is unusual, but the loop frame has always been standard fare for the DL1L. Here are pictures from the '78 and '81 catalogs (note that '81 shows the men's model only):






You will need special pads for these, yes. And the quality of your truing job on the wheels will fully determine how smooth the braking is!

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 04-05-21, 07:58 AM
  #9
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,188
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 1,627 Times in 782 Posts
Fantastic!

If you need brake pads they can be found here. They also have them in salmon color.
BFisher is offline
Likes For BFisher:
Old 04-05-21, 08:40 AM
  #10
FSOG Rich
Junior Member

Join Date: Dec 2020
Location: Chandler, AZ
Posts: 13

Bikes: 1974 Peugeot UO-8, Litespeed Tuscany, 1974 Raleigh Tourist, Trek Town bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 11 Times in 6 Posts
Cool bike!
FSOG Rich is offline
Old 04-05-21, 11:45 AM
  #11
brianinc-ville
Senior Member

brianinc-ville's Avatar

Join Date: Nov 2006
Location: Greenville, NC
Posts: 1,354
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 34 Times in 27 Posts
Sweet! I loved my '80 Tourist. Those bikes feel like nothing else (except maybe a 12' longboard on a glassy, shoulder-height tube).

The rod brakes work just fine unless it's raining, in which case...tell your MIL to get off the bike and call for a ride. Adjusting the brakes can be a challenge; I ended up using extra washers to push the pads toward the center of the rims for full contact.

It's worth buying the extra-large Fibrax ASH144 brake pads. In my experience, they work better than the smaller Kool Stop salmon inserts.

It's also probably worth buying her some more durable tires (e.g. Schwalbe Delta Cruiser Plus) -- you won't want to be taking that rear wheel off unless you absolutely have to.
brianinc-ville is offline
Likes For brianinc-ville:
Old 04-05-21, 12:06 PM
  #12
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,557

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lampert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Liked 508 Times in 377 Posts
Originally Posted by cudak888 View Post
Yep, and Flying Pigeon and a number of other Chinese and Indian firms inherited the old Raleigh tooling and continue to push out copies to this day. Not as frequent as 10 years ago though.

The chaincase is unusual, but the loop frame has always been standard fare for the DL1L. Here are pictures from the '78 and '81 catalogs (note that '81 shows the men's model only):






You will need special pads for these, yes. And the quality of your truing job on the wheels will fully determine how smooth the braking is!

-Kurt
Thanks for posting that catalog page @cudak888. It is interesting that Raleigh had the DL1 rider (and presumed) family at an Antique shop for the picture. That is not a knock on the DL1 which I like and admire.

This bike is in great shape. Squirt some 30 weight oil in the rear hub and make sure everything is in working order and give it a ride. It is different than today's bikes. Kind of fun, kind of laid back. It makes you feel like you will get there but, there is no need to race. You can keep the same heart rate as when you are walking and cover far more ground.
Velo Mule is offline
Likes For Velo Mule:
Old 04-10-21, 07:10 PM
  #13
Steve Whitlatch
Senior Member
Thread Starter

Steve Whitlatch's Avatar

Join Date: Sep 2013
Location: Chicago area
Posts: 3,672
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 59 Times in 32 Posts
Update:

The rear hub is marked 81.

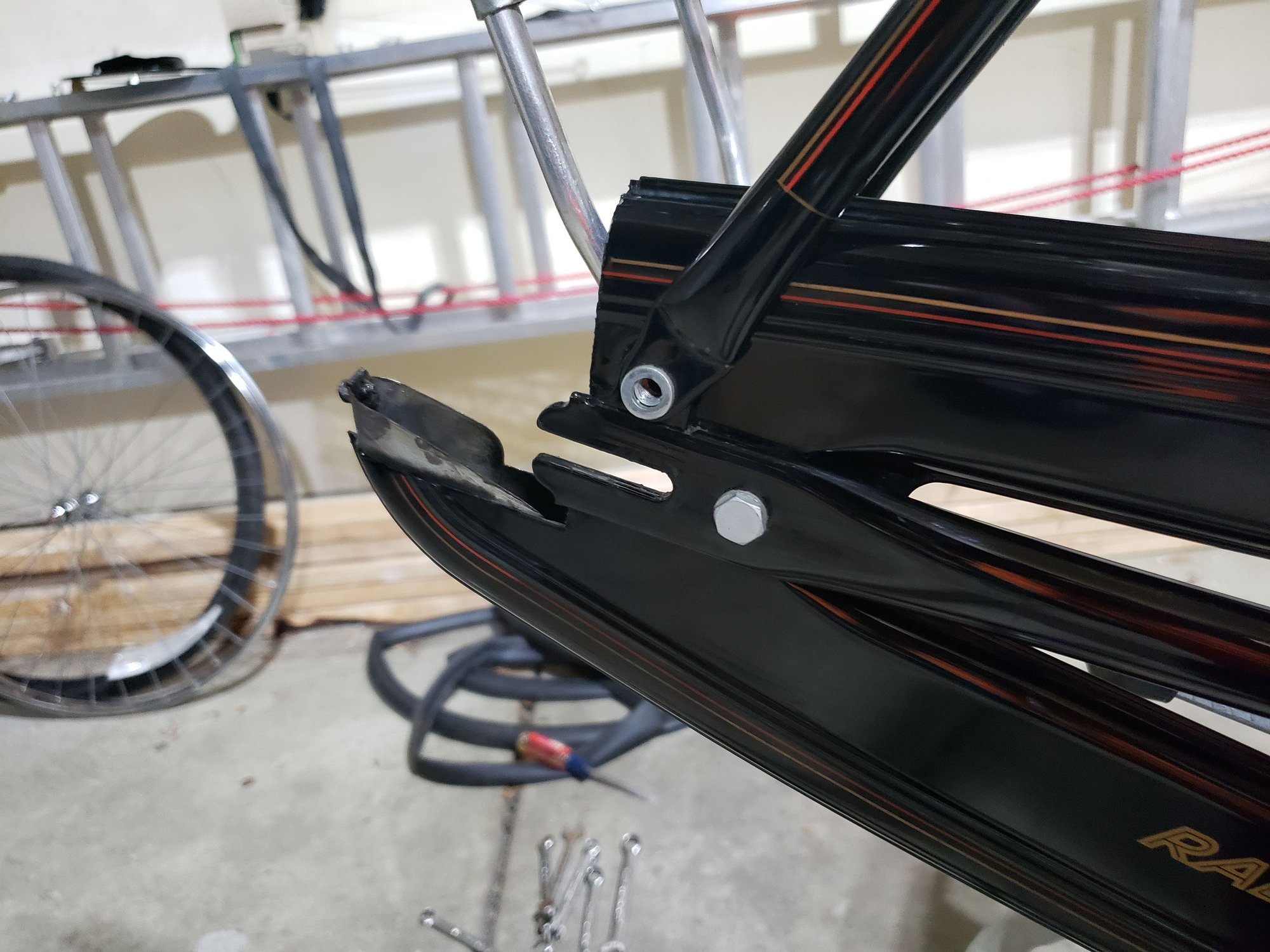

I finally found the time to work on this bike.. What a pain in the you know what. To get the rear wheel off I had to remove the brake pads,, the back of the chain guard, the fender as well as the rear rack legs.

The chain guard fully surrounds the crankset all the way to the rear wheel.. I can't figure out how to remove it without taking off the crankset. The chain was cut so short that there was no room to push the wheel forward into the fork end to get the chain off. I just barely got the chain to derail to remove the rear. Blown away buy just how crazy this bike is.

The front wheel has a lot of corrosion on the rim. I am looking for a replacement wheel or rim if anyone has one? Need 28 1.50 635 - 24.


__________________
My bikes: 1970`s Roberts - 1981 Miyata 912 - 1980`s Ocshner (Chrome) - 1987 Schwinn Circuit - 1987 Schwinn Prologue - 1992 Schwinn Crosspoint - 1999 Schwinn Circuit - 2014 Cannondale Super Six EVO
Steve Whitlatch is offline
Old 04-10-21, 08:17 PM
  #14
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,901

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1680 Post(s)
Liked 2,150 Times in 1,206 Posts
The chaincase doesn't come off without removing the crank cotter and crank. Do yourself a favor...don't.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 04-12-21, 04:32 AM
  #15
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 279 Times in 151 Posts
Chain break.

You find the chain split link via the removable quadrant at the rear, hook a couple of old spokes or two bits of string either side of the split link , undo the split link and lift the wheel out - make sure the chain doesn't slide down into the chain case.Reverse to replace.
Johno59 is offline
Likes For Johno59:
Old 04-12-21, 05:05 AM
  #16
metalrideroz
Senior Member

Join Date: Nov 2010
Location: .AU
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 9 Times in 6 Posts
Originally Posted by Steve Whitlatch View Post
Update:The front wheel has a lot of corrosion on the rim. I am looking for a replacement wheel or rim if anyone has one? Need 28 1.50 635 - 24.
Replacement westwood rod-brake rims are still available here but not sure about the shipping situation at the moment,
https://www.dutchbikebits.com/parts-...cle-wheel-rims
metalrideroz is offline
Old 04-12-21, 06:03 AM
  #17
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 279 Times in 151 Posts
Rim corrosion

Originally Posted by Steve Whitlatch View Post
Update:

The rear hub is marked 81.

I finally found the time to work on this bike.. What a pain in the you know what. To get the rear wheel off I had to remove the brake pads,, the back of the chain guard, the fender as well as the rear rack legs.

The chain guard fully surrounds the crankset all the way to the rear wheel.. I can't figure out how to remove it without taking off the crankset. The chain was cut so short that there was no room to push the wheel forward into the fork end to get the chain off. I just barely got the chain to derail to remove the rear. Blown away buy just how crazy this bike is.

The front wheel has a lot of corrosion on the rim. I am looking for a replacement wheel or rim if anyone has one? Need 28 1.50 635 - 24.


Those old rims can take an awful lot of pitting whilst still remaining as effective as new - which isn't saying much unfortunately. Some even came dimpled as new to try and overcome the poor braking. The brake pads will soon buff the rust to almost nothing once you starting to use it. New ones won't stay new very long and will be of inferior quality metallurgy wise and the brake performance will most likely be the same.
Johno59 is offline
Likes For Johno59:
