9 Speed Dura-Ace DT shifter question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

9 Speed Dura-Ace DT shifter question

Old 04-06-21, 05:25 PM
  #1
Erzulis Boat
3rd Grade Dropout
Thread Starter

Erzulis Boat's Avatar

Join Date: Oct 2005
Location: Santa Barbara Calif.
Posts: 1,561
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 354 Times in 156 Posts
9 Speed Dura-Ace DT shifter question



Right side 9 speed index I could install no problem. The left side shifter has a mechanical stop in the portion that butts against the frame.

In the forward most position, should it run parallel to DT, or stop in this slightly raised position? This is where it stops on the internal stop. If this is the correct method/position then it seems odd to me, but stranger things are correct.

There is also a helical internal spring that can be "wound" up for constant tension it seems?

Can somebody walk me through this shifter install? Thanks!
Erzulis Boat is offline
Old 04-06-21, 05:38 PM
  #2
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,618

Bikes: Klein, Merckx, Trek

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 3566 Post(s)
Liked 1,940 Times in 1,053 Posts
That's the way it's supposed to be... you'll learn to like it.
DiabloScott is offline
Likes For DiabloScott:
Old 04-06-21, 05:38 PM
  #3
BFisher
Senior Member

Join Date: Aug 2013
Posts: 2,204
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 711 Post(s)
Liked 1,654 Times in 793 Posts
Here is the link to the tech doc: SL-7700 Shifter Doc

The forward motion does stop before the lever can rest parallel to the downtube. The fixing bolt gets tightened just enough to keep the internal spring from pulling the lever back.
BFisher is offline
Likes For BFisher:
Old 04-06-21, 05:39 PM
  #4
BradH
Catching Smallmouth

BradH's Avatar

Join Date: Oct 2013
Location: In a boat
Posts: 519

Bikes: 1990 Specialized Sirrus Triple, 1985 Trek 460, 2005 Lemond Tourmalet, 1984 Schwinn LeTour 'Luxe, 1988 Trek 400T, 1985 Trek 450, 1997 Lemond Zurich, 1993 Diamond Back Apex, 1988 Schwinn Circuit, 1988 Schwinn Prologue, 1978 Trek TX700, Sannino

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Liked 86 Times in 47 Posts
Slightly raised is correct.
BradH is offline
Likes For BradH:
Old 04-06-21, 05:43 PM
  #5
Erzulis Boat
3rd Grade Dropout
Thread Starter

Erzulis Boat's Avatar

Join Date: Oct 2005
Location: Santa Barbara Calif.
Posts: 1,561
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 354 Times in 156 Posts
Originally Posted by BFisher View Post
Here is the link to the tech doc: SL-7700 Shifter Doc

The forward motion does stop before the lever can rest parallel to the downtube. The fixing bolt gets tightened just enough to keep the internal spring from pulling the lever back.
Haha! Thanks!!!!!!!!!!!!!

I did install it correctly. Just seemed a little crazy!
Erzulis Boat is offline
Old 04-06-21, 05:45 PM
  #6
BFisher
Senior Member

Join Date: Aug 2013
Posts: 2,204
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 711 Post(s)
Liked 1,654 Times in 793 Posts
Originally Posted by Erzulis Boat View Post
Haha! Thanks!!!!!!!!!!!!!

I did install it correctly. Just seemed a little crazy!
I thought the same thing when I first set mine up. As it stands now, I really, REALLY like these shifters.
BFisher is offline
Likes For BFisher:
Old 04-06-21, 05:45 PM
  #7
krakhaus
Full Member

krakhaus's Avatar

Join Date: Sep 2012
Location: Palm Springs, California
Posts: 414
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 396 Times in 153 Posts
That's so not aero, bro.
krakhaus is online now
Likes For krakhaus:
Old 04-06-21, 07:58 PM
  #8
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,095

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1808 Post(s)
Liked 1,936 Times in 759 Posts
That’s a great color on the frame!
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 04-06-21, 08:03 PM
  #9
Dirt Farmer
Senior Member

Dirt Farmer's Avatar

Join Date: Apr 2007
Location: Madison, Wi.
Posts: 1,181

Bikes: Jamis Quest Elite; Fuji Sagres; Trek Fuel EX 8

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 329 Post(s)
Liked 72 Times in 52 Posts
Originally Posted by rccardr View Post
Thatís a great color on the frame!

Yeah, more pics of the bike, please, it looks sharp!
Dirt Farmer is offline
Old 04-06-21, 08:34 PM
  #10
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,225

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4390 Post(s)
Liked 2,431 Times in 1,579 Posts
Yeah, took me awhile to get accustomed to that oddity with DA downtube shifters after using Suntour and others that came to a stop in a more cosmetically appealing position.

Ditto, the paint on that bike. More pix, please. That subtle fade into a diamond, checked or snakeskin pattern looks great.

Nice motorcycles too. That one in the back against the bench looks like a friend's customized Yamaha SR500.
canklecat is offline
Old 04-06-21, 09:08 PM
  #11
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 613 Times in 278 Posts
In yet another unforgivable slight to left-handers, the higher resting position for the left/front lever makes it easier for the right thumb to engage and move the lever. From the right side of the frame, natch. You don't have to rotate your right wrist nearly as much to engage the lever.

Bah, humbug! sez I.
__________________
Fuggedaboutit!
pcb is offline
Old 04-06-21, 09:32 PM
  #12
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,005

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 774 Post(s)
Liked 656 Times in 370 Posts

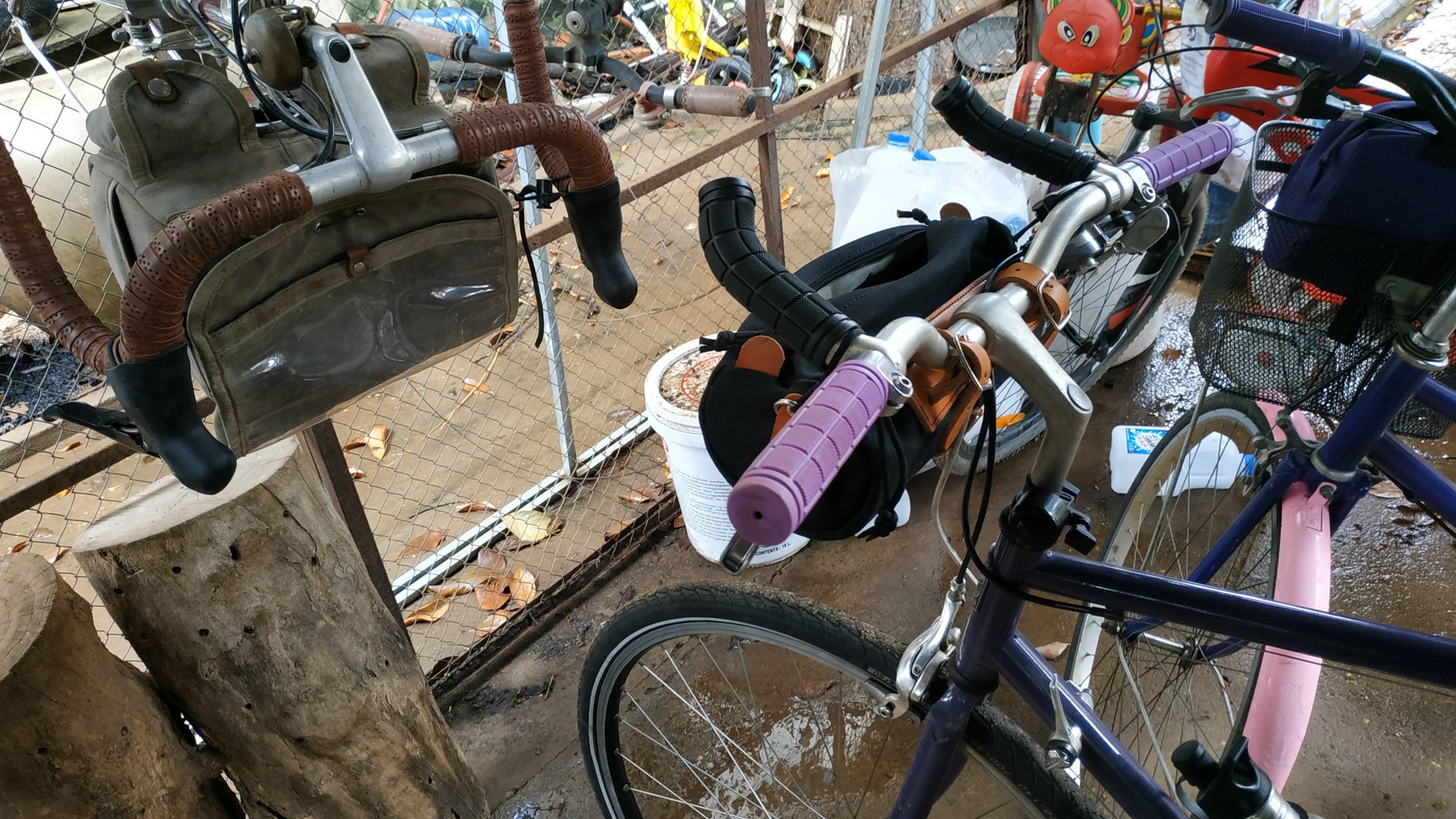

I ran a flat bar shifter 10 speed with a DT front shifter and it frustrated me try to get it to be flat while in the small ring.
I finally found that info sheet above and realized it was made that way.

It was a fun bike to ride as I rode it like I had a high/low range.



This last one shows it laid forward almost parallel to the DT.
bwilli88 is offline
Likes For bwilli88:
Old 04-07-21, 09:16 AM
  #13
Zas
Member

Join Date: Jul 2012
Location: Northern Europe
Posts: 44
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
I've never tried the DA shifters but if they work anything like my 6400 7s left shifters with the spring assist system, they are amazing.

Does anyone know if the current R400 8s front derailleur shifters have a similar design?
Zas is offline
Old 04-07-21, 10:43 AM
  #14
BradH
Catching Smallmouth

BradH's Avatar

Join Date: Oct 2013
Location: In a boat
Posts: 519

Bikes: 1990 Specialized Sirrus Triple, 1985 Trek 460, 2005 Lemond Tourmalet, 1984 Schwinn LeTour 'Luxe, 1988 Trek 400T, 1985 Trek 450, 1997 Lemond Zurich, 1993 Diamond Back Apex, 1988 Schwinn Circuit, 1988 Schwinn Prologue, 1978 Trek TX700, Sannino

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Liked 86 Times in 47 Posts
Originally Posted by Zas View Post
Does anyone know if the current R400 8s front derailleur shifters have a similar design?
The R400 shifters have spring assist on both front and rear shifters, however, they can't be switched to friction and the front shifter sits parallel with the down tube when in the small ring.
BradH is offline
Old 04-07-21, 10:49 AM
  #15
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,723

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1293 Post(s)
Liked 1,341 Times in 735 Posts
Same experience with the 8V DT DA on the Pinarello. Converted to Ergos.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 04-07-21, 10:56 AM
  #16
Erzulis Boat
3rd Grade Dropout
Thread Starter

Erzulis Boat's Avatar

Join Date: Oct 2005
Location: Santa Barbara Calif.
Posts: 1,561
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 354 Times in 156 Posts

This was my first "snakeskin" job. I wanted it to be subtle. The base color is Psycho Green.
Erzulis Boat is offline
Old 04-07-21, 11:16 AM
  #17
Zas
Member

Join Date: Jul 2012
Location: Northern Europe
Posts: 44
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by BradH View Post
The R400 shifters have spring assist on both front and rear shifters, however, they can't be switched to friction and the front shifter sits parallel with the down tube when in the small ring.
Thanks, good to know. I've been contemplating updating from 7 to 8 with these shifters.
