Impulsive Peugeot deal

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Impulsive Peugeot deal

Old 04-15-21, 01:12 AM
  #1
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
Impulsive Peugeot deal

I impulsively bought a vintage Peugeot bike after seeing it on a local, online marketplace. I payed 60 for it. I have the original (at least I think it is original) drop handlebar with Weinmann brakelevers also.
I might be using it on a small trip in a few weeks. I love the fact that is has both front en back fenders and racks.
A few things that need attention:
  • Good cleaning and greasing
  • Missing front derailleur,
  • Tires are dry and need replacing,
  • All spokes need tension- checking, one needs to be replaced.
  • It needs new brake and shift cables
  • New front light (pure cosmetic, I'll bring battery powered, removable lights with me)
  • Other small stuff
What type/year would you reckon this Peugeot is? It has Weinmann brakes and a Peugeot rear derailleur. Gearing is a 3x5.
I'll have a closer look at a serial number on the BB later today.




bikebakman is offline
Likes For bikebakman:
Old 04-15-21, 01:16 AM
  #2
1simplexnut
Senior Member

1simplexnut's Avatar

Join Date: Jul 2014
Location: New Zealand
Posts: 803

Bikes: 1963? Anquetil , 1973 PX10,1979 PX10,1984 PX10, VITUS 979 PX10DU,1970S ALAN,1985 PSV10,1980s PY10FC,1978 bERTIN,ALAN carbon

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 335 Times in 155 Posts
Hi , that was good buy !
Would say 83 based on that plasic head badge .
Have fun !
1simplexnut is offline
Likes For 1simplexnut:
Old 04-15-21, 03:58 AM
  #3
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,971
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 735 Post(s)
Likes: 0
Liked 772 Times in 468 Posts
Does the seat-tube have a single boss like a water-bottle boss about where the front mech would go?

Because if so it IS for the front mech, the Simplex A223 (the A222 is the double version). These are the only mechs that fit that boss (as far as I know); fortunately they are not expensive, and good mechs. They were also sold as badge-engineered Gimpiemme and Edco and possibly Sachs or something else.

There are a few of the double versions on that auctions site right now; the only triple has a broken clamp bit. You want the triple, it's easily distinguished, it has a much wider inner cage plate, it extends below the outer by a good half-inch.

EDIT: not *that* triple, a good one.

Oh, and for 60 euro that's a score, no question.

Last edited by oneclick; 04-15-21 at 04:02 AM.
oneclick is offline
Likes For oneclick:
Old 04-15-21, 04:58 AM
  #4
cb400bill
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,449

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR gravel Viscount Aerospace Pro Schwinn Paramount PDG 5 Colnago Classic Rabobank

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 2769 Post(s)
Liked 4,532 Times in 2,696 Posts
Looks like it could be a PX-50s. If not, it's in the neighborhood.

__________________
Originally Posted by Retro Grouch View Post
Fenders protect you from tire splatter. Mudguards protect you from tyre splatter.








Last edited by cb400bill; 04-15-21 at 06:16 AM.
cb400bill is offline
Likes For cb400bill:
Old 04-15-21, 05:45 AM
  #5
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,212

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2079 Post(s)
Liked 1,432 Times in 925 Posts
Your looks like a PX-50s from France...'82? (as Bill has pointed out)


Last edited by clubman; 04-15-21 at 05:55 AM.
clubman is offline
Likes For clubman:
Old 04-15-21, 06:03 AM
  #6
RobertUI
Monkey Boy

Join Date: May 2009
Location: Herndon, VA
Posts: 215

Bikes: '22 Surly Straggler, '15 Breezer Downtown EX, '92 Raleigh T-450, '19 Motobecane Record (fixie), '21 Gravity HD29 SX

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 76 Times in 46 Posts
That's gorgeous! Seriously, I love the color, and this all seems fairly in tact... good score!
__________________
Artist | Musician | Bass Player
Life is what happens to you while you're busy making other plans. (o.o)
RobertUI is online now
Likes For RobertUI:
Old 04-15-21, 11:16 AM
  #7
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,569

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lampert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked 517 Times in 382 Posts
Nice looking bike bikebakman . Please keep the pictures coming as you get this ready to go.
Velo Mule is offline
Likes For Velo Mule:
Old 04-15-21, 01:49 PM
  #8
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
Thank you for all replies and compliments and good to hear model and make of this Peugeot. I really like it too. Absolutely in love with the blue and chrome combination.
I made some close up pictures, see below.

oneclick Concerning the front mech, there is no boss on the seat tube. See pictures below. It seems it'll need a clamped derailleur. What type?




Serial number on the bracket. Can anyone identify?
[edit] Seriously, I just noticed it says PX50S [/edit]

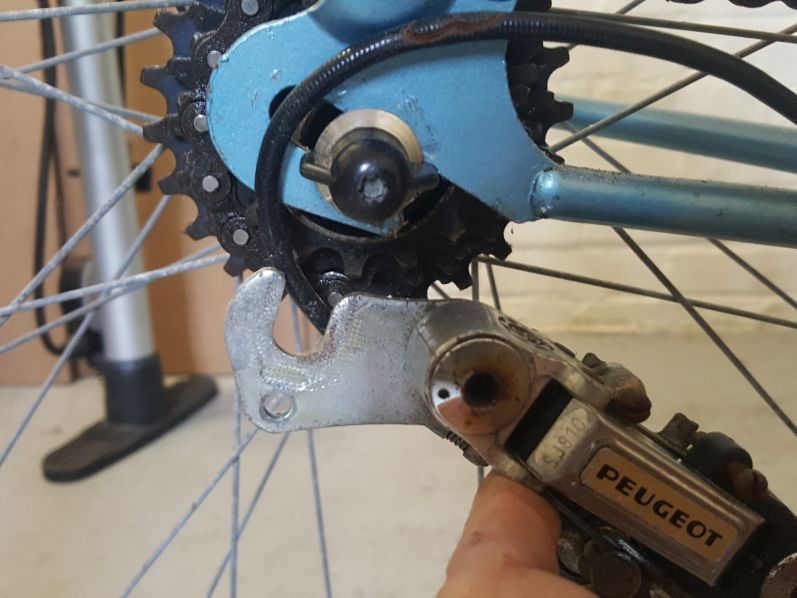

When removing the back wheel, the rear derailleur got loose. I totally missed the absence of the hangar type derailleur mount! These older frames have another way of mounting the mech. I did some reading. Seems I'm missing a lock screw of some sort. Can I use a new screw from my toolbox instead?

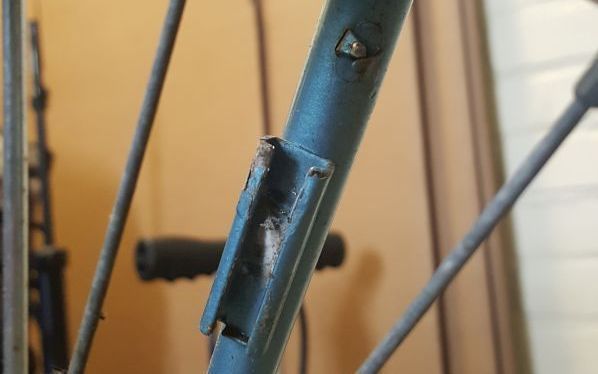

On the left seat stay, a dynamo mounting is present. What kind of mounting is that?


Last edited by bikebakman; 04-15-21 at 01:57 PM.
bikebakman is offline
Old 04-15-21, 02:08 PM
  #9
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,372

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 309 Post(s)
Liked 172 Times in 113 Posts
bikebakman-

Your rear derailleur mounting is missing the special nut and bolt that slot into the dropout opening. See here for details: https://bike.bikegremlin.com/230/rear-derailleur/
Your rear generator mount will take standard Soubitez generators of the period, they will bolt right in with the head of the fixing bolt sliding into the groove on the frame mount and then being fastened down with the bolt. Be careful when purchasing as generators come for left and right hand mounting so make sure you get the correct replacement.
bertinjim is offline
Likes For bertinjim:
Old 04-15-21, 02:31 PM
  #10
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
Would that rear derailleur mounting nut/bolt be available somewhere? Anyone who got one to share?
[edit] Could I do with a ordinary M10 bolt with washer and nut? It doesn't look complicated.




Last edited by bikebakman; 04-15-21 at 02:43 PM. Reason: Added pictures from Ebay
bikebakman is offline
Old 04-15-21, 03:27 PM
  #11
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,971
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 735 Post(s)
Likes: 0
Liked 772 Times in 468 Posts
Originally Posted by bikebakman View Post
Would that rear derailleur mounting nut/bolt be available somewhere? Anyone who got one to share?
[edit] Could I do with a ordinary M10 bolt with washer and nut? It doesn't look complicated.

That's a common bit to loose, and to find at any good bike shop or co-op.

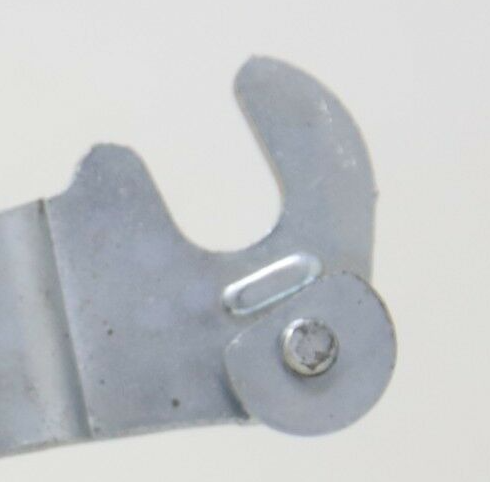

The screw doesn't really matter, but the bolt bit does - it has to have that step so it locates the slot of the rear mech in line with the dropout slot.
oneclick is offline
Likes For oneclick:
Old 04-15-21, 03:41 PM
  #12
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,971
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 735 Post(s)
Likes: 0
Liked 772 Times in 468 Posts
Originally Posted by bikebakman;22016373
[utag=512318
oneclick[/utag] Concerning the front mech, there is no boss on the seat tube. See pictures below. It seems it'll need a clamped derailleur. What type?

[...]

On the left seat stay, a dynamo mounting is present. What kind of mounting is that?
Any front mech will do, but if you want a Simplex to match the rear, the plastic ones are too fragile (even the LJ A302 I suspect it came with), so for a triple you are looking for an SJ A103.

As for the dynamo mount, I think there is supposed to be a bar with a (t least one) threaded hole in it that slides into that fitting; the dynamo attaches to the bar.
oneclick is offline
Likes For oneclick:
Old 04-15-21, 08:26 PM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,868
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1377 Post(s)
Likes: 0
Liked 476 Times in 327 Posts
Originally Posted by 1simplexnut View Post
Hi , that was good buy !
Would say 83 based on that plasic head badge .
Have fun !
Could be an 82, as my 82 PH10S had the same frame graphics and plastic head badge......
Chombi1 is offline
Likes For Chombi1:
Old 04-19-21, 08:27 AM
  #14
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
I went to a LBS where I've never been before. Judging the interior of the shop, I immediately knew I was in the right place. It was a mess. Bicycle parts everywhere. It smelled after grease. I saw a Columbus Cromor Pinarello and an old Eddy Merckx amongst many others.

The owner fixed the Peugeot up and now she has a Huret front derailleur. Rear derailleur has the bolt in place. Brakes and commandeurs are working. She replaced the 5s pignon with a NOS one she had laying around! A new chain.
When I was talking about sourcing a headlight to match the bike, she gave me an small round one from a Motobecane. For free. It resamblances the 82 PX50S from the folder above.

Now onto new tires.
It currently has two different tires. The fattest on the back show Michelin 700x35c. Front has enough space to fit 35c. Any ideas about which tire would be a perfect match?

I also would be interested to know which bags on the front and rear rack would be a good match.
bikebakman is offline
Old 04-19-21, 08:46 AM
  #15
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,372

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 309 Post(s)
Liked 172 Times in 113 Posts
bikebakman -

You have made excellent progress! The tires might be replaced with Michelin Dynamic Classic in 700C x 32 which are gum walled and inexpensive. Bags are pricier. Berthoud makes rack top bags : https://berthoudcycles.fr/en/1002-sa...999-grise.html as well as handlebar bags: https://berthoudcycles.fr/en/134-han...nd-map-holders. For less expensive options search EBay France as they sometimes have older TA handlebar bags for sale.
bertinjim is offline
Likes For bertinjim:
Old 04-19-21, 04:23 PM
  #16
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,844
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 1102 Post(s)
Liked 500 Times in 381 Posts
Originally Posted by bikebakman View Post
On the left seat stay, a dynamo mounting is present. What kind of mounting is that?

This is what the hardware setup looks like. I have other angles available if you need them. Believe it or not, the bolt head fits inside that and sits with the threaded shaft sticking outward. Then you put the U-shaped metal bar sits on top of the frame provision to cap things off. The dynamo goes on that metal bar, then the star washer, then the nut. The head of the bolt can slide back and forth in that slot to allow fine-tuning of the dynamo position. The lip you see on the frame slot won't let the bolt fall out. The U-shaped bracket is there to hold pressure without crushing the metal. The design is actually quite genius.

Go find a bolt whose head fits inside that bracket and slide it back and forth. It'll instantly make sense once you do that if these words are confusing. I think it's 10mm bolt head which normally fits, but maybe is 12mm.

Edit: I just want to say, you see the metal clip just above it? That's there to hold the wire, if this isn't clear. You'll probably see these clips also under the downtube of your main triangle, and in a few other key places. There is a specific method to route cables through fenders and such. If you need help with that, feel free to ask, I can give some tips.

__________________
███████████████


Last edited by francophile; 04-21-21 at 07:59 AM.
francophile is offline
Likes For francophile:
Old 04-21-21, 05:05 AM
  #17
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
Originally Posted by bertinjim View Post
bikebakman -
You have made excellent progress! The tires might be replaced with Michelin Dynamic Classic in 700C x 32 which are gum walled and inexpensive. Bags are pricier. Berthoud makes rack top bags : https://berthoudcycles.fr/en/1002-sa...999-grise.html as well as handlebar bags: https://berthoudcycles.fr/en/134-han...nd-map-holders. For less expensive options search EBay France as they sometimes have older TA handlebar bags for sale.
Thank you! Tires-tip much appreciated. I was looking at more gravel oriented tires but once the word "gravel" is linked to a bike-accessories or -part, the price triples.
Boy, these bags are pricey indeed! Beautiful but pricey. I would be scared to leave my bike unattended with these bags on it while doing groceries or something. I need to re-think about this upgrade.
bikebakman is offline
Old 04-21-21, 07:40 AM
  #18
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
These 32-622 Michelin Dynamic Classics are hard to find. None of the shop I know, sell these. All they have these days are Schwalbe. And Schwalbe don't make gum walled. Any other brand which is widely available?
bikebakman is offline
Old 04-21-21, 12:16 PM
  #19
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,372

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 309 Post(s)
Liked 172 Times in 113 Posts
You might want to try one of the on line sellers like SJS in the UK. They sell gum wall Panaracer Paselas in the 700C x 32 or 35 size you need. Pricier than the Michelins, unfortunately. https://www.sjscycles.co.uk/tyres/70...0-622/?geoc=CA

Bags other than Berthoud are available such as Acorn from the United States but COVID shipping restrictions may apply. https://www.acornbags.com/

Other on line retailers sell mass produced bags for less such as the Bicycle Warehouse. https://bicyclewarehouse.com/collections/handlebar-bags
bertinjim is offline
Likes For bertinjim:
Old 04-22-21, 05:29 AM
  #20
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
I ordered a pare of Michelin World Tour, 700x35, gum wall tires.
bikebakman is offline
Old 04-22-21, 06:51 AM
  #21
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,468

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1421 Post(s)
Liked 1,329 Times in 920 Posts
That sounds like a bike shoppe that deserves business!
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Likes For jdawginsc:
Old 06-04-21, 05:09 AM
  #22
bikebakman
Senior Member
Thread Starter

Join Date: Apr 2015
Location: Netherlands
Posts: 72

Bikes: Pinarello & Concorde & Cannondale Road, Vitus Adventure, see sig.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 7 Times in 3 Posts
In the meantime I've been riding the Peugeot with much joy. The bike gives me a relaxed vibe. I realized I never showed you the upgrades.

With the new tires

With the new custom made bag
bikebakman is offline
Likes For bikebakman:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
