Equipment/Product Review (1988) SCOTT Superbrake / MATHAUSER Hydraulic Brake

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Equipment/Product Review (1988) SCOTT Superbrake / MATHAUSER Hydraulic Brake

Old 04-16-21, 02:31 PM
  #1
SpeedofLite
Senior Member
Thread Starter

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Henderson, NV, USA
Posts: 1,257

Bikes: Litespeed (9); Slingshot (6); Specialized (2); Kestrel (2); Softride (1); Centurion (3); Cervelo (1); FELT (1); Cannondale (1); Fuji (1); Trek (1);

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 804 Times in 375 Posts
Equipment/Product Review (1988) SCOTT Superbrake / MATHAUSER Hydraulic Brake







__________________
WTB: Slingshot road model (1990s era; 18" L or 20" XL frame size)
WTB: Slingshot promotional documents (catalog, pamphlets, etc).
WTB: American Cycling May - Aug, Oct, Dec 1966.
WTB: Bicycle Guide issues 1984 (any); Jun 1987; Jul 1992; 1993-1998 (any)
WTB: Bike World issue Jun 1974.
WTB: ZIPP 500 front wheel (650c clincher)









SpeedofLite is online now
Likes For SpeedofLite:
Old 04-16-21, 08:23 PM
  #2
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,398
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1202 Post(s)
Likes: 0
Liked 235 Times in 175 Posts
Interesting how hydraulic bicycle brakes with rubber brake pads were only taken on by just a couple of manufacturers (Mathauser and Magura) I guess the kinda odd interface between traditional rubber brake pads and more modern hydraulic actuators just never really made for "solid" engineering and it became sort of a technological dead end.....

Last edited by Chombi1; 04-16-21 at 08:30 PM.
Chombi1 is offline
Old 04-17-21, 05:29 AM
  #3
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,460

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 535 Post(s)
Liked 264 Times in 184 Posts
Originally Posted by Chombi1 View Post
Interesting how hydraulic bicycle brakes with rubber brake pads were only taken on by just a couple of manufacturers (Mathauser and Magura) I guess the kinda odd interface between traditional rubber brake pads and more modern hydraulic actuators just never really made for "solid" engineering and it became sort of a technological dead end.....
Thatís kind of a weird take on it, since pad material really doesnít matter to the caliper / wheel cylinder.

More likely, since hydraulic brakes require you to use a system-specific lever and Ďcaliperí ; these (Matthauser / Magura) arrived in the early 1990s which also saw the rise of Shimano STI integrated brake lever / shifter units. Speccing hydraulics would mean not getting those indexed Rapidfire shifters.
Iím willing to bet that if a mfgr chose to put STI /Rapidfire on a bike, Shimano would throw the brakes in for free. Guess which way they went?
Ironfish653 is online now
Old 04-17-21, 07:36 AM
  #4
hazetguy
.

hazetguy's Avatar

Join Date: Nov 2004
Posts: 1,088
Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 1296 Post(s)
Likes: 0
Liked 1,149 Times in 633 Posts

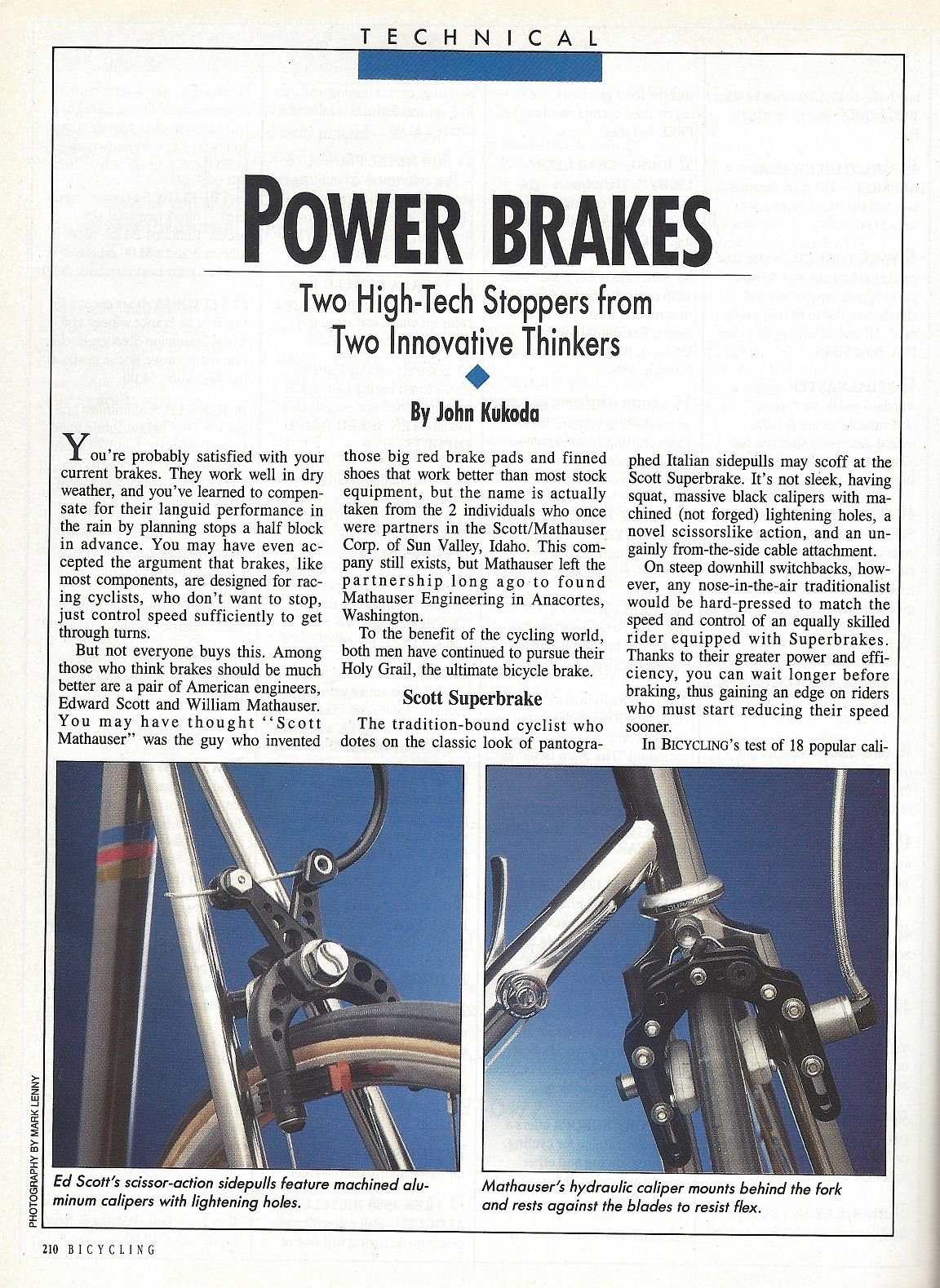

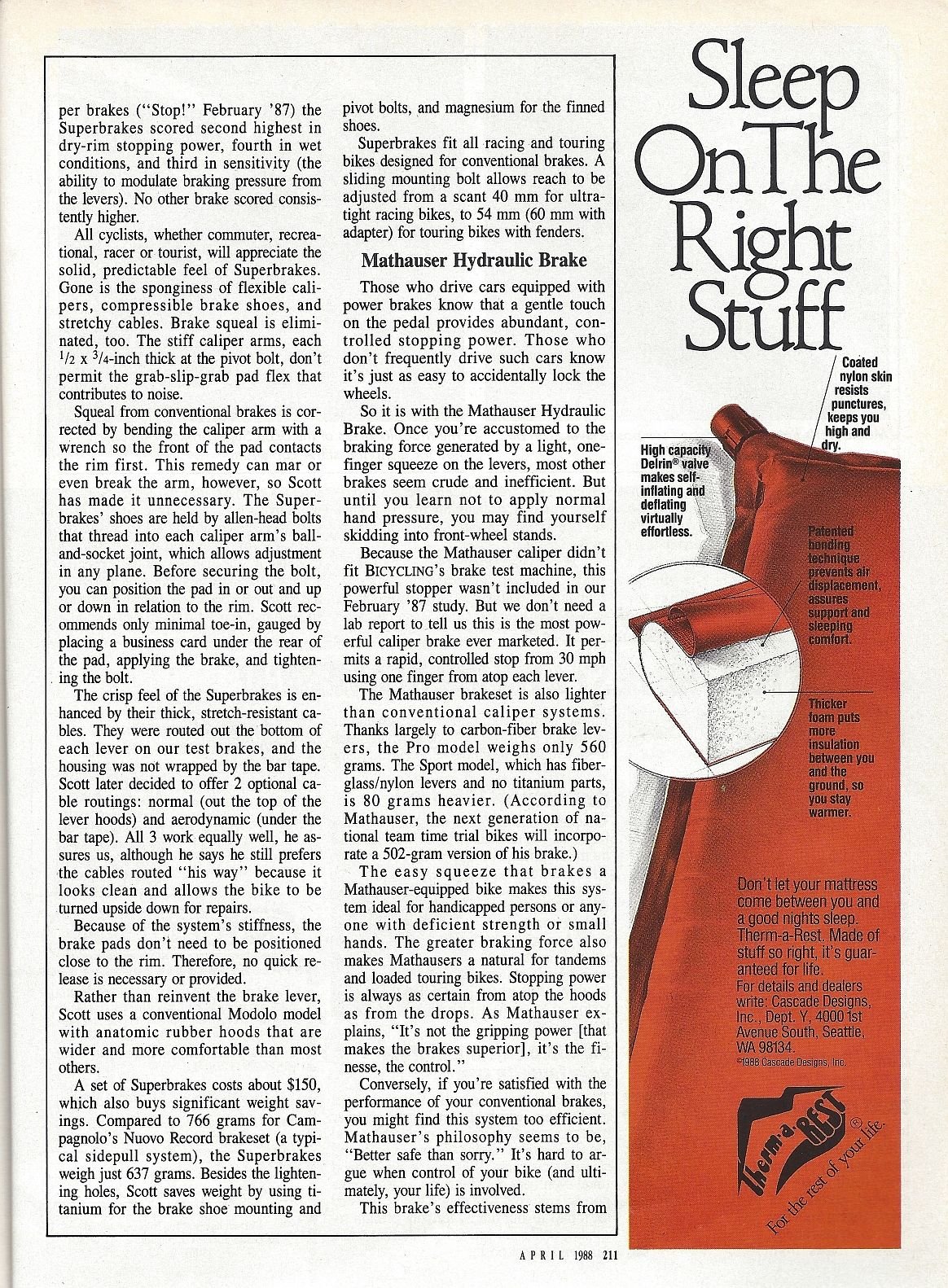

old pics, for reference









hazetguy is offline
Likes For hazetguy:
Old 04-17-21, 07:39 AM
  #5
hazetguy
.

hazetguy's Avatar

Join Date: Nov 2004
Posts: 1,088
Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 1296 Post(s)
Likes: 0
Liked 1,149 Times in 633 Posts

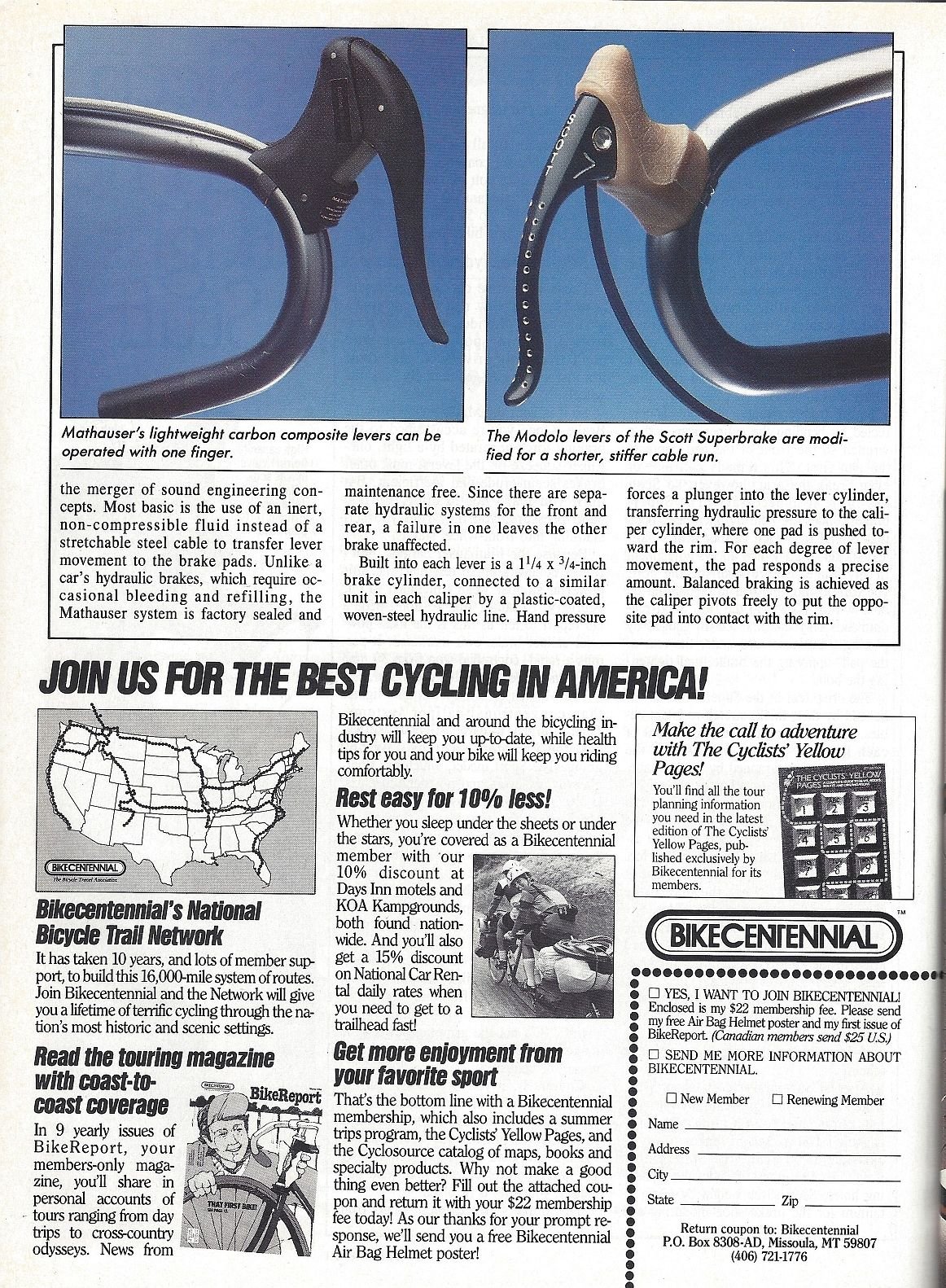

more old pics, for reference










hazetguy is offline
Likes For hazetguy:
Old 04-17-21, 01:15 PM
  #6
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,486
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 909 Post(s)
Liked 704 Times in 377 Posts
a few shots of a Graftek equipped with the Scott Superbrakes, as well as a bunch of other trick gear, shown at one of the Classic Rendezvous gatherings...







Seems like a valid enough concept. The pivot appears robust and able to handle the forces. The proprietary brake shoe mounting technique might be an issue, though.

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 04-17-21, 03:49 PM
  #7
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,427

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 527 Post(s)
Liked 140 Times in 89 Posts
What deficiency, what problem, are these attempting solve?

I came down a hill at 40 mph this afternoon. As I approached the bottom of the hill, I scooted back on the saddle, got down on the drops and applied the brakes. I stopped in 100 feet (approx.). The rear brake had to be modulated to prevent the rear wheel from skidding up - the front brake is VERY powerful, especially when pointed downhill.
Bad Lag is offline
Old 04-18-21, 09:50 AM
  #8
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,398
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1202 Post(s)
Likes: 0
Liked 235 Times in 175 Posts
Originally Posted by Ironfish653 View Post
Thatís kind of a weird take on it, since pad material really doesnít matter to the caliper / wheel cylinder.

More likely, since hydraulic brakes require you to use a system-specific lever and Ďcaliperí ; these (Matthauser / Magura) arrived in the early 1990s which also saw the rise of Shimano STI integrated brake lever / shifter units. Speccing hydraulics would mean not getting those indexed Rapidfire shifters.
Iím willing to bet that if a mfgr chose to put STI /Rapidfire on a bike, Shimano would throw the brakes in for free. Guess which way they went?
Ever compare the durometer ratings between typical disc brake pads and traditional rubber brake pads? The interface between the more rigid hydraulic disc brake pads and brake disc makes more sense because of the non-compressibility of hydraulic fluid in hydraulicly activated brakes, definitely makes more sense from an engineering standpoint......
Yes, we are dealing with rim braking with the Magura and Mathauser systems, but they are kinda like a half baked solution to hydraulic braking which they should have just done with a disc (or even a drum) instead, to properly take advantage of the rigidity and feel you get from a hydraulic system.

Last edited by Chombi1; 04-18-21 at 09:59 AM.
Chombi1 is offline
Old 04-18-21, 11:39 AM
  #9
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,460

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 535 Post(s)
Liked 264 Times in 184 Posts
Originally Posted by Chombi1 View Post
Ever compare the durometer ratings between typical disc brake pads and traditional rubber brake pads? The interface between the more rigid hydraulic disc brake pads and brake disc makes more sense because of the non-compressibility of hydraulic fluid in hydraulicly activated brakes, definitely makes more sense from an engineering standpoint......
Yes, we are dealing with rim braking with the Magura and Mathauser systems, but they are kinda like a half baked solution to hydraulic braking which they should have just done with a disc (or even a drum) instead, to properly take advantage of the rigidity and feel you get from a hydraulic system.
Boy, BikeForums really likes to go down the rabbit hole.
Occamís razor; Itís cost; thatís why hydraulic rim brakes didnít really catch on.
Hydro rim brakes cost more, and prevent you from running those integrated Shimano shifters. Making a disc wheel in the late 80s-early 90s would have even been more suicidal. Youíve got to get mfgrs to build frames with disc caliper mounts, as well as design your own wheel hubs and rotors.
It wasnít until the Downhill MTB arms race of the mid 1990s that disc brakes really crossed over from motos to bicycles.

As far as rigidity and feel; Maguras have been a staple of observed trials, where you need massive brakes; at least until they were supplanted by modern disc brakes.

You cant really compare Ďdurometerí of the brake pads, because rim brakes use hard rubber pads on an aluminum brake track, and discs use sintered metal pads on a steel rotor.

Hydraulic rim brakes were always a niche product, though.
Ironfish653 is online now
