Cantilever brake adjuster? Anyone have one?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cantilever brake adjuster? Anyone have one?

Old 04-17-21, 11:41 AM
  #1
gthomson
Senior Member
Thread Starter

gthomson's Avatar

Join Date: May 2020
Location: Great White North
Posts: 610

Bikes: 2013 Cannondale Caad 8, 2010 Opus Fidelio, Peugeot UO14, Trek 800 Anetelope, 1999 Peugeot Dune, Sakai Select, L'Avantage, 1971 Gitane Apache Standard

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 156 Times in 118 Posts
Cantilever brake adjuster? Anyone have one?

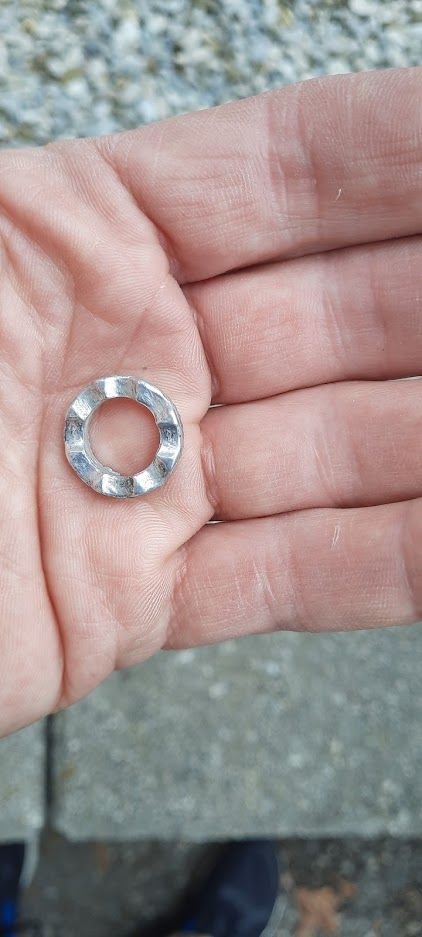

I do not know what the name of this item is but does anyone have one or know where I can get one? It's for an old Gitane road bike with Huret components and I must have lost one when I stripped the bike down for repairs.

gthomson is offline
Old 04-17-21, 01:08 PM
  #2
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,494
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
That looks like the washer/spacer that goes between a Mafac brake arm and the brake shoe post; they start out with two parallel sides, but develop scallops when the brake shoe is tightened. That one looks as though this has happened in multiple orientations.

Check your brake parts, you should have four of these (two each brake), if that's what it is, someone here will have one to spare - or a good bike shop or co-op.
oneclick is offline
Old 04-18-21, 06:58 AM
  #3
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
What type/brand of brake is that from? You could probably get by with some washers or a spacer if you can scrounge something that would fit. If you can find a spacer that fits, you can file down a groove. Or, maybe a few washers and a wave washer might work.

Or, post in the "in search of..." thread in the vintage forum. It would probably help to post a pic of the brake itself.
John Nolan is offline
Likes For John Nolan:
Old 04-18-21, 07:54 AM
  #4
gthomson
Senior Member
Thread Starter

gthomson's Avatar

Join Date: May 2020
Location: Great White North
Posts: 610

Bikes: 2013 Cannondale Caad 8, 2010 Opus Fidelio, Peugeot UO14, Trek 800 Anetelope, 1999 Peugeot Dune, Sakai Select, L'Avantage, 1971 Gitane Apache Standard

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 156 Times in 118 Posts
Sorry, yes I should have been more clear. From the brake and I have 3 of them but missing the 4th. The other 3 are identical. So just find a washer the same size? I'm guessing these have seen a lot of action if they started flat on both sides! Here's the rest of the brake. Where can I get replacement brake arm and pads from?
gthomson is offline
Old 04-18-21, 08:11 AM
  #5
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,494
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
Originally Posted by gthomson View Post
Sorry, yes I should have been more clear. From the brake and I have 3 of them but missing the 4th. The other 3 are identical. So just find a washer the same size? I'm guessing these have seen a lot of action if they started flat on both sides! Here's the rest of the brake. Where can I get replacement brake arm and pads from?
Ok, those look like CLB "Raid" brakes, I don't know if the Mafac washers will fit but I suspect yes. The Mafac ones start out flat, don't know about the CLB ones.

You need a washer - "spacer" really - thick enough that the post will clear the arm - and it should be made of aluminium, otherwise it will cut into the alloy brake shoe post.
oneclick is offline
Old 04-18-21, 09:28 AM
  #6
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
I'm pretty sure the CLB spacers were scalloped like that from the factory, but I'm not sure they need to be.

oneclick:
Do you think a nylon spacer would work, or would it be too fragile?
John Nolan is offline
Old 04-18-21, 10:05 AM
  #7
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,494
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
Originally Posted by John Nolan View Post
I'm pretty sure the CLB spacers were scalloped like that from the factory, but I'm not sure they need to be.

oneclick:
Do you think a nylon spacer would work, or would it be too fragile?
Wouldn't trust it at all.
oneclick is offline
Old 04-18-21, 10:11 AM
  #8
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
Hmm...looking at this CLB page, it seems that the spacer bears against a flat on the arm, so it might not cut into the post. I suspect that a couple of washers could be made to work in a pinch.
Do you have any half-inch washers around?
John Nolan is offline
Old 04-18-21, 10:17 AM
  #9
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
Originally Posted by oneclick View Post
Wouldn't trust it at all.
Yeah, you're right.
John Nolan is offline
Old 04-18-21, 10:27 AM
  #10
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,494
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
Originally Posted by gthomson View Post
Where can I get replacement brake arm and pads from?
Pads themselves show up from time to time (I'm assuming the Mafac-pattern ones will fit). If not, brake shoes with that style post (smooth) are used in a lot of brakes so you should not have much trouble finding some that will work, if not look the part.
oneclick is offline
Old 04-18-21, 10:28 AM
  #11
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 1,751
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Liked 1,116 Times in 565 Posts
These can sometimes be made from an aluminum spacer for mounting a front caliper, as long as the outer diameter is large enough. You can file or grind it flat if it isn't already (some are), drill out the center to the correct ID, and file those grooves as needed. I had to make one for a cracked spacer on a MAFAC racer. It worked fine. You could probably pick up a bunch of aluminum spacers in the correct thickness from a place like Fastenal or McMaster-Carr, and then modify to suit.

Similar spacers made from steel can also be used to make anti-rotation washers for Sturmey-Archer hubs.
BFisher is offline
Old 04-18-21, 10:37 AM
  #12
gthomson
Senior Member
Thread Starter

gthomson's Avatar

Join Date: May 2020
Location: Great White North
Posts: 610

Bikes: 2013 Cannondale Caad 8, 2010 Opus Fidelio, Peugeot UO14, Trek 800 Anetelope, 1999 Peugeot Dune, Sakai Select, L'Avantage, 1971 Gitane Apache Standard

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 156 Times in 118 Posts
Originally Posted by John Nolan View Post
Hmm...looking at this CLB page, it seems that the spacer bears against a flat on the arm, so it might not cut into the post. I suspect that a couple of washers could be made to work in a pinch.
Do you have any half-inch washers around?
Wow, that spec. page is awesome. How did you find that? thanks, this is great as I now have the Huret FD & RD spec sheet and now this.

I don't have any that size but I'm sure I can find them somewhere.

I've never heard of Racer brakes, are they good?
gthomson is offline
Old 04-18-21, 10:38 AM
  #13
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
I have a spacer among my bits and pieces that I'm pretty sure will work.

PM me and I'll drop it in the mail for you—I'm in Ottawa, so it shouldn't take too long.
John Nolan is offline
Old 04-18-21, 10:42 AM
  #14
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 651

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 59 Times in 36 Posts
Originally Posted by gthomson View Post
Wow, that spec. page is awesome. How did you find that? thanks, this is great as I now have the Huret FD & RD spec sheet and now this.

I don't have any that size but I'm sure I can find them somewhere.

I've never heard of Racer brakes, are they good?
Google took me to Velobase, and then I looked at the catalogue pages.
John Nolan is offline
Old 04-18-21, 10:48 AM
  #15
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,494
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
Originally Posted by John Nolan View Post
Hmm...looking at this CLB page, it seems that the spacer bears against a flat on the arm, so it might not cut into the post. I suspect that a couple of washers could be made to work in a pinch.
Do you have any half-inch washers around?
Best get an aluminium one.
The post is held by a hole cross-wise through a steel bolt; I've seen posts bent by tightening the fixing nut; if you have two hard steel corners squeezing opposite sides of the post it's a lot worse than one steel corner and a soft - likely softer than the post - spacer's corner.
