How stiff should bar end shifters be?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How stiff should bar end shifters be?

Old 04-22-21, 07:30 AM
  #26
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts
Originally Posted by pcb View Post
On a long-unused lever, you want to flush out and relube the innards. And tight enough generally means the minimum tension necessary to prevent slipping. Ghost shifting is too loose.
Would loosening the lever then giving it a good spray with WD40 be sufficient to 'flush it out'? I'm just talking about the flushing bit - I'd relube it with some proper foaming spray lubricant (I just got some Tri-Flow Superior Lubricant for that job). I just don't have that many tools, and am a total newbie to all this stuff, so am a little wary of taking the whole thing apart.
Arnolfini is offline
Old 04-22-21, 07:39 AM
  #27
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,327
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 290 Times in 170 Posts
Originally Posted by Arnolfini View Post
Would loosening the lever then giving it a good spray with WD40 be sufficient to 'flush it out'? I'm just talking about the flushing bit - I'd relube it with some proper foaming spray lubricant (I just got some Tri-Flow Superior Lubricant for that job). I just don't have that many tools, and am a total newbie to all this stuff, so am a little wary of taking the whole thing apart.
I'd go for it - its a nice easy step for you to get "closer" to your bike - I would consider loosening the shifter first to allow the most flow, and after flushing use your tri-flow with the shifter still loose to ensure you get good penetration.

What part of Ontario are you in? Plenty of Canadians on this forum......
markk900 is offline
Old 04-22-21, 07:51 AM
  #28
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts
Originally Posted by markk900 View Post
I'd go for it - its a nice easy step for you to get "closer" to your bike - I would consider loosening the shifter first to allow the most flow, and after flushing use your tri-flow with the shifter still loose to ensure you get good penetration.
Yeah, that's what I was thinking of doing - glad I was on the right track!
What part of Ontario are you in? Plenty of Canadians on this forum......
I'm in the GTA (sort of) - Richmond Hill to be a bit more specific. May actually be looking for some cycling buddies soon, although I'm extremely slow and unfit (for now)...
Arnolfini is offline
Old 04-22-21, 07:53 AM
  #29
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,684
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 935 Post(s)
Liked 496 Times in 284 Posts
Well based on the white layer of late April snow on the ground these days you have some time to tinker with it a bit.
Narhay is offline
Old 04-22-21, 09:59 AM
  #30
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 607 Times in 276 Posts
I'd take the lever out of the housing and spray it. No need to do a deep-dive disassembly, but I'd think you'd want more access for spray/runoff than you'd get leaving the lever in the housing.

I think you can take the black cover off without too much trouble, maybe just one small screw holding it in place? Might give you a better peek at the innards.

Originally Posted by Arnolfini View Post
Would loosening the lever then giving it a good spray with WD40 be sufficient to 'flush it out'? I'm just talking about the flushing bit - I'd relube it with some proper foaming spray lubricant (I just got some Tri-Flow Superior Lubricant for that job). I just don't have that many tools, and am a total newbie to all this stuff, so am a little wary of taking the whole thing apart.
__________________
Fuggedaboutit!
pcb is offline
Old 04-22-21, 10:34 AM
  #31
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
The WD40 applied to the loosened shift lever mechanism should do it. It won't last too long but could be a good step at this point in time.

Only thing is you will have to re-adjust the lever screw/nuts whenever you do it again with a better lube.

If the cable is only moving against plastic-lined surfaces you should have easy shifting feel. Metal on metal not so much.
dddd is offline
Old 04-22-21, 02:04 PM
  #32
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts
Originally Posted by dddd View Post
The WD40 applied to the loosened shift lever mechanism should do it. It won't last too long but could be a good step at this point in time.

Only thing is you will have to re-adjust the lever screw/nuts whenever you do it again with a better lube.
Yeah, I was thinking of using WD40 purely for flushing out any gunk, then following it up with proper lubricant right away
Arnolfini is offline
Old 04-22-21, 02:06 PM
  #33
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts
Originally Posted by pcb View Post
I'd take the lever out of the housing and spray it. No need to do a deep-dive disassembly, but I'd think you'd want more access for spray/runoff than you'd get leaving the lever in the housing.

I think you can take the black cover off without too much trouble, maybe just one small screw holding it in place? Might give you a better peek at the innards.
I'll take a closer look and see how daring I'm feeling! I do have a good set of allen keys, so the tools shouldn't be an issue.
Arnolfini is offline
Old 04-22-21, 02:40 PM
  #34
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,477
Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 373 Post(s)
Liked 607 Times in 276 Posts
The only allen key you'd need would be to install/remove the body from the bars, and you don't need to remove the body to remove the lever. All you need for the lever, and for the shift cover I think, are screwdrivers.

You can confirm that from the exploded view that was posted.

Originally Posted by Arnolfini View Post
I'll take a closer look and see how daring I'm feeling! I do have a good set of allen keys, so the tools shouldn't be an issue.
__________________
Fuggedaboutit!
pcb is offline
Old 04-23-21, 12:54 PM
  #35
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts
Just finished changing my cables and lubing everything and now it's so much better! Thanks everyone for the tips... although despite everyone's warnings, I *still* managed to lose the lock nut from one of my shifters
Arnolfini is offline
Likes For Arnolfini:
Old 04-23-21, 02:01 PM
  #36
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,517
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 837 Post(s)
Liked 379 Times in 242 Posts
Originally Posted by Arnolfini View Post
Just finished changing my cables and lubing everything and now it's so much better! Thanks everyone for the tips... although despite everyone's warnings, I *still* managed to lose the lock nut from one of my shifters
Here’s a cheap fix:
Select an appropriately sized pan head screw. Stick it in a vise, drill the center of the slot, then cut the head off and tap for M4. Then for heaven’s sake put a drop of blue Loctite on this one!
due ruote is offline
Likes For due ruote:
Old 04-23-21, 04:03 PM
  #37
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts
Originally Posted by due ruote View Post
Here’s a cheap fix:
Select an appropriately sized pan head screw. Stick it in a vise, drill the center of the slot, then cut the head off and tap for M4. Then for heaven’s sake put a drop of blue Loctite on this one!
Thanks! Don't have the relevant tools to do all that, but will save the thread for if/when I do!
Arnolfini is offline
Old 04-23-21, 04:12 PM
  #38
Arnolfini
Junior Member
Thread Starter

Join Date: Apr 2021
Location: Ontario
Posts: 15

Bikes: 1979 Nishiki Continental; 1997 Semcycle deluxe 20”; 2006 Brompton M3L

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 6 Times in 3 Posts

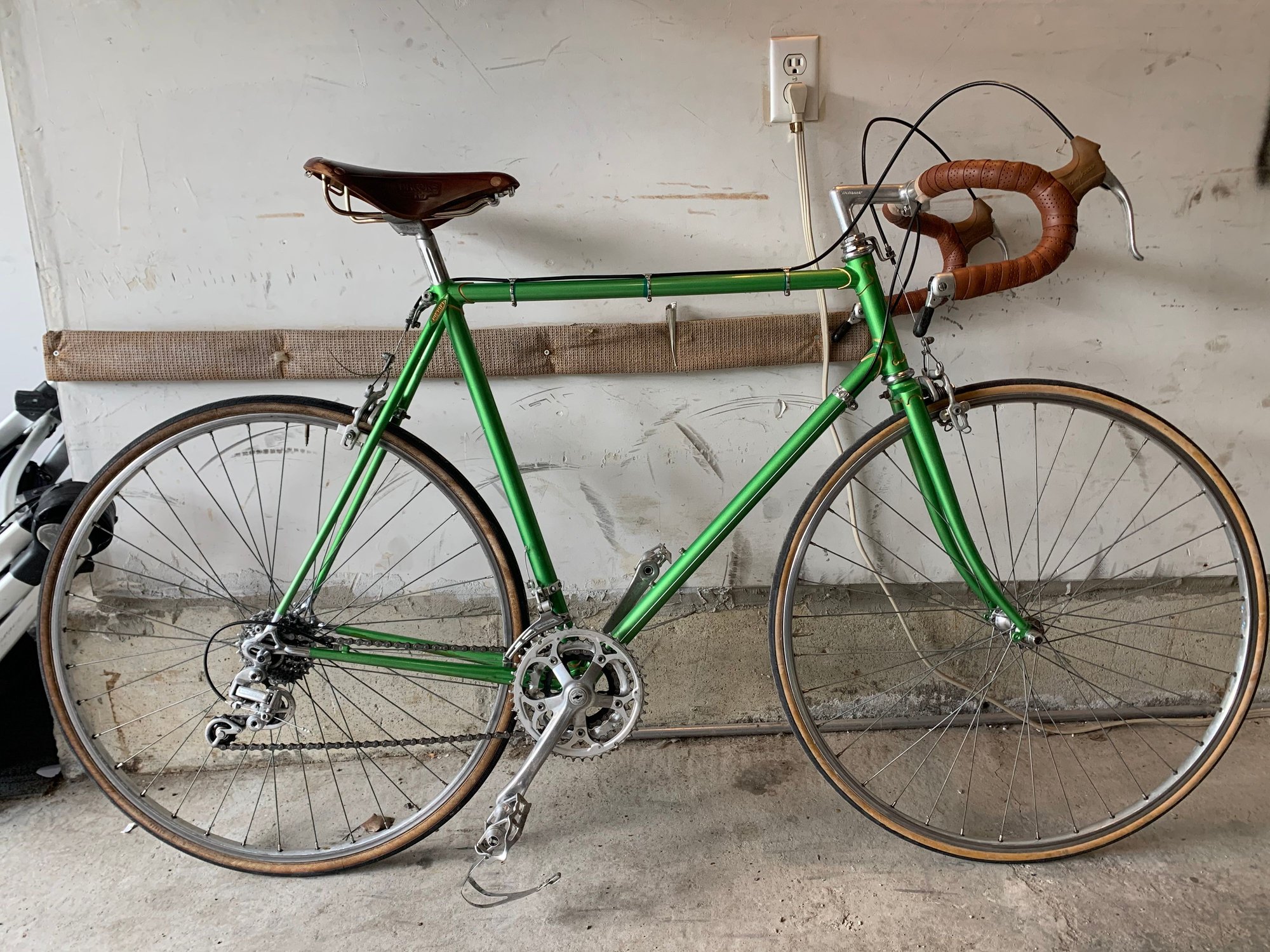

And here she is with new cables, hoods and tape
Arnolfini is offline
Likes For Arnolfini:
Old 04-23-21, 06:40 PM
  #39
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,890

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked 368 Times in 255 Posts
Newer 'slick' drawn stainless inner cables will work wonders with the SunTour barcons - even if you're still using the original bare stainless housing like I do on my bikes...
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 04-23-21, 10:32 PM
  #40
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
Originally Posted by Cougrrcj View Post
Newer 'slick' drawn stainless inner cables will work wonders with the SunTour barcons - even if you're still using the original bare stainless housing like I do on my bikes...
I would expect the stainless cable riding in un-lined stainless housing to be particularly sticky, not to mention the primitive housing's notorious compressibility.

The amount of motion error going from one end of the cable to the other will tend to be equal to the friction force multiplied by the elasticity of the combined cable and housing.
And them are some long cables!
dddd is offline
Old 04-24-21, 05:43 AM
  #41
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,327
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 290 Times in 170 Posts
Arnolfini Beautiful bike - well done. Looks like it is raring to go!
markk900 is offline
Old 04-24-21, 09:11 AM
  #42
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,890

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked 368 Times in 255 Posts
Originally Posted by dddd View Post
I would expect the stainless cable riding in un-lined stainless housing to be particularly sticky, not to mention the primitive housing's notorious compressibility.

The amount of motion error going from one end of the cable to the other will tend to be equal to the friction force multiplied by the elasticity of the combined cable and housing.
And them are some long cables!
I've had the SunTour barcons and the original stainless coiled housing on my Fuji since 1976. Never been an issue. Well, with the original cables, they tended to bind a bit if neglected for too long. A drop or two of oil applied to the outer housing always did the trick. Then after 25 years or so, I replaced the inner cables with new slick drawn cables. I also put the original-style housing on my Miyata six years ago when I converted it to SunTour barcons, also with new slick inner wire, and likewise not a problem.
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 04-24-21, 10:20 AM
  #43
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,354

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1207 Post(s)
Liked 694 Times in 489 Posts
Originally Posted by Cougrrcj View Post
I've had the SunTour barcons and the original stainless coiled housing on my Fuji since 1976. Never been an issue. Well, with the original cables, they tended to bind a bit if neglected for too long. A drop or two of oil applied to the outer housing always did the trick. Then after 25 years or so, I replaced the inner cables with new slick drawn cables. I also put the original-style housing on my Miyata six years ago when I converted it to SunTour barcons, also with new slick inner wire, and likewise not a problem.
Looking at the cumulative effect of all the deleterious friction and elasticity that goes on between the shift lever and the derailer, it makes a huge difference when old-style cable housings are replaced with modern, lined, compressionless, pre-lubricated housings.
Together with smooth-drawn or coated inner cable and plastic-lined guide at the bottom-bracket, there is an enormous reduction in error motion (known as hysteresis in the world of control systems) between the lever's movement and the derailer's movement, giving the lever more of the feel of being connected to the derailer by a rigid metal rod rather than by a flexible, friction-plagued cable.

Maybe it's because I live in the foothills (where more frequent shifting is required) that I can't stand to ride a bike with longer cables (as with bar-end shifters) that aren't as friction- and stretch-free as possible. Having that rubber-band feeling at the shift lever just doesn't cut it.
I run bar-end shift cables out from under the tape, just below the brake lever body for the most-direct routing possible (and that never gets in the way of anything).

Out on the road (particularly where there is a need to shift frequently), the error-free communication of lever motion to the derailer will be greatly appreciated!
dddd is offline
Old 04-24-21, 04:30 PM
  #44
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,890

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked 368 Times in 255 Posts
The original bare coiled stainless cable housing is perfectly fine for friction-shift systems. Mine work just fine. For indexed shifting systems, I'd use modern lined housing.
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
