73 Raleigh competition - long build thread

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

73 Raleigh competition - long build thread

Old 04-19-21, 07:38 PM
  #1
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts
73 Raleigh competition - long build thread

This thread is intended to document the process of cleaning up my 73 Raleigh Competition. I purchased this bike from fellow BF member curbtender. It is worth mentioning again that he did a nice job packing and shipping clear across America.

I’ve lusted for a 73 competition for many years. A competition (78 GS) was my first light weight road bike. The 73 has my favorite spec: Capella lugs, sloping fork crown, TA crank and the oh-so-exotic Huret Jubilee.

This poor specimen is pretty crusty. I initially planned to strip and repaint it. After some thought, I think I have convinced myself to leave it as is and to simply treat and clean it to the best of my ability. Repainting would make the components look worse.... it’s a slippery slope.

I’ll need to find some new hardware for the crank chainrings. The front derailleur clamp is broken. One of the tubular rims has a crack around a spoke nipple too. This will take me a while to sort out.

Here is a photo of my starting point, fresh out of the shipping box:

mkeller234 is offline
Likes For mkeller234:
Old 04-19-21, 07:44 PM
  #2
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts

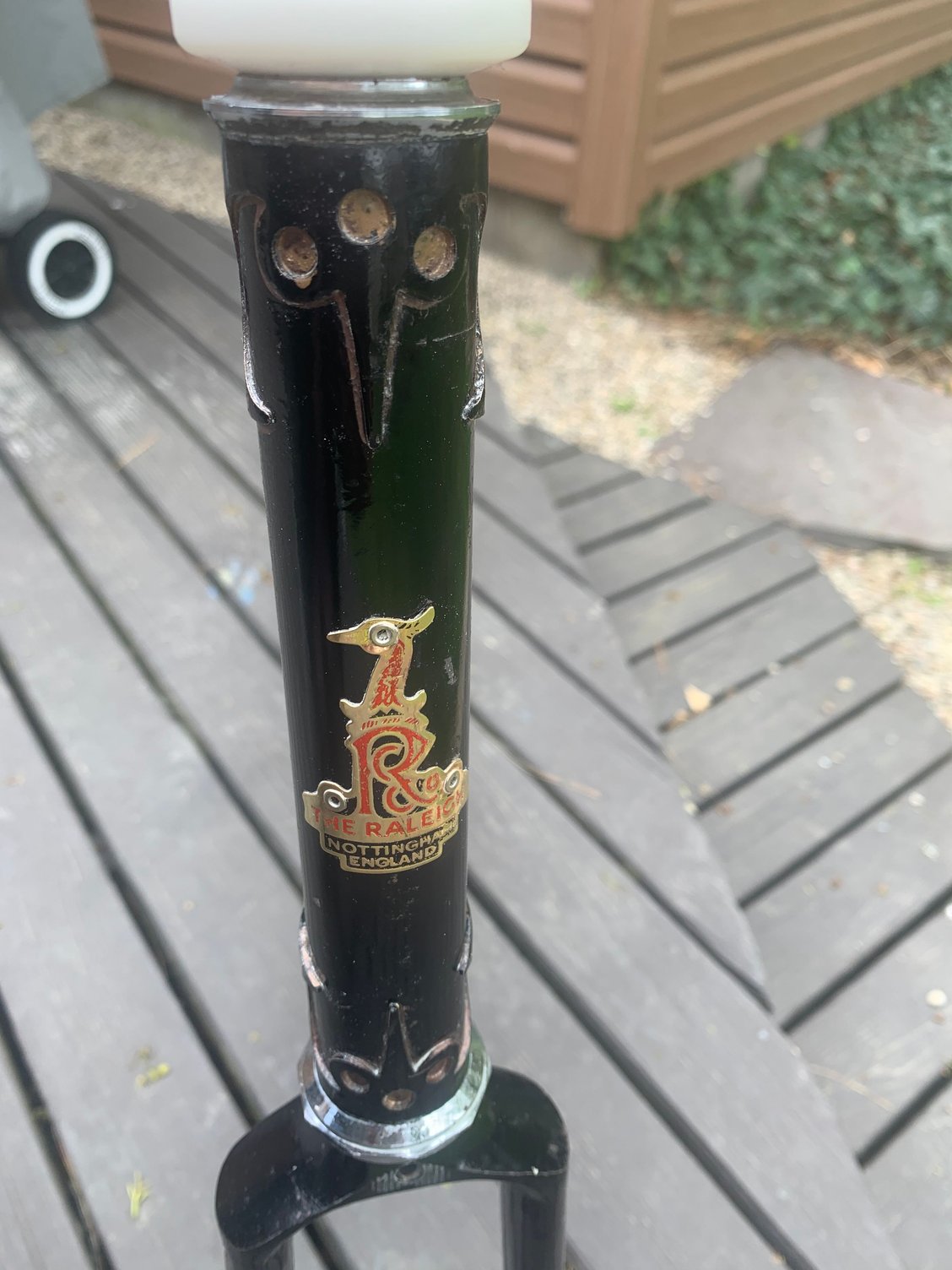

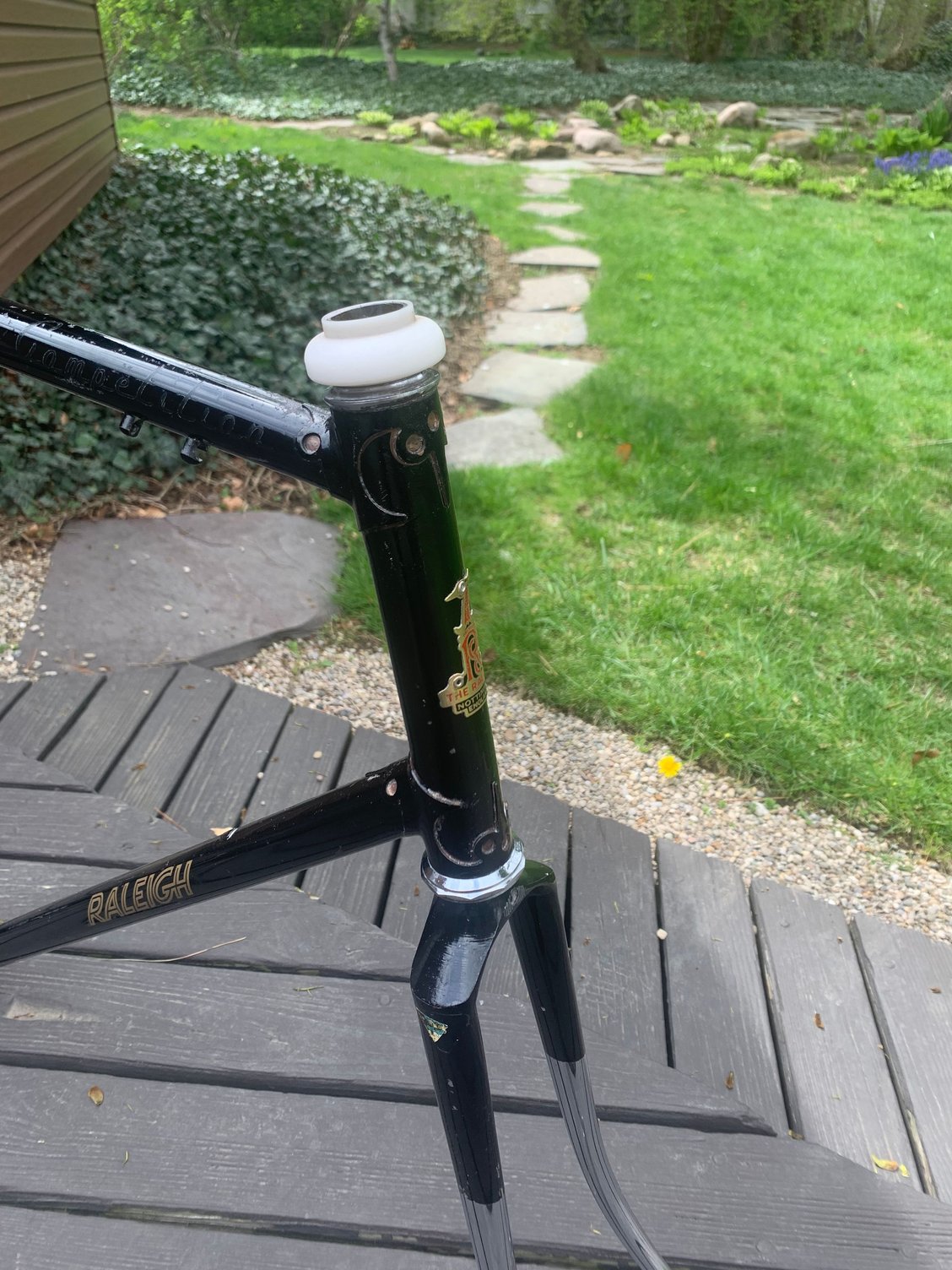

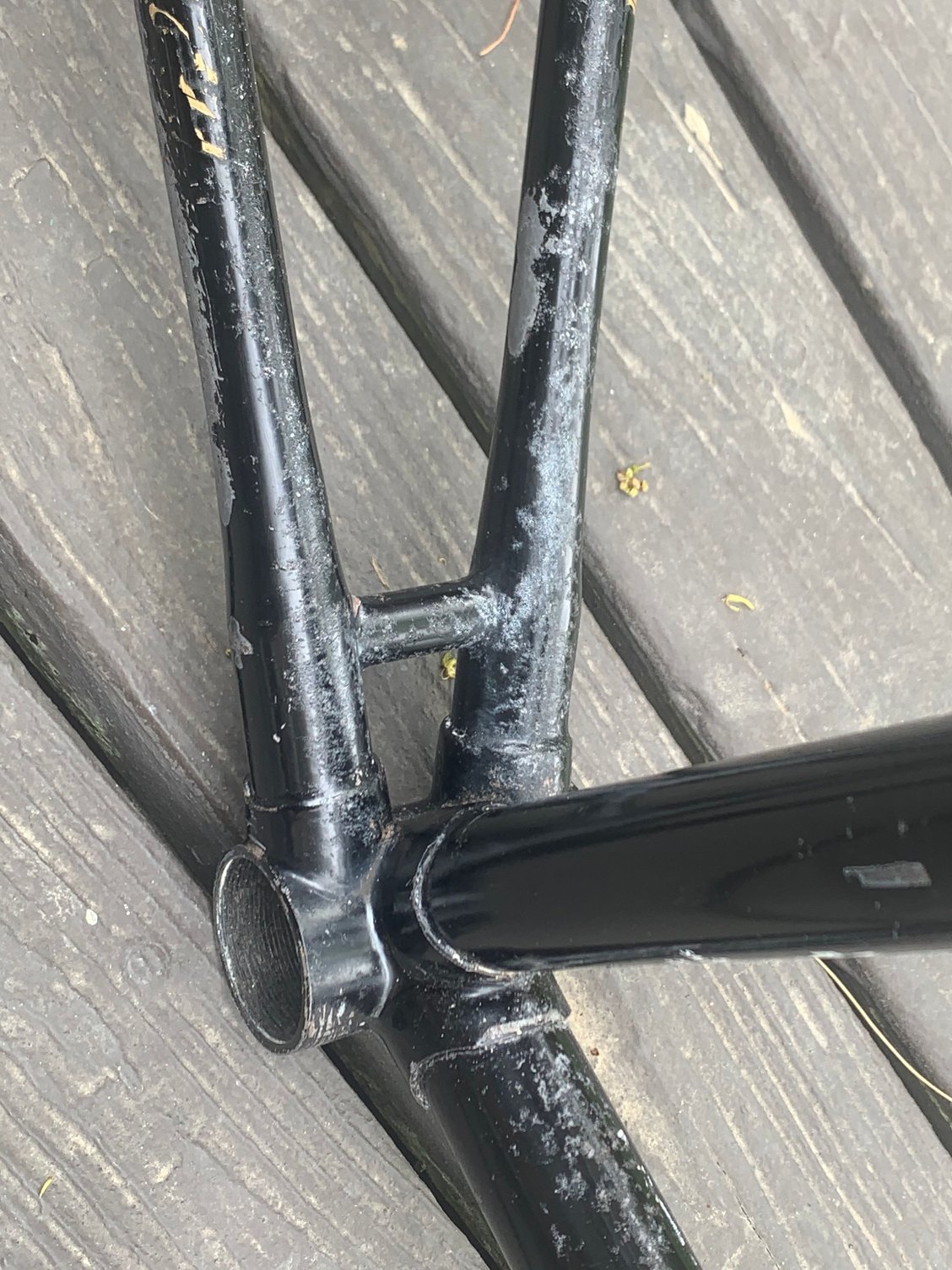

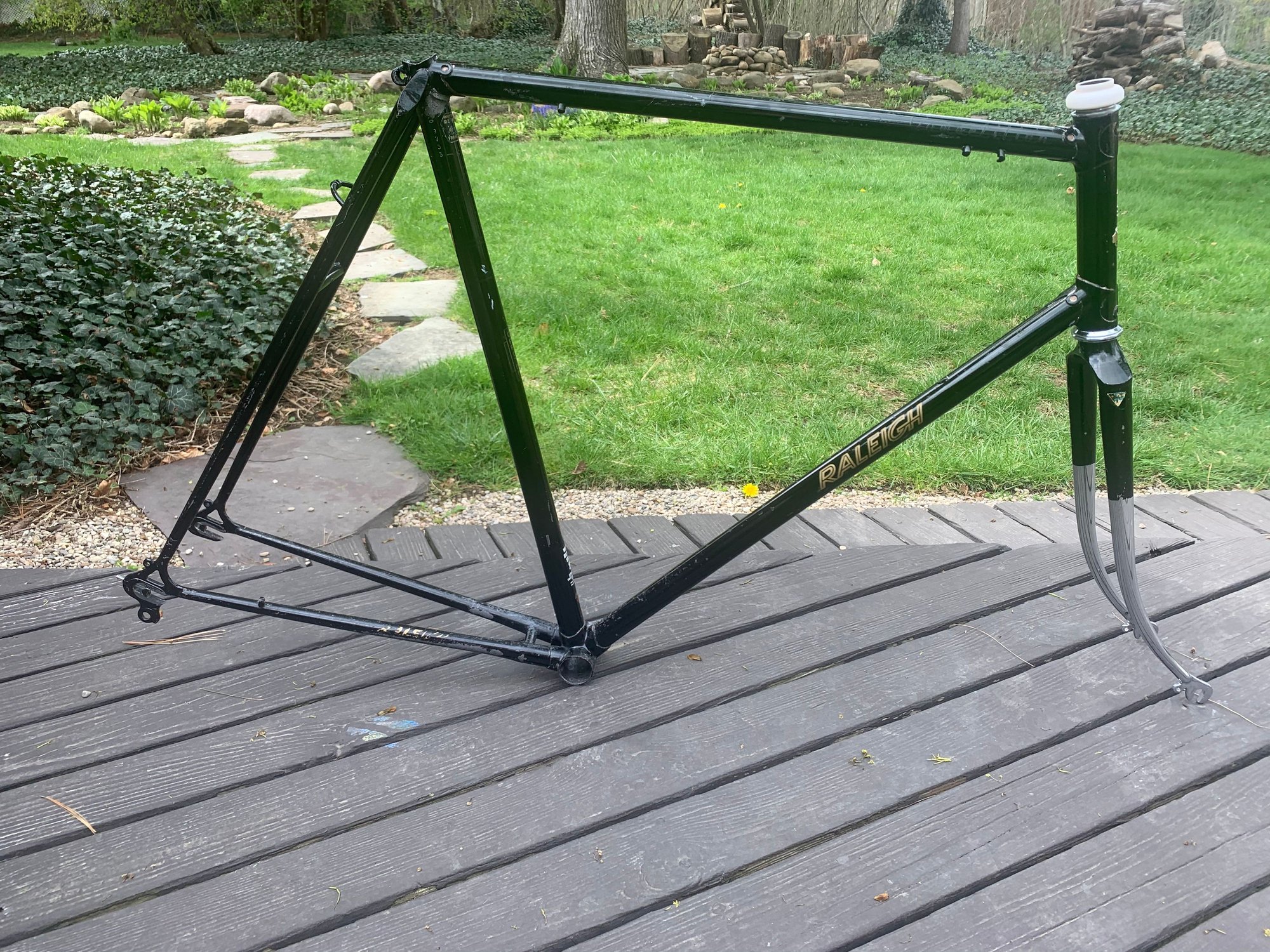

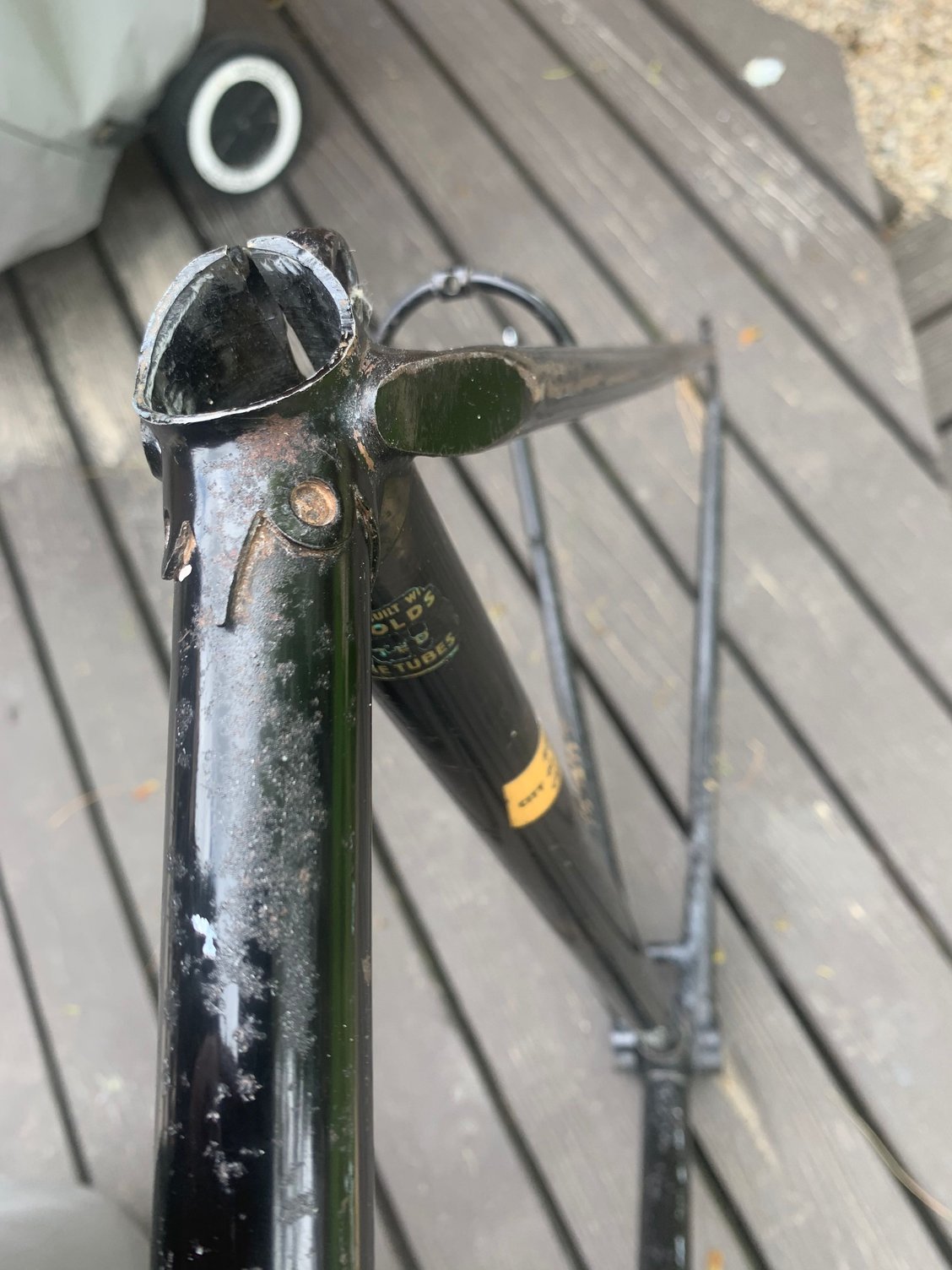

I treated the frame rust with multiple applications of naval jelly. I used rust converter for anything I may have missed. I will treat the interior with frame saver. The remaining paint was polished and waxed. I didn’t get crazy with it, there is only so much that can be done.







__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Likes For mkeller234:
Old 04-19-21, 08:23 PM
  #3
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,473

Bikes: It's complicated.

Mentioned: 1033 Post(s)
Tagged: 0 Thread(s)
Quoted: 3409 Post(s)
Liked 1,920 Times in 939 Posts
@Andy_K can get you the proper black spray paint color to touch that up. It's amazing how semi-gloss black exactly matches his Competition.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 04-19-21, 08:39 PM
  #4
gkamieneski
Senior Member

Join Date: Dec 2014
Posts: 244
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Likes: 0
Liked 37 Times in 23 Posts
Giant head tube. Must be a large size?
gkamieneski is offline
Old 04-19-21, 08:48 PM
  #5
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,954

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1025 Post(s)
Liked 656 Times in 435 Posts
Looks 100 percent better already.
curbtender is offline
Likes For curbtender:
Old 04-19-21, 08:51 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 8,385

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 163 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Liked 1,824 Times in 1,228 Posts
Originally Posted by gkamieneski View Post
Giant head tube. Must be a large size?
Or just the right size.
merziac is online now
Likes For merziac:
Old 04-19-21, 09:01 PM
  #7
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 507

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 167 Times in 107 Posts
Originally Posted by merziac View Post
Or just the right size.
looks like the 24" and yes, just the right size! very keen to see how this comes along, since my poor '73 came with (and still has) similar rust bubbles.
niliraga is offline
Likes For niliraga:
Old 04-19-21, 09:05 PM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,796

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5234 Post(s)
Liked 1,862 Times in 1,217 Posts
Fun thread. I have one of the worlds ugliest Raleigh Competitions. Maybe this thread will get me motivated to fix it up!
bikemig is offline
Likes For bikemig:
Old 04-19-21, 09:52 PM
  #9
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,223

Bikes: Yes

Mentioned: 393 Post(s)
Tagged: 0 Thread(s)
Quoted: 2308 Post(s)
Liked 1,031 Times in 519 Posts

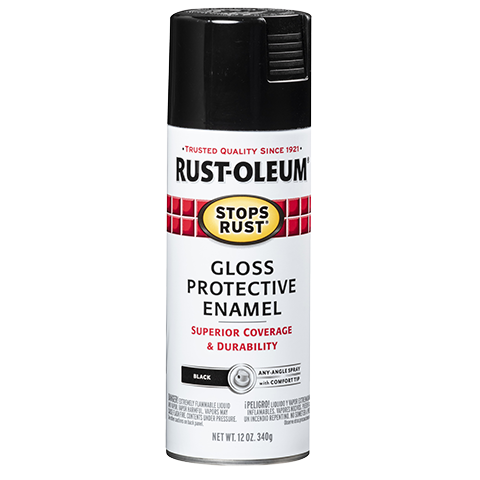

As @gugie mentioned, I had very good luck matching the paint on my black 1969 Competition.





And "luck" is definitely the right word, but I think it would work for the OP too. I just bought this:


https://www.rustoleum.com/product-ca...=Gloss%20Black

The OP's frame is in a sketchy area where I'd be unsure whether to do spot touchup or fill in the divots and spray the whole thing. For spot work, the Rust-Oleum is available as a liquid.
__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 04-19-21, 11:16 PM
  #10
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,472

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 157 Times in 100 Posts
I just squirt the spray into the cap to collect some liquid, then use a brush to do the touch ups.
Bad Lag is offline
Likes For Bad Lag:
Old 04-20-21, 03:35 AM
  #11
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,767

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 633 Times in 421 Posts
Glad to see this classic in good hands. If it is anything like my 1977 GS you will enjoy it. Of course you already know if you had a ‘78. I rode mine Saturday and always a good ride. I look forward to seeing it built.
Kabuki12 is offline
Likes For Kabuki12:
Old 04-20-21, 06:39 AM
  #12
Splendidtutiona
Senior Member

Join Date: Feb 2017
Location: Maryland
Posts: 52

Bikes: '73 Raleigh Competition, Guru Sidero, Soma Groove, Smolenski,

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 15 Times in 9 Posts
I did a bit of a wacky write-up on mine here. I used to Spray.bike product and velocals and did a full strip and re-paint. Its a fun ride. I used a Huret Chalenger derailleur set to save a jubilee I bought for it as I intend to just rat around on it for a while and maybe sell it when I move again in a few years. I love these bikes. Super versatile and fun to ride!
Splendidtutiona is offline
Likes For Splendidtutiona:
Old 04-20-21, 08:19 AM
  #13
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,969
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 390 Post(s)
Liked 202 Times in 129 Posts
Nice project!
Don't lose those chromed-screw-with-plastic-half-moon Huret rear dropout adjusters! If your '73 is like my recently-pressed-into-service '72, then the holes in the dropouts are unthreaded (and larger than will allow tapping for a typical Campagnolo-style adjuster). The thread on the screws is non-standard too: M3 x 0.6 rather than M3 x 0.5. The plastic half moon is the "nut" as you have probably found out. While it's possible to put together something that works with a nut on the interior side of the dropout (using a typical screw), I don't think you will find replacements easily for the originals, unless you buy another frame with such Huret dropouts. What does work (if the screws are bent or break) is that the half moon will accept a M3 x 0.5 screw, or so it seems to me -- I mocked it up (just wanting shorter screws) and they seemed solid enough that way, but because my frame has gotten a Sturmey-Archer AW drivetrain, decided the adjusters were more trouble than they're worth (nutted installation, need to adjust the chain tension like any derailleur-less bike).
I know -- TMI.

Oh, and if your Jubilée RD ever dies, then you might be interested to know that the RD on my Competition had already done so (or been sold), but it came with a Shimano 600 "Arabesque" derailleur that had some sort of (looked like factory equipment) washer thing that made it work with the Huret "5 o'-clock" stop. I know there are other kluges out there for this predicament, too.
Huret dropouts derailleur options

Last edited by Charles Wahl; 04-20-21 at 08:25 AM.
Charles Wahl is offline
Old 04-20-21, 08:39 PM
  #14
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts
gugie and Andy_K that is a great suggestion. Nice work on your competition! I thought about trying a brush applied enamel paint... but the truth is, I hate painting and paint prep! Once I get this bike assembled I want to get an idea of just how crusty it is. I’d like to ride it a bit. Maybe I’ll revisit the idea of spot painting later down the road. I really like the spot idea. I don’t want to lose the original Dow tube decals or California bike shop stickers. I did consider trying to hand paint the gold “competition” decal since I can see the ghost of it on the top tube. Not sure I have the skills for that.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 04-20-21, 08:41 PM
  #15
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts
Originally Posted by gkamieneski View Post
Giant head tube. Must be a large size?
I think it’s a 60cm frame. Same size as my 74 gran sport.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 04-20-21, 08:44 PM
  #16
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts
Originally Posted by Charles Wahl View Post
Nice project!
Don't lose those chromed-screw-with-plastic-half-moon Huret rear dropout adjusters! If your '73 is like my recently-pressed-into-service '72, then the holes in the dropouts are unthreaded (and larger than will allow tapping for a typical Campagnolo-style adjuster). The thread on the screws is non-standard too: M3 x 0.6 rather than M3 x 0.5. The plastic half moon is the "nut" as you have probably found out. While it's possible to put together something that works with a nut on the interior side of the dropout (using a typical screw), I don't think you will find replacements easily for the originals, unless you buy another frame with such Huret dropouts. What does work (if the screws are bent or break) is that the half moon will accept a M3 x 0.5 screw, or so it seems to me -- I mocked it up (just wanting shorter screws) and they seemed solid enough that way, but because my frame has gotten a Sturmey-Archer AW drivetrain, decided the adjusters were more trouble than they're worth (nutted installation, need to adjust the chain tension like any derailleur-less bike).
I know -- TMI.

Oh, and if your Jubilée RD ever dies, then you might be interested to know that the RD on my Competition had already done so (or been sold), but it came with a Shimano 600 "Arabesque" derailleur that had some sort of (looked like factory equipment) washer thing that made it work with the Huret "5 o'-clock" stop. I know there are other kluges out there for this predicament, too.
Huret dropouts derailleur options
I did notice the adjuster screws being a bit unusual, but I had no idea how unusual. One of the screws is broken off. I think I’m just going to leave them where the are and view them as non-functional decorations. I have see the washer that you are describing, I think I may even have one in a drawer somewhere. Either way, No plans to move away from Huret on this one.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 04-20-21, 08:46 PM
  #17
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts

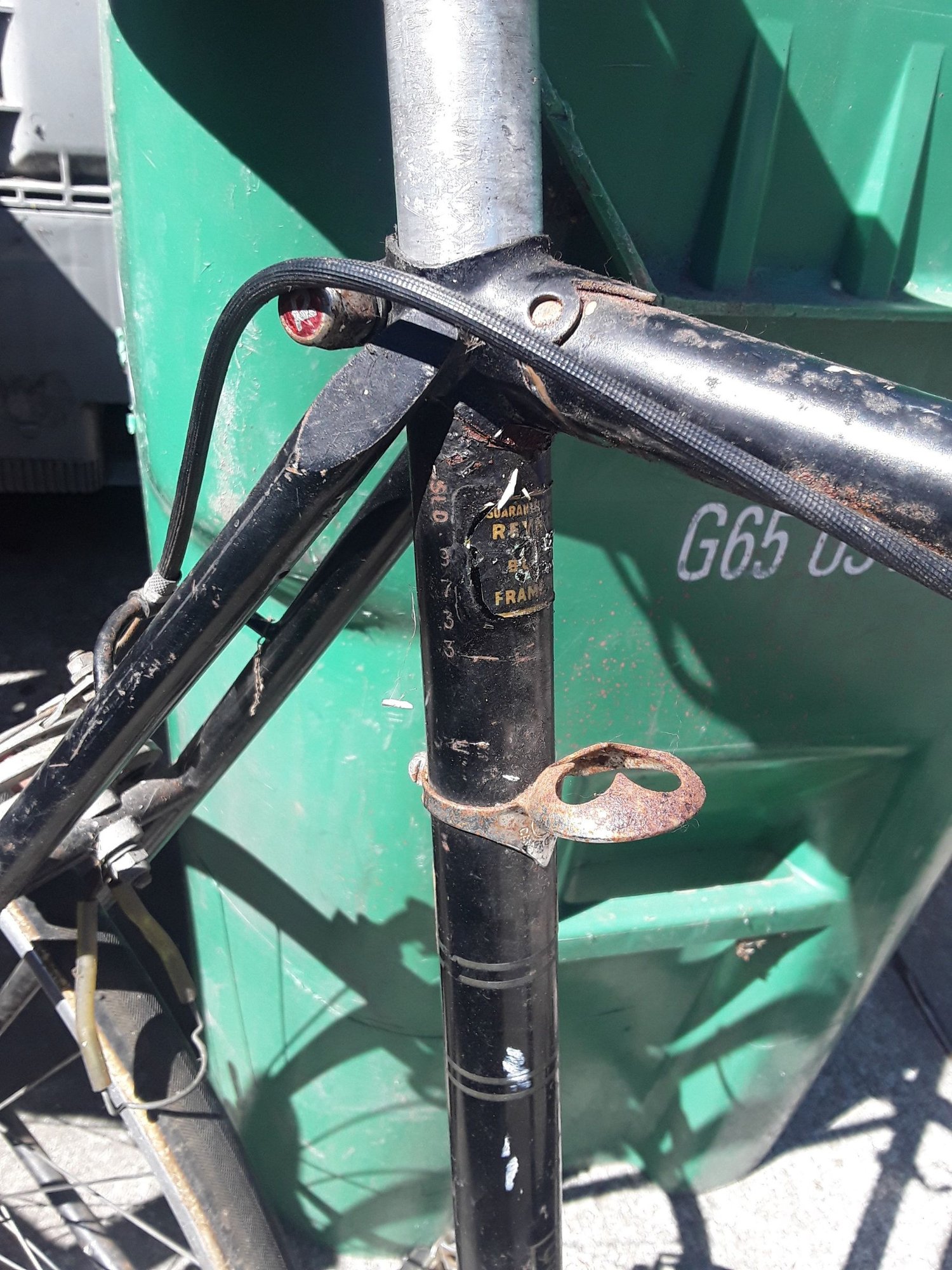

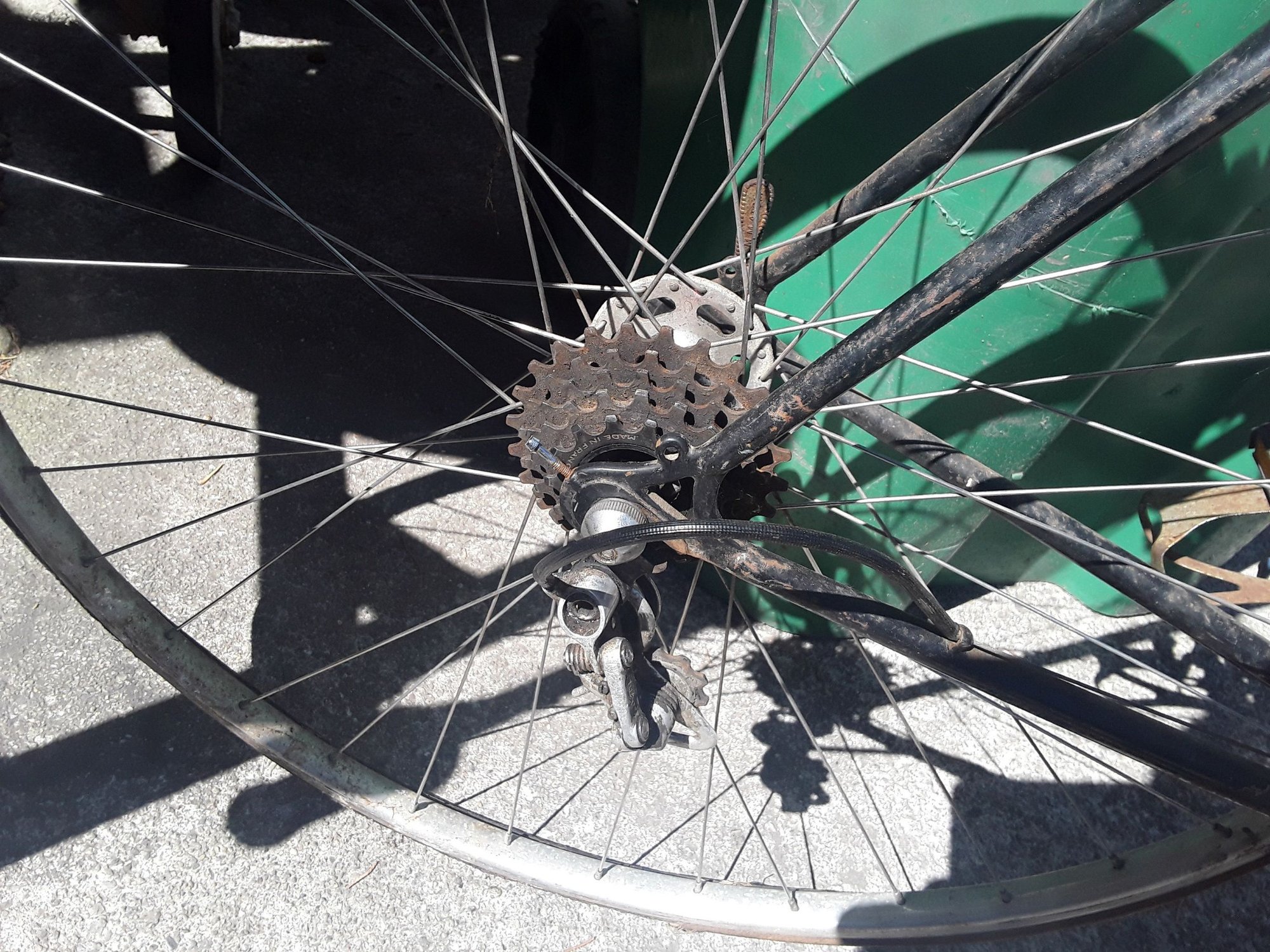

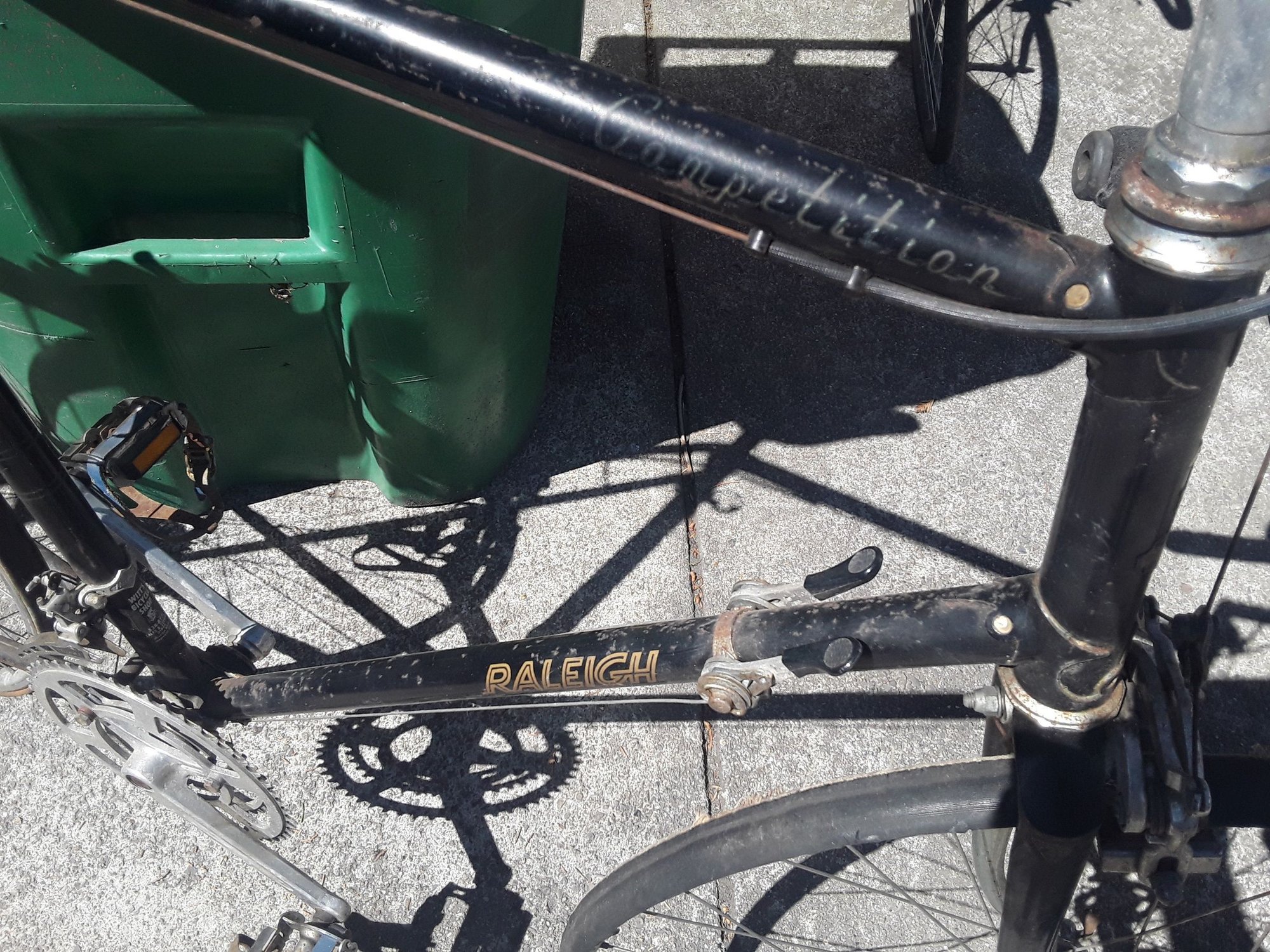

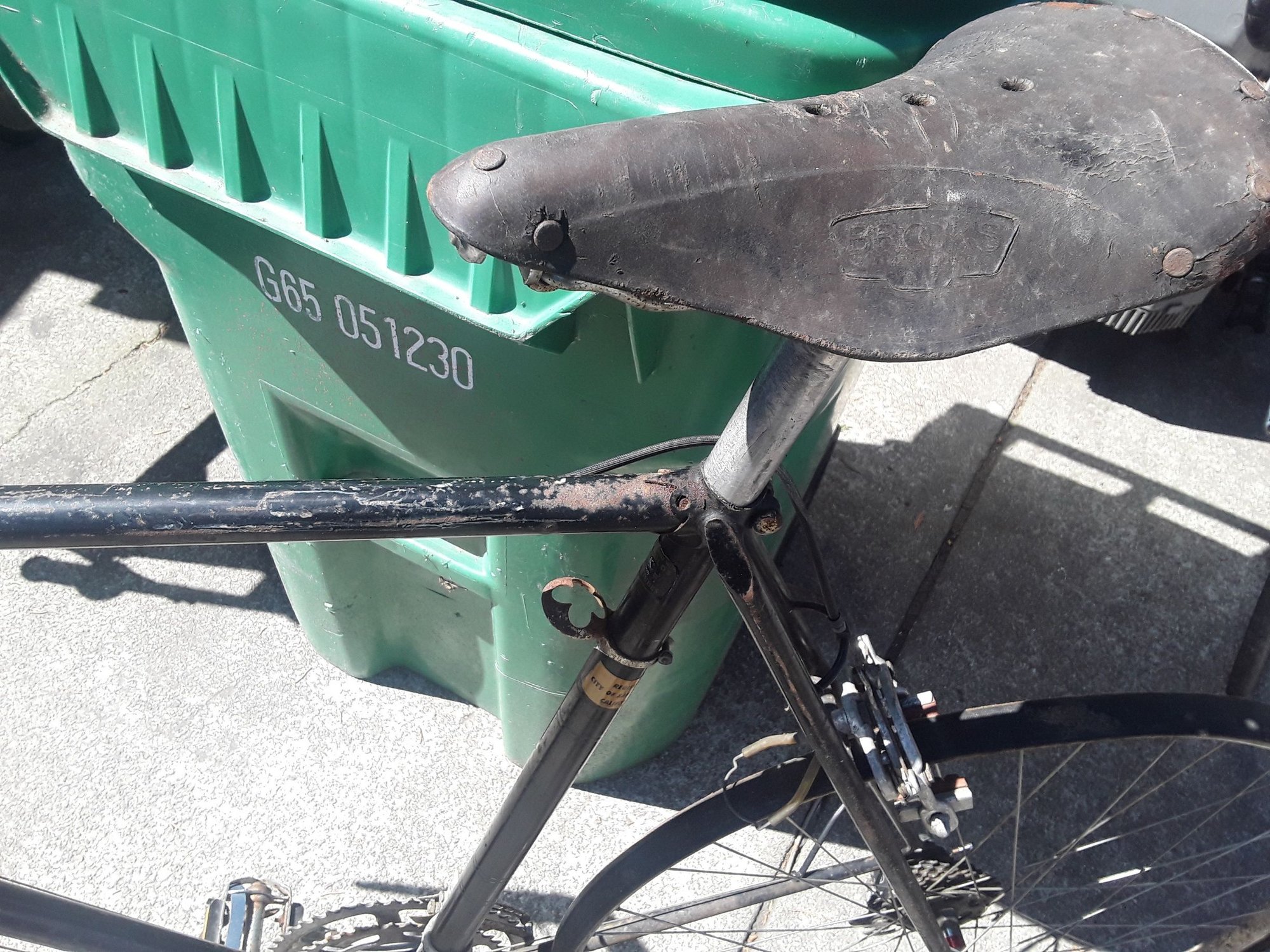

Here are some photos of the bike as found. I forgot to post these at the start of the thread.








__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 04-20-21, 08:49 PM
  #18
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts

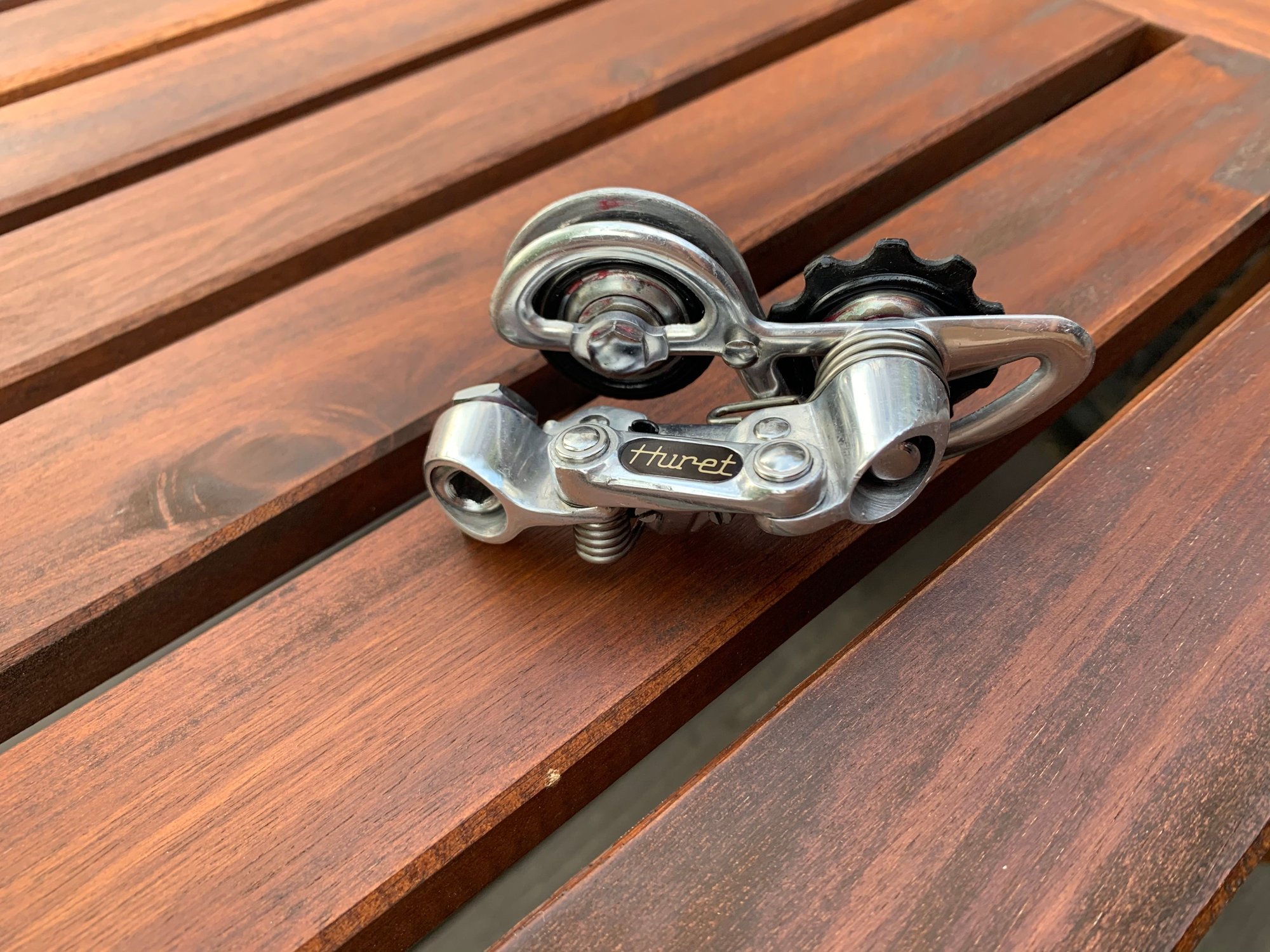

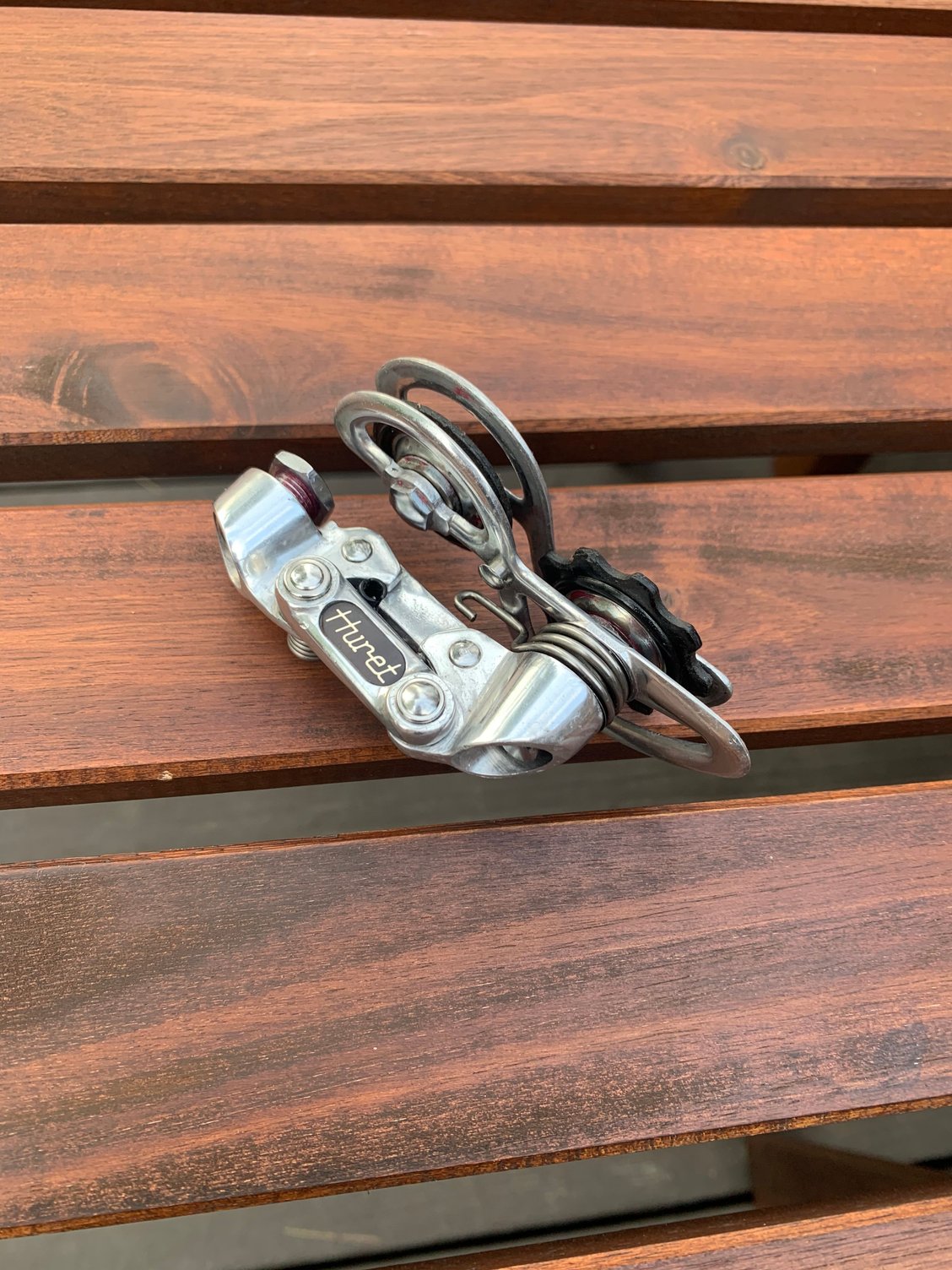

Last post of the night, I got the jubilee RD all cleaned up. It was pretty interesting to take apart. I actually had a brand new bag of 1/8” grade 25 bearings for the jockey wheels.



__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Likes For mkeller234:
Old 04-21-21, 01:52 AM
  #19
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,223

Bikes: Yes

Mentioned: 393 Post(s)
Tagged: 0 Thread(s)
Quoted: 2308 Post(s)
Liked 1,031 Times in 519 Posts
Originally Posted by mkeller234 View Post
I did consider trying to hand paint the gold “competition” decal since I can see the ghost of it on the top tube. Not sure I have the skills for that.
Originally Posted by mkeller234 View Post
Very nice work on the clean up! The overall "as found" condition of your Competition was much worse than mine, but I think I've got you on the decal ghosting.



Honestly, when I bought the spray paint for mine, my plan was to just cover up the bare metal from the Gugificazione enough to be able to ride around without looking ridiculous until I was sure I liked it well enough to sink money into a full restoration. But it ended up matching so well that I'm having a hard time talking myself into a restoration. I somehow got matching paint without detracting from the patina, and my bike has genuine patina as opposed to rust and corrosion. So, for now, my ad hoc paint job stands and I'm not sure anyone would even know if I didn't mention it.
__________________
My Bikes
Andy_K is offline
Old 04-21-21, 01:52 PM
  #20
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,969
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 390 Post(s)
Liked 202 Times in 129 Posts
Originally Posted by mkeller234 View Post
I did notice the adjuster screws being a bit unusual, but I had no idea how unusual. One of the screws is broken off. I think I’m just going to leave them where the are and view them as non-functional decorations. I have see the washer that you are describing, I think I may even have one in a drawer somewhere. Either way, No plans to move away from Huret on this one.
If the dropouts are not threaded (as I said, mine were not, with hole diameter too large to thread M3 x whatever) then it shouldn't be that difficult to remove the broken screw. As I said, I think that there's no harm in using M3 x 0.5 screws. The OD is the same, the plastic is pretty soft and accepting of cross-threading, and yet they seem to hold tenaciously to the finer pitch screws.
Charles Wahl is offline
Old 04-22-21, 05:57 PM
  #21
mkeller234
Rustbelt Rider
Thread Starter

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,988

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 254 Times in 116 Posts
Originally Posted by Charles Wahl View Post
If the dropouts are not threaded (as I said, mine were not, with hole diameter too large to thread M3 x whatever) then it shouldn't be that difficult to remove the broken screw. As I said, I think that there's no harm in using M3 x 0.5 screws. The OD is the same, the plastic is pretty soft and accepting of cross-threading, and yet they seem to hold tenaciously to the finer pitch screws.

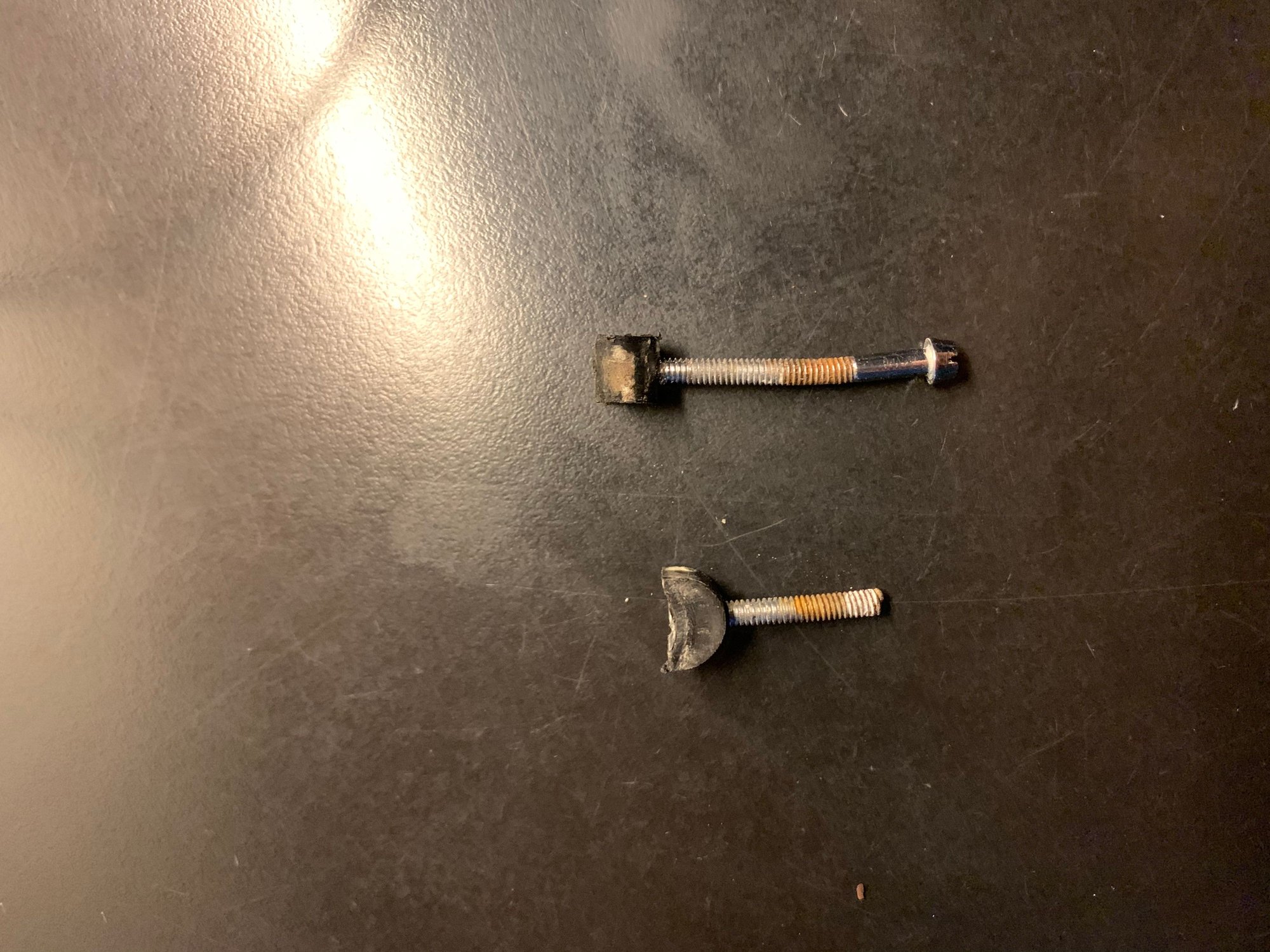

Well, good call! The dropouts were not threaded as you had said. I removed both and found the screw that was in one piece was bent. I’ll get some M3 x .05 screws next.


mkeller234 is offline
Old 04-26-21, 08:38 AM
  #22
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 1,714

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 589 Post(s)
Liked 671 Times in 371 Posts
Your bike was in much nicer shape than mine, as found - my write-up is here. I will add that I had good results with the same Black Rustoleum spray paint as @Andy_K - the chrome on my fork had sloughed off like a snake sheds its skin, but the paint blended in nicely - almost like it came that way from the factory.
rustystrings61 is offline
Old 04-30-21, 09:04 AM
  #23
Splendidtutiona
Senior Member

Join Date: Feb 2017
Location: Maryland
Posts: 52

Bikes: '73 Raleigh Competition, Guru Sidero, Soma Groove, Smolenski,

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 15 Times in 9 Posts
Originally Posted by Charles Wahl View Post
Nice project!
Don't lose those chromed-screw-with-plastic-half-moon Huret rear dropout adjusters! If your '73 is like my recently-pressed-into-service '72, then the holes in the dropouts are unthreaded (and larger than will allow tapping for a typical Campagnolo-style adjuster). The thread on the screws is non-standard too: M3 x 0.6 rather than M3 x 0.5. The plastic half moon is the "nut" as you have probably found out. While it's possible to put together something that works with a nut on the interior side of the dropout (using a typical screw), I don't think you will find replacements easily for the originals, unless you buy another frame with such Huret dropouts. What does work (if the screws are bent or break) is that the half moon will accept a M3 x 0.5 screw, or so it seems to me -- I mocked it up (just wanting shorter screws) and they seemed solid enough that way, but because my frame has gotten a Sturmey-Archer AW drivetrain, decided the adjusters were more trouble than they're worth (nutted installation, need to adjust the chain tension like any derailleur-less bike).
I know -- TMI.

Oh, and if your Jubilée RD ever dies, then you might be interested to know that the RD on my Competition had already done so (or been sold), but it came with a Shimano 600 "Arabesque" derailleur that had some sort of (looked like factory equipment) washer thing that made it work with the Huret "5 o'-clock" stop. I know there are other kluges out there for this predicament, too.
Huret dropouts derailleur options
+1 to all of this. I need now to go get some M3x0.5 bolts for my dropouts. I had the same problem with the originals, one was broken and I think they may be slightly stripped. Hoping the 0.5 pitch will re-thread well enough.

My '73 came with a Shimano RX100 RD, which must have been replaced in the late 80's or early 90's. It also had the wacky "use a campy style derailleur on a Huret dropout" washer. Keeping that washer for sure! The French in the 70's, I tell ya...
Splendidtutiona is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
