1956 Crescent VM-racer, mod 201 (pre pepita)
06-05-21, 07:07 PM
#26
feros ferio
Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,018
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1170 Post(s)
Liked 707 Times
in
498 Posts
Great bike, but whazzup with Crescent and the Ashtabula cranks I see on so many of them?
Total bike weight is respectable, given the components.
Total bike weight is respectable, given the components.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
06-06-21, 02:35 AM
#27
Steel is real
Thread Starter
Join Date: May 2016
Location: Stockholm, Sweden
Posts: 978
Bikes: A lot - accumulated over +30 years
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Liked 647 Times
in
201 Posts
Originally Posted by John E
Great bike, but whazzup with Crescent and the Ashtabula cranks I see on so many of them?
Total bike weight is respectable, given the components.
Total bike weight is respectable, given the components.
Ashtabula being a place in the US where Fauber patent one piece cranks were made for Schwinn - I have heard?
The "Fauber" one piece forged steel cranks were being used in in Sweden from the dawn of "bicycle time" well into the 80ies . Its "career" changed over time. From being the strongest, lightest and most servicable crankset around to something to be looked down upon with disgust as the low end cheapest and ugliest.
To the story also belongs Swedens long history of high quality precision steel making and engineering. In the 40ies and 50ies these cranks were extremely well made over here. The steel was mangan alloyed and could withstand a 450 kg chock sideways without permanent damage. The Swedish bearingmaker SKF made the ball bearings and races to 0,001 mm standards. This was a good crank and up to par with anything - up until late 50ies when lighter products took over. The crankset was still strong and easily serviced though and the steel was still cheap - which made the crankset type live on - but on lesser and lesser model bikes until the 80ies.
The ones on these 40-50ies Crescent competiton bikes were made special and when dismantling my bike for a service I will try to show some differences compared to the standard ones.
Last edited by styggno1; 06-06-21 at 05:39 AM. Reason: Spelling
Likes For styggno1:
06-06-21, 05:43 AM
#28
feros ferio
Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,018
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1170 Post(s)
Liked 707 Times
in
498 Posts
Originally Posted by styggno1
Ashtabula being a place in the US where Fauber patent one piece cranks were made for Schwinn - I have heard?
The "Fauber" one piece forged steel cranks were being used in in Sweden from the dawn of "bicycle time" well into the 80ies . Its "career" changed over time. From being the strongest, lightest and most servicable crankset around to something to be looked down upon with disgust as the low end cheapest and ugliest.
To the story also belongs Swedens long history of high quality precision steel making and engineering. In the 40ies and 50ies these cranks where extremely well made over here. The steel was mangan alloyed and could withstand a 450 kg chock sideways without permanent damage. The Swedish bearingmaker SKF made the ball bearings and races to 0,001 mm standards. This was a good crank and up to par with anything - up until late 50ies when lighter products took over. The crankset was still strong and easily serviced though and the steel was still cheap - which made the crankset type live on - but on lesser and lesser model bikes until the 80ies.
The ones on these 40-50ies Crescent competiton bikes where made special and when dismantling my bike for a service I will try to show some differences compared to the standard ones.
The "Fauber" one piece forged steel cranks were being used in in Sweden from the dawn of "bicycle time" well into the 80ies . Its "career" changed over time. From being the strongest, lightest and most servicable crankset around to something to be looked down upon with disgust as the low end cheapest and ugliest.
To the story also belongs Swedens long history of high quality precision steel making and engineering. In the 40ies and 50ies these cranks where extremely well made over here. The steel was mangan alloyed and could withstand a 450 kg chock sideways without permanent damage. The Swedish bearingmaker SKF made the ball bearings and races to 0,001 mm standards. This was a good crank and up to par with anything - up until late 50ies when lighter products took over. The crankset was still strong and easily serviced though and the steel was still cheap - which made the crankset type live on - but on lesser and lesser model bikes until the 80ies.
The ones on these 40-50ies Crescent competiton bikes where made special and when dismantling my bike for a service I will try to show some differences compared to the standard ones.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
Likes For John E:
06-07-21, 12:18 PM
#29
Junior Member
Join Date: Jun 2021
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times
in
3 Posts
Originally Posted by styggno1
The tubes are an eclectic gathering of sizes. The seat and down tubes could be BSC at 28,85 both - with paint. But the top tube at 27,2 and headtube at 33,1 must be considered oversize compared to BSC. The BB shell is an old Scandinavian standard and large at 45,8 mm inner diameter. The Fabuer crankset - is using BB threads on this racer model. Pedals are 1/2. The pump peg has a mate in the other end of the downtube and can be seen in the "before" picture above. They are quite common on vintage Swedish bikes. Here is a close up.
It is actually easier than that - what looks like rust is a grease or oil residue. This is after I just rubbed the derailleur with my finger a little.
Without bottle holder, pump and toe clips it weighs in at:
KG
Pounds
Not bad considering a 60 cm frame, a Brooks B17 and a steel seatpost!
It is actually easier than that - what looks like rust is a grease or oil residue. This is after I just rubbed the derailleur with my finger a little.
Without bottle holder, pump and toe clips it weighs in at:
KG
Pounds
Not bad considering a 60 cm frame, a Brooks B17 and a steel seatpost!
They needed to put one washer on the bottom of freewheel to get the freewheel closer so the adjustment of the derailleur will be enough. It worked fine with 5 speed (only 4 used) freewheel but I wanted to have 4 speed freewheel as it has been at the beginning. I ride today a few kilometers with it and it shifts gear as smooth as 70 years old part could shift.
Likes For henu22:
06-07-21, 03:08 PM
#30
Steel is real
Thread Starter
Join Date: May 2016
Location: Stockholm, Sweden
Posts: 978
Bikes: A lot - accumulated over +30 years
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Liked 647 Times
in
201 Posts
Originally Posted by henu22
I had a hard time to get this JUY-51 derailleur working. In the end I went to local bike shop which is doing also some older bike service.
They needed to put one washer on the bottom of freewheel to get the freewheel closer so the adjustment of the derailleur will be enough. It worked fine with 5 speed (only 4 used) freewheel but I wanted to have 4 speed freewheel as it has been at the beginning. I ride today a few kilometers with it and it shifts gear as smooth as 70 years old part could shift.
They needed to put one washer on the bottom of freewheel to get the freewheel closer so the adjustment of the derailleur will be enough. It worked fine with 5 speed (only 4 used) freewheel but I wanted to have 4 speed freewheel as it has been at the beginning. I ride today a few kilometers with it and it shifts gear as smooth as 70 years old part could shift.

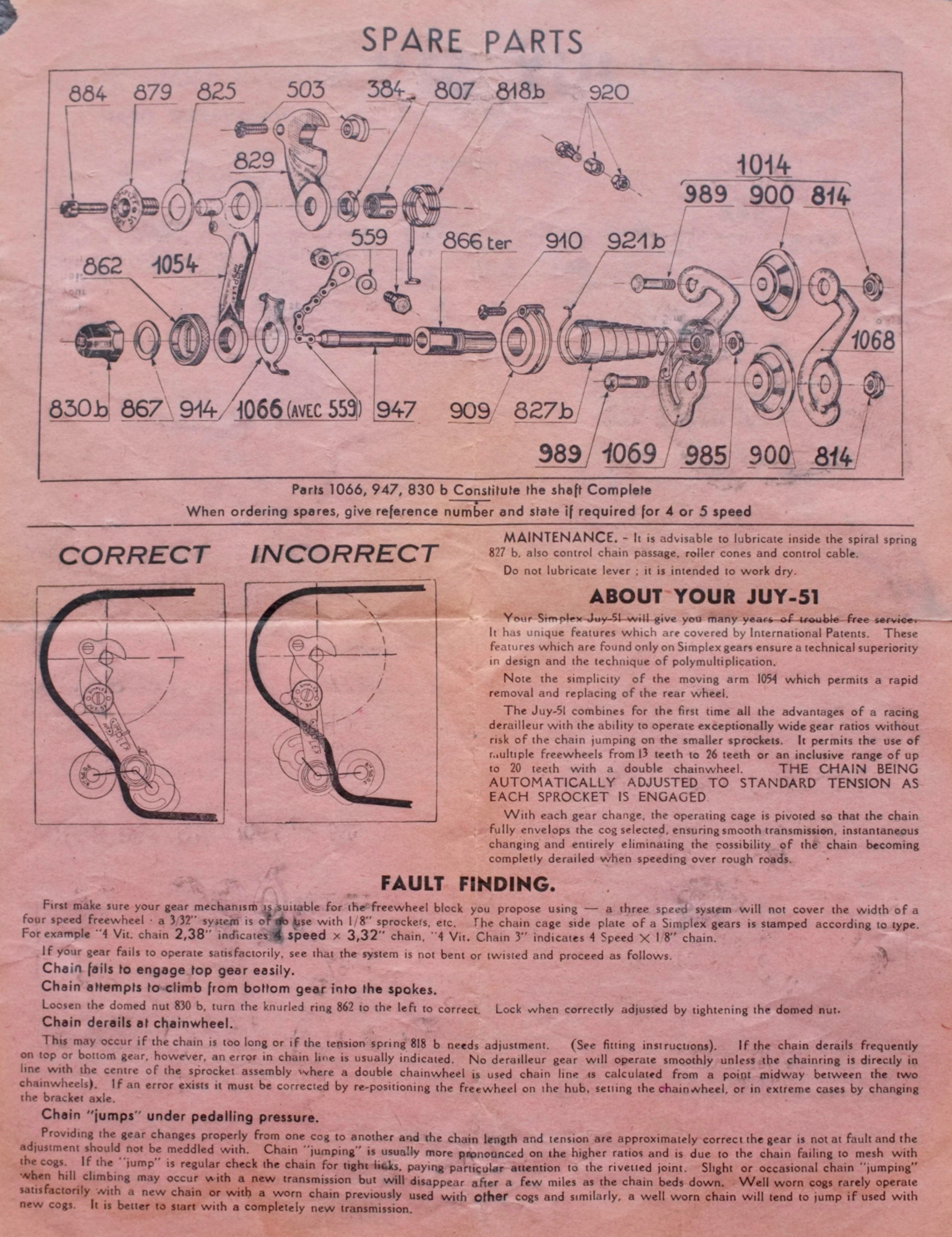

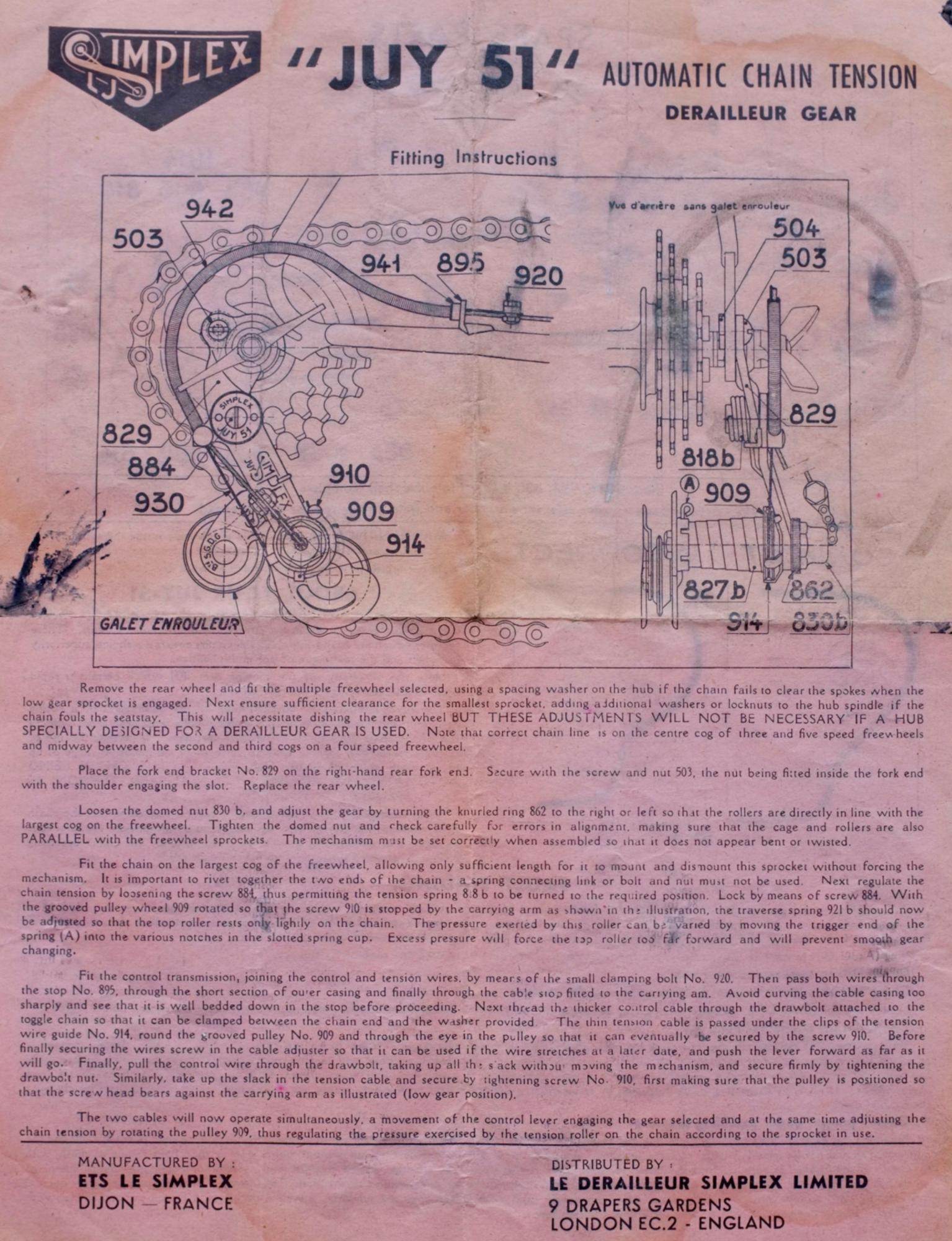

Juy 51
TdF
The last one showing the correct way for the chain thru - which is sort of counter intuitive when being used to set up more modern derailleurs.
Last edited by styggno1; 06-07-21 at 03:15 PM.
06-07-21, 03:50 PM
#31
Senior Member
Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,879
Bikes: Indeed!
Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1153 Post(s)
Liked 1,947 Times
in
668 Posts
Thank you for the two Juy 51 diagrams!
It would appear that the top diagram is for a later version with the cage pivot between the pulleys, whereas the bottom diagram is for an earlier model with the cage pivot co axial (is this the correct term?) with the lower pulley.
I was able to modify a 4-gear version of the earlier model to accommodate 5 gears by drilling the hole in part number 838b a little deeper allowing part number 837b to travel a little farther inboard. I also stretched spring number 816 a bit, not a perfect modification but it shifts well enough.
Here are a couple more Juy 51 scans which another forum member shared with me:
Brent
It would appear that the top diagram is for a later version with the cage pivot between the pulleys, whereas the bottom diagram is for an earlier model with the cage pivot co axial (is this the correct term?) with the lower pulley.
I was able to modify a 4-gear version of the earlier model to accommodate 5 gears by drilling the hole in part number 838b a little deeper allowing part number 837b to travel a little farther inboard. I also stretched spring number 816 a bit, not a perfect modification but it shifts well enough.
Here are a couple more Juy 51 scans which another forum member shared with me:
Brent
06-08-21, 10:18 AM
#32
Junior Member
Join Date: Jun 2021
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times
in
3 Posts
Originally Posted by obrentharris
Thank you for the two Juy 51 diagrams!
It would appear that the top diagram is for a later version with the cage pivot between the pulleys, whereas the bottom diagram is for an earlier model with the cage pivot co axial (is this the correct term?) with the lower pulley.
I was able to modify a 4-gear version of the earlier model to accommodate 5 gears by drilling the hole in part number 838b a little deeper allowing part number 837b to travel a little farther inboard. I also stretched spring number 816 a bit, not a perfect modification but it shifts well enough.
Here are a couple more Juy 51 scans which another forum member shared with me:
Brent
It would appear that the top diagram is for a later version with the cage pivot between the pulleys, whereas the bottom diagram is for an earlier model with the cage pivot co axial (is this the correct term?) with the lower pulley.
I was able to modify a 4-gear version of the earlier model to accommodate 5 gears by drilling the hole in part number 838b a little deeper allowing part number 837b to travel a little farther inboard. I also stretched spring number 816 a bit, not a perfect modification but it shifts well enough.
Here are a couple more Juy 51 scans which another forum member shared with me:
Brent
06-09-21, 02:44 PM
#33
Senior Member
[QUOTE=henu22;22087476]Hello
But here it comes 3185046
Interesting Henu22 mentions his serial number as above; the Cresent 1953 listed on Steel Bikes had 3263305 (I believe) and the one i have, also told it was a 1953, has 3095820. All have no Letter prefix.
But here it comes 3185046
Interesting Henu22 mentions his serial number as above; the Cresent 1953 listed on Steel Bikes had 3263305 (I believe) and the one i have, also told it was a 1953, has 3095820. All have no Letter prefix.
06-09-21, 10:37 PM
#34
Junior Member
Join Date: Jun 2021
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times
in
3 Posts
[QUOTE=madscrambler;22095166]
A couple of years ago I send an email to Crescent and asked that if they have the knowledge or if they knew someone who has about those serial numbers but never received any answer.
As styggno1 said that first number probably indicates the year, maybe next two could be month (just guessing as many other products are marked like that but I have no idea if this was the method already in the 50's) but then next two could not be date anymore because these numbers don't make any sense then. I also don't know how many cycles they produced in a year back then but I could guess it would be less than these days so the order number should be quite small if there is one. I could be totally wrong so someone smarter can freely correct these.
Originally Posted by henu22
Hello
But here it comes 3185046
Interesting Henu22 mentions his serial number as above; the Cresent 1953 listed on Steel Bikes had 3263305 (I believe) and the one i have, also told it was a 1953, has 3095820. All have no Letter prefix.
But here it comes 3185046
Interesting Henu22 mentions his serial number as above; the Cresent 1953 listed on Steel Bikes had 3263305 (I believe) and the one i have, also told it was a 1953, has 3095820. All have no Letter prefix.
A couple of years ago I send an email to Crescent and asked that if they have the knowledge or if they knew someone who has about those serial numbers but never received any answer.
As styggno1 said that first number probably indicates the year, maybe next two could be month (just guessing as many other products are marked like that but I have no idea if this was the method already in the 50's) but then next two could not be date anymore because these numbers don't make any sense then. I also don't know how many cycles they produced in a year back then but I could guess it would be less than these days so the order number should be quite small if there is one. I could be totally wrong so someone smarter can freely correct these.
06-10-21, 07:15 AM
#35
Steel is real
Thread Starter
Join Date: May 2016
Location: Stockholm, Sweden
Posts: 978
Bikes: A lot - accumulated over +30 years
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Liked 647 Times
in
201 Posts
[QUOTE=henu22;22095735]
A couple of years ago I send an email to Crescent and asked that if they have the knowledge or if they knew someone who has about those serial numbers but never received any answer.
As styggno1 said that first number probably indicates the year, maybe next two could be month (just guessing as many other products are marked like that but I have no idea if this was the method already in the 50's) but then next two could not be date anymore because these numbers don't make any sense then. I also don't know how many cycles they produced in a year back then but I could guess it would be less than these days so the order number should be quite small if there is one. I could be totally wrong so someone smarter can freely correct these.
Sorry - but I did not say the first number probably indicates the year as you write above. What I did write was - "if it has this format (pic below (showing a serial starting with a capital "N")) the first number gives the year of manufacture. In this case it is 1956.
The serials with a format not starting with a "N" - I do not believe start with the year.
Originally Posted by madscrambler
A couple of years ago I send an email to Crescent and asked that if they have the knowledge or if they knew someone who has about those serial numbers but never received any answer.
As styggno1 said that first number probably indicates the year, maybe next two could be month (just guessing as many other products are marked like that but I have no idea if this was the method already in the 50's) but then next two could not be date anymore because these numbers don't make any sense then. I also don't know how many cycles they produced in a year back then but I could guess it would be less than these days so the order number should be quite small if there is one. I could be totally wrong so someone smarter can freely correct these.
The serials with a format not starting with a "N" - I do not believe start with the year.
06-10-21, 07:27 AM
#36
Junior Member
Join Date: Jun 2021
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times
in
3 Posts
[QUOTE=styggno1;22095974]
Sorry - but I did not say the first number probably indicates the year as you write above. What I did write was - "if it has this format (pic below (showing a serial starting with a capital "N")) the first number gives the year of manufacture. In this case it is 1956.
The serials with a format not starting with a "N" - I do not believe start with the year.
Yes sorry, my mistake. No I have 10 posts so I’m able to send pictures here.
Originally Posted by henu22
Sorry - but I did not say the first number probably indicates the year as you write above. What I did write was - "if it has this format (pic below (showing a serial starting with a capital "N")) the first number gives the year of manufacture. In this case it is 1956.
The serials with a format not starting with a "N" - I do not believe start with the year.
Likes For henu22:
06-10-21, 07:33 AM
#37
Junior Member
Join Date: Jun 2021
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times
in
3 Posts

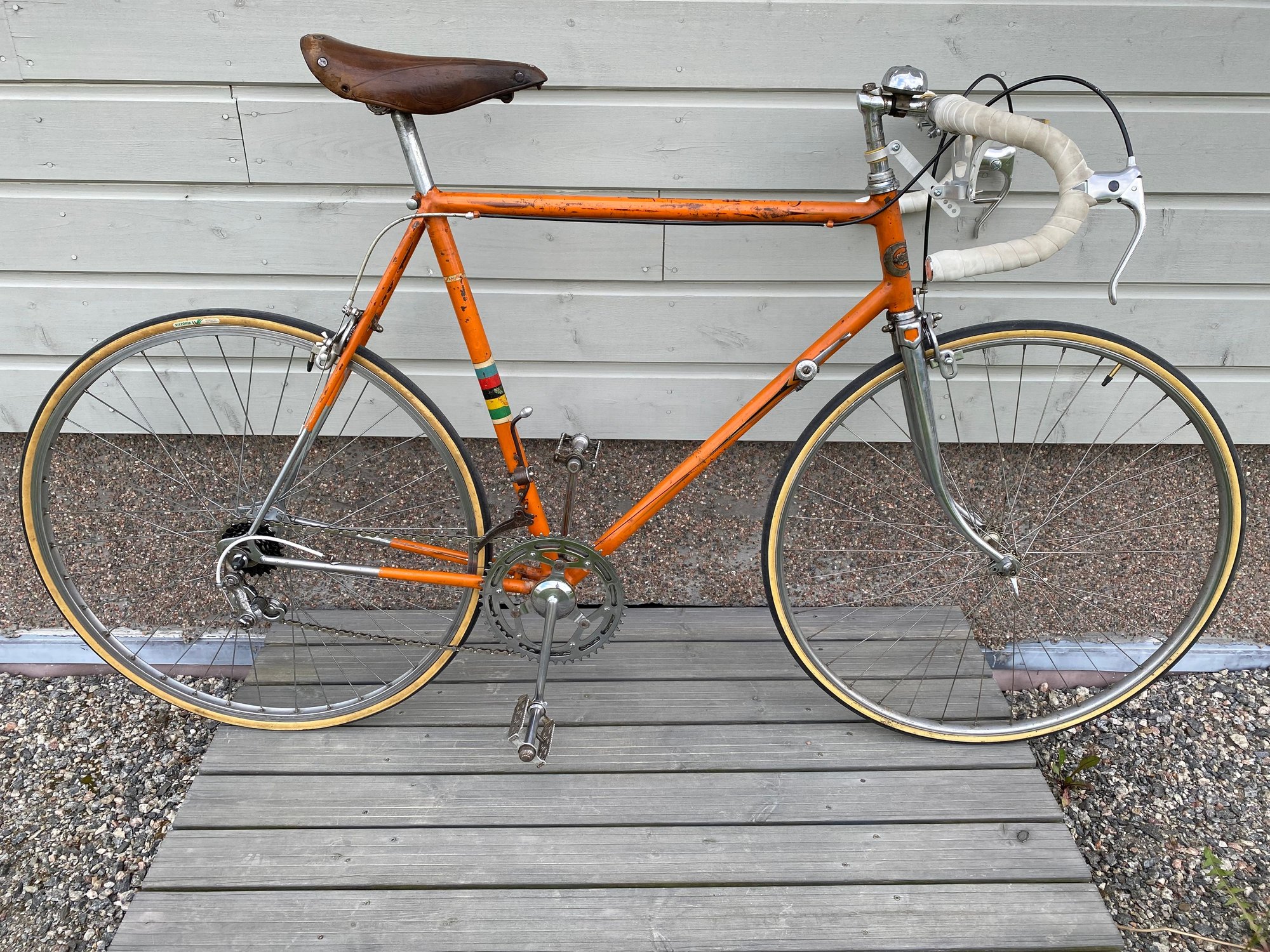

So here is my bike

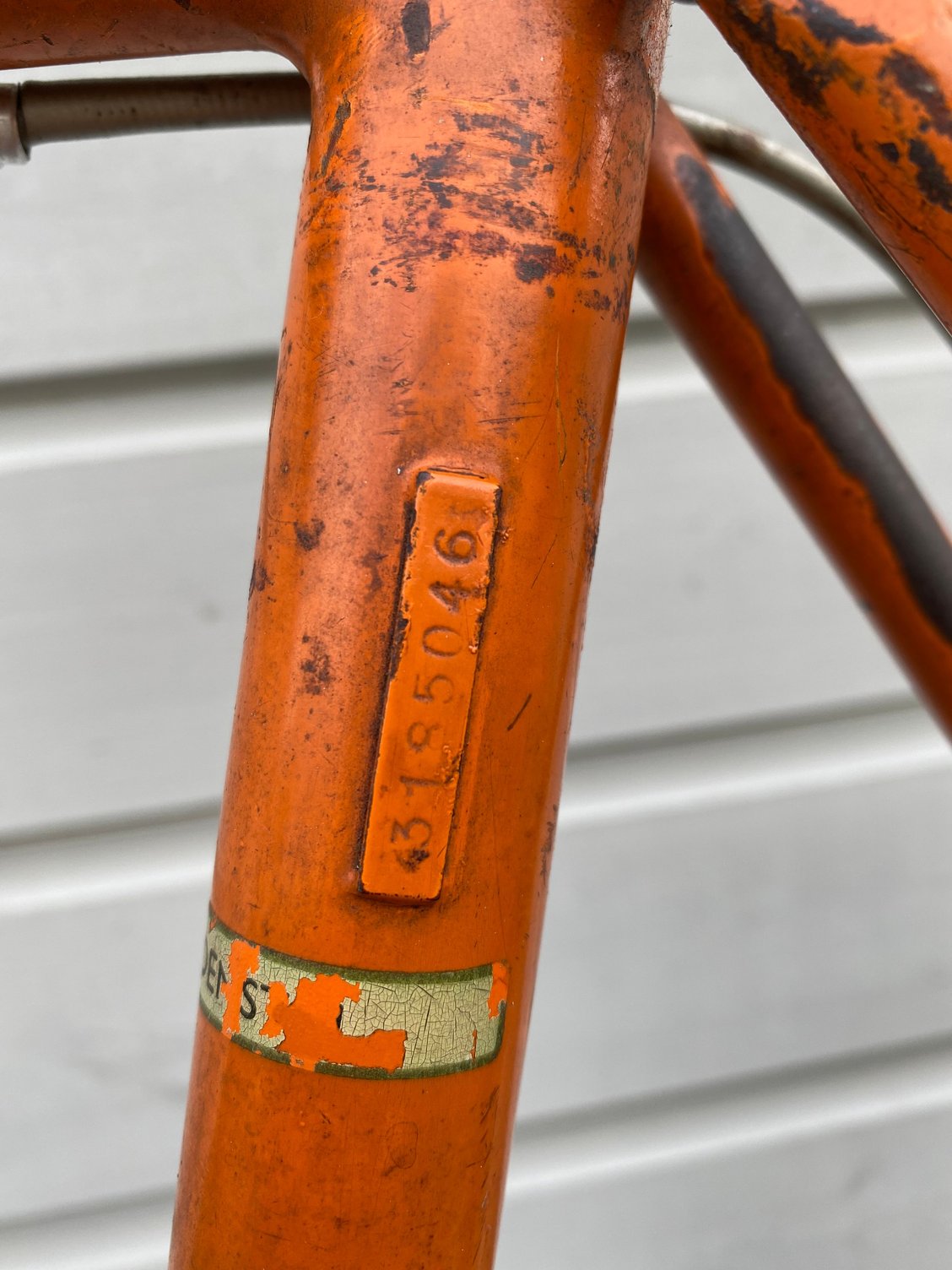

Serial number shown here

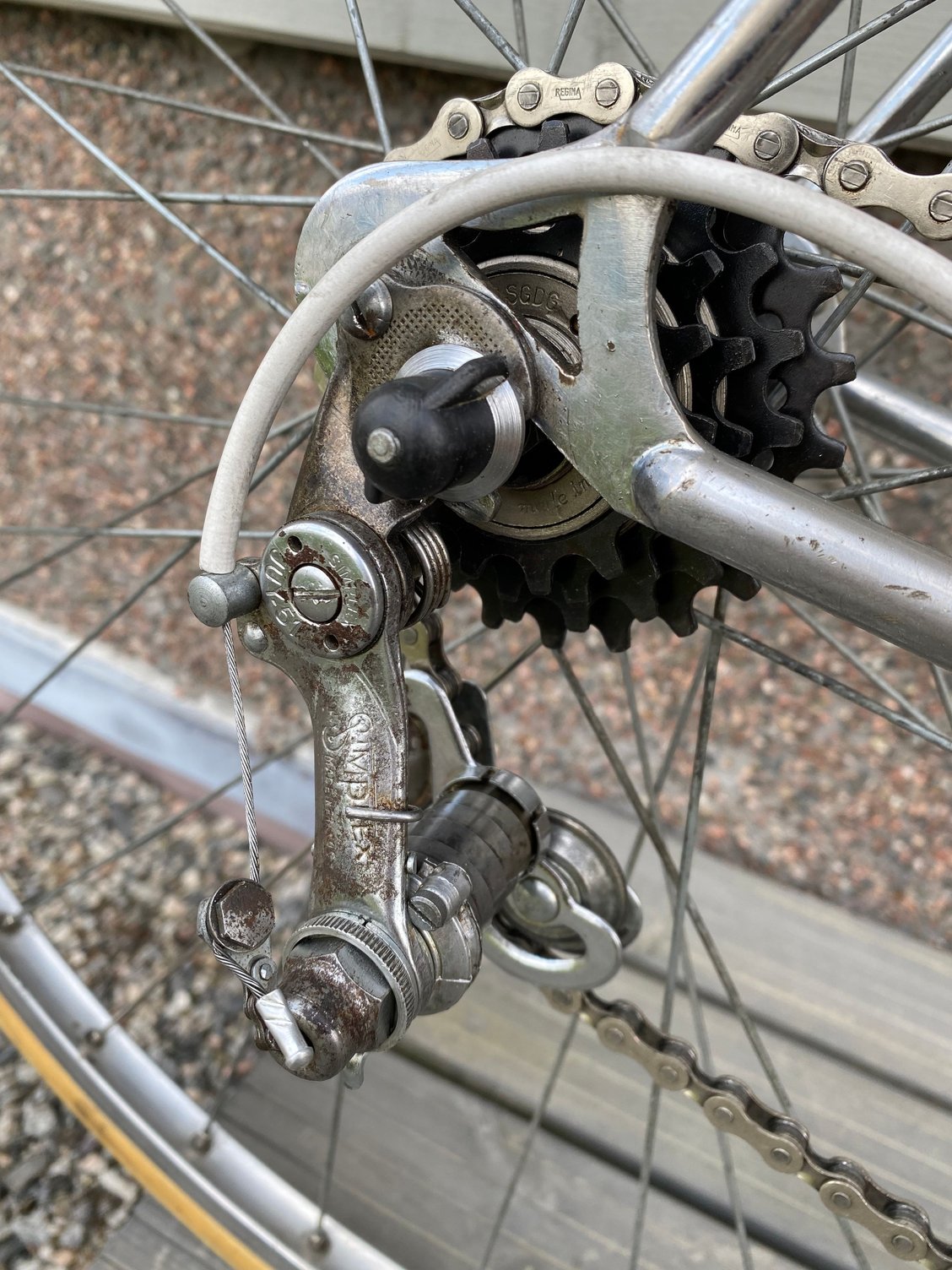

JUY-51 derailleur, not sure if it’s original or not. Depends maybe the manufacturing year of the bike

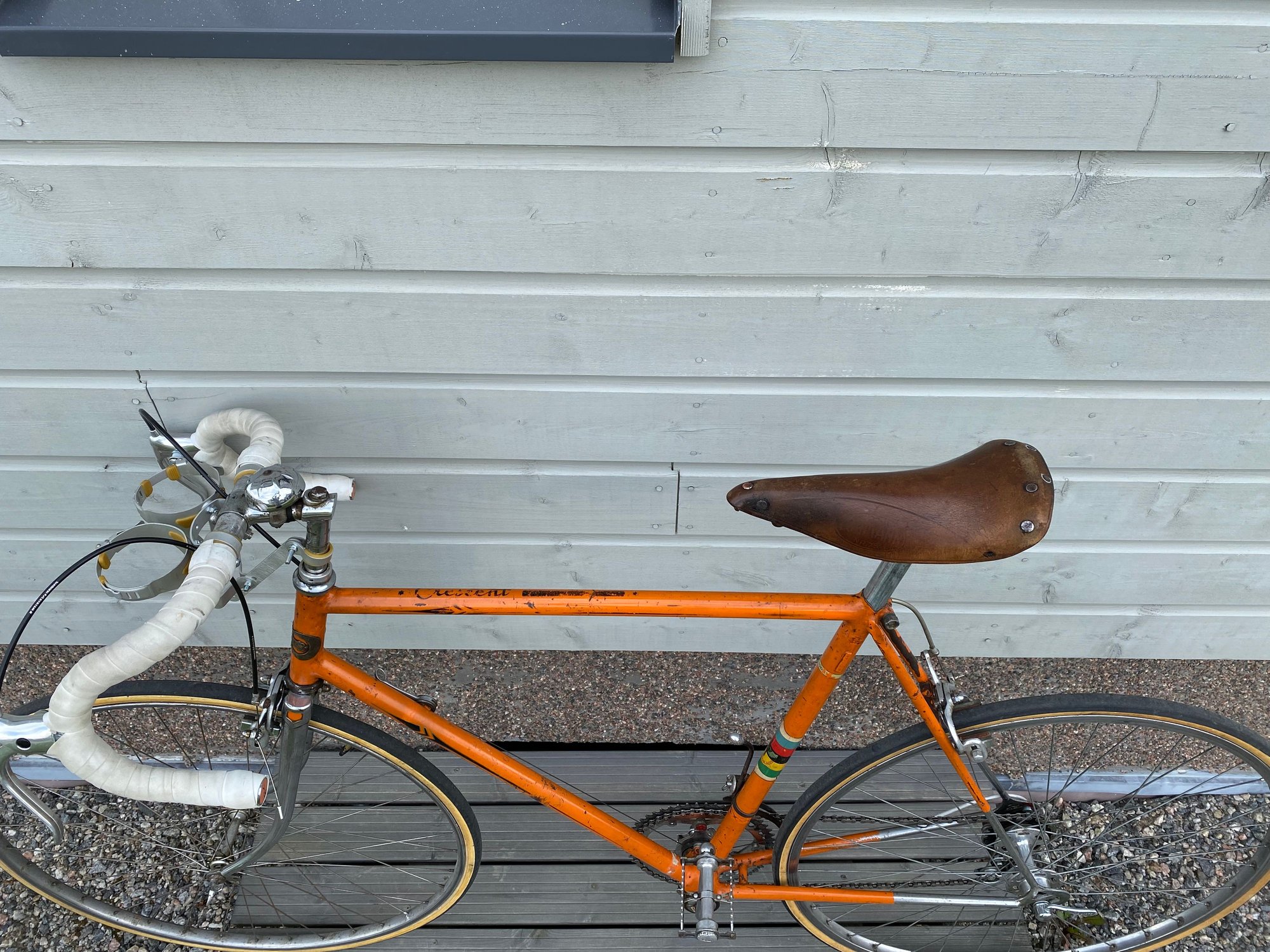

Decal showing here

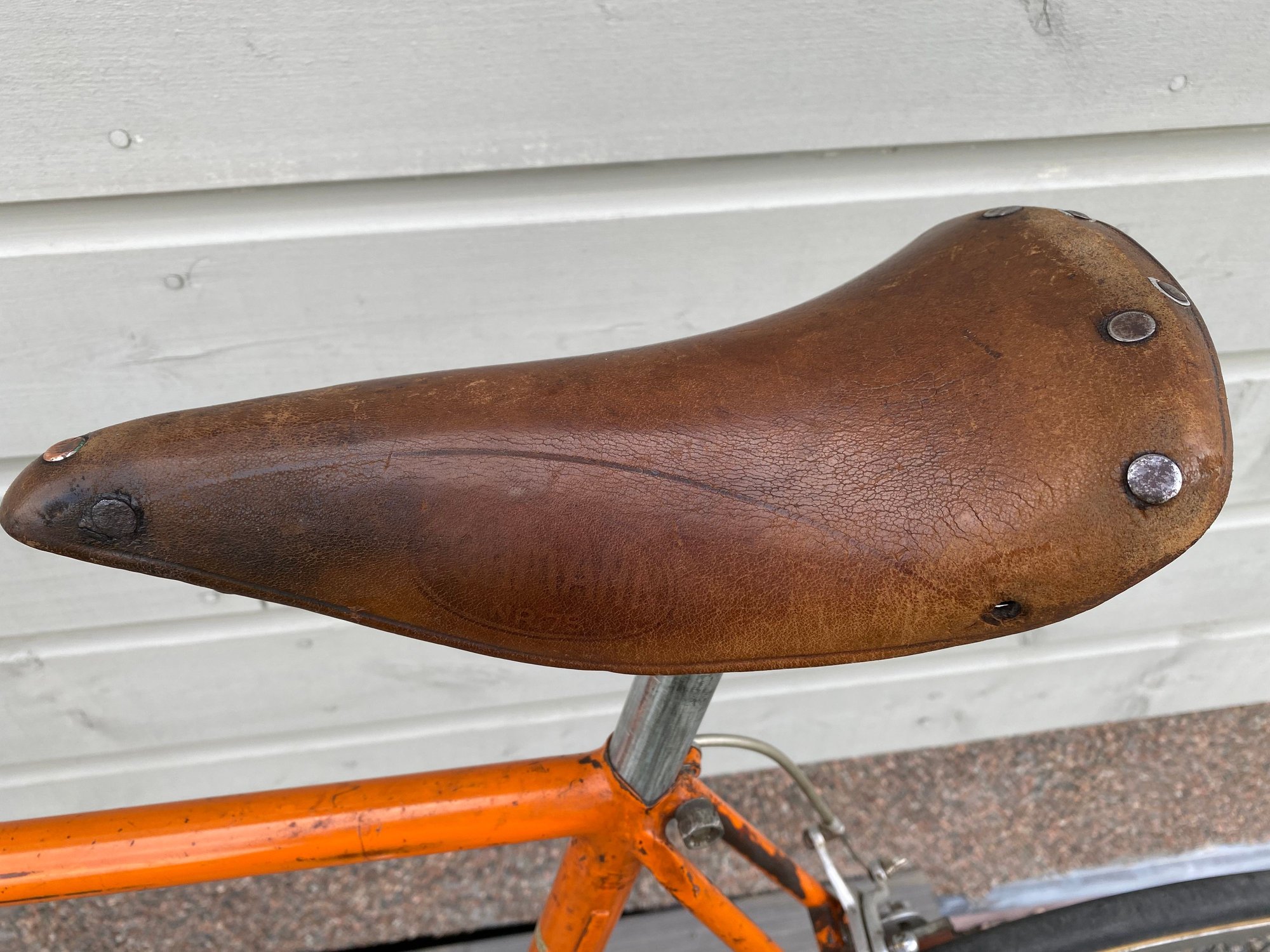

Lohmann saddle

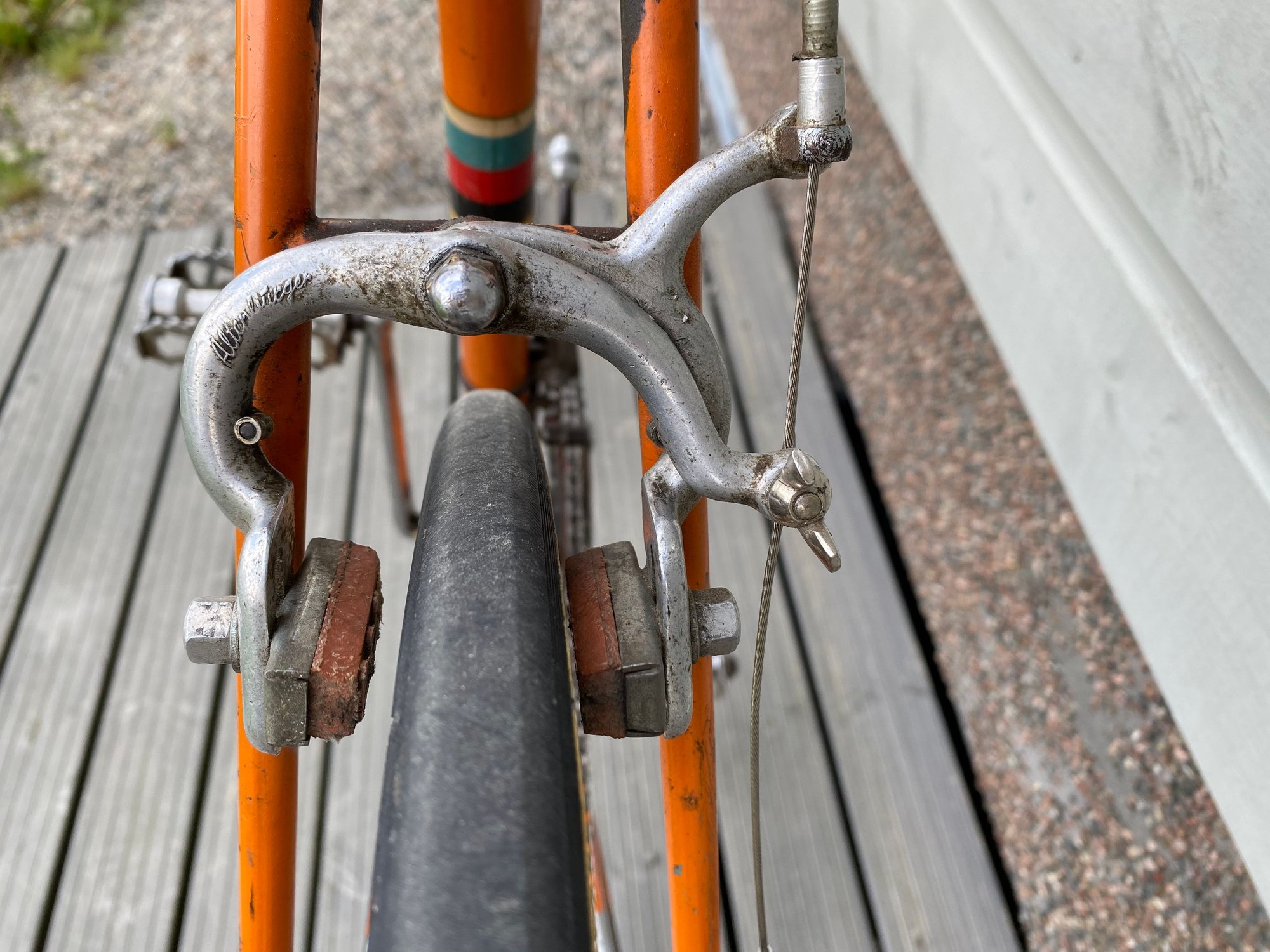

Brakes, levers are Weinmann and maybe from 80’s
