Is this chainring toast?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Is this chainring toast?

Old 04-28-21, 02:24 AM
  #1
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 6 Posts
Is this chainring toast?

Hi all. I recently bought a 54t chainring to replace my 52t ring. The seller described it as jn good condition, and on ebay it indeed looked good. Item listing here: https://www.ebay.es/itm/384031005089

However! With it installed on the bike it's been a nightmare. It won't shift easily at all. If I'm cycling on even a mild incline it either won't leave the big ring, or it will have serious chain suck and get the chain very tangled. Pic of the carnage:

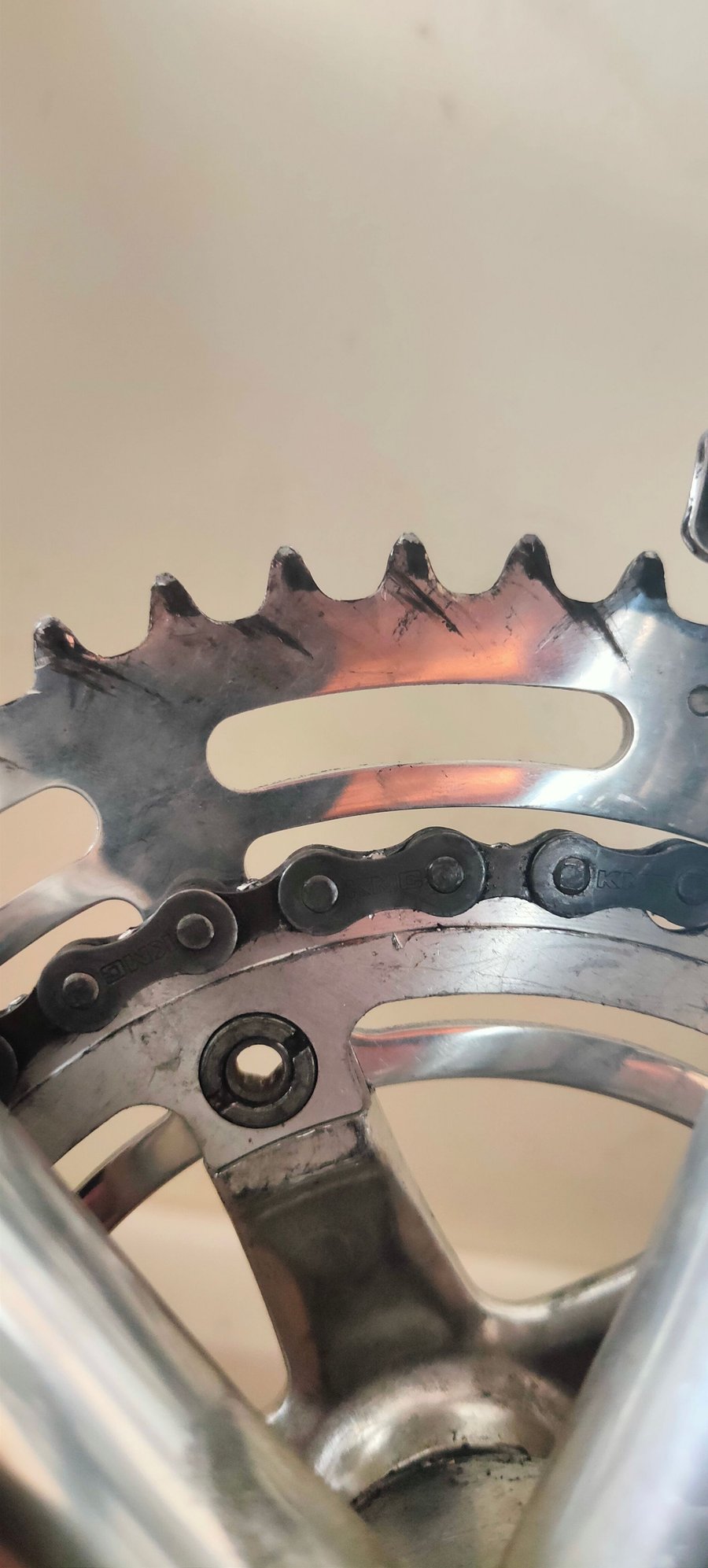

I've adjusted the derailleur to no end. Taking a look at the teeth in person they actually seem pretty sharp. Can I get a sanity check on this? Is this chainring toast? Closeup of teeth:


With the derailleur I've found the original manual and followed the instructions to the letter. Nothing out of the ordinary, position 2-3mm above teeth, make sure the outer cage is parallel to the big ring. I've fiddled with the limit screws to make shifting more aggressive, but it was fine on my old chainring. The derailleur can take the jump between bug and small, it's a difference of 18t, which is fine with this Shimano 600 FD6207. Anything I've missed?

Thanks

Last edited by Funktopus; 04-28-21 at 02:29 AM.
Funktopus is offline
Old 04-28-21, 03:42 AM
  #2
rustymetal
Senior Member

Join Date: Dec 2017
Posts: 67
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 2 Times in 2 Posts
If its slipping or jumping as you apply pressure, then its a chain/sprocket issue, but if its just derailing the chain, its an adjustment issue.
Those teeth don't look all that bad to me, or at least not bad enough to be jumping the chain. For the chain to get down on the BB like that its likely a derailleur adjustment issue.

Worn teeth generally start getting 'hooked' and the gaps start to oval out in one direction. They start to look like shark fins.
The chewed up tips on the teeth are from rough shifting or partial shifts where the chain didn't just jump to the next sprocket cleanly.
rustymetal is offline
Old 04-28-21, 04:14 AM
  #3
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 6 Posts
Thanks for the reply!
Originally Posted by rustymetal View Post
If its slipping or jumping as you apply pressure, then its a chain/sprocket issue
Everything's fine until I try to shift up front.
Originally Posted by rustymetal View Post
but if its just derailing the chain, its an adjustment issue.
If I'm cycling on a flat or downhill it will shift relatively well up front, but if I try and shift on a slight incline it will either stay put until I'm flat again or throw it off the rings.
Originally Posted by rustymetal View Post
Those teeth don't look all that bad to me, or at least not bad enough to be jumping the chain. For the chain to get down on the BB like that its likely a derailleur adjustment issue.
Not sure what else I can do for the derailleur. Had it set up with my old chainring fine. It shifts great in the stand, but nearly kills me in traffic. Are you thinking it's more likely derailleur angle or limit screws?
Funktopus is offline
Old 04-28-21, 05:34 AM
  #4
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,576
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 548 Times in 345 Posts
One thing to check is whether the teeth are slightly thicker than the space between the side-plates of the chain. If they are it can give the symptoms you describe.

This can happen if a new chainring is used with a worn chain; the teeth do not wear as they would have with a chain that was new and wore in concert with the chainring; instead the driving face of the teeth will creep sideways, resulting in a slightly thicker tooth. It's easy to tell with a fingertip, feel for a lip or upset edge on the leading face of the teeth. It's also easy to fix, a few minutes with a smooth or dead-smooth file.

It can also happen if you try to use a 1/8" wide ring with a chain meant for 3/32", though the chain-suck in that situation is almost always so bad that the combination is essentially unusable.
oneclick is offline
Old 04-28-21, 05:46 AM
  #5
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 6 Posts
Originally Posted by oneclick View Post
One thing to check is whether the teeth are slightly thicker than the space between the side-plates of the chain. If they are it can give the symptoms you describe.

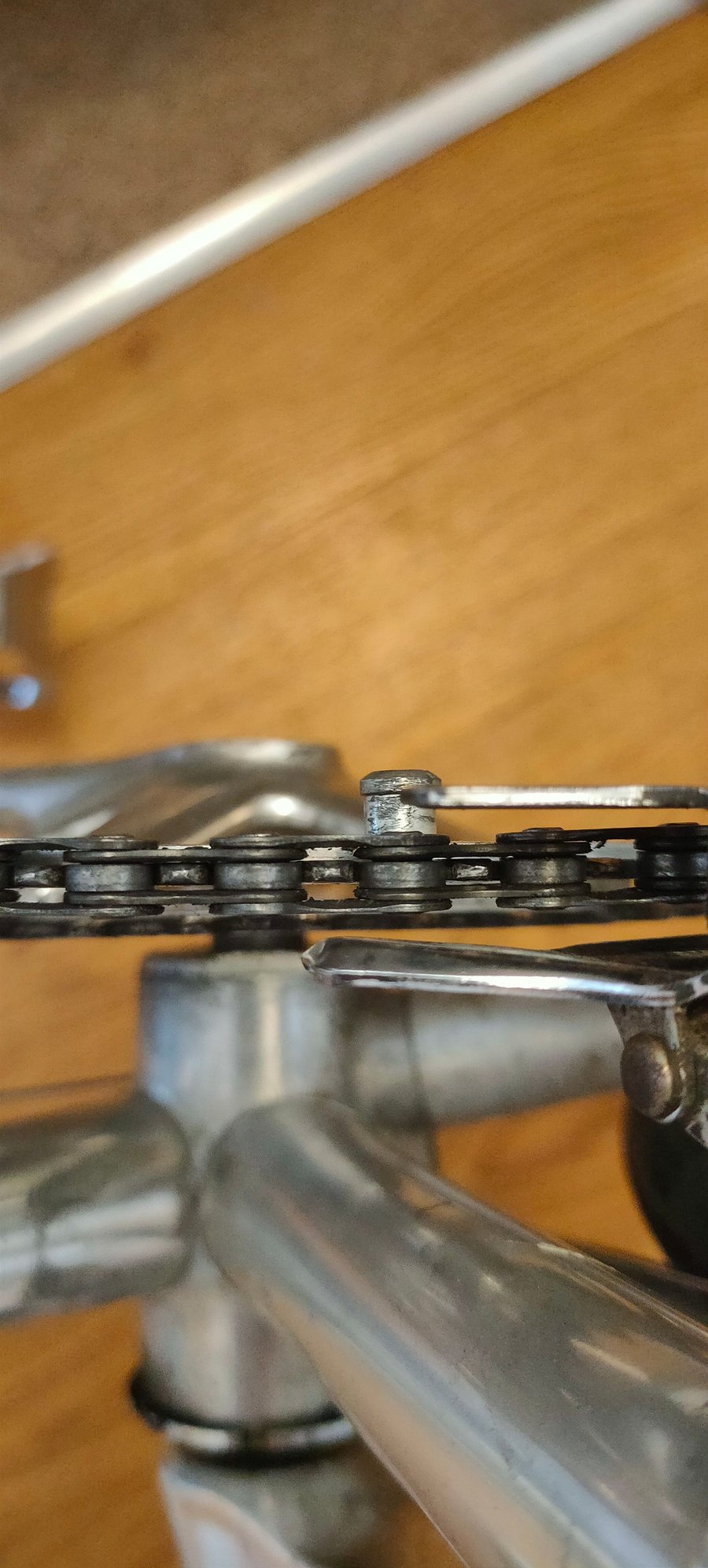

If I'm understanding you right, this looks ok:



The chain hasn't had a huge amount of wear, maybe a few hundred miles.

Looking at the derailleur again it might be ever so slightly askew. Will straighten it out.
Funktopus is offline
Old 04-28-21, 06:05 AM
  #6
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 11,778

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Liked 442 Times in 269 Posts
I don't know if this matters or not to your situation, but the pin (shown at the 10 o'clock position in your first picture) should be placed behind the crank arm. It prevents the chain in such conditions from becoming wedged between the chainring and the crank arm.

The pin also helps facilitate re-engaging the chain back onto the chainring if your FD pushes the chain outward too much. Usually when this happens a slight adjustment on the shifter will place the chain back on the chainring.

Have you tried moving the FD higher on the seat tube?
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA Coast the rest of the year!
https://hosting.photobucket.com/albums/p71/pastorbobnlnh/Bike%20Scenes/.highres/286ca3ae-7c02-418d-951a-43ca7af61593_zps50b30b35.jpg?width=590&height=370&fit=bounds
Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com


pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 04-28-21, 06:11 AM
  #7
balto charlie
Senior Member

balto charlie's Avatar

Join Date: Aug 2004
Location: Baltimore/DC
Posts: 2,864
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 124 Times in 77 Posts
Chainring looks good but backwards as pastorbobnlnh stated.
balto charlie is offline
Likes For balto charlie:
Old 04-28-21, 07:24 AM
  #8
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 11,778

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Liked 442 Times in 269 Posts
Originally Posted by balto charlie View Post
Chainring looks good but backwards as pastorbobnlnh stated.
Not "backwards." The pin does need to face outward but is positioned behind the crank arm.
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA Coast the rest of the year!
https://hosting.photobucket.com/albums/p71/pastorbobnlnh/Bike%20Scenes/.highres/286ca3ae-7c02-418d-951a-43ca7af61593_zps50b30b35.jpg?width=590&height=370&fit=bounds
Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com


pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 04-28-21, 07:29 AM
  #9
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,623

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1571 Post(s)
Liked 1,837 Times in 1,054 Posts
Originally Posted by pastorbobnlnh View Post
Have you tried moving the FD higher on the seat tube?
Agreed. That (Nevar or Stronglight?) chainring has a fairly aggressive tooth which is probably hanging up on the chain pins a bit too aggressively.

Bring the FD up to see if you can ease off on the angle that the chain gets passed onto the large ring at.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 04-28-21, 08:07 AM
  #10
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 512

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 150 Times in 95 Posts
I might be wrong, but in that last picture with chain on small ring, the extreme right seems to show chain not meshing with ring (?) I think I see a gap there. Or maybe it's just lifting up at that point so not wrapping around.
Bianchi84 is offline
Old 04-28-21, 08:15 AM
  #11
daverup
Senior Member

daverup's Avatar

Join Date: Jun 2019
Location: Michigan USA
Posts: 377

Bikes: 02 LeMond BA, 86 Centurion Ironman, 78 Schwinn Super LeTour 12.2, 83 Schwinn Le Tour, 76 Austro Daimler, 87 Puch Mistral, 89 Diamondback Axis XT, 94 Schwinn Crosscut, 2016 Rocky Mountain Blizzard, 1994 Rans Tailwind, Couple of early 80's Mixte's

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 203 Times in 127 Posts
A bigger ring than original should be accompanied by a new longer chain.
daverup is offline
Likes For daverup:
Old 04-28-21, 09:41 AM
  #12
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 2,192

Bikes: Ti, Mn Cr Ni Mo Nb, Al, C

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 941 Post(s)
Liked 519 Times in 345 Posts
The first thing you need to do is check to make sure your chain is the correct length. Although 52 to 54 doesn't sound like much, we don't know if your chain was borderline too short to begin with.
jadocs is offline
Old 04-28-21, 09:53 AM
  #13
Ironfish653
Dirty Heathen

Join Date: Oct 2015
Location: MC-778, 6250 fsw
Posts: 1,580

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 589 Post(s)
Liked 381 Times in 237 Posts
Originally Posted by cudak888 View Post
Agreed. That (Nevar or Stronglight?) chainring has a fairly aggressive tooth which is probably hanging up on the chain pins a bit too aggressively.

Bring the FD up to see if you can ease off on the angle that the chain gets passed onto the large ring at.

-Kurt
+1

The 53t SR chainring on my '76 is like this. I have to have the FD cage about 8mm above the teeth to make it work correctly.
It's been commented on, and I've adjusted it down, but then it doesn't want to pick up the chain.
Ironfish653 is offline
Likes For Ironfish653:
Old 04-28-21, 12:48 PM
  #14
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,211

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 1143 Post(s)
Liked 607 Times in 429 Posts
Check carefully for any bent chain links (viewed from above) or stiff link pivots (viewed from the side), either of which can cause slippage or downright unshipping of the chain off the sprocket.

The chainring teeth look about like new to me, I would not question their wear life.
But do check for any possibly bent tooth/teeth!
dddd is offline
Likes For dddd:
Old 04-28-21, 01:07 PM
  #15
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 512

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 150 Times in 95 Posts
Originally Posted by dddd View Post
Check carefully for any bent chain links (viewed from above) or stiff link pivots (viewed from the side), either of which can cause slippage or downright unshipping of the chain off the sprocket.

The chainring teeth look about like new to me, I would not question their wear life.
But do check for any possibly bent tooth/teeth!
Good point about stiff links; I know I've overlooked this myself sometimes. My best check is pedal backwards (off bike and observing). Stiff links will be obvious trying to get through RD.
Bianchi84 is offline
Old 04-28-21, 01:23 PM
  #16
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,523

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 784 Post(s)
Liked 590 Times in 439 Posts
re: stiff links
particularly if you had to cut the chain vs using a quick link. i've had this happen when i pressed the chain back together and, later, had to back the connecting pin off a bit
thook is offline
Old 04-29-21, 11:33 AM
  #17
balto charlie
Senior Member

balto charlie's Avatar

Join Date: Aug 2004
Location: Baltimore/DC
Posts: 2,864
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 148 Post(s)
Liked 124 Times in 77 Posts
Originally Posted by pastorbobnlnh View Post
Not "backwards." The pin does need to face outward but is positioned behind the crank arm.
Yes you're right, my bad. I feel stoopid
balto charlie is offline
Old 04-29-21, 01:00 PM
  #18
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 21,206

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3228 Post(s)
Liked 1,373 Times in 926 Posts
I actually wonder if lowering the FD and limiting its outward travel might help. When the FD is too far away from the chainring, the extra distance allows the chain to snake over instead of shifting, sort of like an RD with a large chain gap.

I set up my FDs so that when the outer cage plate is directly over the chainring teeth (chain needs to be on the smaller ring or absent), the gap is as close to 1mm as I can get it, and the cage can only move far enough out to keep the chain from rubbing when in the smallest cog. This seems to help it shift faster when I want it to.

One other thing: when you're trying to shift to the small ring, which cog are you in? If you are in the smallest cogs, the chain angle is working against you -- it's better to have shifted to somewhere in the middle of the cassette first. Although, being in the largest cog also increases the risk that the FD will overshoot the small ring and dump the chain onto the bottom bracket shell. So it's a balance.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 04-29-21 at 01:05 PM.
ThermionicScott is online now
Old 04-29-21, 01:17 PM
  #19
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 6 Posts
Thanks all, appreciate all the advice. Just had a chance to try some of it out, unfortunately not quite there... raising the FD seemed to fix the issue, until the chain started falling off both the large and small ring when shifting. This appears to be an issue that I should be able to solve with limiting screws, but both screws are already 100% tightened - and the DR is still travelling too far. Seems the only thing that can fix that is a different derailleur? In an attempt to stop that symptom I tried lowering the FD slightly, which. didn't fix the problem but did bring back the original issue of the chain not being able to shift under load. When I moved the FD back up the chain still wouldn't shift under load, so not sure what's happened there...

Originally Posted by pastorbobnlnh View Post
I don't know if this matters or not to your situation, but the pin (shown at the 10 o'clock position in your first picture) should be placed behind the crank arm. It prevents the chain in such conditions from becoming wedged between the chainring and the crank arm.

The pin also helps facilitate re-engaging the chain back onto the chainring if your FD pushes the chain outward too much. Usually when this happens a slight adjustment on the shifter will place the chain back on the chainring.

Have you tried moving the FD higher on the seat tube?
Thanks for explaining that - I had a feeling the pin was for catching the chain, didn't realise it was to specifically stop it from burrowing in beneath the crank.

Originally Posted by Ironfish653 View Post
+1

The 53t SR chainring on my '76 is like this. I have to have the FD cage about 8mm above the teeth to make it work correctly.
It's been commented on, and I've adjusted it down, but then it doesn't want to pick up the chain.
Originally Posted by cudak888 View Post
Agreed. That (Nevar or Stronglight?) chainring has a fairly aggressive tooth which is probably hanging up on the chain pins a bit too aggressively.

Bring the FD up to see if you can ease off on the angle that the chain gets passed onto the large ring at.

-Kurt
I'll try this again tomorrow - it did seem this improved the situation for a brief while. It's a Stronglight btw!

Originally Posted by dddd View Post
Check carefully for any bent chain links (viewed from above) or stiff link pivots (viewed from the side), either of which can cause slippage or downright unshipping of the chain off the sprocket.

The chainring teeth look about like new to me, I would not question their wear life.
But do check for any possibly bent tooth/teeth!
Thanks - I've checked for bent links, they all seem above board. Would have been an easy fix!

Originally Posted by ThermionicScott View Post
I actually wonder if lowering the FD and limiting its outward travel might help. When the FD is too far away from the chainring, the extra distance allows the chain to snake over instead of shifting, sort of like an RD with a large chain gap.

I set up my FDs so that when the outer cage plate is directly over the chainring teeth (chain needs to be on the smaller ring or absent), the gap is as close to 1mm as I can get it, and the cage can only move far enough out to keep the chain from rubbing when in the smallest cog. This seems to help it shift faster when I want it to.

One other thing: when you're trying to shift to the small ring, which cog are you in? If you are in the smallest cogs, the chain angle is working against you -- it's better to have shifted to somewhere in the middle of the cassette first. Although, being in the largest cog also increases the risk that the FD will overshoot the small ring and dump the chain onto the bottom bracket shell. So it's a balance.
I'll try this one tomorrow too. I did have the cage 2mm above the teeth, I'll bring it down to 1mm and see what happens. I can't limit the FD travel any further than I already am unfortunately though - something that's always bothered me about this derailleur. Might start looking for another.
Funktopus is offline
Old 04-30-21, 05:45 AM
  #20
Funktopus
Senior Member
Thread Starter

Join Date: May 2020
Posts: 125
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 10 Times in 6 Posts
Made a few changes this morning that seem to have fixed it.

1. Swapped the Shimano 600's limiting screws with some from a very battered old Sachs Huret FD I stripped from a Raleigh Eclipse. The difference is huge, the other limiting screws must have ground away from being tightened while the derailleur was at the wrong extreme. Can now get it exactly where it needs to be, which fixes the problem of it throwing off the chain.

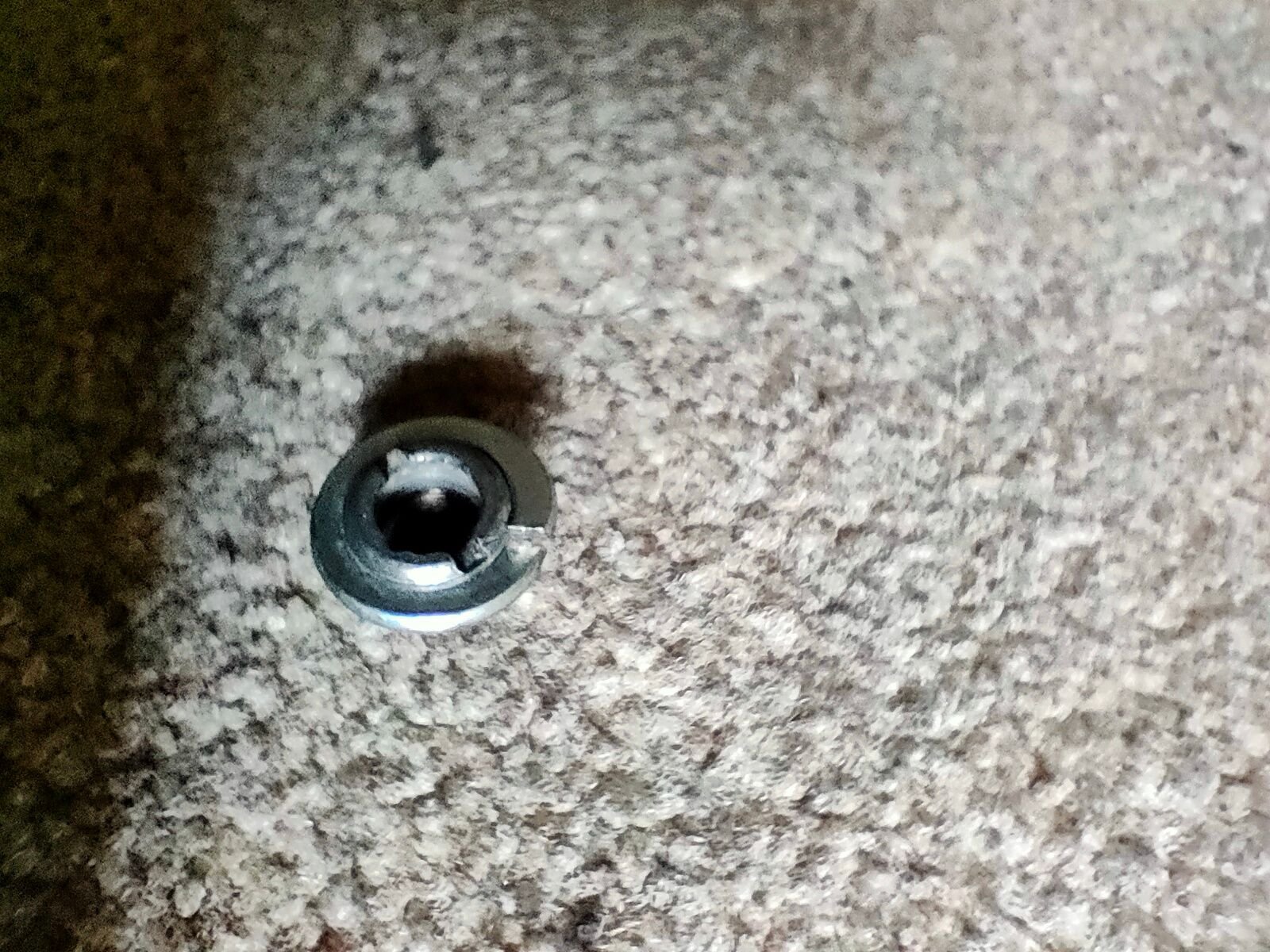

2. Removed the chainring to put the pin behind the crank as Pastor Bob suggested. In the process of doing this found out one one the nuts had a strange washer around it that none of the others did. Washer was fused on! So had been there for some time:


As well as fused, the washer was split and warped, so potentially preventing a strong, solid attachment of the big ring. Replaced this with a nut from a crankset I'm not currently using.

Rode with the FD 8mm above the teeth and all was (mostly) well. Out of curiosity I put it back down to 2mm and the sucker once again wouldn't shift. Back up to ~6 or 7mm and we have achieved perfection.

Thanks all!
Funktopus is offline
Old 04-30-21, 07:16 AM
  #21
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 774

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 275 Times in 150 Posts
Shark fins sighted.

Ehh...some of those teeth are definitely shark fin shaped. I hope the person you acquired it from gave you it for next to nothing.
The FD might be struggling because the links are being hooked to the top of the fins in a manner a straighter, less curved tooth would not constrain the chain being lifted by normal FD action

Last edited by Johno59; 04-30-21 at 07:23 AM.
Johno59 is offline
Old 04-30-21, 12:52 PM
  #22
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,576
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 548 Times in 345 Posts
Originally Posted by Funktopus View Post
As well as fused, the washer was split and warped, so potentially preventing a strong, solid attachment of the big ring. Replaced this with a nut from a crankset I'm not currently using.
That washer isn't supposed to be there. It's split and warped on purpose, that is a so-called "lock washer".

It might have been put there if the person doing the putting did not have a tool to hold the nut from rotating.
oneclick is offline
Old 04-30-21, 10:54 PM
  #23
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 774

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 275 Times in 150 Posts
The chain-ring seat face on the individual spline arm determines where the chain-ring aligns. The fasteners are located on the outside. They would have to be stuck between the flat mounting surface on the spline and the chain-ring to put the chain-ring out of whack.

Last edited by Johno59; 04-30-21 at 11:08 PM.
Johno59 is offline
Old 04-30-21, 11:29 PM
  #24
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 774

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 275 Times in 150 Posts
The moral of the tale is ten cents worth of oil applied every week (the manufacturers recommend oiling daily!) reduces many of these problems. Shark fins indicate a worn chain eating a perfectly good chain-ring - a ten dollar chain eating a fifty dollar and up chain-ring. Some of the chain oil bath bicycles I've worked on have chains and crank-sets that are a hundred years old. They look brand new. The epicyclic ones have 150 ball-bearing in the 'BB' to lubricate as well - they also look new. Certainly they are made of much stronger materials ( the chains are impossible to break with a modern chain breaking tool) and the split link is literally bolted together but without constant lubricating oil they would not last much longer than modern components - leave alone a hundred years.

Last edited by Johno59; 05-01-21 at 12:33 AM.
Johno59 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
